Samsung SyncMaster 2343NW Manuel utilisateur

LCD MONITOR

quick start guide

2343NW 2343NWX

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

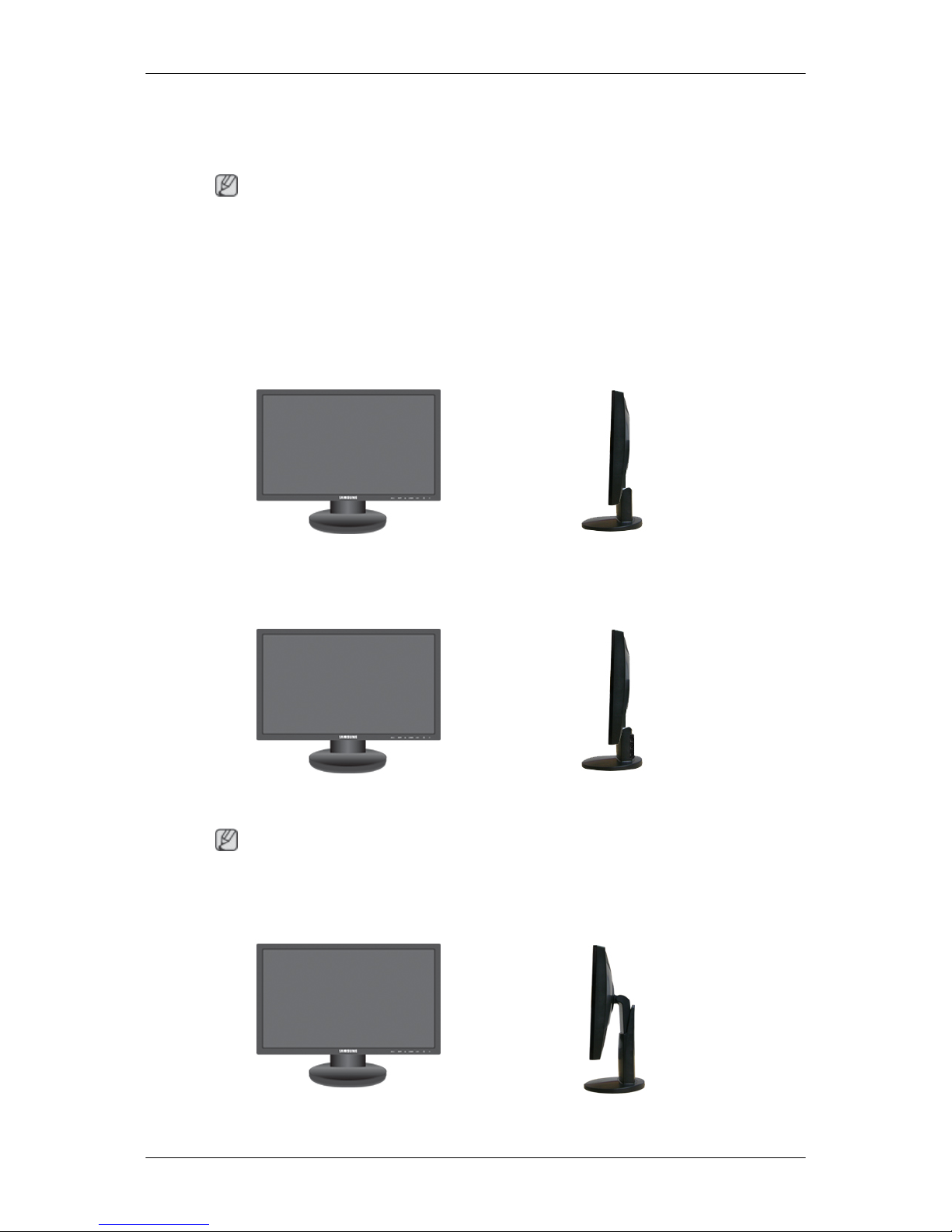

Unpacking

Type 1

Monitor & Simple stand

Type 2

Monitor & USB Simple stand

Note

MagicRotation program can not be provided as Simple Stand does not support Pivot function.

Type3

Monitor & HAS stand

Type4

Monitor & USB HAS stand

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord

Others

Cleaning Cloth Cable holding ring (Simple

stand)

Sold separately

USB Cable

Note

Cleaning Cloth is only provided for highly polished black products as a product feature.

Introduction

Your Monitor

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before

reaching the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Front

MENU button [MENU/ ]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Customized Key[ ]

Introduction

You can customize key assignment for the Custom button according to

your preferences.

Note

You can configure the customized key for a required function via Setup >

Customized Key.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

>> Click here to see an animation clip

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

Enter button [ ]

Activates a highlighted menu item.

AUTO button

Use this button for auto adjustment.

>> Click here to see an animation clip

Power button [ ]

Use this button for turning the product on and off.

Power Indicator

This light is lit when operating normally, and blinks once when your ad-

justments are saved.

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your monitor OFF

when it is not needed or when leaving it unattended for long periods.

Rear

Note

The configuration at the back of the product may vary from product to product.

Introduction

Simple Stand HAS Stand

POWER port

Connect the power cord for your monitor to the POWER port on the back of

the product.

RGB IN port

Connect the D-sub cable to the 15-pin, RGB IN port on the back of your mon-

itor.

Kensington Lock

The Kensington lock is a device used to physically fix the system when using

it in a public place. (The locking device has to be purchased separately.) For

using a locking device, contact where you purchase it.

Note

The location of the Kensington Lock may be different depending on its model.

Using the Anti-Theft Kensington Lock

1. Insert the locking device into the Kensington slot on the Monitor and

turn it in the locking direction .

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

DOWN(USB downstream port)

Connect the DOWN port of the USB monitor and a USB device with the

USB cable.

UP(USB upstrem port)

Connect the UP port of the monitor and the USB port of the computer

with the USB cable.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Cable holding ring

• Fix the cables using the holding ring, as shown in the figure.

Introduction

Connections

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the RGB IN(Analog) connector on the video card.

•Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

Connected to a Macintosh.

• Connect the monitor to the Macintosh computer using the D-sub connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.

Connecting USB (Option)

Note

You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk

drive by connecting them to the DOWN port of the monitor without connecting them to

the PC.

The USB port of the monitor supports High-Speed Certified USB 2.0.

High speed Full speed Low speed

Data Rate 480 Mbps 12 Mbps 1.5 Mbps

Power Consump-

tion

2.5 W

(Max., each port)

2.5 W

(Max., each port)

2.5 W

(Max., each port)

1. Connect the UP port of the monitor and the USB port of the computer with the USB

cable.

Note

To use DOWN port, you have to connect the UP (Upstream Cable) to the PC.

Make sure to use the USB cable supplied with this monitor to connect the monitor's

UP port and your computer's USB port.

2. Connect the DOWN port of the USB monitor and a USB device with the USB cable.

3. The use procedures are as the same as those for using an external device connecting

to the PC.

• You can connect and use a keyboard and mouse.

• You can play a file from a media device.

(Examples of media devices: MP3, digital camera, etc.)

•You can run, move, copy or delete the files on the storage device.

(Examples of storage devices: external memory, memory card, memory reader,

HDD-type MP3 player, etc.)

• You can use other USB devices that can be connected to a computer.

Note

When connecting a device to the DOWN port of the monitor, connect the device

using a cable appropriate to the device.

(For the purchase of the cable and external devices, ask the service center of the cor-

responding product.)

Connections

The company is not liable for problems or damages to an external device caused by

using an unauthorized cable for the connection.

Some products do not follow the USB standard, and it may cause a malfunction of the

device.

If the device malfunctions even if it is connected to the computer, contact the service

center of the device/computer.

Using the Stand

Monitor Assembly

Simple Stand

Monitor and Bottom

HAS Stand

Connections
