Samsung SyncMaster 2033SN Manuel utilisateur

LCD MONITOR

quick start guide

2033SN/2233SN

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Monitor

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

(Not available in all loca-

tions)

Cables

D-Sub Cable Power Cord

Others

Cleaning Cloth Cable holding ring

Note

Cleaning Cloth is only provided for highly polished black products as a product feature.

Your Monitor

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before

reaching the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Front

MENU button [MENU/ ]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

>> Click here to see an animation clip

Customized Key[ ]

You can customize key assignment for the Custom button according to

your preferences.

Introduction

Note

You can configure the customized key for a required function via Setup >

Customized Key.

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

Enter button [ ]

Activates a highlighted menu item.

AUTO button

Use this button for auto adjustment.

>> Click here to see an animation clip

Power button [ ]

Use this button for turning the product on and off.

Power Indicator

This light is lit when operating normally, and blinks once when your ad-

justments are saved.

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your monitor OFF

when it is not needed or when leaving it unattended for long periods.

Rear

Note

The configuration at the back of the product may vary from product to product.

POWER port

Connect the power cord for your monitor to the POWER port on the back of

the product.

RGB IN port

Connect the D-sub cable to the 15-pin, RGB IN port on the back of your mon-

itor.

Kensington Lock

Introduction

The Kensington lock is a device used to physically fix the system when using

it in a public place. (The locking device has to be purchased separately.) For

using a locking device, contact where you purchase it.

Note

The location of the Kensington Lock may be different depending on its model.

Using the Anti-Theft Kensington Lock

1. Insert the locking device into the Kensington slot on the Monitor and

turn it in the locking direction .

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

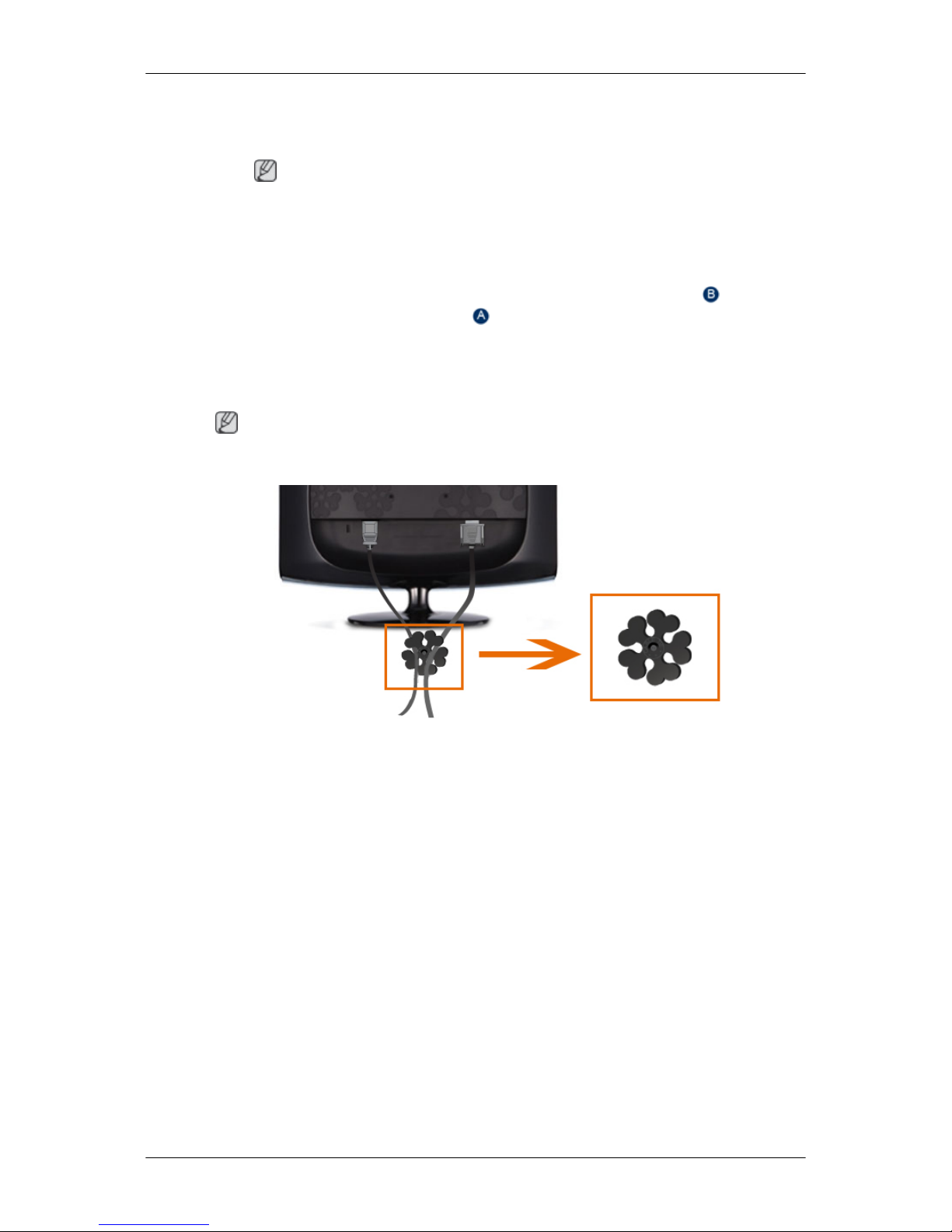

Cable holding ring

• Fix the cables using the holding ring, as shown in the figure.

Introduction

Connections

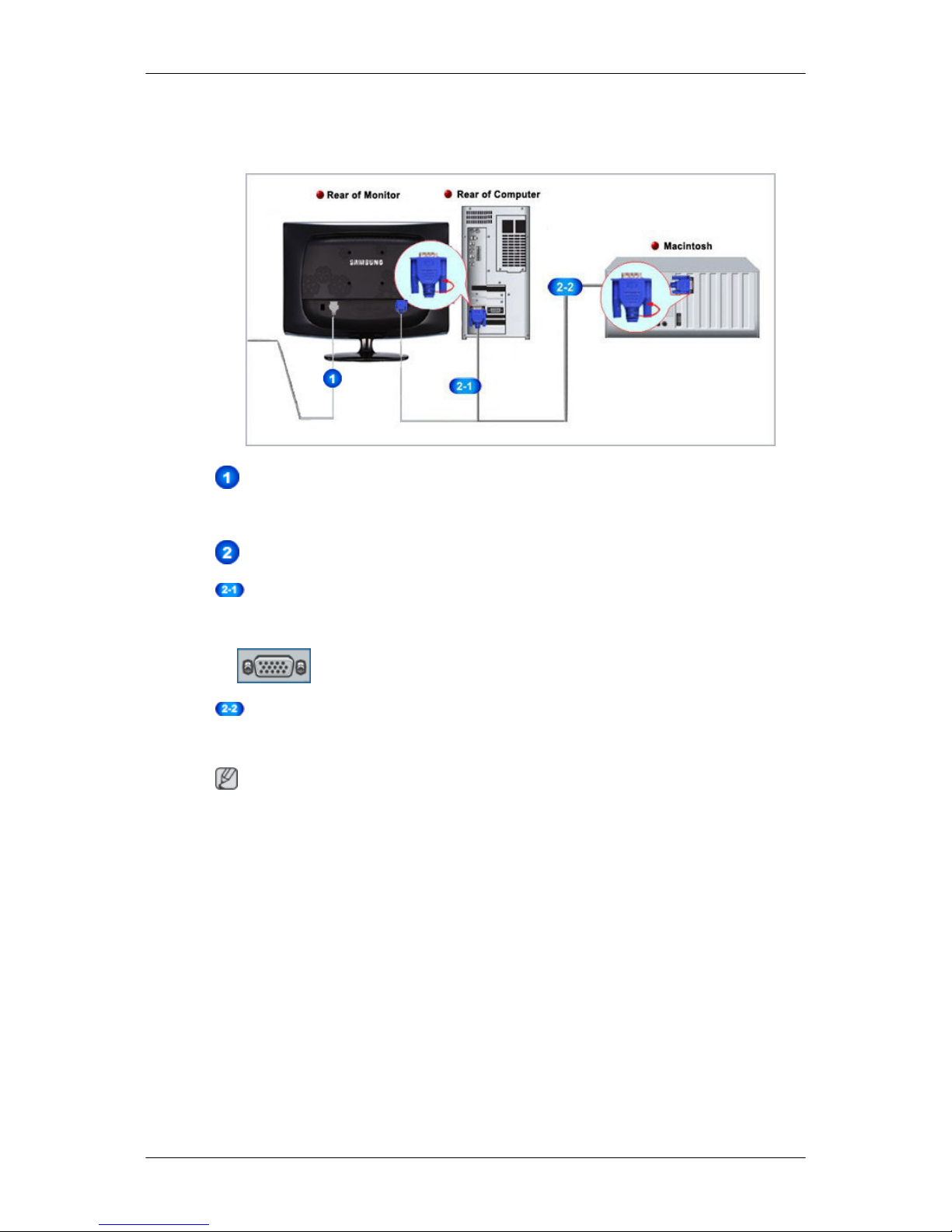

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

Connected to a Macintosh.

• Connect the monitor to the Macintosh computer using the D-sub connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.

Using the Stand

Folding the base

Note

You can tilt the monitor upwards at an angle of -1° to 20°(±1.0°).

Attaching a Base

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

A. Monitor

B. Mounting interface pad (Sold separately)

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the

screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure

it with four screws that came with the arm-type base, wall mount hanger or other base.

•Do not use screws longer than the standard dimension, as they may dam-

age the inside of the Monitor.

•For wall mounts that do not comply with VESA standard screw specifica-

tions, the length of the screws may differ depending on their specifications.

Connections

•Do not use screws that do not comply with the VESA standard screw

specifications.

Do not fasten the screws too tightly, as this may damage the product or

cause the product to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents.

•Samsung is not liable for product damage or personal injury when a non-

VESA or non-specified wall mount is used or the consumer fails to follow

the product installation instructions.

•To mount the monitor on a wall, you should purchase the wall mounting

kit that allows you to mount the monitor at least 10 cm away from the wall

surface.

•Contact the nearest Samsung Service Center for more information. Sam-

sung Electronics will not be responsible for damages caused by using a

base other than those specified.

• Please use Wall Mount according to the International standards.

Connections

Troubleshooting

{2033SN} Self-Test Feature Check

Note

Your monitor provides a self test feature that allows you to check whether your monitor is

functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or

damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer

and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video

controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the

screen goes blank although the power indicator LED is still on. The message may indicate

that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of

the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to

another room.

Remove all electronic devices such as radios, fans, clocks and telephones that are within 3

feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is a problem

with the computer or the video card, this can cause the monitor to become blank, have poor

coloring, become noisy, and video mode not supported, etc. In this case, first check the source

of the problem, and then contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1600

x 900 60 Hz" message comes up, disconnect the cable from the computer while the monitor

is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

In this case, check the computer for trouble.

Check List

Note

Before calling for assistance, check the information in this section to see if you can remedy

any problems yourself. If you do need assistance, please call the phone number on the In-

formation section or contact your dealer.

No images on the screen. I cannot turn on the monitor.

Q: Is the power cord connected properly?

A: Check the power cord connection and supply.

Q: Can you see "Check Signal Cable" on the screen?

A: (Connected using the D-sub cable)

Check the signal cable connection.

Q: If the power is on, reboot the computer to see the initial screen (the login screen), which

can be seen.

A: If the initial screen (the login screen) appears, boot the computer in the applicable mode

(the safe mode for Windows ME/XP/2000) and then change the frequency of the video

card.

(Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear, contact the Service Center or

your dealer.

Q: Can you see "Not Optimum Mode", "Recommended Mode 1600 x 900 60 Hz" on the

screen?

A: You can see this message when the signal from the video card exceeds the maximum

resolution and frequency that the monitor can handle properly.

A: Adjust the maximum resolution and frequency that the monitor can handle properly.

A: If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended

Mode1600 x 900 60 Hz" message is displayed. If the display exceeds 85 Hz, the display

Troubleshooting
