Samsung S27D850T Manuel utilisateur

User Manual

S27D850T

S32D850T

The color and the appearance may differ depending on

the product, and the specifications are subject to

change without prior notice to improve the performance.

BN46-00424A-02

Table Of Contents 2

Table Of Contents

BEFORE USING THE

PRODUCT

7 Copyright

7 Icons used in this manual

8 Cleaning

9 Securing the Installation Space

9 Precautions for storage

10 Safety Precautions

10 Symbols for safety precautions

11 Electricity and Safety

12 Installation and Safety

14 Operation

17 Correct posture to use the product

PREPARATIONS 18 Checking the Contents

18 Checking the Components

19 Parts

19 Frontal Button

21 Reverse Side

23 Installation

23 Attaching the Stand

24 Installing a Wall-mount Kit or Desktop Stand

26 Adjusting the Product Tilt and Height

26 Rotating the Monitor Screen

27 Anti-theft Lock

28 "MagicRotation Auto"

29 Rotating the monitor

CONNECTING AND USING

A SOURCE DEVICE

30 Before Connecting

30 Pre-connection Checkpoints

Table Of Contents

Table Of Contents 3

30 Connecting and Using a PC

30 Connection Using the DVI Cable

31 Connection Using the DVI-HDMI Cable

31 Connection Using the HDMI Cable

32 Connection Using the HDMI-DVI Cable

33 Connection Using the DP Cable

34 Connecting to Headphones or Speakers

35 Connecting the Power

36 Tidying Up the Connected Cables

37 Connecting the Product to a PC as a

USB HUB

37 Connecting a PC to the Product

37 Utilizing the Product as a USB HUB

39 Driver Installation

40 Setting Optimum Resolution

SCREEN SETUP 41 Brightness

41 Configuring Brightness

42 Contrast

42 Configuring Contrast

43 Sharpness

43 Configuring Sharpness

44 Game Mode

44 Configuring Game Mode

45 SAMSUNG MAGIC Bright

45 Configuring SAMSUNG MAGIC Bright

47 SAMSUNG MAGIC Upscale

47 Configuring SAMSUNG MAGIC Upscale

48 Color

48 Configuring Color

50 HDMI Black Level

50 Configuring the HDMI Black Level Settings

Table Of Contents

Table Of Contents 4

51 Response Time

51 Configuring the Response Time

SCREEN ADJUSTMENT 52 Image Size

52 Changing the Image Size

54 H-Position & V-Position

54 Configuring H-Position & V-Position

55 PIP/PBP

56 Configuring PIP/PBP Mode

57 Configuring Size

58 Configuring Position

59 Configuring Sound Source

60 Configuring Source

62 Configuring Image Size

66 Configuring Contrast

COORDINATING OSD 68 Language

68 Configuring Language

69 Display Time

69 Configuring Display Time

70 Transparency

70 Changing Transparency

SETUP AND RESET 71 ECO

71 Eco Light Sensor

74 Eco Saving

75 Eco Icon Display

76 USB Super Charging

76 Configuring USB Super Charging

78 DisplayPort Ver.

78 Configuring DisplayPort Ver.

79 PC/AV Mode

79 Configuring PC/AV Mode

Table Of Contents

Table Of Contents 5

81 Source Detection

81 Configuring Source Detection

82 Key Repeat Time

82 Configuring Key Repeat Time

83 Off Timer

83 Configuring Off Timer

84 Configuring Turn Off After

85 Reset All

85 Initializing Settings (Reset All)

INFORMATION MENU AND

OTHERS

86 Information

86 Displaying Information

87 Configuring Brightness, Contrast and

Volume from the Initial Screen

INSTALLING THE

SOFTWARE

88 Easy Setting Box

88 Installing the Software

89 Removing the Software

TROUBLESHOOTING

GUIDE

90 Requirements Before Contacting

Samsung Customer Service Center

90 Testing the Product

90 Checking the Resolution and Frequency

90 Check the following.

93 Q & A

SPECIFICATIONS 95 General

97 PowerSaver

98 Standard Signal Mode Table

APPENDIX 100 Contact SAMSUNG WORLD WIDE

Table Of Contents

Table Of Contents 6

106 Responsibility for the Pay Service (Cost

to Customers)

106 Not a product defect

106 A Product damage caused by customer's fault

106 Others

107 Correct Disposal

107 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

108 Terminology

INDEX

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

2014 Samsung Electronics

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

zAn administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product.

(i.e. where you have failed to read this user manual)

(b) you bring the unit to a repair center and there is no defect in the product.

(i.e. where you have failed to read this user manual)

zThe amount of such administration charge will be advised to you before any work or home visit

is carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Before Using the Product

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor with a clean, soft and dry cloth.

zDo not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

zDo not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product

Securing the Installation Space

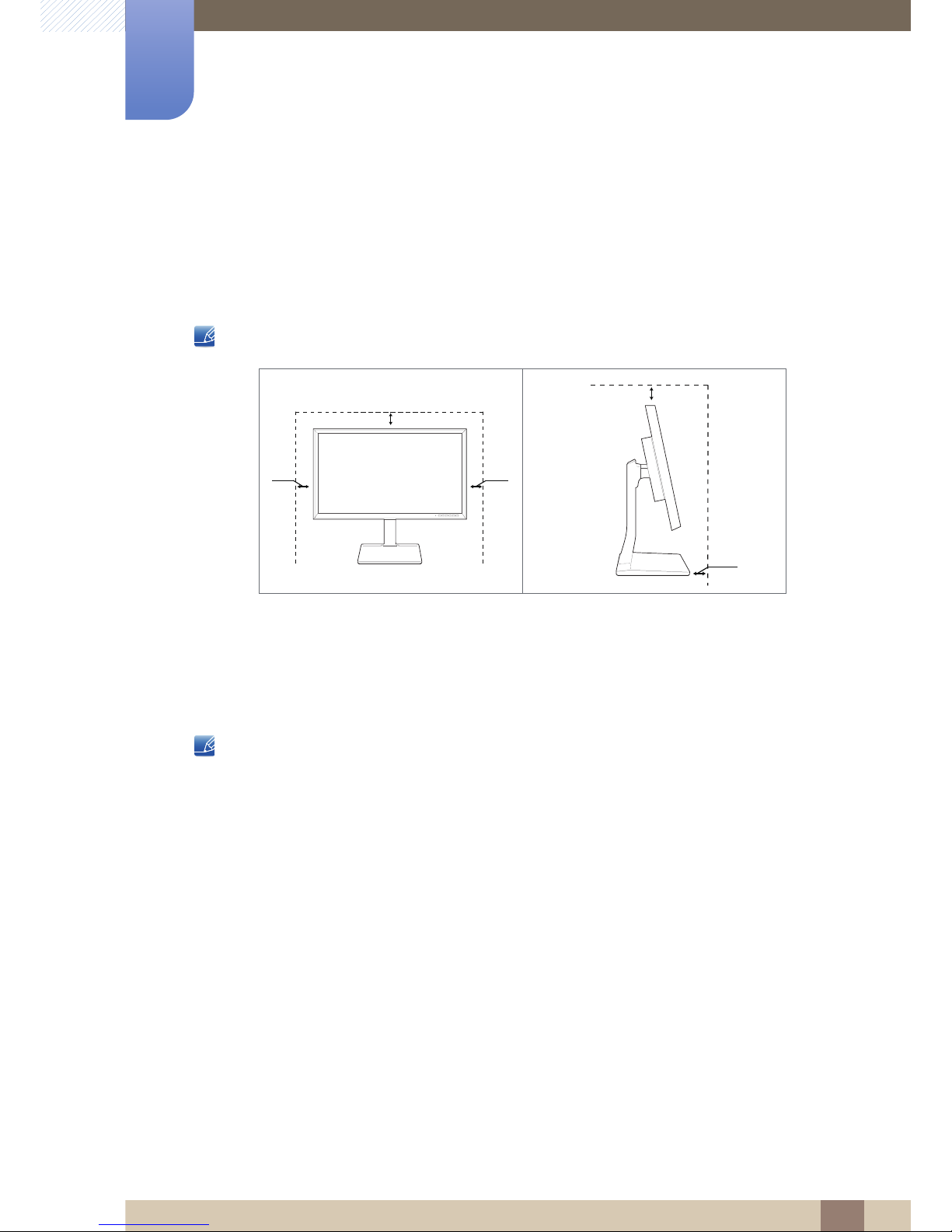

Ensure some space around the product for ventilation. An internal temperature rise may cause fire and

damage the product. Be sure to allow the amount of space as shown below or greater when installing

the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 100) if the inside of the monitor needs

cleaning. (Service fee will be charged.)

3.93

inches

(10 cm)

3.93

inches

(10 cm)

3.93 inches (10 cm)

3.93 inches

(10 cm)

Before Using the Product

Safety Precautions

Symbols for safety precautions

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO

QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to

make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and

maintenance has been included with this product.

Warning A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are

not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.
