Samsung OHN Series Manuel utilisateur

OHN

OH85N/(LH85OHNSKGB/**)

OH85N-D(K)/(LH85OHNDKGB/**)

OH85N/(LH85OHNSLGB/**)

Follow the instructions provided in this guide when installing the product.

Samsung will not provide warranty coverage for problems that may arise as a result of failure to follow the guide.

The color and shape of the product may vary. In addition, instructions in the installation guide may change without prior notice when

necessary to improve the product.

Outdoor

Installation Guide

English - 2

English

Table of contents

OH85N/(LH85OHNSKGB/**)

01 Priorto Installation

 --------------------------------------------------------------------------------- 6

Surrounding environment --------------------------------------------------------------------------------- 7

Rotation and tilt angle --------------------------------------------------------------------------------- 8

Clearance for installation --------------------------------------------------------------------------------- 9

Installing the wall-mount --------------------------------------------------------------------------------- 11

02 Enclosure unit design guide

 --------------------------------------------------------------------------------- 12

Inlet and outlet types --------------------------------------------------------------------------------- 12

Total open area of the ventilation holes and ratio --------------------------------------------------------------------------------- 13

Precautions for enclosure unit designing --------------------------------------------------------------------------------- 13

Enclosure unit partition design --------------------------------------------------------------------------------- 14

Single enclosure unit --------------------------------------------------------------------------------- 14

1 x N one-side unit design --------------------------------------------------------------------------------- 15

Double-sided design --------------------------------------------------------------------------------- 15

To add devices such as a media player --------------------------------------------------------------------------------- 15

03 Handling guide

Moving by crane --------------------------------------------------------------------------------- 16

04 Cleaning and cautions

Cleaning --------------------------------------------------------------------------------- 17

Precautions --------------------------------------------------------------------------------- 19

English - 3

OH85N-D(K)/(LH85OHNDKGB/**)

01 Priorto Installation

 --------------------------------------------------------------------------------- 25

Surrounding environment --------------------------------------------------------------------------------- 26

Rotation and tilt angle --------------------------------------------------------------------------------- 27

Clearance for installation --------------------------------------------------------------------------------- 28

02 Enclosure unit design guide

 --------------------------------------------------------------------------------- 29

Inlet and outlet types --------------------------------------------------------------------------------- 29

Total open area of the ventilation holes and ratio --------------------------------------------------------------------------------- 30

Precautions for enclosure unit designing --------------------------------------------------------------------------------- 30

Single enclosure unit --------------------------------------------------------------------------------- 31

1 x N one-side unit design --------------------------------------------------------------------------------- 31

03 Handling guide

Moving by crane --------------------------------------------------------------------------------- 32

04 Cleaning and cautions

Cleaning --------------------------------------------------------------------------------- 33

Precautions --------------------------------------------------------------------------------- 35

English - 4

OH85N/(LH85OHNSLGB/**)

01 Priorto Installation

Surrounding environment --------------------------------------------------------------------------------- 41

Rotation and tilt angle --------------------------------------------------------------------------------- 42

Clearance for installation --------------------------------------------------------------------------------- 43

Installing the wall-mount --------------------------------------------------------------------------------- 45

02 Enclosure unit design guide

 --------------------------------------------------------------------------------- 46

Inlet and outlet types --------------------------------------------------------------------------------- 46

Total open area of the ventilation holes and ratio --------------------------------------------------------------------------------- 47

Precautions for enclosure unit designing --------------------------------------------------------------------------------- 47

Enclosure unit partition design --------------------------------------------------------------------------------- 48

Single enclosure unit --------------------------------------------------------------------------------- 48

1 x N one-side unit design --------------------------------------------------------------------------------- 49

Double-sided enclosure unit --------------------------------------------------------------------------------- 50

To add devices such as a media player --------------------------------------------------------------------------------- 50

03 Handling guide

Moving by crane --------------------------------------------------------------------------------- 51

04 Cleaning and cautions

Cleaning --------------------------------------------------------------------------------- 52

Precautions --------------------------------------------------------------------------------- 54

OH85N/(LH85OHNSKGB/**)

OH85N/

(LH85OHNSKGB/**)

OH85N/(LH85OHNSKGB/**)

01 Priorto Installation

–Please contact our Tech Consulting team for support through yourlocal Presales team before installing the Kit

Model.

–This model does not support double-sided display.

Protection glass: specifications and installation guide

This product does not have a protection glass on the panel front. Add a protection glass to the front side of the enclosure

unit before use.

Specification of the protection glass

100%

50%

Enclosure unit (not provided

with the product)

Screen Product

Protection glass

•Use a protection glass that can block off at least 50 % of the solarheat the unit receives.

Installing the protection glass

Samsung guarantees the product’s water and dust resistance performance (IP56). This guarantee, however, does not

coverany issues resulted from the choice of non-recommended protection glass or installation method. (Examples:

Issues caused by the ingress of dust or humidity from outside or due to insufficient insulation against solar heat, e.g.,

dust, dirt, wetness inside the protection glass)

•Maintain 9.5 mm - 17 mm of clearance between the protection glass and LCD panel surface.

•Contact Samsung for additional technical support.

–The guide for OH85N/(LH85OHNSKGB/**) only applies when the product is used with an enclosure unit that has a

protective glass added to the front side.

English - 6

OH85N/(LH85OHNSKGB/**)

Surrounding environment

Covering

structure

•The airway into and out of the product can be

blocked when the inlet (or outlet) is covered by a

pile of frozen snow, dust, or tree leaves. Install a

covering structure to avoid matters piling directly

onto the inlet. Blocked ventilation due to snow

or dust covering the inlet or outlet may cause a

malfunction.

•The product can be used in a train or subway

station.

The product is designed to keep out iron dust.

•When installed in beach area, make sure the display

is placed where seawater cannot reach.

–Ensure the display unit installed location is within

safe distance from the possible contact from rising

seawater due to strong winds due to storm orother

natural phenomenon.

–The guide for OH85N/(LH85OHNSKGB/**) only applies when the product is used with an enclosure unit that has a

protective glass added to the front side.

English - 7

OH85N/(LH85OHNSKGB/**)

Rotation and tilt angle

–This product can be installed in Landscape or Portrait orientations.

–This product can be installed in a tilted position on a vertical wall oran obstacle, up to 15°.

–Contact Samsung Customer Service Center for further details.

15°

°

Wall or

obstacle

Wall or

obstacle

50 mm or more 50 mm or more

Landscape Portrait

–Do not use this model installed on a ceiling, floor, or table.

–The guide for OH85N/(LH85OHNSKGB/**) only applies when the product is used with an enclosure unit that has a

protective glass added to the front side.

English - 8

OH85N/(LH85OHNSKGB/**)

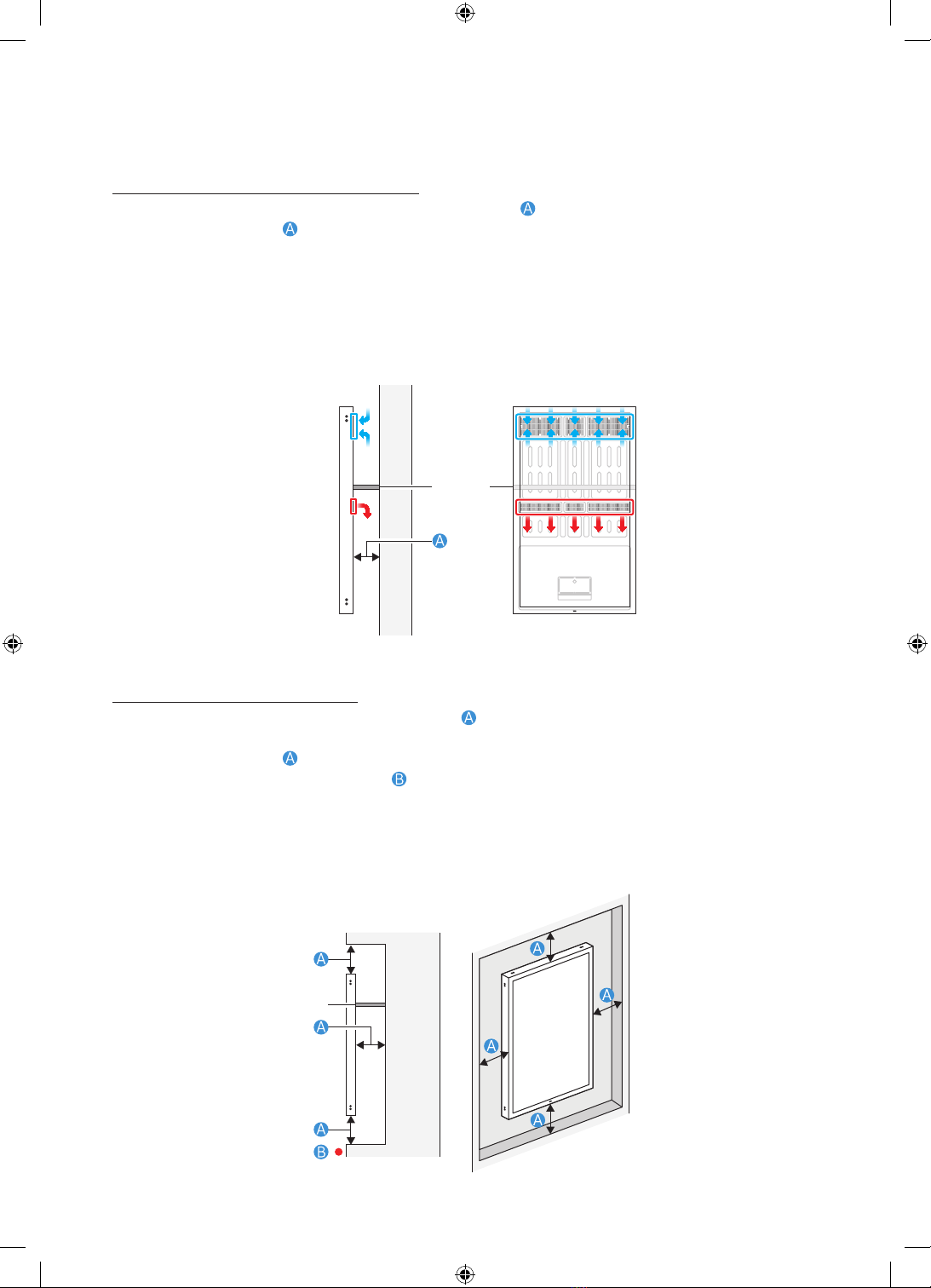

Clearance forinstallation

Clearance forinstalling the product alone

When installing the product close to the wall, maintain the clearance ( ) in order to secure air flow.

•Clearance from the wall ( )

–Example 1) Atmospheric temperatures under 3560 mm or more

–Example 2) Exposure to direct sunlight: 200 mm or more

•Remove any obstacles near the inlet and outlet that may affect air flow.

•Add partitions between the product and walls and make sure there is no gap between them to prevent discharged

air from flowing back into the inlet.

–If the unit is subjected to excess heat due to an insufficient gap, this may cause a malfunction, which will not be

covered by the warranty.

Side view

Wall or obstacle

Partition

Clearance forbuilt-in installation

When installing built-in to the wall, maintain the clearance ( ) from the back, top, bottom, and sides of the product in

order to secure air flow.

•Clearance from the wall ( )

–Example 1) Atmospheric temperatures( ) under 3560 mm or more

–Example 2) Exposure to direct sunlight: 200 mm or more

•Add partitions between the product and walls and make sure there is no gap between them to prevent discharged

air from flowing back into the inlet.

–If the unit is subjected to excess heat due to an insufficient gap, this may cause a malfunction, which will not be

covered by the warranty.

Side view

Partition

Wall or

obstacle

English - 9

OH85N/(LH85OHNSKGB/**)

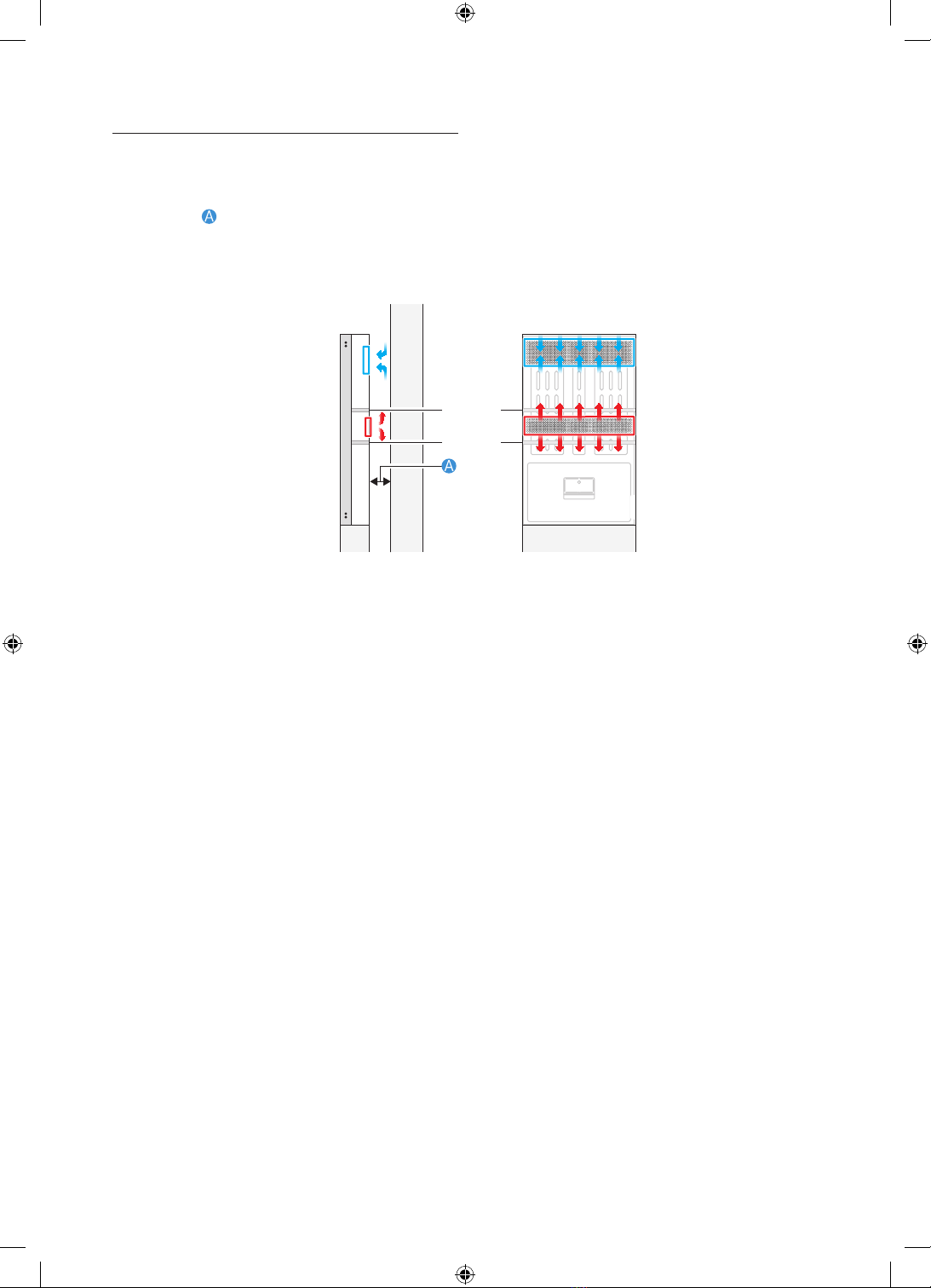

Clearance forinstalling with the enclosure unit

When installing an enclosure unit close to the wall, maintain the clearance in order to secure air flow. Consult your

provider for detailed requirements before installing the product. Excessive heat due to the use of the enclosure unit with

an obstacle or a wall may cause a malfunction ora problem with the product.

•Clearance ( ): 200 mm or more

•Remove any obstacles near the inlet and outlet that may affect air flow.

–If the unit is subjected to excess heat due to an insufficient gap, this may cause a malfunction, which will not be

covered by the warranty.

Side view

Wall or obstacle

Partition

–The guide for OH85N/(LH85OHNSKGB/**) only applies when the product is used with an enclosure unit that has a

protective glass added to the front side.

English - 10
