Samsung M1638 Manuel de service

MICROWAVE OVEN

M1638 / M1618

Owner’s Instructions

and Cooking Guide

M1638/1618(GB1) 5/12/00 9:55 AM Page 1

SAMSUNG ELECTRONICS

Quick Look-up Guide (M1638)

If you want to cook some food

1 Place the food in the oven.

Select the power level by pressing the button once or more

times.

2 Select the cooking time by pressing the 10min, 1min or 10s

buttons as required.

3 Press the button.

Result: Cooking starts.

The oven beeps four times when cooking is over.

If you want to defrost some food

1 Place the frozen food in the oven.

Press the Auto ( ) button.

Result:The following indication is displayed:

If you want to add an extra minute

1 Leave the food in the oven.

Press +30s once or more times for each extra 30 seconds that

you wish to add.

2 Select the weight by pressing the 100g buttons as required.

3 Press the button.

M1638/1618(GB1) 5/12/00 9:55 AM Page 2

SAMSUNG ELECTRONICS

Quick Look-up Guide (M1618)

If you want to cook some food

1 Place the food in the oven.

Select the power level by rotating the COOKING POWER

CONTROL knob.

2 Select the cooking time by rotating the TIMER knob.

If you want to defrost some food

1 Turn the COOKING POWER CONTROL knob to ( ).

If you want to adjust the cooking time

1 Leave the food in the oven.

Turn the TIMER knob to desired time.

2 Turn the TIMER knob to select the appropriate time.

M1638/1618(GB1) 5/12/00 9:55 AM Page 3

SAMSUNG ELECTRONICS

Contents

Quick Look-up Guide................................................................................2

Oven ........................................................................................................5

Control Panel............................................................................................6

Accessories ..............................................................................................8

Using this Instruction Booklet ..................................................................9

Safety Precautions....................................................................................10

Installing Your Microwave Oven................................................................12

Setting the Time(M1638) ..........................................................................12

How a Microwave Oven Works ................................................................13

Checking that Your Oven is Operating Correctly......................................14

What to Do if You are in Doubt or Have a Problem..................................15

Cooking/Reheating....................................................................................16

Power Levels ............................................................................................17

Stopping the Cooking................................................................................18

Adjusting the Cooking Time ......................................................................18

Using the Instant Reheat Feature ............................................................19

Instant Reheat Settings ............................................................................20

Using the Auto Defrost Feature (M1638)..................................................21

Manual Defrosting Food (M1618) ............................................................21

Auto Defrost Settings (M1638) ................................................................22

Multistage Cooking (M1638) ....................................................................23

Cookware Guide ......................................................................................24

Cooking Guide ..........................................................................................25

Cleaning Your Microwave Oven................................................................32

Storing and Repairing Your Microwave Oven ..........................................33

Technical Specifications............................................................................34

M1638/1618(GB1) 5/12/00 9:55 AM Page 4

SAMSUNG ELECTRONICS

Oven

SAFETY

INTERLOCK HOLES

TURNTABLE

DOOR LATCHES

VENTILATION HOLES LIGHT

DISPLAY

OPEN DOOR

PUSH BUTTON

ROLLER RING

DOOR COUPLER

CONTROL PANEL

SAFETY

INTERLOCK HOLES

TURNTABLE

DOOR LATCHES

VENTILATION HOLES LIGHT TIMER KNOB

OPEN DOOR

PUSH BUTTON

ROLLER RING

COUPLER

DOOR

VARIABLE COOKING

POWER CONTROL

KNOB

Model : M1638

Model : M1618

M1638/1618(GB1) 5/12/00 9:55 AM Page 5

SAMSUNG ELECTRONICS

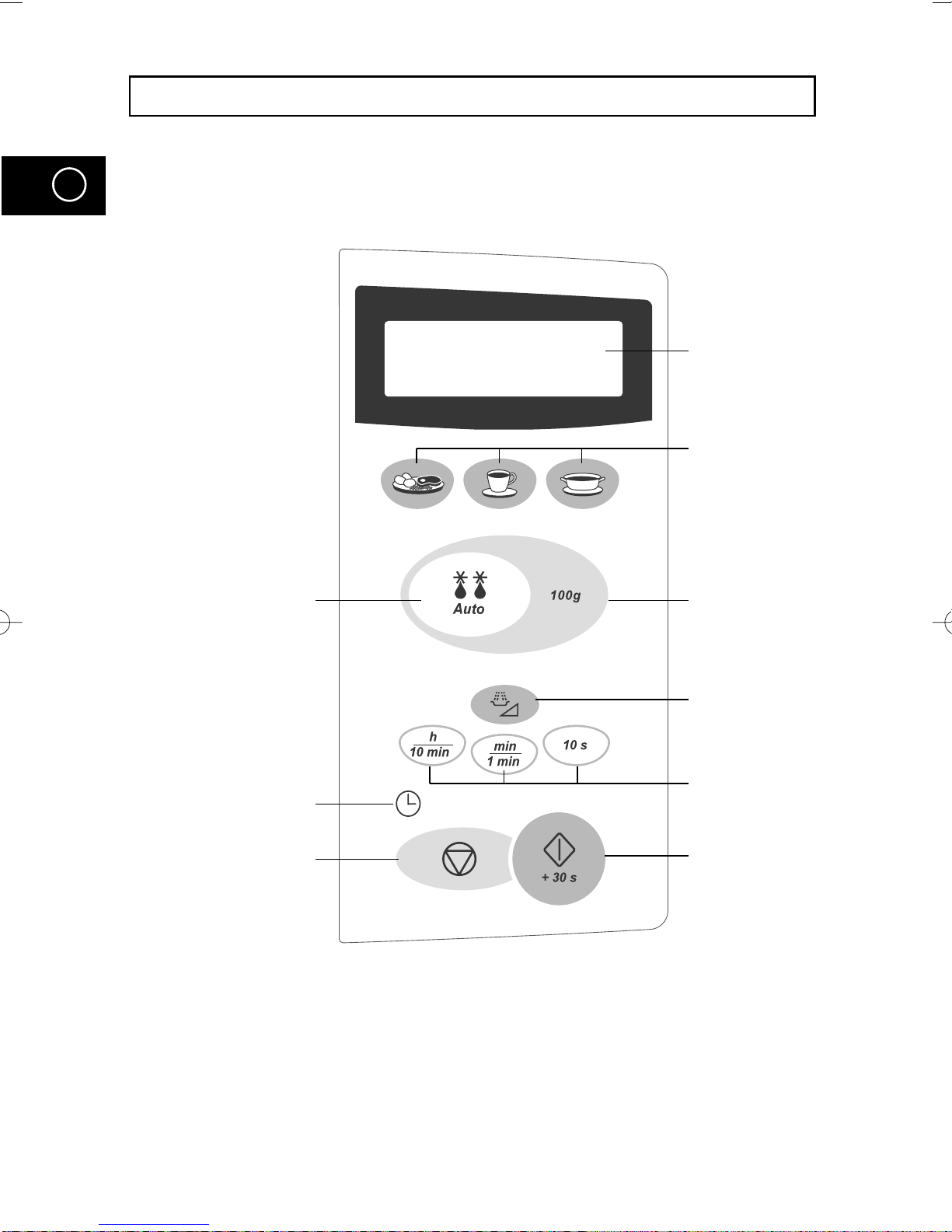

Control Panel (M1638)

DISPLAY

INSTANT

REHEAT

SELECTION

WEIGHT

SELECTION

MICROWAVE

MODE

SELECTION

AUTO DEFROST

FATURE

SELECTION

CLOCK

SETTING

STOP / CANCEL

BUTTON START

BUTTON

TIME SETTING

M1638/1618(GB1) 5/12/00 9:55 AM Page 6

SAMSUNG ELECTRONICS

Control Panel (M1618)

OPEN DOOR

PUSH BUTTON

INSTANT

REHEAT

DEFROST

M1638/1618(GB1) 5/12/00 9:55 AM Page 7

SAMSUNG ELECTRONICS

Accessories

Depending on the model that you have purchased, you are supplied

with several accessories that can be used in a variety of ways.

☛DO NOT operate the microwave oven without the roller ring

and turntable.

1Coupler, already placed over the motor shaft in the base of the oven.

Purpose: The coupler rotates the turntable.

2Roller ring, to be placed in the centre of the oven.

Purpose: The roller ring supports the turntable.

3Turntable, to be placed on the roller ring with the centre fitting onto the

coupler.

Purpose: The turntable serves as the main cooking surface. It can be

easily removed for cleaning.

M1638/1618(GB1) 5/12/00 9:55 AM Page 8

SAMSUNG ELECTRONICS

Using this Instruction Booklet

You have just purchased a SAMSUNG microwave oven. Your Owner’s

Instructions contain much valuable information on cooking with your

microwave oven:

◆Safety precautions

◆Suitable accessories and cookware

◆Useful cooking tips

Inside the cover you will find a quick look-up guide explaining three basic

cooking operations:

◆Cooking food

◆Defrosting food

◆Adding extra cooking time

At the front of the booklet you will find illustrations of the oven, and more

importantly the control panel, so that you can find the buttons more easily.

The step-by-step procedures use two different symbols.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

Failure to observe the following safety precautions may result in harmful exposure to

microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with

the door open or to tamper with the safety interlocks (door latches) or to insert

anything into the safety interlock holes.

(b) Do not place any object between the oven door and front face or allow food or

cleaner residues to accumulate on sealing surfaces. Ensure that the door and

door sealing surfaces are kept clean by wiping after use first with a damp cloth

and then with a soft dry cloth.

microwave service technician trained by the manufacturer.

It is particularly important that the oven door closes properly and that there is no

damage to the:

(1) Door, door seals and sealing surfaces

(2) Door hinges (broken or loose)

(3) Power cable

(d) The oven should not be adjusted or repaired by anyone other than a properly

qualified microwave service technician trained by the manufacturer.

☛

➢

Important Note

M1638/1618(GB1) 5/12/00 9:55 AM Page 9

Safety Precautions

Before cooking food or liquids in your microwave oven, please check that the

following safety precautions are taken.

1. DO NOT use any metallic cookware in the microwave oven:

◆ Metallic containers

◆ Dinnerware with gold or silver trimmings

◆ Skewers, forks, etc.

Reason: Electric arcing or sparking may occur and may damage the oven.

2. DO NOT heat:

◆ Airtight or vacuum-sealed bottles, jars, containers

Ex) Baby food jars

◆ Airtight food.

Ex) Eggs, nuts in shells, tomatoes

Reason: The increase in pressure may cause them to explode.

Tip: Remove lids and pierce skins, bags, etc.

3. DO NOT operate the microwave oven when it is empty.

Reason: The oven walls may be damaged.

Tip: Leave a glass of water inside the oven at all times.

The water will absorb the microwaves if you accidentally set the oven going when

it is empty.

4. DO NOT cover the rear ventilation slots with cloths or paper.

Reason: The cloths or paper may catch fire as hot air is evacuated from the oven.

5. ALWAYS use oven gloves when removing a dish from the oven.

Reason: Some dishes absorb microwaves and heat is always transferred from the food to

the dish.The dishes are therefore hot.

6. DO NOT touch heating elements or interior oven walls.

Reason: These walls may be hot enough to burn even after cooking has finished, although

they do not appear to be so. Do not allow inflammable materials to come into

contact with any interior area of the oven. Let the oven cool down first.

7. To reduce the risk of fire in the oven cavity:

◆ Do not store flammable materials in the oven

◆ Remove wire twist ties from paper or plastic bags

◆ Do not use your microwave oven to dry newspapers

◆ If smoke is observed, keep the oven door closed and switch off or disconnect the oven

from the power supply

SAMSUNG ELECTRONICS
