LED TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

Customer Care Centre

Web Site

AUSTRALIA 1300 362 603 www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

CHINA 400-810-5858

010-6475 1880

www.samsung.com

HONG KONG (852) 3698-4698 www.samsung.com/hk

www.samsung.com/hk_en/

INDIA 3030 8282

1800 110011

1800 3000 8282

1800 266 8282

www.samsung.com

INDONESIA 0800-112-8888

021-5699-7777

www.samsung.com

JAPAN 0120-327-527 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.com

PHILIPPINES 1-800-10-SAMSUNG(726-7864)

1-800-3-SAMSUNG(726-7864)

1-800-8-SAMSUNG(726-7864)

02-5805777

www.samsung.com

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com

THAILAND 1800-29-3232

02-689-3232

www.samsung.com

TAIWAN 0800-329-999 www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

[UC5000-EA]BN68-02838A-01Eng.indb 1 2010-03-18 오전 10:52:12

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at

screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of

this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display image in full screen mode, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required level to achieve desired picture quality, exceeded values may speed up the burnout

process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

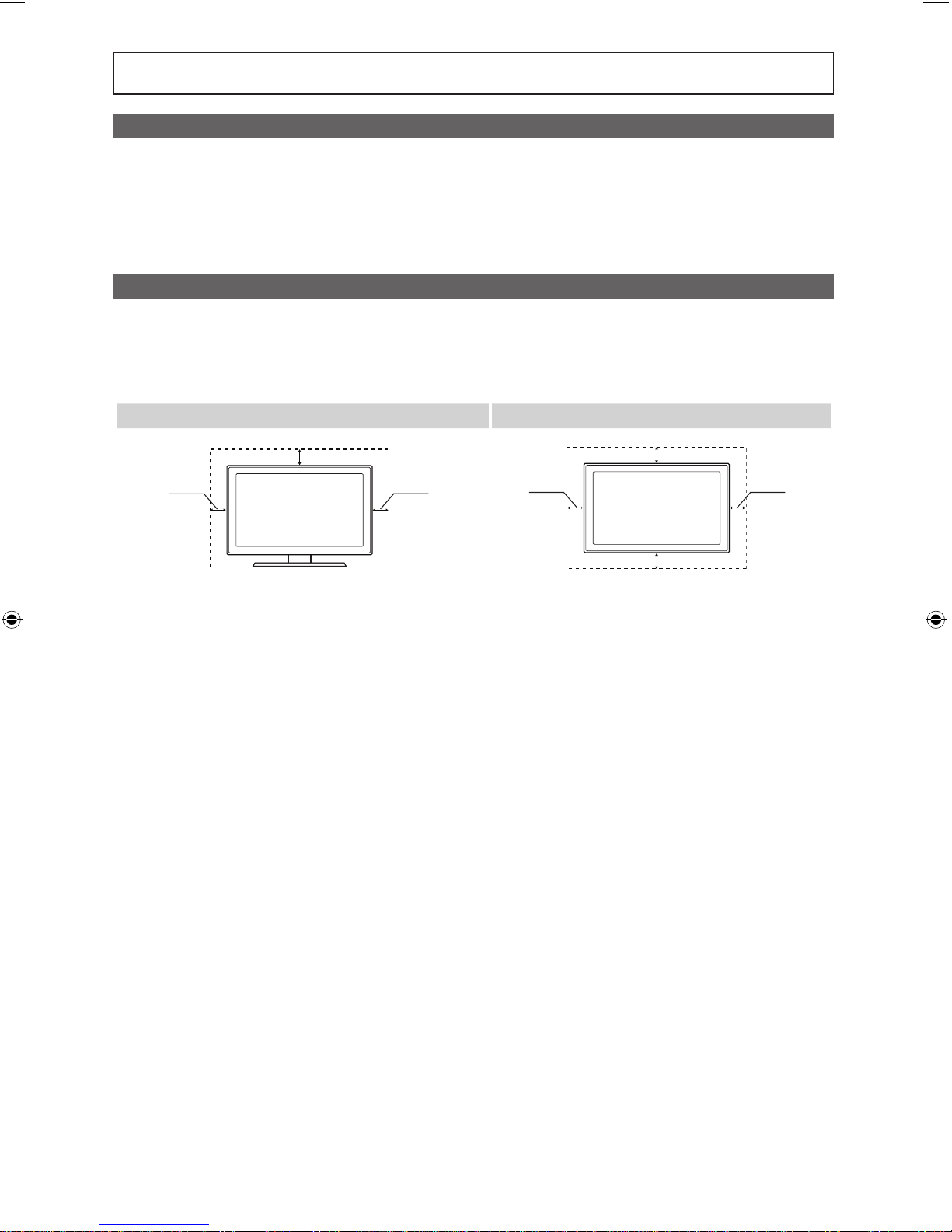

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm 10 cm

10 cm

[UC5000-EA]BN68-02838A-01Eng.indb 2 2010-03-18 오전 10:52:12

English

Check the Symbol!



This function can be used by pressing the

TOOLS button on the remote control.

Note One -Touch Button

Indicates additional information. Check here for instructions on how to open

the relevant submenu within the OSD (on

screen display).

Contents

Getting Started

4 Accessories

5 Viewing the Control Panel

6 Viewing the Remote Control

7 Connecting to an Antenna

7 Plug & Play (Initial Setup)

Connections

8 Connecting to an AV Device

9 Connecting to an Audio Device

10 Changing the Input Source

Basic Features

10 How to Navigate Menus

11 Channel Menu

13 Picture Menu

15 Sound Menu

16 Setup Menu

18 Support Menu

Advanced Features

19 Connecting to a PC

20 Network Connection

26 Media Play

33 Anynet+

36 AllShare

Other Information

38 Analogue Channel Teletext Feature

39 Assembling the Cables

40 Installing the Wall Mount

41 Anti-theft Kensington Lock

42 Securing the TV to the wall

43 Troubleshooting

46 Speciﬁcations

48 Index

TOOLS

[UC5000-EA]BN68-02838A-01Eng.indb 3 2010-03-18 오전 10:52:13

English

Getting Started

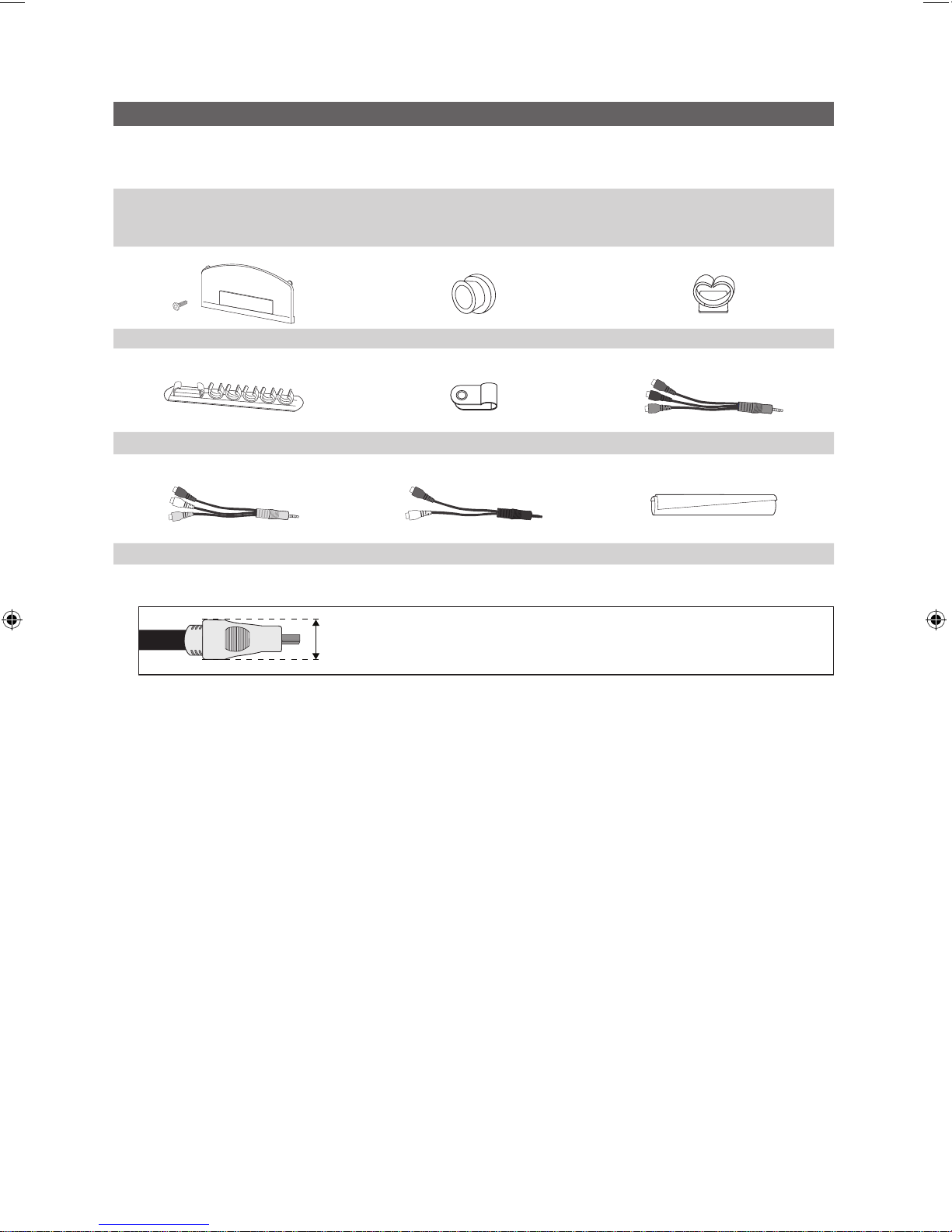

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yWarranty Card / Safety Guide (Not available in some locations)

yCleaning Cloth

yPower Cord

yBlanking Bracket & Screw (1EA) yHolder-Ring (4EA) yHolder-Wire stand

yHolder-Wire (3EA) yPower Cord Clamp yComponent Gender

yAV Gender(2EA) yComponent Sound in Gender yCable Tie

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

yMaximum thickness - 0.55 inches (14mm)

[UC5000-EA]BN68-02838A-01Eng.indb 4 2010-03-18 오전 10:52:14

01 Getting Started

English

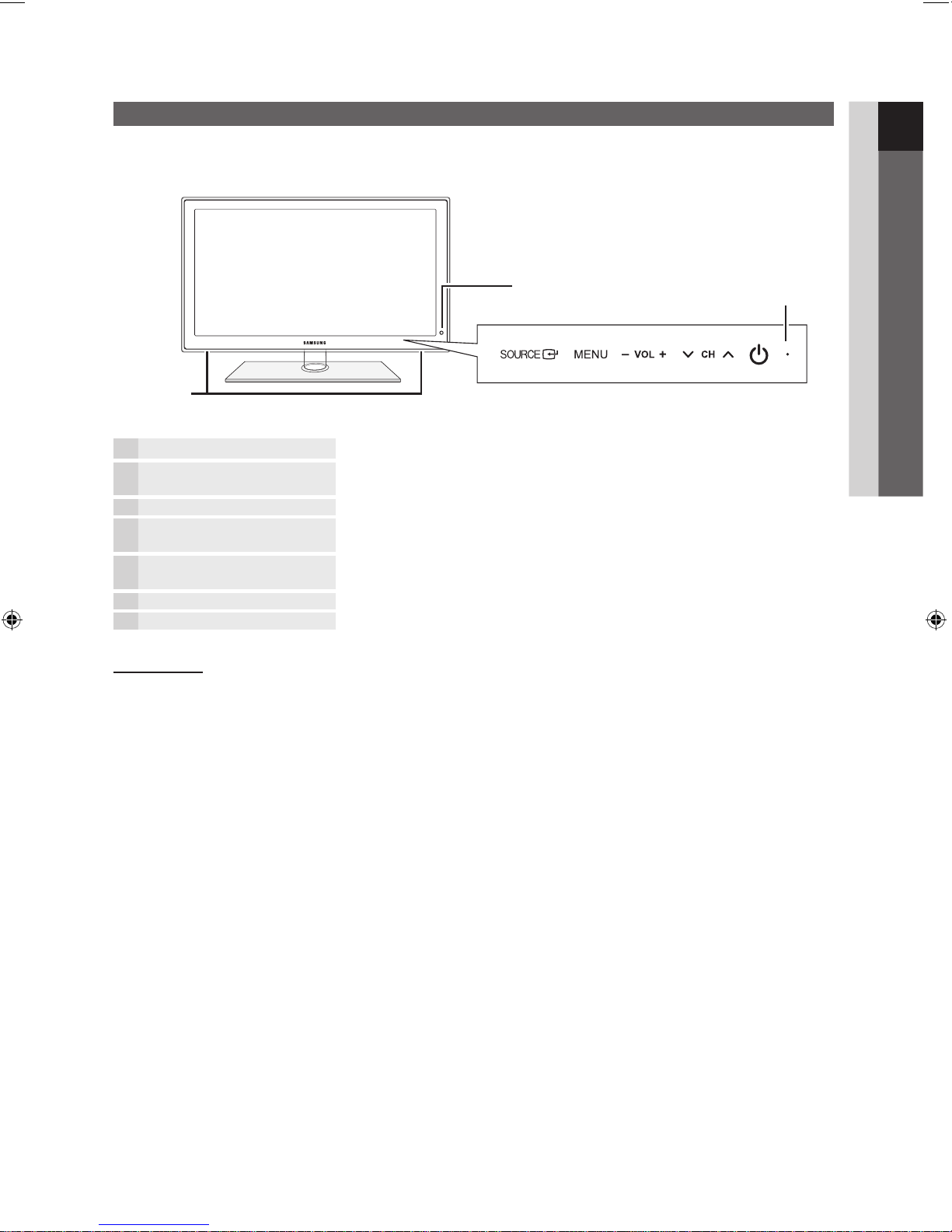

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE



Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER



button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.



Adjusts the volume. In the OSD, use the



buttons as you would use the

◄ and ► buttons on the remote control.



Changes the channels. In the OSD, use the



buttons as you would use the

▼ and ▲ buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.



(Power) Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on holiday, for example). A small amount of

electric power is still consumed even when switch is turned off. It is best to unplug the power cord.

Remote control sensor Power Indicator

Speakers

[UC5000-EA]BN68-02838A-01Eng.indb 5 2010-03-18 오전 10:52:14

Getting Started

English

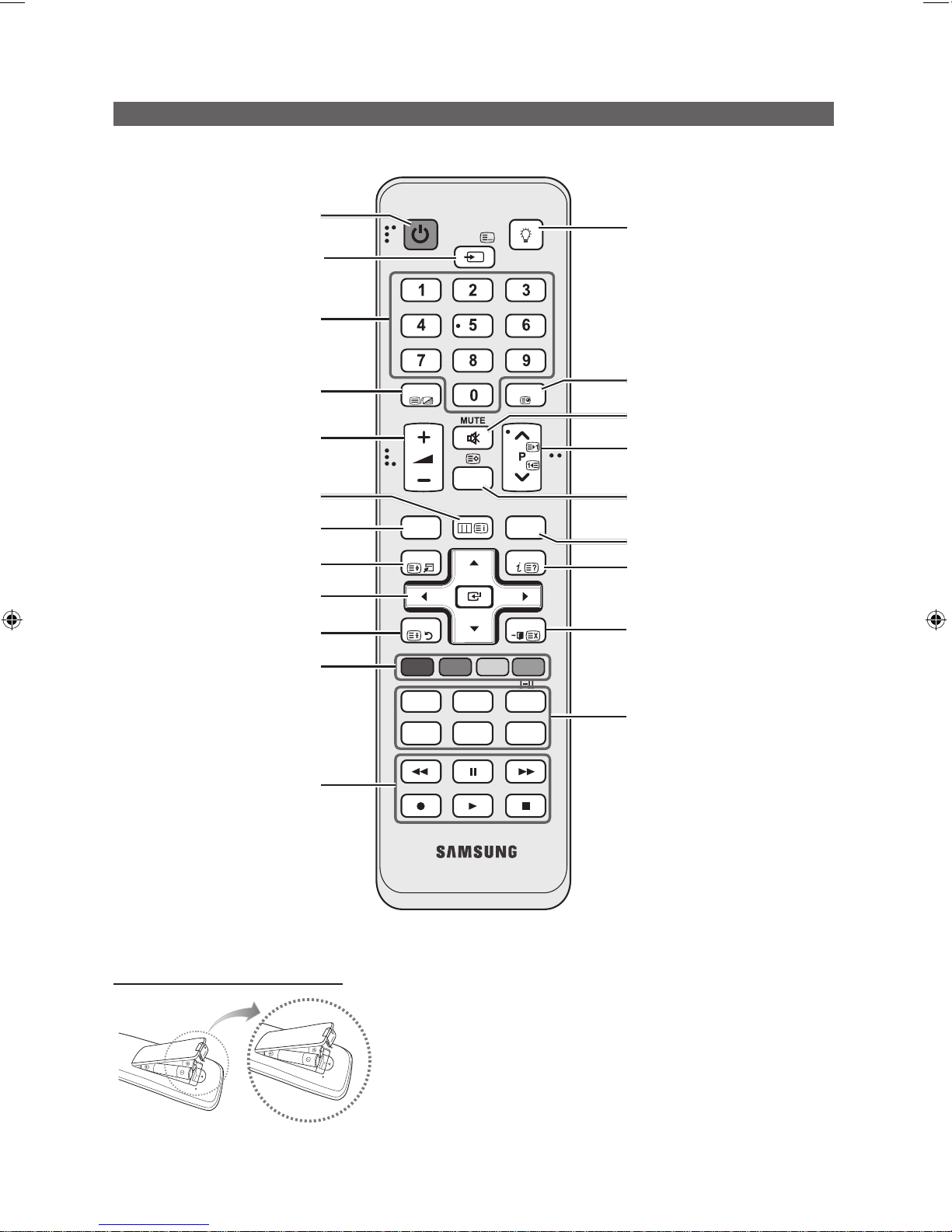

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and

Volume buttons.

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control.

Avoid using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

CHLIST

POWER ON/OFF

HDMI

MEDIA.P

TOOLS

RETURN

P.MODE

P.SIZE

SLEEP

S.MODE

E.SAVING DUAL

EXIT

INFO

TTX/MIX

A B C D

PRE-CH

SOURCE

Turns the TV on and off.

Displays and selects the available video

sources (p. 10).

Turns the remote control light on and

off. When on, the buttons become

illuminated for a moment when pressed.

(Using this button frequently will reduce

the battery usage time in the remote

control.)

Returns to the previous channel.

To mute all TV output sound.

Changes channels.

Displays channel lists on the screen

(p. 12).

Selects the HDMI mode directly.

Displays information on the TV screen.

Exits the menu.

Have direct access to channels.

Adjusts the volume.

Alternately selects Teletext, Double or

Mix.

Opens the OSD.

Displays Media Play, (p. 26).

Quickly select frequently used functions.

Returns to the previous menu.

Selects the on-screen menu items and

changes the values seen on the menu.

These buttons are for the

Channel Manager, Media Play menu,

etc.

Use these buttons in Media Play

and Anynet+ (HDMI-CEC) modes

(p. 26, 33).

(



: Controls recording for

Samsung recorders that have the

Anynet+ feature)

S.MODE: Press to select the sound

mode (p. 15).

E.SAVING: Use to set the energy saving

function (p. 13).

DUAL -: Sound effect selection

(p. 16).

P.MODE: Press to select the picture

mode (p. 13).

P.SIZE: Selects the picture size (p. 14).

SLEEP: Use to set the sleep timer

function (p. 16).

[UC5000-EA]BN68-02838A-01Eng.indb 6 2010-03-18 오전 10:52:15

01 Getting Started

English

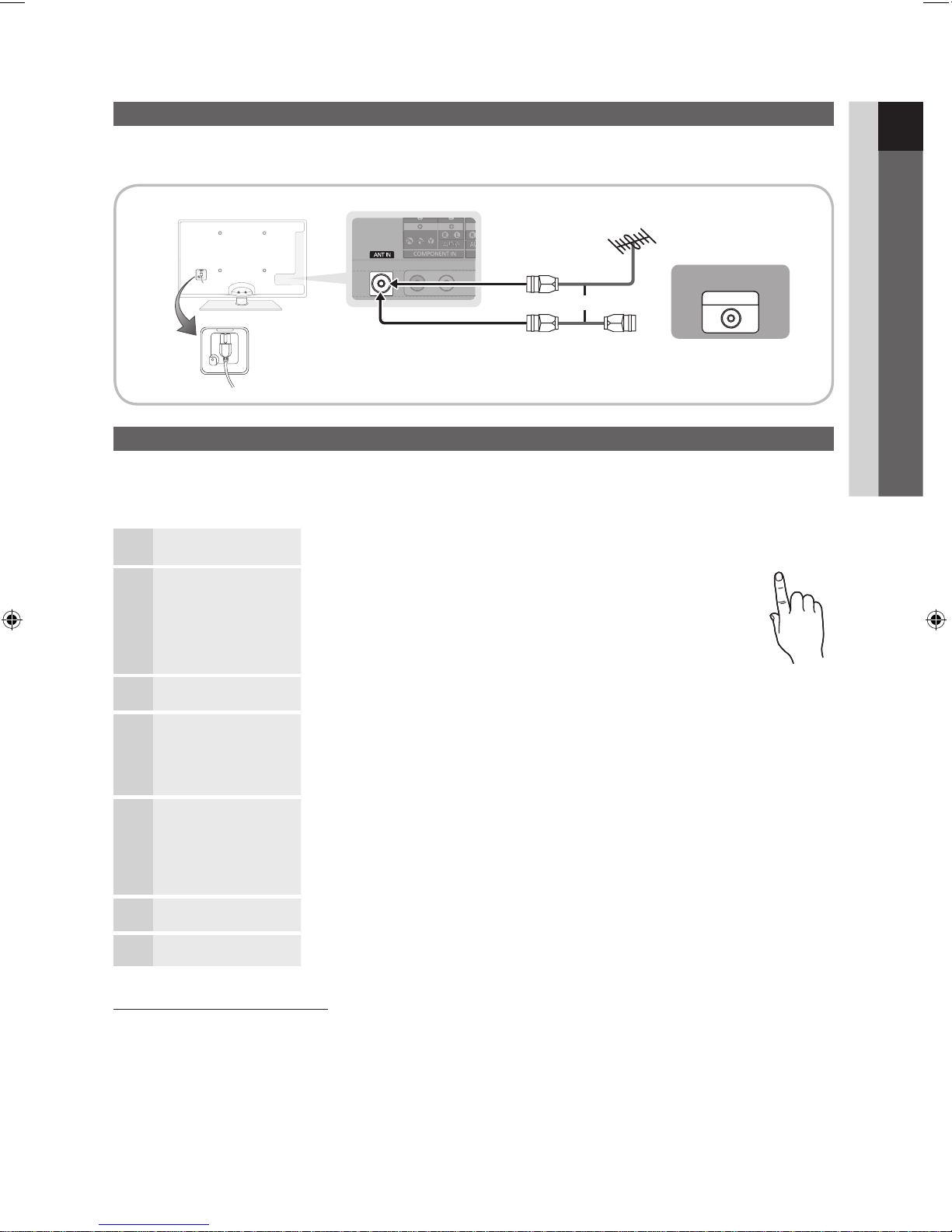

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER



button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

1Selecting a language Press the ▲ or ▼ button, then press the ENTER



button.

Select the desired OSD (On Screen Display) language.

POWER

2Selecting Store Demo

or Home Use

Press the ◄ or ► button, then press the ENTER



button.

ySelect the Home Use mode. Store Demo Mode is for retail

environments.

yReturn the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume OSD, press and hold MENU for 5 sec.

3Selecting an area Press the ENTER



button. Select the appropriate area by pressing the ▲ or ▼ button.

Press the ENTER



button to conﬁrm your choice.

4Selecting a channel The channel search will start and end automatically.

✎

Press the ENTER



button at any time to interrupt the memorisation process.

✎

After all the available channels are stored, the message Set current date and time is

displayed.

5Setting the Clock Press the ENTER



button.

Select the Day, Month, Year, Hour, or Minute by pressing the ◄ or ► button.

Set the Day, Month, Year, Hour, or Minute by pressing the ▲ or ▼ button.

✎

You can also set the Day, Month, Year, Hour and Minute by pressing the number

buttons on the remote control.

6Viewing the

HD Connection Guide.

The connection method for the best HD screen quality is displayed.

7Enjoy your TV. Press the ENTER



button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to

change the PIN number, use the Change PIN function.

ANT OUT

VHF/UHF Antenna

Power Input

Cable

[UC5000-EA]BN68-02838A-01Eng.indb 7 2010-03-18 오전 10:52:16

English

Connections

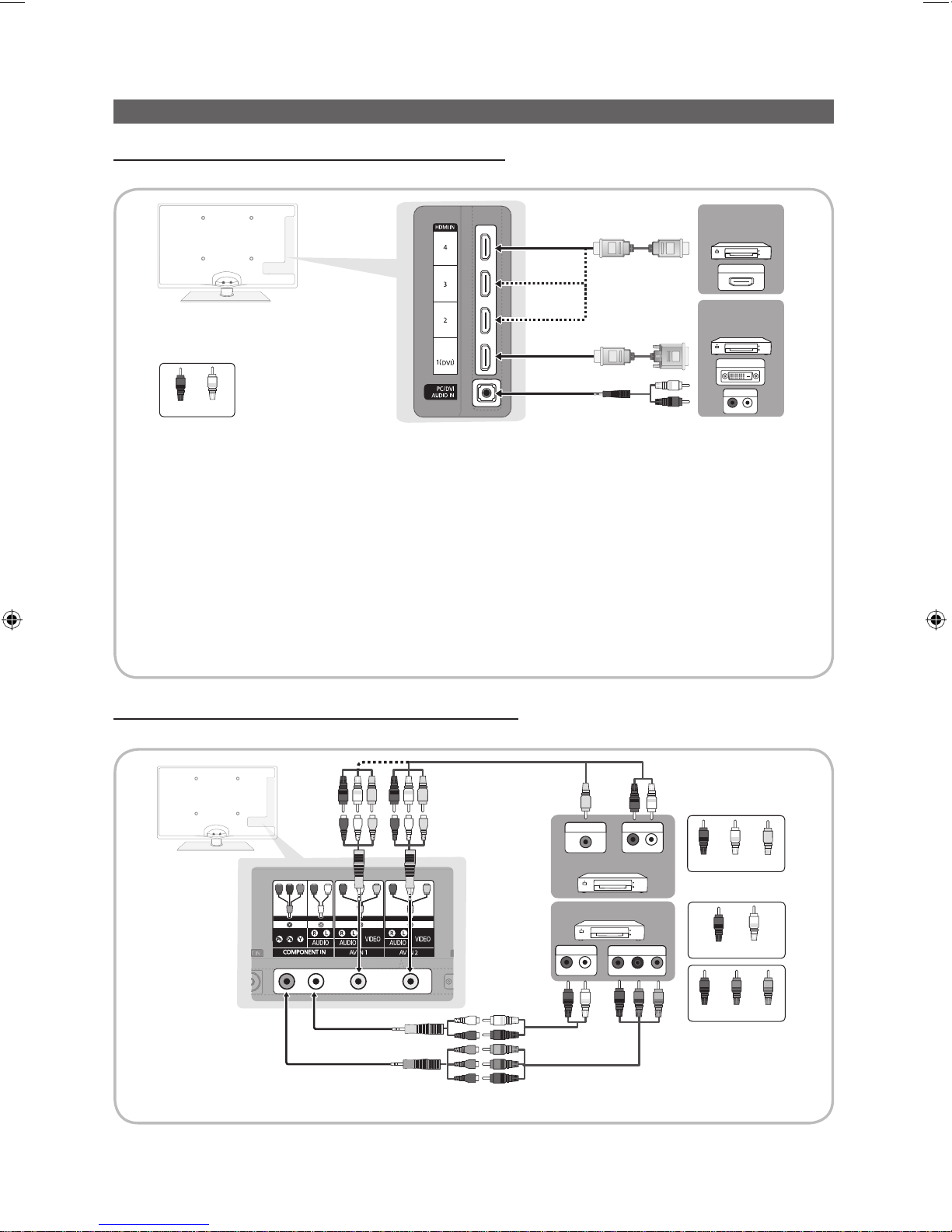

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

✎

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable

connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the

PC/DVI AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /

annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and

request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

HDMI OUT

DVI OUT

AUDIO OUT

R-AUDIO-L

Red White

DVD / Blu-ray

player

DVD / Blu-ray

player

PRPBY

COMPONENT OUT

AUDIO OUT

R-AUDIO-L

VIDEO OUT AUDIO OUT

R-AUDIO-L

W R

VCR

Red White

Red Blue Green

Yellow

DVD / Blu-ray player

[UC5000-EA]BN68-02838A-01Eng.indb 8 2010-03-18 오전 10:52:17

English

02 Connections

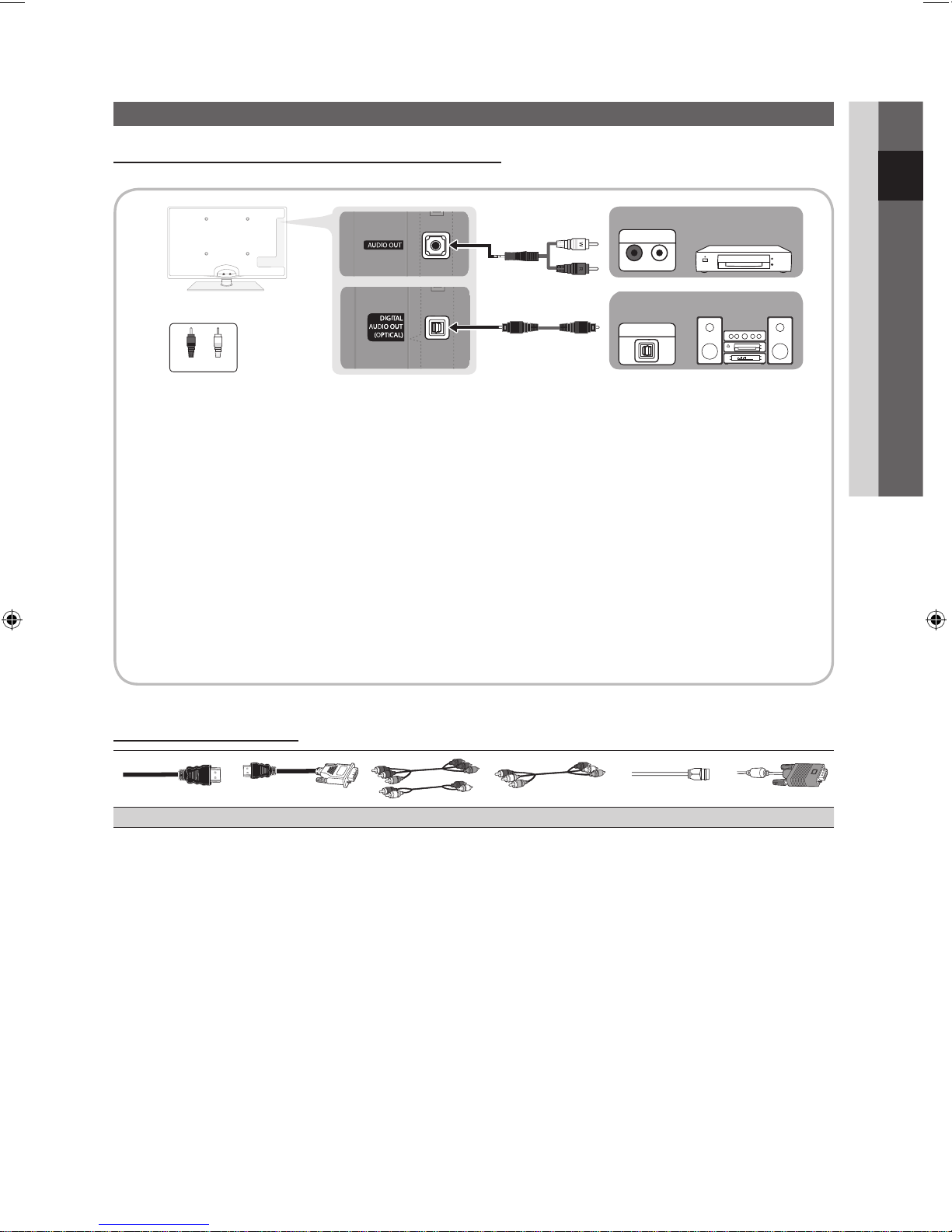

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analogue) Cable Connection

Available devices: digital audio system, ampliﬁer, DVD home theatre

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV’s

optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD

home theatre. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB

(Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the

amplifier or DVD home theatre. If you want to hear 5.1 CH audio, connect the digital audio out jack from your

DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

AUDIO OUT: Connects to the audio input jacks on your amplifier / DVD home theatre.

When connecting, use the appropriate connector.

When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the

volume level with the Amplifier’s volume control.

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

R-AUDIO-L

AUDIO IN

OPTICAL

Red White

digital audio system

ampliﬁer / DVD

home theatre

[UC5000-EA]BN68-02838A-01Eng.indb 9 2010-03-18 오전 10:52:18

English

Connections

Basic Features

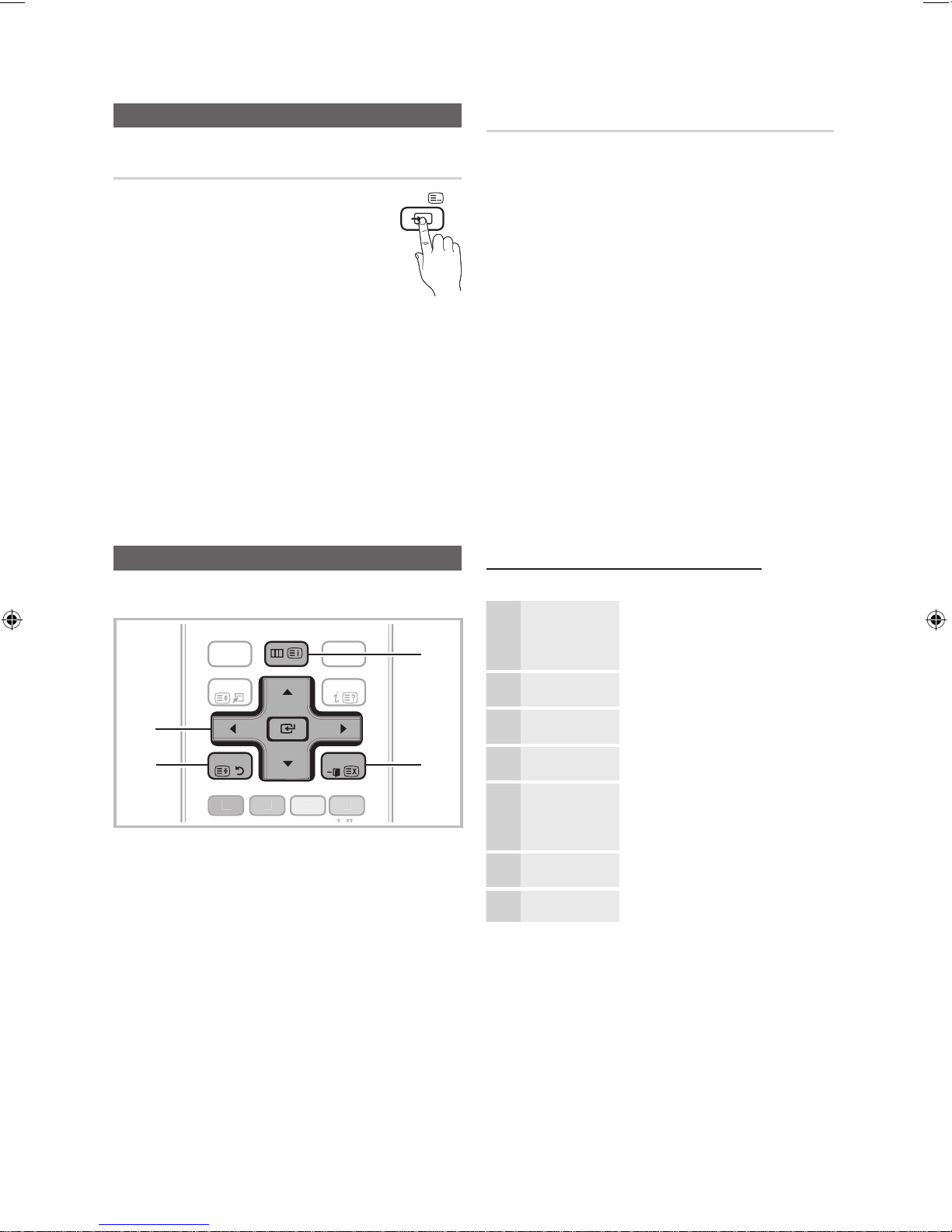

How to Navigate Menus

Before using the TV, follow the steps below to learn how to

navigate the menu and select and adjust different functions.

HLI

OWE

ON/OF

HDMI

MEDIA

RETURN

IZE

LEEP

.MOD

.SAVING

DUA

EXIT

INF

TTX

PRE-CH

SOU

RCE

RETURN

EXIT

1 ENTER



/ Direction button: Move the cursor and

select an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu.

3 MENU button: Displays the main on-screen menu.

4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1MENU



The main menu options appear on

the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support.

2▲ / ▼Select an icon with the ▲ or ▼

button.

3ENTER



Press ENTER



to access the

sub-menu.

4▲ / ▼Select the desired submenu with

the ▲ or ▼ button.

5◄ / ►Adjust the value of an item with the

◄ or ► button. The adjustment in

the OSD may differ depending on

the selected menu.

6ENTER



Press ENTER



to complete the

conﬁguration.

7EXIT



Press EXIT.

Changing the Input Source

Source List

Use to select TV or an external input sources

such as a DVD / Blu-ray player / cable box /

STB satellite receiver.

■TV / AV1 / AV2 / Component / PC /

HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 /

USB

✎

In the Source List, connected inputs

will be highlighted.

✎

PC always stay activated.

Edit Name

■VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC /

DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make

your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @

60Hz is connected to the HDMI IN 1(DVI) port,

you should set to DVI PC mode under Edit Name.

✎

When connecting an HDMI/DVI cable to the

HDMI IN 1(DVI) port, you should set to DVI PC or

DVI Devices mode under Edit Name.

SOURCE

[UC5000-EA]BN68-02838A-01Eng.indb 10 2010-03-18 오전 10:52:18

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Téléviseur LED

Samsung

Samsung UN46B6000 - 46" LCD TV Manuel utilisateur

Samsung

Samsung UN40D6500VF Manuel utilisateur

Samsung

Samsung UN46D6450UF Manuel utilisateur

Samsung

Samsung MICRO LED MNA110MS1AC Manuel utilisateur

Samsung

Samsung GQ85Q70CA Manuel utilisateur

Samsung

Samsung QN55Q7FAMF Manuel utilisateur

Samsung

Samsung UN32H5201 Mode d’emploi

Samsung

Samsung UE K5100AW Series Manuel utilisateur

Samsung

Samsung QN Q65FNF Series Manuel utilisateur

Samsung

Samsung UN26EH4000 Manuel utilisateur

Samsung

Samsung HG65AF690UKXXY Manuel utilisateur

Samsung

Samsung UN32J6300AF Manuel utilisateur

Samsung

Samsung UE32H5000AW Manuel utilisateur

Samsung

Samsung BN68-02076L-00 Manuel utilisateur

Samsung

Samsung BN68-02627A-06 Manuel utilisateur

Samsung

Samsung UN32C4000PD Manuel utilisateur

Samsung

Samsung SyncMaster T27A550 Mode d’emploi

Samsung

Samsung UE40H7000 Manuel utilisateur

Samsung

Samsung UE32H5303A Manuel utilisateur

Samsung

Samsung UN46B8000XFXZA Manuel utilisateur

Samsung

Samsung Series 4000 Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung LED TV Manuel utilisateur

Samsung

Samsung UE C6000R Series Manuel utilisateur

Manuels Téléviseur LED populaires d'autres marques

LG 43UF680T-TA Manuel utilisateur

Philips

Philips 55PUS6272/12 Manuel utilisateur

TCL

TCL L40E3020F Manuel utilisateur

Seiki

Seiki SC-55AU300 Manuel utilisateur

Sharp

Sharp AQUOS LC-60LE650U Manuel utilisateur

Durabase

Durabase L24H472S4VD Manuel utilisateur

LG 32LH51 series Manuel utilisateur

Tesla

Tesla 43K625BUS Manuel utilisateur

Changhong Electric

Changhong Electric UD55GHE6000Ai Manuel utilisateur

LG LN41 Series Manuel utilisateur

Sharp

Sharp LC-32LE511E Manuel utilisateur

Saba

Saba SB40FDS195 Manuel utilisateur

LG TL43 Series Manuel utilisateur

LG 22LN413Y-TD Manuel utilisateur

Philips

Philips 43PFT5102 Manuel utilisateur

SWEDX

SWEDX SS-42K15 Manuel utilisateur

Akai

Akai LT-3222AD Manuel utilisateur

LG 55UR640S Guide de démarrage rapide
