Samsung SMART TV Manuel utilisateur

1Unpack

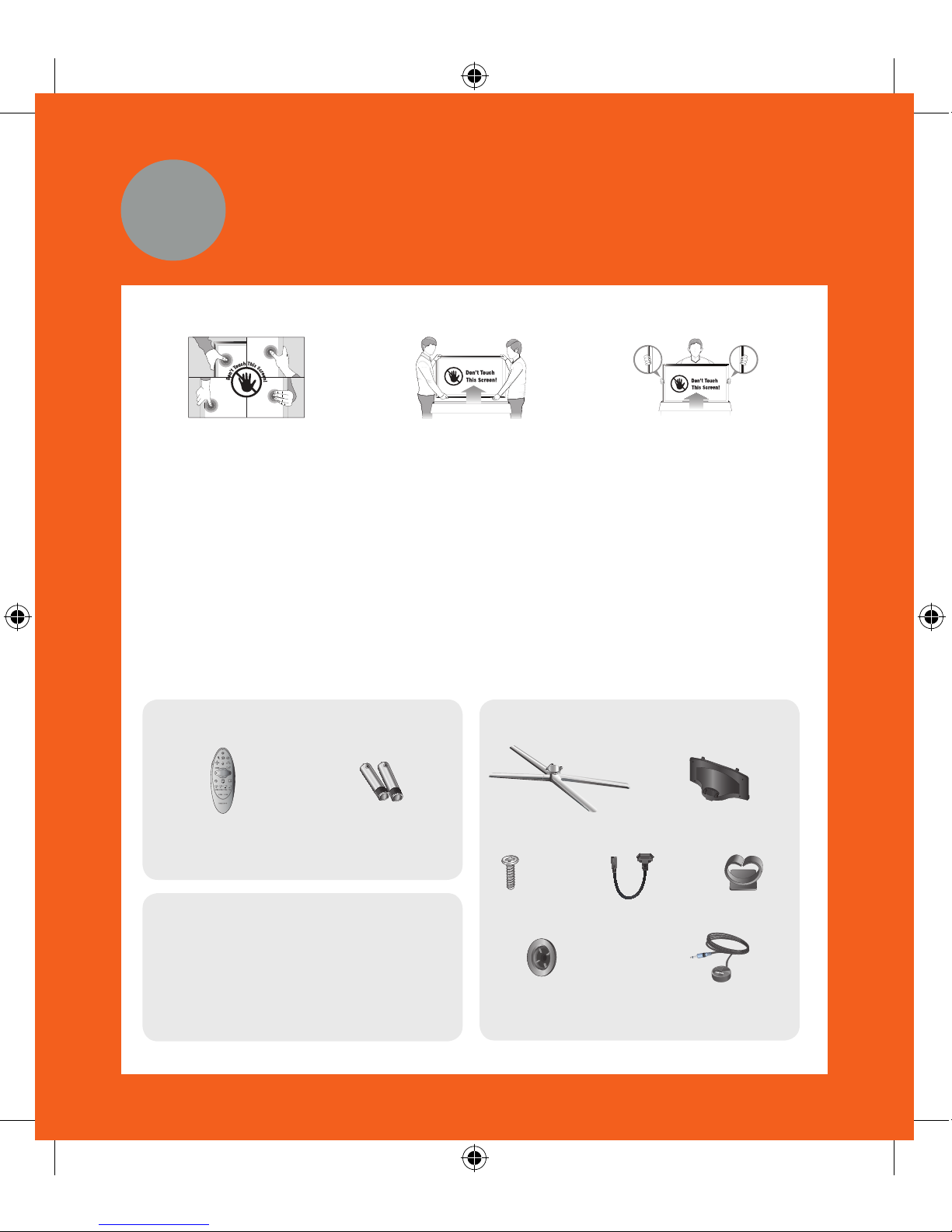

Taking the TV Out of the Box

•Warning:

Do not touch the TV’s

screen when you take

it out of the box. Hold it

by its edges only. If you

touch the screen, you

can cause the TV panel

to crack.

•Recommendation 1:

Two people should

remove the TV from the

box as shown above.

When removing the

TV, hold it by its edges

only. Do not touch the

screen.

•Recommendation 2:

If only one person is

available to remove

the TV from the box,

remove it as shown in

the illustration above.

Hold the TV by its

edges. Do not touch

the screen.

Included in this Box

Remote Control

RETURN

EXIT

GUIDE

CH.LIST

SMARTHUB

KEYPAD SOURCE

VOL CH

VOICE

3D CC P.SIZEMTS

MENU INFO

MIC

Samsung Smart

Control

Batteries

(2 AA)

Stand Parts and Cables

Base Stand Mount

(x8)

Screws Power Cord Cable Holder

(x4)

Wall Mount Adapter

(55 inches and above models)

IR Extender Cable

Also included

•User manual

•Regulatory guide

•3D Active Glasses

[UH6400-QSG]BN68-05869A-01ENG.indb 1 2014-02-24  5:30:18

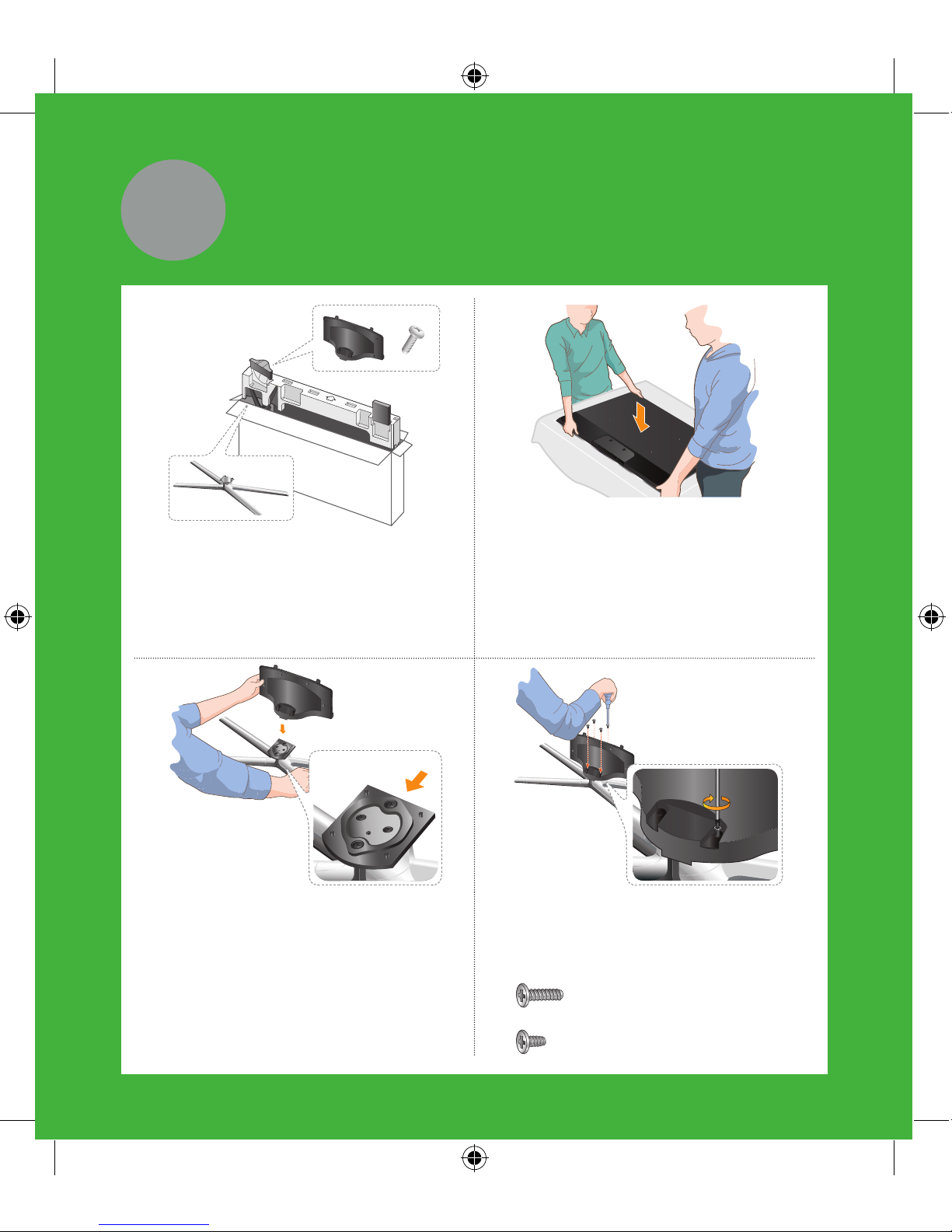

1 Locate the Base, Stand Mount, and

Screws in the box and set them

aside.

✎Remove the top portion of the

box to locate the stand parts.

2 Locate the TV on a soft surface,

screen side down. Use the

Styrofoam to protect the screen.

3 Fit the Base and Stand Mount

together, making sure the notch

on the Stand Mount aligns with the

Base.

4 Insert 4 screws, and then use a

screwdriver to secure the Base to

the Stand Mount.

40 - 55 inches models:

x4 (M4 X L12)

60 inches and above models:

x4 (M4 X L10)

2Assemble

[UH6400-QSG]BN68-05869A-01ENG.indb 2 2014-02-24  5:30:20

1 2 3

5 Holding the stand parallel to the screen, slide the Mount into the notches on

the back of the TV.

6 Insert 4 screws, and then use a

screwdriver to secure the stand to

the TV.

40 - 55 inches models:

x4 (M4 X L12)

60 inches and above models:

x4 (M4 X L10)

7 Attach the cable holder to the back of the stand. When you are done

connecting devices to your TV, you can use the cable holder to arrange the

cables.

8 Set the TV upright on its stand. Conﬁrm that the TV is level and stable. You are

now ready to connect external devices to the TV.

[UH6400-QSG]BN68-05869A-01ENG.indb 3 2014-02-24  5:30:22

3Connect

After you have connected all

your external devices, plug the

TV’s power cord into the back

of the TV. DO NOT plug it into

a wall outlet until you have

reached Section 7, Initial Setup.

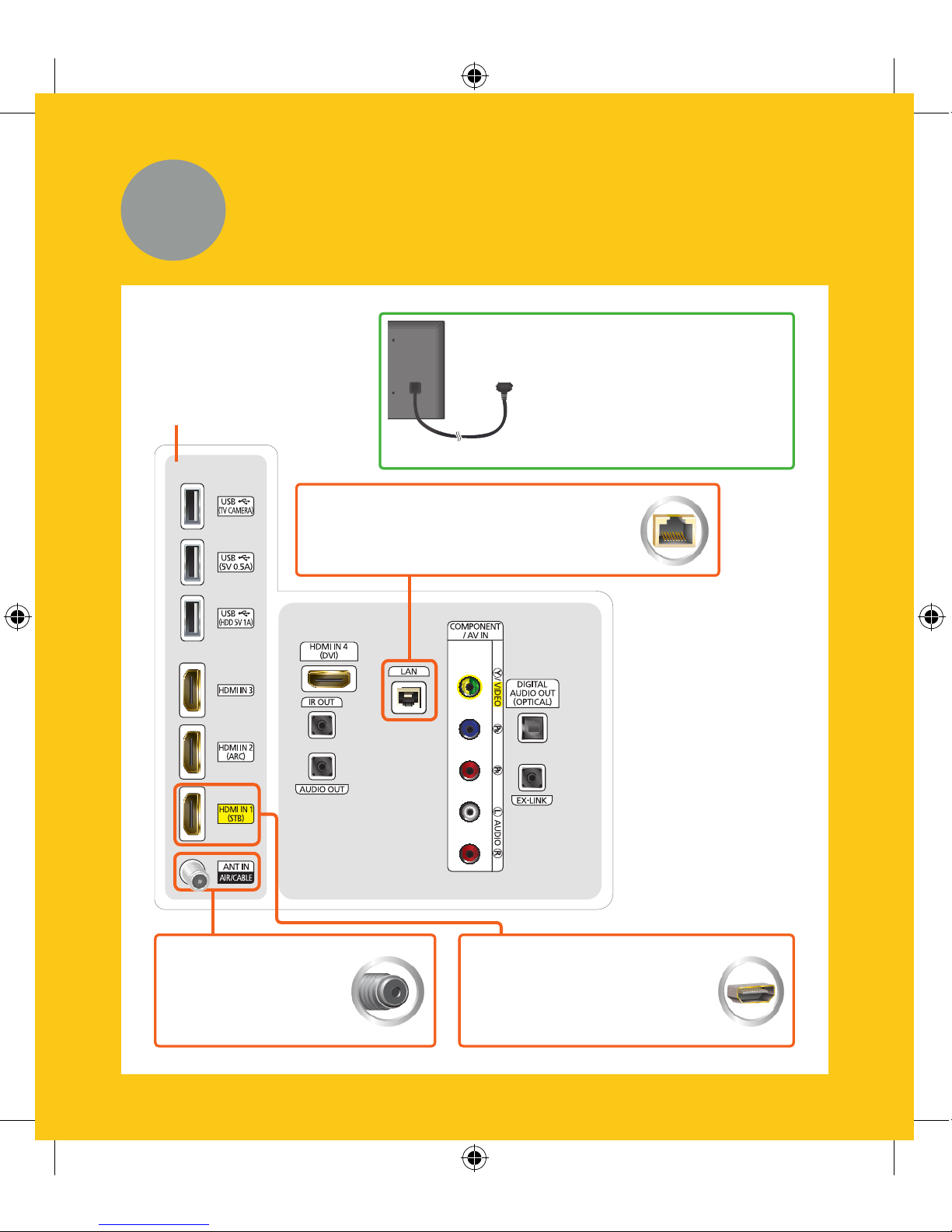

Connection panel on

the back of the TV

Internet

Connect here with an Ethernet cable or

wirelessly later during the Initial Setup.

Cable/Satellite/DVR

Connect your set-top box or

digital video recorder with an

HDMI cable.

TV signal

Connect your

coaxial cable to the

Antenna In port.

* Recommended Connections

[UH6400-QSG]BN68-05869A-01ENG.indb 4 2014-02-24  5:30:23

4Gear

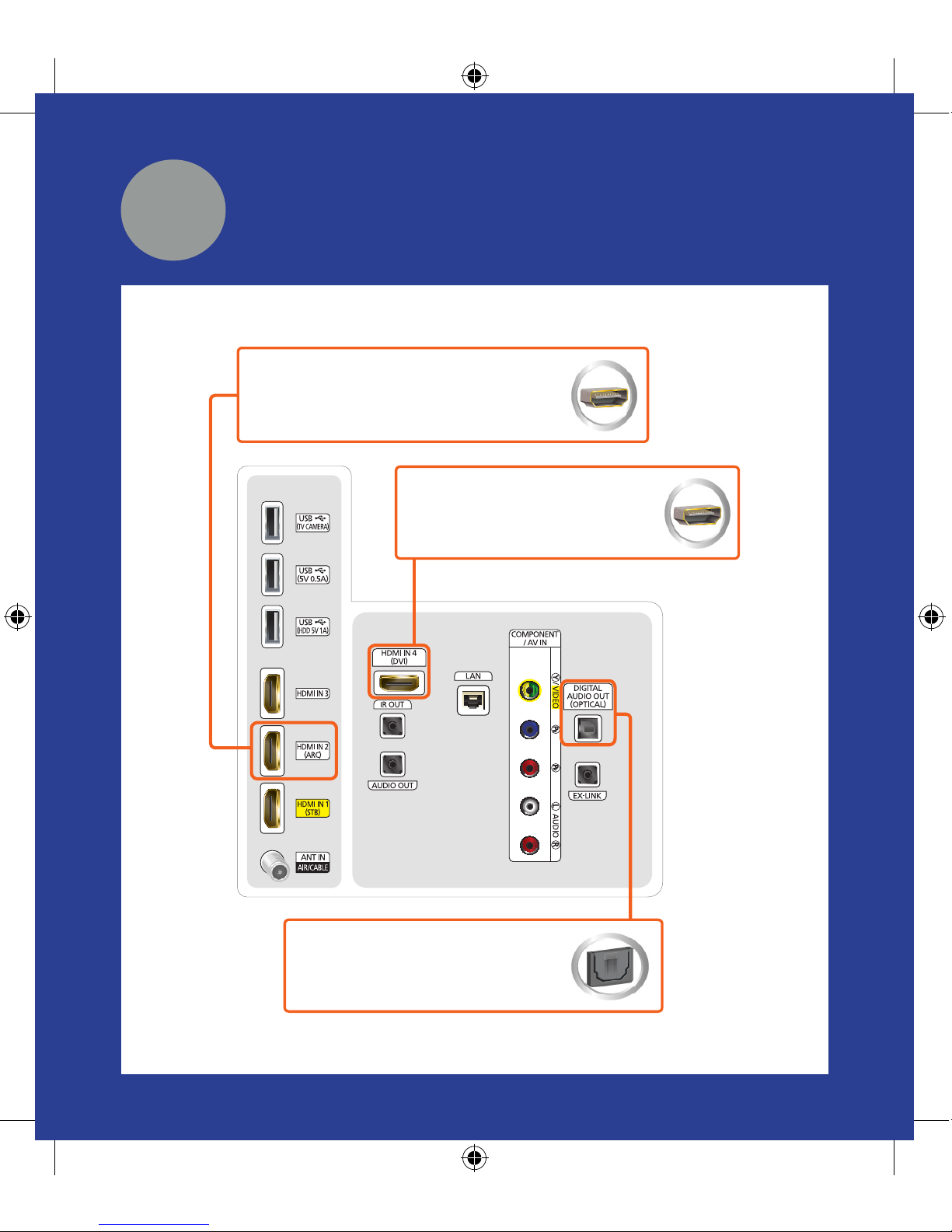

Blu-ray/DVD/Home Theater

Connect your video player using an

HDMI cable.

Audio

Connect a receiver/home theater

using an optical audio cable.

Game console

Connect your game console

or DVR using an HDMI cable.

* Recommended Connections

[UH6400-QSG]BN68-05869A-01ENG.indb 5 2014-02-24  5:30:24

5STB Control

You can control your set-top-box or satellite box with the Samsung Smart Control. To

establish control, you must ﬁrst set up the IR extender cable. If you don’t have an STB,

skip this section.

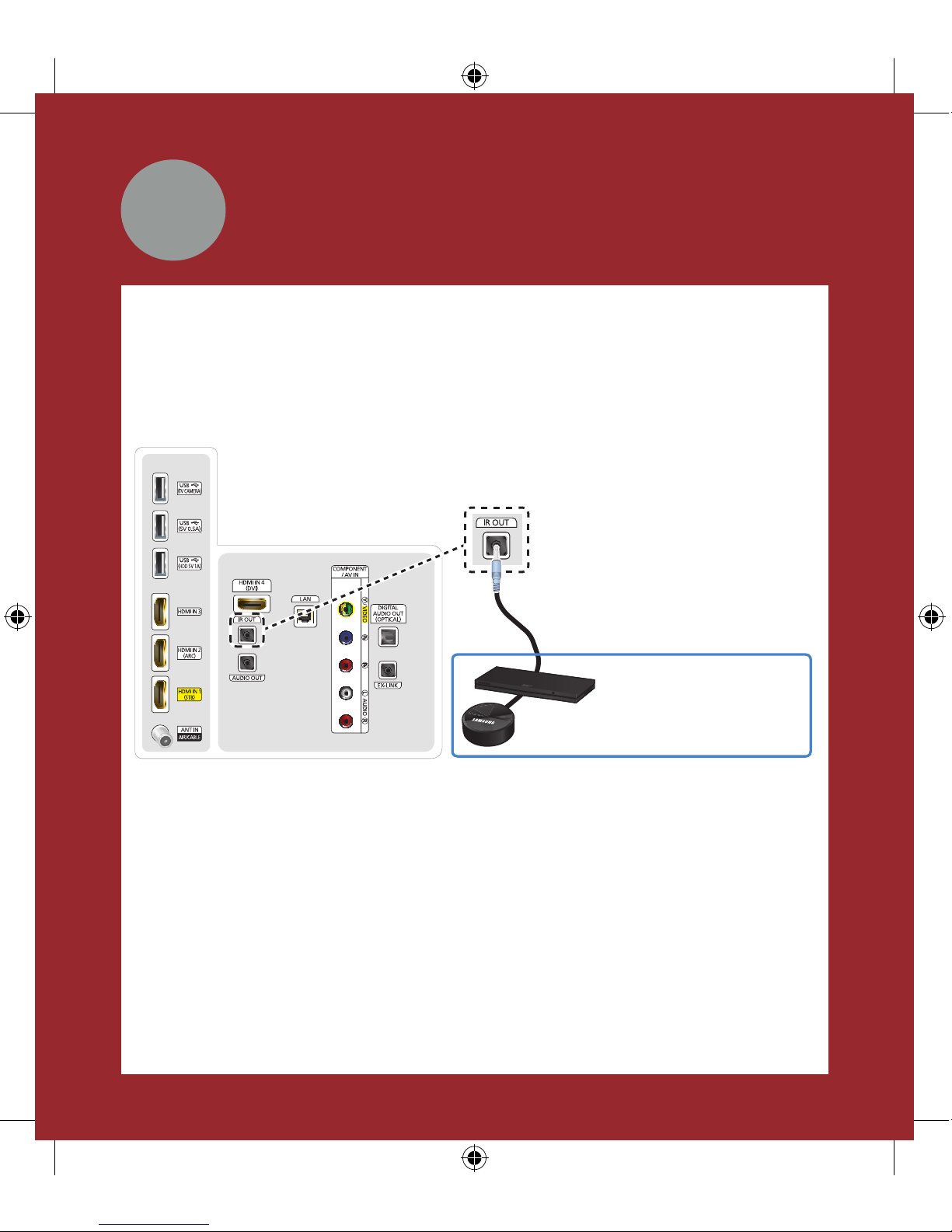

1 Connect the IR extender cable to the TV’s IR output connector.

IR Out

Connect the

IR Extender Cable here.

Place the transmitter

end within 4 inches

of the set-top-box’s

remote control sensor.

2 Position the transmitter end within 4 inches (10 cm) of the set-top-box’s remote

control sensor, pointing in the direction of the sensor. Make sure there are no

obstacles between the transmitter end of the IR extender cable and the set-

top-box or satellite box. Any obstacles will interfere with the transmission of the

remote control signals.

3 Finalize control of your set-top or satellite box when you run Initial Setup.

[UH6400-QSG]BN68-05869A-01ENG.indb 6 2014-02-24  5:30:24

6Smart Control

Introducing the Samsung Smart Control

Your TV comes with a Samsung Smart Control. Unlike conventional remote controls

that have only buttons, the Samsung Smart Control has:

•Buttons for quick access to frequently used functions.

•A motion sensor that lets you move the pointer or focus on the screen by simply

moving the Samsung Smart Control.

Inserting the Batteries

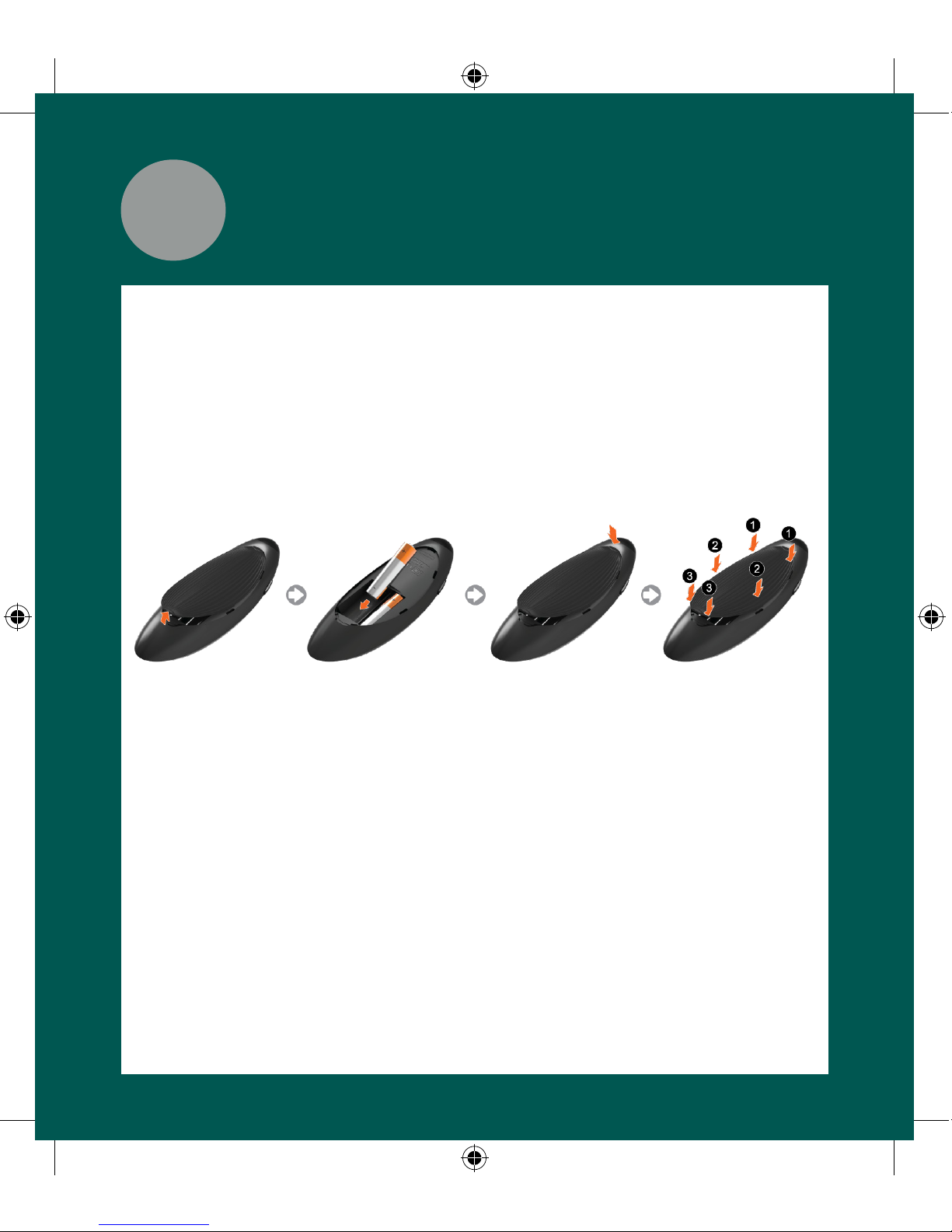

1 Gently pull on the notch in the battery cover. When the cover comes loose,

remove the cover completely.

2 Insert 2 AA alkaline batteries, making sure to align the positive and negative

polarities correctly.

3 Place the battery cover on the remote control, and then press the top part of the

cover into the control.

4 Press the catches on both sides of the battery cover in the order shown in the

ﬁgure above until the cover is completely attached to the remote control.

Using the Samsung Smart Control

When you start the TV for the ﬁrst time by pressing the TV button on the Samsung

Smart Control, the TV and the Samsung Smart Control pair, using the TV’s Bluetooth

function. Once the TV and Samsung Smart Control have paired, you can use the

Samsung Smart Control to operate the TV.

[UH6400-QSG]BN68-05869A-01ENG.indb 7 2014-02-24  5:30:24

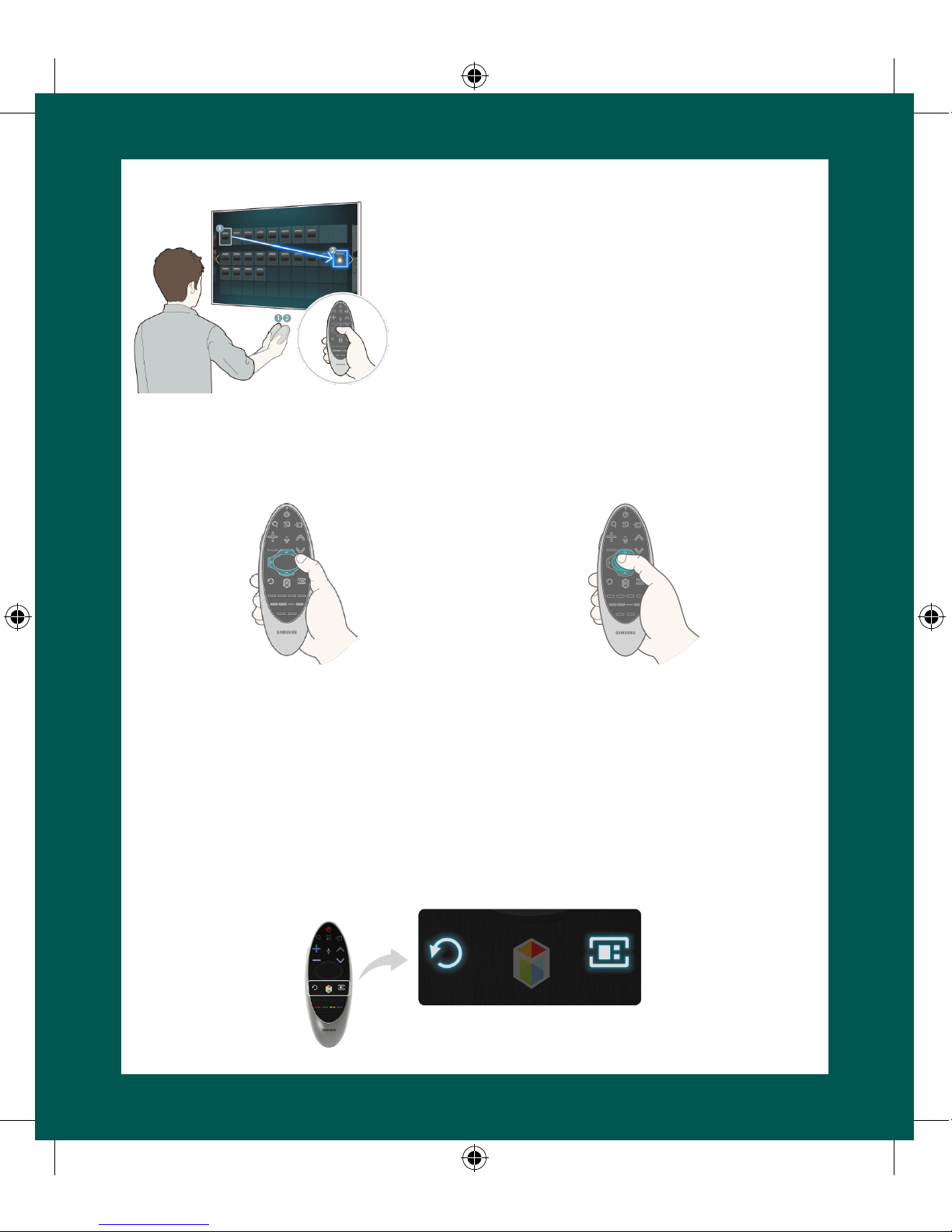

Using Motion Sensor Control

Place a ﬁnger on the touch pad, and then move

the Samsung Smart Control. A pointer appears

on the screen. Move the Samsung Smart Control.

The pointer moves in the direction you moved

the Samsung Smart Control. If you stop using the

Motion Function, even momentarily, put your ﬁnger

on the touch pad, and then move the Samsung

Smart Control again to re-start the function.

Moving the Focus, Pointer,

or Cursor Using the

Directional Buttons

Selecting an Item/Entering a

Menu by Pressing the Touch

Pad

Press the directional buttons (up, down,

left, and right) to move the focus,

pointer, or cursor in the direction you

want.

To enter a menu or select an item,

highlight the item or the menu title, or

move the pointer over it, and then press

the touch pad.

Pairing the Samsung Smart Control Again

If you need to re-establish the connection between the TV and the Samsung Smart

Control, point the Samsung Smart Control at the remote control sensor of the TV, and

then press the RETURN button and GUIDE button simultaneously for 3 seconds.

[UH6400-QSG]BN68-05869A-01ENG.indb 8 2014-02-24  5:30:25

When you turn on your TV for the ﬁrst time, it immediately starts the Initial Setup.

During Initial Setup, your TV pairs with the Samsung Smart Control, connects to your

home network, implements Smart Hub agreements, links to the source of your live TV

signal, and sets up control of your set-top or satellite box.

Information You Need

Have the following information on hand

before you turn on your TV for the ﬁrst

time:

•Your wireless network’s password.

(Make sure your network is on.)

•Your Postal or Zip code.

•The name and location of your cable

or satellite provider (if you use one).

Internet Access

The TV must be connected to the Internet

to use the Smart Features. If you have

a wireless network, conﬁrm that your

network router is working before you

start the initial setup. If you have a wired

network, connect the TV to the network

with an Ethernet cable before you begin

(CAT 7 cable preferred).

Running Initial Setup

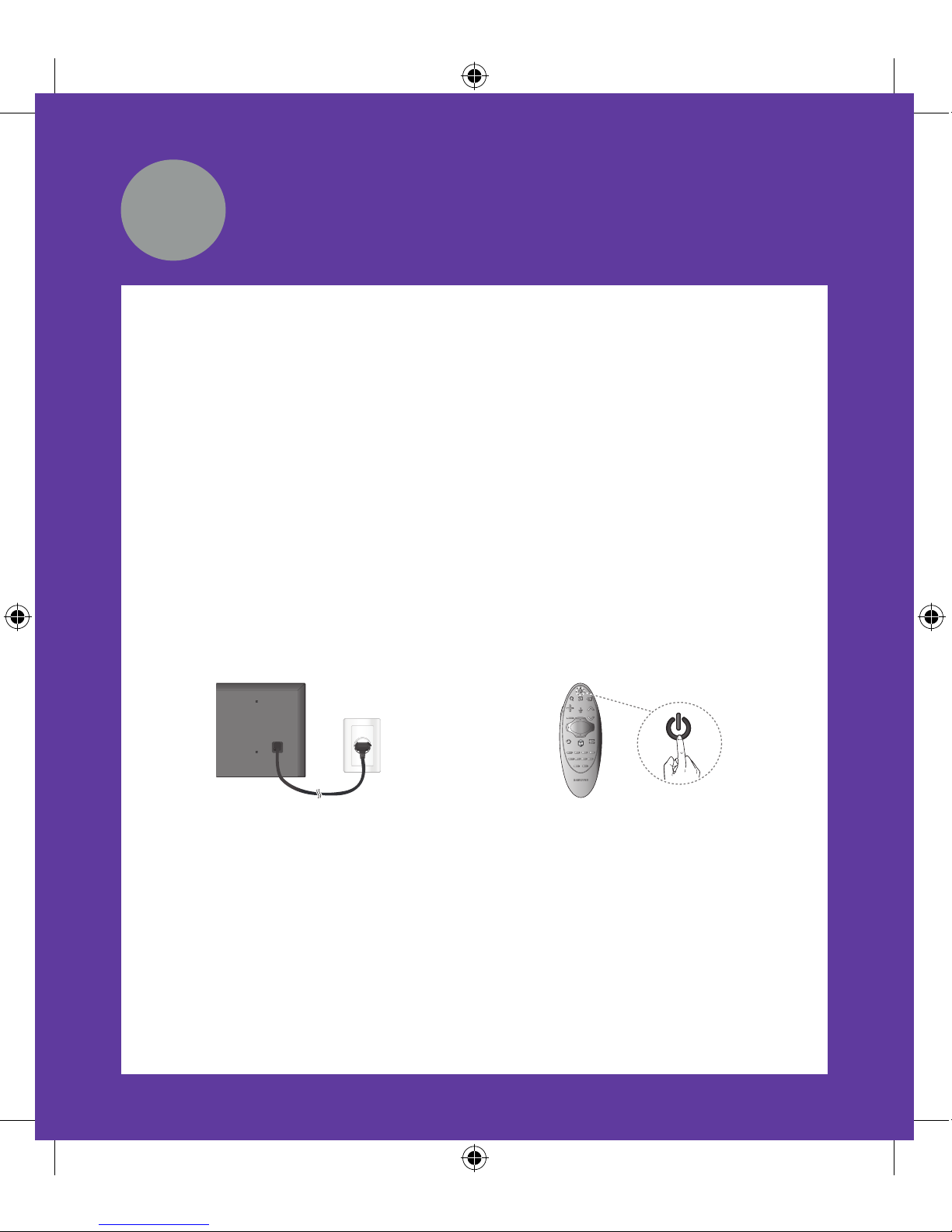

1 Plug your TV into a wall outlet.

2 Aim the Samsung Smart Control at

the TV.

3 Press the TV button on the Samsung

Smart Control to turn on the TV, and

then follow the directions on the

screen.

Once your Samsung Smart Control pairs, you can use the Samsung Smart Control’s

motion sensor function to move the pointer on the screen. To use the motion sensor

function, rest a ﬁnger on the touch pad, and then move the Samsung Smart Control.

To select items, press the touch pad.

To learn more about operating your TV and its Smart Features, see your TV’s user‘s

manual or launch the TV’s built in e-Manual. Congratulations on the purchase of your

new Smart TV!

7Initial Setup

[UH6400-QSG]BN68-05869A-01ENG.indb 9 2014-02-24  5:30:25

Common issues

Can’t Connect to Network or

Apps (For Internet supported

model only)

•Make sure the TV has a network

connection (MENU > Network >

Network status).

•Contact your Internet service provider.

No Picture/Sound or Distorted

Picture/Sound from an External

Device

•Make sure your connection to the

device is correct.

•Perform a TV Self Diagnosis to identify

the problem (MENU > Support > Self

Diagnosis > Sound or Picture Test).

•Change the picture size. (Use the

“P.Size” button on your remote.)

Poor Picture Quality

•Select High Deﬁnition (HD) channels

or programs.

Your Settings are Lost after 30

Minutes

•Change to Home Mode (MENU >

Support > Use Mode > Home Use).

“Weak or No Signal” Displayed in

TV Mode/Cannot Find Channel

•Press the SOURCE button on your

remote.

•If the TV is not connected to a cable

or satellite box, run Auto Program

to search for channels (MENU >

Broadcasting > Auto Program).

Can’t See All Apps or Apps Not

Working

•Reset Smart Hub (MENU > Smart

Hub > Smart Hub Reset).

The stand is wobbly or crooked

•Make sure the indicator arrows on the

stand and stand holder are properly

aligned.

The TV won’t turn on

•Make sure all cables are fully inserted

and that the remote has batteries

installed.

My remote, gestures, and/or

voice does not work

•The TV ships with protective stickers

covering some of the sensors. Make

sure all of the stickrs have been

removed.

[UH6400-QSG]BN68-05869A-01ENG.indb 10 2014-02-24  5:30:25

Autres manuels pour SMART TV

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Téléviseur LCD

Samsung

Samsung LN46A630 - 46" LCD TV Manuel utilisateur

Samsung

Samsung QA75Q60BAKXXL Mode d’emploi

Samsung

Samsung LN46A950D1F Manuel utilisateur

Samsung

Samsung LE19B450C4W Manuel utilisateur

Samsung

Samsung LN22D450G1F Manuel utilisateur

Samsung

Samsung P R E L I M I N A R Y LN46B650 Manuel utilisateur

Samsung

Samsung UE43NU7442 Manuel utilisateur

Samsung

Samsung 750 series Manuel utilisateur

Samsung

Samsung LN40C500F3F Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Samsung

Samsung LN40B540 Manuel utilisateur

Samsung

Samsung UN32FH4003 Manuel utilisateur

Samsung

Samsung LT-P 1545 Manuel utilisateur

Samsung

Samsung un55j6500AK Mode d’emploi

Samsung

Samsung LA22N21B Manuel utilisateur

Samsung

Samsung PN42C450 Manuel utilisateur

Samsung

Samsung LE26S8 Manuel utilisateur

Samsung

Samsung UN19D4003 Manuel utilisateur

Samsung

Samsung LN22A450C1 Manuel utilisateur

Samsung

Samsung LN19C450 Manuel utilisateur

Samsung

Samsung BN68-02956B-02 Manuel utilisateur

Samsung

Samsung LE32N7 Manuel utilisateur

Samsung

Samsung LN32A540P2DXZAOM Manuel utilisateur

Samsung

Samsung LN32C350D1D Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Dell

Dell W1900 19 Instructions d'utilisation

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur

Philips

Philips 40PFL7705D Manuel utilisateur

Dynex

Dynex DX-40L261A12 Manuel utilisateur

JVC

JVC LT-23C50BU Manuel utilisateur
