Samsung LS15M23C Manuel utilisateur

AFTER SALES SERVICE

Do not hesitate to contact your retailer or service agent if a

change in the performance of your product indicates that a

faulty condition may be present.

BN68-00633J-00

ELECTRONICS

LCD TV

LS15M23C

LS17M24C

LS20M22C

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

PC DISPLAY

TELETEXT

This device is a Class B digital apparatus.

BN68-00633J-00cover.qxd 6/8/04 2:05 PM Page 1

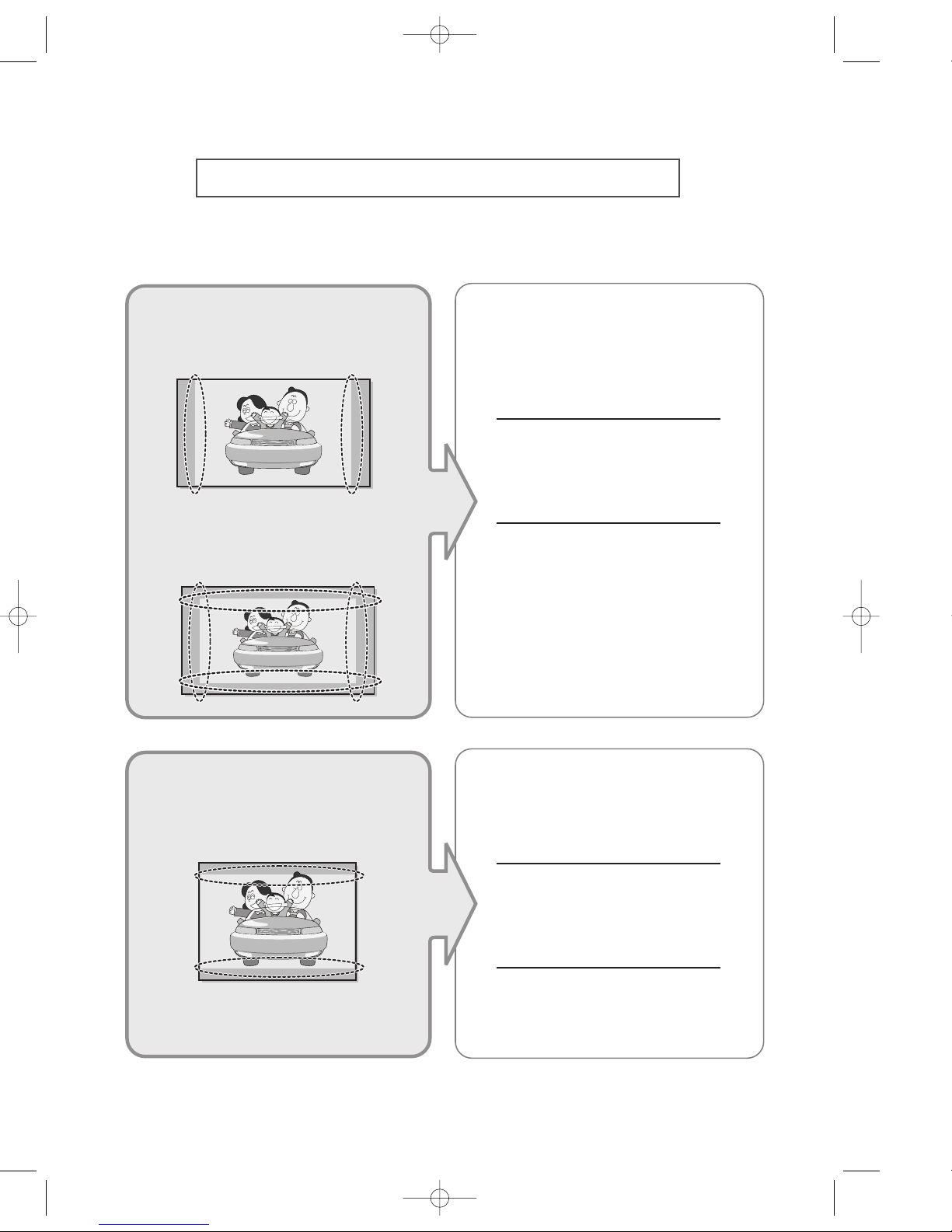

Precautions When Using the Still Image

The still image may cause permanent damage to the TV screen.

•

Digital Ready TV: When you

select the regular screen (4:3)

mode to watch an D-grade

digital broadcast (and the set-top

box output is 480p).

Although digital broadcasting must be in the

wide screen (16:9) HD format, broadcasters

sometimes show programs made originally

in the regular screen format (4:3) by

converting the signals into digital form, in

which case the left and right side edges of

the screen are cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the left, right and the

center of the screen remain fixed for

an extended period of time, the

amounts of light transmission will also

remain varied and as a result the

borders may leave traces.

•

Digital Ready TV: When you

select the wide screen (16:9)

mode to watch an D-grade

digital broadcast (and the set-top

box output is 1080i).

•

Digital Ready TV: When the

TV receives HD-grade signals

(and the set-top box output is 1080i).

When you watch a digital HD-grade

broadcast on a regular (4:3) TV with the

screen size "16:9" or "Panorama" selected,

you will be able to watch the program but

the top and bottom edges of the screen will

be cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the top, bottom and

the center of the screen remain fixed

for an extended period of time, the

amounts of light transmission will also

remain varied and as a result the

borders may leave traces.

01-BN68-00633J-00Eng.qxd 6/11/04 11:35 AM Page 2

• Integrated

Digital TV

(Wide-screen): When the TV

receives D-grade (regular)

broadcasting signals (receives

480p regular signals).

•

Digital Ready TV

(wide-screen):

digital TV: When the TV receives

D-grade (regular) broadcasting

signals (with a set-top box).

• When you watch an analogue

(regular) broadcast on a

wide-screen TV (with the 4:3

screen mode selected).

Although digital broadcasting must be in the

wide screen (16:9) HD format, broadcasters

sometimes show programs made originally

in the regular screen format (4:3) by

converting the signals into digital form, in

which case the left and right side edges of

the screen are cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the left, right and the

center of the screen remain fixed for

an extended period of time, the

amounts of light transmission will also

remain varied and as a result the

borders may leave traces.

•

When you watch a DVD, CD or a

video in wide screen (21:9) format

on a wide-screen (16:9) TV.

• When you connect a computer or a

game console to the TV and select

the 4:3 screen mode.

If you connect a DVD player, computer or a

game console to the wide-screen TV and

watch a movie or play a game in regular

(4:3) or wide (21:9) screen mode, the left

and right side edges, or the top and bottom

edges of the screen will be cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the left, right and the

center of the screen remain fixed for

an extended period of time, the

amounts of light transmission will also

remain varied and as a result the

borders may leave traces.

01-BN68-00633J-00Eng.qxd 6/11/04 11:35 AM Page 3

English-2

Contents

◆CONNECTING AND PREPARING YOUR TV

■Viewing the Control Panel............................................................................. 4

■Viewing the Connection Panel...................................................................... 5

Connecting an Aerial or Cable Television Network.................................... 6

Connecting Component Device

(DVD - 480i, 480p, 576i, and 576p only supported)

.......................................... 6

Connecting a Computer............................................................................. 6

Connecting External A/V Devices.............................................................. 7

Connecting Headphones ........................................................................... 7

Kensington Slot.......................................................................................... 7

■Viewing Pictures From External Sources...................................................... 8

■Inserting the Batteries in the Remote Control............................................... 9

■Viewing the Remote Control (All Functions Except Teletext)........................ 10

■Viewing the Remote Control (Teletext Functions)......................................... 11

■Switching On and Off.................................................................................... 12

■Placing in Standby Mode .............................................................................. 12

■Becoming Familiar with the Remote Control................................................. 13

■Plug & Play.................................................................................................... 14

■Selecting TV Mode or an Input Source......................................................... 16

■Editing an Input Source Name...................................................................... 17

◆SETTING THE CHANNELS

■Storing Channels Automatically..................................................................... 18

■Storing Channels Manually ........................................................................... 19

■Editing the Channels..................................................................................... 21

■Sorting the Stored Channels......................................................................... 22

◆SETTING THE PICTURE

■Changing the Picture Standard..................................................................... 23

■Adjusting the Custom Picture........................................................................ 24

■Adjusting the Screen Background Colour..................................................... 25

◆SETTING THE SOUND

■Changing the Sound Standard...................................................................... 26

■Selecting Auto Volume Control...................................................................... 27

◆SETTING THE TIME

■Setting the Clock........................................................................................... 28

■Switching Off Automatically........................................................................... 29

■Switching the Television On and Off Automatically....................................... 30

01-BN68-00633J-00Eng.qxd 6/8/04 10:01 AM Page 2

English-3

Contents

◆USING THE VARIOUS FUNCTIONS

■Setting the Blue Screen Mode ...................................................................... 31

■Displaying Information................................................................................... 31

◆USING THE TELETEXT FEATURE

■Teletext Feature............................................................................................. 32

■Displaying the Teletext Information ............................................................... 33

■Selecting a Page by Number ........................................................................ 34

■Using FLOF to Select a Page....................................................................... 35

■Storing Teletext Pages .................................................................................. 35

◆USING THE PC FUNCTIONS

■Setting Up Your PC Software........................................................................ 36

■Coarse and Fine Tuning of the Image........................................................... 37

■Changing the Image Position........................................................................ 38

■Initializing the Image Settings ....................................................................... 39

■Adjusting the PC Screen Automatically......................................................... 40

■Picture Mode................................................................................................. 41

■Adjusting the Custom Picture........................................................................ 41

■Adjusting the Screen Background Colour..................................................... 42

■Customizing the colour.................................................................................. 43

◆RECOMMENDATIONS FOR USE

■Troubleshooting: Before Contacting Service Personnel ............................... 44

■Power Saver.................................................................................................. 45

■Technical and Environmental Specifications................................................. 46

■Display Modes............................................................................................... 47

■Retractable Stand ......................................................................................... 48

■Using Your TV in Another Country ................................................................ 48

■Using the Anti-Theft Kensington Lock........................................................... 49

■Installing VESA compliant mounting devices................................................ 49

■Installing the Wall Mount Kit.......................................................................... 50

Press Important Note

Symbols

01-BN68-00633J-00Eng.qxd 6/8/04 10:01 AM Page 3

English-4

Viewing the Control Panel

SOURCE

Displays a menu of all of the available input sources

(TV - AV - S-Video - Component - PC).

You can also use the SOURCE()

button on the TV’s control

panel to make selections.

Press to see an on-screen menu of your TV’s

features.

- VOL +

Moves the selector left or right on the OSD.

Decreases or increases the level of audio

volume and the values of the selected function.

Moves the selector down or up on the OSD.

Decreases or increases the channel number.

POWER

Turns ON/OFF your set.

HEADPHONE

SPEAKERS

REMOTE CONTROL SENSOR

Aims the remote control towards this spot on the TV.

POWER INDICATOR

Lights up when you turn the power off.

(Red light shows in stand-by mode, Red

shows when you turn the power on, and light

is off after the power is on. Green shows when you

set Timer on or off.)

01-BN68-00633J-00Eng.qxd 6/8/04 10:01 AM Page 4

English-5

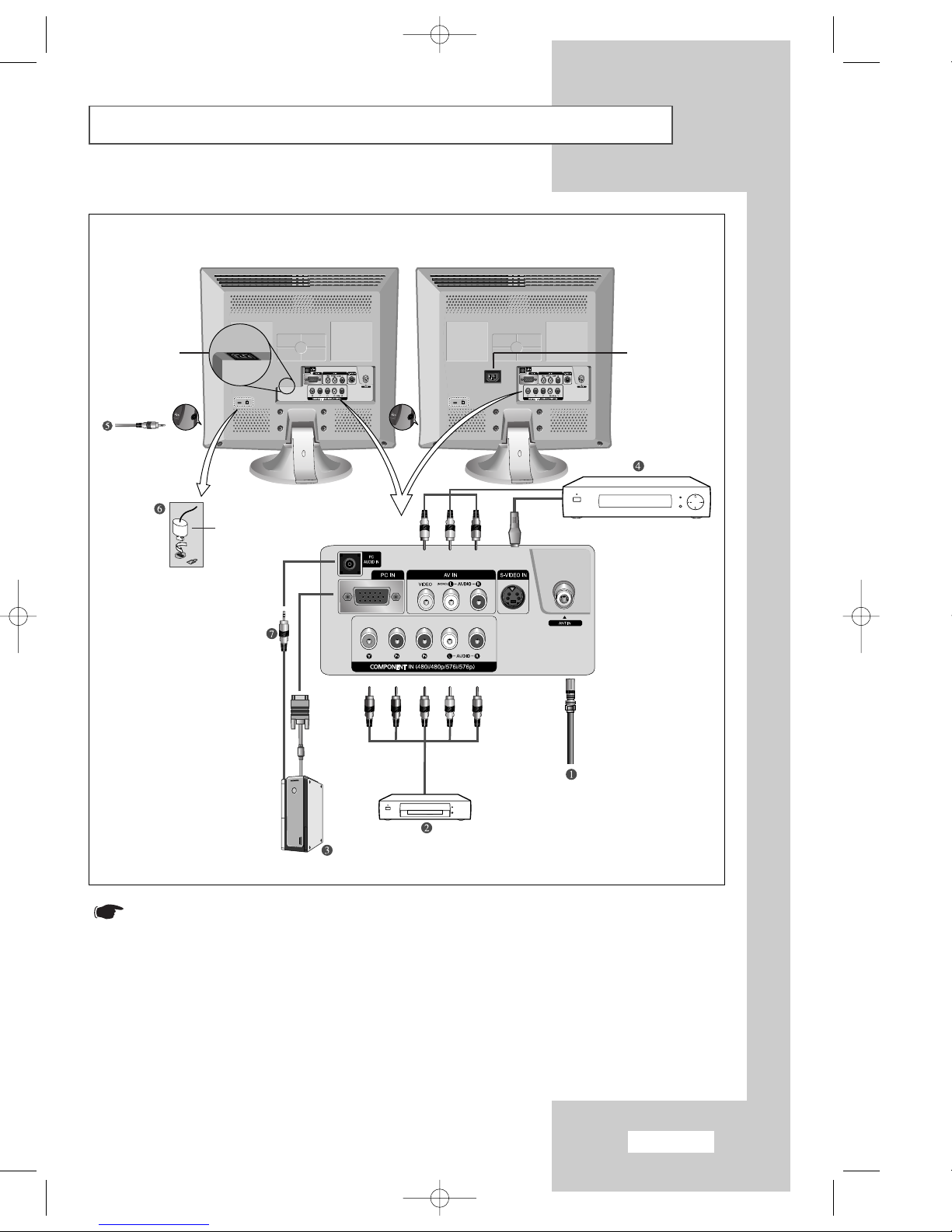

Viewing the Connection Panel

Whenever you connect an audio or video system to your set,

ensure that all elements are switched off.

Refer to the documentation supplied with your equipment for detailed connection

instructions and associated safety precautions.

Option

< LS17M24C > < LS15M23C / LS20M22C >

Power Input Power Input

01-BN68-00633J-01Eng.qxd 7/25/04 11:19 AM Page 5

English-6

Viewing the Connection Panel

Connecting an Aerial or Cable Television Network (depending on the model).

To view television channels correctly, a signal must be received by the set from one of the

following sources:

- An outdoor aerial

- A cable television network

- A satellite network

Connecting Component Device (DVD - 4 0i, 4 0p, 576i, and 576p only supported).

- Connect component video cables to component connector (“Y”, “PB”, “PR”) on the rear of your set and the

other ends to corresponding component video out connectors on the DVD

- The Y, Pb and Pr connectors on your component device (DVD) are sometimes labeled Y, B-Y and R-Y or Y,

Cb and Cr

- Connect RCA audio cables to “L - AUDIO - R” on the rear of your set and the other ends to corresponding

audio out connectors on the DVD

- Input signals not supported: 720p, 1080i, and 1080p

Connecting a Computer.

- Connect the 15 Pin D-SUB connector to the PC video connector

- Connect the stereo audio cable to the “PC AUDIO IN” jack ( ) on the rear of your set and the other end to

the “Audio Out” jack of the sound card on your computer

Pin Separate /V Composite /V

1 Red (R) Red (R)

2 Green (G) Green (G)

3 Blue (B) Blue (B)

4 Grounding Grounding

5 Grounding (DDC return) Grounding (DDC return)

6 Grounding - Red (R) Grounding - Red (R)

7 Grounding - Green (G) Grounding - Green (G)

8 Grounding - Blue (B) Grounding - Blue (B)

9 No connection No connection

10 Grounding - Sync / Self test Grounding - Sync / Self test

11 Grounding Grounding

12 DDC - SDA (Data) DDC - SDA (Data)

13 Horizontal Sync Horizontal/Vertical Sync

14 Vertical Sync Not used

15 DDC - SCL (Clock) DDC - SCL (Clock)

➣15 Pin D-SUB connector

01-BN68-00633J-00Eng.qxd 6/11/04 1:44 PM Page 6

English-7

Viewing the Connection Panel

Connecting External A/V Devices.

- Connect RCA or S-VIDEO cables to an appropriate external A/V device such as a VCR, DVD

or Camcorder.

- Connect RCA audio cables to “(MONO)L-AUDIO-R” on the rear of your set and the other ends to

corresponding audio out connectors on the A/V device.

Connecting Headphones.

- Plug a set of headphones into the 3.5mm mini-jack socket on the right-side of the set.

While the headphones are connected, the sound from the built-in speakers will be disabled.

Kensington Slot.

- This television has been designed to apply a burglarproof lock. (See page 49)

01-BN68-00633J-00Eng.qxd 6/8/04 10:01 AM Page 7

English-8

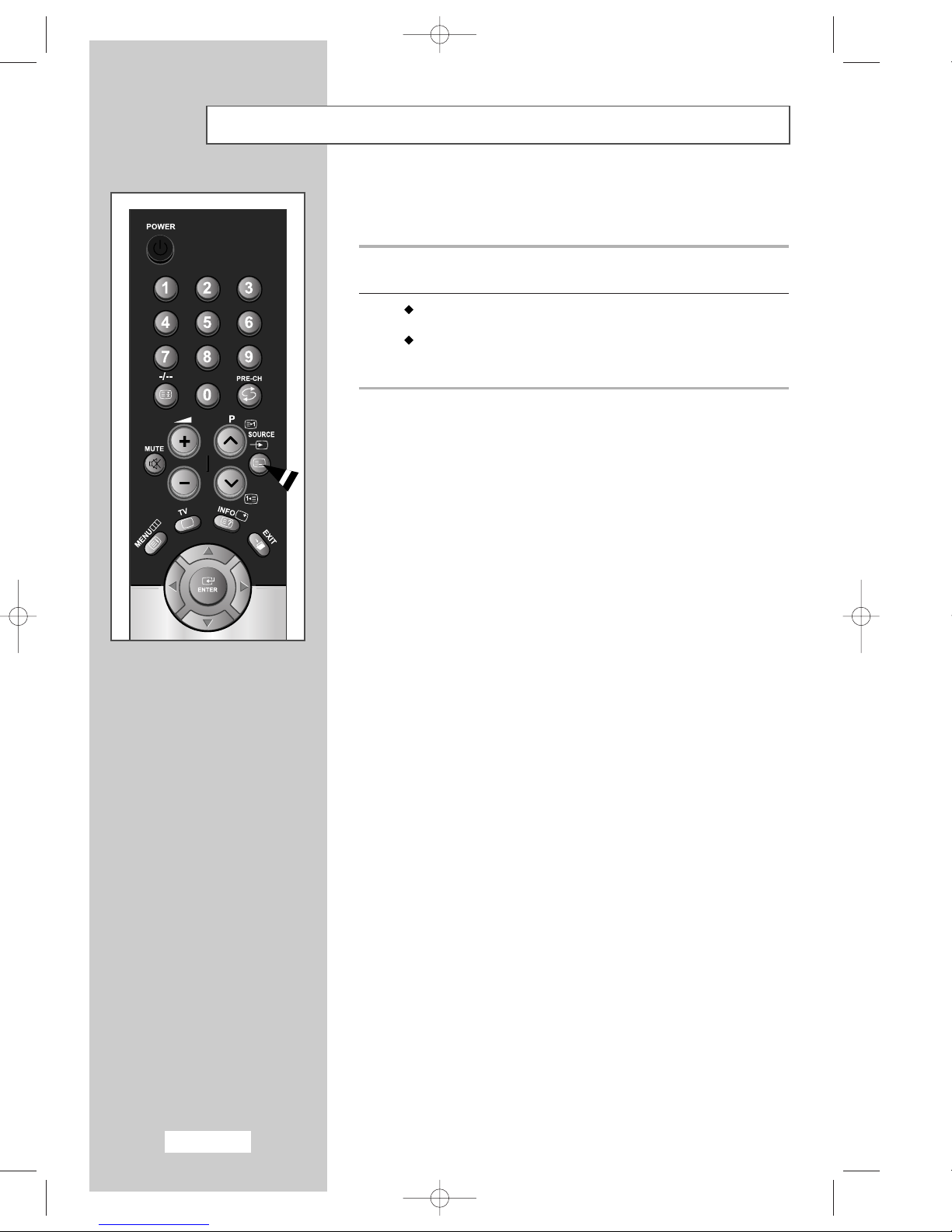

Viewing Pictures From External Sources

Once you have connected up your various audio and video systems,

you can view the different sources by selecting the appropriate input.

Check that all the necessary connections have been made

(refer to pages

and

for further details).

Press the TV button to choose TV mode.

Press the SOURCE button to choose Video mode.

The input sources are displayed in the following order:

TV - AV - S-Video - Component - PC

01-BN68-00633J-00Eng.qxd 6/8/04 10:01 AM Page 8

Autres manuels pour LS15M23C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Téléviseur LCD

Samsung

Samsung LE23T51B Manuel utilisateur

Samsung

Samsung LN19A451 Manuel utilisateur

Samsung

Samsung 3 SERIES Manuel utilisateur

Samsung

Samsung LE40A786R2F Manuel utilisateur

Samsung

Samsung LA22A350C1 Manuel utilisateur

Samsung

Samsung LE40M8 Manuel utilisateur

Samsung

Samsung BN68-02604B-04 Manuel utilisateur

Samsung

Samsung UN46D7000 Manuel du propriétaire

Samsung

Samsung LE32M86BDX Manuel utilisateur

Samsung

Samsung BN68-02756A-04 Manuel utilisateur

Samsung

Samsung LCD TV Manuel utilisateur

Samsung

Samsung UN55KS9500F Mode d’emploi

Samsung

Samsung UA78KU6570 Manuel utilisateur

Samsung

Samsung LN46B530 Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung OfficeServ 7000 Series Manuel utilisateur

Samsung

Samsung LTN 1535 Guide de configuration

Samsung

Samsung KR-X14ATSCH-1 Mode d’emploi

Samsung

Samsung 4005 Series Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 403 Series Manuel utilisateur

Samsung

Samsung 6 series Manuel utilisateur

Samsung

Samsung LE26R71BLE26R72B Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Dell

Dell W1900 19 Instructions d'utilisation

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur

Philips

Philips 40PFL7705D Manuel utilisateur

Dynex

Dynex DX-40L261A12 Manuel utilisateur

JVC

JVC LT-23C50BU Manuel utilisateur
