Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No.

BN68-02604C-04

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Contacte con SAMSUNG WORLD WIDE

Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención

al cliente de SAMSUNG.

Country Customer Care Center Web Site

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com

IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO S.A. de C.V.

AV. PRESIDENTE MASARIK #111 INT701

COL. CHAPULTEPEC MORALES C.P.11570

DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL

Tel: 01-55-5747-5100 / 01-800-726-7864

BN68-02604C_Eng.indb 1 2010-09-01 �� 10:03:05

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock

or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image

quality. To reduce risk of this effect, please follow below recommendations:

Avoid displaying the same TV channel for long periods.•

Always try to display any image on full screen, use TV set picture format menu for best possible match.•

Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout•

process.

Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.•

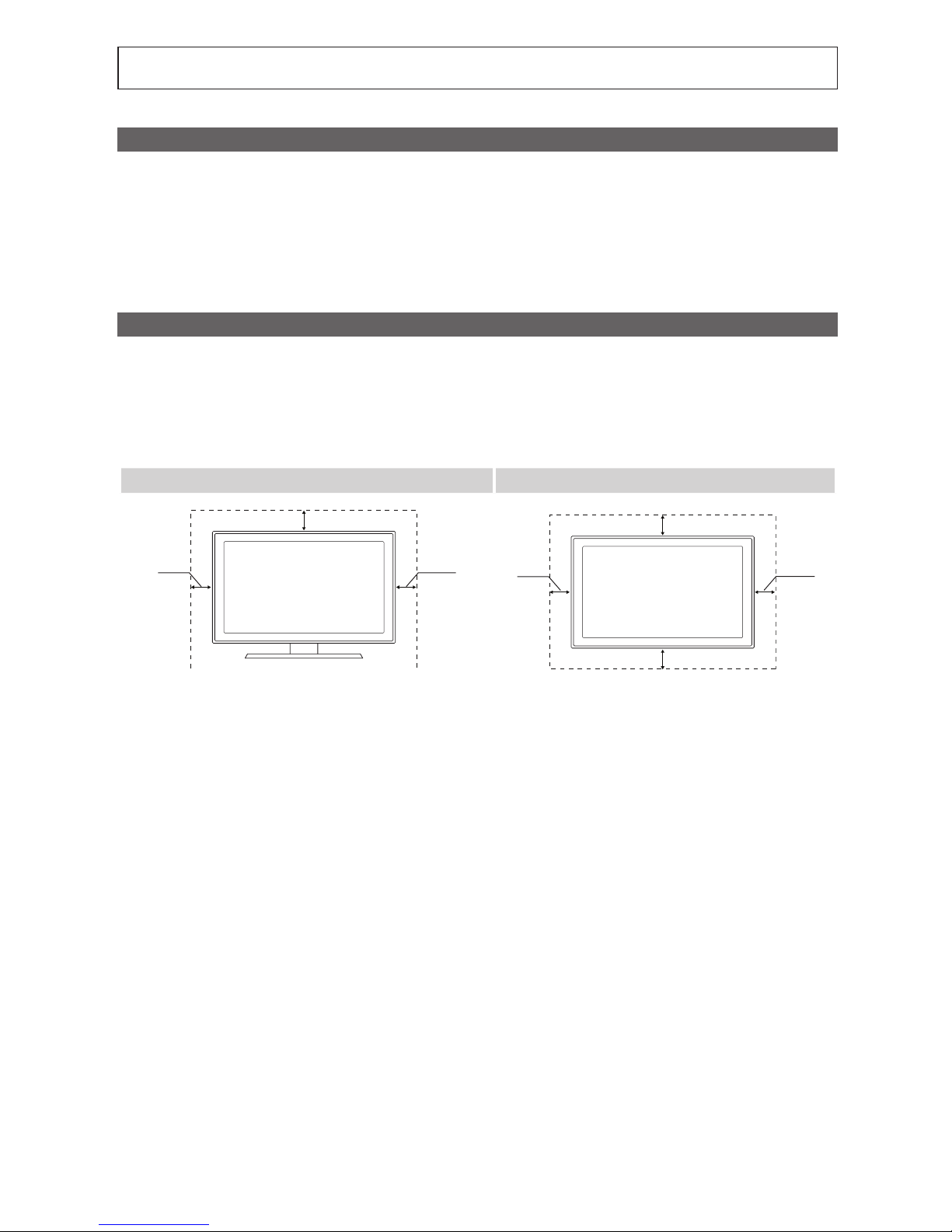

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

✎

Installation with a stand. Installation with a wall-mount.

4inches

BN68-02604C_Eng.indb 2 2010-09-01 �� 10:03:06

Contents

English

ENGLISH

Getting Started

List of Featuresy......................................................... 4

Accessoriesy.............................................................. 4

Installing the LCD TV Standy...................................... 4

Viewing the Control Panely......................................... 5

Viewing the Remote Controly...................................... 6

Connecting to an Antennay........................................ 7

Plug & Play (Initial Setup)y........................................... 7

Connections

Connecting to an AV Devicey...................................... 8

Connecting to an Audio Devicey................................. 9

Connecting to a PCy.................................................. 9

Changing the Input sourcey...................................... 11

Basic Features

How to Navigate Menusy.......................................... 11

Channel Menuy........................................................ 12

Seeing Channels 12

Using Favorite Channels 12

Memorizing channels 12

Editing channels 13

Other Features 13

Picture Menuy.......................................................... 14

Changing the Preset Picture Mode 14

Adjusting picture settings 14

Economical Solutions 14

Setting up the TV with your PC 14

Changing the Picture Options 15

Sound Menuy........................................................... 16

Changing the Preset Sound Mode 16

Adjusting sound settings 16

Sound Settings 16

Setup Menuy............................................................ 17

Setting the Time 17

Using the Sleep Timer 18

Setting the On/Off Timer 18

Locking Programs 18

Other Features 20

Picture In Picture (PIP) 21

Support Menuy......................................................... 21

Advanced Features

Network Connectiony............................................... 23

Connecting to a Wired Network 23

Connecting to a Wireless Network 25

Media Playy.............................................................. 29

Connecting a USB Device 29

Connecting to the PC through network 29

Screen Display 31

Playing Multiple Files 34

Media Play - Additional Functions 34

Anynet+y................................................................. 36

Setting Up Anynet+ 37

Switching between Anynet+ Devices 37

Recording 37

Listening through a Receiver 38

Troubleshooting for Anynet+ 38

AllSharey.................................................................. 39

About AllShare 39

Setting Up AllShare 39

Other Information

Assembling the Cablesy........................................... 41

Anti-theft Kensington Locky...................................... 41

Installing the Wall Mounty......................................... 41

Securing the TV to the Wally..................................... 43

Troubleshootingy...................................................... 44

Storage and Maintenance 46

Speciﬁcationsy......................................................... 47

License 47

Indexy...................................................................... 48

Check the Symbol!

t✎O

This function can be used by pressing the

TOOLS button on the remote control.

Note :

Important information

Step by step guide :

Informs you how to access

the menu.

POWER

F A V . CH

CHLIST

MEDIA.P

P . MODE

S.MODE

P . SIZE

MTS

INFO

TOOLS

BN68-02604C_Eng.indb 3 2010-09-01 �� 10:03:06

Getting Started

English

List of Features

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewedy

without a cable box / STB (Set-Top-Box) satellite receiver.

Media Playy: Allows you to play music ﬁles, pictures, and movies saved on a USB device. (P. 29)

AllSharey: Allows you to conﬁgure a mobile message server media render. (P. 39)

Self Diagnosisy:You can check picture and sound operation. (P. 21)

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

✎

Remote Control & Batteries (AAA x 2)y

Owner’s Instructionsy

Warranty Card / Safety Guide / Quick Setup Guidey

Cleaning Clothy

Power Cordy

(46inch TV)

Blanking BracketyCable TieyHolder-Ring (4ea)y

Installing the LCD TV Stand

Components

When installing the stand, use the provided components and parts.

Stand (1 EA) Guide Stand (1 EA) Screws

A B C

9EA (M4 X L12)

Top View

4EA

1EA

Front

Rear

BN68-02604C_Eng.indb 4 2010-09-01 �� 10:03:07

01 Getting Started

English

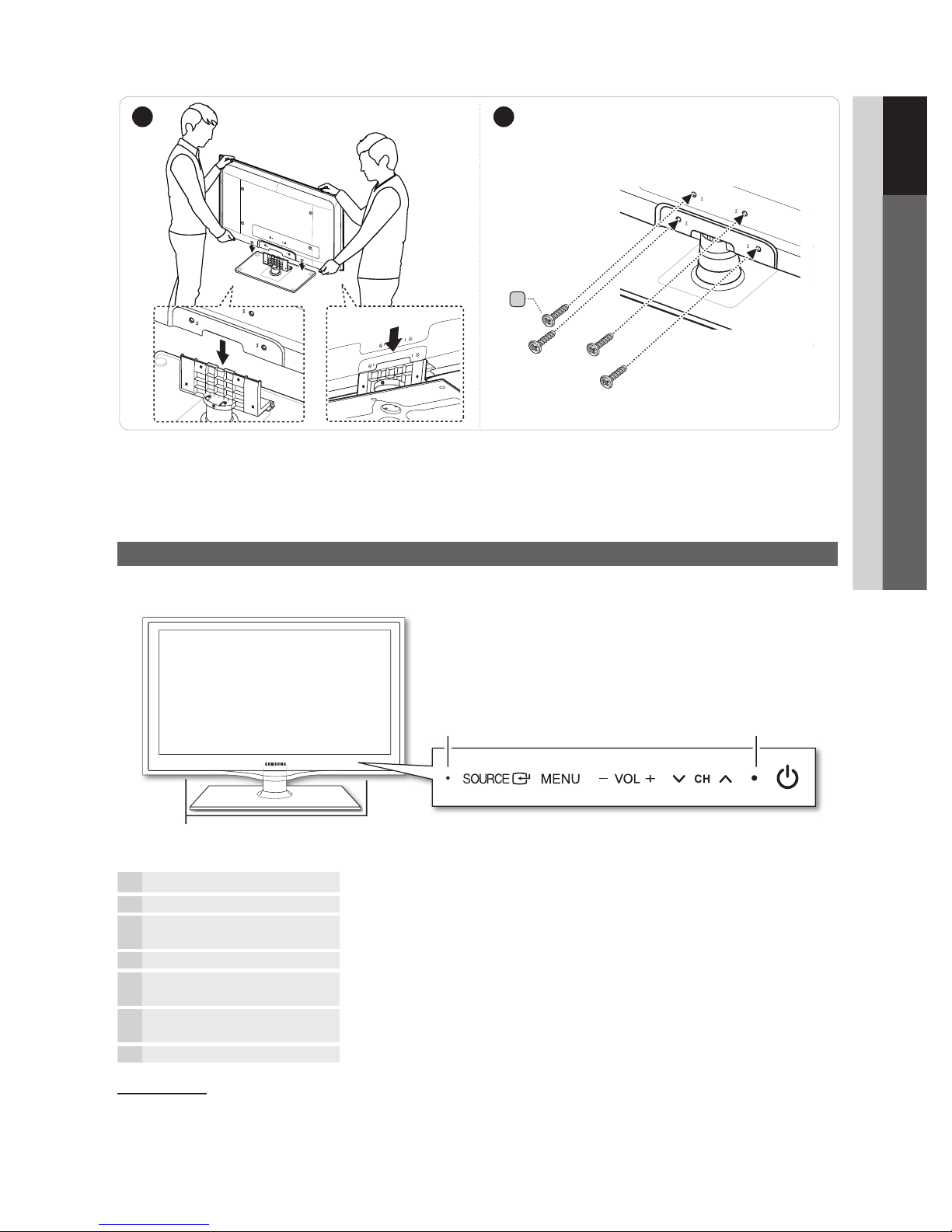

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

✎

Make sure that at least two persons lift and move the LCD TV.

✎

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one

✎

side.

Viewing the Control Panel

The product color and shape may vary depending on the model.

✎

(Power) Turns the TV on or off.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE

Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER

button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.

Adjusts the volume. In the OSD, use the

buttons as you would use the ◄

and ►buttons on the remote control.

Changes the channels. In the OSD, use the

buttons as you would use the

▼and ▲buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Speakers

Power IndicatorRemote control sensor

4EA

Bottom View

BN68-02604C_Eng.indb 5 2010-09-01 �� 10:03:08

Getting Started

English

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel, Volume

✎

buttons.

Installing batteries (Battery size: AAA)

NOTE

✎

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid use when nearby fluorescent lights or neon

signs.

The color and shape may vary depending on the model.

Press to display information on the TV screen.

(P. 17)

Changes channels.

Returns to the previous channel.

Turns the remote control light on and off.

When on, the buttons become illuminated for a

moment when pressed.

(Using the remote control with this button set to

off will reduce the battery usage time.)

Cut off the sound temporarily.

Displays the main on-screen menu.

Exit the menu.

Buttons used in the Channel list, Media Play

menu, etc.

S.MODE: Selects the sound mode. (P. 16)

SLEEP: Automatically shuts off the TV at a

preset time. (P. 18)

MTS:Press to choose stereo, mono or Separate

Audio Program (SAP broadcast). (P. 17)

P.MODE: Selects picture mode. (P. 14)

P.SIZE: Choose the picture size. (P. 15)

CC: Controls the caption decoder. (P. 20)

Displays Favorite Channel Lists on the screen.

(P. 12)

Returns to the previous menu.

Quickly select frequently used functions.

Selects the on-screen menu items and

changes the values seen on the menu.

Views Media Play. (P. 29)

Displays the channel list on the screen. (P. 12)

Press to select additional channels (digital)

being broadcast by the same station. For

example, to select channel ‘54-3’, press

‘54’, then press ‘-’ and ‘3’.

Adjusts the volume.

Displays and selects the available video

sources. (P. 11)

Turns the TV on and off.

Use these buttons in Media Play and

Anynet+ modes.

(: controls recording on Samsung

recorders with the Anynet+ feature)

Press to directly access to channels.

PRE-CH

VOL

MUTE

RETURN

CH LIST

EXIT

ABCD

MEDIA.P FAV. CH

P . MODE

S.MODE

SLEEP

P.SIZE

MTS

TOOLS

INFO

BN68-02604C_Eng.indb 6 2010-09-01 �� 10:03:09

01 Getting Started

English

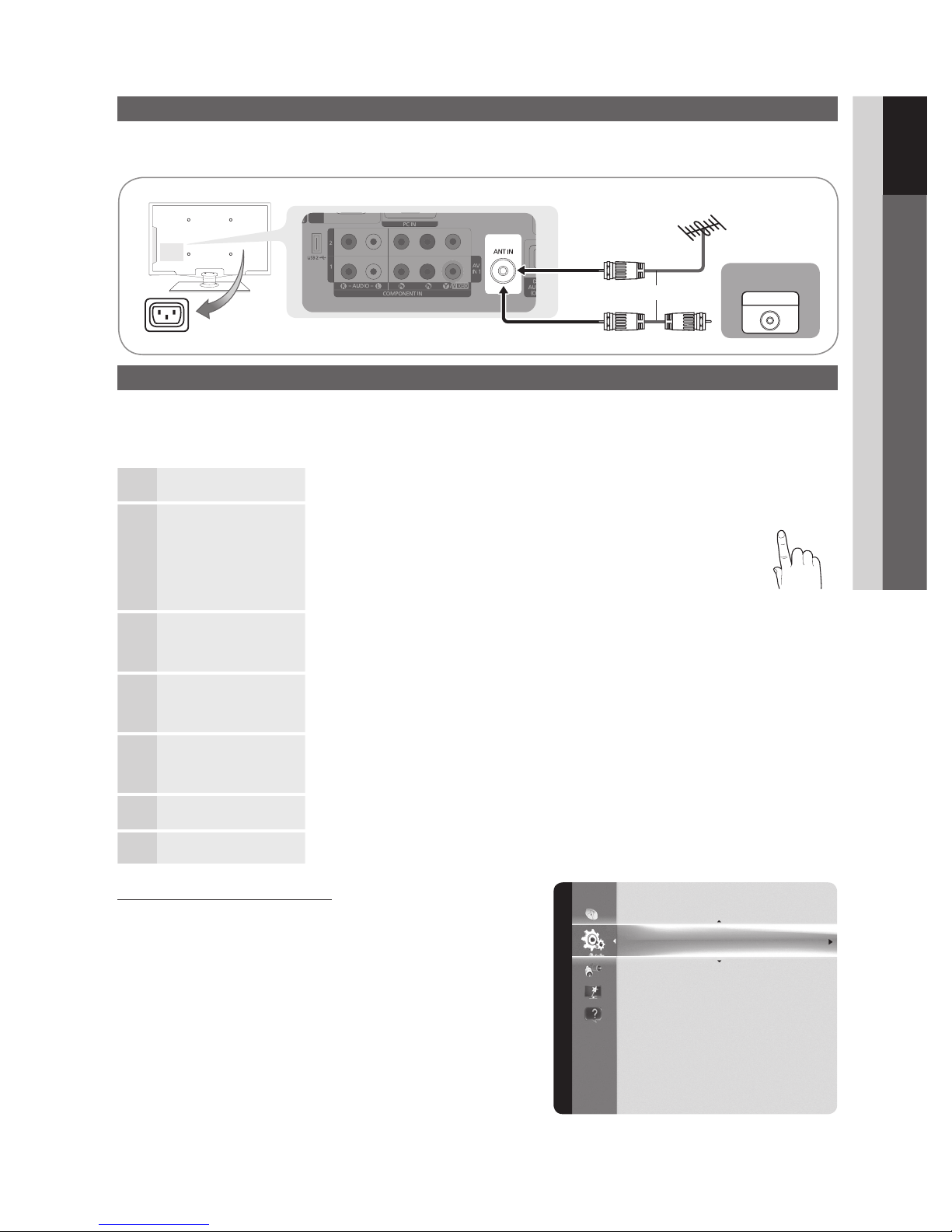

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Connecting the power cord and antenna.

✎

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER

button. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the red button.

✎

1Selecting a language Press the ▲or ▼button, then press the ENTER

button.

Select the desired OSD (On Screen Display) language.

POWER

FAV . CH

CHLIST

MEDIA.P

P . MODE

S.MODE

P . SIZE

MTS

INFO

SLEEP

2Selecting Store Demo

or Home Use

Press the ◄or ►button, then press the ENTER

button.

Select theyHome Use mode. Store Demo Mode is for retail

environments.

To return the unit’s settings fromyStore Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume in the OSD, press and hold MENU for 5 sec.

3Selecting an antenna Press the ▲or ▼button, then press the ENTER

button. Select Air, Cable or Auto.

✎

Cable mode, you can select the correct signal source among STD, HRC, and IRC

by pressing the ▲, ▼, ◄or ►button, then press the ENTER

button.

4Selecting a channel The channel search will start automatically.

For more information, refer to Channel →Auto Program. (P. 12)

Press the

✎

ENTER

button at any time to interrupt the memorization process.

5Setting the Clock

Mode

Set the Clock Mode automatically or manually.

If you select the

✎

Auto, set the daylight saving time.

Select the time zone where you live.

6Viewing the HD

Connection Guide

The connection method for the best HD screen quality is displayed.

7Enjoy your TV. Press the ENTER

button.

If You Want to Reset This Feature...

→Setup →Plug & Play →ENTER

Cable

R-AUDIO-L PRPBY

ANT OUT

VHF/UHF Antenna

Power Input

Plug & Play

Time

Menu Language : English

Caption : On

Security

Network

General

PIP : Off

Setup

BN68-02604C_Eng.indb 7 2010-09-01 �� 10:03:10

English

Connections

Connecting to an AV Device

Using an HDMI / DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture.

Available devices: DVD, Blu-ray player, HD cable box, HD satellite receiver (STB).

HDMI IN 1(DVI)

✎

,2,3,4 /PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the

HDMI IN 1(DVI) jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI

to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external

device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

Using a Component (up to 1080p), Using an Audio/Video Cable (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Device

R-AUDIO-L PRPBY

DVI OUT

BD/DVD player/

HD cable/Sat. box

R-AUDIO-L PRPBY

HDMI OUT

R-AUDIO-L PRPBY

AUDIO OUT

R-AUDIO-L PRPBY

COMPONENT OUT

R-AUDIO-L PRPBY

AUDIO OUT

Blu-ray player

R-AUDIO-L PRPBY

VIDEO OUT

VCR

R-AUDIO-L PRPBY

AUDIO OUT

When connecting to

✎

AV IN 1, the

color of the AV IN 1 [Y/VIDEO] jack

(Green) does not match the color of

the video cable (Yellow).

For better picture quality,

✎

the Component connection

is recommended over the A/V

connection.

W W BG

Yellow Red White Red Blue Green

Red White

W W BG

BN68-02604C_Eng.indb 8 2010-09-01 �� 10:03:12

English

02 Connections

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Ampliﬁer, Home Theater

DIGITAL AUDIO OUT (OPTICAL)

✎

When a Digital Audio System is connected to the

DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is

a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is

connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to

hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite

receiver directly to an amplifier or home theater.

AUDIO OUT

✎

: Connects to the audio input jacks on your amplifier/home theater.

When connecting, use the appropriate connector (sold separately).

When an audio amplifier is connected to the

AUDIO OUT jacks: Decrease the volume of the TV and adjust the

volume level with the amplifier’s volume control.

Connecting to a PC

Using an HDMI/DVI Cable / a D-sub Cable

R-AUDIO-L PRPBY

AUDIO OUT

R-AUDIO-L PRPBY

AUDIO OUT

DVD

Home Theater

R-AUDIO-L PRPBY

OPTICAL

R-AUDIO-L PRPBY

AUDIO IN

Red White

W W BG

Digital audio system

R-AUDIO-L PRPBY

DVI OUT

R-AUDIO-L PRPBY

PC OUT

BN68-02604C_Eng.indb 9 2010-09-01 �� 10:03:15

English

Connections

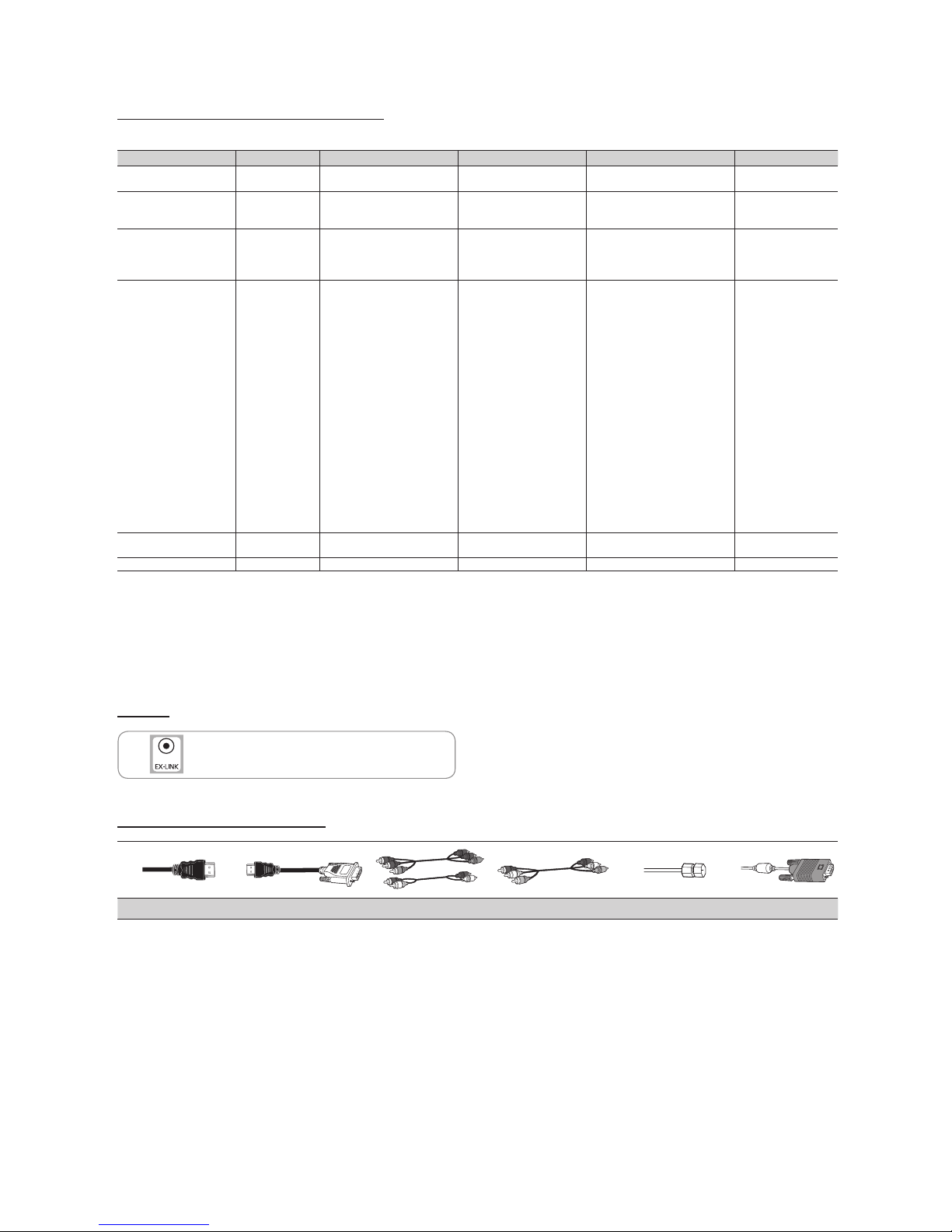

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920X1080@60Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM 640 x 350 31,469 70,086 25,175 +/-

720 x 400 31,469 70,087 28,322 -/+

MAC

640 x 480 35,000 66,667 30,240 -/-

832 x 624 49,726 74,551 57,284 -/-

1152 x 870 68,681 75,062 100,000 -/-

VESA CVT

720 x 576 35,910 59,950 32,750 -/+

1152 x 864 53,783 59,959 81,750 -/+

1280 x 720 56,456 74,777 95,750 -/+

1280 x 960 75,231 74,857 130,000 -/+

VESA DMT

640 x 480 31,469 59,940 25,175 -/-

640 x 480 37,861 72,809 31,500 -/-

640 x 480 37,500 75,000 31,500 -/-

800 x 600 37,879 60,317 40,000 +/+

800 x 600 48,077 72,188 50,000 +/+

800 x 600 46,875 75,000 49,500 +/+

1024 x 768 48,363 60,004 65,000 -/-

1024 x 768 56,476 70,069 75,000 -/-

1024 x 768 60,023 75,029 78,750 +/+

1152 x 864 67,500 75,000 108,000 +/+

1280 x 1024 63,981 60,020 108,000 +/+

1280 x 1024 79,976 75,025 135,000 +/+

1280 x 800 49,702 59,810 83,500 -/+

1280 x 800 62,795 74,934 106,500 -/+

1280 x 960 60,000 60,000 108,000 +/+

1280 x 720 45,000 60,000 74,250 +/+

1360 x 768 47,712 60,015 85,500 +/+

1440 x 900 55,935 59,887 106,500 -/+

1440 x 900 70,635 74,984 136,750 -/+

1680 x 1050 65,290 59,954 146,250 -/+

VESA GTF 1280 x 720 52,500 70,000 89,040 -/+

1280 x 1024 74,620 70,000 128,943 -/-

VESA DMT / DTV CEA 1920 x 1080p 67,500 60,000 148,500 +/+

NOTE

✎✎

For HDMI/DVI cable connection, you must use the

HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

EX-LINK

Connector for service only.

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

BN68-02604C_Eng.indb 10 2010-09-01 �� 10:03:16

Autres manuels pour 5 Series

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Téléviseur LCD

Samsung

Samsung LE32A41B Manuel utilisateur

Samsung

Samsung LN32A650A1H Manuel utilisateur

Samsung

Samsung NU7090 series Mode d’emploi

Samsung

Samsung LE32A676A1M Manuel utilisateur

Samsung

Samsung 6 series Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Samsung

Samsung LN32B460 Manuel utilisateur

Samsung

Samsung LE23R81W Manuel utilisateur

Samsung

Samsung LA32C530 Manuel utilisateur

Samsung

Samsung LN-R2355W Manuel utilisateur

Samsung

Samsung LE15S51BP Manuel utilisateur

Samsung

Samsung UN55D7900 Manuel utilisateur

Samsung

Samsung LE32A676A Manuel utilisateur

Samsung

Samsung 750 series Manuel utilisateur

Samsung

Samsung LN32B550 Manuel utilisateur

Samsung

Samsung LN40D610M4F Manuel utilisateur

Samsung

Samsung LE32N7 Manuel utilisateur

Samsung

Samsung LTN1785W Manuel utilisateur

Samsung

Samsung LE40A766R1W Manuel utilisateur

Samsung

Samsung LTM 225W Manuel utilisateur

Samsung

Samsung 6900 series Manuel utilisateur

Samsung

Samsung LE32R8 Manuel utilisateur

Samsung

Samsung LA26R71B Manuel utilisateur

Samsung

Samsung LA32M51B Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Dell

Dell W1900 19 Instructions d'utilisation

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur

Philips

Philips 40PFL7705D Manuel utilisateur

Dynex

Dynex DX-40L261A12 Manuel utilisateur

JVC

JVC LT-23C50BU Manuel utilisateur
