Samsung Max Heat DVM S2 Manuel d'instructions

Model : AM***BXVTFH/AA, AM***BXVTJH/AA

VRF

Technical

Data Book

Max Heat DVM S2 for America

(R410A, 60Hz, HP)

Version Modification Date Remark

Ver.1.0 Release Max Heat DVM S2 HP TDB for America 23.12.20

History

Nomenclature

(1) Classification

AM DVM

(2) Capacity

(3) Version

B2022

(4) Product Type

XOutdoor Unit

NIndoor Unit

(5) Feature 1

VInverter

(6) Feature 2

AStandard + General Temp.+ Module

HHigh EER + Low Temp. + Module

GHigh EER + General Temp. + Module

DStandard + General Temp. + Non-Module

(7) Rating Voltage

(8) Mode

HHeat Pump

RHeat Recovery

Outdoor Unit

Model Name

(1) (2) (3) (4) (5) (6) (7) (8) Buyer

072 AA

B F

kBtu/h (3 digits)

3Ø, 3#, 208~230V, 60Hz

3Ø, 3#, 460V, 60Hz

THigh EER+Low Temp.+ Module

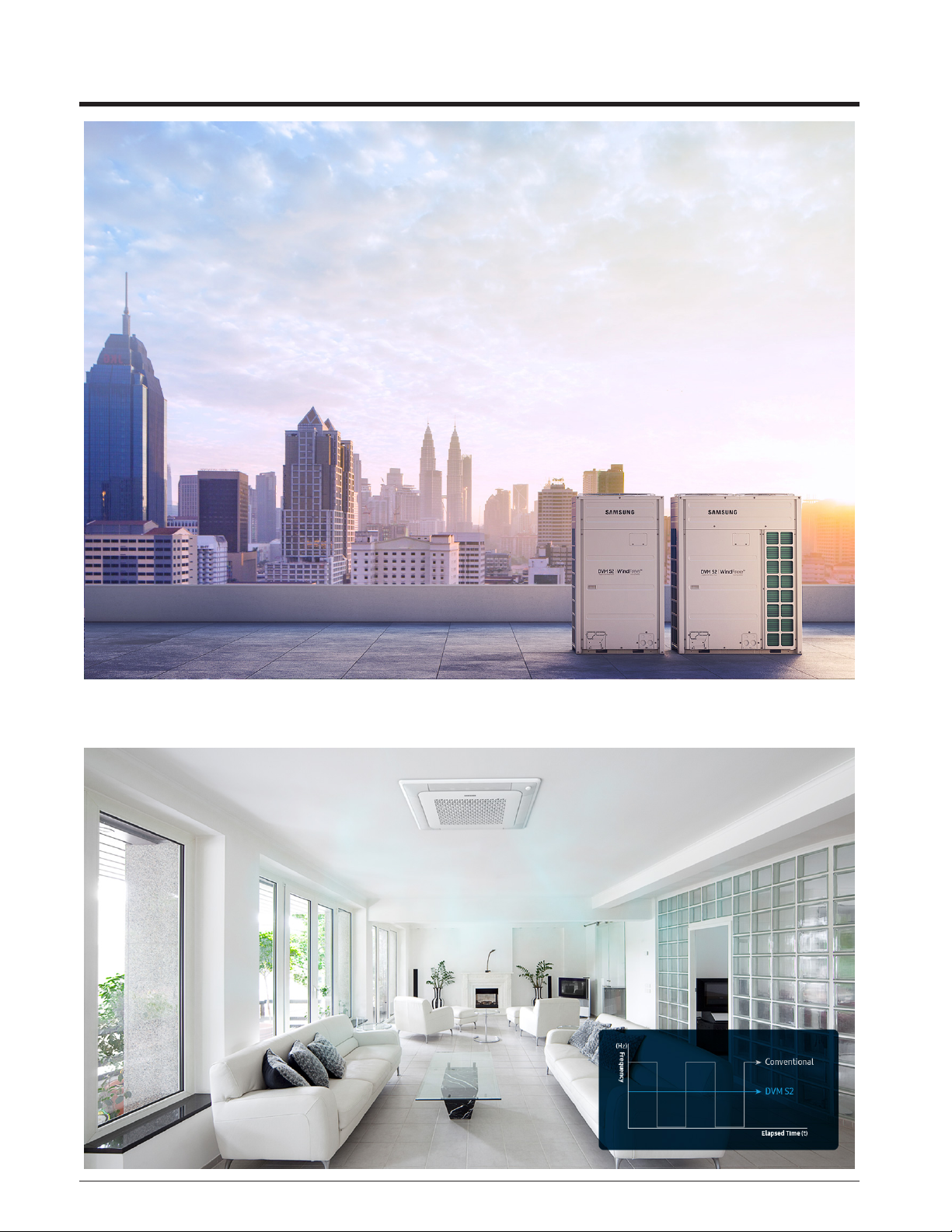

Features & Benefits

Rebuilt on all new innovations

Rethink your approach to air conditioning with the Samsung DVM S2. It delivers

outstanding comfort and energy efficiency, even in extreme climates. Its intelligent

features make installation and maintenance easier and more cost-effective.

Perfectly compatible with WindFree™

Active Frequency Drive 10Hz

Enjoy continuous comfort and avoid wasting energy. Active Frequency Drive 10Hz technology

enables the compressor to precisely control a small amount of refrigerant. So it maintains a more

consistent temperature and is compatible with Samsung’s WindFree™ Cooling.

Features & Benefits

Enabling a new era of consistent comfort

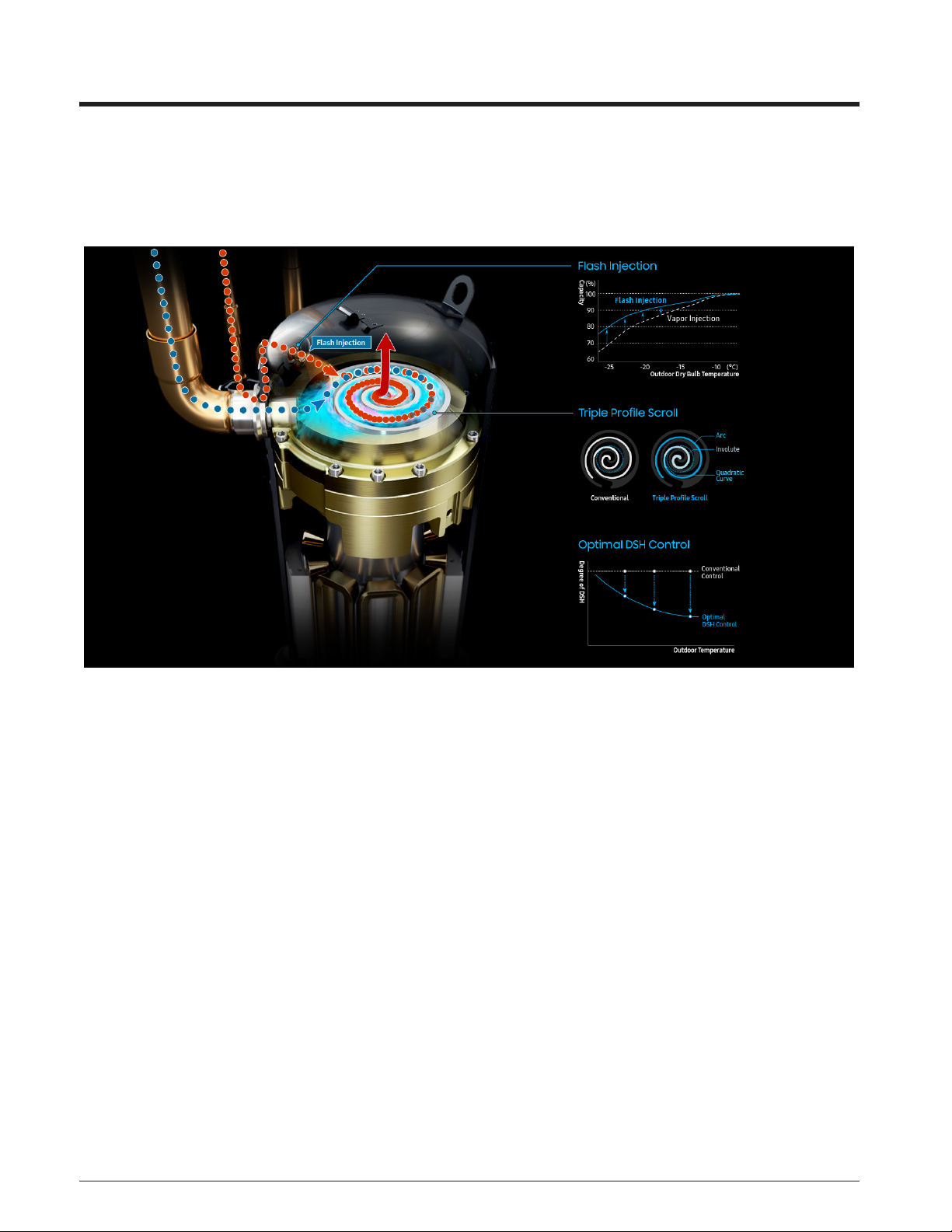

Advanced Flash Injection Compressor

Enter a new era of non-stop comfort and efficiency. The Advanced Flash Injection Compressor

provides the world’s largest capacity*. It combines Flash Injection technology with a strengthened

Triple Profile Scroll and efficient Optimal Discharge Superheat (DSH) Control technology.

* Samsung circulates 14,400cc/sec refrigerant (= 90cc (displacement volume) x 160rps (revolutions per second)), while Company A circulates 12,480cc/sec (= 96cc x 130rps), Company B circulates

14,080cc/sec (= 88cc x 160rps) and Company C circulates 12,320cc/sec (= 88cc x 140rps).

Contents

1. Combination Table / Design Procedure & Combination Ratio

2. Specification

3. Electric Characteristics

4. Dimensional Drawing

5. Center of Gravity

6. Electrical Wiring Diagrams

7.Sound Data

8. Operation Range

9.Piping Diagram

10. Installation

11. AHRI Data

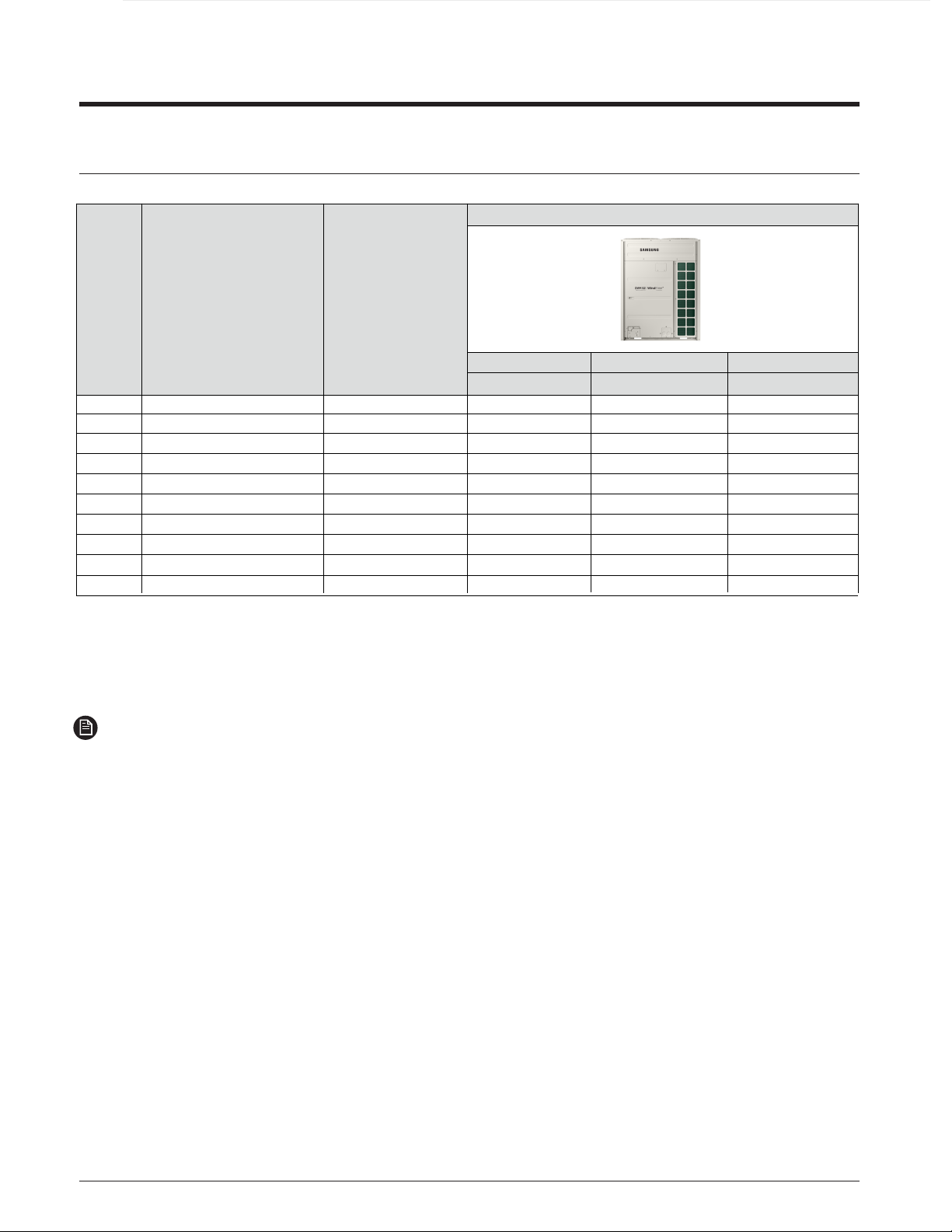

1. Combination Table : Outdoor units

•Make sure to use an indoor unit that is compatible with DVM S2.

•Indoor units can be connected within the range indicated in following table.

•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating

capacity of the indoor unit may decrease.

•The standard allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit

capacity is 50~130%.

Combination ratio of up to 184% is allowed depending on operation mode, minimum operation ratio and

connected indoor unit models. DVM Pro 2 design software supports designing over 130% based on system

design. Refer to the “Design Procedure & Combination Ratio” section of this document for details

※You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64

since outdoor unit only support up to 64 communication address. Indoor unit address can be

assigned from 0~63. If the indoor unit address was assigned from 64~79, E201 error will occur.

※Maximum 32 Wall-mount type indoor units with EEV (AM∗∗∗∗NQD∗∗∗, AM∗∗∗NVD∗∗∗) can be connected.

NOTE

DVM S2 HP (208~230V)

Combined outdoor units

Number of

Model name for Individual

combination outdoor units

Capa

(Ton)

AM072BXVTFH/AA

AM096BXVTFH/AA

AM120BXVTFH/AA

AM144BXVTFH/AA

AM168BXVTFH/AA

AM192BXVTFH1AA

AM216BXVTFH1AA

AM240BXVTFH1AA

AM264BXVTFH/AA

AM288BXVTFH/AA

072

(6Ton)

096

(8Ton)

120

(10Ton)

1. Combination Table : Outdoor units

Combined outdoor units

Number of

Model name for Individual

combination outdoor units

072 096 120

(6Ton) (8Ton) (10Ton)

AM072BXVTJH/AA 11

AM096BXVTJH/AA 1 1

AM120BXVTJH/AA 1 1

AM144BXVTJH/AA 2 2

AM168BXVTJH/AA 2 1 1

AM192BXVTJH1AA 22

AM216BXVTJH1AA 33

AM240BXVTJH1AA 32

AM264BXVTJH/AA 3 2 1

AM288BXVTJH/AA 3 1 1 1

•Make sure to use an indoor unit that is compatible with DVM S2.

•Indoor units can be connected within the range indicated in following table.

•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating

capacity of the indoor unit may decrease.

•The standard allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit

capacity is 50~130%.

Combination ratio of up to 184% is allowed depending on operation mode, minimum operation ratio and

connected indoor unit models. DVM Pro 2 design software supports designing over 130% based on system

design. Refer to the “Design Procedure & Combination Ratio” section of this document for details

※You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64

since outdoor unit only support up to 64 communication address. Indoor unit address can be

assigned from 0~63. If the indoor unit address was assigned from 64~79, E201 error will occur.

※Maximum 32 Wall-mount type indoor units with EEV (AM∗∗∗∗NQD∗∗∗, AM∗∗∗NVD∗∗∗) can be connected.

NOTE

DVM S2 HP (460V)

Capa

(Ton)

DVM S2 HP (208~230V)

Capa

[TON] Model Name Model Capa

[TON] Model Name Model

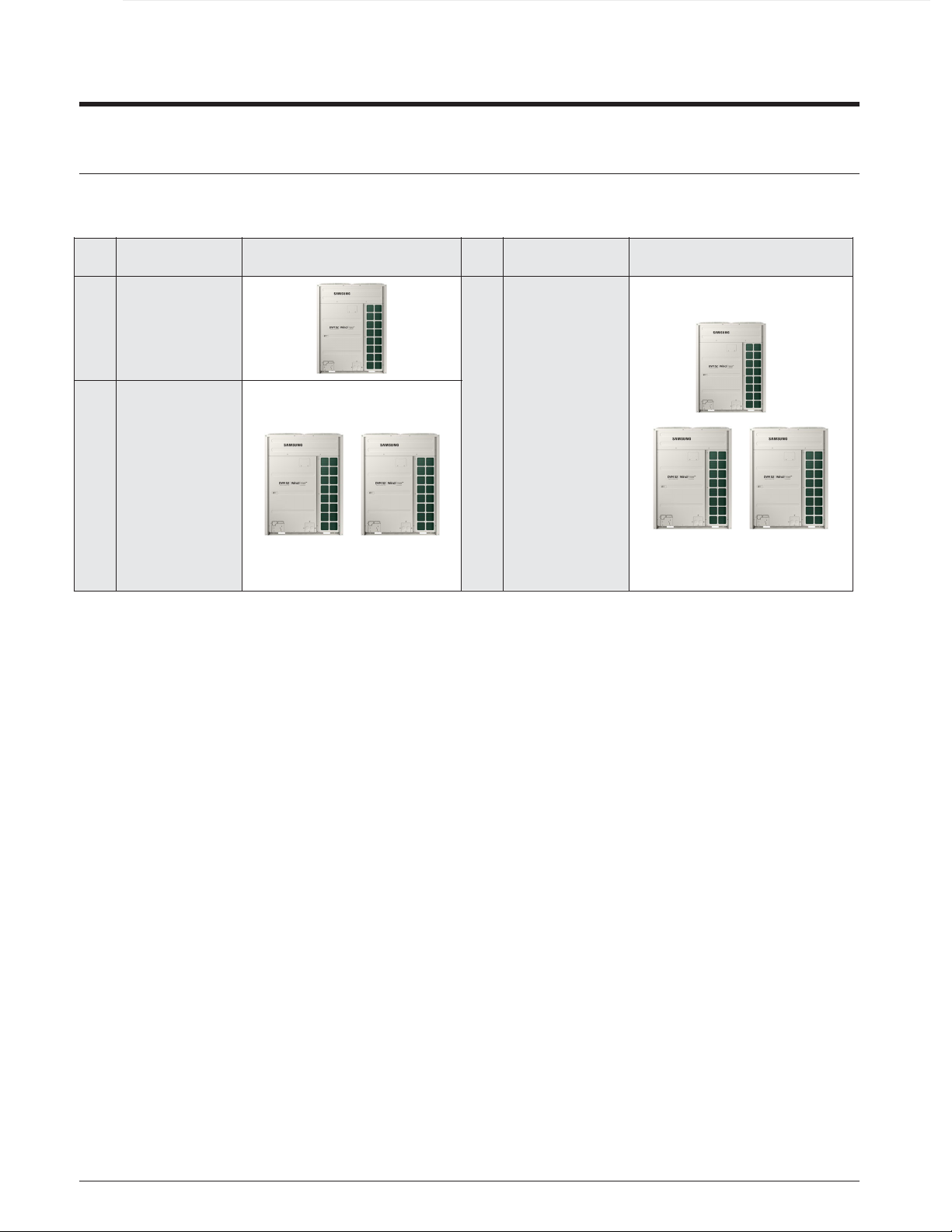

External Appearance

1. Combination Table : Outdoor units

AM072BXVTFH/AA

AM096BXVTFH/AA

AM120BXVTFH/AA

AM144BXVTFH/AA

AM168BXVTFH/AA

AM192BXVTFH1AA

22 AM264BXVTFH/AA

24 AM288BXVTFH/AA

AM216BXVTFH1AA

AM240BXVTFH1AA

Capa

[TON] Model Name Model Capa

[TON] Model Name Model

External Appearance

1. Combination Table : Outdoor units

AM072BXVTJH/AA

AM096BXVTJH/AA

AM120BXVTJH/AA

AM144BXVTJH/AA

AM168BXVTJH/AA

AM192BXVTJH1AA

22 AM264BXVTJH/AA

24 AM288BXVTJH/AA

DVM S2 HP (460V)

AM216BXVTJH1AA

AM240BXVTJH1AA
