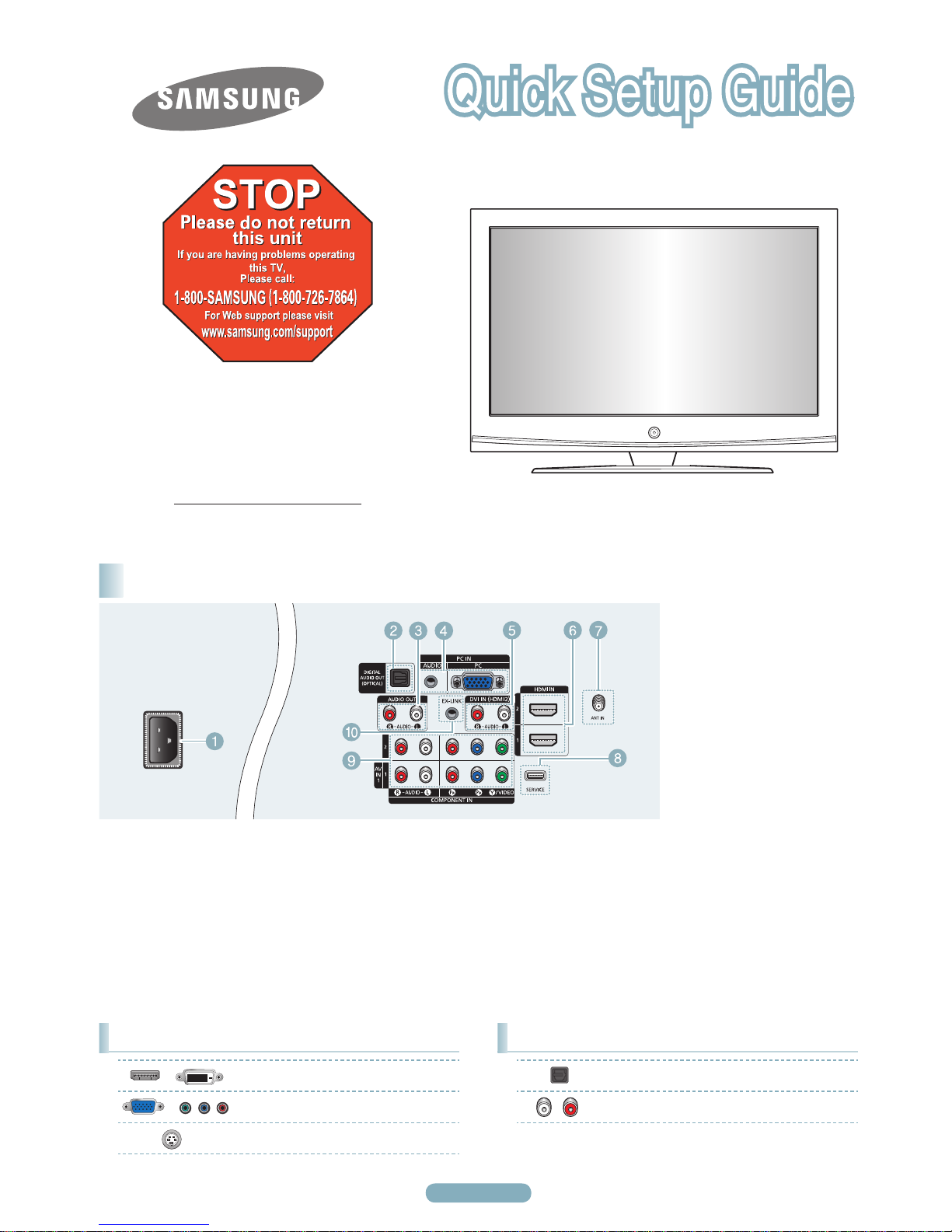

Samsung PN42A400C2D Manuel utilisateur

English - 1

Rear & Side Panel Jacks

PN42A400C2D/ PN50A400C2D

1-800-SAMSUNG (7267864)

Samsung Electronics America, Inc.

105 Challenger Road Ridgefield Park, NJ 07660-0511

Samsung Electronics Canada Inc., Customer Service

55 Standish Court Mississauga, Ontario L5R 4B2

Call center hours of operation (Mon-Sun 9AM-12AM EST).

To register this product please visit

www.samsung.com/global/register.

POWER IN

DIGITAL AUDIO OUT (OPTICAL)

AUDIO OUT (R/L)

PC IN[PC]/[AUDIO]

DVI IN (HDMI 2) (AUDIO-R/L)

HDMI IN 1, 2

ANT IN

SERVICE

COMPONENT IN 1, 2 / AV IN 1

EX-LINK

Video Input Performance Comparison

/ HDMI/DVI Best

/ PC/COMPONENT Better

VIDEO Normal

Audio Output Performance Comparison

OPTICAL (Digital) Best

AUDIO (Analog) Normal

BN68-01822A-00Eng.indd 1 2008-08-12 오후 5:44:31

English - 2

You can use the remote control up to a distance of about 23 feet from the TV.

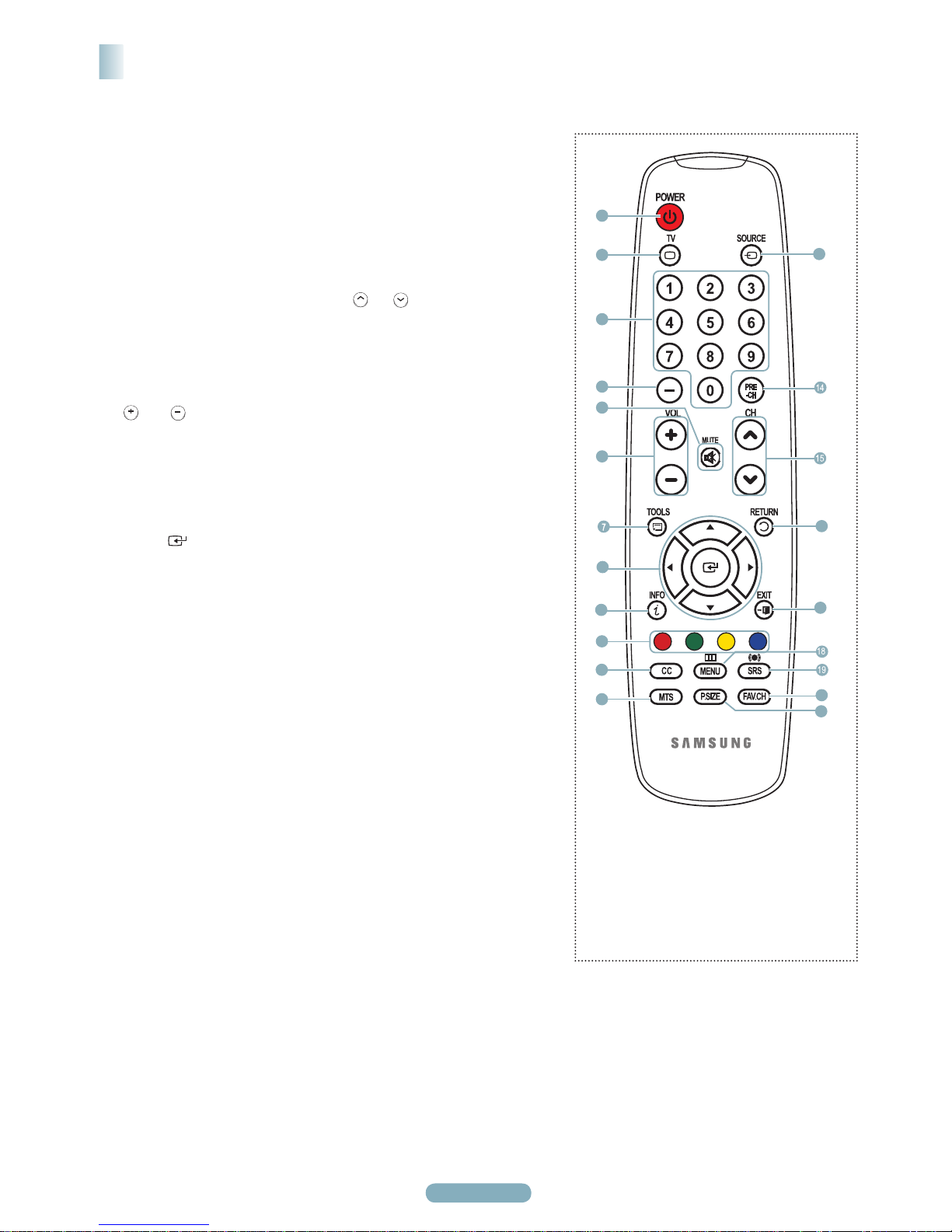

Remote Control Buttons

➢The performance of the remote control may be affected by bright light..

POWER

Turns the TV on and off.

Selects the TV mode directly.

NUMERIC BUTTONS

Press to directly select a channel.

–

Press to select additional channels

(digital and analog) being

broadcast by the same station. For

example, to select channel “54-3”,

press “54”, then press “–” and “3”.

MUTE

Press to temporarily cut off the

sound.

W.LINK

VOL

W.LINK

Press to increase or decrease the

volume.

TOOLS

Use to quickly select frequently

used functions.

UP▲/DOWN▼/LEFT◄/ RIGHT►/

ENTER

Use to select on-screen menu

items and change menu values.

INFO

Press to display information on the

TV screen.

COLOR BUTTONS

Use these buttons in the Channel

list.

Controls the caption decoder.

MTS

Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast).

SOURCE

Press to display all of the available

video sources.

PRE-CH

Tunes to the previous channel.

W.LINK

Press to change channels.

RETURN

Returns to the previous menu.

EXIT

Press to exit the menu.

Displays the main on-screen menu.

(

SRS

Selects SRS TruSurround XT

mode.

)

FAV.CH

Press to switch to your favorite

channels.

P.SIZE

Press to change the screen size.

BN68-01822A-00Eng.indd 2 2008-08-12 오후 5:44:32

English - 3

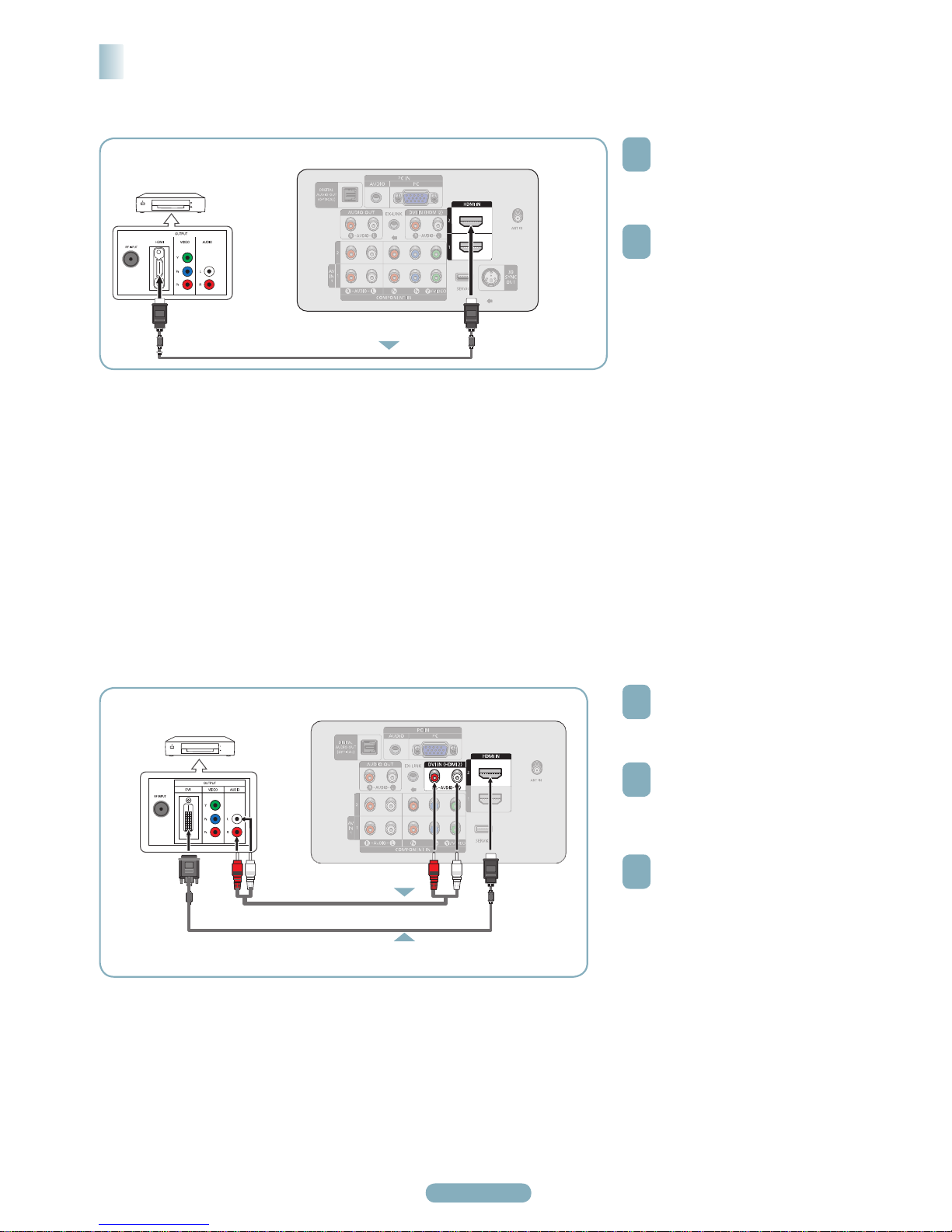

Connecting to HDMI (High Definition Multimedia Interface)

Connect an HDMI Cable between

the HDMI IN(1 or 2) jack on the

TV and the HDMI jack on the DVD

Player or Cable Box / Satellite

receiver (Set-Top Box).

Press the SOURCE button on the

remote control until you see the

DVD Player or Cable Box/Satellite

receiver (Set- Top Box)

signal (see

“To Select the Source” on page 10)

What is HDMI?

• HDMI, or high-definition multimedia

interface, is an interface that enables

the transmission of digital audio and

video signals using a single cable.

• The difference between HDMI and

DVI is that the HDMI device is smaller

in size and has the HDCP (High

Bandwidth Digital Copy Protection)

coding feature installed.

➢

Each DVD Player or Cable Box /

Satellite receiver (Set-Top Box) has a

different back panel configuration.

➢

When connecting a DVD Player or

Cable Box / Satellite receiver (Set-

Top Box), match the color of the

connection terminal to the cable.

Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI

Connecting to DVI (Digital Visual Interface)

Connect a HDMI/DVI Cable or DVI-

HDMI Adapter between the HDMI

IN 2 jack on the TV and the DVI jack

on the DVD Player or Cable Box/

Satellite receiver (Set- Top Box).

Connect Audio Cables between the

DVI IN (HDMI 2)

[R-AUDIO-L] jack on the TV and

the AUDIO OUT jacks on the

DVD Player or Cable Box/Satellite

receiver (Set-Top Box).

Press the SOURCE button on the

remote control until you see the

DVD Player or Cable Box/Satellite

receiver (Set- Top Box)

signal (see

“To Select the Source” on page 10)

➢

Each DVD Player or Cable Box /

Satellite receiver (Set-Top Box) has a

different back panel configuration.

➢

When connecting a DVD Player or

Cable Box / Satellite receiver (Set-

Top Box), match the color of the

connection terminal to the cable.

➢

When using an HDMI / DVI cable

connection, you must use the HDMI IN

2 jack.

TV Rear Panel

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV Rear Panel

HDMI Cable (Not supplied)

BN68-01822A-00Eng.indd 3 2008-08-12 오후 5:44:35

English - 4

Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box)

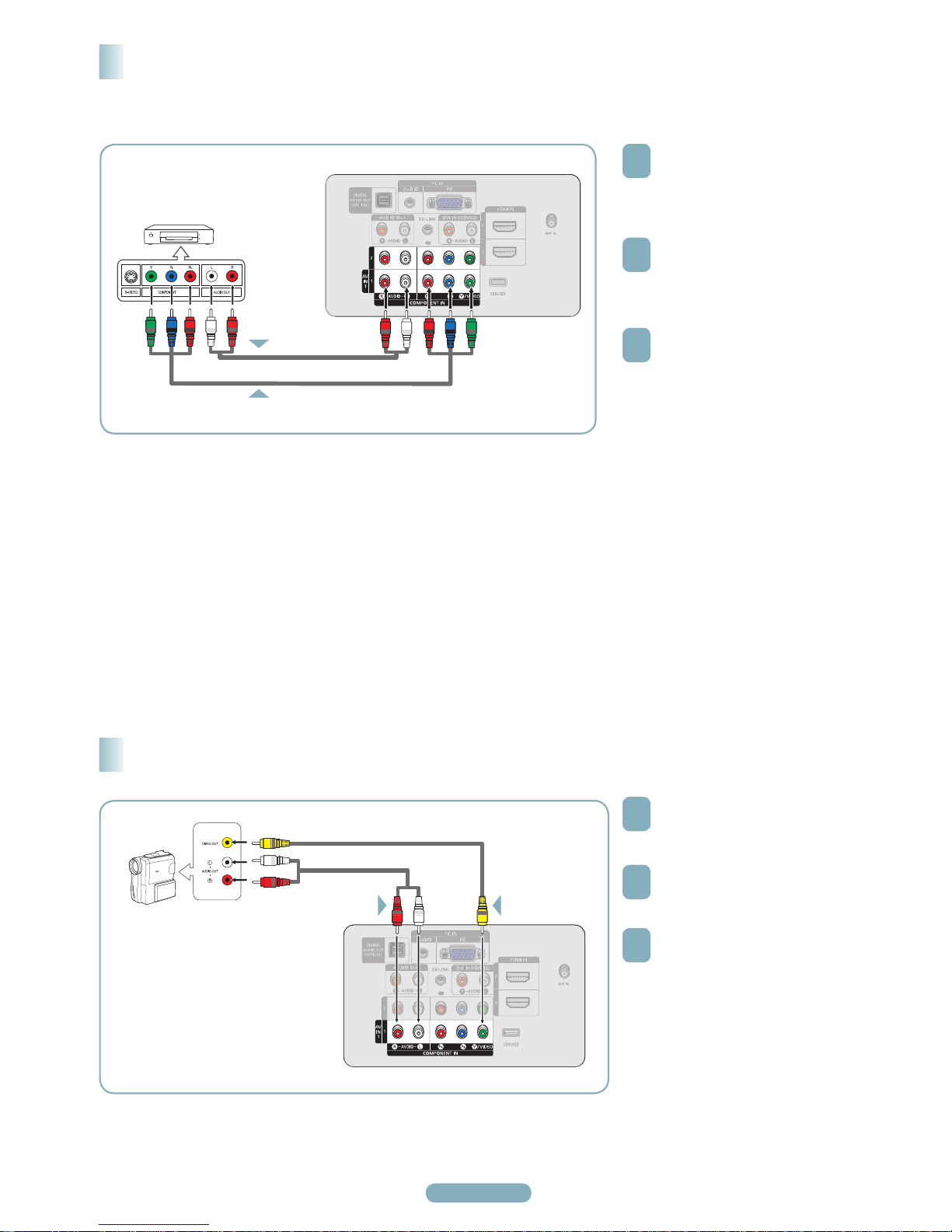

Connecting to Y, PB, PR



Connect Component Cables

between the COMPONENT IN (1 or

2) [Y, PB, PR] jacks on the TV and

the COMPONENT [Y, PB, PR] jacks

on the DVD Player or Cable Box /

Satellite receiver(Set-Top Box).



Connect Audio Cables between

the COMPONENT IN (1 or 2) [R-

AUDIO-L] jacks on the TV and the

AUDIO OUT jacks on the DVD

Player or Cable Box / Satellite

receiver (Set-Top Box).

Press the SOURCE button on the

remote control until you see the

DVD Player or Cable Box/Satellite

receiver (Set- Top Box)

signal (see

“To Select the Source” on page 10)

➢

Component video separates the video

into Y (Luminance (brightness)), PB

(Blue) and PR(Red) for enhanced

video quality. Be sure to match

the component video and audio

connections. For example, if

connecting the video cable to

COMPONENT IN 1, connect the audio

cable to COMPONENT IN 1 also.

➢

Each DVD Player or Cable Box /

Satellite receiver (Set-Top Box) has a

different back panel configuration.

➢

When connecting a DVD Player or

Cable Box / Satellite receiver (Set-

Top Box), match the color of the

connection terminal to the cable.

Connect a Video Cable between

the AV IN 1 [VIDEO] jack on the TV

and the VIDEO OUT jack on the

Camcorder.

Connect Audio Cables between the

AV IN 1 [L-AUDIO-R] jacks on the

TV and the AUDIO OUT jacks on

the Camcorder.

Press the SOURCE button on the

remote control until you see the

Camcorder signal (see “To Select the

Source” on page 10)

➢

Each Camcorder has a different back

panel configuration.

➢

When connecting a Camcorder, match

the color of the connection terminal to

the cable.

Connecting a Camcorder

DVD Player or Cable Box/

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

Component Cable (Not supplied)

TV Rear Panel

Camcorder

TV Rear Panel

Video Cable (Not supplied)

Audio Cable (Not supplied)

BN68-01822A-00Eng.indd 4 2008-08-12 오후 5:44:41

English - 5



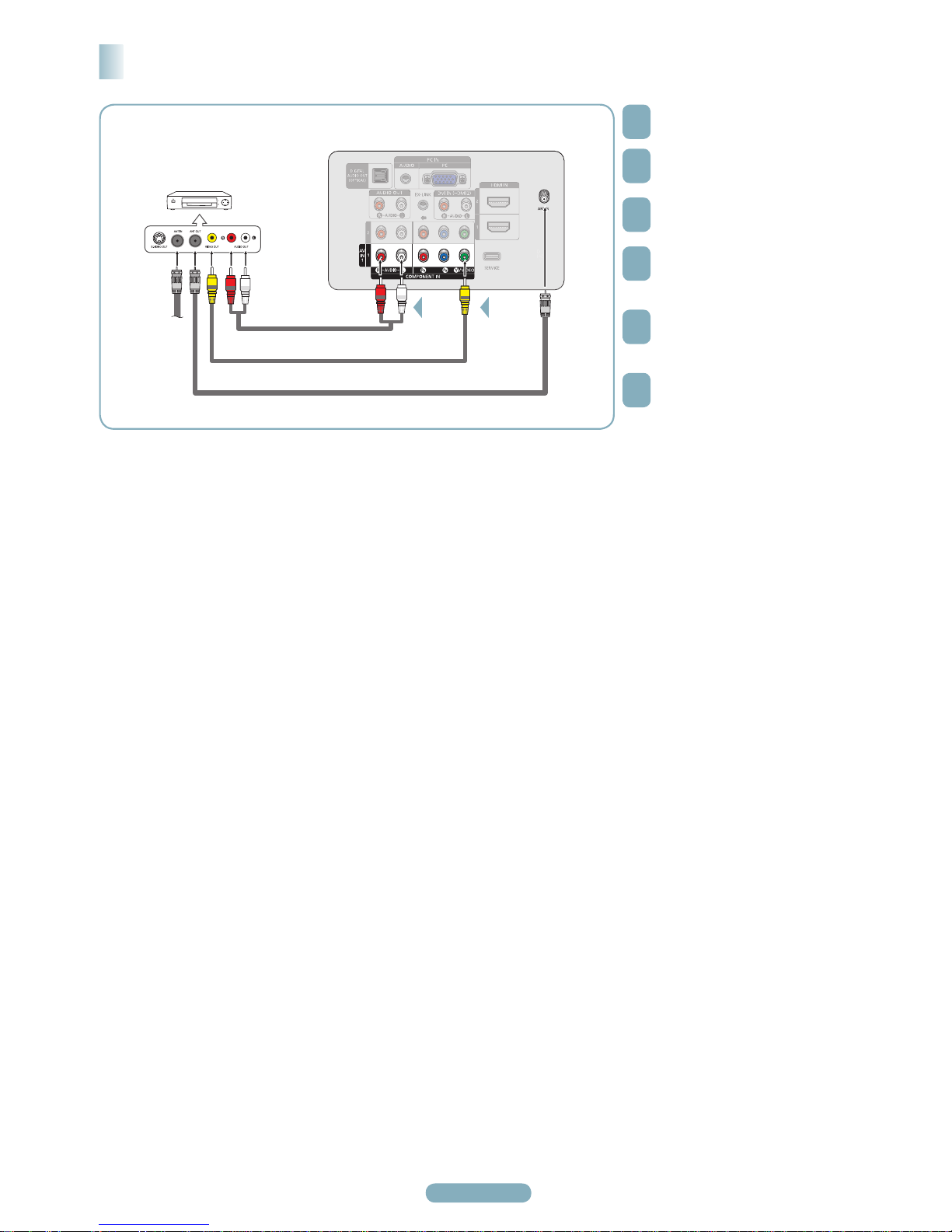

Unplug the cable or antenna from

the back of the TV.

Connect the cable or antenna to the

ANT IN terminal on the back of the

VCR.



Connect an Antenna Cable between

the ANT OUT terminal on the VCR

and the ANT IN terminal on the TV.

Connect a Video Cable between the

VIDEO OUT jack on the VCR and

the AV IN 1 [Y/VIDEO] jack on the

TV.

Connect Audio cables between the

AV IN 1 [R-AUDIO-L] jacks on the

TV and the AUDIO OUT jacks on

the VCR.

Press the SOURCE button on the

remote control until you see the VCR

signal (see “To Select the Source”

on page 10).

➢

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right and left audio input jacks of the

TV. Alternatively, connect the cable to the “R” jack.

If your VCR is stereo, you must connect two cables.

➢

Each VCR has a different back panel configuration.

➢

When connecting a VCR, match the color of the connection terminal to the cable.

➢

When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

Connecting a VCR

VCR Rear Panel

Video Cable (Not supplied)

Audio Cable (Not supplied)

TV Rear Panel

Antenna Cable (Not supplied)

BN68-01822A-00Eng.indd 5 2008-08-12 오후 5:44:43

English - 6

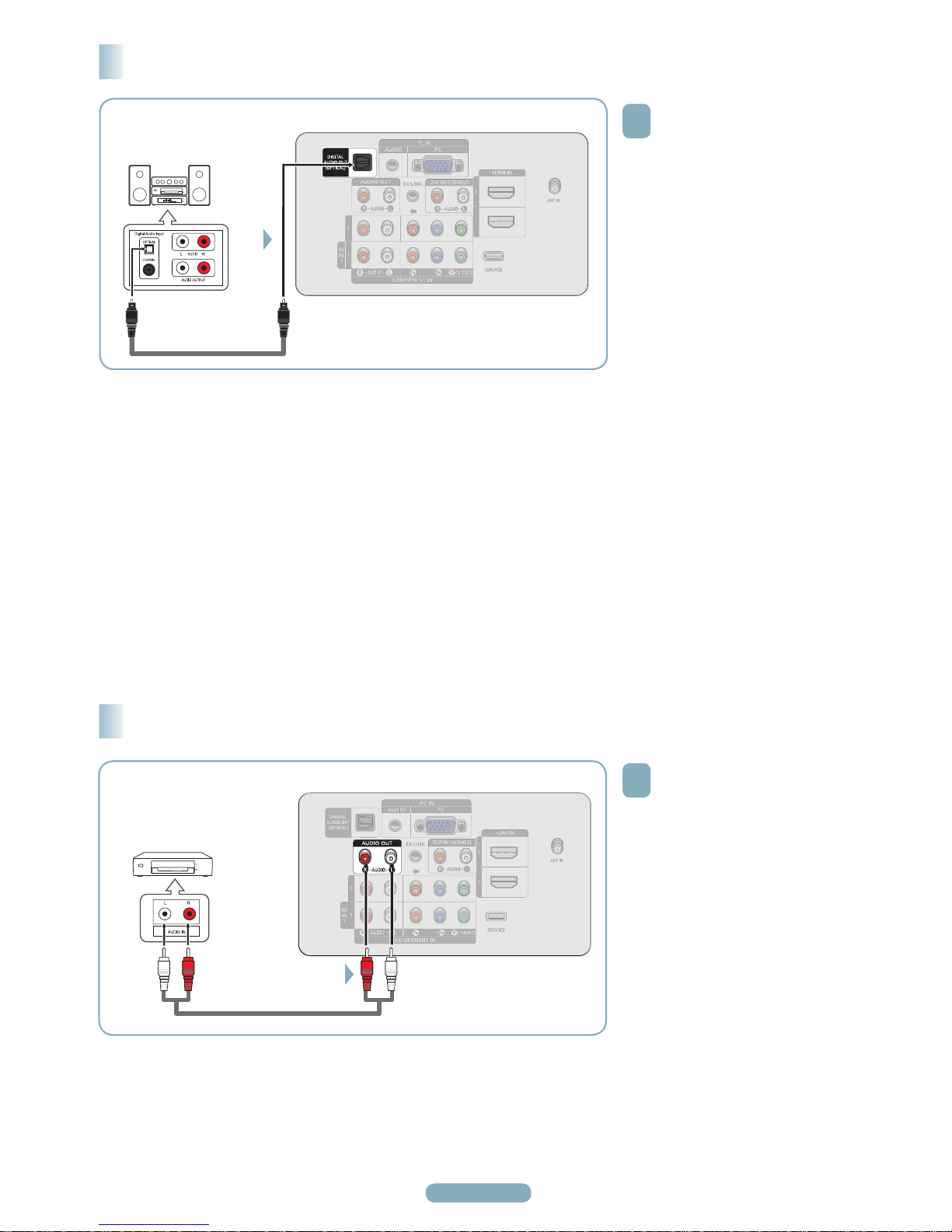

Connect an Optical Cable

between the DIGITAL AUDIO OUT

(OPTICAL) jacks on the TV and the

Digital Audio Input (OPTICAL) jacks

on the Digital Audio System.

When a Digital Audio System is

connected to the DIGITAL AUDIO

OUT (OPTICAL) terminal:

Decrease the volume of the TV,

and adjust the volume level with the

system’s volume control.

Connecting a Digital Audio System

Connect Audio Cables between the

AUDIO OUT [R-AUDIO-L] on the TV

and AUDIO IN [L-AUDIO-R] on the

Amplifier / DVD Home Theater.

When an audio amplifier is

connected to the AUDIO OUT [R-

AUDIO-L] jacks terminals: Decrease

the volume of the TV, and adjust

the volume level with the Amplifier’s

volume control.

➢

Each Amplifier / DVD Home

Theater has a different back panel

configuration.

➢

When connecting an Amplifier / DVD

Home Theater, match the color of the

connection terminal to the cable.

Connecting an Analog Amplifier / DVD Home Theater

Digital Audio System

TV Rear Panel

Optical Cable (Not supplied)

Amplifier / DVD Home Theater

TV Rear Panel

Audio Cable (Not supplied)

➢

What is OPTICAL?

• Converts the electric signal into an optical light signal, and transmits it through glass fibers. S/PDIF is a transmission system of

digital audio in the form of a light wave that uses a glass conductor.

➢

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.

➢

Each external input source device has a different back panel configuration.

➢ 

When the receiver (home theater) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a

DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such

as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.

BN68-01822A-00Eng.indd 6 2008-08-12 오후 5:44:46

English - 7

Using the D-Sub Cable

Connect a D-Sub Cable between

PC IN [PC] jack on the TV and the

PC output jack on your computer.

Connect a PC Audio Cable between

PC IN [AUDIO] jack on the TV and

the Audio Out jack of the sound card

on your computer.

Press the SOURCE button on the

remote control until you see the

signal (see “To Select the Source” on

page 10)

Connecting a PC

Using the HDMI/DVI Cable

Connect a HDMI/DVI cable between

the HDMI IN 2 jack on the TV

and the PC output jack on your

computer.

Connect a 3.5mm Stereo/2RCA

Cable cable between the DVI IN

(HDMI 2) [R-AUDIO-L] jack on the TV

and the Audio Out jack of the sound

card on your computer.

Press the SOURCE button on the

remote control until you see the

signal (see To Select the Source” on

page 10)

➢

Each PC has a different back panel configuration.

➢

When connecting a PC, match the color of the connection terminal to the cable.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal.

TV Rear Panel

PC Audio Cable (Not supplied)

D-Sub Cable (Not supplied)

Using the D-Sub Cable

Using the HDMI/DVI Cable

TV Rear Panel

3.5 mm Stereo plug to 2 RCA Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

BN68-01822A-00Eng.indd 7 2008-08-12 오후 5:44:51

English - 8

Press the POWER button on the remote control.

You can also use the POWER button on the TV.

➢

It may take a while for the picture to appear.

Turning the TV On and Off

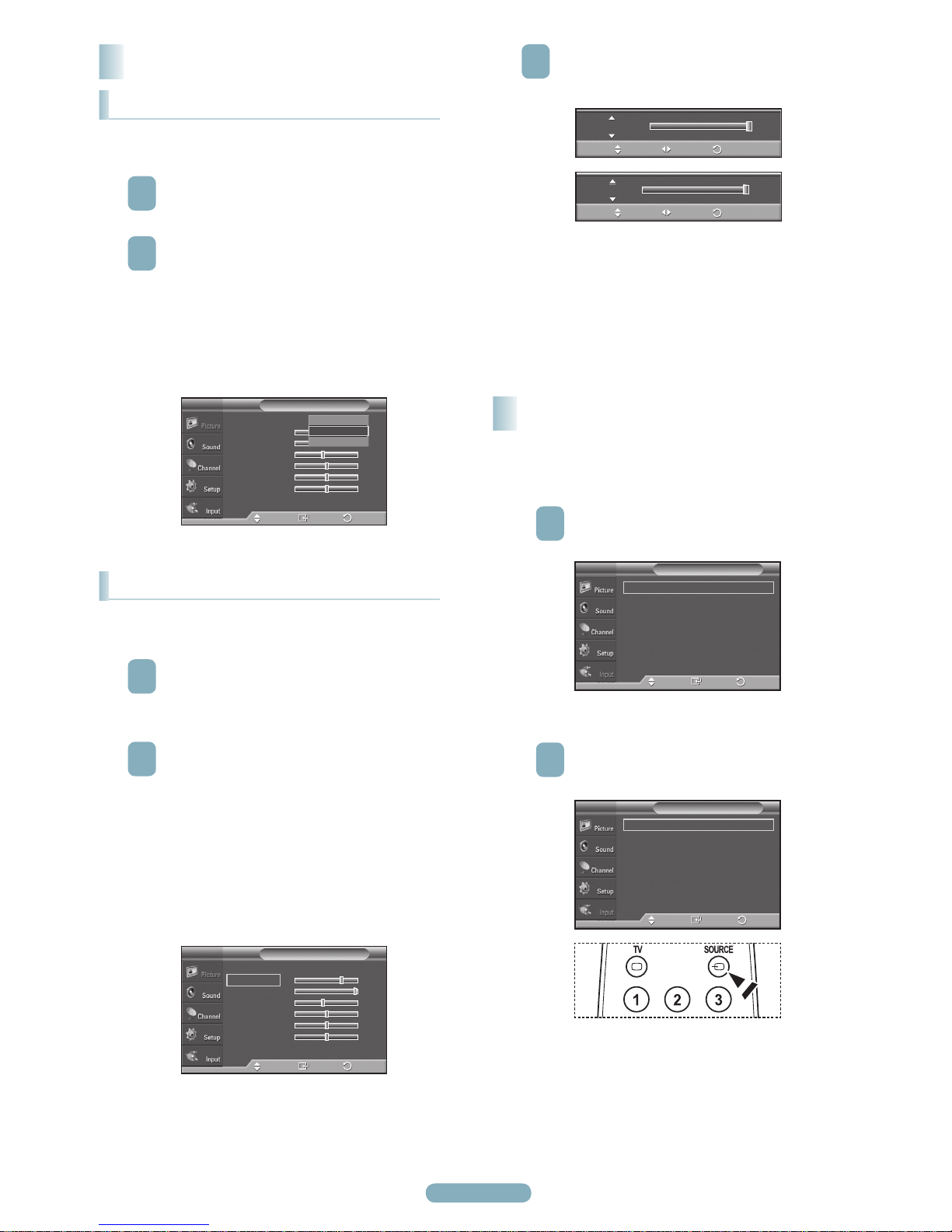

Viewing the Menus

With the power on, press the MENU button.

The main menu appears on the screen. Its left side

has five icons:

Picture, Sound, Channel, Setup, Input.

 

Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s

sub-menu.



Press the EXIT button to exit.

➢

If you do not press the EXIT button, it takes

about one minute until the on-screen menu

disappears.

Your TV can memorize and store all of the available channels

for both “off-air” (air) and cable channels. After the available

channels are memorized, use the CH

W.LINK

or CH

W.LINK

button

to scan through the channels. This eliminates the need to

change channels by entering the channel digits. There are

three steps for memorizing channels: selecting a broadcast

source, memorizing the channels (automatic) and adding and

deleting channels (Channel Lists).

Memorizing the Channels

Selecting the Video Signal-source

Press the ENTER button to select Antenna.

Press the ▲ or ▼ button to select Air or Cable,

then press the ENTER button.

Press the EXIT button to exit.

Mode : Standard

►

Cell Light 10

Contrast 100

Brightness 45

Sharpness 75

Color 55

Tint G 50 R 50

▼

PictureT V

Enter

Move Exit

Antenna : Air

Auto Program

Clear Scrambled Channel

Channel List

Name

Fine Tune

Signal Strength

ChannelT V

Enter

Move

Air

Cable

Return

Storing Channels in Memory

(Automatic Method)

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then

press the ENTER button.

Press the ▲ or ▼ button to select Auto Program,

then press the ENTER button.

● Air: Air antenna signal.

● Cable: Cable antenna signal.

● Auto: Air and Cable antenna signals

Press the ▲ or ▼ button to select the antenna

connection, then press the ENTER button.

Antenna : Air

►

Auto Program

►

Clear Scrambled Channel

►

Channel List

►

Name

►

Fine Tune

►

Signal Strength

►

ChannelT V

Enter

Move Return

Auto ProgramT V

Select the antenna to execute the Auto

Program function.

Air

Cable

Auto

Start

Enter

Move Return

Start

Selects a cable signal type for your location.

Auto ProgramT V

Enter

Move Return

Analog

Digital

Start

STD

HRC

IRC

STD

HRC

IRC

Before your television can begin memorizing the available

channels, you must specify the type of signal source that is

connected to the TV (i.e. an Air or a Cable system).

Press the MENU button.

Press the ▲ or ▼ button to select Channel, then

press the ENTER button.

Antenna : Air

►

Auto Program

►

Clear Scrambled Channel

►

Channel List

►

Name

►

Fine Tune

►

Signal Strength

►

ChannelT V

Enter

Move Return

BN68-01822A-00Eng.indd 8 2008-08-12 오후 5:44:53

English - 9

When selecting the Cable TV system:

Press the ENTER button to start the auto program.

Press the ▲ or ▼ to select the correct analog signal

cable system source from among STD, HRC, and

IRC, then press the ENTER button. If you have

Digital cable TV, select the cable system signal

source for both Analog and Digital.

● STD, HRC, and IRC identify various types of

cable TV systems. Contact your local cable

company to identify the type of cable system that

exists in your particular area. At this point the

signal source has been selected.

The TV begins memorizing all available stations.

● If you want to stop Auto Programming, press

the ENTER button. The Stop Auto Program?

message will be displayed. Select Yes by

pressing the ◄ or ► button.

P

ress the EXIT button to exit.

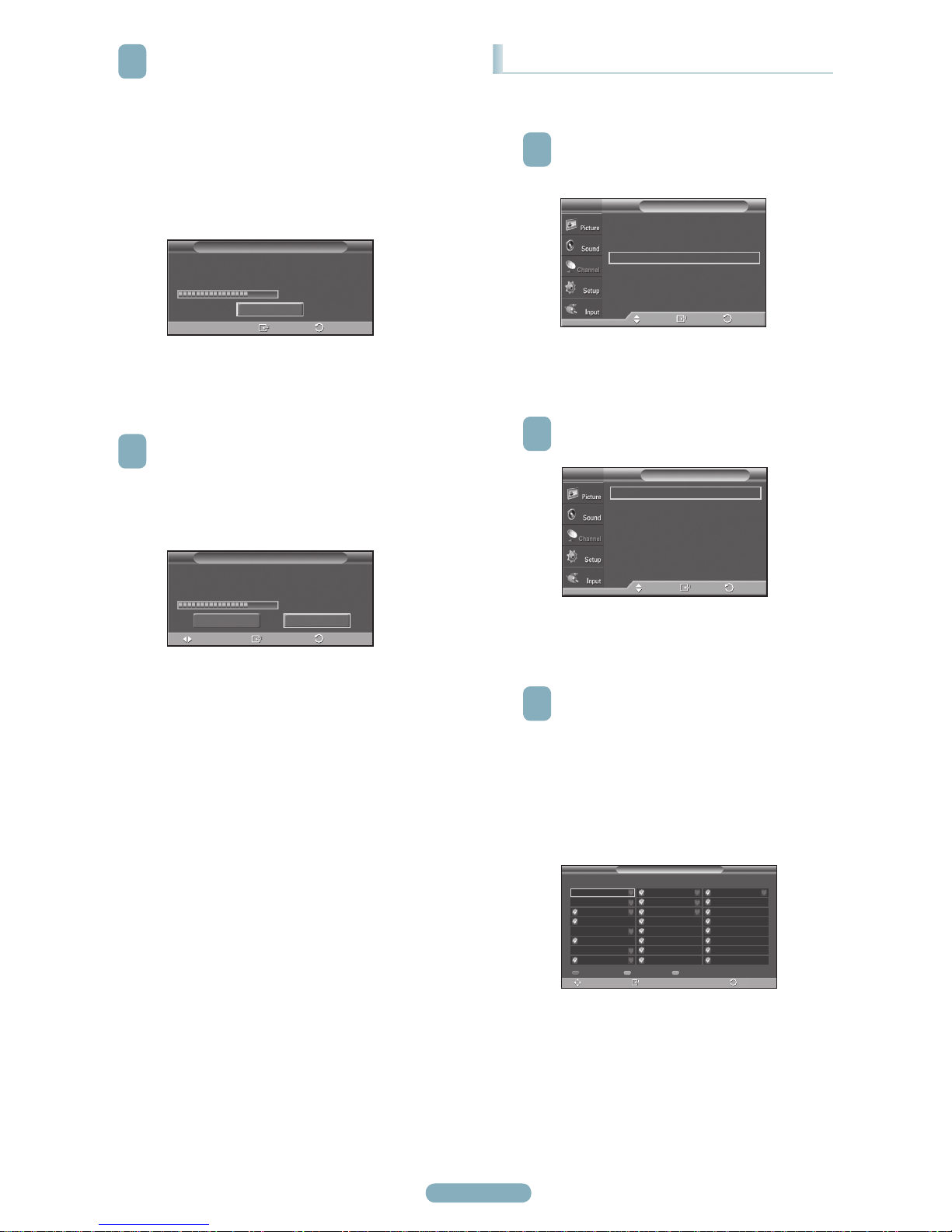

Viewing the Channel Lists

You can display a list of all channels, added channels or

your favorite channels.

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then

press the ENTER button.

Press the ▲ or ▼ button to select Channel List,

then press the ENTER button.



Press the ▲ or ▼ button to select All, Added or

Favorite, then press the ENTER button.

To toggle between your all channels, add channels,

or favorite channels, use the red button on the

remote control.

● Red button: Press repeatedly to select All,

Added, or Favorite.

● Green button: Press to add all channels

deleted.

● Yellow button: Press to delete all channels

memorized.

Antenna : Air

►

Auto Program

►

Clear Scrambled Channel

►

Channel List

►

Name

►

Fine Tune

►

Signal Strength

►

Channel

T V

Enter

Move Return

All

►

Added

►

Favorite

►

Channel ListT V

Enter

Move Return

Added

List Mode Delete All

Move Enter

DTV Air 2

Air 3

Air 4

Air 5

Air 6

Air 7

DTV Air 7-1

Air 9

DTV Air 9-1

Air 10

Air 11

DTV Air 11-1

Air 12

Air 13

Air 14

Air 15

Air 16

Return

Add All

Auto Program

Auto Program in progress.

DTV Air : 5 Air : 3

DTV Cable : -- Cable : -- Air 67

68 %

Stop

Enter Return

Auto Program

Stop Auto Program?

DTV Air : 5 Air : 3

DTV Cable : -- Cable : --

Yes No

68 %

Enter

Move Return

BN68-01822A-00Eng.indd 9 2008-08-12 오후 5:44:54

English - 10

Use to select TV or other external input sources such as DVD

players or Set-top/Cable boxes connected to the TV.

Use to select the input source of your choice.

To Select the Source

Press the MENU button.

Press the ▲ or ▼ button to select Input, then press

the ENTER button.

Press the ENTER button again to select Source

List. Press the ▲ or ▼ button to select signal

source, then press the ENTER button.

➢

Available signal sources: TV,AV1,

Component1, Component2, PC, HDMI1,

HDMI2.

➢

You can choose only those external devices

that are connected to the TV.

Your television has several setting options that allow you to

control the picture quality.

To select the desired picture mode, follow the

“Changing the Picture Standard” instructions number

1 to 2.

Press the ▲ or ▼ button to select Cell Light,

Contrast, Brightness, Sharpness, Color, or Tint,

then press the ENTER button.

● Cell Light: Selects the brightness of PDP Cell Light.

● Contrast: Adjusts the contrast level of the picture.

● Brightness: Adjusts the brightness level of the

picture.

● Sharpness: Adjusts the edge definition of the

picture.

● Color: Adjusts color saturation of the picture.

● Tint(G/R): Adjusts the color tint of the picture by

compensating the red and green color.

Source List : TV

►

Edit Name

►

InputT V

Enter

Move Return

AV1 :

- - - -

Component1 :

- - - -

Component2 :

- - - -

PC :

- - - -

HDMI1 :

- - - -

HDMI2 :

- - - -

Source ListT V

Enter

Move Return

You can select the type of picture which best corresponds to

your viewing requirements.

Press the MENU button to display the menu.

Press the ENTER button to select Picture.

Press the ENTER button to select Mode.

Press the ▲ or ▼ button to select Dynamic,

Standard, or Movie.

Press the ENTER button.

●

Dynamic: Select the picture for high-definition in

a bright room.

●

Standard

: Select the picture for the optimum

display in a normal environment.

●

Movie: Select the picture for viewing movies in a

dark room.

Picture Control

Changing the Picture Standard

Customizing the Picture Settings

Press the ◄ or ► button to decrease or increase the

value of a particular item. Press the ENTER button.

Press the EXIT button to exit.

➢

When you make changes to Cell Light, Contrast,

Brightness, Sharpness, Color, or Tint(G/R) the

OSD will be adjusted accordingly.

➢

When in PC mode, Tint(G/R), Sharpness and

Color are not available.

➢

Each adjusted setting will be stored separately

according to its input mode.

Contrast 100

Move Adjust Return

Cell Light 10

Move Adjust Return

Mode :

Cell Light 7

Contrast 95

Brightness 45

Sharpness 50

Color 50

Tint(G/R) G 50 R 50

▼

PictureT V

Enter

Move Return

Dynamic

Standard

Movie

Mode : Standard

►

Cell Light 7

Contrast 95

Brightness 45

Sharpness 50

Color 50

Tint(G/R) G 50 R 50

▼

PictureT V

Enter

Move Return

BN68-01822A-00Eng.indd 10 2008-08-12 오후 5:44:56

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Téléviseur à écran plat

Samsung

Samsung PN50A410C1D Manuel utilisateur

Samsung

Samsung CL-21M21MQ Guide de l'utilisateur

Samsung

Samsung LN22A650AD Manuel utilisateur

Samsung

Samsung UN40B7000WF Guide de démarrage rapide

Samsung

Samsung LED 7450 Manuel utilisateur

Samsung

Samsung UN55F7050AF Manuel utilisateur

Samsung

Samsung PN58C550 Manuel utilisateur

Samsung

Samsung BN68-03088A-02 Manuel utilisateur

Samsung

Samsung UN65C6500VF Manuel utilisateur

Samsung

Samsung BN68-03116A-01 Manuel utilisateur

Samsung

Samsung PN58C590 Manuel utilisateur

Samsung

Samsung LN46D503F6F Manuel utilisateur

Samsung

Samsung PN50B530 - 50" Plasma TV Manuel utilisateur

Samsung

Samsung Smart TV UN55D6000 Mode d’emploi

Samsung

Samsung LN40C630K1FXZA Manuel utilisateur

Samsung

Samsung HP-R4272C Manuel utilisateur

Samsung

Samsung series 4 460 Manuel utilisateur

Samsung

Samsung UN55ES6900F Mode d’emploi

Samsung

Samsung LNS2641DX - 26" LCD TV Manuel utilisateur

Samsung

Samsung HP-R4272 Manuel utilisateur

Samsung

Samsung PN42C430A1D Manuel utilisateur

Samsung

Samsung UN55F9000AF Mode d’emploi

Samsung

Samsung UN55ES7003F Mode d’emploi

Samsung

Samsung LN26C450E1D Manuel utilisateur

Manuels Téléviseur à écran plat populaires d'autres marques

Philips

Philips 32PFL7602D - annexe 1 Manuel utilisateur

Philips

Philips 42PF7321 Manuel utilisateur

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Manuel utilisateur

JVC

JVC LT-26DX7BFN Manuel utilisateur

Philips

Philips Match Line 29PT9006/12 Manuel utilisateur

Philips

Philips 37PFL5522D - annexe 2 Manuel utilisateur

Westinghouse

Westinghouse TX-42F970Z Manuel utilisateur

Philips

Philips 32PFL5332S Manuel utilisateur

Philips

Philips 40PFL5705D Manuel utilisateur

Toshiba

Toshiba 32BV500B Manuel utilisateur

Philips

Philips MathLine 32PW9765 Manuel utilisateur

Philips

Philips MatchLine FlatTV 50PF9965 Manuel utilisateur

RCA

RCA MR53R400 Manuel utilisateur

Philips

Philips 28PW8818/12 Manuel utilisateur

JVC

JVC GGT0362-001A-H Manuel utilisateur

Philips

Philips Magnavox 37MF331D/37 Manuel utilisateur

Sanyo

Sanyo FVM4212 Manuel utilisateur

Philips

Philips 47PFL7623D Manuel utilisateur
