Introducing Samsung DVD Recorder

(DVD-HR773/ HR775/ HR777)

Introducing Samsung DVD Recorder

(DVD-HR773/ HR775/ HR777)

Samsung Electronics Co. LTD

Digital AV Division

What is SEC’s DVD-HR77 ?

Digital A/V system for video playing & recording

using optical disc as the medium format

Digital A/V system for video playing & recording

using optical disc as the medium format

High picture and sound quality

recording capability comparing

with analog medium recording

systems

Digital recording by an optical

medium and HDD format allows

random access capability and easy

& convenient recording

High-quality Recording Optical Medium and HDD

Recording

❏

Model No DVD-HR773, HR775, HR777

Samsung HDD-DVD Recorder

1. Super picture & sound quality recording with MPEG-2(VBR) on DVD-R/+R/-RW/+RW

/RAM/HDD compatible with A/V & PC

2. Convenient control through random accessibility of HDD disc

- One touch recording : Automatic empty area recording

- High Speed Search and Play

3. Qui ck dubbi ng : Wi t h t he qui ck dubbi ng f unct i on, dat a t r ans f er f r om

HDD t o DVD Di s c i s f as t er t han ever

4. Advanced playback functions for multiple purposes

(Compatible with DVD, Audio-CD, CD- / W(MP-3,MPEG4), DVD- /+ /- W/+ W, HDD

Disc)

5. USB host port provides compatible with USB devices(MP3P,DSC, PMP, Card Reader).

 General Introduction

 Characteristics

DVD-HR77 Playback & other Features

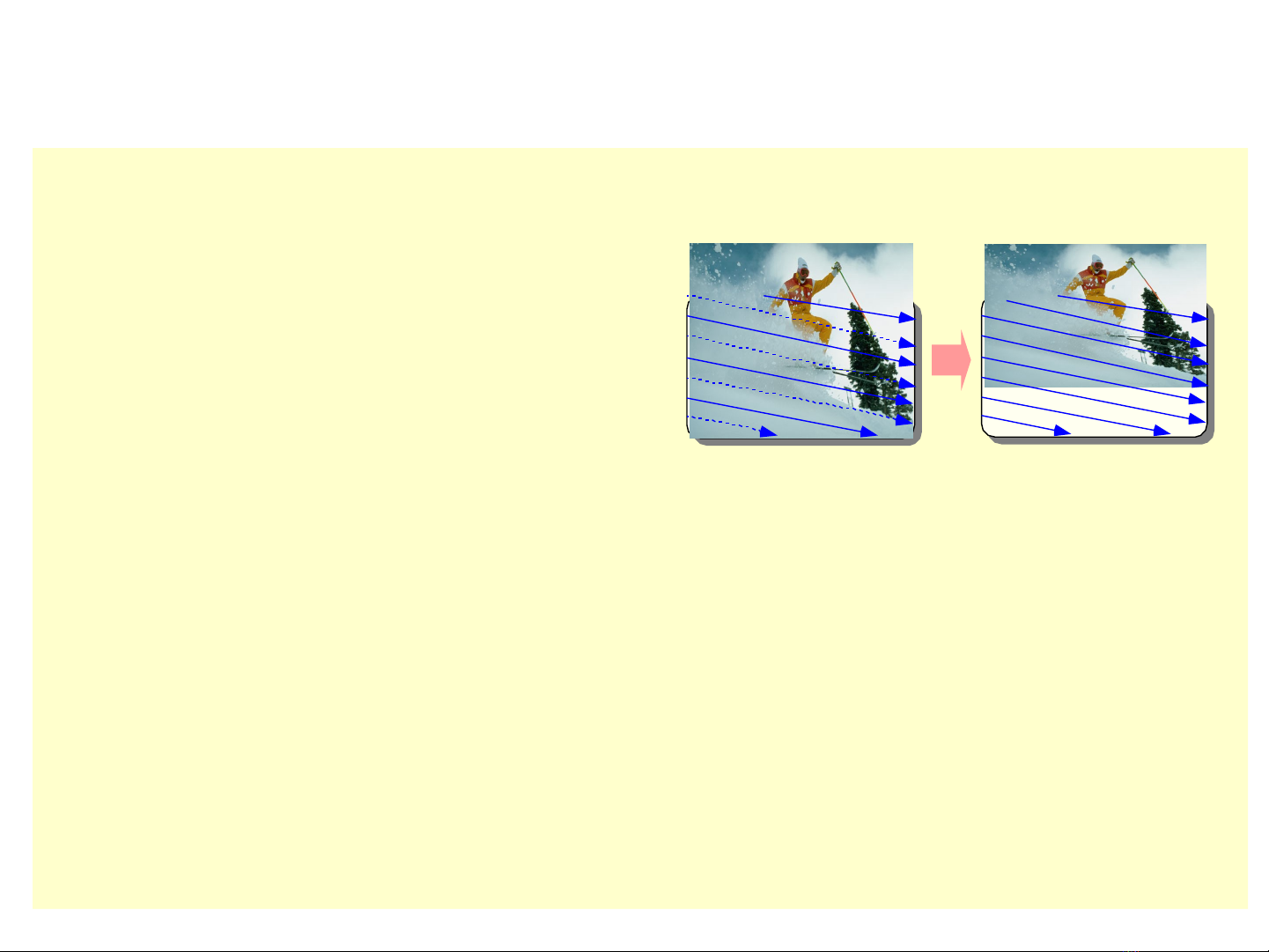

Progressive Scan

Program Navigator

By scanning all 576 lines(PAL) in one pass,

progressive scanning provides high vertical

resolution and flicker free, high density image

output that does not suffer from the loss of

quality during subject movement which is

characteristic of the conventional interlaced

scanning method. 50 Frame/Sec25 Frame/Sec

Recorded programs are shown as thumbnail pictures, and information

such as title, recording dates and times are displayed on menu screen.

User can choose a desired program.

Editing

Simple non linear editing is possible on menu screen without additional editing

system. User can delete part of a program or entire program, and edit program title.

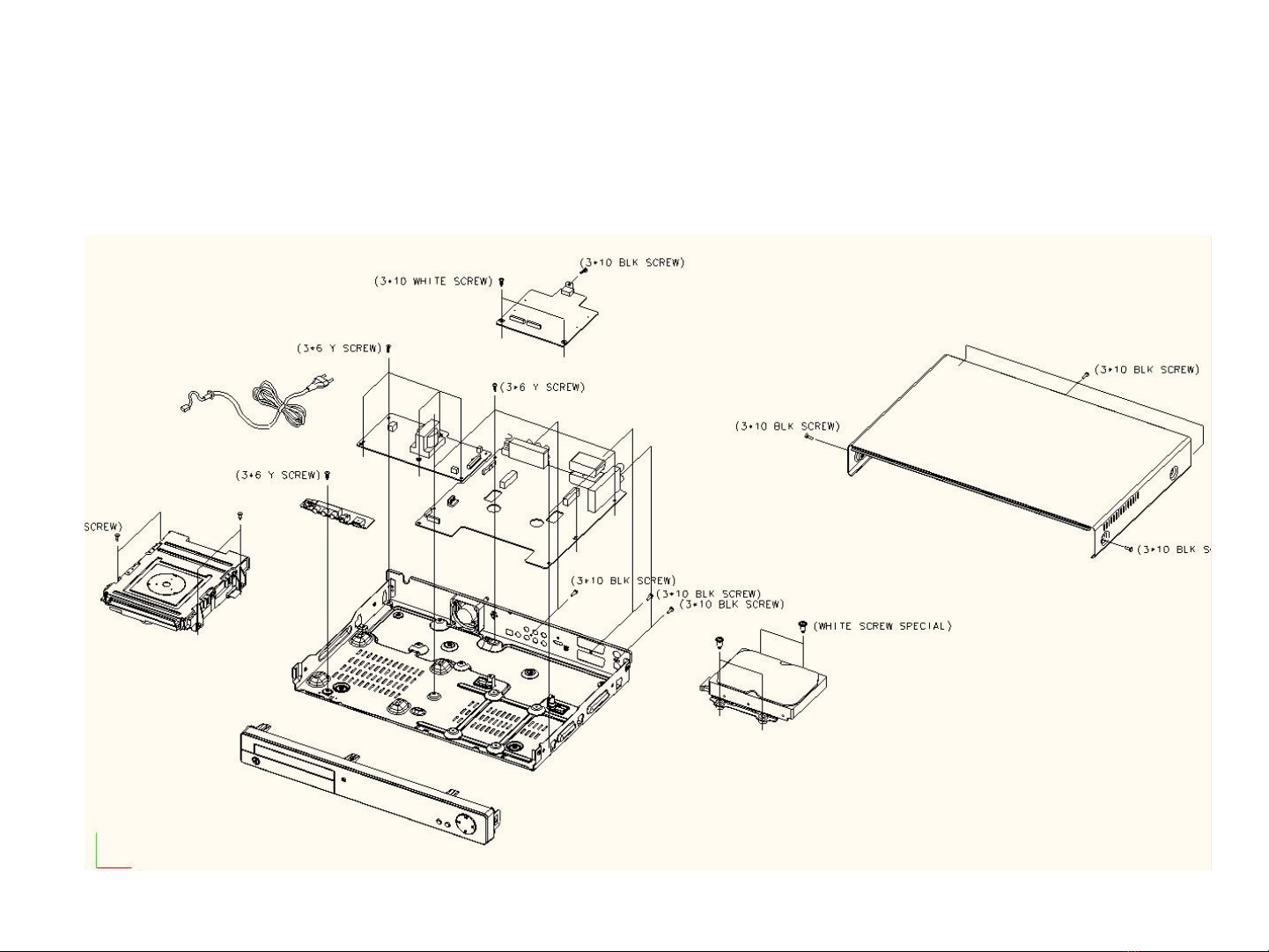

Assembly

DVD-HR77 consists of Deck, Main PCB, Jack PCB, SMPS PCB,

PCB,FRONT PCB, HDD,DECK, Top, Bottom, Panel Ass’y.

JACK PCB

MAIN PCB

SMPS PCB

DECK(LOADER)

TOP COVER

BOTTOM HDD

Power Cord

FRONT PANNEL

FRONT PCB

Di s as s embl y and eas s embl y

pr oces s

1. Top Cabi net emoval

2. As s ’ y Fr ont - Cabi net emoval

3. Har d Di s k emoval

4. As s ’ y Deck- >Mai n PCB - > S. M. P. S. PCB emoval

- > F ONT AV PCB - > JACK PCB

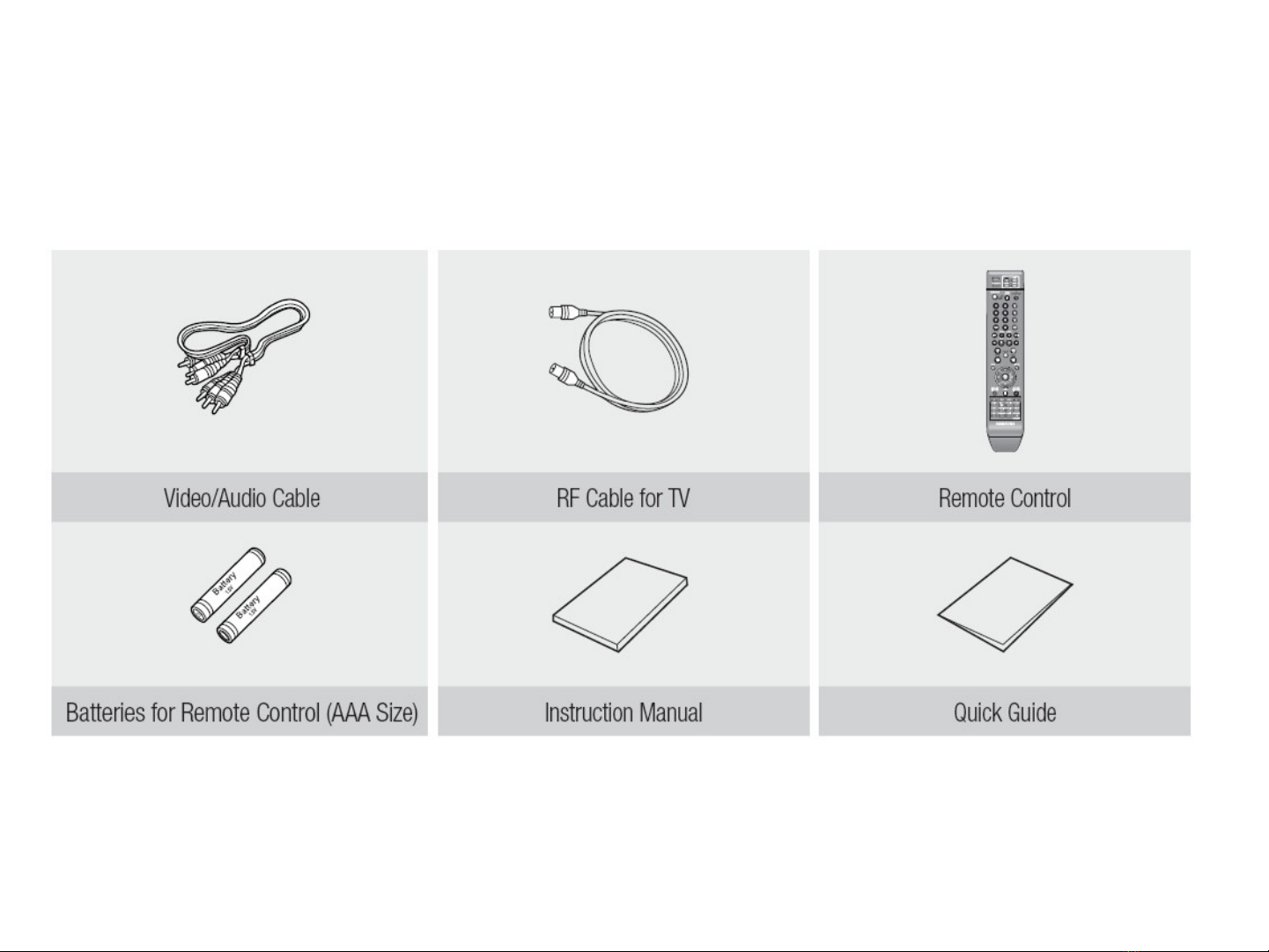

Supplide Accessary

: DVD-HR77 supply below accessary

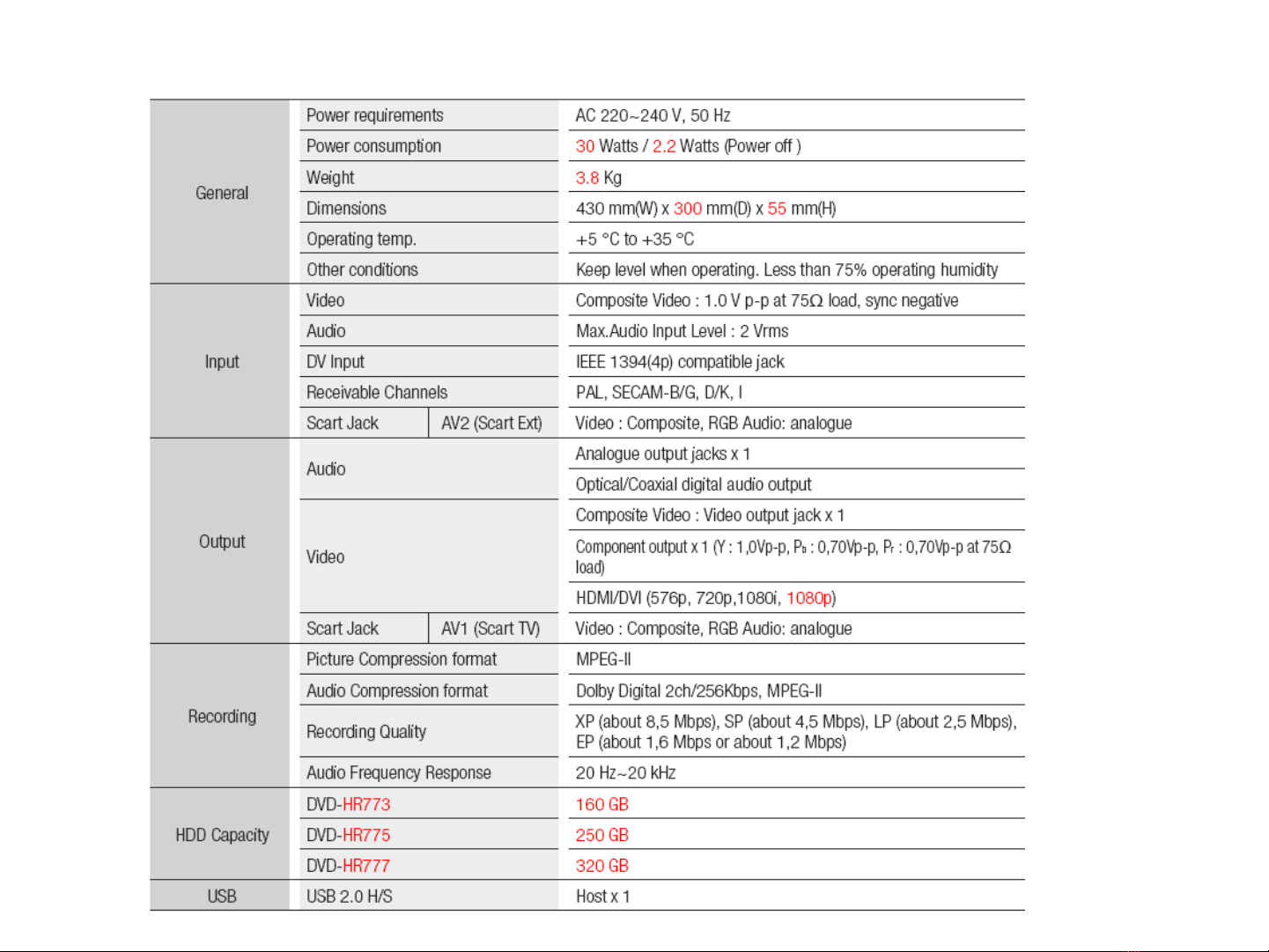

Specifications

DVD-HR77 Key Features

■ MPEG-2 VBR(Variable Bit Rate) Recording

■ Creating a DVD video title using DVD-RW/+RW/-R/+RW/RAM

■ One-Touch Recording

■ Automated Quality Adjustment for Timer Recording

■ Copying data from a digital camcorder using a DV input jack

■ Selectable Recording Mode

 Recording Features

 Playing Features

■ Progressive Scan

■ Program Navigation

 Other Features

■ HDMI CEC(Anynet+) control

■USB hos t cont r ol

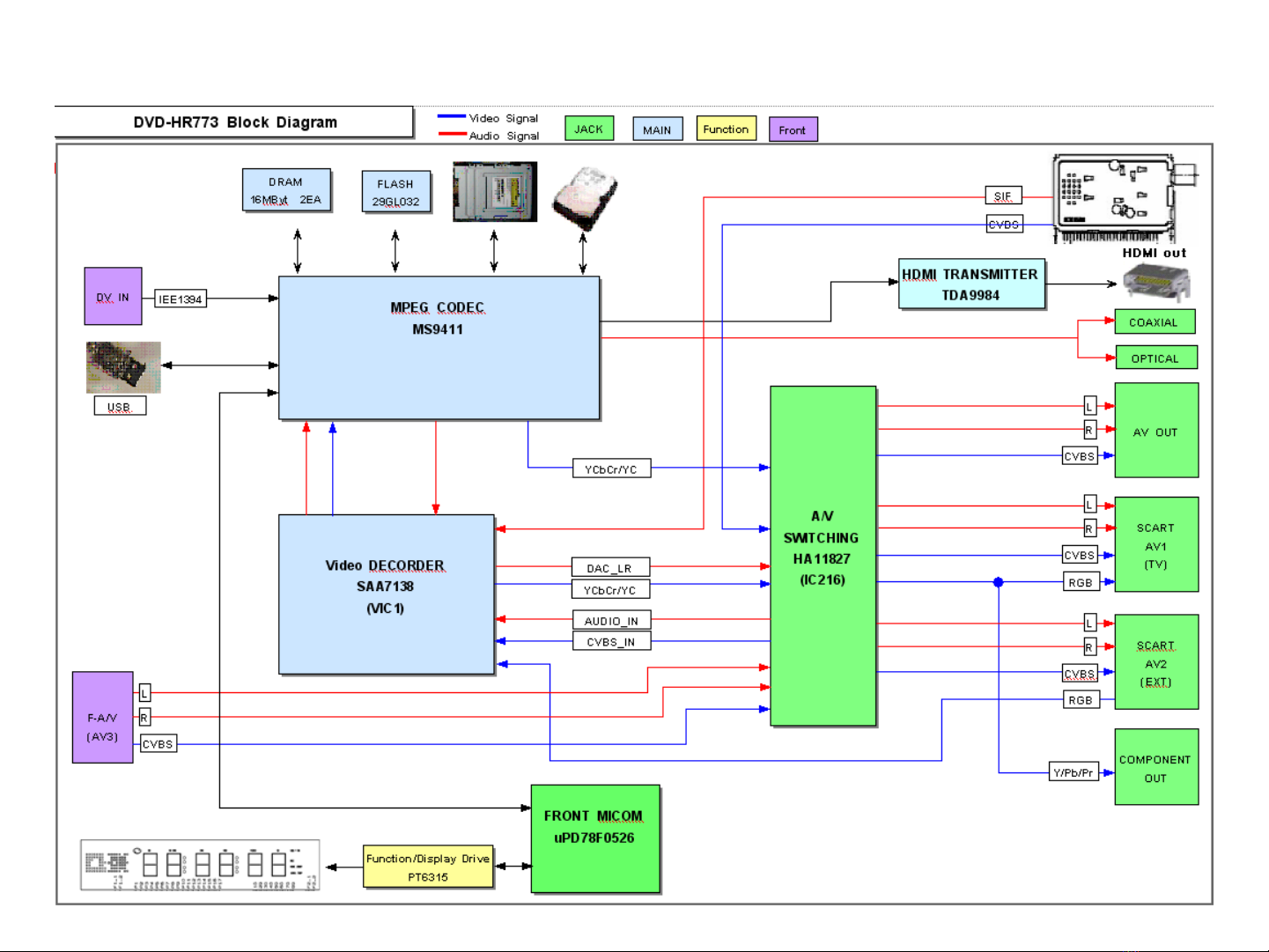

1. Overall block diagram
