Samsung DV22K6800EW Manuel utilisateur

Dryer

User manual

DV22K6800**

DV22K6800-03650A-00_EN (US)_151211.indd 1 2015-12-11  7:15:41

Contents

English2

Contents

Safety information 4

What you need to know about the safety instructions 4

Important safety symbols 4

Important safety precautions 5

Warnings 7

Cautions 7

Before installation 9

Key installation requirements 9

Location considerations 9

Ducting requirements 12

Exhausting requirements 13

Electrical requirements 14

Installation 16

What’s included 16

Step-by-step installation 18

Exhaust ducting guide 22

Changing the direction of the exhaust duct (optional) 23

Switching the door position 28

Before you start 33

Sort and load 33

Functional prerequisite 33

Operations 34

Feature panel 34

Simple steps to start 36

Cycle overview 37

Cycle guide 38

Special features 39

DV22K6800-03650A-00_EN (US)_151211.indd 2 2015-12-11  7:15:41

Contents

English 3

Maintenance 41

Cleaning 41

Troubleshooting 42

Checkpoints 42

Information codes 45

Specications 46

Fabric care chart 46

Protecting the environment 47

Specication sheet 48

Cycle chart 49

DV22K6800-03650A-00_EN (US)_151211.indd 3 2015-12-11  7:15:41

Safety information

SAVE THESE INSTRUCTIONS

English4

Safety information

Congratulations on your new Samsung dryer. This manual contains important information

on the installation, use and care of your appliance. Please take some time to read this

manual to take full advantage of your dryer’s many benets and features.

What you need to know about the safety instructions

Please read this manual thoroughly to ensure that you know how to safely and efciently

operate the extensive features and functions of your new appliance. Please store the

manual in a safe location close to the appliance for future reference. Use this appliance

only for its intended purpose as described in this instruction manual.

Warnings and Important Safety Instructions in this manual do not cover all possible

conditions and situations that may occur. It is your responsibility to use common sense,

caution and care when installing, maintaining and operating your dryer.

Because the following operating instructions cover various models, the characteristics of

your dryer may differ slightly from those described in this manual and not all warning

signs may be applicable. If you have any questions or concerns, contact your nearest

service center or nd help and information online at www.samsung.com.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or

property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Indicates that a risk of personal injury or material damage exists.

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the appliance.

As with any equipment that uses electricity and moving parts, potential hazards exist.

To safely operate this appliance, familiarize yourself with its operation and exercise care

when using it.

DV22K6800-03650A-00_EN (US)_151211.indd 4 2015-12-11  7:15:41

Safety information

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

English 5

WARNING

• State of California Proposition 65 Warning (US only)

This product contains chemicals known to the State of California to cause cancer and

birth defects or other reproductive harm.

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualied installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with exible plastic venting materials. If exible metal

(foil type) duct is installed, it must be of a specic type identied by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airow and increase the risk of re.

• To reduce the risk of severe injury or death, follow all installation instructions.

• Save these instructions.

Important safety precautions

WARNING

To reduce the risk of re, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any ammable substance,

such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner,

etc., or anything containing wax or chemicals, such as mops and cleaning cloths.

Flammable substances may cause the fabric to catch re by itself.

4. Do not store or use gasoline or other ammable vapors and liquids near this or any

other appliance.

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

DV22K6800-03650A-00_EN (US)_151211.indd 5 2015-12-11  7:15:41

Safety information

SAVE THESE INSTRUCTIONS

Safety information

SAVE THESE INSTRUCTIONS

English6

6. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

10. Do not repair or replace any part of the appliance or attempt any service unless

specically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-

like materials.

14. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15. The interior of the appliance and exhaust duct should be cleaned periodically by

qualied service personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch

re.

17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in

“Installation” section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

• This may result in injury.

20. Take care that children’s ngers are not caught in the door when closing it.

• This may result in injury.

21. The Control board and inlet valve are intentionally not grounded and may present a

risk of electric shock only during servicing.

• Do not contact these parts while the appliance is energized.

DV22K6800-03650A-00_EN (US)_151211.indd 6 2015-12-11  7:15:41

Safety information

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

English 7

WARNING - To reduce the risk of re or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other ammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or ammable liquids or solids should not be placed in the dryer until

all traces of these ammable liquids or solids and their fumes have been removed.

There are many highly ammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers.

• Do not dry items containing foam rubber (may be labeled latex foam) or similarly

textured rubber-like materials on a heat setting. Heated foam rubber materials can,

under certain circumstances, ignite spontaneously.

Warnings

WARNING

• Ensure pockets are free of small, irregularly shaped hard objects and foreign material,

i.e. coins, knives, pins, etc. These objects could damage your dryer.

Cautions

CAUTION

• Do not allow children or pets to play on, in, or in front of the appliance. Close

supervision is necessary when the appliance is used near children and pets.

• Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

• Do not reach into the appliance when the drum is moving.

• Do not install or store this appliance where it will be exposed to the weather.

• Do not tamper with the controls.

• Do not repair, replace, or attempt to service any part of the appliance unless

specically instructed to in the user-repair instructions and you have the

understanding and skills to carry out the procedure.

DV22K6800-03650A-00_EN (US)_151211.indd 7 2015-12-11  7:15:42

Safety information

SAVE THESE INSTRUCTIONS

Safety information

SAVE THESE INSTRUCTIONS

English8

• Do not use fabric softeners or products to eliminate static unless the softener or

product is recommended for dryer use by the manufacturer of the fabric softener or

product.

• Clean the lint screen before or after each load.

• Keep the area around the exhaust opening and surrounding areas free from lint, dust,

and dirt.

• The interior of the dryer and exhaust duct should be cleaned periodically by qualied

service personnel.

• This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in accordance with local and national codes. See

the installation instructions for information about grounding this appliance.

• Do not sit on top of the dryer.

• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.

• Install and use in accordance with the manufacturer’s instructions.

• Do not place items in your dryer that have been spotted or soaked with vegetable oil

or cooking oil. Even after being washed, these items may contain signicant amounts

of these oils.

• Residual oil on clothing can ignite spontaneously. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed

to heat. Heat sources such as your dryer can warm these items, allowing an oxidation

reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items

can become hot enough to catch re. Piling, stacking, or storing these kinds of items

may prevent heat from escaping and can create a re hazard.

• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate,

the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying

cycle until the items have run through the Cool Down cycle. Never pile or stack these

items when they are hot.

DV22K6800-03650A-00_EN (US)_151211.indd 8 2015-12-11  7:15:42

Before installation

English 9

Before installation

Read through the following instructions before installing the dryer, and keep this manual

for future reference.

WARNING

The control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing.

Service personnel - Do not contact these parts while the appliance is energized.

Key installation requirements

• A grounded electrical outlet.

• A power cord for electric dryers (except

in Canada).

• An exhaust system made of rigid metal

or exible stiff-walled metal exhaust

ducting.

WARNING

Remove the door from all discarded

appliances to prevent a child from

suffocating.

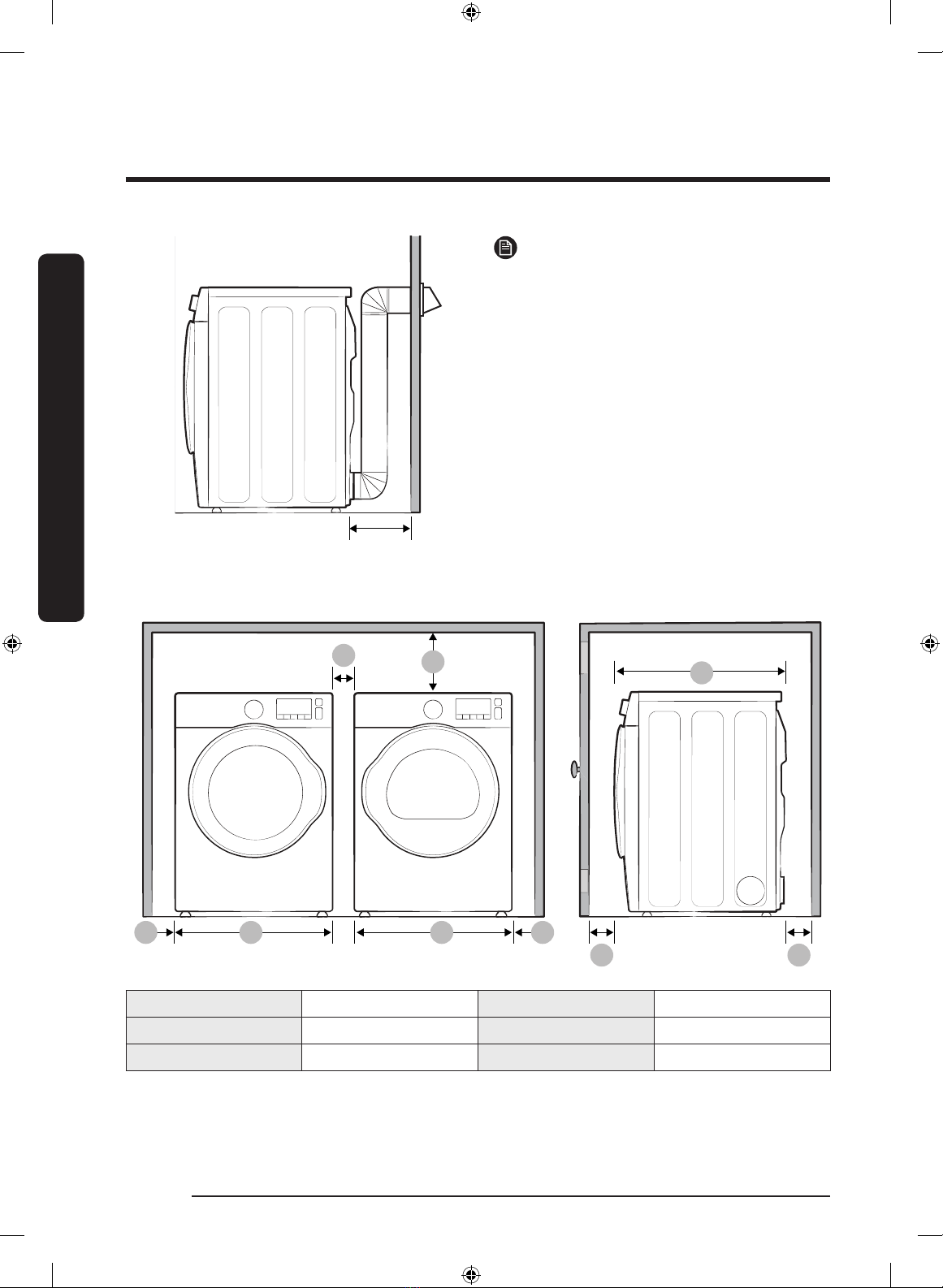

Location considerations

• Adequate clearances between the dryer

and adjacent walls or other surfaces.

• Adequate air circulation for ventilation.

• Away from water and weather.

WARNING

• Make sure to exhaust the dryer

outdoors to reduce the risk of re.

• Keep the dryer area clear of

combustible materials, gasoline, and

other ammable vapors and liquids.

• Do not install other fuel-burning

appliances around or in the same place

as the dryer.

Alcove or closet installation

Minimum clearances between the dryer

and adjacent walls or other surfaces are:

3” (76mm) in front, 17” (432 mm) on top,

0”(0mm) on either side, and 3’’ (76mm) in

the back.

The closet front must have two

unobstructed air openings for a combined

minimum total area of 72 in² (465 cm²)

with 3” (7.6 cm) minimum clearance on

the top and bottom. A louvered door with

equivalent space clearance is acceptable.

DV22K6800-03650A-00_EN (US)_151211.indd 9 2015-12-11  7:15:42

Before installation

English10

5.5”

(140 mm)

NOTE

When the exhaust duct is installed at the

rear of the dryer, the rear must have at

least 5.5 inch (140 mm) clearance.

Side by side installation

B B

A* 1 in. (25 mm) D25.8 in. (655 mm)

B23.6 in. (600 mm) E3 in. (76mm)

C17 in. (432 mm) F3 in. (76mm)

*Disregard this minimum clearance if the dryer is installed alone.

DV22K6800-03650A-00_EN (US)_151211.indd 10 2015-12-11  7:15:42

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Séchoir

Samsung

Samsung DV50K Series Manuel utilisateur

Samsung

Samsung DC68-02836B Manuel utilisateur

Samsung

Samsung DV365GTBGSF/AC Manuel utilisateur

Samsung

Samsung DV42H5000GW Manuel utilisateur

Samsung

Samsung DVE54M8750 Series Manuel utilisateur

Samsung

Samsung DVE50R8500 Series Manuel utilisateur

Samsung

Samsung DV45H Series Manuel utilisateur

Samsung

Samsung DVG52M8650 Series Manuel utilisateur

Samsung

Samsung DV9*K60 series Manuel utilisateur

Samsung

Samsung DVG45R6300W/A3 Manuel utilisateur

Samsung

Samsung DV9 N63 Series Manuel utilisateur

Samsung

Samsung DV48H7400E Series Manuel utilisateur

Samsung

Samsung DV361EWBEWR/A3-0001 Manuel utilisateur

Samsung

Samsung DV42H5400EF Manuel utilisateur

Samsung

Samsung DVE53BB8900 Series Manuel utilisateur

Samsung

Samsung DV455 Series Manuel utilisateur

Samsung

Samsung DVG50M7450 Series Manuel utilisateur

Samsung

Samsung DV400 Series Manuel utilisateur

Samsung

Samsung DV42H5000 Manuel utilisateur

Samsung

Samsung SDC18809 Manuel utilisateur

Samsung

Samsung DV45K7100E(G) series Manuel utilisateur

Samsung

Samsung DV231AGW/XAA Manuel utilisateur

Samsung

Samsung DV457EVGSWR/AA Manuel utilisateur

Samsung

Samsung DVEG45T3200 Series Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
