Samsung DV203 SERIES Manuel utilisateur

Fast Track Troubleshooting

Publication # tsDV203 Creation Date 1/22/2010

IMPORTANT SAFETY NOTICE – “For Technicians Only” This service data sheet is

intended for use by persons having electrical, electronic, and mechanical experience

and knowledge at a level generally considered acceptable in the appliance repair trade.

Any attempt to repair a major appliance may result in personal injury and property

damage. The manufacturer or seller cannot be responsible, nor assume any liability for

injury or damage of any kind arising from the use of this data sheet.

Models: DV203***

DV206*** DV209***

DV218*** DV219***

DV306*** DV316***

DV317*** DV326***

DV328*** DV337***

DV338*** DV3C6***

Description Trigger Action Taken

Dryer Thermistor Short

Sensed

The Thermistor resistance is

very l ow.

Check for: Clogged lint screen,

Restricted vent system, Thermistor

resistance.

Dryer Thermistor Open

Sensed

The Thermistor resistance is

very high.

Check for: Clogged lint screen,

Restricted vent system, Thermistor

resistance.

do Door Open Running the dryer with door

open

Check for: Loose or open wire

terminals in Door Sense circuit.

FE Power source frequency

Error Invalid power source Frequency Check for: Non Utility power supply

dF Door Circuit Failure Invalid state for more than 256

milliseconds

Check for: Loose or open wire

terminals in Door Sense circuit.

hE or HE Heater Error Invalid heating Temp in running

the dryer

Check for: Restricted vent system,

Thermistor resistance.

bE Button Error PCB key closed for 75 sec. Check Display PCB for stuck button

Samsung 'Dryer' Diagnostic Code Quick Guide

Display

Do not use dryer to dry clothes which have traces of any flam-

mable substance, such as vegetable oil, cooking oil, machine

oil, flammable chemicals, thinner, etc., or anything containing

wax or chemicals, such as mops and cleaning cloths. Flamma-

ble substances may cause fabric to catch fire by itself.

Location consideration In the USA:

• All Dryers Must be vented to the outside.

• Only rigid or flexible metal duct should be

used for venting.

Electrical Dryers 240 VAC, 60 Hz, 30 Amps, 3

-wire or 4-wire installations

Gas Dryers 120 VAC, 60 Hz, 15 Amps, 3-wire

installations

TOUCH UP PAINT, BLUE ONYX DH81-11980A

TOUCH UP PAINT, IMPERIAL SILVE

DH81-11981A

TOUCH UP PAINT, NEAT WHITE DH81-11982A

TOUCH UP PAINT, STRATUS GRAY DH81-11983A

TOUCH UP PAINT, TANGO RED DH81-11984A

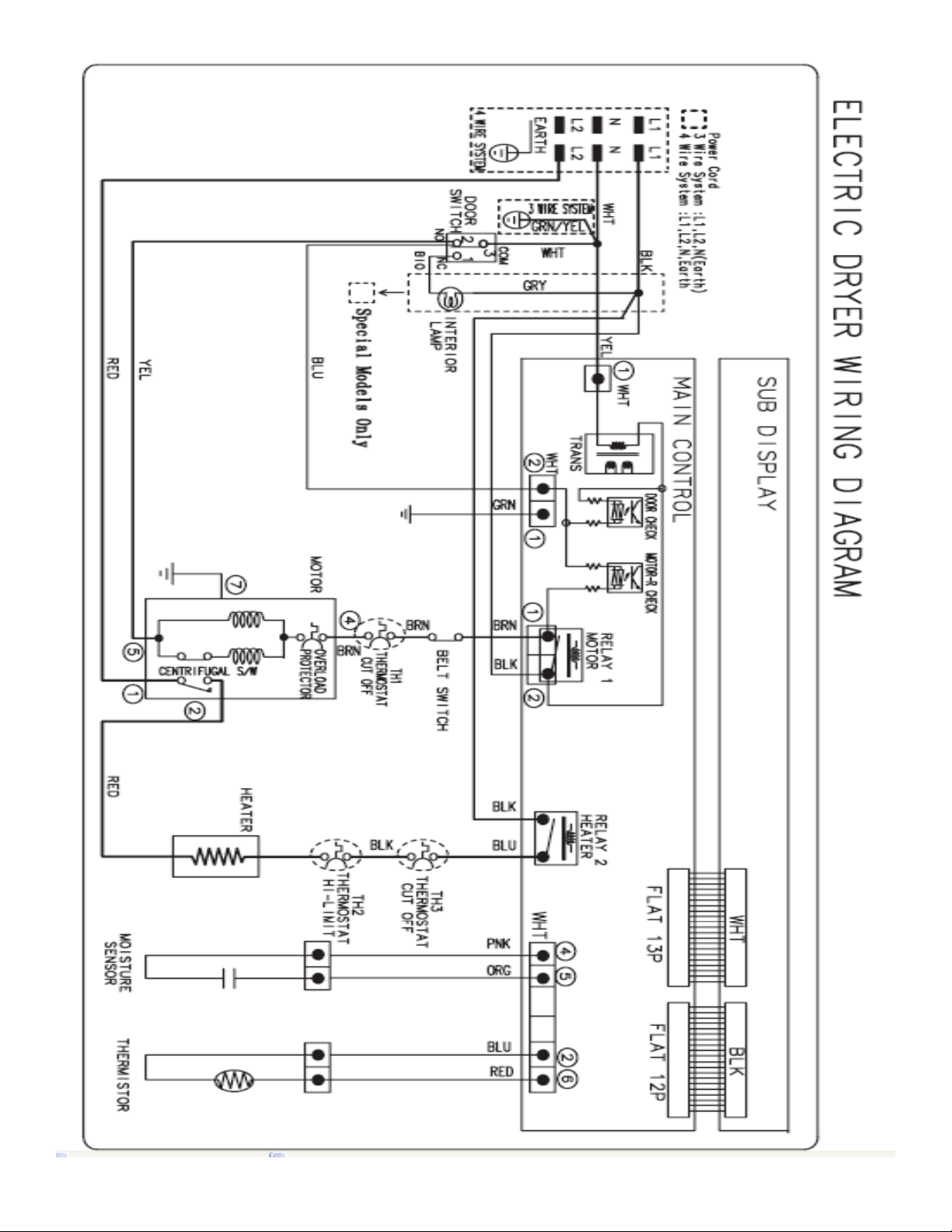

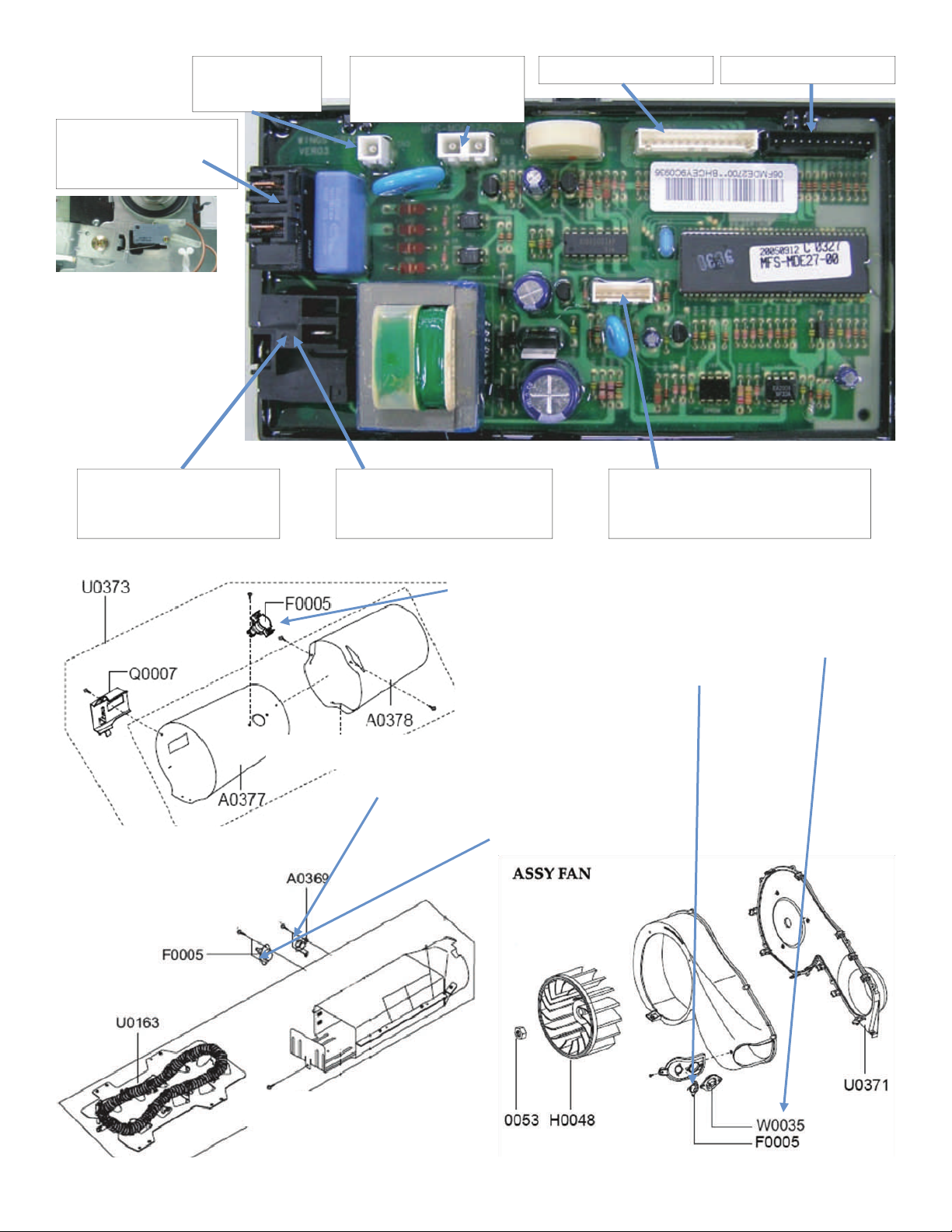

CN2 Sub PCB DisplayCN3

1 120vac N (Yel)

CN5

1 Earth Ground (Grn)

2 Door Sw (Blu)

Relay 1

1 Motor Belt Sw (Brn)

2 120vac L1 (Blk)

CN1 Sub PCB Display

Ass’y Duct Heater (Electric)

Ass’y Duct (Gas)

Ass’y Fan

Relay 2

1 Heater Cut Off T-Stat (Blu)

2 120vac L1 (Blk)

CN2

2-6 Thermistor (Blu-Red)

4-5 Moisture Sensor (Pnk-Org)

Relay 2

1 Gas Hi Limit T-Stat (Blu)

2 120vac L1 (Blk)

F0005 = DC47-00017A

A0369 = DC47-00015A

F0005 = DC47-00018A

Thermistor W0035 = DC32-00007A

F0005 = DC47-00016A

Sensor Bar Touch Data Mode

How to Enter:

Start Dryer tumbling, Press Temp + Signal for 3 seconds

during the drying process.

Open door, touch both sensor bars with wet cloth, sensor

hit numbers show in display.

Note: Test mode subject to change without notice

Cycle Count Test Mode

How to Enter:

Press Signal + Wrinkle Prevent Keys for 3 sec during

Power On State.

Press Signal key for 3 seconds (until beep)

Note: Test mode subject to change without notice

Software Version Test Mode

How to Enter:

Press Signal + Wrinkle Prevent Keys for 3 sec during

Power On State.

Press Temp key for 3 seconds (until beep)

Note: Test mode subject to change without notice

Temperature Test Diagnostic Mode

How to Enter:

Press Signal + Wrinkle Prevent Keys for 3 sec during

Power On State.

Press Time + Wrinkle Prevent Keys and 7-segment will

display the temperature in Celsius.

Compare vent temp to drum temp to see air flow.

Special Test Mode:

• While in Power Off, pressing the Dryness Level + Power keys simultaneously will put the dryer into the System

Check mode

• “ t2 “ will display.

• System Check Mode Progress

• t2 mode Function Performed Start/Pause Motor(CW) Relay On →Heater Relay On →Heater Relay Off →Motor

(CW) Relay Off (Circulation)

Caution! Do not give it too much testing time. It will over-burden the Main PCB.

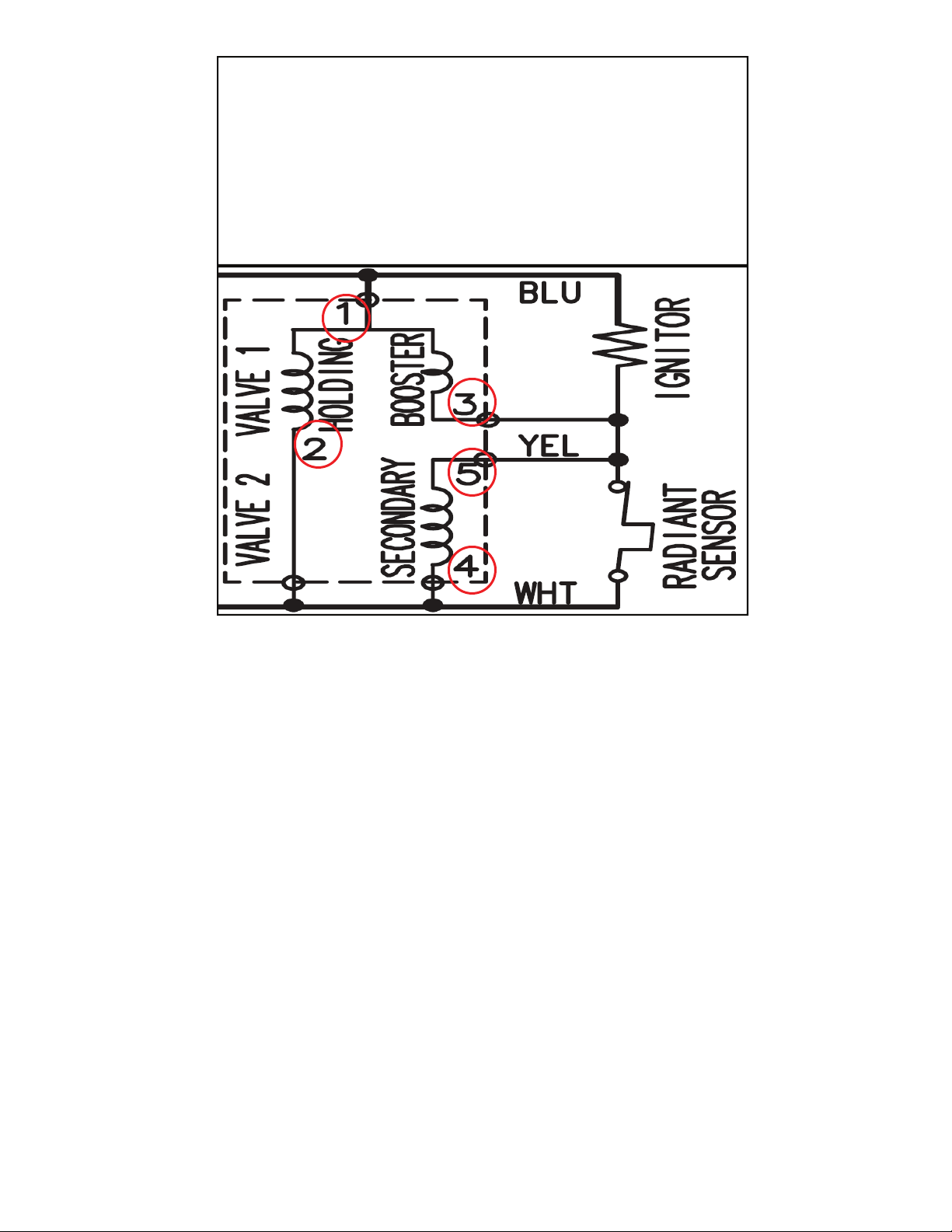

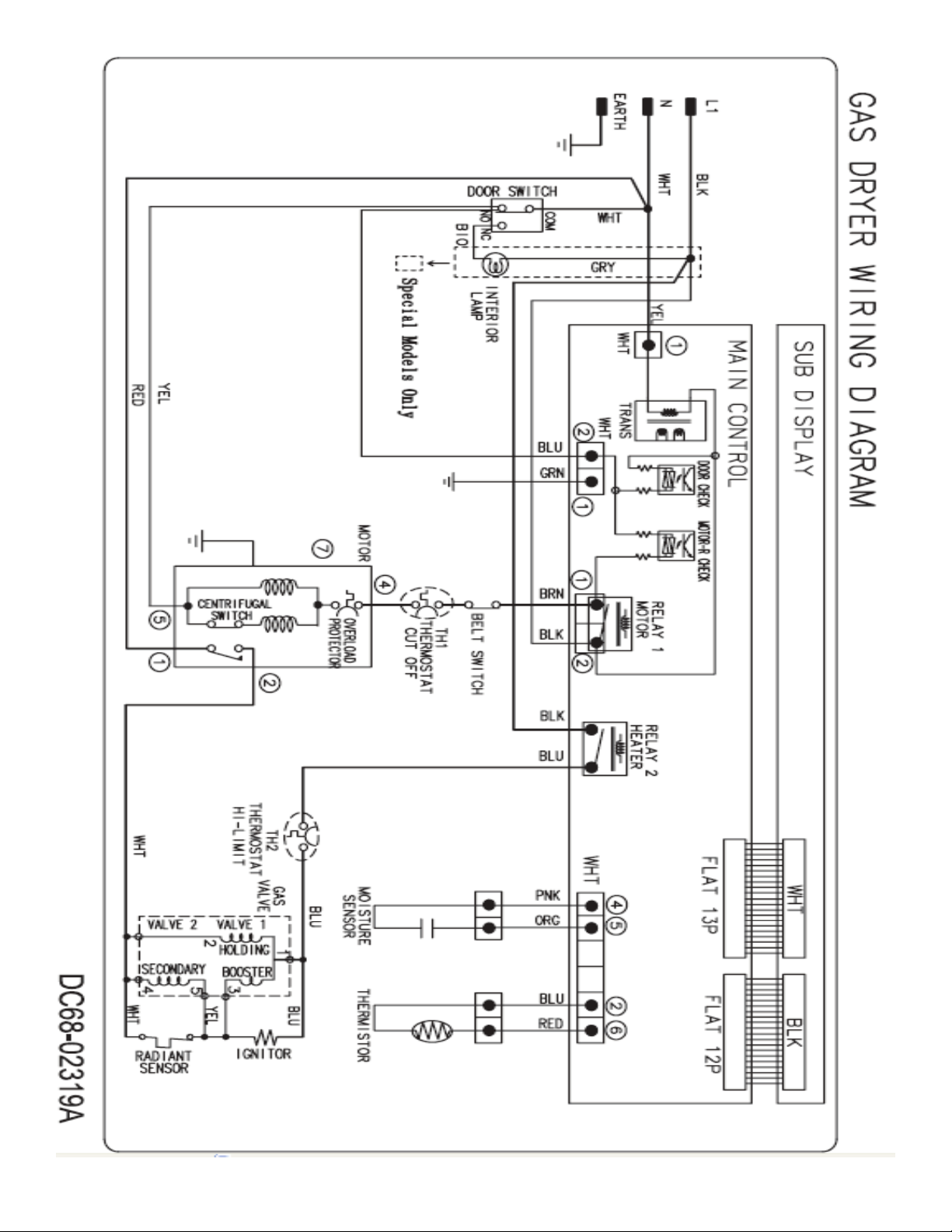

Gas Valve Testing

Unplug connectors and test valve terminals

(its numbering is from the front terminal.)

Check across terminals #1 and #3 (Booster Coil). 550 Ω

Check across terminals #1 and #2 (Holding Coil). 1350 Ω

Check across terminals #2 and #3 (Both coils in series). 1900 Ω

Check across terminals #4 and #5 (Secondary Coil). 1300 Ω

Thermistor

Temp Fo Ω

50 20KΩ

60 15.8KΩ

77 10KΩ

85 8KΩ

95 6.5KΩ

115 4.3KΩ

140 2.5KΩ

160 1.7KΩ

175 1.3KΩ

200 850Ω

COM (Wht)

NO (Yel)

NC Lamp option

Dryer continues to run after cycle completed

Wrinkle Prevent option provides approximately 90 minutes of intermittent tumbling in unheated air at the end

of the cycle to reduce wrinkling. Press the Wrinkle Prevent button to activate this feature.

The indicator light above the pad will illuminate when Wrinkle Prevent is selected.

Chasing lights appear in the display when the Wrinkle Prevent option is selected. The load is dry, and can be

removed at any time during the Wrinkle Prevent cycle.
