Samsung CS21T3 Manuel utilisateur

COLOUR

TELEVISION

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ENG

REMOTE CONTROL

ON-SCREEN MENUS

PICTURE IN PICTURE FUNCTION

GAME FUNCTION

ELECT

ENG

Safety Instructions

The following illustrations represent the precautions to be taken when using and moving your television.

5°

10%

35°75%

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL ENVIRONMENTS

Caution

CAUTION: TO PREVENT ELECTRICAL SHOCK, DO

NOT REMOVE REAR COVER, NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

Do NOT expose the television to

extreme temperature conditions or

to extreme humidity conditions.

Do NOT expose the television to

direct sunlight. Do NOT expose the television to

any liquids.

If the television is broken, do not

try to repair it yourself. Contact

qualified service personnel.

During a storm conditions

(especially when there is lightning)

unplug the television from the

mains socket and aerial.

If the remote control is not used for

a long period of time, remove the

batteries and store it in a cool, dry

place.

Mode System

CZ PAL-B/G, D/K, I, SECAM-B/G,D/K, I,

NTSC4.43

CW PAL-B/G, D/K, I, SECAM-B/G,D/K, I, L/L’,

NTSC4.43

CS PAL-B/G, D/K, I, SECAM-B/G,D/K, I,

NTSC4.43/3.58

WARNING: TO PREVENT DAMAGE WHICH MAY

RESULT IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

☛

The main voltage is indicated on the rear

of the TV set and the frequency is 50 or

60Hz.

The lightning flash and arrow head

within the triangle is a warning sign

alerting you of “dangerous voltage”

inside the product.

The exclamation point within the

triangle is a warning sign alerting

you of important instructions

accompanying the product.

➣Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.

ENG

Contents

◆PREPARING YOUR TELEVISION

■Safety Instructions......................................................................................... 2

■Caution.......................................................................................................... 2

■Front Control Panel ....................................................................................... 4

■Connection Panels ........................................................................................ 5

■Infrared Remote Control................................................................................ 6

■Infrared Remote Control (PIP & Game Functions)........................................ 7

■Inserting the Batteries in the Remote Control................................................ 8

■Connecting the Aerial (or Cable Television Network).................................... 8

■Switching Your Television On and Off........................................................... 9

■Placing Your Television in Standby mode..................................................... 9

■Plug & Play Feature....................................................................................... 10

■Viewing the Demonstration............................................................................ 11

■Choosing Your Language.............................................................................. 12

◆SETTING UP THE CHANNELS

■Storing the Channels Automatically............................................................... 13

■Storing the Channels Manually...................................................................... 14

■Skipping Unwanted Channels ....................................................................... 16

■Fine tuning Channel Reception..................................................................... 17

■Sorting the Stored Channels ......................................................................... 18

◆USING THE TELEVISION

■Changing the Picture Standard ..................................................................... 20

■Adjusting the Picture Settings........................................................................ 21

■Selecting the Picture Format......................................................................... 21

■Activation/Deactivation the Digital Noise Reduction Feature ........................ 22

■Using the Tilt Control Feature........................................................................ 22

■Changing the Sound Standard...................................................................... 23

■Adjusting the Sound Settings ........................................................................ 24

■Extra Sound Settings..................................................................................... 25

■Selecting the Sound Mode ............................................................................ 26

■Selecting the Turbo Sound............................................................................ 26

■Adjusting the Volume..................................................................................... 27

■Switching the Sound Off Temporarily............................................................ 27

■Using the LNA (Low Noise Amplifier) Feature............................................... 27

■

Setting the Sleep Timer................................................................................. 28

■Setting and Displaying the Current Time....................................................... 29

■Setting the Blue Screen Mode....................................................................... 34

■Activating the Childlock ................................................................................. 34

■Picture In Picture........................................................................................... 35

■Enjoying Games............................................................................................ 37

◆INFORMATION ON CONNECTIONS AND RECOMMENDATIONS FOR USE

■Connecting to the AV-1 or 2 Input/Outputs.................................................... 40

■Connecting to the S-VIDEO Input.................................................................. 40

■Connecting to the DVD Input ........................................................................ 41

■Connecting to the RCA Input......................................................................... 41

■Connecting Headphones............................................................................... 42

■Viewing Picture From External Sources........................................................ 42

■Automatic Degaussing to Remove Colour Patches....................................... 43

■Trouble Shooting: Before Contacting Service Personnel .............................. 43

☛➢

Symbols

Press Important Note

■Selecting a Channel Numbered Ten or Over ................................................ 19

■Pre - Channel ................................................................................................ 19

■Changing Channels ...................................................................................... 19

■

Settings for Pick 'n' Choose .......................................................................... 28

■Setting the On/Off Timers, On Time Program and Volume .......................... 30

■Setting the Reminder .................................................................................... 32

■Enjoying the Woofer Sound ........................................................................... 24

■Entering the Game Zone ............................................................................... 38

■Changing the Game Mode ............................................................................ 38

■Adjusting the Game Contrast ........................................................................ 39

■Adusting the Game Volume .......................................................................... 39

ENG

Front Control Panel (depending on the model)

➣ Buttons and markings are subject to change.

➣Using the Front Panel Controls

If the remote control stops working, you can use the front panel controls to:

◆Change channels

◆Adjust the volume

◆Select options from the on-screen menus

◆Choose the Video mode (depending on the model)

How to use the CH▼/▲buttons to switch among Video input modes (the model without TV/VIDEO button):

◆... 99

➛

2 ...

... 2

➛

99 ...

◆... 99

↔

↔↔

↔

2 ...

The control-symbols on the TV front panel are the same as the ones used on the remote control.

❶TV/VIDEO SELECTION

❷MENU DISPLAY

❸VOLUME ADJUSTMENT

❹CHANNEL SELECTION

❺STAND-BY/TIMER INDICATOR

❺*STAND-BY INDICATOR

❻REMOTE CONROL SENSOR

❼POWER

ENG

Connection Panels

Side of TV

RCA AUDIO/VIDEO INPUT CONNECTORS

S-VIDEO INPUT JACK

HEADPHONE JACK

INPUT 1

MONITOR

-OUT

INPUT 2

VIDEO

(MONO)

L-AUDIO-R

INPUT 1

MONITOR

-OUT

INPUT 2

VIDEO

(MONO)

L-AUDIO-R

RGB

Rear of TV

❶RCA AUDIO/VIDEO INPUT/OUTPUT

CONNECTORS

❷DVD INPUT CONNECTORS

❸SCART AUDIO/VIDEO INPUT/OUTPUT

CONNECTORS

❹75 ΩCOAXIAL CONNECTOR FOR

AERIAL/CABLE NETWORK

☛This figure shows the Standard Connector-jack panel.

The actural configuration on your TV may be different, depending on the model.

WOOFER SPEAKER

CONNECTORS

(OPTION)

SPEAKER (8Ω+8Ω)

WOOFER

ENG

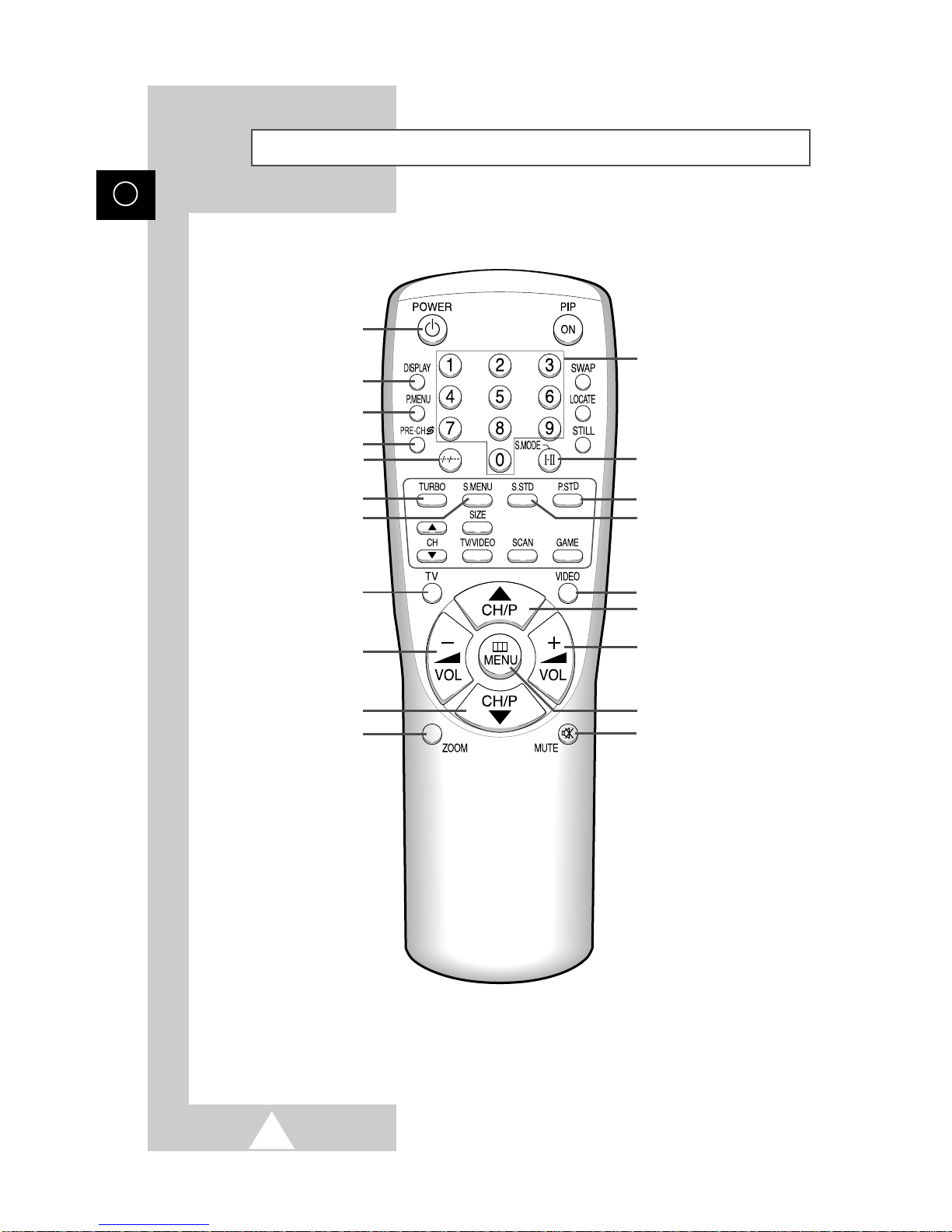

Infrared Remote Control

➣ Operation of remote control may be affected by bright artificial light near to the TV set.

POWER

ONE/TWO/THREE-DIGIT

CHANNELSELECTION

TURBO SOUND ON/OFF

TUNER/CABLE NETWORK

SELECTION

VOLUME DECREASE

CHANNEL DOWN

PREVIOUS CHANNEL

TEMPORARY SOUND SWITCH-

OFF

EXTERNAL INPUT SELECTION

ON-SCREEN DISPLAY

DIRECT CHANNEL SELECTION

PICTURE SIZE

CHANNEL UP

VOLUME INCREASE

PICTURE STANDARD

SOUND MODE SELECTION

MENU DISPLAY

➣Buttons and markings are subject to change.

PICTURE MENU DISPLAY

SOUND STANDARD

SOUND MENU DISPLAY

ENG

Infrared Remote Control (PIP & Game Functions)

GAME DISPLAY

PIP ON

PIP SCAN

➣Buttons and markings are subject to change.

PIP SWAP

PIP LOCATE

PIP STILL

PIP SOURCE SELECTION

PIP CHANNEL SELECTION

PIP SIZE SELECTION

ENG

You must insert or replace the batteries in the remote control when

you :

◆Purchase the television.

◆Find that the remote control is no longer operating

correctly.

1Remove the cover of the remote control by pressing the symbol

( ) and pulling the cover in the direction of the arrow.

2Insert batteries, taking care to respect the polarities:

◆+on the battery with +on the remote control

◆

on the battery with

on the remote control

3Replace the cover by pushing it in the direction of the arrow.

PRESS

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

Plug the aerial or cable network input cable to the 75Ωcoaxial socket

on the rear of the television.

Inserting the Batteries in the Remote Control

Connecting the Aerial (or Cable Television Network)

PRESS

Cable

Television

Network

Rear of TV

ENG

The mains lead is attached to the rear of the television.

1Plug the mains lead into an appropriate socket.

➢The main voltage is indicated on the rear of the TV set and

the frequency is 50 or 60Hz.

2Press the POWER (ON/OFF) button on the front of the

television.

Result: The Standby indicator lights up on the front panel.

3Press the POWER button on the remote control to switch the

television on.

Result: The programme that you were watching last is re-

selected automatically.

4To switch your television off, press the POWER (ON/OFF) button

again on the front of the television.

Placing Your Television in Standby mode

Your television can be placed in Standby mode, in order to reduce:

◆Power consumption

◆Wear of the cathode ray tube

The Standby mode can be useful when you wish to interrupt

viewing temporarily (during a meal, for example).

The television is placed automatically in Standby mode when you

turn it on.

1Press the POWER button on the remote control.

Result: The screen is turned off and the Standby indicator on

the front of the television lights up.

2To switch the screen back on, simply press the POWER button

again on the remote control.

➣Do not leave your television in standby mode for long

periods of time (when you are away on holiday, for example).

In this case, you should switch it off completely.

Switching Your Television On and Off

ENG

Plug & Play Feature

Plug & Play

Ant. Input : Check

Select Exit

Select Adjust Exit

Auto store

Area : ASIA W/EUROPE

Search : -/+

When the television is initially powered ON, three basic customer

settings proceed automatically and subsequently: setting the

language, channel and clock.

1If the television is in Standby mode (red light visible on the

television front panel), press the POWER button on the remote

control.

Result: The message “Plug & Play”is displayed. It flickers for a

little while and then the “Language”menu is

automatically displayed.

2Press the ▲or ▼button to select required language. Press the

MENU button to enter the language, and then the message “Ant.

Input : Check”is displayed.

➣If any language is not selected on the “Language”menu, the

“Language”menu will be displayed about 30 seconds later.

3Make sure that the antenna is connected to the TV. And then press

the +or –button.

Result: The “Auto store”menu is displayed.

4Select your country by pressing the +or –button. To search the

channels, select the “Search”by pressing the ▲or ▼button, and

then press the +or –button (refer to “Storing the Channels

Automatically”on page 13). Press the MENU button to skip.

Result: The “Time”menu is displayed.

5Press the +or –button to move to the hour or minute. Set the hour

or minute by pressing the ▲or ▼button (refer to “Setting and

Displaying the Current Time”on page 29).

6When you have finished, press the MENU button.

Result: The message “ENJOY YOUR WATCHING”is displayed,

and then the channel which has been stored will be

activated.

7If you want to reset this feature...

1Press the MENU button.

2Press the ▲or ▼button to select the “Function”, and then

press the +or –button.

3Select the “Plug & Play”by pressing the ▲or ▼button, and

then press the +or –button.

Result: The message “Plug & Play”is displayed.

Select Adjust Exit

Time

Sleep : Off

Clock : -- : -- am

Select Enter Exit

Function

Language : English

Time

Plug & Play

Blue screen : Off

Demonstration

Select Enter Exit

Function

Language : English

Time

Plug & Play

Blue screen : Off

Demonstration

Timer

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Téléviseur à tube cathodique

Samsung

Samsung TXP1430F, TXP1634F, TXP2022 Manuel utilisateur

Samsung

Samsung TSL3294HF Manuel utilisateur

Samsung

Samsung CW-21Z573B Manuel utilisateur

Samsung

Samsung CB21K22 Manuel utilisateur

Samsung

Samsung CS25V10 Manuel utilisateur

Samsung

Samsung CB15K10 Manuel utilisateur

Samsung

Samsung CS21S7 Manuel utilisateur

Samsung

Samsung CW-21Z453N Manuel utilisateur

Samsung

Samsung CS29M21 Manuel utilisateur

Samsung

Samsung CW-29M066V Manuel utilisateur

Samsung

Samsung CS21B2 Manuel utilisateur

Samsung

Samsung CFTD2083 Manuel utilisateur

Samsung

Samsung CW-29A208T Manuel utilisateur

Samsung

Samsung CL29A10 Manuel utilisateur

Samsung

Samsung CW-25M064N Manuel utilisateur

Samsung

Samsung CXM 2785TP Manuel utilisateur

Samsung

Samsung CW-29M066V Manuel utilisateur

Samsung

Samsung ST54T6 ST62T6 Manuel utilisateur

Samsung

Samsung WS-32M066V Manuel utilisateur

Samsung

Samsung CL-29Z40MQ Guide de configuration

Samsung

Samsung CW21M63N Manuel utilisateur

Samsung

Samsung CRT Direct View TV Manuel utilisateur

Samsung

Samsung CW29A1081G Manuel utilisateur

Samsung

Samsung CS-29Z40 Manuel utilisateur

Manuels Téléviseur à tube cathodique populaires d'autres marques

JVC

JVC AV-21QS5SP Manuel utilisateur

Philips

Philips COLOR TV 25 INCH TABLE TR2517C Manuel utilisateur

Hitachi

Hitachi 27CX01B Manuel utilisateur

LG 30FZ1DC Manuel utilisateur

Sony

Sony FD TRINITON WEGA KV-24FS120 Manuel utilisateur

RCA

RCA F19442 Manuel utilisateur

Philips

Philips 29PT4973 Manuel utilisateur

Panasonic

Panasonic TC-29P100 Series Manuel utilisateur

RCA

RCA F19422 Manuel utilisateur

Sony

Sony WEGA KV 32HS20 Manuel utilisateur

Palsonic

Palsonic MODEL 5179G Manuel utilisateur

Toshiba

Toshiba CF13H22 Manuel utilisateur

Magnavox

Magnavox MS3650C - 36" Smart Ctv Manuel

Toshiba

Toshiba 14AF41 Manuel utilisateur

Philips

Philips 21PT9469 Manuel utilisateur

Mitsubishi

Mitsubishi CS-35305 Manuel utilisateur

Hitachi

Hitachi 35UX60B, 35TX10B Manuel utilisateur

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Manuel utilisateur
