Samsung Wave GT-S8500 Manuel utilisateur

GSM TELEPHONE

GT-S8500

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Level 2Repair

8. Level 3Repair

9. Reference data

GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2010. 04. Rev.1.0

ⓒ

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

7. Level 2Repair

7-1

This Document can not be used without Samsung's authorization

Assemble FPCB not to get loose Screw PBA 3-point after Land PBA

Assemble FPCB not to get loose Assemble FPCB not to get loose

7-1. Assembly

assemble CONN.

1Screw PBA

Assemble FPCB

3Assemble Camera FPCB





SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-2

7. Level 2Repair

  

Speaker module lands, pushing the left side first. Attach FPCB to outline

Land REAR on PBA and screw REAR 2-point Insert intenna

8Assemble intenna

Assemble FPCB

7Assemble REAR

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-3

7. Level 2Repair

Screw intenna 2-point Land the front key pad

   

Insert intenna's cover Screw intena cover 2-point

Assemble front key pad

9Screw intenna

Screw intenna cover

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-4

7. Level 2Repair

Slide Case body down Insert upper Deco into Case body

Screw upper Deco 3-point attach upper Deco cover

13 Slide Case body down

Screw upper Deco

15 Assemble upper Deco cover

Assemble upper Deco

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-5

7. Level 2Repair

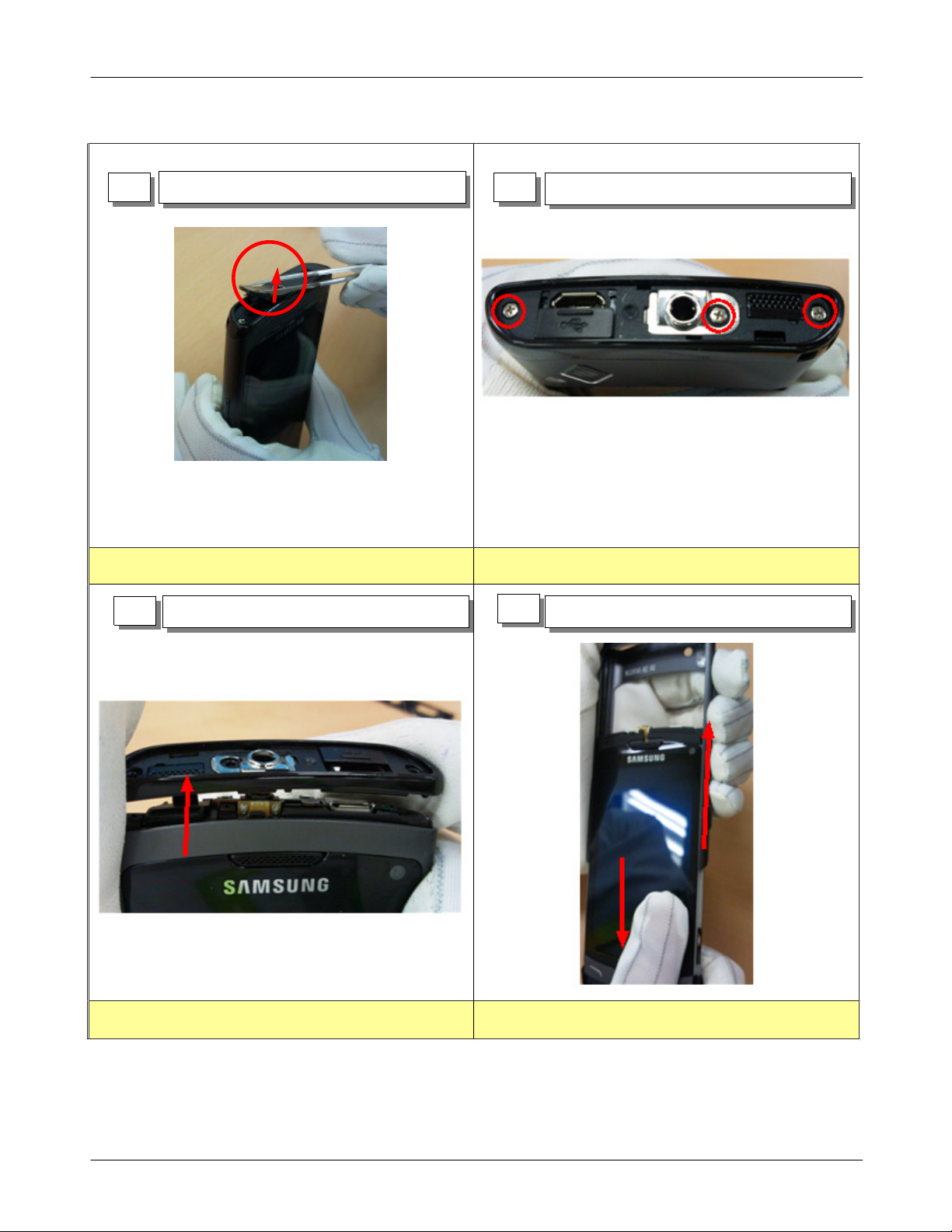

Detach upper Deco's cover with pincette Unscrew upper Deco 3-point

Pull upper Deco after hold it Slide the Case body up

7-2. Dissembly

Disassemble upper Deco

3Disassemble Case body

Disassemble upper Deco cover

1Unscrew upper Deco

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-6

7. Level 2Repair

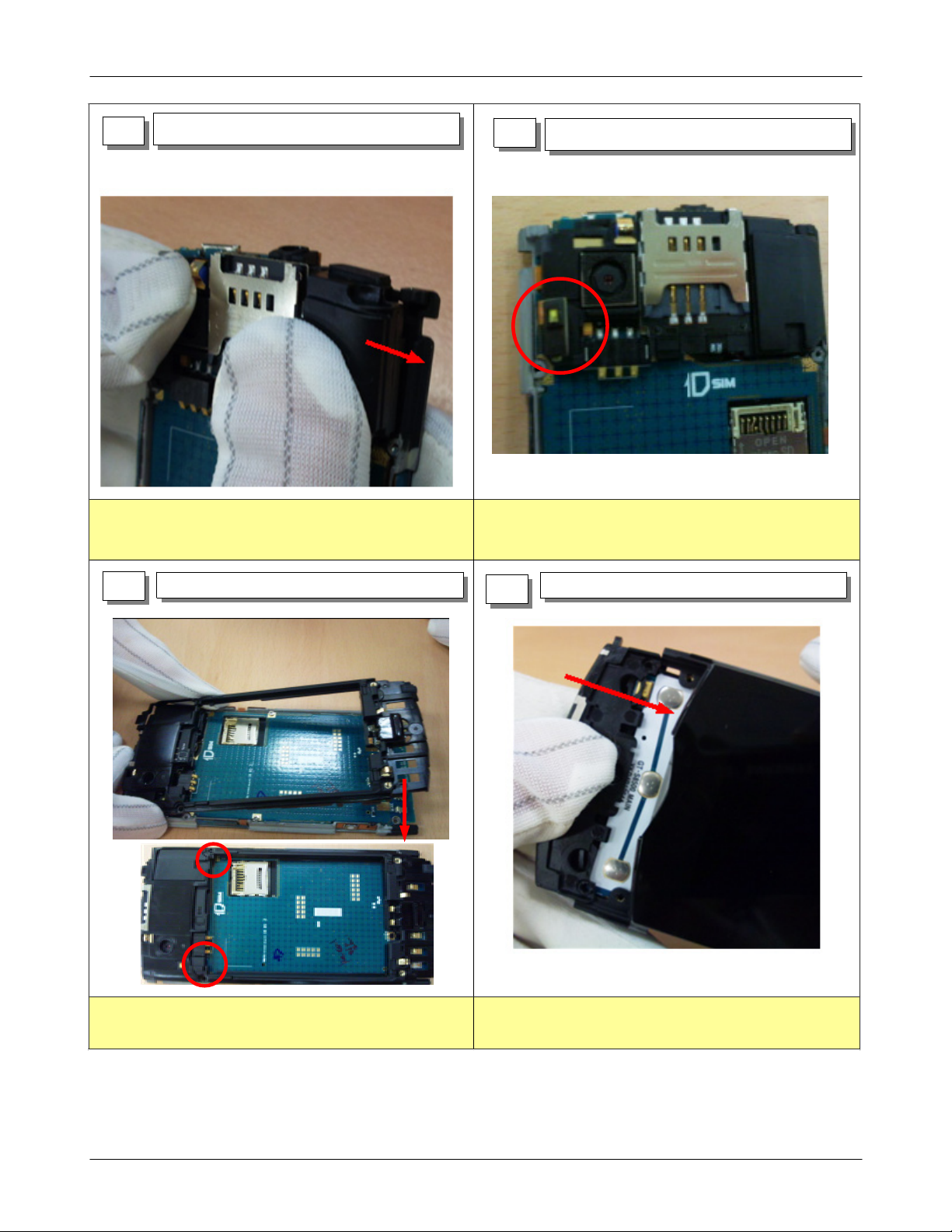

Unscrew REAR 4-point TO disassemble intenna's cover, widen the hook of the

intenna's cover with disassembling knife

  

Pull intenna's cover after hold it Hold up key pad

Unscrew REAR

5Disassemble intenna's cover

8Disassemble front key pad

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-7

7. Level 2Repair

  

Unscrew intenna 2-point Pull an intena after hold it

Hold the REAR up Detach FPCB with tweezers

Unscrew intenna

11 Disassemble FPAB

Disassemble the REAR

SAMSUNG Proprietary-Contents may change without notice

This Document can not be used without Samsung's authorization

7-8

7. Level 2Repair

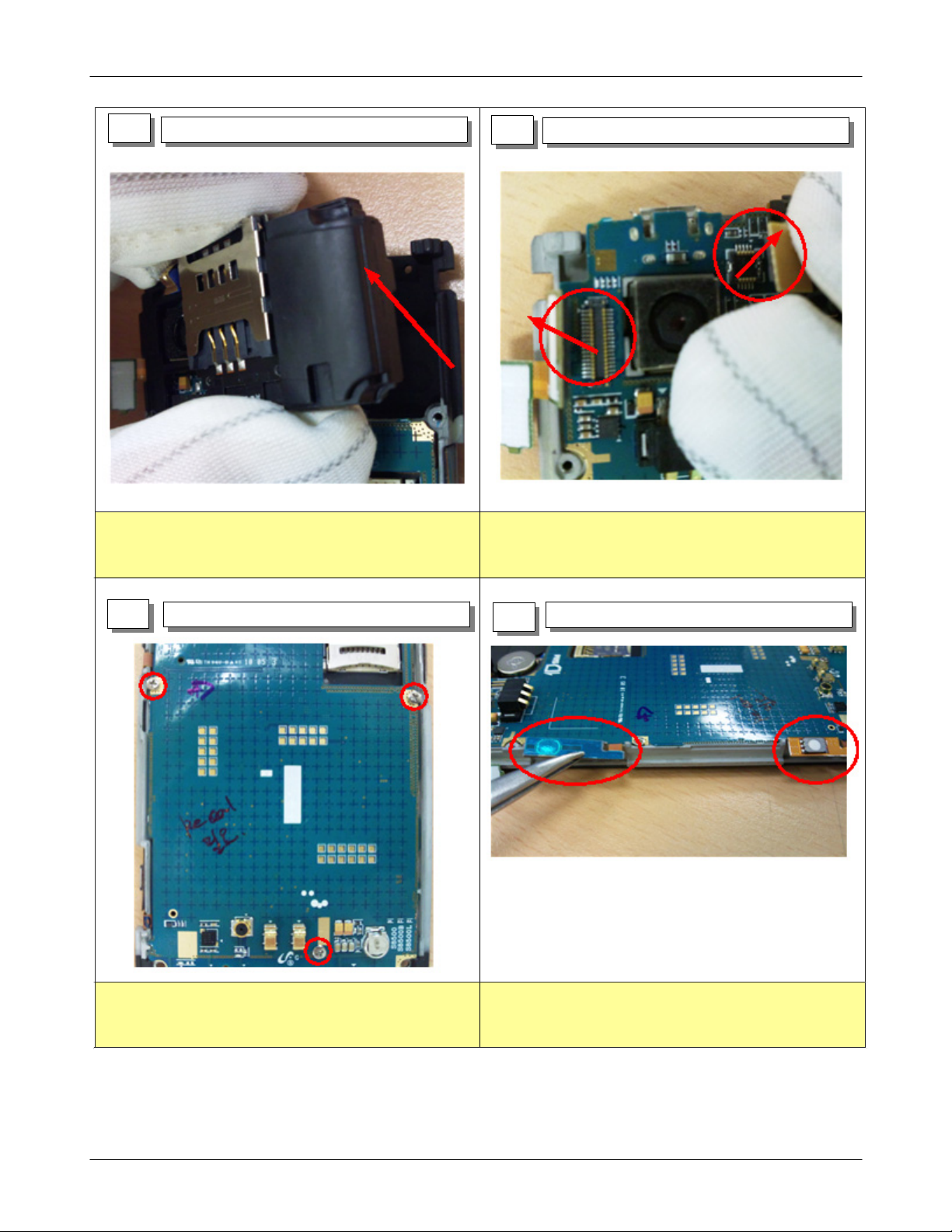

hold up the Camera cover right side Disassemble FPCB 2-point

Unscrew PBA 3-point Detach FPCB 2-point with tweezers

Disassemble Camera cover

13 Disassemble FPAB

Unscrew PBA

15 Detach FPCB
