Samsung SM-E625F Manuel utilisateur

SM-E625F/M625F

Common

Mobile Device

CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1 Repair

7. Level 2 Repair

8. Level 3 Repair

9. Reference Abbreviation

Notice: All functionality, features, specifications,

and other product information provided in this

document, including but not limited to, benefits,

design, pricing, components, performance,

availability, and capabiliti-es of the product are

subject to change without notice. Samsung

reserves the right to alter this doc-ument or the

product described herein at anytime, without

obligation to provide notification of such

changes.

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

ⓒ

Samsung Electronics Co.,Ltd

2021. 01. Rev 1.1

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-1. Components on the Rear Case

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-2. Pre-requisite

Tweezers / Disass'y Stick / Screw Driver

Anti-static Gloves

Anti-static Mat

AOD for Tablet

Ethyl Alcohol

Cotton Swab

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-3. Parts which must be changed after repair

BOM Description & part code


Remarks

Backcover Outside tape

[GH81-20354A]

Left items must be changed to

the new one in case of

disassemble the Back glass.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-4. Disassembly

※ Caution

Be care of scratch.

※ Caution

Be care of scratch.

※ Caution

Be care of Rear damage.

※ Caution

Be careful not to damage the PBA.

Remove 1 PBA screw.

- Torque Value : 1.1kgf ± 7%

Remove Rear Cover.

Remove all 15 points of Rear Screws

- Torque Value : 1.15kgf ± 7%

1) Put the device in the AOD jig.

Set the AOD condition

- SOC 68%↓: Upper 70℃/ Lower 60 ℃5min

- SOC 68%↑: Upper 60℃/ Lower 60 ℃5min

2) Disassemble the Back-Cover using the AOD.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

※ Caution

Be care of several kinds of damage at PBA and FPCB.

※ Caution

Be careful not to damage the Camera Module.

※ Caution

Be careful not to damage the RCV.

※ Caution

Be careful not to damage the Motor.

Remove WIDE CAM, Ultra wide CAM

connectors.

Remove the PBA and C to C FPCB and Batt Conn

and COAXIAL CABLE And VT Camera, Macro

Camera, Vokeh CAM

Detach Motor from Front Ass’y.

Detach RCV from Front Ass’y.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

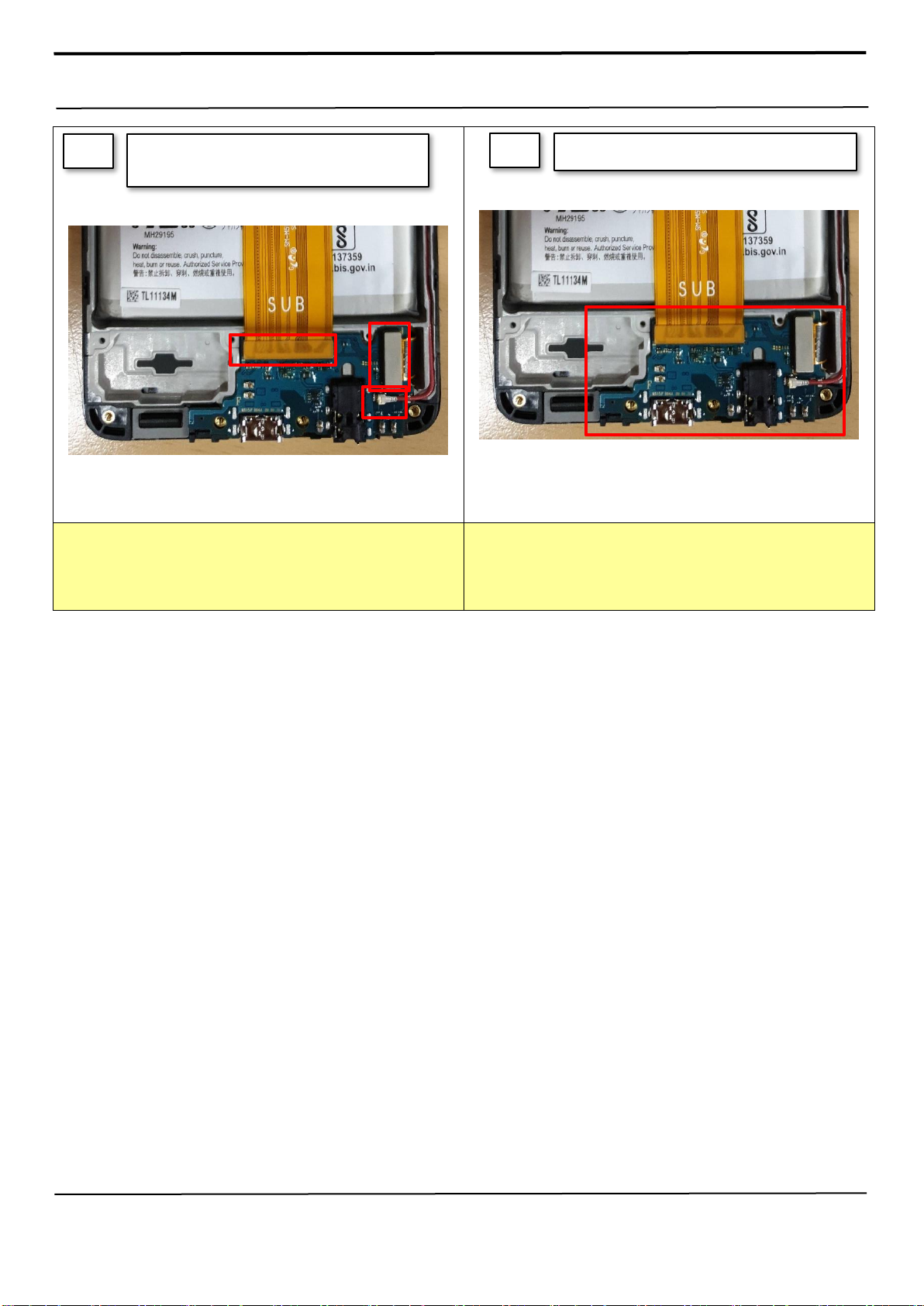

※ Caution

1) Be careful not to damage the octa conn, C to C FPCB and

COAXIAL CABLE.

2) Be careful not to damage the PBA

※ Caution

Be careful not to damage the Sub PBA.

Remove octa conn, C to C FPCB and

COAXIAL CABLE.

Detach the Sub PBA.

Confidential and proprietary-the contents in this service guide subject to change without prior notice

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

7. Level 2 Repair

7-5. Assembly

※ Caution

Be care of Sub PBA damage.

※ Caution

1) Be careful not to damage the C to C FPCB and Red COAXIAL

CABLE.

2) Be careful not to damage the PBA

※ Caution

Be care of damage each part.

※ Caution

1) Be care of scratch CAM lens.

2) Check for each connector connection.

Assemble C to C FPCB and COAXIAL CABLE

Assmble OCTA/ C to C Conn. and COAXIAL

CABLE.

Assemble the PBA and C to C FPCB and Batt

Conn and COAXIAL CABLE and VT

Camera/Macro Camera/Vokeh Cam.

Attach Motor and Receiver in upper area.

Attach Sub PBA on Front Ass’y.
