Samsung SGH-X400 Manuel utilisateur

SGH-X400

SERVICE

Manual

GSM TELEPHONE CONTENTS

1. Specification

2. Exploded Views and Parts List

3. Electrical Parts List

4. Flow Chart of Troubleshooting

5. Block Diagrams

6. PCB Diagrams

GSM TELEPHONE

SAMSUNG Proprietary-Contents may change without notice

1. SGH-X400 Specification

1-1

This Document can not be used without Samsung's authorization

GSM900

Phase 1 EGSM 900

Phase 2 DCS1800

Phase 1 PCS1900

Freq. Band[MHz]

Uplink/Downlink 890~915

935~960 880~915

925~960 1710~1785

1805~1880 1850~1910

1930~1990

ARFCN range 1~124 0~124 &

975~1023 512~885 512~810

Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz

Mod. Bit rate/

Bit Period 270.833kbps

3.692us 270.833kbps

3.692us

Time Slot

Period/Frame Period 576.9us

4.615ms 576.9us

4.615ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK

MS Power 33dBm~13dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm

Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl

Sensitivity -102dBm -102dBm -100dBm -100dBm

TDMA Mux 8 8 8 8

Cell Radius 35Km 35Km 2Km -

1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice

1-2

SGH-X400 Specification

This Document can not be used without Samsung's authorization

TX Power

control level GSM900

5 33±2dBm

6 31±3dBm

7 29±3dBm

8 27±3dBm

9 25±3dBm

10 23±3dBm

11 21±3dBm

12 19±3dBm

13 17±3dBm

14 15±3dBm

15 13±3dBm

16 11±5dBm

17 9±5dBm

18 7±5dBm

19 5±5dBm

TX Power

control level DCS1800

0 30±2dBm

1 28±3dBm

2 26±3dBm

3 24±3dBm

4 22±3dBm

5 20±3dBm

6 18±3dBm

7 16±3dBm

8 14±3dBm

9 12±4dBm

10 10±4dBm

11 8±4dBm

12 6±4dBm

13 4±4dBm

14 2±5dBm

15 0±5dBm

TX Power

control level PCS1900

0 30±2dBm

1 28±3dBm

2 26±3dBm

3 24±3dBm

4 22±3dBm

5 20±3dBm

6 18±3dBm

7 16±3dBm

8 14±3dBm

9 12±4dBm

10 10±4dBm

11 8±4dBm

12 6±4dBm

13 4±4dBm

14 2±5dBm

15 0±5dBm

2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice

2. SGH-X400 Exploded View and its Parts list

2-1

This Document can not be used without Samsung's authorization

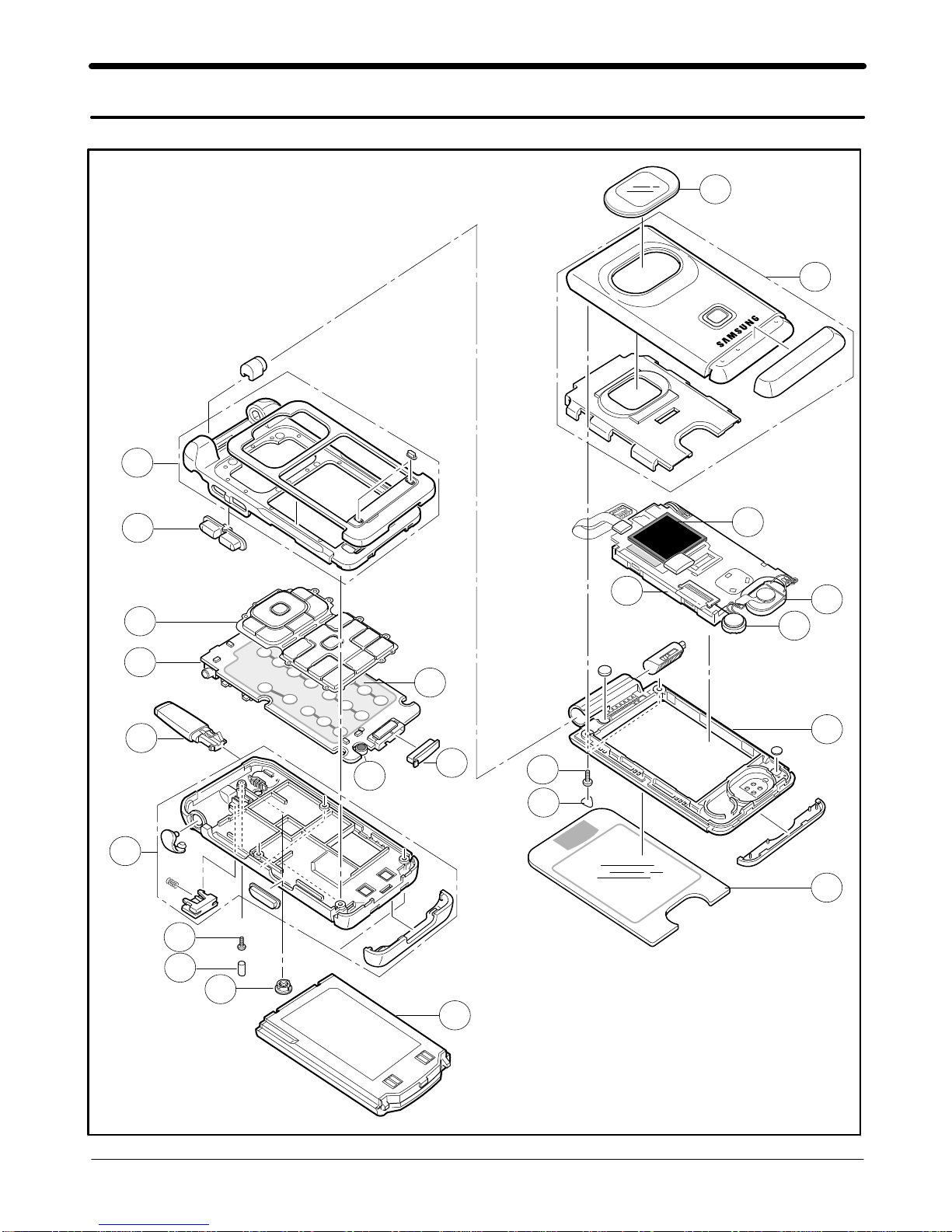

1. Cellular phone Exploded View

SAMSUNG Proprietary-Contents may change without notice

2-2

SGH-X400 Exploded view and its Part list

This Document can not be used without Samsung's authorization

NO Description SEC.CODE REMARK

1DUAL WINDOW LCD GH75-03088A

2FOLDER UPPER GH75-02636B

3DUAL LCD GH07-00319A

4SPEAKER 3001-001393

5MOTOR 3101-001351

6MAIN LCD GH07-00247A

7FOLDER LOWER GH75-02635B

8MAIN WINDOW LCD GH72-07620A

9SCREW 6001-001155

10 HOLE SHEET(A) GH74-04896B

HOLE SHEET(B) GH74-04897B

11 FRONT COVER GH75-02633B

12 SIDE KEY GH75-02632A

13 KEYPAD GH75-03162A

14 MAIN PBA GH92-01422A

15 DOME SHEET GH59-00745A

16 IF COVER GH73-01688B

17 MIC GH30-00015A

18 ANTENNA GH42-00285A

19 REAR COVER GH75-02634B

20 SCREW 6001-001478

21 SCREW CAP GH73-01692B

22 RF COVER GH73-01743B

23 BATTERY GH43-00830B 900MAH

GH43-00853B 620MAH

2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice

SGH-X400 Exploded view and its Part list

2-3

This Document can not be used without Samsung's authorization

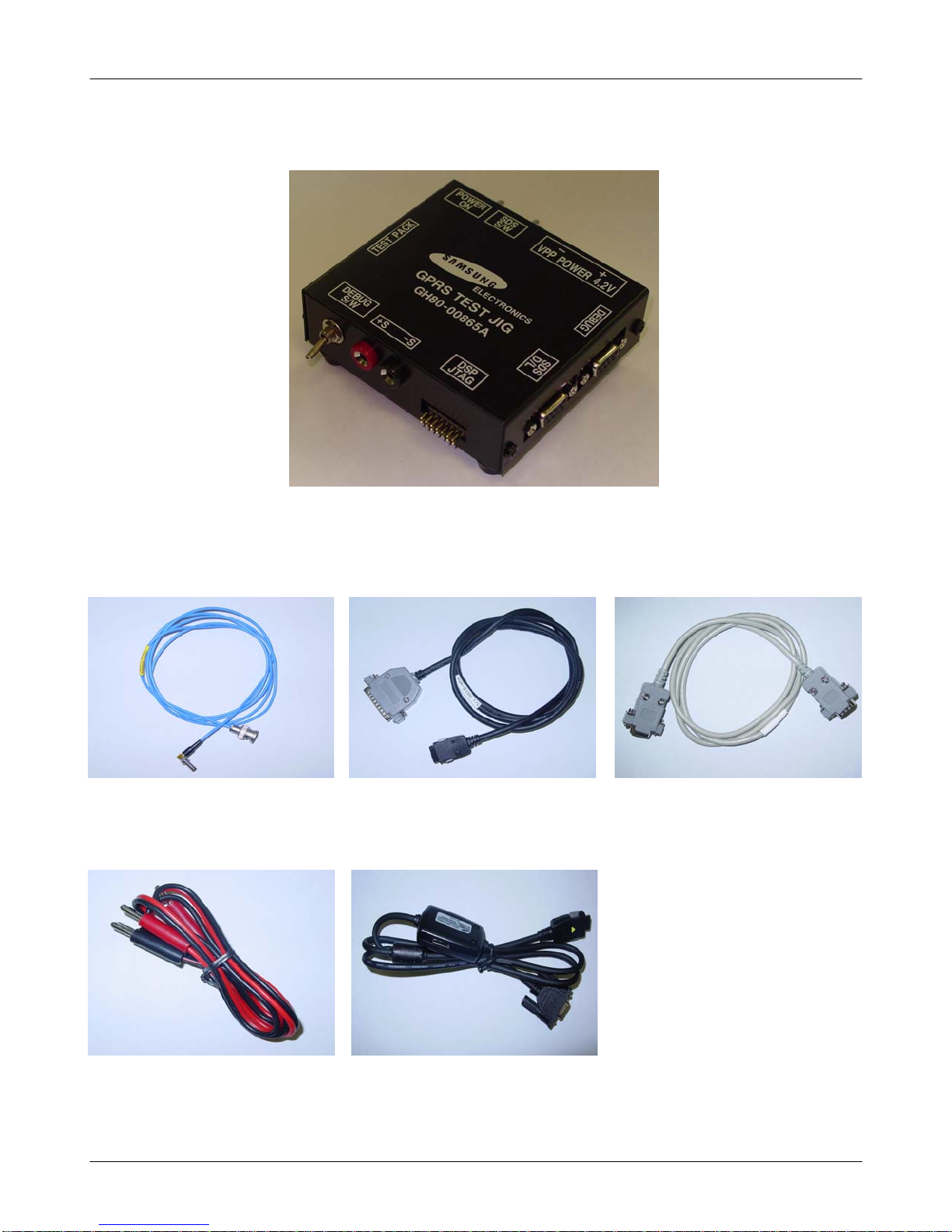

3. Test Jig (GH80-00865A)

3-1. RF Test Cable

(GH39-00090A)

3-2. Test Cable

(GH00-00127A)

3-3. Serial Cable

3-4. Power Supply Cable 3-5. DATA CABLE

(GH39-00159A)

SAMSUNG Proprietary-Contents may change without notice

3. SGH-X400 MAIN Electrical Parts List

3-1

This Document can not be used without Samsung's authorization

Design LOC SEC Code

GH92-01553A PBA

GH41-00443A PCB

2203-000995 C1003

2203-000233 C1004

2203-002677 C1005

2203-002677 C1006

2203-000233 C1007

2203-002677 C1008

2203-002677 C1009

2203-000812 C101

2203-000233 C1010

2203-005234 C1012

2203-005234 C1013

2203-000812 C1014

2203-000995 C1015

2203-000812 C1016

2404-001151 C1017

2203-000438 C1018

2203-000812 C1019

2203-005061 C102

2203-000812 C1020

2404-001151 C1021

2203-001598 C103

2203-000812 C104

2203-000812 C105

2404-001105 C106

2203-000254 C1063

2404-001268 C107

2203-005482 C108

2203-001652 C109

2203-001652 C110

2203-000438 C1101

2203-000679 C1102

2203-000995 C1103

2203-001405 C1104

2404-001105 C1105

2203-000885 C1106

Design LOC SEC Code

2203-005512 C1107

2203-000254 C1108

2203-005065 C1109

2203-006053 C111

2203-001405 C1110

2203-005509 C1111

2203-001405 C1112

2203-001405 C1113

2203-005065 C1114

2203-005480 C1115

2203-005481 C1116

2203-005481 C1117

2203-005481 C1118

2203-005480 C1119

2203-006053 C112

2203-000438 C1120

2203-000278 C1121

2203-005050 C1122

2203-001405 C1123

2203-001405 C1124

2203-001652 C113

2203-001598 C114

2203-000254 C115

2203-006053 C116

2203-006053 C117

2203-000233 C118

2203-000812 C119

2203-005061 C120

2203-001598 C121

2203-000254 C201

2203-006113 C202

2203-006113 C203

2203-006113 C204

2203-006113 C205

2203-006113 C208

2203-006113 C209

2203-006257 C212

SAMSUNG Proprietary-Contents may change without notice

SGH-X400 Electrical Parts List

3-2

This Document can not be used without Samsung's authorization

Design LOC SEC Code

2203-005509 C213

2203-005061 C214

2203-005061 C215

2203-005682 C220

2203-005682 C221

2203-005682 C222

2203-005682 C223

2203-005682 C224

2203-005682 C225

2203-005682 C226

2203-005682 C227

2203-005061 C301

2203-005061 C302

2203-005061 C303

2203-005061 C304

2203-000812 C305

2203-000359 C401

2203-005061 C402

2203-001405 C403

2203-005061 C404

2404-001086 C405

2203-000995 C406

2203-000995 C407

2203-000885 C408

2203-005061 C409

2203-005065 C410

2404-001086 C413

2203-000438 C416

2203-005061 C417

2404-001151 C420

2404-001151 C421

2203-005061 C422

2203-005065 C423

2203-000438 C425

2203-000438 C426

2203-005682 C430

2203-005682 C431

Design LOC SEC Code

2203-005682 C432

2203-005682 C433

2203-005682 C434

2203-005682 C435

2203-005682 C436

2203-005682 C437

2203-000812 C441

2203-000940 C450

2203-005061 C501

2203-005061 C502

2203-005061 C503

2203-000254 C504

2203-005061 C505

2203-005496 C601

2203-005496 C602

2203-000254 C603

2203-000254 C604

2203-000254 C605

2203-000254 C606

2203-005480 C607

2203-005061 C608

2203-001405 C609

2203-000679 C610

2203-000254 C611

2203-000628 C613

2203-000233 C614

2203-000628 C615

2203-005496 C704

2203-005065 C705

2203-005061 C706

2203-000254 C707

2203-005480 C708

2203-005480 C709

2203-000254 C710

2203-000254 C711

2203-000254 C712

2203-000233 C801

SAMSUNG Proprietary-Contents may change without notice

3-3

SGH-X400 Electrical Parts List

This Document can not be used without Samsung's authorization

Design LOC SEC Code

2203-000233 C802

2203-000233 C803

2203-000254 C804

2203-000254 C805

2203-000254 C806

2203-000995 C904

2203-001405 C905

2203-000812 C906

2203-000233 C908

2203-001405 C909

2203-000233 C910

2203-001405 C911

3705-001255 CN1001

3709-001187 CN101

3711-005078 CN201

3710-001816 CN300

3722-001715 CN401

0405-001110 D1101

0405-001110 D1102

2909-001191 F1001

2904-001450 F1002

2203-005234 L1001

2203-001195 L1002

2703-002602 L1003

2703-002603 L1004

2703-001734 L1005

2703-002608 L1006

2703-001409 L1007

2703-001794 L1101

2703-002102 L1102

2703-002102 L1103

2703-001235 L401

2703-001235 L402

2703-001235 L403

2703-001235 L490

2703-001751 L901

0601-001819 LED201

Design LOC SEC Code

0601-001819 LED202

0601-001790 LED203

0601-001790 LED204

0601-001790 LED205

0601-001819 LED206

0601-001790 LED207

0601-001819 LED208

0601-001819 LED209

0601-001819 LED210

0601-001790 LED211

0601-001790 LED212

0601-001790 LED213

0601-001790 LED214

0601-001819 LED215

0601-001819 LED216

0604-001261 LED217

0601-001790 LED218

0601-001790 LED219

0601-001790 LED220

0601-001790 LED221

4302-001130 M101

2801-004189 OSC1101

2801-004025 OSC601

2809-001260 OSC801

0502-001201 Q101

0506-001052 Q102

0504-000168 Q103

0504-000168 Q104

0504-001012 Q1101

0501-000225 Q401

2007-001288 R1001

2007-001307 R1002

2007-007008 R1003

2007-007008 R1004

2007-001288 R1005

2007-001307 R1006

2007-007008 R1007

SAMSUNG Proprietary-Contents may change without notice

SGH-X400 Electrical Parts List

3-4

This Document can not be used without Samsung's authorization

Design LOC SEC Code

2007-007008 R1008

2007-007107 R1009

2007-000171 R101

2007-007142 R102

2007-007139 R103

2007-001323 R104

2007-000758 R105

2007-000171 R106

2007-000171 R107

2007-000171 R108

2007-000172 R109

2007-001319 R110

2007-000172 R1101

2007-007135 R1102

2007-000148 R1103

2007-000162 R1104

2007-000172 R1105

2007-000174 R1106

2007-000775 R1107

2007-000148 R1108

2007-000162 R1109

2007-000171 R111

2007-000148 R112

2007-000172 R201

2007-001291 R202

2007-001301 R218

2007-008587 R220

2007-008587 R221

2007-008587 R222

2007-008587 R223

2007-008587 R224

2007-008587 R225

2007-008587 R226

2007-008587 R227

2007-000157 R301

2007-000157 R302

2007-000157 R303

Design LOC SEC Code

2007-000140 R304

2007-000140 R305

2007-000140 R306

2007-000140 R307

2007-000140 R308

2007-000140 R309

2007-000140 R310

2007-000140 R312

2007-000140 R313

2007-003001 R401

2007-000162 R402

2007-003001 R403

2007-000164 R404

2007-000161 R405

2007-000775 R406

2007-000159 R407

2007-000148 R408

2007-001325 R410

2007-000159 R411

2007-000141 R412

2007-001316 R413

2007-000141 R414

2007-000148 R415

2007-000159 R416

2007-001333 R417

2007-000140 R418

2007-000171 R419

2007-000148 R421

2007-008587 R430

2007-008587 R431

2007-008587 R432

2007-008587 R433

2007-008587 R434

2007-008587 R435

2007-008587 R436

2007-008587 R437

2007-000171 R502

Autres manuels pour SGH-X400

Table des matières

Autres manuels Samsung Téléphone portable

Samsung

Samsung SGH-S307 Manuel utilisateur

Samsung

Samsung Behold Series Manuel utilisateur

Samsung

Samsung SPHM240 Guide de l'utilisateur

Samsung

Samsung SGH-C170 Manuel utilisateur

Samsung

Samsung GT-S5220 Manuel utilisateur

Samsung

Samsung Admire SCH-R720 Manuel utilisateur

Samsung

Samsung Vodafone SGH-L810V Manuel utilisateur

Samsung

Samsung GALAXY S5 Manuel utilisateur

Samsung

Samsung SCH-R730 series Manuel utilisateur

Samsung

Samsung GALAXY S5 Guide d'installation

Samsung

Samsung GT-I8260L Manuel utilisateur

Samsung

Samsung SCH A870 - Cell Phone - Verizon Wireless Guide de l'utilisateur

Samsung

Samsung Sprint Galaxy Note Edge Manuel utilisateur

Samsung

Samsung Galaxy Galaxy Note Manuel utilisateur

Samsung

Samsung SGH-T999N Manuel utilisateur

Samsung

Samsung Galaxy Axiom Manuel utilisateur

Samsung

Samsung ORANGE A110e Manuel utilisateur

Samsung

Samsung SM-T211 Manuel utilisateur

Samsung

Samsung SM-A310X Manuel utilisateur

Samsung

Samsung SM-J530GM/DS Manuel utilisateur

Samsung

Samsung SM-C115W Manuel utilisateur

Samsung

Samsung Galaxy Z Flip3 5G Manuel utilisateur

Samsung

Samsung Galaxy A54 5G Manuel utilisateur

Samsung

Samsung Galaxy A11 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
