Samsung SGH-S105 Manuel utilisateur

SGH-S105

SERVICE

Manual

GPRSGSMTELEPHONECONTENTS

1.Specification

2.ExplodedViewsand PartsList

3.ElectricalPartsList

4.BlockDiagrams

5.PCB Diagrams

6.FlowChartofTroubleshooting and

CircuitDiagrams

GPRS GSMTELEPHONE

SAMSUNG Proprietary-Contents may change without notice

1.SGH-S105 Specification

1-1

GSM900

Phase1EGSM900

Phase2DCS1800

Phase1PCS1900

Freq.Band[MHz]

Uplink/Downlink 890~915

935~960 880~915

925~960 1710~1785

1805~1880 1850~1910

1930~1990

ARFCNrange1~124 0~124 &

975~1023 512~885 512~810

Tx/Rxspacing 45MHz45MHz95MHz80MHz

Mod.Bit rate/

Bit Period 270.833kbps

3.692us270.833kbps

3.692us

TimeSlot

Period/FramePeriod 576.9us

4.615ms576.9us

4.615ms

Modulation 0.3GMSK0.3GMSK0.3GMSK0.3GMSK

MS Power33dBm~13dBm33dBm~5dBm30dBm~0dBm30dBm~0dBm

PowerClass 5pcl~15pcl5pcl~19pcl0pcl~15pcl0pcl~15pcl

Sensitivity-102dBm-102dBm-100dBm-100dBm

TDMAMux 8 8 8 8

Cell 최대 반경 35Km35Km2Km-

1. GSMGeneralSpecification

SAMSUNG Proprietary-Contents may change without notice

1-2

SGH-S105 Specification

TXPower

control levelGSM900

5 33±2 dBm

6 31±2 dBm

7 29±2 dBm

8 27±2 dBm

9 25±2 dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TXPower

control levelDCS1800

0 30±3 dBm

1 28±3 dBm

2 26±3 dBm

3 24±3 dBm

4 22±3 dBm

5 20±3 dBm

6 18±3 dBm

7 16±3 dBm

8 14±3 dBm

9 12±4 dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TXPower

control levelPCS1900

0 30±3 dBm

1 28±3 dBm

2 26±3 dBm

3 24±3 dBm

4 22±3 dBm

5 20±3 dBm

6 18±3 dBm

7 16±3 dBm

8 14±3 dBm

9 12±4 dBm

10 10±4 dBm

11 8±4dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

2. GSMTXpower class

SAMSUNG Proprietary-Contents may change without notice

2-1

2. SGH-S105 Exploded View and its Parts List

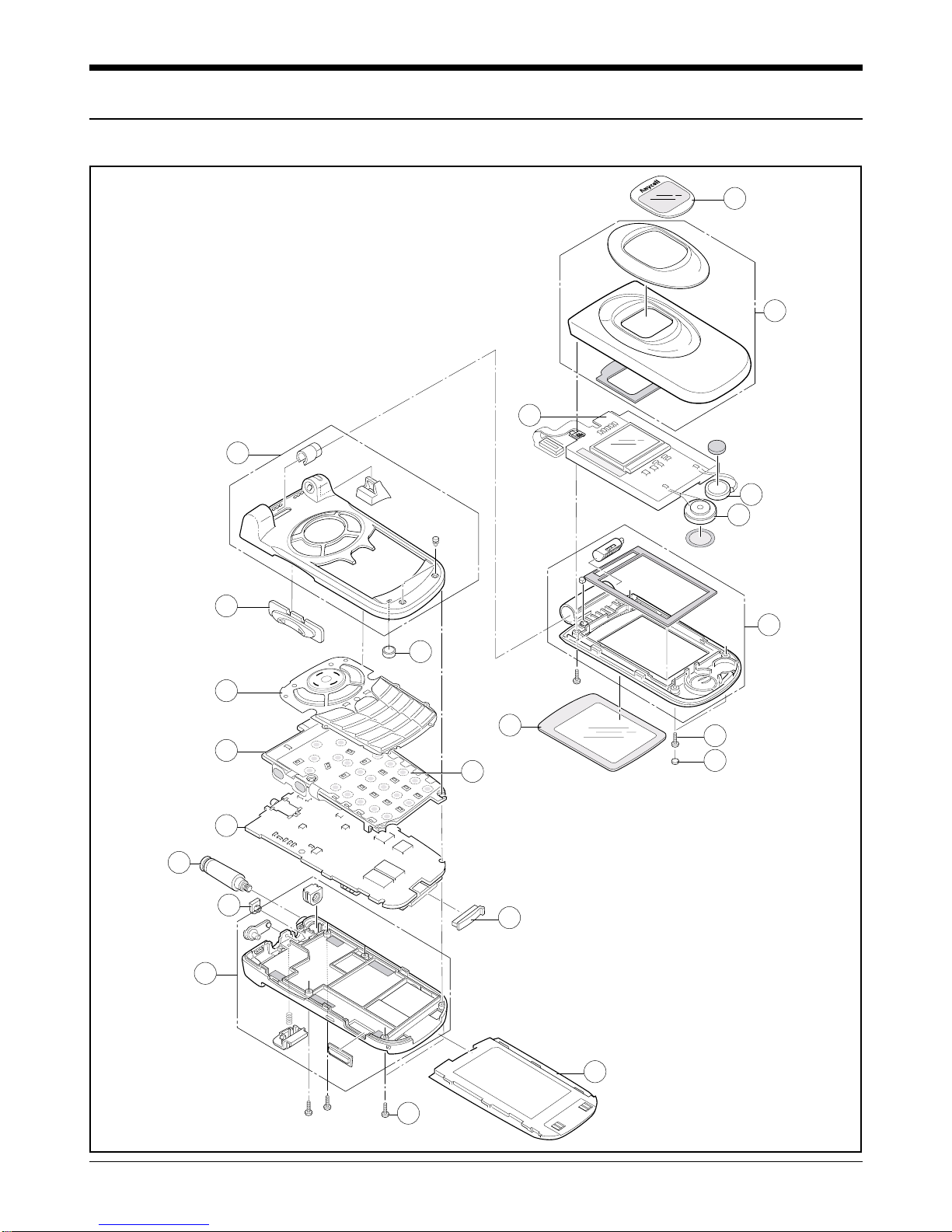

2-1. Cellular phone Exploded View

19 17

SAMSUNG Proprietary-Contents may change without notice

2-2

SGH-S105 Explodedviewand its Partlist

2.CellularphonePartslist

Location

NO.Description SEC CODERemark

1DUALWINDOWLCDGH72-04715A

2FOLDER UPPER GH75-02275A

3LCDGH07-00179A

4MOTOR3101-001295

5SPEAKER 3001-001297

6FOLDER LOWER GH75-02079A

7SCREW6001-001478

8SCREWCAPGH74-02036A

9WINDOWLCDGH72-04716A

10 FRONTCOVER GH75-02076A

11 MICGH59-00138A

12 VOLUMEKEYGH75-02123A

13 KEYPADGH75-02124A

14 DOMESHEETGH59-00425A

15 SHIELDCOVER GH75-02203A

16 MAINPBAGH92-01354A

17 CONNECTORCOVER GH73-01230A

18 ANTENNAGH42-00193A

19 MOBILECAPGH73-01229A

20 REARCOVER GH75-02077A

21 SCREW6001-001479

22 BATTERYGH43-00558A720mA

GH43-00563A900mA

SAMSUNG Proprietary-Contents may change without notice

SGH-S105 Explodedviewand its Partlist

2-3

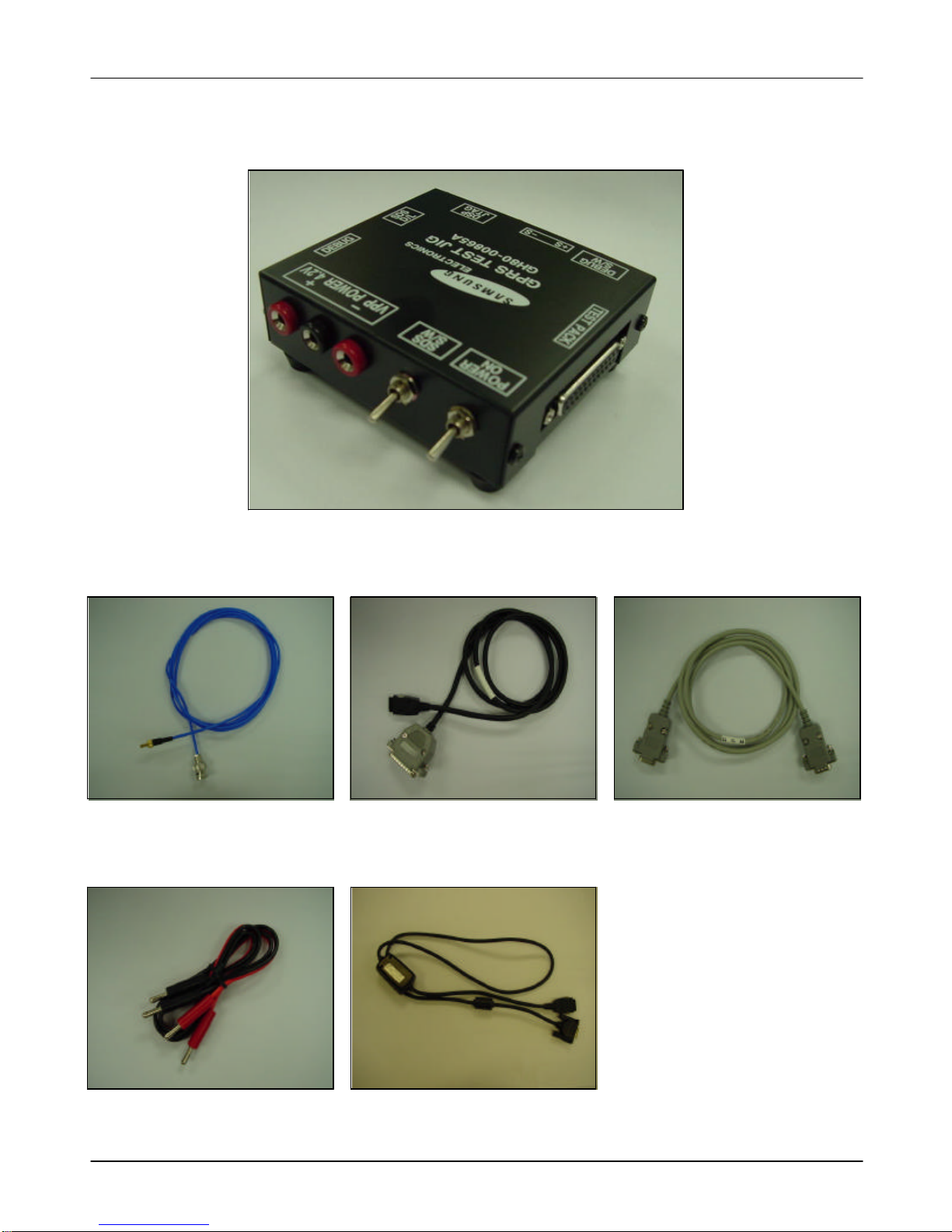

3.TestJig(GH80-00865A)

3-1.RFTestCable

(GH39-00093A)3-2.TestCable

(GH39-00165A)3-3.SerialCable

3-4.PowerSupplyCable3-5.DATACABLE

(GH39-00152A)

SAMSUNG Proprietary-Contents may change without notice

3.SGH-S105 MAINElectricalPartsList

3-1

Level SEC Code Design LOC Descriptions

0GH92-01302A-PBAMAIN-SGHS100;SGH-S100,XEF,FRAN,

-,-,-,-,-,-

1GH73-00801A-RMO-CONTACTRUBBER;SGH-A300,SI

RUBBER,3X4XT0.8,BLK

1GH74-03124A-MPR-PCBEMISPONGE;SGH-S100,SHIELD

SPONGE,7X3XT2,-

1GH41-00303A-PCB-SGHS100;SGH-S100,FR-4,6L,-,1.00

T,100X158,-,3,-

1GH71-00434A ANT1 NPR-ANT

CONTACT;SCH-X210,ST,T0.2,-,-

1 2203-000995 C1000,C1004,C1006 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,

1005

1 2203-005482 C1003,C1020 C-CERAMIC,CHIP;100nF,10%,10V,X5R,TP,

1005,-

1 2203-000233 C1005,C1008,C1013 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-005288 C1007,C1011,C1014 C-CERAMIC,CHIP;0.001nF,0.1pF,50V,NP0,

TP,1005

1 2203-000812 C1009,C1010,C103 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,

1005

1 2203-001598 C101,C105,C111,C112 C-CERAMIC,CHIP;2200nF,+80-20%,16V,Y5

V,TP,2012

1 2203-002687 C1012 C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,

1005

1 2203-005288 C1015,C1017,C1019 C-CERAMIC,CHIP;0.001nF,0.1pF,50V,NP0,

TP,1005

1 2203-000233 C1016,C1024,C1027 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-000359 C1018 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,

1005

1 2203-000278 C1021,C803,C806 C-CERAMIC,CHIP;0.01nF,0.5pF,50V,NP0,T

P,1005

1 2404-001100 C1022 C-TA,CHIP;33uF,20%,6.3V,GP,TP,3719,-

1 2404-001297 C1023,C1039 C-TA,CHIP;68UF,20%,10V,LR,TP,4028

1 2203-002677 C1025 C-CERAMIC,CHIP;0.75pF,0.1pF,50V,CH,TP,

1005,-

1 2203-000654 C1026,C401,C416 C-CERAMIC,CHIP;270pF,10%,50V,X7R,TP,

1005,-

1 2203-005383 C1038 C-CERAMIC,CHIP;7pF,0.1pF,50V,NPO,TP,

1005,-

1 2203-005061 C104,C108,C124,C201 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,

TP,1005

1 2203-000812 C106,C107,C923,R430 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,

1005

1 2203-005483 C109 C-CERAMIC,CHIP;68nF,10%,10V,X5R,TP,1

005,-

1 2203-001598 C113,C114,C116,C120 C-CERAMIC,CHIP;2200nF,+80-20%,16V,Y5

V,TP,2012

SAMSUNG Proprietary-Contents may change without notice

SGH-S105 ElectricalPartsList

3-3

Level SEC Code Design LOC Descriptions

1 2404-001088 C115,C117 C-TA,CHIP;2.2uF,20%,6.3V,GP,TP,2012,-

1 2203-000233 C118,C213,C214,C219 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-000254 C119,C200,C504,C600 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

1 2203-001598 C123 C-CERAMIC,CHIP;2200nF,+80-20%,16V,Y5

V,TP,2012

1 2404-001105 C125 C-TA,CHIP;10UF,20%,6.3V,GP,TP,2012

1 2404-001268 C126 C-TA,CHIP;10UF,20%,10V,-,TP,2.2X1.25X

1.0

1 2203-005061 C202,C206,C302,C402 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,

TP,1005

1 2203-005065 C203,C204,C400,C414 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5

V,TP,1608

1 2203-005509 C205 C-CERAMIC,CHIP;330nF,+80-20%,10V,Y5V,

TP,1005

1 2203-000995 C211,C212,C425,C426 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,

1005

1 2203-000438 C215,C216,C217,C411 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,10

05,-

1 2203-000233 C220,C221,C222,C223 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-000233 C224,C225,C407,C424 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-005055 C301 C-CERAMIC,CHIP;0.0056nF,0.25pF,50V,NP

0,TP,1005

1 2203-001405 C403,C611,C903,C905 C-CERAMIC,CHIP;22nF,+80-20%,25V,Y5V,

TP,1005

1 2404-001086 C404,C410 C-TA,CHIP;4.7uF,20%,6.3V,GP,TP,2012,-

1 2203-000885 C405 C-CERAMIC,CHIP;4.7nF,10%,25V,X7R,TP,

1005,-

1 2203-005061 C408,C412,C417,C512 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,

TP,1005

1 2404-001151 C409 C-TA,CHIP;33UF,20%,6.3V,LZ,TP,3216

1 2203-000438 C413,C415,C801,C802 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,10

05,-

1 2203-001239 C427 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,

1005

1 2007-007771 C428,R104,R105,R106 R-CHIP;0OHM,5%,1/16W,DA,TP,1005

1 2203-005061 C513,C516,C517,C518 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,

TP,1005

1 2203-005061 C519,C612,C711 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,

TP,1005

1 2203-005496 C601,C602,C709 C-CERAMIC,CHIP;220nF,+80-20%,10V,Y5V,

TP,1005

1 2203-000254 C603,C604,C605,C606 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

SAMSUNG Proprietary-Contents may change without notice

3-2

SGH-S105 ElectricalPartsList

Level SEC Code Design LOC Descriptions

1 2203-000254 C607,C608,C609,C610 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

1 2203-000254 C613,C712,C713,C714 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

1 2203-000233 C614,C900,C901,C902 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-000628 C615,C616 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,

1005

1 2203-000679 C617 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,

1005

1 2203-001153 C707 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,

1005

1 2203-000585 C708 C-CERAMIC,CHIP;220pF,10%,50V,X7R,TP,

1005,-

1 2203-005065 C710 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5

V,TP,1608

1 2203-000254 C715,C716,C717,C718 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

1 2203-000254 C719,C800,C805,C807 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

1 2203-000438 C804 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,10

05,-

1 2203-000254 C808,C809 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1

005,-

1 2203-001405 C906,C908,C910,C914 C-CERAMIC,CHIP;22nF,+80-20%,25V,Y5V,

TP,1005

1 2203-000233 C911,C916,C918,C919 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-001405 C915,C917,C921 C-CERAMIC,CHIP;22nF,+80-20%,25V,Y5V,

TP,1005

1 2203-000233 C920,C924,C925 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1

005

1 2203-000995 C922 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,

1005

1 3709-001187 CN100 CONNECTOR-CARD

EDGE;6P,2.54MM,SMD-A,-

1 3705-001248 CN1001 CONNECTOR-COAXIAL;-,-,50MOHM,50OH

M,0.3DB

1 3711-004289 CN200 CONNECTOR-HEADER;BOX,30P,2R,0.5MM,

SMD-S,AUF

1 3711-004623 CN201 CONNECTOR-HEADER;BOX,20P,2R,0.5mm,

SMD-S,AUF

1 3710-001545 CN302 CONNECTOR-SOCKET;24P,1R,0.5MM,SMD

-A,AUF

1 3722-001842 CN401 JACK-PHONE;4P,2.3PI,AU,BLK,-

1 1405-001082 D202,D203,D204,ZD300 VARISTOR;5.6V,20A,1x0.5x0.6mm,TP

1 0406-001152 D301 DIODE-TVS;SD05,6/-/-/,350W,SOD-323

SAMSUNG Proprietary-Contents may change without notice

SGH-S105 ElectricalPartsList

3-4

Level SEC Code Design LOC Descriptions

1 4709-001279 F1000 COUPLER-DIRECTION;897.5+-17.5MHZ,18

+-1DB,26DB,1.6X

1 4709-001278 F1001 COUPLER-DIRECTION;1850+-140MHZ,19.7

+-1.4DB,25DB,1.

1 2909-001180 F1002 FILTER-DUPLEXER;942.5MHZ,897.5MHZ,0.

2/0.5DB,TP,-,-

1 2904-001390 F1004 FILTER-SAW;942.5MHZ,-,1.0DB,TP,2.3DB,

1 2904-001410 F1005 FILTER-SAW;1.96GHZ,-,1930-1990MHZ/2.

4DB,TP,1930-19

1 2904-001403 F1006 FILTER-SAW;1.8425GHZ,-,1805-1880MHZ

/2.0DB,TP,1805-

1 2901-001193 F200,F201,F202,F203 FILTER-EMI

SMD;25V,0.1A,-,35pF,3.2x1.6x0.75MM,TP

1 2901-001193 F204 FILTER-EMI

SMD;25V,0.1A,-,35pF,3.2x1.6x0.75MM,TP

1 2703-001257 L1000 INDUCTOR-SMD;3.9nH,0.3nH,1.6x0.8X0.8

1 2703-001512 L1001 INDUCTOR-SMD;27nH,5%,1.8x1.12x1.02m

1 2703-002165 L1002 INDUCTOR-SMD;7.5nH,5%,1.6x1.12x1.02

1 2703-001751 L1004,L900 INDUCTOR-SMD;3.9nH,0.3nH,1.0x0.5x0.5

1 2703-001747 L1005 INDUCTOR-SMD;4.7nH,0.3nH,1.0x0.5x0.5

1 2703-002471 L1006 INDUCTOR-SMD;6.2NH,5%,1608

1 3301-001105 L801 CORE-FERRITE;AB,1.6x0.8x0.8mm,-,-

1 0604-001146 LED200 PHOTO-IRDA;-,875NM,500MW,30DEG,TP

1 4302-001119 M101 BATTERY-LI(2ND);3V,0.1MAH,-,-,3.1V,-

1 2801-004116 OSC601 CRYSTAL-UNIT;0.032768MHZ,20PPM,28-A

BK,12.5FF,65KOH

1 2809-001260 OSC801 OSCILLATOR-VCTCXO;13MHZ,3PPM,10KO

HM//10PF,TP,3V,-

1 0504-000168 Q100 TR-DIGITAL;RN1104,NPN,100MW,47K/47K,

SSM,TP

1 0502-001201 Q101 TR-POWER;ZXT13P20DE6,PNP,1100MW,S

OT-23-6,TP,300-90

1 0501-000225 Q400 TR-SMALL

SIGNAL;2SC4617,NPN,200mW,EM3,TP,120

-5

1 0504-000167 Q700,Q701,Q702 TR-DIGITAL;RN1102,NPN,100MW,10K/10K,

SSM,TP

1 2007-001319 R100 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1005

1 2007-007311 R1000 R-CHIP;22Kohm,1%,1/16W,DA,TP,1005

1 2007-007142 R1001,R111,R611 R-CHIP;10Kohm,1%,1/16W,DA,TP,1005

1 2007-007309 R1002 R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

Autres manuels pour SGH-S105

Table des matières

Autres manuels Samsung Téléphone portable

Samsung

Samsung Seek SPH-M350 Guide de l'utilisateur

Samsung

Samsung Galaxy S II Skyrocket Manuel utilisateur

Samsung

Samsung GT-S5780 Manuel utilisateur

Samsung

Samsung GT-E1080 Manuel utilisateur

Samsung

Samsung Eternity II SGH-A597 Manuel utilisateur

Samsung

Samsung SCH-S336C Manuel utilisateur

Samsung

Samsung SM-G920I Manuel utilisateur

Samsung

Samsung SCH - T300 Manuel utilisateur

Samsung

Samsung SM-G3586V Manuel utilisateur

Samsung

Samsung SCH-A630 Series Manuel utilisateur

Samsung

Samsung SPH-I325 ACE Manuel utilisateur

Samsung

Samsung SPH-A600 Series Manuel utilisateur

Samsung

Samsung Galaxy Note II Manuel utilisateur

Samsung

Samsung Galaxy Core Prime Manuel utilisateur

Samsung

Samsung SGH-F860V Manuel utilisateur

Samsung

Samsung SGH D900i - Ultra Edition 12.9 Cell Phone 60... Manuel utilisateur

Samsung

Samsung GT-C3750 Manuel utilisateur

Samsung

Samsung SGH-I750 Series Manuel utilisateur

Samsung

Samsung Galaxy Core Prime Manuel utilisateur

Samsung

Samsung SPH-A900 Manuel utilisateur

Samsung

Samsung GT-C3011 Manuel utilisateur

Samsung

Samsung Galaxy S4 Manuel utilisateur

Samsung

Samsung SM-A300Y Manuel utilisateur

Samsung

Samsung SCH-A605 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
