Samsung SGH-R210S Manuel utilisateur

ELECTRONICS

SERVICE

DUAL BAND Mobile

SGH-R210S

by Toko (www.gsm-free.com)

Manual

DUAL BAND MOBILE CELLULAR PHONE CONTENTS

1. Exploded Views and Parts List

2. PCB Diagrams

3. Electrical Parts List

4. Block Diagrams

5. Flow Chart of Troubleshooting and

Circuit Diagrams

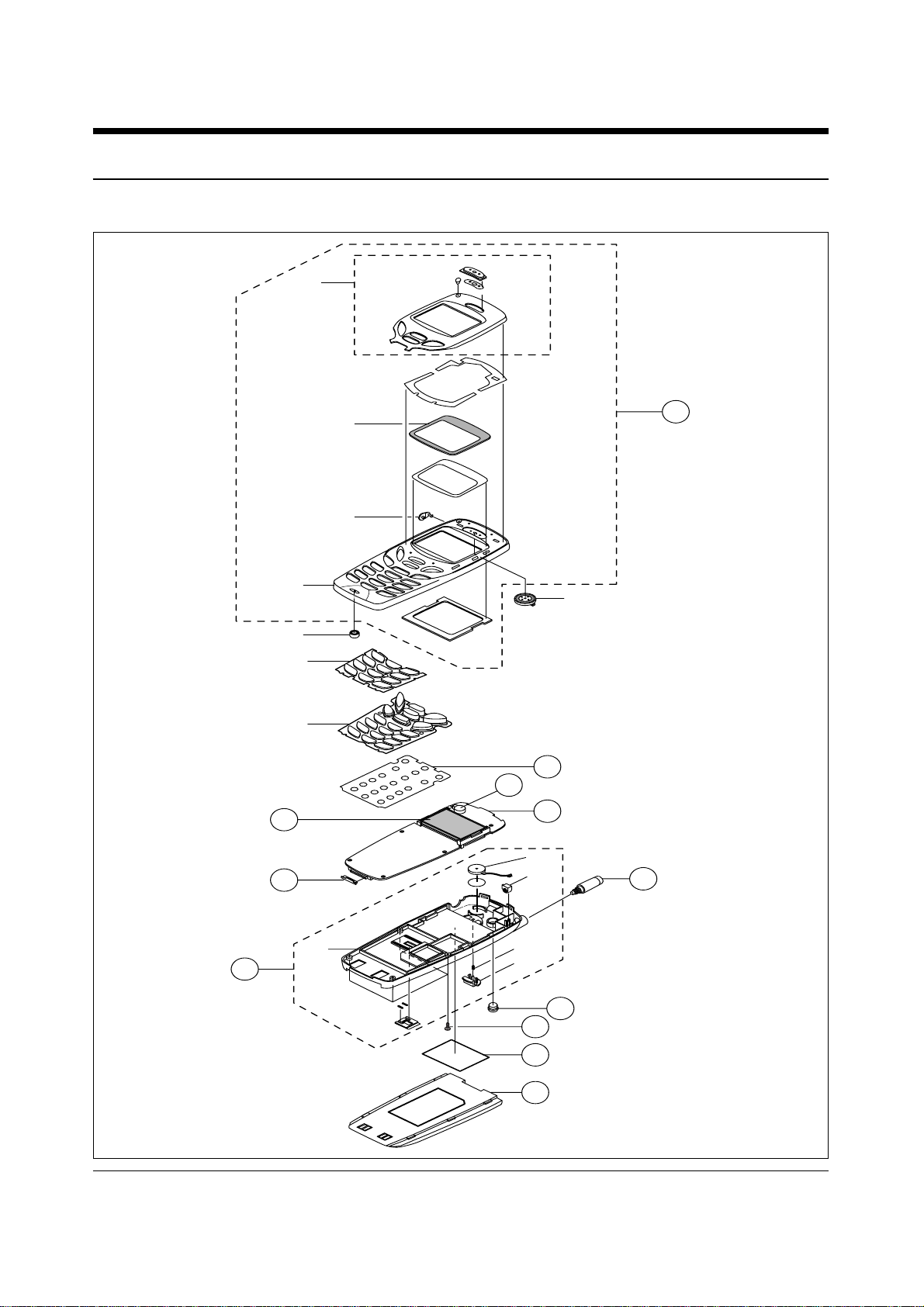

1. Exploded Views and Parts List

1-1 Main

1-2 Main Parts List

1-3 Travel Adapter

1-4 Travel Adapter Parts List

1-5 Ciger Light Adapter

1-6 Ciger Light Adapter Parts List

1-7 Test Jig

1-8 EAR Microphone

1-9 Data Kit

1-10 Battery Charger

2. PCB Diagrams

2-1 Main Top

2-2 Main Bottom

3. Electrical Parts List

3-1 Main Parts List Top

3-2 Main Parts List Bottom

4. Block Diagrams

4-1 Main Baseband

4-2 Main RF

4-2-1 RF Transmit Part

4-2-2 RF Receive Part

5. Flow Chart of Troubleshooting and Circuit Diagrams

5-1 Power ON

5-2 Initial

5-3 Charging Part

5-4 Sim Part

5-5 Microphone Part

5-6 Speaker Part

5-7 Key Data Input

5-8 Alert Tone

5-9 Ring Indicator

5-10 Back Light

5-11 GSM Receiver

5-12 GSM Transmitter

5-13 DCS Receiver

5-14 DCS Transmitter

Exploded Views and Parts List 1-1

1. Exploded Views and Parts List

1-1 Main

1-5

1-2

1-8

1-1 1-7

1-6

1-3

1-4

7-1

7-2

7-3

7-4

7-5

1-2 Main Parts List

1-2 Exploded Views and Parts List

Location No. Description SEC CODE Remark

1 MEC-FRONT COVER GH75-01159A GH75-01159B GH75-01159C SA

1-1 FRONT COVER GH72-02666A GH72-02666B GH72-02666C SNA

1-2 WINDOW LCD GH72-02672A GH72-02672A GH72-02672A SNA

1-3 FI KEY GH72-02784A GH72-02784A GH72-02784A SA

1-4 MEC-KEYPAD GH75-01160A GH75-01160A GH75-01160A SA

1-5 MEC-DUMMY COVER GH75-01161A GH75-01161A GH75-01161A SNA

1-6 MIC GH59-00240B GH59-00240B GH59-00240B SA

1-7 SPEAKER 3001-001233 3001-001233 3001-001233 SA

1-8 EARPHONE COVER GH73-00757A GH73-00757B GH73-00757C SNA

2 DOME SHEET GH72-02984B GH72-02984B GH72-02984B SA

3 MAIN PBA GH92-01200A GH92-01200A GH92-01200A SA

4 BUZZER 3002-001098 3002-001098 3002-001098 SA

5 DISPLAY LCD GH07-00075B GH07-00075B GH07-00075B SA

6 I/F COVER GH73-00758A GH73-00758B GH73-00758C SA

7 MEC-REAR COVER GH75-01165A GH75-01165B GH75-01165C SA

7-1 REAR COVER GH72-02674A GH72-02674B GH72-02674C SNA

7-2 VIBRATOR GH31-00019A GH31-00019A GH31-00019A SA

7-3 BRACKET-ANT GH71-00505A GH71-00505A GH71-00505A SNA

7-4 SPRING LOCKER GH70-10633A GH70-10633A GH70-10633A SNA

7-5 LOCKER MAIN GH72-02676A GH72-02676B GH72-02676C SNA

8 ANTENNA GH42-00120C GH42-00120B GH42-00120A SA

9 R/F COVER GH73-00759A GH73-00759B GH73-00759C SA

10 SCREW-MACHINE 6001-001542 6001-001542 6001-001542 SA

11 LABEL GH68-02109A GH68-02109A GH68-02109A SA

12 BATTERY GH43-00369A GH43-00369B GH43-00369C SA

Navy Blue Green Dark Gray

Exploded Views and Parts List 1-3

1-4 Travel Adapter Parts List

TYPE SEC CODE REMARK

A GH44-00171A CHINA

B GH44-00184A EUROPE

C GH44-00171C UNITED KINGDOM

D Gh44-00171E TAIWAN

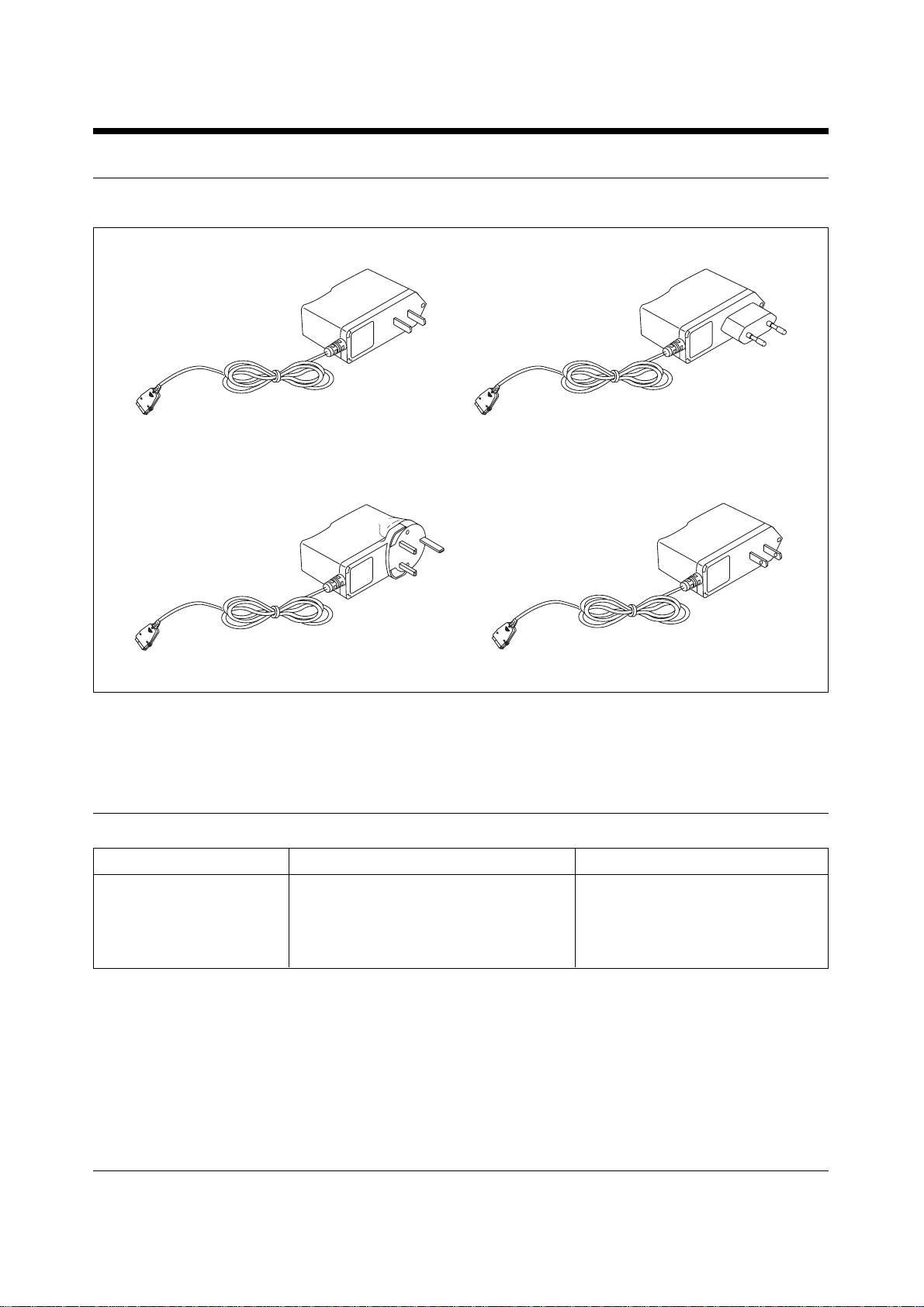

1-3 Travel Adapter

1-4

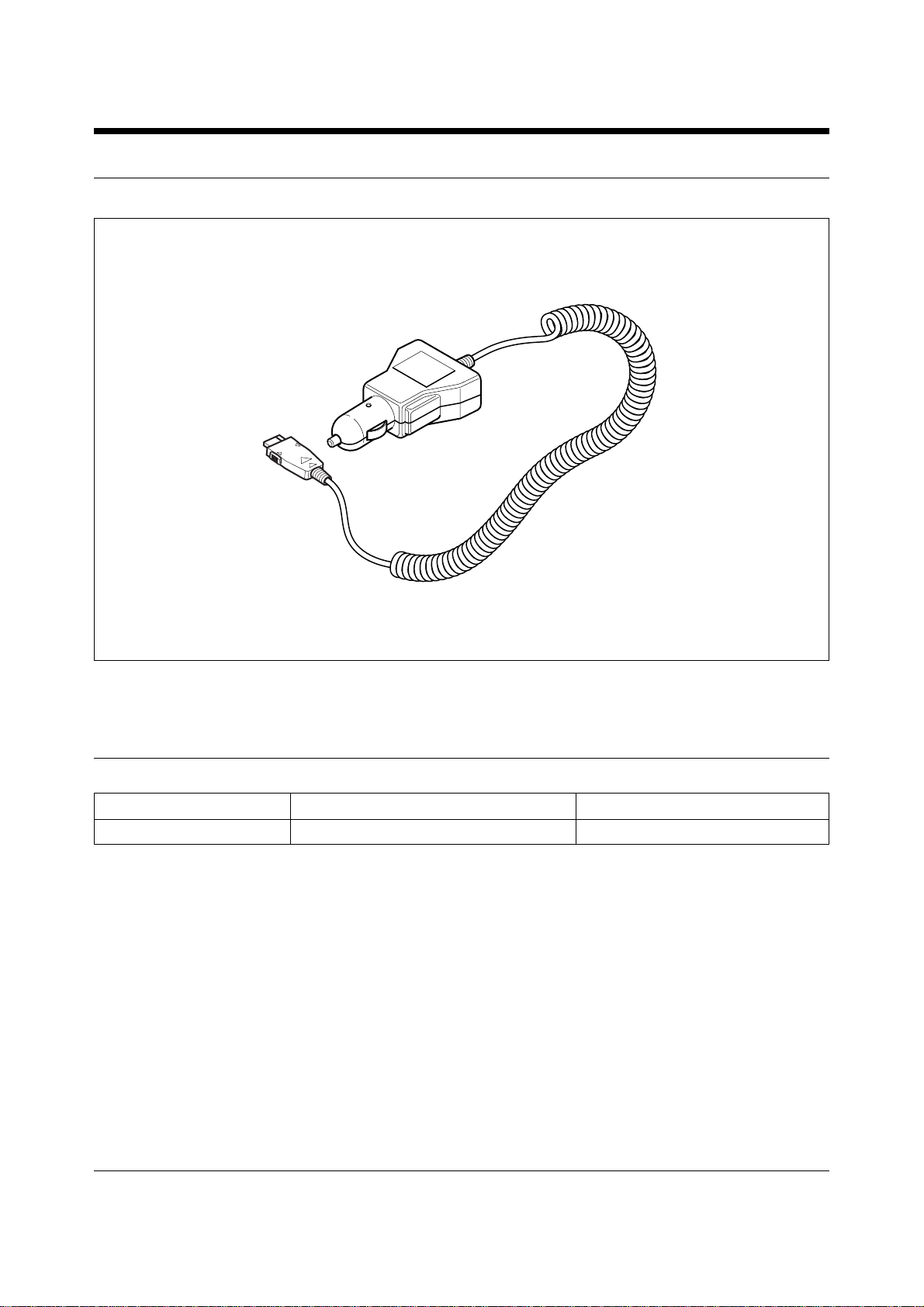

1-5 Ciger Light Adapter

Exploded Views and Parts List

1-6 Ciger Light Adapter Parts List

DESCRIPTION SEC CODE REMARK

Ciger Light Adapter Code GH44-00170A BLACK

1-5Exploded Views and Parts List

1-7 Test Jig

TEST JIG GH80-10508A

TEST JIG CABLE GH39-00079A

RF CABLE GH39-00090A

1-6 Exploded Views and Parts List

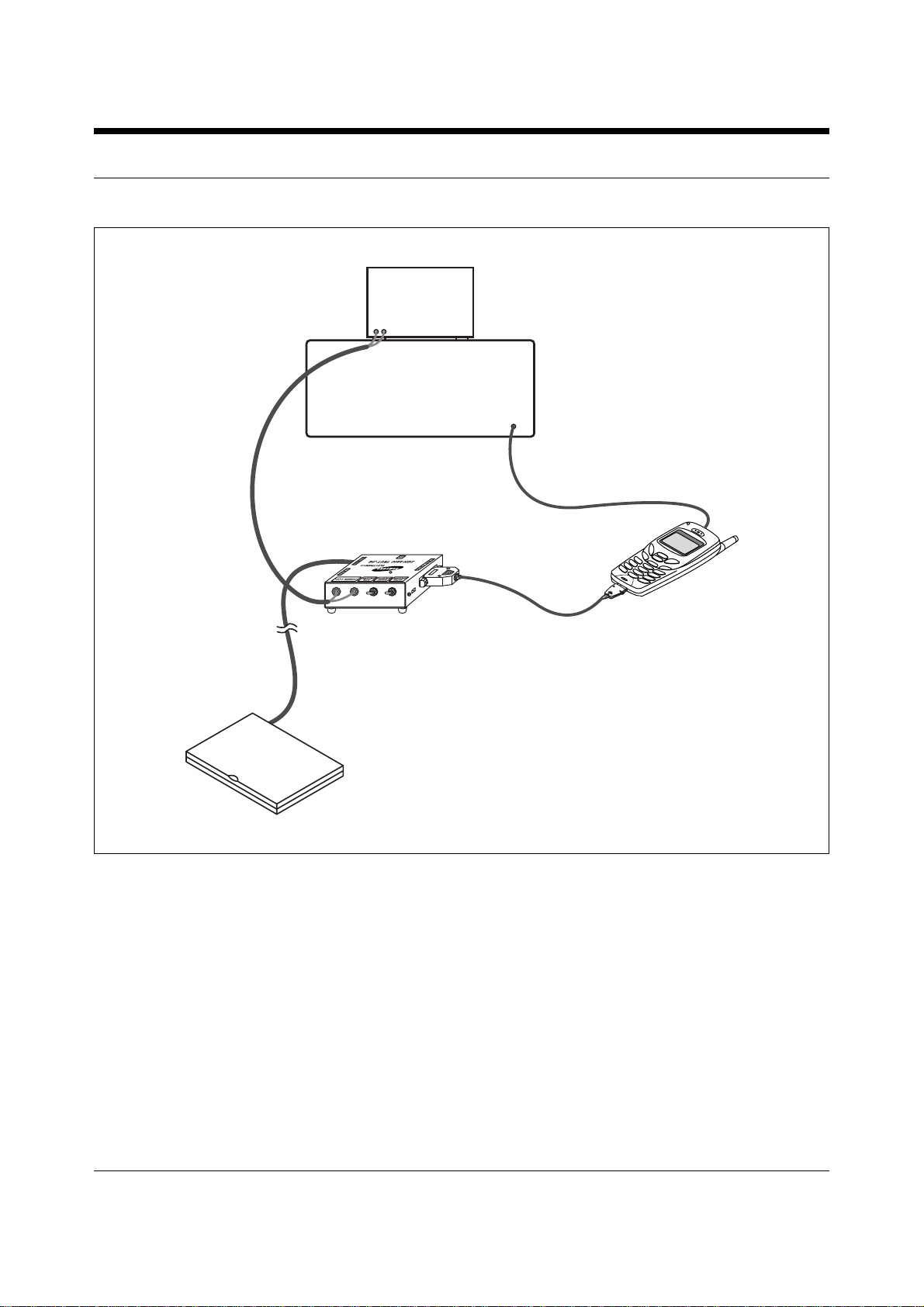

1-7-1 Test Jig

POWER

SUPPLY

232 CABLE TEST JIG CABLE

RF JIG CABLE

Note PC

8922 or 8960

WIRELESS COMMUNICATIONS

TEST SET

Exploded Views and Parts List 1-7

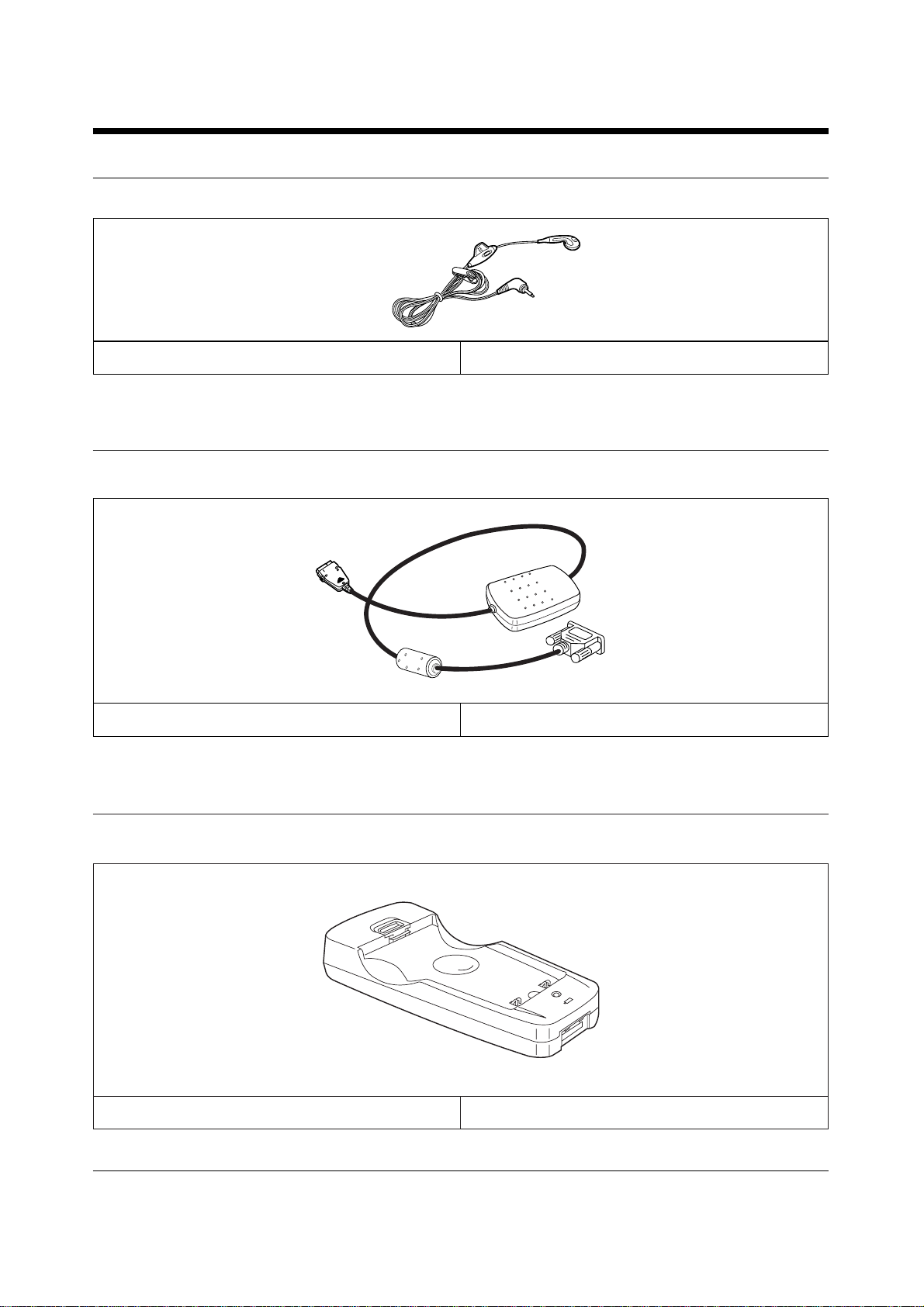

1-8 EAR Microphone

EAR MICROPHONE GH59-00225B

1-9 Data Kit

DATA KIT GH39-00078A

1-10 Battery Charger

BATTERY CHAGER GH44-00234A

PCB Diagrams2-1

2. PCB Diagrams

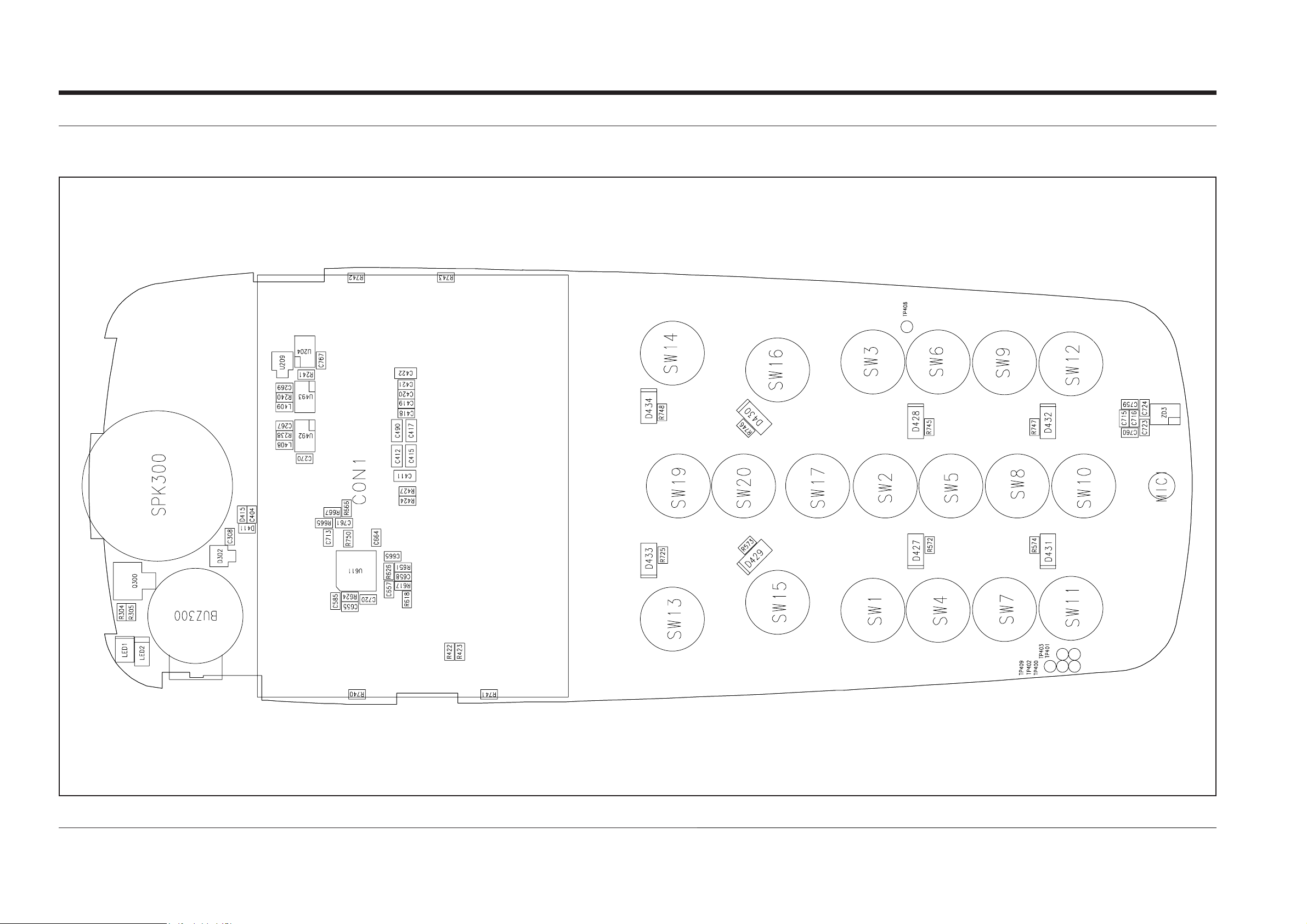

2-1 Main Top
