Samsung GT-S7230E Manuel utilisateur

GSM TELEPHONE

GT-S7230E

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Disassembly and Assembly

Instructions

8. Chart of Troubleshooting

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

efrcom efrcom

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2010. 09. Rev.1.0

ⓒ

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

5. MAIN Electrical Parts List

5-1

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

D401 0401-001141 DIODE-SWITCHING

ZD604 0403-001741 DIODE-ZENER

D300,D600 0404-001172 DIODE-SCHOTTKY

ZD401 0406-001208 DIODE-TVS

ZD501 0406-001286 DIODE-TVS

ZD400,ZD502,ZD503 0406-001293 DIODE-TVS

ZD601,ZD602,ZD603 0406-001293 DIODE-TVS

ZD606,ZD607,ZD608 0406-001293 DIODE-TVS

ZD609,ZD700,ZD702 0406-001293 DIODE-TVS

U502 0406-001369 DIODE-TVS

ZD505,ZD701,ZD704 0406-001375 DIODE-TVS

Q300 0505-002384 FET-SILICON

U303 0801-003016 IC

U501 1001-001585 IC

U200 1001-001607 IC

UME300 1108-000379 MEMORY

PAM101 1201-002967 IC

PAM100 1201-003068 IC

PAM102 1201-003088 IC

U408 1203-004524 IC

U406 1203-004807 IC

U409 1203-005074 IC

U602 1203-006025 IC

U400 1203-006158 IC

U101 1203-006159 IC

U601 1203-006331 IC

U704 1203-006456 IC

U202 1205-003868 IC

U201 1205-004099 IC

U100 1205-004101 IC

UCP300 1205-004105 IC

U604 1209-001922 IC

V100 1404-001221 THERMISTOR

R100,R101,R102,R103 2007-000140 R-CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-2

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

R443,R535 2007-000140 R-CHIP

R104 2007-000142 R-CHIP

R612 2007-000143 R-CHIP

R303,R304,R311 2007-000144 R-CHIP

R117,R539 2007-000148 R-CHIP

R615 2007-000156 R-CHIP

R315,R601,R624,R625 2007-000162 R-CHIP

R710 2007-000162 R-CHIP

R626 2007-000164 R-CHIP

R506 2007-000165 R-CHIP

R361 2007-000170 R-CHIP

R517 2007-001319 R-CHIP

R403 2007-001320 R-CHIP

R362 2007-001339 R-CHIP

R324 2007-003014 R-CHIP

R363 2007-007021 R-CHIP

R205,R209 2007-007132 R-CHIP

R116 2007-007480 R-CHIP

R124 2007-007489 R-CHIP

R620 2007-007798 R-CHIP

R123 2007-007981 R-CHIP

R300 2007-008045 R-CHIP

R206,R207,R212,R213 2007-008055 R-CHIP

R214 2007-008055 R-CHIP

R320 2007-008213 R-CHIP

R501,R502 2007-008294 R-CHIP

R323 2007-008401 R-CHIP

R701,R702,R703,R704 2007-008531 R-CHIP

R512,R513 2007-008588 R-CHIP

R401,R402 2007-008780 R-CHIP

R105,R106,R107,R108 2007-008806 R-CHIP

R113 2007-009257 R-CHIP

R525,R526 2007-009315 R-CHIP

C168,C170,C233,C236 2203-000233 C-CERAMIC,CHIP

C336 2203-000233 C-CERAMIC,CHIP

C135,C139,C149,C153 2203-000254 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-3

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

C161,C229,C242,C309 2203-000254 C-CERAMIC,CHIP

C322,C327 2203-000254 C-CERAMIC,CHIP

C119,C125,C127,C132 2203-000278 C-CERAMIC,CHIP

C134,C202,C204,C226 2203-000278 C-CERAMIC,CHIP

C234,C235 2203-000278 C-CERAMIC,CHIP

C151,C182,C503 2203-000386 C-CERAMIC,CHIP

C114 2203-000425 C-CERAMIC,CHIP

C406,C410 2203-000550 C-CERAMIC,CHIP

C240 2203-000627 C-CERAMIC,CHIP

C106,C107,C200 2203-000696 C-CERAMIC,CHIP

C166,C239,C450,C451 2203-000812 C-CERAMIC,CHIP

C453,C608 2203-000812 C-CERAMIC,CHIP

C105 2203-000940 C-CERAMIC,CHIP

C607 2203-000995 C-CERAMIC,CHIP

C205 2203-001072 C-CERAMIC,CHIP

C504 2203-001153 C-CERAMIC,CHIP

C505,C506 2203-001239 C-CERAMIC,CHIP

C511 2203-002487 C-CERAMIC,CHIP

C169 2203-002668 C-CERAMIC,CHIP

C244 2203-002677 C-CERAMIC,CHIP

C157,C209,C213,C215 2203-002709 C-CERAMIC,CHIP

C222,C253,C337,C500 2203-002709 C-CERAMIC,CHIP

C232 2203-005057 C-CERAMIC,CHIP

C117 2203-005234 C-CERAMIC,CHIP

C104,C108,C115,C116 2203-005281 C-CERAMIC,CHIP

C162,C164 2203-005281 C-CERAMIC,CHIP

C249 2203-005395 C-CERAMIC,CHIP

C246 2203-005450 C-CERAMIC,CHIP

C123,C124 2203-005682 C-CERAMIC,CHIP

C146 2203-005729 C-CERAMIC,CHIP

C110,C111,C112,C122 2203-005734 C-CERAMIC,CHIP

C165,C167 2203-005792 C-CERAMIC,CHIP

C510 2203-005968 C-CERAMIC,CHIP

C126,C128,C129,C133 2203-006048 C-CERAMIC,CHIP

C136,C137,C138,C181 2203-006048 C-CERAMIC,CHIP

C216,C221,C247,C302 2203-006048 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-4

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

C304,C306,C308,C311 2203-006048 C-CERAMIC,CHIP

C314,C315,C319,C321 2203-006048 C-CERAMIC,CHIP

C323,C325,C326,C339 2203-006048 C-CERAMIC,CHIP

C419,C421,C452,C533 2203-006048 C-CERAMIC,CHIP

C534,C616 2203-006048 C-CERAMIC,CHIP

C237 2203-006123 C-CERAMIC,CHIP

C701 2203-006190 C-CERAMIC,CHIP

C702 2203-006257 C-CERAMIC,CHIP

C224,C225,C248,C522 2203-006260 C-CERAMIC,CHIP

C523 2203-006260 C-CERAMIC,CHIP

C201,C203,C207 2203-006305 C-CERAMIC,CHIP

C454 2203-006324 C-CERAMIC,CHIP

C400,C527 2203-006348 C-CERAMIC,CHIP

C140,C141,C142,C143 2203-006399 C-CERAMIC,CHIP

C301,C303,C307,C313 2203-006399 C-CERAMIC,CHIP

C316,C318,C320,C324 2203-006399 C-CERAMIC,CHIP

C328,C409,C420,C423 2203-006399 C-CERAMIC,CHIP

C424,C427,C428,C429 2203-006399 C-CERAMIC,CHIP

C430,C431,C434,C435 2203-006399 C-CERAMIC,CHIP

C437,C438,C439,C440 2203-006399 C-CERAMIC,CHIP

C441,C457,C463,C465 2203-006399 C-CERAMIC,CHIP

C468,C475,C535,C624 2203-006399 C-CERAMIC,CHIP

C626,C628 2203-006399 C-CERAMIC,CHIP

C154,C155 2203-006410 C-CERAMIC,CHIP

C113 2203-006426 C-CERAMIC,CHIP

C413,C417,C464,C509 2203-006562 C-CERAMIC,CHIP

C120 2203-006642 C-CERAMIC,CHIP

C148,C211,C403,C609 2203-006824 C-CERAMIC,CHIP

C610 2203-006824 C-CERAMIC,CHIP

C411,C412 2203-006844 C-CERAMIC,CHIP

C158,C159,C160,C163 2203-006846 C-CERAMIC,CHIP

C208,C210,C214,C217 2203-006872 C-CERAMIC,CHIP

C218,C219,C220,C227 2203-006872 C-CERAMIC,CHIP

C228,C238,C241,C425 2203-006872 C-CERAMIC,CHIP

C426,C432,C433,C436 2203-006872 C-CERAMIC,CHIP

C147,C415,C416,C519 2203-006890 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-5

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

C109,C121 2203-007271 C-CERAMIC,CHIP

C103,C402,C531,C604 2203-007279 C-CERAMIC,CHIP

C606 2203-007279 C-CERAMIC,CHIP

C212,C230,C617,C622 2203-007317 C-CERAMIC,CHIP

C633 2203-007317 C-CERAMIC,CHIP

C223,C231,C455 2203-007393 C-CERAMIC,CHIP

C602 2203-007687 C-CERAMIC,CHIP

C405 2404-001506 C-TA,CHIP

L208 2703-001701 INDUCTOR

L211 2703-001728 INDUCTOR

L102 2703-001749 INDUCTOR

L105 2703-001751 INDUCTOR

L200 2703-001786 INDUCTOR

L120 2703-001868 INDUCTOR

L100,L101,L112,L113 2703-002176 INDUCTOR

L504 2703-002231 INDUCTOR

L118 2703-002267 INDUCTOR

L107 2703-002593 INDUCTOR

L115,L116 2703-002793 INDUCTOR

L117 2703-002953 INDUCTOR

L119 2703-002999 INDUCTOR

L601 2703-003347 INDUCTOR

L600 2703-003485 INDUCTOR

L114,L404 2703-003685 INDUCTOR

L400,L401 2703-003686 INDUCTOR

L206 2703-003698 INDUCTOR

OSC400 2801-004373 CRYSTAL-UNIT

OSC200 2801-004589 CRYSTAL-UNIT

TCX200 2809-001348 OSCILLATOR-VCTCXO

TCX100 2809-001351 OSCILLATOR-VCTCXO

F600,F601 2901-001462 FILTER-EMI

F605 2901-001463 FILTER-EMI

F603,F604 2901-001470 FILTER-EMI

F201 2904-001759 FILTER-SAW

F104 2904-001789 FILTER-SAW

F100 2904-001868 FILTER-SAW

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-6

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

F101 2904-001869 FILTER-SAW

F200 2909-001299 FILTER-DUPLEXER

F103 2910-000062 FILTER

F102 2910-000092 FILTER

MIC500 3003-001136 MIC

L207 3301-001438 CORE-FERRITE BEAD

L201,L202 3301-001534 CORE-FERRITE BEAD

L501,L502 3301-001812 CORE-FERRITE BEAD

L203,L204,L205 3301-001820 CORE-FERRITE BEAD

L500,L509,L510,L513 3301-001885 CORE-FERRITE BEAD

L505,L511 3301-001986 CORE-FERRITE BEAD

CN100 3705-001731 CONNECTOR-COAXIAL

HDC600 3708-002162 CONNECTOR

HDC401,HDC500 3710-002632 CONNECTOR-SOCKET

HEA600 3711-006101 CONNECTOR-HEADER

HDC400 3711-006923 CONNECTOR-HEADER

BTC600 3711-007312 CONNECTOR-HEADER

ANT103 3712-001348 CONNECTOR

ANT100,ANT101,ANT200 3712-001361 CONNECTOR

ANT201 3712-001361 CONNECTOR

IFC500 3722-003065 JACK-PHONE

BT_ANT 4202-001524 LDA212G6910F-293

LED600 GH59-08444A CHP-C4040-200-PB2016

SC101,SC102,SC103 GH70-04443A ONBOARD-CLIP

SC104,SC105,SC106 GH70-04443A ONBOARD-CLIP

SC107,SC108 GH70-04443A ONBOARD-CLIP

Please consult the GSPN website (Samsung Portal) for the most recent version of the product's

part list.

SAMSUNG Proprietary-Contents may change without notice

7. Level 2Repair

7-1

This Document can not be used without Samsung's authorization

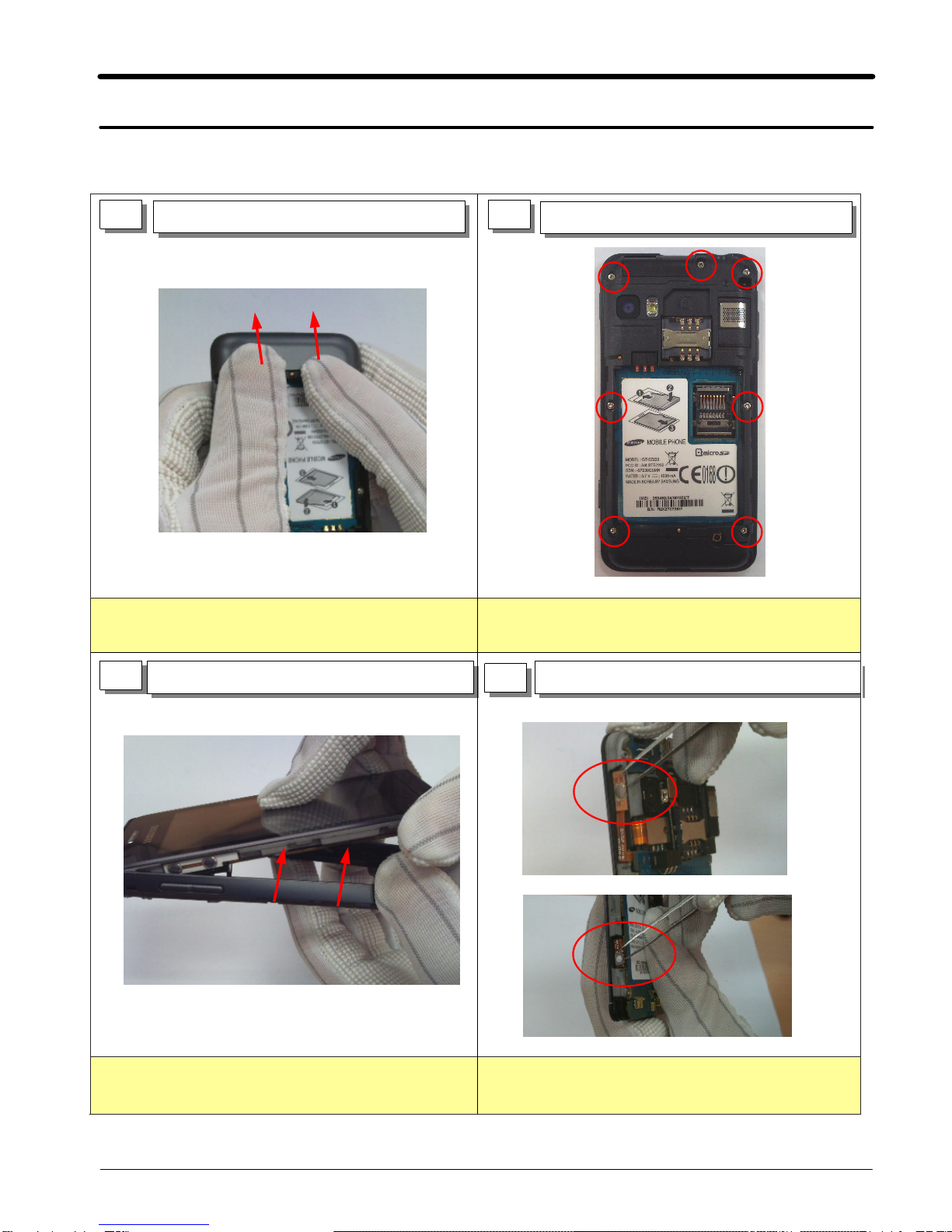

7-1. Disassembly and Assembly Instructions

7-1-1. Disassembly

Disassemble RF COVER at REAR

1 2

3Disassemble FRONT from REAR Detach Side key FPCB.

Release Screw 7Point at REAR

1) Be careful not to make scratch and molding damage! 1) Be careful not to make scratch and molding damage!

1) Lift FRONT upward. 1) Detach Power Key FPCB and Cammera Key FPCB.

2) Be careful not to damage to FPCB (Use tweezer!)

SAMSUNG Proprietary-Contents may change without notice

7. Level 2Repair

7-2

This Document can not be used without Samsung's authorization

7Disassemble Module from PBA.

5Disassemble FPCB. Disassemble Main PBA from the FRONT Ass'y

Complete disassembly.

1) Detach LCD FPCB.

2) Detach Earjack FPCB.

1) Hold up Main PBA from left.

2) Detach T-flash FPCB.

1) Disassemble SPK Module from PBA.

2) Disassemble Cammera Module from PBA

Table des matières

Autres manuels Samsung Téléphone portable

Samsung

Samsung Galaxy J7 Plus Manuel utilisateur

Samsung

Samsung SGH-D428 Manuel utilisateur

Samsung

Samsung 31016082329234 Manuel utilisateur

Samsung

Samsung SM-G991B Manuel utilisateur

Samsung

Samsung M520 Manuel utilisateur

Samsung

Samsung SGH-F300 Manuel utilisateur

Samsung

Samsung E335 - SGH Cell Phone Guide de l'utilisateur

Samsung

Samsung SGH-J210 Manuel utilisateur

Samsung

Samsung GALAXY S III MINI Manuel utilisateur

Samsung

Samsung SM-J400M Manuel utilisateur

Samsung

Samsung SM-X115 Manuel utilisateur

Samsung

Samsung SGH-J200 Manuel utilisateur

Samsung

Samsung SPH-A450 Manuel utilisateur

Samsung

Samsung SGH-F490 Manuel utilisateur

Samsung

Samsung T109 Manuel utilisateur

Samsung

Samsung SM-A336M Manuel utilisateur

Samsung

Samsung SGH-A200 Manuel utilisateur

Samsung

Samsung GT-E1085T Manuel utilisateur

Samsung

Samsung SGH-X830 Manuel utilisateur

Samsung

Samsung SGH-I407 Manuel utilisateur

Samsung

Samsung SGH-T459 Series Manuel utilisateur

Samsung

Samsung SGH-I437P Guide de l'utilisateur

Samsung

Samsung SGHS125G Guide de l'utilisateur

Samsung

Samsung A3LSCV32 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
