Samsung GT-S5330 Manuel utilisateur

GSM ٛٛٛٛٛٛٛٛ

GT-S5330(S5333/S5330L Common)

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Disassembly and Assembly

Instructions

8. Chart of Troubleshooting

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2010. 09. Rev.1.0

ⓒ

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

4. Exploded View and Parts List

4-1

This Document can not be used without Samsung's authorization

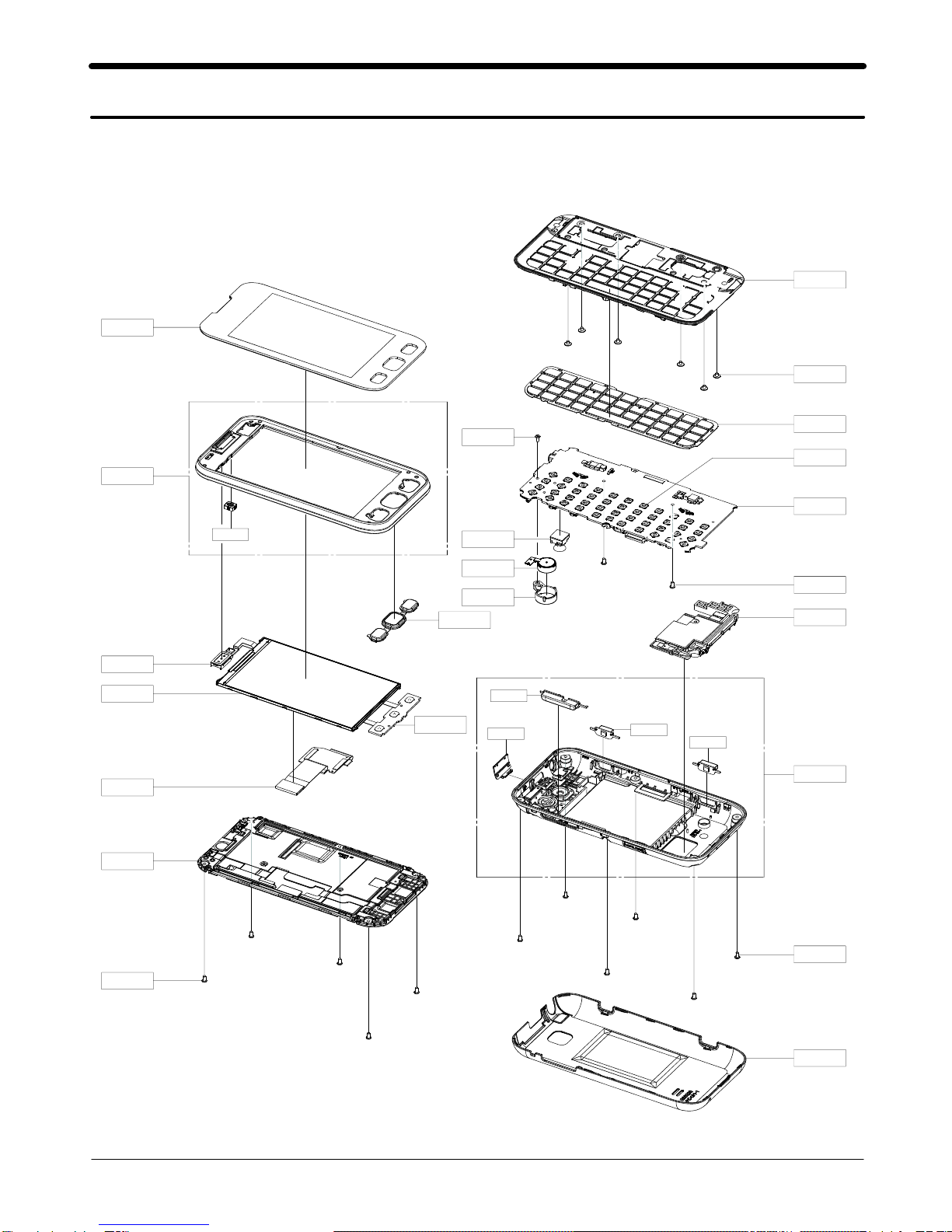

4-1. Cellular phone Exploded View

QFU01

QCR03

QCA01

QMO01

QBR06

QAR01

QLC01

QPC01

QFL01

QCR12

QME03

QCK02

QRE01

QCR72

QBC00

QKP02

QME02

QFR01

QCR97

QKP01

QMP01

QSP01

QCR72

QME01

QVO01

QCK01

QRF06

QMI03

SAMSUNG Proprietary-Contents may change without notice

5. MAIN Electrical Parts List

5-1

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

D601 0403-001688 USFZ5.6V-RTK/H

D200,D500 0404-001172 RB520S-30

ZD102,ZD103 0404-001504 JDH2S01FS

ZD402,ZD403,ZD404 0406-001231 DF2S5.6FS(TPL3)

ZD406,ZD600,ZD602 0406-001231 DF2S5.6FS(TPL3)

ZD603 0406-001231 DF2S5.6FS(TPL3)

ZD400,ZD500,ZD604 0406-001286 PESD5V0L5UV

D401 0407-001002 DAN222TL

LED600,LED601,LED602 0601-002233 SSC-SWTS1007-J3E

LED603 0601-002233 SSC-SWTS1007-J3E

U600 0801-002970 TC7SH08FS

U200 0801-003130 NC7SV17L6X

U603 1001-001585 SC900776EDR2

U100 1001-001607 XM2400SN-AL0901

U402 1001-001655 NX3L1T5157GM

U104,U105 1001-001664 FSA2466UMX

U504 1009-001036 HED59XXU12

UME200 1108-000353 KAT007029M-BRTT

PAM100 1201-002943 SKY77528-32

U500 1203-006331 KTD259BEHD-TR

U604 1203-006456 STM6522AAAADG6F

U300 1203-006468 MAX8990EWG+TC31

U605 1205-003623 STMPE1601TBR

U103 1205-003866 BCM2075B0KUBG

U101 1205-003868 BCM4319SKUBG

UCP200 1205-004046 BCM21334C3IFBG

U404 1209-001817 BMA023

VR200 1404-001221 NCP15WB473J04RC

D400 1405-001291 LXES15AAA1-017

L406,R128,R129,R620 2007-000138 RC1005J101CS

R127,R213 2007-000139 RC1005J221CS

R133 2007-000140 RC1005J102CS

R203,R204,R217,R218 2007-000141 RC1005J222CS

R406,R407 2007-000141 RC1005J222CS

R200,R500,R600,R601 2007-000143 RC1005J472CS

R604,R605 2007-000143 RC1005J472CS

R209,R210,R212,R219 2007-000144 RC1005J512CS

L402,R308,R606,R607 2007-000148 RC1005J103CS

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-2

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

R619 2007-000156 RC1005J303CS

R118,R124,R125,R126 2007-000162 RC1005J104CS

R206,R214,R225,R226 2007-000162 RC1005J104CS

R227,R228,R229,R611 2007-000162 RC1005J104CS

R612 2007-000162 RC1005J104CS

R307 2007-000170 RC1005J105CS

R502 2007-000172 RC1005J100CS

R410 2007-000242 RC1005J152CS

R301,R302 2007-001288 MCR01MZP5J180

R221 2007-001311 RC1005J271CS

R401 2007-001341 RC1005J684CS

R409 2007-002796 MCR01MZP5J511

R614,R615,R616,R617 2007-002965 RK73K1ETP150J

R100,R101 2007-003018 RMC16S-430J-TP

R116,R123 2007-007132 RC1005F153CS

L201,R413,R414 2007-007193 TSR16GJ5R1V

R215 2007-007312 MCR01MZP5F2002

R216 2007-007315 MCR01MZP5F3901

R201,R202 2007-007981 ERJ2RKF1803X

R205 2007-008401 RC1005F754CS

R207 2007-008517 RC1005F2403CS

C172,C233,C617 2203-000233 GRP1555C1H101J

C155,C224,C232 2203-000254 GRP155R71C103K

C112,C130,C163,C167 2203-000278 GRP1555C1H100D

C170,C178 2203-000278 GRP1555C1H100D

C185,L139,L140 2203-000311 GRP1555C1H121JD01E

C221 2203-000425 GRP1555C1H180J

C160,C169 2203-000438 GRP155R71H102K

C303,C305 2203-000550 GRP1555C1H200JZ01E

C403,C415 2203-000679 GRP1555C1H270J

C106 2203-000696 GRP1555C1H2R0C

C512,C513 2203-000812 GRP1555C1H330J

C201 2203-000854 GRP1555C1H390J

C207,C218,C230 2203-000995 GRP1555C1H470J

C103 2203-001072 GRP1555C1H560JD01E

C225,C401,C402 2203-001101 GRP155R71E682KA01E

C183 2203-001221 GRP155R71H821KD01E

C400,C404 2203-002443 GRP155R71H331KD01E

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-3

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

C604 2203-002487 CL05B472KA5NNNC

C157,C184,C318,C413 2203-002709 C1005Y5V1C104ZT

C504,C505,C601 2203-002709 C1005Y5V1C104ZT

C150,C177 2203-005450 GRP1555C1H5R6BZ01E

C182 2203-005552 GRP1555C1H2R2BZ01E

C122,C123,C127,C164 2203-006048 GRM155R71A104K

C165,C175,C176,C203 2203-006048 GRM155R71A104K

C210,C212,C213,C214 2203-006048 GRM155R71A104K

C215,C219,C220,C315 2203-006048 GRM155R71A104K

C317,C609,C616 2203-006048 GRM155R71A104K

C603 2203-006141 GRM188R61C105K

C228 2203-006208 CM105X5R475M06AT

C135,C136,C158,C235 2203-006260 GRM155R61A224KE19E

C310,C311 2203-006260 GRM155R61A224KE19E

C606,C610 2203-006361 GRM21BR61A106K

C145,C147,C200,C202 2203-006399 GRM155R60J105KE19D

C204,C209,C211,C304 2203-006399 GRM155R60J105KE19D

C316,C319,C321,C324 2203-006399 GRM155R60J105KE19D

C325,C326,C327,C328 2203-006399 GRM155R60J105KE19D

C329,C336,C339,C342 2203-006399 GRM155R60J105KE19D

C345,C346,C405,C503 2203-006399 GRM155R60J105KE19D

C509,C510,C511,C614 2203-006399 GRM155R60J105KE19D

C500 2203-006466 GRM188F51E474ZA01D

C133,C302,C330,C408 2203-006562 CV05X5R105K10AH

C410,C411,C412,C416 2203-006562 CV05X5R105K10AH

C417,C605 2203-006562 CV05X5R105K10AH

C216,C217,C227,C229 2203-006681 GRM155F51E104ZA01D

C419 2203-006681 GRM155F51E104ZA01D

C502 2203-006824 CV105X5R475K10AT

C234,C314,C602 2203-006841 CV05X5R105K16AH

R613 2203-006844 CV05X5R474K10AH

C121,C126,C128,C129 2203-006872 GRM155R60J225ME15D

C131,C132,C153,C156 2203-006872 GRM155R60J225ME15D

C168,C181,C205,C206 2203-006872 GRM155R60J225ME15D

C208,C222,C223,C226 2203-006872 GRM155R60J225ME15D

C322,C323,C331,C332 2203-006872 GRM155R60J225ME15D

C333,C334 2203-006872 GRM155R60J225ME15D

C312,C313,C335 2203-006890 CV105X5R106M06AT

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-4

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

C159 2203-007133 CL21A106KOCLRNC

TA400 2203-007269 CL21A226MPCLRNC

C166 2203-007271 CL05A225KP5NSNC

C300,C501 2203-007279 CV105X5R106M10AT

C134 2203-007317 CV05X5R475M06AH

C124,C125,C142,C143 2203-007393 CL05A475KP5NRNC

C301 2404-001506 TCTP1A476M8R-D

L131,L135 2703-001409 LL1005-FH12NK

L127 2703-001734 LL1005-FH6N8J

L115,L136 2703-002170 CIH05T6N8JNC

L107,L110 2703-002176 CIH05T2N7SNC

L108,L109 2703-002198 CIH05T10NJNC

L113,L114 2703-002200 CIH05T18NJNC

L103,L105 2703-002203 CIH05T15NJNC

L117,L118 2703-002204 CIH05T22NJNC

L132,L134 2703-002205 CIH05T3N9KNC

L101,L106 2703-002208 CIH05T2N2SNC

L116,L137 2703-002268 CIH05T8N2JNC

L413 2703-002309 CIH05T82NJNC

L102 2703-002314 CIH05T47NJNC

L403,L404 2703-002551 LQW15AN33NH00D

L300,L301 2703-003260 CIG21W2R2MNE

L500 2703-003485 CIG22L100MNE

L138 2703-003698 LQM2HPN3R3MG0L

L405 2703-003878 CIG10WR27MNC

OSC300 2801-004551 CM315-32768-DZFT-K1S

OSC200 2801-004954 SQ2D02600B2JBG

OSC100 2809-001363 TG-5010LH

F503,F504 2901-001470 ICVE10184E070R100FR

F500,F501,F502 2901-001639 ADF-10S-03Q-100-040F

F103 2904-001929 SFDG75BQ102

F100 2904-001953 B9507

F101 2904-001966 B9503

F104 2909-001324 TBF-1608-245-R7

MIC400 3003-001136 SPU0410HR5H

L125 3301-001438 BLM15BB750SN1D

L120,L121 3301-001534 BLM15AG121SN1D

L122,L200,L202 3301-001659 BLM15AG601SN1

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-5

This Document can not be used without Samsung's authorization

Design LOC SEC CODE Description

L600 3301-001789 BLM15EG121SN1D

L503 3301-001938 BLM15HB221SN1D

L400,L401,L411,L412 3301-002065 MMZ1005A182ET

L501,L502,L504 3301-002065 MMZ1005A182ET

L407,L409 3301-002078 BLM15AX102SN1D

TAC600,TAC601,TAC602 3404-001303 LS12K2-T

TAC603 3404-001303 LS12K2-T

RFS100 3705-001731 KMS-560-002-BEF

SIM300 3709-001488 5000-6P-1.5S

CD300 3709-001575 SCHA4B0301

SLC500 3710-003306 3D1201087-ST32-7H

BTC600 3711-006808 KQ03SB1-3R

HEA500 3711-006843 14-5802-044-002-829

ANT102,ANT105 3712-001326 HM01-AR0145

IFC600 3722-003115 KQ20AX-7P-4D

EAR400 3722-003133 IJAN4-77

SC100,SC101,SC102 GH70-04132A ONBOARD-CLIP-8

SC103,SC105,SC106 GH70-04132A ONBOARD-CLIP-8

SC107 GH70-04132A ONBOARD-CLIP-8

ANT100,ANT101,ANT103 GH71-08731A HJ-ICT-05

ANT104,SPK400,SPK401 GH71-08731A HJ-ICT-05

Please consult the GSPN website (Samsung Portal) for the most recent version of the product's

part list.

- This Document can not be used without Samsung's authorization -

5-2. Cellular phone Parts list : GT-S5330HKAPRT

Design LOC

Description

SEC CODE

QAR01

ASSY ETC-RCV ASSY (GT-S5330)

GH59-09693A

QBC00

ASSY COVER-BATTERY

GH98-16993A

QBR06

PMO BRACKET-MOTOR

GH72-59919A

QCA01

CAMERA MODULE-GT-S5330 3M

GH59-09906A

QCK01

PMO KEY-CAMERA

GH72-59571A

QCK02

PMO KEY-POWER

GH72-59572A

QCR03

SCREW-MACHINE

6001-001811

QCR12

SCREW-MACHINE

6001-001530

QCR72

SCREW-MACHINE

6001-002051

QCR97

SCREW-MACHINE

6001-002262

QFL01

ASSY CASE-SLIDE LOWER

GH98-16999A

QFR01

ASSY CASE-FRONT

GH98-16997A

QFU01

ASSY CASE-SLIDE UPPER

GH98-17002A

QKP01

ASSY KEYPAD-MAIN(QWERTY) EURO+POUND

GH98-16995A

QKP02

ASSY KEYPAD-SUB

GH98-16996A

QLC01

ASSY LCD-3.2" WQVGA GT-S5330 ASSY

GH96-04763A

QME01

DOME SHEET-GT-S5330

GH59-09831A

QME02

KEY FPCB-SUB KEY PBA(GT-S5330)

GH59-09743A

QME03

TOUCH/PANEL-EU BLACK (GT-S5330)

GH59-09674A

QMI03

RMO RUBBER-MIC TOP HOLDER (GRAY)

GH73-14127A

QMO01

MOTOR DC-GT-S5330

GH31-00509A

QMP01

A/S ASSY-PBA MAIN (COMM)

GH82-05210A

QPC01

ASSY ETC-SLIDE FPCB

GH59-09744A

QRE01

ASSY CASE-REAR

GH98-16998A

QRF06

PMO COVER-USB

GH72-59569A

QSP01

MODULE-SPK/INTENNA(GT-S5330)

GH59-09870A

QVO01

PMO KEY-VOLUME V2

GH72-61950A

- This Document can not be used without Samsung's authorization -

5-2. Cellular phone Parts list : GT-S5330HKACHN

Design LOC

Description

SEC CODE

QAR01

ASSY ETC-RCV ASSY (GT-S5330)

GH59-09693A

QBC00

ASSY COVER-BATTERY

GH98-16993A

QBR06

PMO BRACKET-MOTOR

GH72-59919A

QCA01

CAMERA MODULE-GT-S5330 3M

GH59-09906A

QCK01

PMO KEY-CAMERA

GH72-59571A

QCK02

PMO KEY-POWER

GH72-59572A

QCR03

SCREW-MACHINE

6001-001811

QCR12

SCREW-MACHINE

6001-001530

QCR72

SCREW-MACHINE

6001-002051

QCR97

SCREW-MACHINE

6001-002262

QFL01

ASSY CASE-SLIDE LOWER

GH98-16999A

QFR01

ASSY CASE-FRONT

GH98-16997A

QFU01

ASSY CASE-SLIDE UPPER

GH98-17002A

QKP01

ASSY KEYPAD-MAIN(QWERTY) CHINA

GH98-17861A

QKP02

ASSY KEYPAD-SUB

GH98-16996A

QLC01

ASSY LCD-3.2" WQVGA GT-S5330 ASSY

GH96-04763A

QME01

DOME SHEET-GT-S5330

GH59-09831A

QME02

KEY FPCB-SUB KEY PBA(GT-S5330)

GH59-09743A

QMI03

RMO RUBBER-MIC TOP HOLDER (GRAY)

GH73-14127A

QMO01

MOTOR DC-GT-S5330

GH31-00509A

QMP01

A/S ASSY-PBA MAIN (CHNA)

GH82-05243A

QPC01

ASSY ETC-SLIDE FPCB

GH59-09744A

QRE01

ASSY CASE-REAR

GH98-16998A

QRF06

PMO COVER-USB

GH72-59569A

QSP01

MODULE-SPK/INTENNA(GT-S5330)

GH59-09870A

QVO01

PMO KEY-VOLUME V2

GH72-61950A

Autres manuels pour GT-S5330

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Téléphone portable

Samsung

Samsung SCH-N415 Manuel utilisateur

Samsung

Samsung GALAXY ON5 Manuel utilisateur

Samsung

Samsung GS-S7560M Manuel utilisateur

Samsung

Samsung SGH-T119 Series Manuel utilisateur

Samsung

Samsung SGH-C230 Manuel utilisateur

Samsung

Samsung SM-A045M Manuel utilisateur

Samsung

Samsung SGH-U600 Manuel utilisateur

Samsung

Samsung GT-I9200 Manuel utilisateur

Samsung

Samsung GT-E2232 Manuel utilisateur

Samsung

Samsung Galaxy S21 FE Manuel utilisateur

Samsung

Samsung SGH-T619 Manuel utilisateur

Samsung

Samsung SGH-D908i Manuel utilisateur

Samsung

Samsung SGH-F500 Manuel utilisateur

Samsung

Samsung ETERNITY SGH-A867 Manuel technique

Samsung

Samsung Indulge SCH-R915 Manuel utilisateur

Samsung

Samsung SGH-F480I Manuel utilisateur

Samsung

Samsung Mesmerize SCH-I500 Manuel utilisateur

Samsung

Samsung SGH X600 Manuel utilisateur

Samsung

Samsung GT-B7350 Manuel utilisateur

Samsung

Samsung Messager SCH-r450 Series Manuel utilisateur

Samsung

Samsung SGH SGH-M110 Manuel utilisateur

Samsung

Samsung SCH-R760 Manuel utilisateur

Samsung

Samsung SM-N9005 Manuel utilisateur

Samsung

Samsung SCH-S299 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
