5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

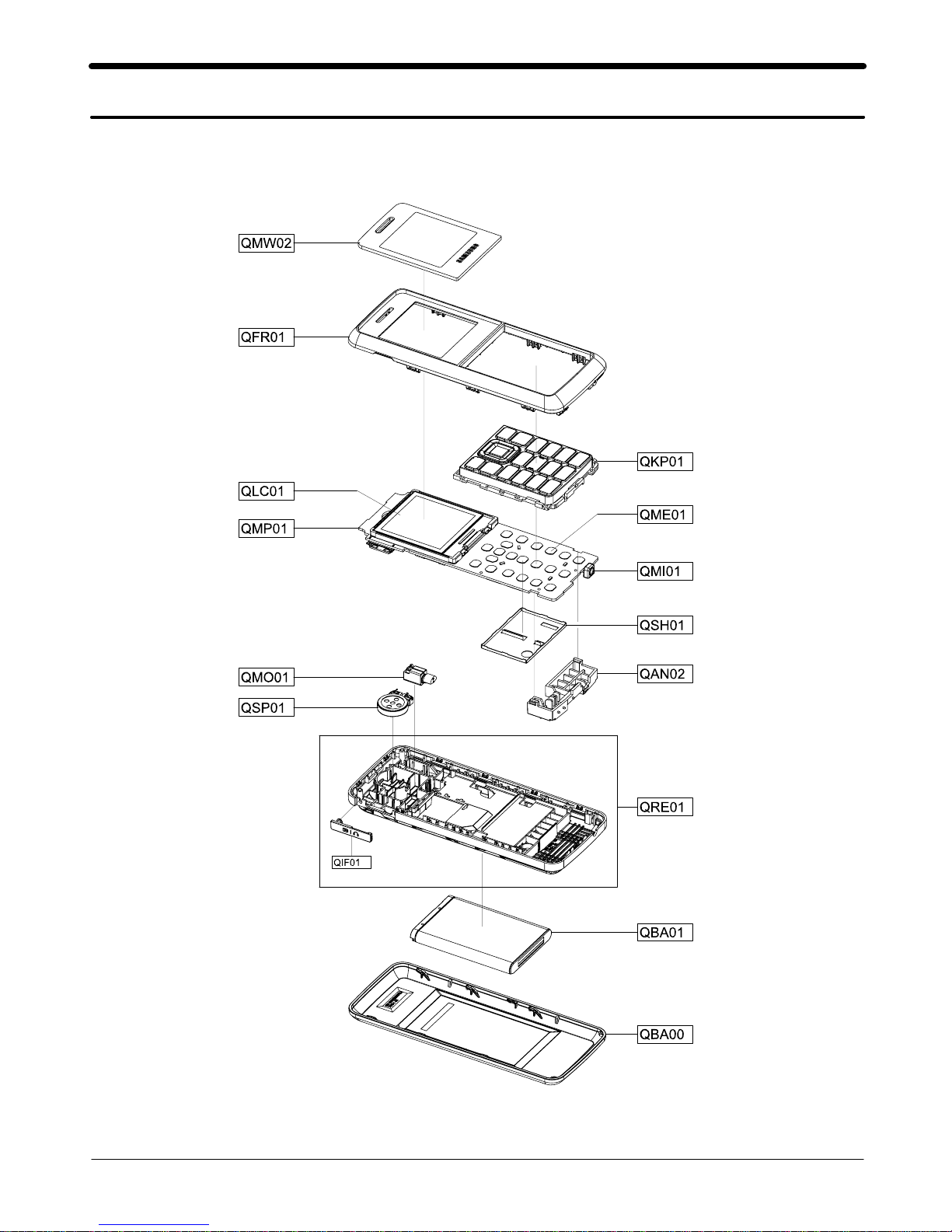

5-1. Cellular phone Exploded View
SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-GTE1117L GH42-01822A
QBA00 ASSY COVER-BATTERY GH98-10940A
QBA01 INNER BATTERY PACK-1000MAH,BLA GH43-02694A
QFR01 ASSY CASE-FRONT GH98-10665A
QKP01 RMO KEY-RUBBER GH73-12295A
QLC01 LCD-1.63 CSTN LCD GH07-01316A
QME01 DOME SHEET-GT-E1110 GH59-06345A
QMI01 MICROPHONE-ASSY-GT_E1110 GH30-00539A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 A/S ASSY-GTE1117L GH82-03255A
QMW02 PCT WINDOW-MAIN(FMRADIO) GH72-50996A
QSH01 ICT SHIELD-CAN GH70-04050A
QSP01 SPEAKER 3001-002306
QRE01 ASSY CASE-REAR GH98-10666A
QIF01 PMO COVER-IF V3 GH72-50854A
5-2. Cellular phone Parts list
SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
0401-001110 ZD300 DIODE-SWITCHING
0401-001110 ZD301 DIODE-SWITCHING
0403-001547 ZD302 DIODE-ZENER
0406-001267 ZD304 DIODE-TVS
0406-001288 ZD100 DIODE-TVS
0406-001288 ZD101 DIODE-TVS
0406-001288 ZD102 DIODE-TVS
0406-001288 ZD103 DIODE-TVS
0406-001306 ZD303 DIODE-TVS
0505-002341 U305 FET-SILICON
0601-002591 LED300 LED
0601-002591 LED301 LED
0601-002591 LED303 LED
0601-002591 LED305 LED
1001-001394 U104 IC-ANALOG SWITCH
1001-001508 U102 IC-ANALOG SWITCH
1003-001440 TR300 IC-RELAY DRIVER
1108-000217 UME200 IC-MCP
1201-002610 U100 IC-AUDIO AMP
1201-002675 U101 IC-AUDIO AMP
1201-002731 PAM100 IC-POWER AMP
1203-005289 U303 IC-DC/DC CONVERTER
1203-005347 U300 IC-POSI.FIXED REG.
1203-005498 U304 IC-VOL. DETECTOR
1204-002979 U103 IC-TUNER
1205-003565 UCP200 IC-MODEM
1404-001221 TH200 THERMISTOR-NTC
2007-000138 R114 R-CHIP
2007-000138 R115 R-CHIP
2007-000138 R130 R-CHIP
2007-000138 R131 R-CHIP
2007-000138 R329 R-CHIP
2007-000138 R331 R-CHIP
2007-000139 R303 R-CHIP
2007-000140 R122 R-CHIP
2007-000141 R100 R-CHIP
2007-000141 R104 R-CHIP
2007-000141 R301 R-CHIP
2007-000141 R305 R-CHIP
2007-000143 R126 R-CHIP
2007-000143 R127 R-CHIP
2007-000146 R109 R-CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
2007-000146 R110 R-CHIP
2007-000148 R125 R-CHIP
2007-000148 R128 R-CHIP
2007-000148 R129 R-CHIP
2007-000148 R205 R-CHIP
2007-000148 R208 R-CHIP
2007-000148 R209 R-CHIP
2007-000148 R302 R-CHIP
2007-000162 R200 R-CHIP
2007-000168 R107 R-CHIP
2007-000168 R112 R-CHIP
2007-000171 R105 R-CHIP
2007-000171 R132 R-CHIP
2007-000172 R206 R-CHIP
2007-000172 R328 R-CHIP
2007-000173 R113 R-CHIP
2007-000173 R308 R-CHIP
2007-000174 R311 R-CHIP
2007-001294 R121 R-CHIP
2007-001294 R123 R-CHIP
2007-001333 R321 R-CHIP
2007-003025 R317 R-CHIP
2007-007698 R202 R-CHIP
2007-008500 R324 R-CHIP
2007-009822 R323 R-CHIP
2203-000233 C133 C-CER,CHIP
2203-000386 C100 C-CER,CHIP
2203-000386 C103 C-CER,CHIP
2203-000386 C106 C-CER,CHIP
2203-000627 C300 C-CER,CHIP
2203-000679 C302 C-CER,CHIP
2203-000679 C304 C-CER,CHIP
2203-000679 C305 C-CER,CHIP
2203-000696 C129 C-CER,CHIP
2203-000696 C136 C-CER,CHIP
2203-000696 C138 C-CER,CHIP
2203-000812 C114 C-CER,CHIP
2203-000812 C121 C-CER,CHIP
2203-000812 C311 C-CER,CHIP
2203-000995 C109 C-CER,CHIP
2203-000995 C308 C-CER,CHIP
2203-000995 C309 C-CER,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
2203-001153 C218 C-CER,CHIP
2203-001153 C219 C-CER,CHIP
2203-001153 C220 C-CER,CHIP
2203-001153 C221 C-CER,CHIP
2203-001153 C332 C-CER,CHIP
2203-002525 C115 C-CER,CHIP
2203-002525 C124 C-CER,CHIP
2203-002709 C113 C-CER,CHIP
2203-002709 C131 C-CER,CHIP
2203-002709 C137 C-CER,CHIP
2203-002709 C200 C-CER,CHIP
2203-002709 C201 C-CER,CHIP
2203-002709 C202 C-CER,CHIP
2203-002709 C203 C-CER,CHIP
2203-002709 C215 C-CER,CHIP
2203-002709 C216 C-CER,CHIP
2203-002709 C310 C-CER,CHIP
2203-005057 C128 C-CER,CHIP
2203-005288 C110 C-CER,CHIP
2203-005344 C321 C-CER,CHIP
2203-005395 C134 C-CER,CHIP
2203-005395 C135 C-CER,CHIP
2203-005481 C141 C-CER,CHIP
2203-005481 C142 C-CER,CHIP
2203-006047 C118 C-CER,CHIP
2203-006047 C123 C-CER,CHIP
2203-006048 C102 C-CER,CHIP
2203-006048 C105 C-CER,CHIP
2203-006048 C108 C-CER,CHIP
2203-006048 C119 C-CER,CHIP
2203-006048 C120 C-CER,CHIP
2203-006048 C301 C-CER,CHIP
2203-006048 C303 C-CER,CHIP
2203-006048 C330 C-CER,CHIP
2203-006208 C204 C-CER,CHIP
2203-006208 C206 C-CER,CHIP
2203-006260 C127 C-CER,CHIP
2203-006348 C324 C-CER,CHIP
2203-006348 C326 C-CER,CHIP
2203-006562 C111 C-CER,CHIP
2203-006562 C122 C-CER,CHIP
2203-006562 C125 C-CER,CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
2203-006562 C126 C-CER,CHIP
2203-006562 C132 C-CER,CHIP
2203-006562 C147 C-CER,CHIP
2203-006562 C205 C-CER,CHIP
2203-006562 C207 C-CER,CHIP
2203-006562 C208 C-CER,CHIP
2203-006562 C209 C-CER,CHIP
2203-006562 C210 C-CER,CHIP
2203-006562 C316 C-CER,CHIP
2203-006562 C318 C-CER,CHIP
2203-006562 C320 C-CER,CHIP
2203-006562 C327 C-CER,CHIP
2203-006562 C333 C-CER,CHIP
2203-006562 C334 C-CER,CHIP
2203-006824 C213 C-CER,CHIP
2203-006824 C214 C-CER,CHIP
2203-006841 C323 C-CER,CHIP
2404-001377 C212 C-TA,CHIP
2404-001377 TA100 C-TA,CHIP
2404-001381 TA101 C-TA,CHIP
2404-001381 TA300 C-TA,CHIP
2703-001613 L106 INDUCTOR-SMD
2703-001938 L100 INDUCTOR-SMD
2703-002170 L101 INDUCTOR-SMD
2703-002198 L104 INDUCTOR-SMD
2703-002201 L301 INDUCTOR-SMD
2703-002201 L302 INDUCTOR-SMD
2703-002203 L103 INDUCTOR-SMD
2703-003064 L303 INDUCTOR-SMD
2703-003297 L202 INDUCTOR-SMD
2703-003470 L105 INDUCTOR-SMD
2801-004353 OSC200 CRYSTAL-SMD
2801-004769 OSC201 CRYSTAL-SMD
2904-001731 F100 FILTER-SAW
3001-002306 SPK100 SPEAKER
3301-001158 L200 BEAD-SMD
3301-001729 L108 BEAD-SMD
3301-001729 L109 BEAD-SMD
3301-001812 R312 BEAD-SMD
3301-001812 R313 BEAD-SMD
3301-001812 R332 BEAD-SMD
3301-001812 R333 BEAD-SMD
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
3301-001812 R334 BEAD-SMD
3301-001912 L300 BEAD-SMD
3705-001503 RFS100 CONNECTOR-COAXIAL
3709-001384 SIM300 CONNECTOR-CARD EDGE
3710-002683 IFC300 SOCKET-INTERFACE
3711-006084 BTC300 HEADER-BATTERY
GH70-03276A SC100 ICT SHIELD-CAN CLIP
GH70-03276A SC101 ICT SHIELD-CAN CLIP
GH70-03276A SC103 ICT SHIELD-CAN CLIP
GH70-03276A SC104 ICT SHIELD-CAN CLIP
GH70-03276A SC105 ICT SHIELD-CAN CLIP
GH70-03276A SC106 ICT SHIELD-CAN CLIP
GH70-03276A SC107 ICT SHIELD-CAN CLIP
GH70-03276A SC108 ICT SHIELD-CAN CLIP
GH70-03276A SC109 ICT SHIELD-CAN CLIP
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
SAMSUNG Proprietary-Contents may change without notice
7. Block Diagrams
7-1
This Document can not be used without Samsung's authorization

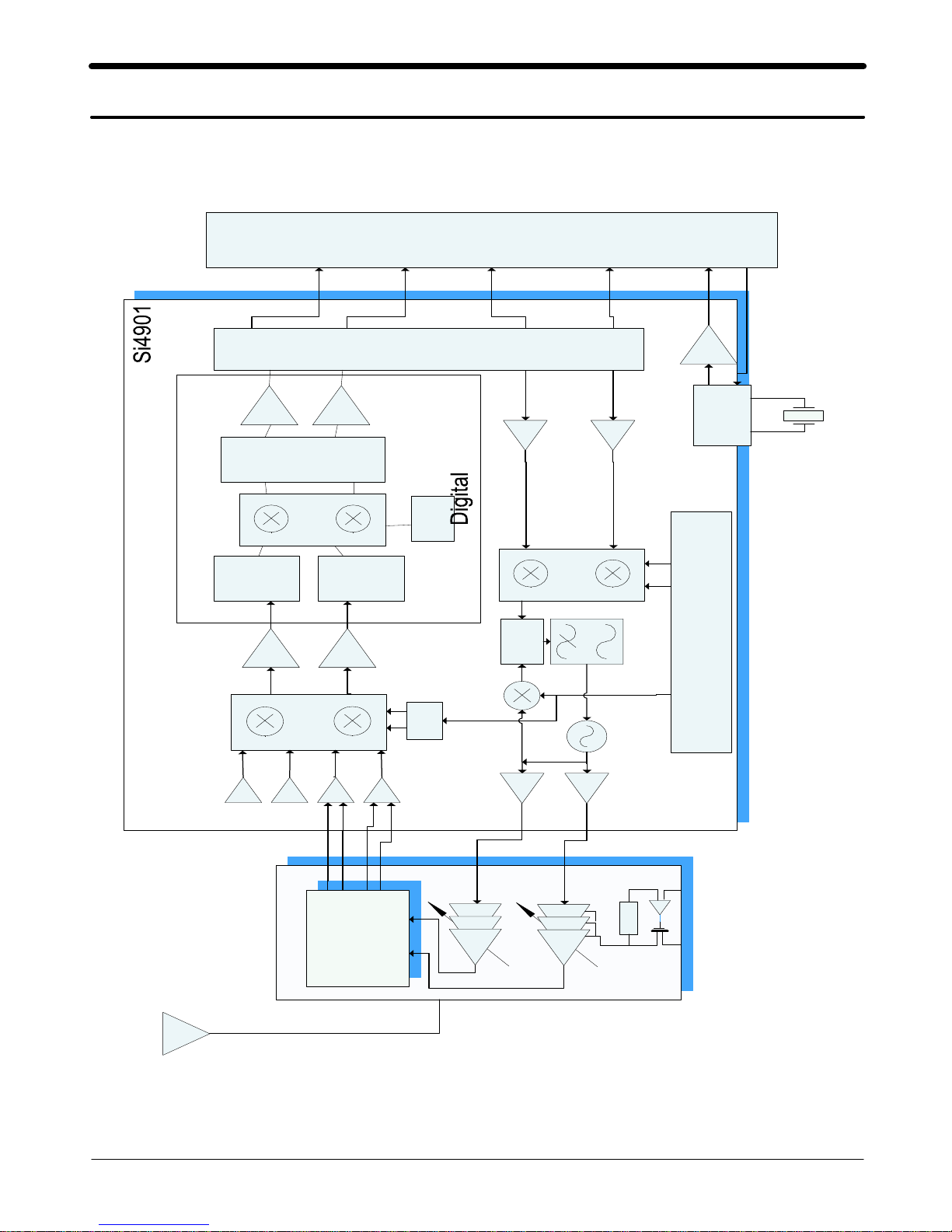

7-1. RF Solution Block Diagram
eludoMxT
MSALAUD
)SCD,MSG(
ANL
ANL
ANL
ANL
D
I
GIT
A
L
F
I
L
T
E
R
RFR
X
YCNEUQERF+OCV
REZISEHTNYS
ф
TED
OXCD
09/0
D
S
P
AGP
AGP
I
CDA
Q
CDA
AGP
AGP
FI-woL
TUOX
CFA
Q
I
latsyrC
an
n
et
n
A
xTMSGE
xTSCD
