Samsung GT-E1086L Manuel utilisateur
GSM TELEPHONE
GT-E1086L
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions
efrcom efrcom
GSPN (Global Service Partner Network)
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2009. 12. Rev.1.0
ⓒ
SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0401-001110 D200 DIODE-SWITCHING
0401-001110 D201 DIODE-SWITCHING
0403-001688 ZD200 DIODE-ZENER
0406-001267 ZD300 DIODE-TVS
0406-001286 ZD301 DIODE-TVS
0406-001286 ZD302 DIODE-TVS
0406-001293 D301 DIODE-TVS
0406-001293 D302 DIODE-TVS
0406-001293 D303 DIODE-TVS
0505-002223 TR200 FET-SILICON
0601-002846 LED301 LED
0601-002846 LED302 LED
0601-002846 LED303 LED
0601-002846 LED304 LED
1003-001440 TR100 IC
1108-000239 UME200 MEMORY
1201-002933 PAM100 RF7173
1203-006123 U101 IC
1204-002979 U100 IC
1205-003923 UCP200 IC
1404-001221 TH200 THERMISTOR
2007-000139 R301 R-CHIP
2007-000140 R100 R-CHIP
2007-000141 R300 R-CHIP
2007-000141 R306 R-CHIP
2007-000141 R312 R-CHIP
2007-000143 R104 R-CHIP
2007-000143 R105 R-CHIP
2007-000144 R208 R-CHIP
2007-000148 R101 R-CHIP
2007-000148 R102 R-CHIP
2007-000148 R200 R-CHIP
2007-000148 R202 R-CHIP
2007-000162 R107 R-CHIP
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-000172 R303 R-CHIP
2007-000172 R304 R-CHIP
2007-000172 R305 R-CHIP
2007-000172 R307 R-CHIP
2007-000172 R308 R-CHIP
2007-000173 R309 R-CHIP
2007-000173 R310 R-CHIP
2007-000174 R311 R-CHIP
2007-001301 R209 R-CHIP
2007-001333 R210 R-CHIP
2007-003025 R106 R-CHIP
2007-008500 R204 R-CHIP
2203-000233 C103 C-CERAMIC
2203-000386 U302 C-CERAMIC
2203-000425 C225 C-CERAMIC
2203-000425 C227 C-CERAMIC
2203-000585 C309 C-CERAMIC
2203-000586 C310 C-CERAMIC
2203-000587 C313 C-CERAMIC
2203-000679 C302 C-CERAMIC
2203-000812 C111 C-CERAMIC
2203-000812 C112 C-CERAMIC
2203-000812 C228 C-CERAMIC
2203-000812 C312 C-CERAMIC
2203-000812 C313 C-CERAMIC
2203-001153 C220 C-CERAMIC
2203-001153 C321 C-CERAMIC
2203-001153 U301 C-CERAMIC
2203-002709 C104 C-CERAMIC
2203-002709 C209 C-CERAMIC
2203-002709 C210 C-CERAMIC
2203-002709 C229 C-CERAMIC
2203-005052 C106 C-CERAMIC
2203-005057 C105 C-CERAMIC
2203-005057 C110 C-CERAMIC
2203-005281 C113, C-CERAMIC
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-005281 C115 C-CERAMIC
2203-005281 C116 C-CERAMIC
2203-005281 C117 C-CERAMIC
2203-005344 C224 C-CERAMIC
2203-006048 C100 C-CERAMIC
2203-006048 C211 C-CERAMIC
2203-006048 C212 C-CERAMIC
2203-006048 C215 C-CERAMIC
2203-006048 C231 C-CERAMIC
2203-006048 C301 C-CERAMIC
2203-006048 C303 C-CERAMIC
2203-006048 C319 C-CERAMIC
2203-006048 C323 C-CERAMIC
2203-006208 C203 C-CERAMIC
2203-006208 C204 C-CERAMIC
2203-006208 C320 C-CERAMIC
2203-006260 C101 C-CERAMIC
2203-006261 C103 C-CERAMIC
2203-006399 C202 C-CERAMIC
2203-006399 C205 C-CERAMIC
2203-006399 C206 C-CERAMIC
2203-006399 C207 C-CERAMIC
2203-006399 C208 C-CERAMIC
2203-006399 C214 C-CERAMIC
2203-006399 C315 C-CERAMIC
2203-006399 C316 C-CERAMIC
2203-006562 C109 C-CERAMIC
2203-006562 C314 C-CERAMIC
2203-006824 C200 C-CERAMIC
2203-006824 C201 C-CERAMIC
2203-006824 C226 C-CERAMIC
2203-007270 C308 C-CERAMIC
2203-007279 C108 C-CERAMIC
2203-007425 C223 C-CERAMIC
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2703-001726 L108 INDUCTOR
2703-002170 L100 INDUCTOR
2703-002176 C114 INDUCTOR
2703-002176 L107 INDUCTOR
2703-002201 L302 INDUCTOR
2703-002201 L303 INDUCTOR
2703-002201 L304 INDUCTOR
2703-002201 L305 INDUCTOR
2703-002201 L306 INDUCTOR
2703-002201 L307 INDUCTOR
2703-002201 L308 INDUCTOR
2703-002201 L309 INDUCTOR
2703-002203 L105 INDUCTOR
2703-002281 L102 INDUCTOR
2703-002367 C107 INDUCTOR
2703-002636 L106 INDUCTOR
2703-003184 L201 INDUCTOR
2703-003476 L301 INDUCTOR
2801-004805 OSC200 CRYSTAL-UNIT
2801-004882 OSC201 CRYSTAL-UNIT
2904-001885 F100 FILTER-SAW
3301-001158 L200 BEAD
3301-001912 L300 BEAD
3705-001503 RFS100 CONNECTOR-COAXIAL
3709-001488 SIM200 CONNECTOR-CARD EDGE
3710-002683 IFC300 CONNECTOR-SOCKET
3711-006808 BTC200 CONNECTOR-HEADER
GH70-03276A SC102 ONBOARD-CLIP-4
GH70-03276A SC103 ONBOARD-CLIP-4
GH70-03276A SC104 ONBOARD-CLIP-4
GH70-03276A SC105 ONBOARD-CLIP-4
GH70-03276A SC106 ONBOARD-CLIP-4
GH70-03276A SC107 ONBOARD-CLIP-4
GH70-03276A SC108 ONBOARD-CLIP-4
SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
GH70-03276A SC109 ONBOARD-CLIP-4
GH80-03320A R103 PB-SHORT-1005
GH80-03320A R313 PB-SHORT-1005
GH80-03320A R314 PB-SHORT-1005
GH80-03321A R216 PB-SHORT-0603
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
SAMSUNG Proprietary-Contents may change without notice

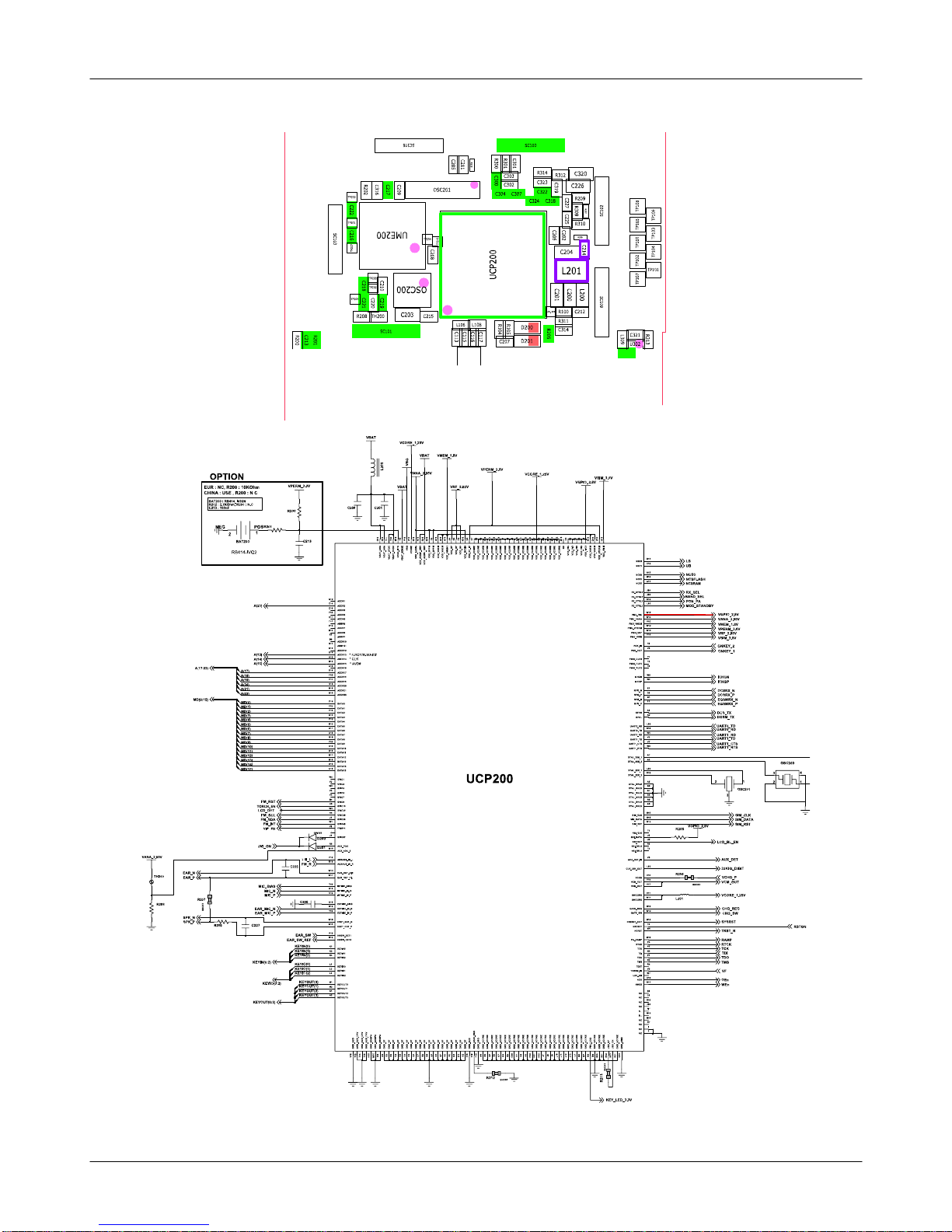

9. Flow Chart of Troubleshooting
This Document can not be used without Samsung's authorization
9-1
9-1. Power On
Check the Battery Voltage
is more than 3.7V
'Power On 'does not work
Change the Battery
END
No
Yes
PMU_VIO =2.8
V? Check the Main Chip related to
VGPIO_2.8V
No
Yes
Check the Clock at
UPC200 L16pin
(CLK32K)=32KHZ Check the Main Chip
No
Yes
R209(+VGPIO)="
H"? Check the related circuit
No
Yes
+VCORE_1.25V
=1.25
V? Resolder C214 and L201
No
Yes
Check the initial operation
Yes
Yes
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Flow Chart of Troubleshooting
9-2
