Samsung GT-C3303 Manuel utilisateur

GSM TELEPHONE

GT-C3303

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Level 2Repair

8. Level 3Repair

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because

specipicty of cellular phone is sensitive for surrounding interference(RF noise).

―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by

the influence of magnetic force.

―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be

worn away.

―Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

―Repair after separate Test Pack and Set because for short danger (for example an overcurrent

and furious flames of parts etc) when you repair board in condition of connecting Test Pack and

tuning on.

―Take specially care of soldering, because Land of PCB is small and weak in heat.

―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous

when tuning ON/OFF PBA and Connector after disassembling charger.

―Don't use as you pleases after change other material than replacement registered on SEC System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD

(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

―Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity prevention

string on wrist.

―Use earthed soldering steel when you connect or disconnect ESD.

―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static

electricity.

―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and

aluminum plate to have conductive power,they are prevented from static electricity.

―You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice

2. Specification

This Document can not be used without Samsung's authorization

2-1

2-1. GSM General Specification

GSM 850 EGSM 900 DCS1800 PCS1900

Freq. Band[MHz]

Uplink/Downlink

824~849

869~894

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

ARFCN range 128~25 0~124 & 975~1023 512~885 512~810

Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz

Mod. Bit rate/

Bit Period

270.833kbps

3.692us

270.833kbps

3.692us

270.833kbps

3.692us

270.833kbps

3.692us

Time Slot

Period/Frame

Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK

MS Power 33dBm

~5dBm

33dBm

~5dBm

30dBm

~0dBm

30dBm

~0dBm

Power Class 4

(max +33dBm)

(max +30dBm)

Sensitivity -102dBm -102dBm -100dBm -100dBm

TDMA Mux 8 8 8 8

Cell Radius 35Km 35Km 2Km 2Km

SAMSUNG Proprietary-Contents may change without notice

Specification

2-2

This Document can not be used without Samsung's authorization

TX Power

control level

GSM850

GSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3 dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control level DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control level PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice

3. Product Function

3-1

This Document can not be used without Samsung's authorization

Main Function

－UMTS, EDGE, GPRS

－64 Poly Melody

－BT 2.1

－USB 2.0

－WAP2.0, JAVA, MPEG4

－MMS /SMS

－Weight: 93.3g(

with standard battery :Product 73.3 g, Battery 20.0 g))

－Camera: VGA, CMOS

－LCD :2.4"TFT (QVGA)

－Size: 103.9 x 56.5 x 12.9 mm

－GPRS/EDGE :Class 10

－Battery: 1000 mAH

－Memory: 256MB/1G/256 MUXED

－Band: GSM 850/900/1800/1900

－BB: STE PNX4908

－RF: Skyworks SKY77548

－Dual Speaker

SAMSUNG Proprietary-Contents may change without notice

4. Exploded View and Parts List

4-1

This Document can not be used without Samsung's authorization

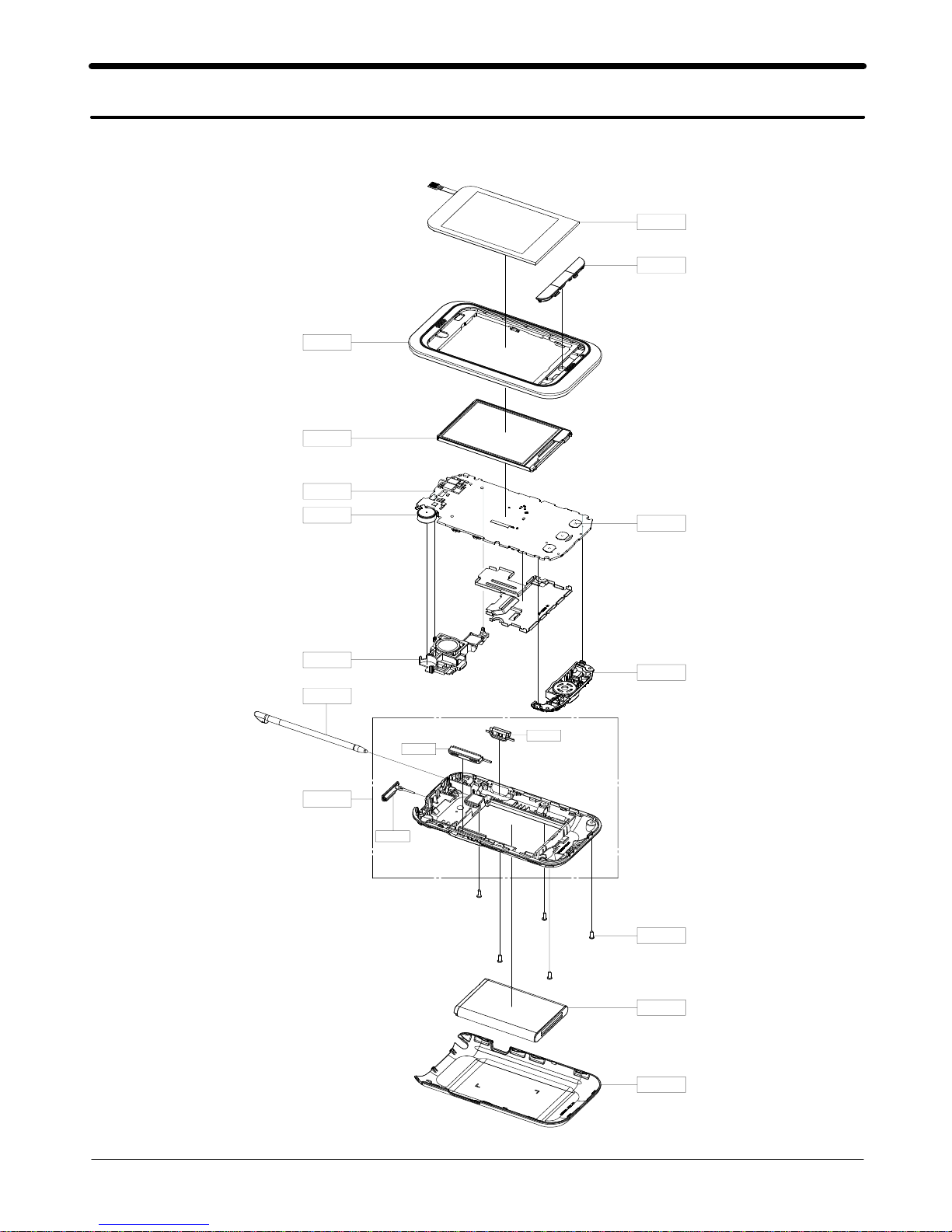

4-1. Cellular phone Exploded View

QRE01

QST01

QFR01

QMO01

QSP01

QMP01

QLC01

QCK02

QKP01

QME01

QSP02

QCR67

QBA01

QBC00

QME03

QVO01

QRF06

SAMSUNG Proprietary-Contents may change without notice

Exploded View and Parts List

4-2

This Document can not be used without Samsung's authorization

Design LOC Description SEC CODE

QCR67 SCREW-MACHINE 6001-002083

QMO01 MOTOR LINEAR VIBRATION-GT-C3300_MOTOR GH31-00501A

QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A

QME01 DOME SHEET-GT-C3300 GH59-09280A

QME03 TOUCH/PANEL-GT-C3300 GH59-09281A

QSP02 MODULE-SPK+INT B(

GT-C3300) GH59-09366A

QSP01 MODULE-SPK+INT A(

GT-C3300) GH59-09367A

QST01 PMO ACCE-STYLUS PEN GH72-58591A

QMP01 A/S ASSY-PBA MAIN (COMM) GH82-05003A

QLC01 ASSY LCD-2.4" TN QVGA GT-C3300 ASS'Y GH96-04549A

QFR01 ASSY CASE-FRONT GH98-16378A

QBC00 ASSY COVER-BATT_NON_CAM GH98-17418A

QKP01 ASSY KEYPAD-SWA GH98-17540A

QRE01 ASSY CASE-REAR_NONCAM GH98-17444A

QRF06 PMO COVER-USB GH72-58587A

QVO01 PMO KEY-VOLUME GH72-58597A

QCK02 PMO KEY-HOLD GH72-58598A

4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice

5. MAIN Electrical Parts List

5-1

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Discription

0403-001741 D305 DIODE-TVS

0406-001223 D301 DIODE-TVS

0406-001223 D302 DIODE-TVS

0406-001223 D303 DIODE-TVS

0406-001223 D304 DIODE-TVS

0406-001223 ZD308 DIODE-ZENER

0406-001223 ZD309 DIODE-ZENER

0406-001223 ZD310 DIODE-ZENER

0406-001223 ZD311 DIODE-ZENER

0406-001267 D200 DIODE-TVS

0406-001267 D201 DIODE-TVS

0406-001267 D202 DIODE-TVS

0406-001281 ZD301 DIODE-ZENER

0406-001281 ZD303 DIODE-ZENER

0406-001369 ZD304 DIODE-ZENER

0406-001375 ZD305 DIODE-ZENER

0406-001375 ZD306 DIODE-ZENER

0407-001002 ZD307 DIODE-ZENER

0407-001002 Q300 DIODE-ARRAY

0504-000168 U200 TR-DIGITAL

0505-002088 Q200 FET-SILICON

0601-001905 U301 LED

0801-003139 U306 IC-CMOS LOGIC

0801-003200 UME200 IC-MCP

0801-003265 U311 IC-CMOS LOGIC

1001-001488 U312 IC-ANALOG SWITCH

1001-001580 PAM100 IC-POWER AMP

1001-001593 U308 IC-ANALOG SWITCH

1108-000262 U302 IC-MCP

1201-002856 U101 IC-RF AMP

1201-002864 U319 IC-AUDIO AMP

1201-002887 U307 IC-POWER AMP

1201-002888 U102 IC-POWER AMP

1201-002961 U100 IC-POWER AMP

1203-003924 UCP200 IC-MODEM

1203-004596 TH100 THERMISTOR-NTC

1405-001291 V100 IC-POSI.FIXED REG.

1203-004792 V300 IC-POSI.FIXED REG.

1203-004798 V301 IC-SWITCH VOL. REG.

1203-004802 V302 IC-POSI.FIXED REG.

1203-004818 R310 R-CHIP

2007-000138 R351 R-CHIP

1203-005092 R339 R-CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

5-2

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Discription

1203-005225 R340 R-CHIP

1203-005554 R213 R-CHIP

1203-005689 R214 R-CHIP

1203-005916 R334 R-CHIP

1204-002746 R230 R-CHIP

1205-003297 R231 R-CHIP

1205-003790 R202 R-CHIP

1404-001221 R203 R-CHIP

2007-000138 R204 R-CHIP

2007-000141 R205 R-CHIP

2007-000148 R211 R-CHIP

2007-000148 R229 R-CHIP

2007-000171 R325 R-CHIP

2007-000174 R313 R-CHIP

2007-001217 R314 R-CHIP

2007-007008 R337 R-CHIP

2007-007014 R346 R-CHIP

2007-007014 R348 R-CHIP

2007-007190 R232 R-CHIP

2007-007190 R233 R-CHIP

2007-007309 R324 R-CHIP

2007-007310 R101 R-CHIP

2007-007317 R102 R-CHIP

2007-007317 R103 R-CHIP

2007-007318 R114 R-CHIP

2007-007468 R224 R-CHIP

2007-007798 R226 R-CHIP

2007-007798 R227 R-CHIP

2007-008045 R228 R-CHIP

2007-008045 R333 R-CHIP

2007-008045 R115 R-CHIP

2007-008045 R338 R-CHIP

2007-008045 R326 R-CHIP

2007-008045 R343 R-CHIP

2007-008046 R350 R-CHIP

2007-008046 R352 R-CHIP

2007-008049 R336 R-CHIP

2007-008055 R344 R-CHIP

2007-002796 R116 R-CHIP

2007-008055 R315 R-CHIP

2007-008055 R317 R-CHIP

2007-008055 R100 R-CHIP

2007-008055 R113 R-CHIP

Autres manuels pour GT-C3303

Table des matières

Autres manuels Samsung Téléphone portable

Samsung

Samsung SM-S260DL Manuel utilisateur

Samsung

Samsung SM-T590 Manuel utilisateur

Samsung

Samsung SGH Z130 Manuel utilisateur

Samsung

Samsung Galaxy S6 edge Manuel d'utilisation

Samsung

Samsung Intensity Manuel utilisateur

Samsung

Samsung SHV-E170K Manuel utilisateur

Samsung

Samsung SPH-S2300 Manuel utilisateur

Samsung

Samsung SGH-S300 Manuel utilisateur

Samsung

Samsung GT-I9088 Manuel utilisateur

Samsung

Samsung SM-G110B/DS Manuel utilisateur

Samsung

Samsung SGH-Z150 Manuel utilisateur

Samsung

Samsung SCH-a610 Series Manuel utilisateur

Samsung

Samsung SCH-R480C Manuel utilisateur

Samsung

Samsung C3050 Manuel utilisateur

Samsung

Samsung SCH-W590 Manuel utilisateur

Samsung

Samsung SGH-D410 Manuel utilisateur

Samsung

Samsung SM-G3812B Manuel utilisateur

Samsung

Samsung GT-S3350 Manuel utilisateur

Samsung

Samsung SM-J810G/DS Manuel utilisateur

Samsung

Samsung Galaxy S Epic SPH-D700 Manuel utilisateur

Samsung

Samsung GT-19507 Manuel utilisateur

Samsung

Samsung Galaxy S II Galaxy S II I9100 Manuel utilisateur

Samsung

Samsung SGH-C145 Manuel utilisateur

Samsung

Samsung SGH-S105 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
