Samsung GT-B5510 Manuel utilisateur

GSM TELEPHONE

GT-B5510

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Disassembly and Assembly

Instructions

8. Chart of Troubleshooting

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2011. 09. Rev.1.0

ⓒ

2. Specification

2-1

2-1. GSM General Specification

GSM850

Phase 1 EGSM 900

Phase 2 DCS1800

Phase 1 PCS1900 WCDMA2100 WCDMA850 WCDMA1900

Freq.

Band[MHz]

Uplink/Dow

nlink

824~849

869~894 880~915

925~960 1710~1785

1805~1880 1850~1910

1930~1990 1922~1977

2112~2167 826~846

871~891

1852~1907

1932~1987

ARFCN

range 128~251 0~124 &

975~1023 512~885 512~810 UL:9612~988

8DL:10562~1

0838

UL:4132~423

DL:4357~445

UL:9262~953

DL:9662~993

Tx/Rx

spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 80MHz

Mod. Bit

rate/

Bit Period

270.833kbp

3.692us

270.833kbp

3.692us

270.833kb

3.692us

270.833kb

3.692us 3.84Mcps 3.84Mcps 3.84Mcps

Time Slot

Period/Fram

ePeriod

576.9us

4.615ms 576.9us

4.615ms

FrameLength

10ms

Slotlength:

0.667ms

FrameLength:

10ms

Slotlength:

0.667ms

FrameLength:

10ms

Slotlength:

0.667ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK QPSKHQPSK

MS Power 33dBm~5dB

m33dBm~5dB

m30dBm~0d

Bm 30dBm~0d

Bm 24dBm~-

50dBm 24dBm~-

50dBm

Power

Class 5pcl ~

19pcl 5pcl ~19

pcl 0pcl ~15

pcl 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)

Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -104.7dBm -104.7dBm

TDMA Mux 8 8 8 8 888

Cell

Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification

2-2

2-2. GSM Tx Power Class

TX Power

control

level

GSM850

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

EGSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control

level

PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice

3. Operation Instruction and Installation

3-1

This Document can not be used without Samsung's authorization

Main Function

•GSM/EDGE 850/900/1800/1900 , 3G(900/2100)

•HSDPA 7.2 Mbps

•2.6” LQVGA 240x320

•OS Version -Gingerbread

•Full Touch Qwerty BAR Phone

•3MFF Camera

•FM Radio Receiver

•Bluetooth v3.0

•USB v2.0 /Wi-Fi b/g/n

•SMS/MMS/Email

SAMSUNG Proprietary-Contents may change without notice

6. Level 1Repair

6-1

This Document can not be used without Samsung's authorization

6-1. Software Download

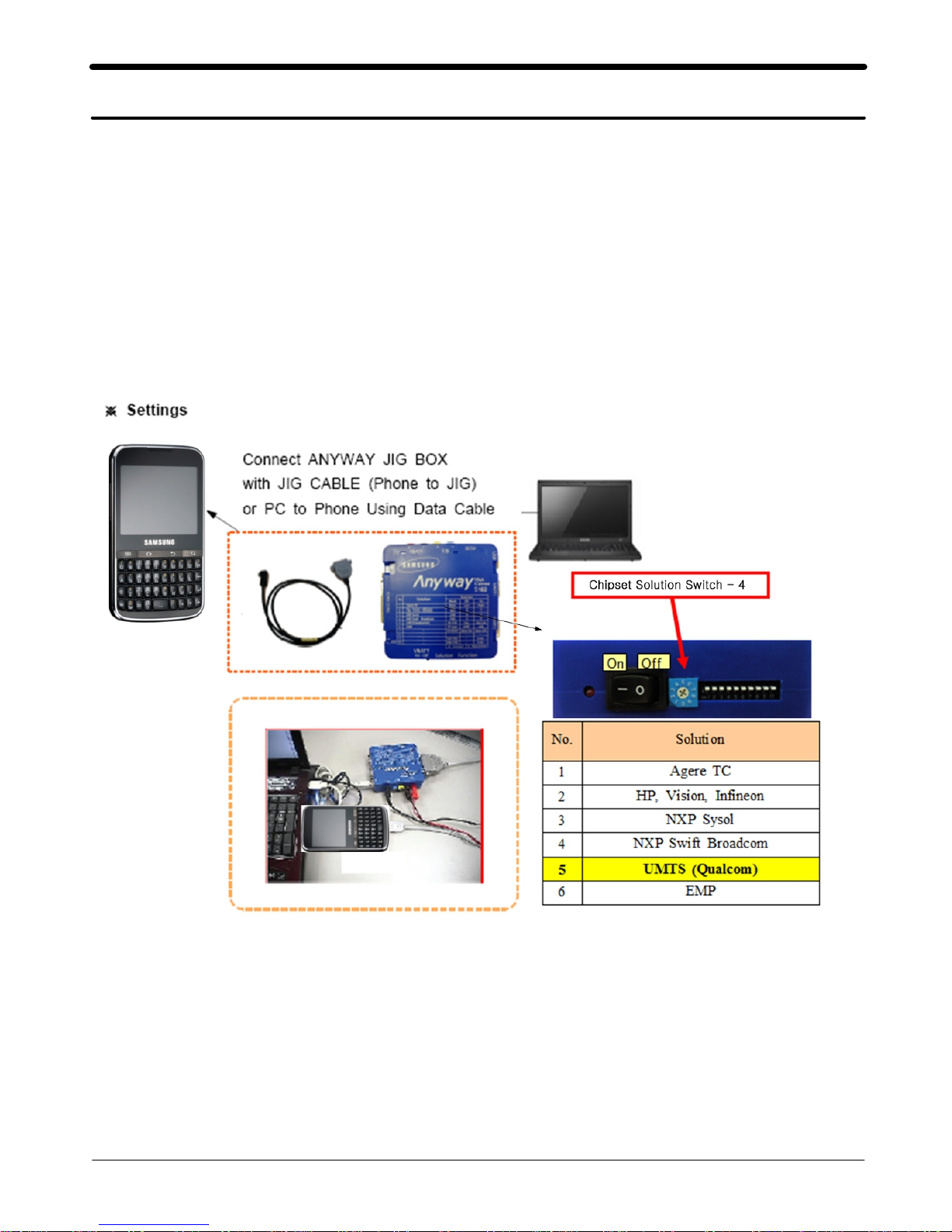

6-1-1. Required items in order to install S/W

ㆍInstallation program: Downloader Program (Odin3_v1.84)

ㆍGT-B5510 Mobile Phone

ㆍData Cable

ㆍJIG BOX (GH99-36900B)

ㆍJIG Cable (GH39-01339A)

ㆍAdapter (GH99-38251A)

ㆍRF test cable (GH39-00985A)

ㆍSerial Cable

ㆍMobile device specific S/W: Binary files

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-2

This Document can not be used without Samsung's authorization

6-1-2. S/W Download Process

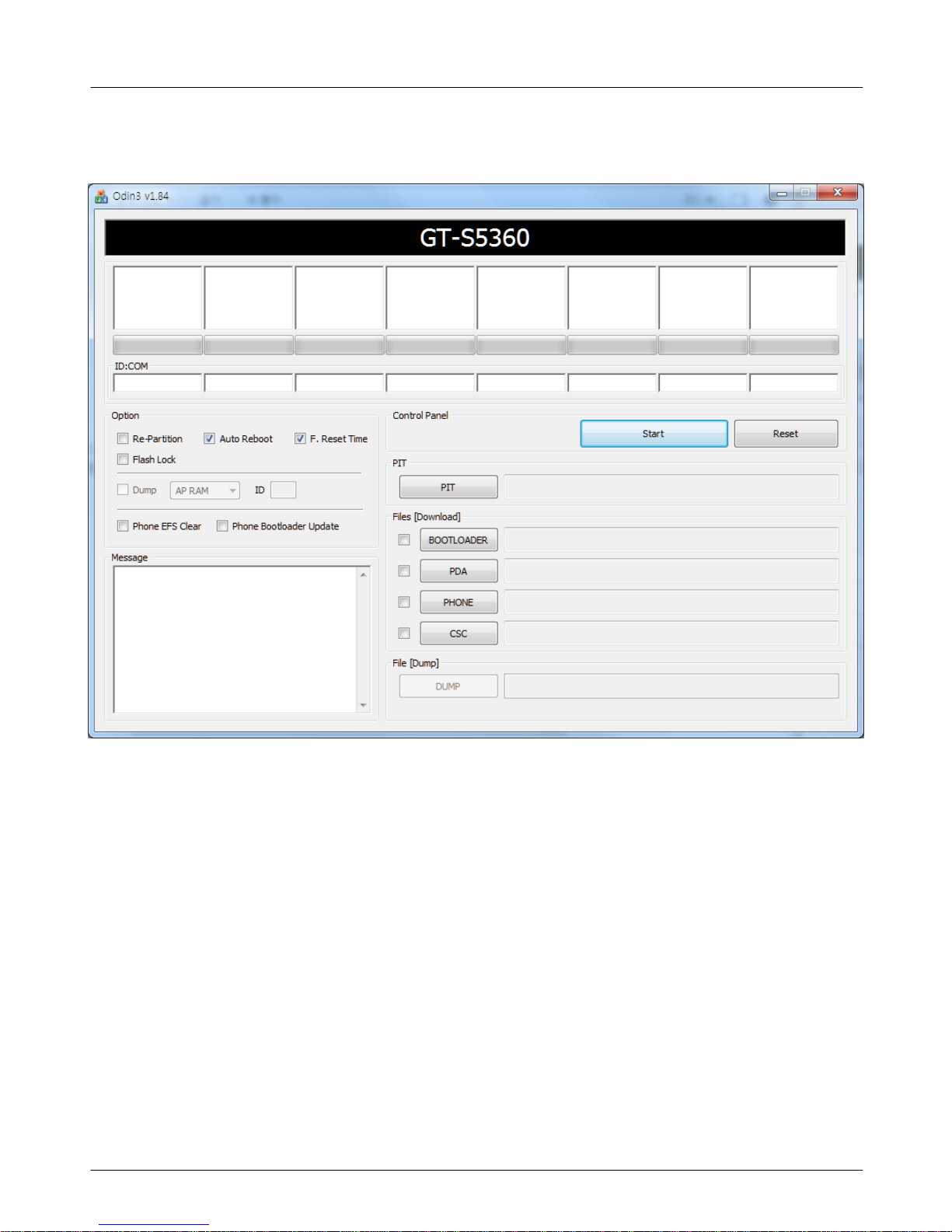

1. Load the binary download program by executing the "Odin3_v1.84"

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-3

This Document can not be used without Samsung's authorization

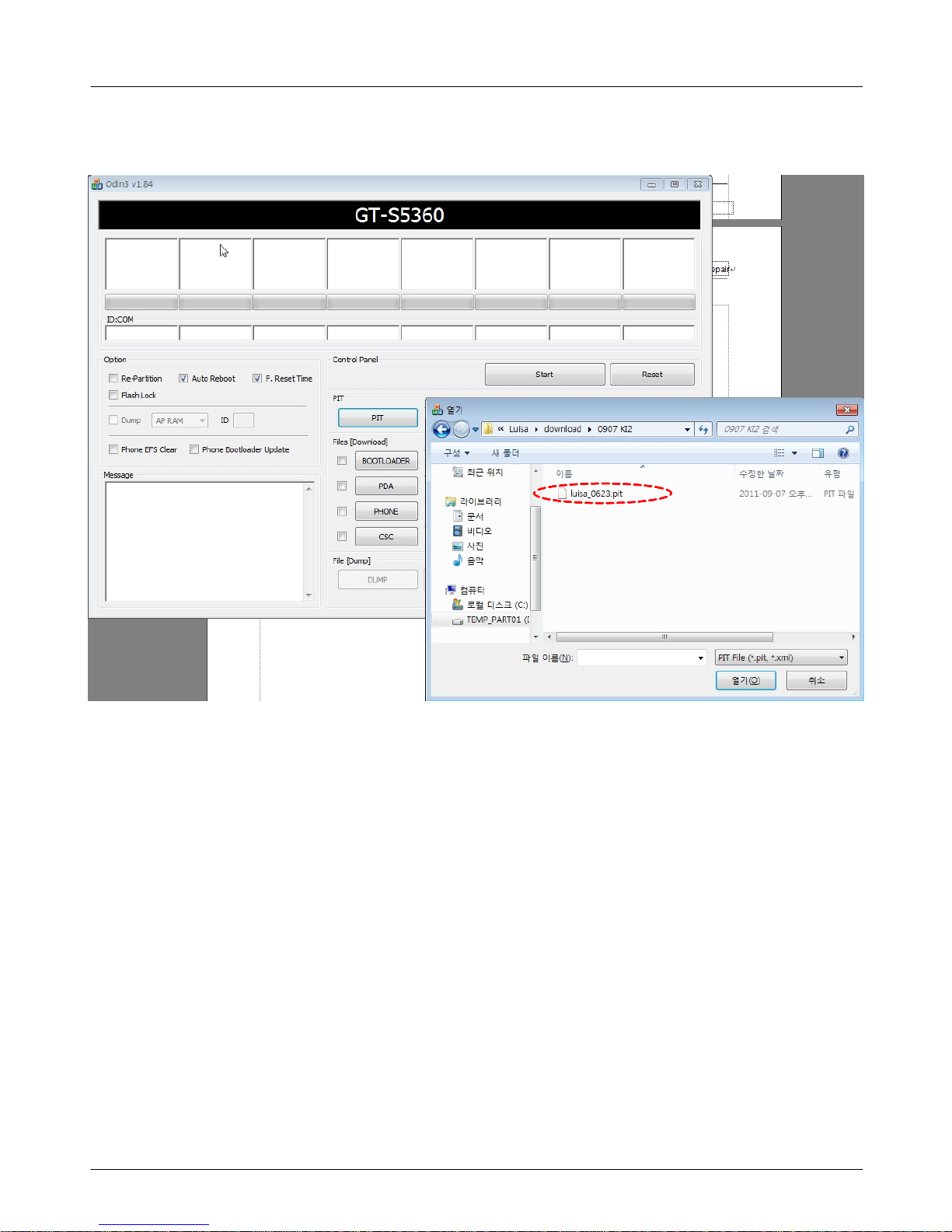

2. Click the PIT Button and Insert "pit" binary file

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-4

This Document can not be used without Samsung's authorization

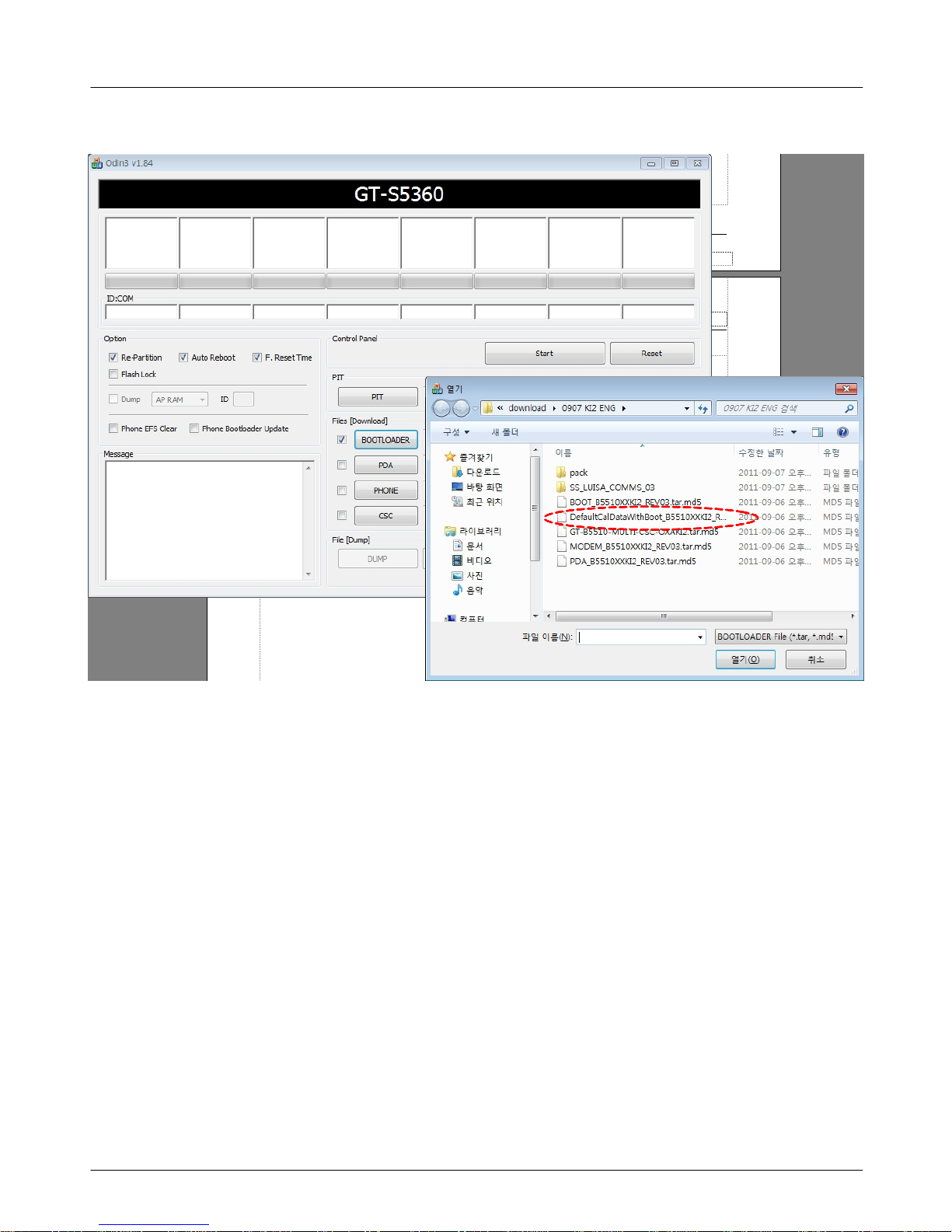

3. Click the BOOTLOADER Button and Insert "DefaultCalDataWithBoot_...." md5 file

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-5

This Document can not be used without Samsung's authorization

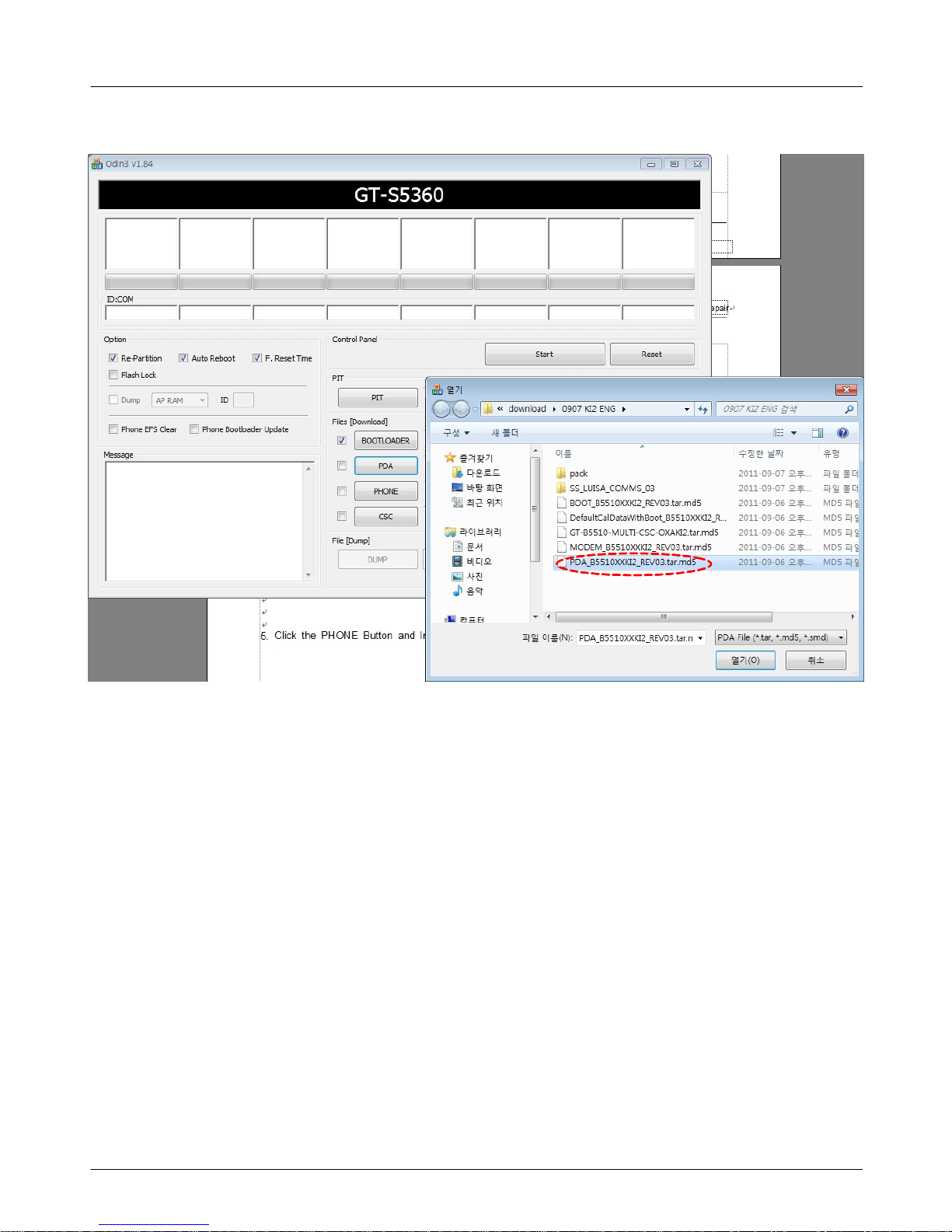

4. Click the PDA Button and Insert "PDA_...." md5 file
