Samsung Galaxy TAB4 Manuel utilisateur

Scope:

Details:

SKU

QTY

SAM1913 Black 1

SAM1914 White 1

Adhesive (If necessary) Pre-Cut 1

Roll Adhesive (If necessary) Cut as needed 1

Required Tools

ESD Strap

(From Kit):

Phillips #00 Screwdriver

Tweezers

Plastic Spudger

Plastic Opening Pick

PersonalProtective Equipment (SafetyGlasses and Gloves)

Display / Assembly Replacement

Description

Parts Required

Specifications

Scroll to About

Phone and click.

Click on Status

Annotate the signal

strength for

reference once

repair is complete.

SamsungGalaxy Note 4 Black / White

For Reference when repairing the:

Pre Repair Test

Instructions

Click on Apps

Click on Settings

Perform a full function test to ensure that there are no other issues with the phone. I.E. No power, will not make a phone call, etc. Check phone Power Levels.

Go to Settings, About Phone, Status and check Signal Strength. Annotate power levels for future tests after repair.

PHONE RF FIELD TEST

Perform this test BEFORE conducting the screen replacement to confirm the phone is working properly and repeat after screen replacement is complete to

confirm the phone is properly working.

Test procedure

Review the current signal strength by following these paths to get to the Signal Strength screen.

To put the Phone in field test mode

Dial *3001#12345#*

Perform a full function test to ensure that there are no other issues with the phone. I.E.

No power, will not make a phone call, etc. Any issue outside of the LCM and the repair

should not be performed.

PHONE RF FIELD TEST

Perform this test BEFORE conducting the screen replacement to confirm the phone is

working properly and repeat after screen replacement is complete to confirm the

phone is properly working.

Once repairs are completed Signal Strength must be compared to the original

readings. Strength of signal must be within -10 dBm of the original reading at the

same phone location. Example: If first reading is -91 dbm, new reading cannot be

greater than -101 dBm. Readings moving up show a stronger strength and are

acceptable. Example: From -91dBm to -81dBm. -150 dBm is a no signal

indication.

Note: Clean Work area of all or any debris after Repair.

Step 8: Continue hinging the LCM Assembly out while working down the

Battery Well gently applying pressure.

Step 7: Release the plastic latch to continue the LCM Assembly removal if

required.

Step 6: Placing pressure on the open area above the SD Card Connector

and the top of the Battery Well push the top of the LCM Assembly out of

the Back Housing.

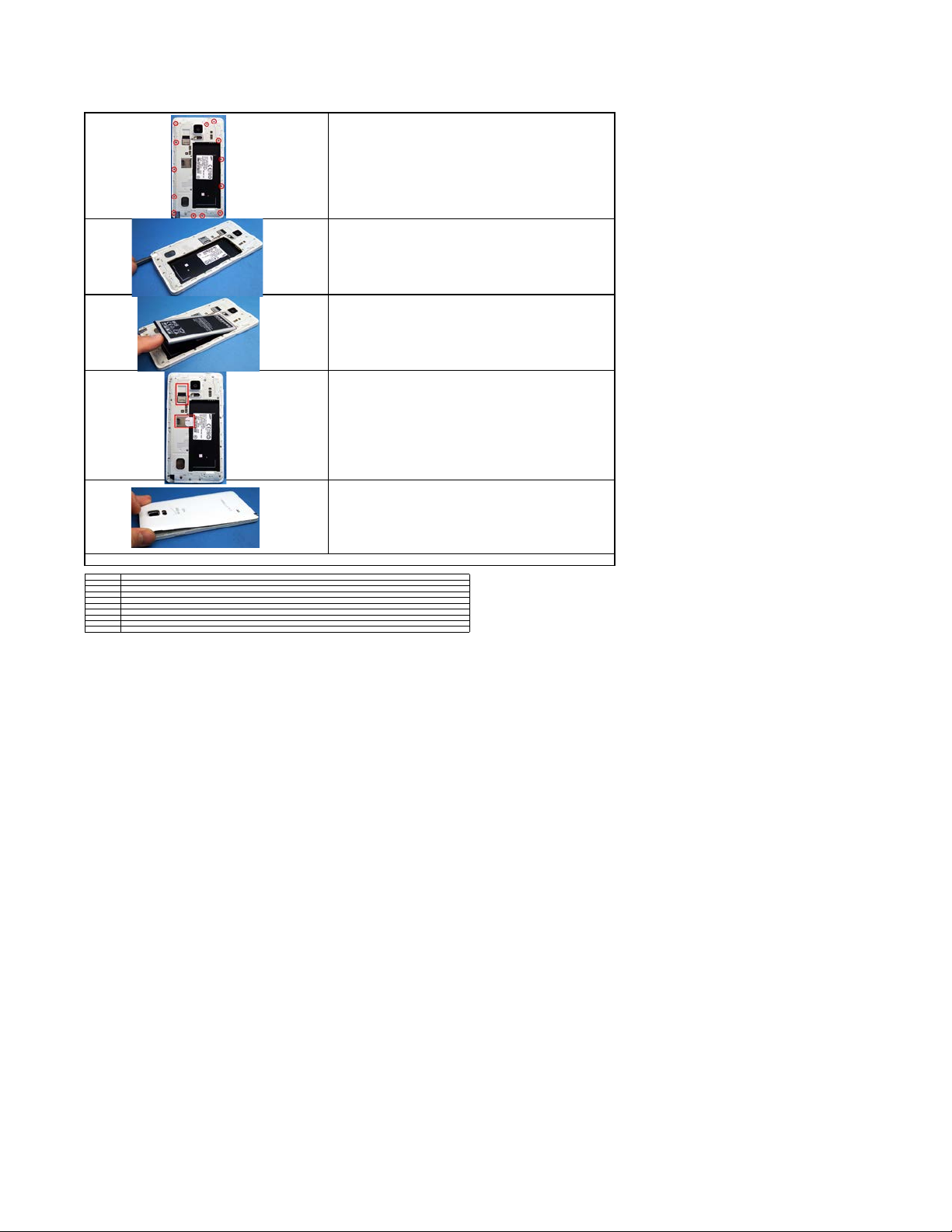

Step 5: Using the Phillips #00 Screwdriver Remove the 13 Phillips Screws

outlined.

Step 3: Remove the SIM and SD Cards if present.

Step 4: Remove the Stylus from the assembly.

Step 2: Remove the Battery.

Step 1: Remove the Battery Door.

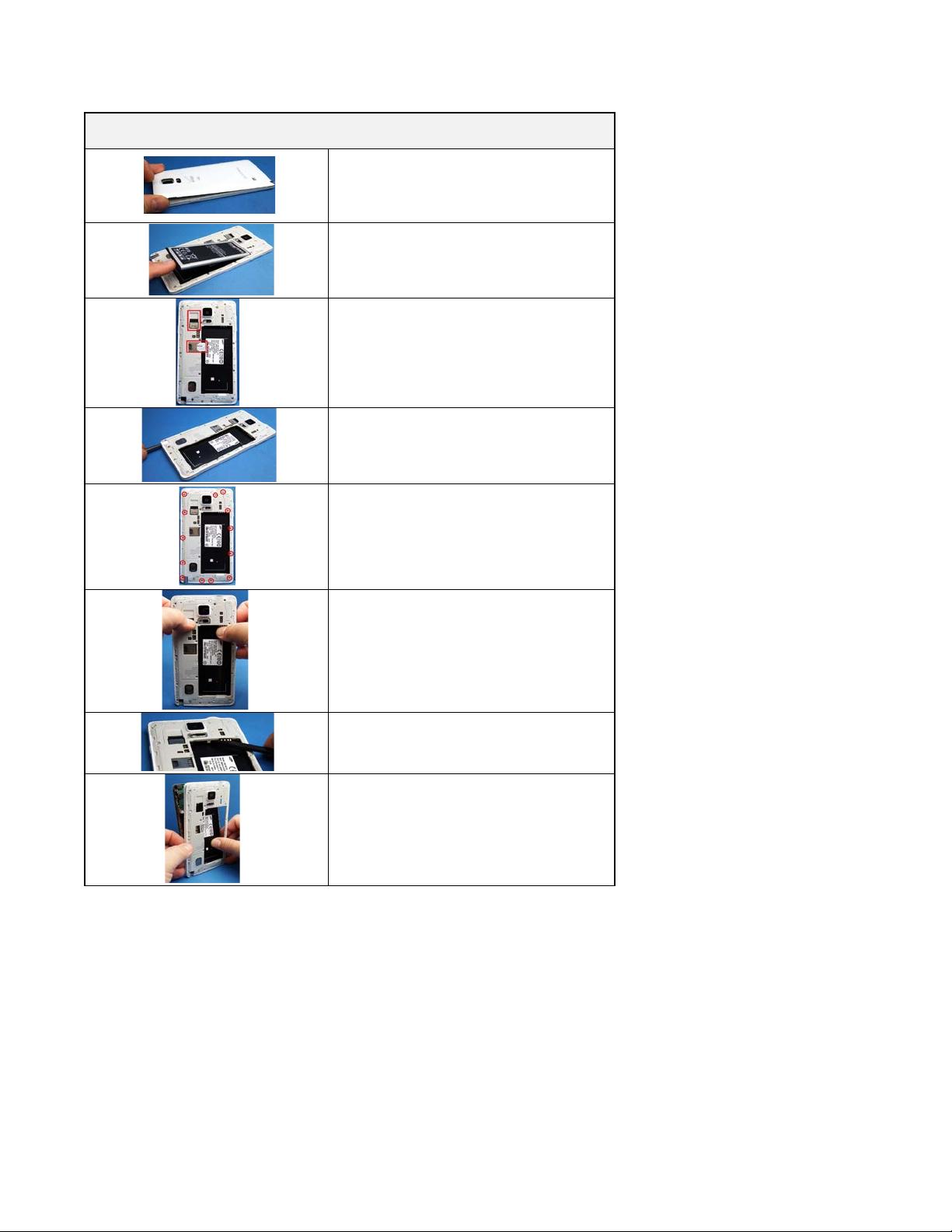

Disassembly

Step 14: Remove any remaining LCM adhesive from the plastic frame.

Ensure the Receiver Speaker Grill is aligned properly.

Ensure the left and right Soft Key Flex extensions are aligned properly

and adhered to the plastic frame.

Note:

Please keep work area and surrounding area as clean as possible of any

broken glass from the screen or LCD display.

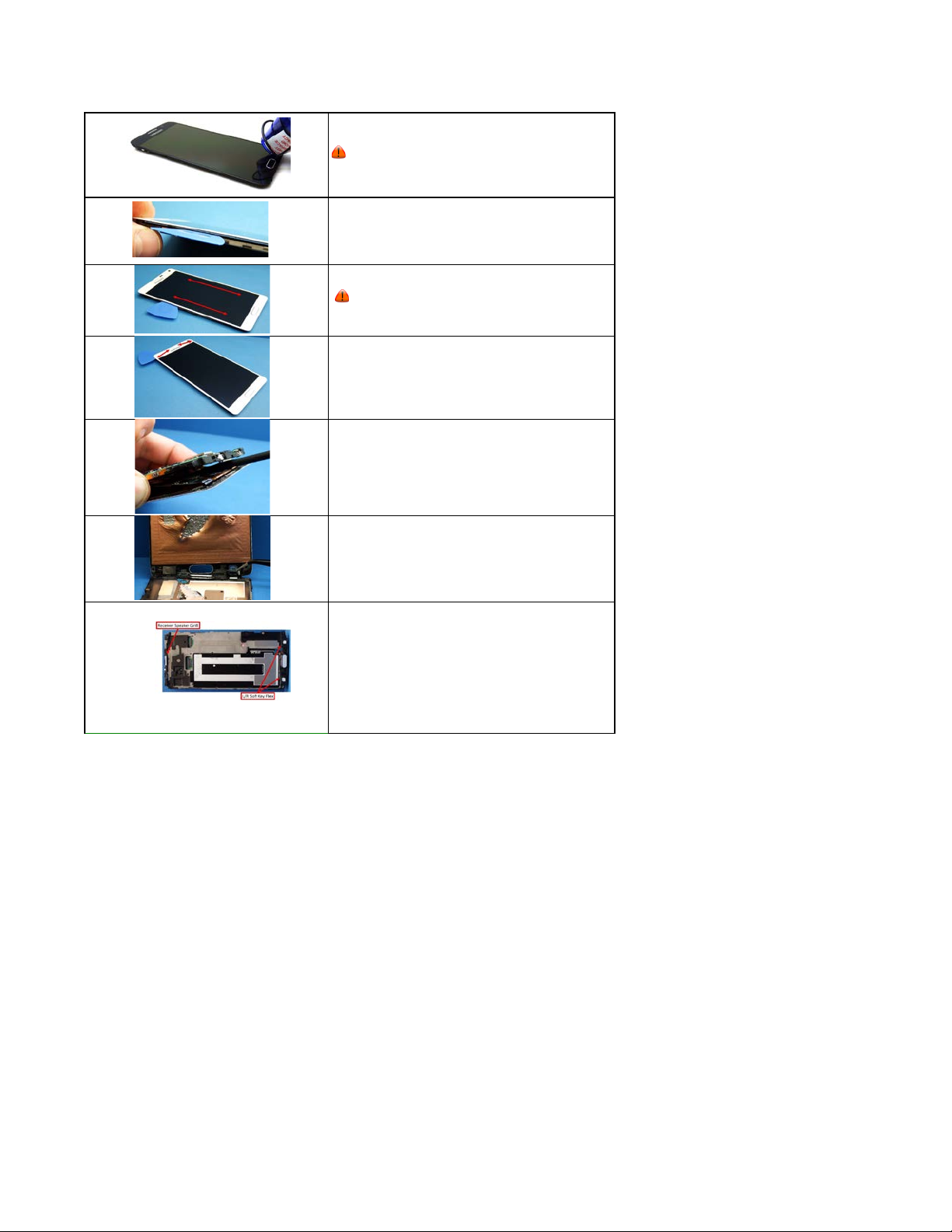

Step 9: Insert the full length of the opening pick between the Plastic

Frame and the Copper Foil on the back of the LCM Assembly.

Step 10: Cut the adhesive in the area designated by the arrows.

Moving outside of the area detailed by the arrows may result in Flex

Cable damage.

Step 12: Begin separating the Plastic Frame and the LCM at the top.

Slide the spudger into the opening and disconnect the LCM Flex Cables.

Step 11: Cut the adhesive between the Plastic Frame and the Touchpanel

in the area designated by the arrows.

Step 13: Hinging at the bottom continue separating the LCM from the

Plastic Frame.

Separate the Soft Key Flex Cables from the Touchpanel before removing

it from the Plastic Frame.

Step 8A: Apply heat over the entire surface area of the LCM Assembly

using a heat gun.

Exercise caution when heating any handset to ensure that the

temperature does not exceed the point where unintended damage

occurs.

Step 2: If premade is not available, use the approved roll adhesive.

Assembly

Step 6:Starting with the lower portion install the assembly into the Back

Housing.

Once installed press firmly on the LCM in various areas to ensure it is

adhered well to the Plastic Frame.

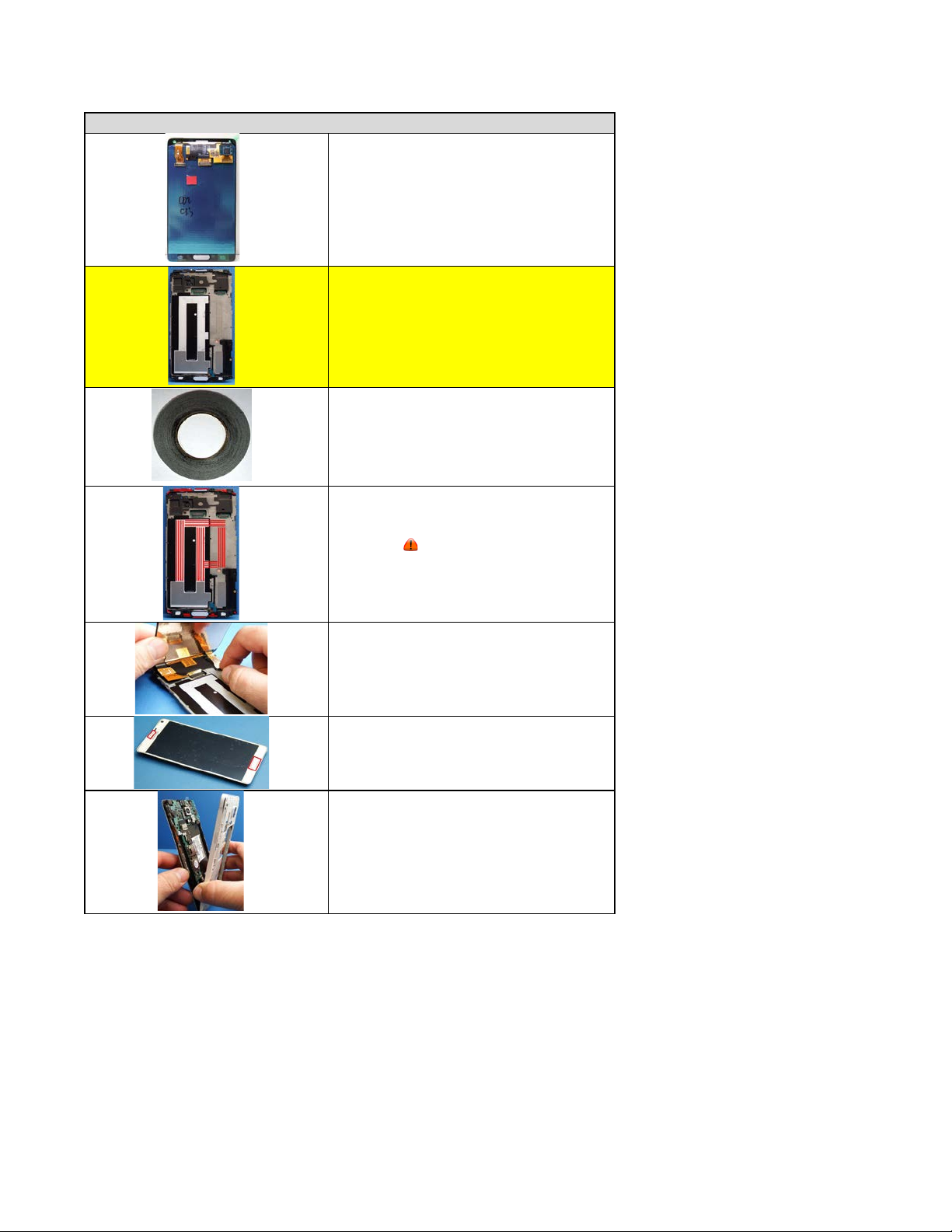

Step 1: If present, remove the film from the back of the LCM by pulling

up on the blue and green tabs. This will expose the copper film on the

back of LCM along with the top and bottom adhesives.

Step 1A: If the adhesive is not pre-installed, the two following

procedures may be followed.

Use of pre-made adhesive: Separate from the protective film and apply

it to the plastic frame as shown.

Step 3: Apply to the areas in RED.

Ensure that the sensors on both sides of the Receiver Speaker Grill and

the Left / Right Softkey Flexes are not covered.

Step 4: Connect the LCM Flex Cables to the Main PCB.

Step 5: Align the LCM with the Receiver Speaker Grill and the Home Key.

Lightly adhere the LCM to the Plastic Frame.

Date

Step 10: Install the SIM and SD Cards if present.

Step 9: Install the Battery.

Step 7: Using the Phillips #00 Screwdriver Install the 13 Phillips Screws

outlined.

Step 8: Install the Stylus from the assembly.

Step 11: Install the Battery Door. Note:

Clean Work area of all or any debris after Repair.

Issues

Known issues:
