Samsung HMX-H200BP Manuel utilisateur

User Manual

advanced record nq

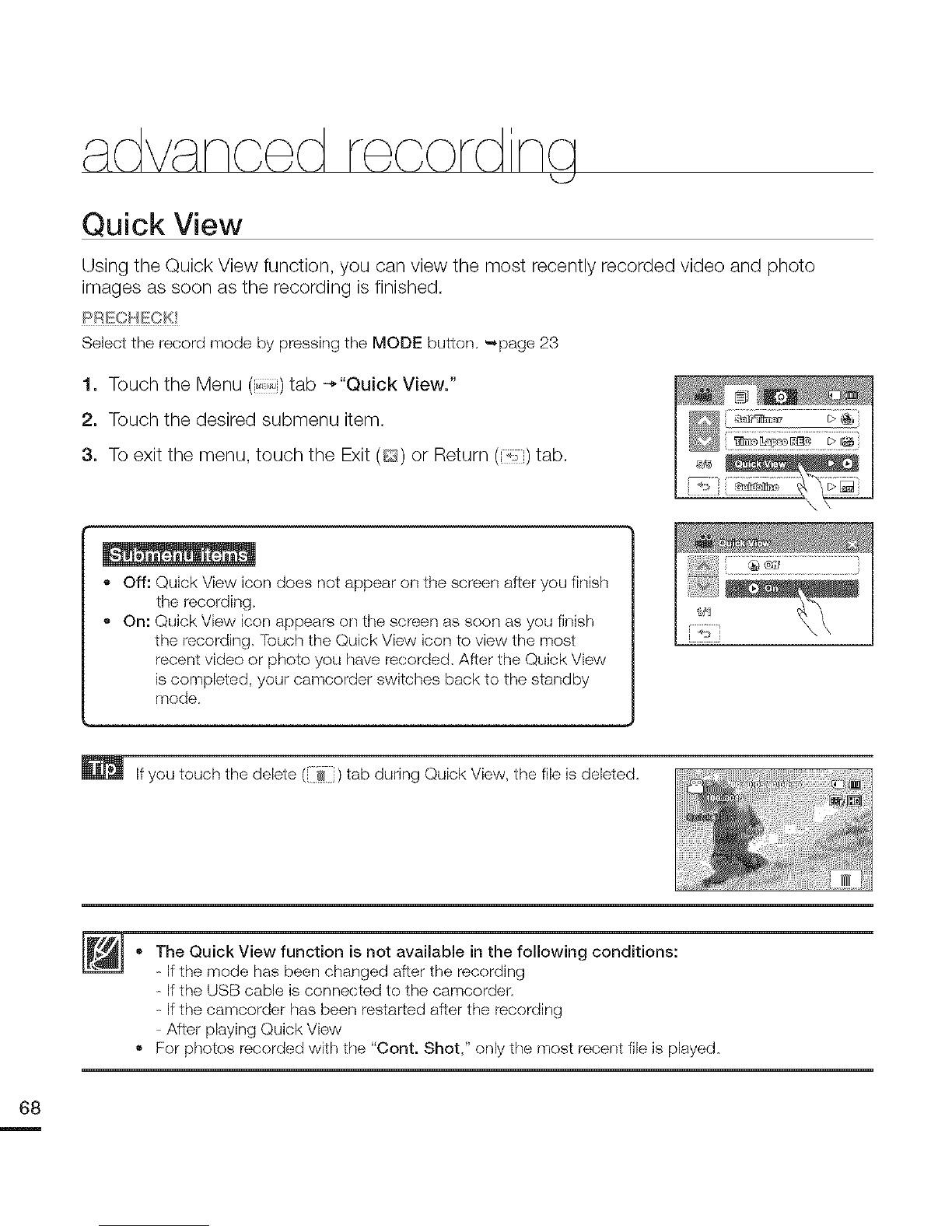

Quick View

Using the Ouick View function, you can view the most recently recorded video and photo

images as soon as the recording is finished.

_RECH_:CK!

Select the record mode by pressing the MODE button. _page 23

1. Touch the Menu (l_,,i ) tab -*"Quick View."

2. Touch the desired submenu item.

3. To exit the menu, touch the Exit (@) or Return (_) tab.

- Off: Quick View icon does not appear on the screen after you finish

the recording.

On: Quick View icon appears on the screen as seen as you finish

the recording. Touch the Quick Vk)w icon to view the most

recent video or photo you have recorded. After the Quick View

is completed, your camcorder switches back to the standby

mode.

If you touch the delete ([_) tab during Quick View, the file is deleted.

• The Quick View function is not available in the following conditions:

- If the mode has been changed after the recording

- If the USB cable is connected to the camcorder,

- if the camcorder has been restarted after the recording

- After playing Quick View

• For photos recorded with the "Cont. Shot," only the most recent file is played.

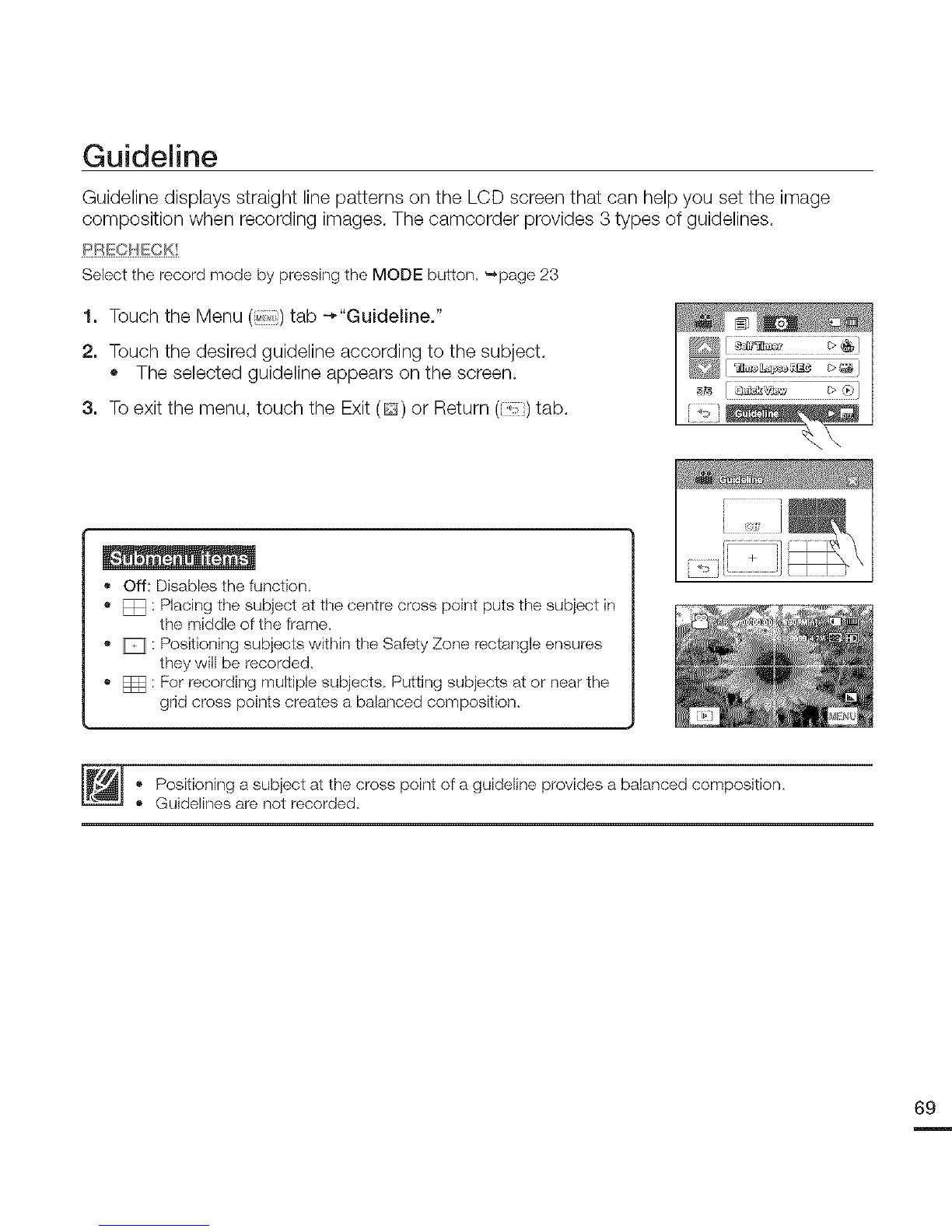

Guideline

Guideline displays straight line patterns on the LCD screen that can help you set the image

composition when recording images. The camcorder provides 3 types of guidelines.

PRECHECK!

Select the record mode by pressing the MODE button, _page 23

1. Touch the Menu (i_) tab -*"Guideline."

2. Touch the desired guideline according to the subject.

• The selected guideline appears on the screen.

3. To exit the menu, touch the Exit (_) or Return ([!}) tab.

• off: Disables the function,

• [] : Placing the subject at the centre cross point puts the subject in

the middle of the frame,

• D : Poskioning subjects within the Safety Zone rectangle ensures

they will be recorded,

• [] : For recording multiple subjects, Putting subjects at or near the

grid cross points creates a balanced composition.

• Positioning a subject at the cross point of a guideline provides a balanced composition,

• Guidelines are not recorded,

dv nc ed i _/

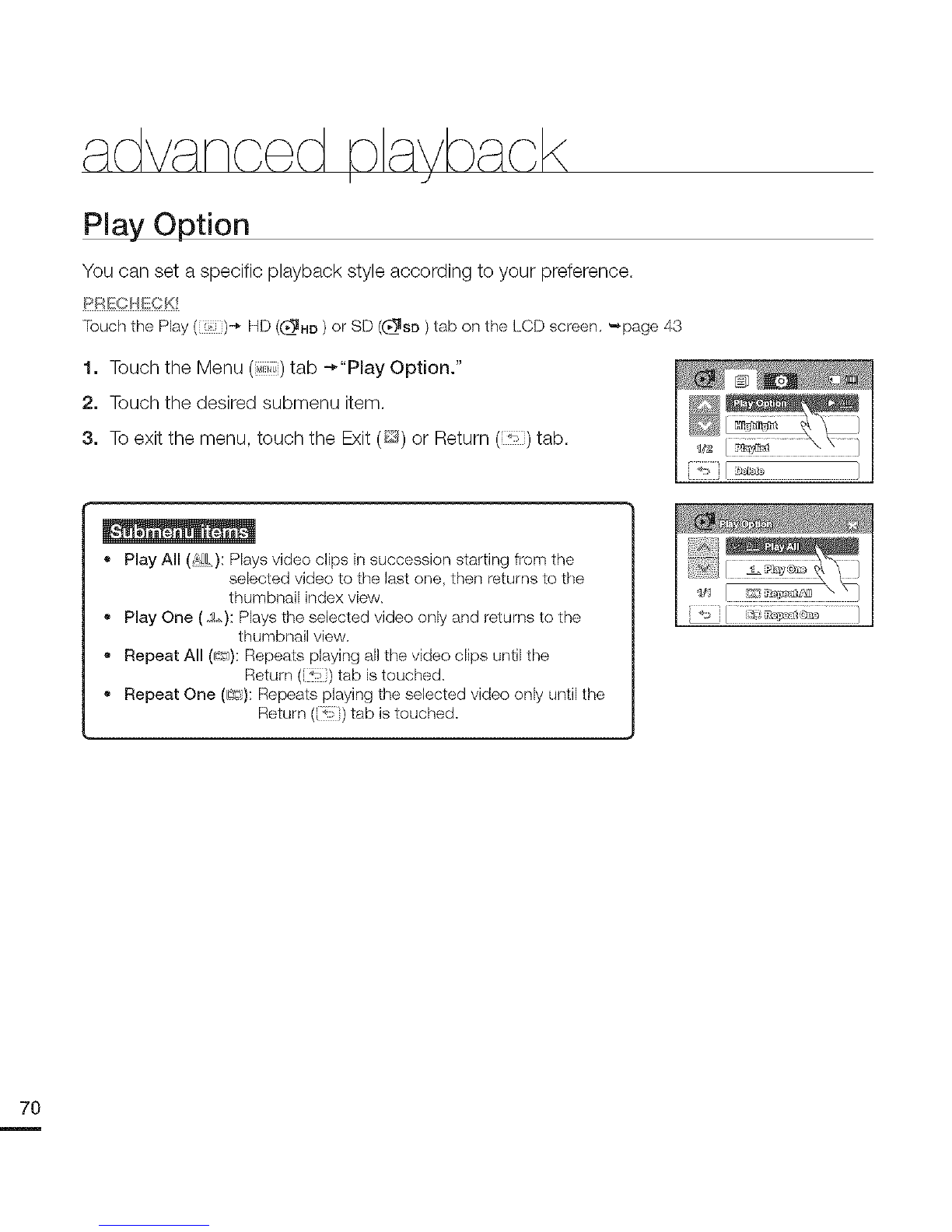

Play Option

You can set a specific playback style according to your preference.

PRFCHECK!

louch the Play ({)-* HD (_HD) or SD (_sD) tab on the LCD screen. _page 43

1. Touch the Menu (,i) tab -*"Play Option."

2. Touch the desired submenu item.

3. To exit the menu, touch the Exit (D) or Return ('_) tab.

• Play All (_Ij.): Plays video clips in succession starting from the

selected vide() to the last one, then returns to the

thumbnail index view.

• Play One (,_.,): Plays the selected vide() only and returns to the

thumbnail view.

• Repeat All (q/): Repeats playing all the video clips until the

Return([ i ) tab is touched.

- Repeat One (1_): Repeats playing the selected video only until the

Return ({:}) tab is touched.

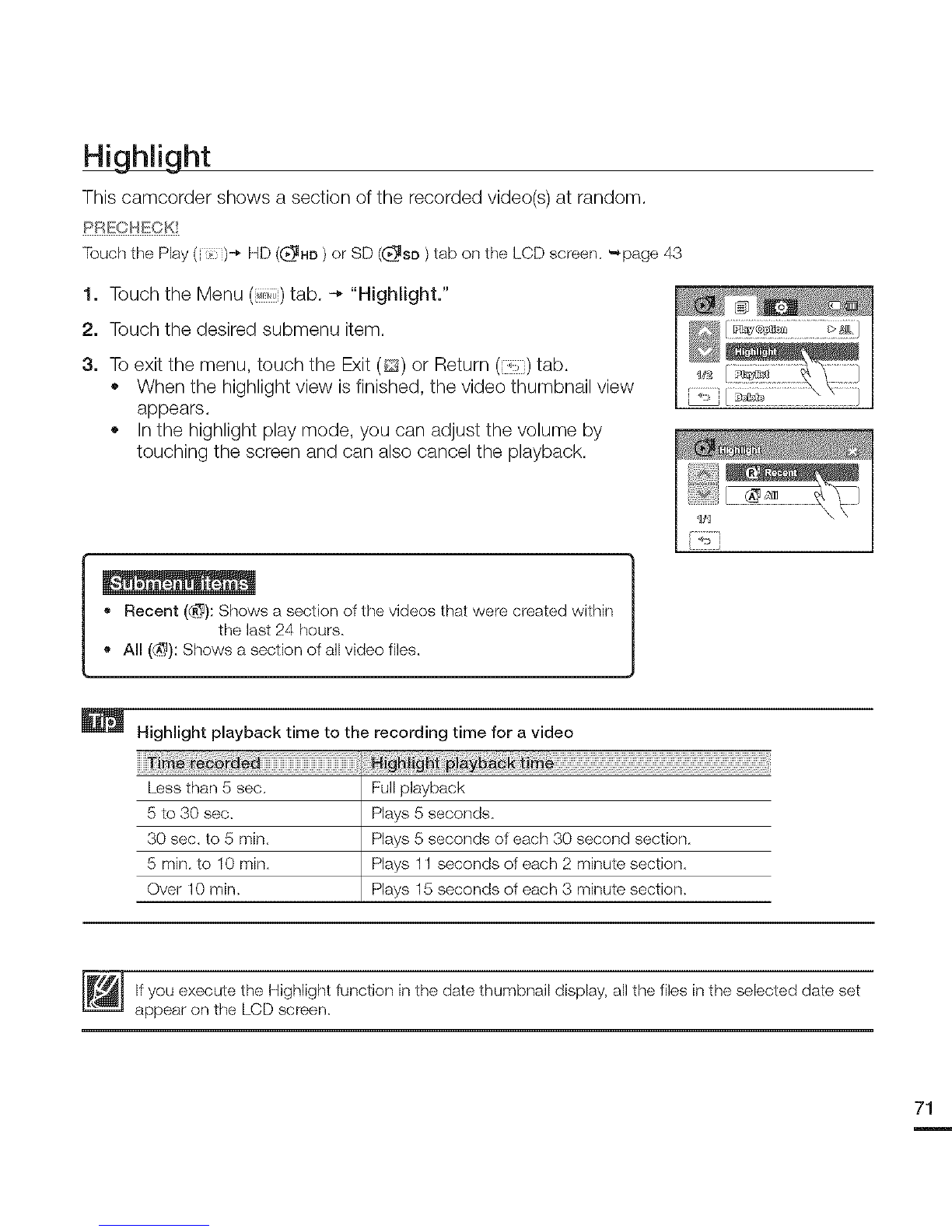

Thiscamcordershowsasectionoftherecordedvideo(s)atrandom.

PRECHECK

_TbuchthePlay(0)_HD(_4HU)orSD(_lsu)tabontheLCDscreen._page43

1. Touch the Menu (i:_Ti)tab. -* "Highlight."

2. Touch the desired submenu item.

3. To exit the menu, touch the Exit (_) or Return (o_) tab.

• When the highlight view is finished, the video thumbnail view

appears.

• In the highlight play mode, you can adjust the volume by

touching the screen and can also cancel the playback.

• Recent (_): Shows a section of the videos that were created within

the last 24 hours.

All (_): Shows a section of all video files.

-I,_N

Highlight playback time to the recording time for a video

Less than 5 sec. Full playback

5 to 30 sec. Plays 5 seconds.

30 sec. to 5 min. Plays 5 seconds of each 30 second section.

5 min. to 10 min. Plays 11 seconds of each 2 minute section.

Over 10 rain. Plays 15 seconds of each 3 minute section.

If you execute the Highlight function in the date thumbnail display, all the files in the selected date set

appear on the LCD screen.

dv n ed I J

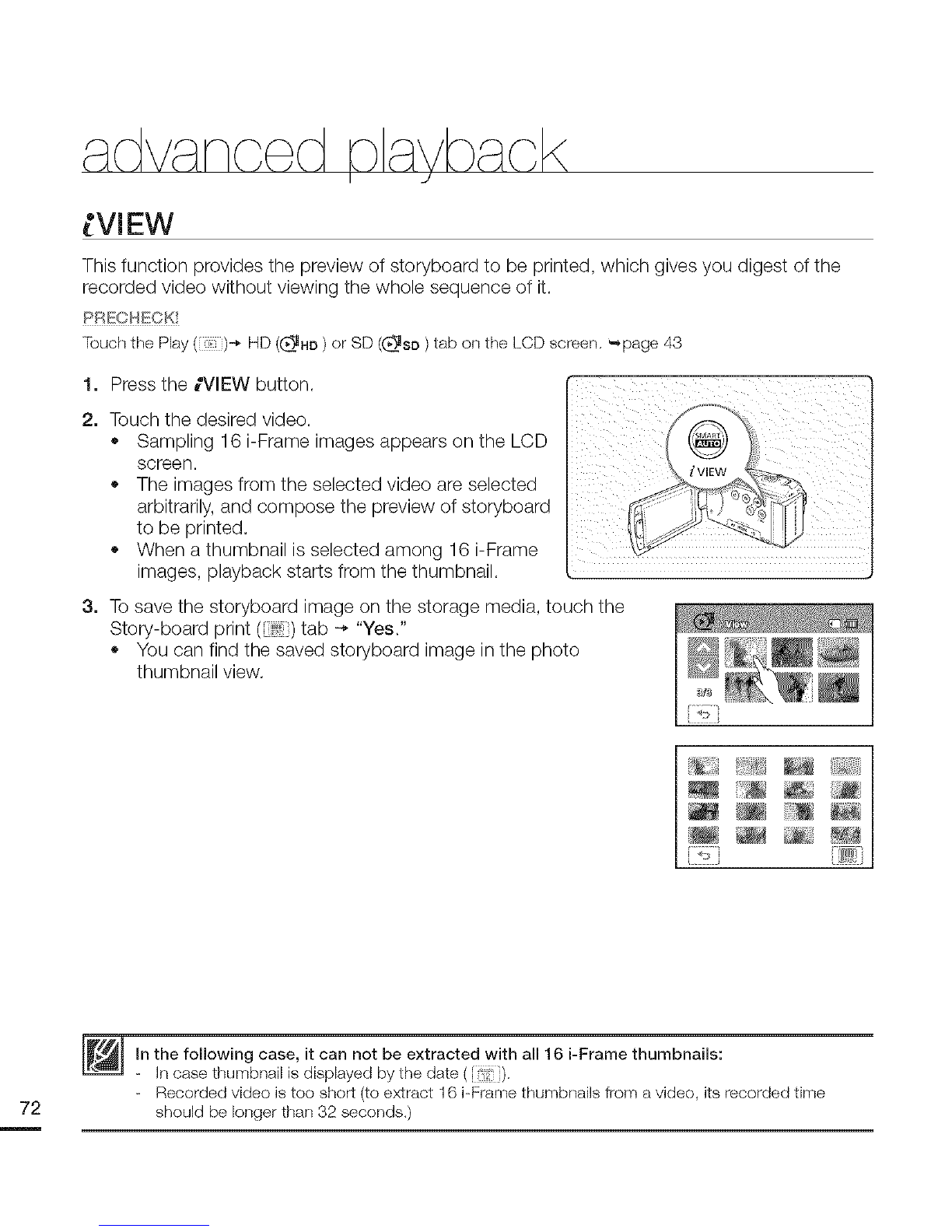

tNIEW

This function provides the preview of storyboard to be printed, which gives you digest of the

recorded video without viewing the whole sequence of it.

PRECHECK

_Tbuchthe Play({)-_ HD(_tHD) or SD(ass) tab onthe LCDscreen.".*page43

1. Press the _'VlEW button.

2. Touch the desired video.

• Sampling 16 i-Frame images appears on the LCD ................................

screen.

• The images from the selected video are selected

arbitrarily, and compose the preview of storyboard

to be printed,

• When a thumbnail is selected among 16 i-Frame

images, playback starts from the thumbnail.

3. To save the storyboard image on the storage media, touch the

Story-board print (it() tab -_ "Yes."

• You can find the saved storyboard image in the photo

thumbnail view.

{_::_

In the following case, it can not be extracted with all 16 i-Frame thumbnails:

-In case thumbnail is displayed by the date ( 'h;_).

-Recorded video is too short (to exlract 16 i-Frame thumbnails from a video, its recorded time

should be longer than 32 seconds.)

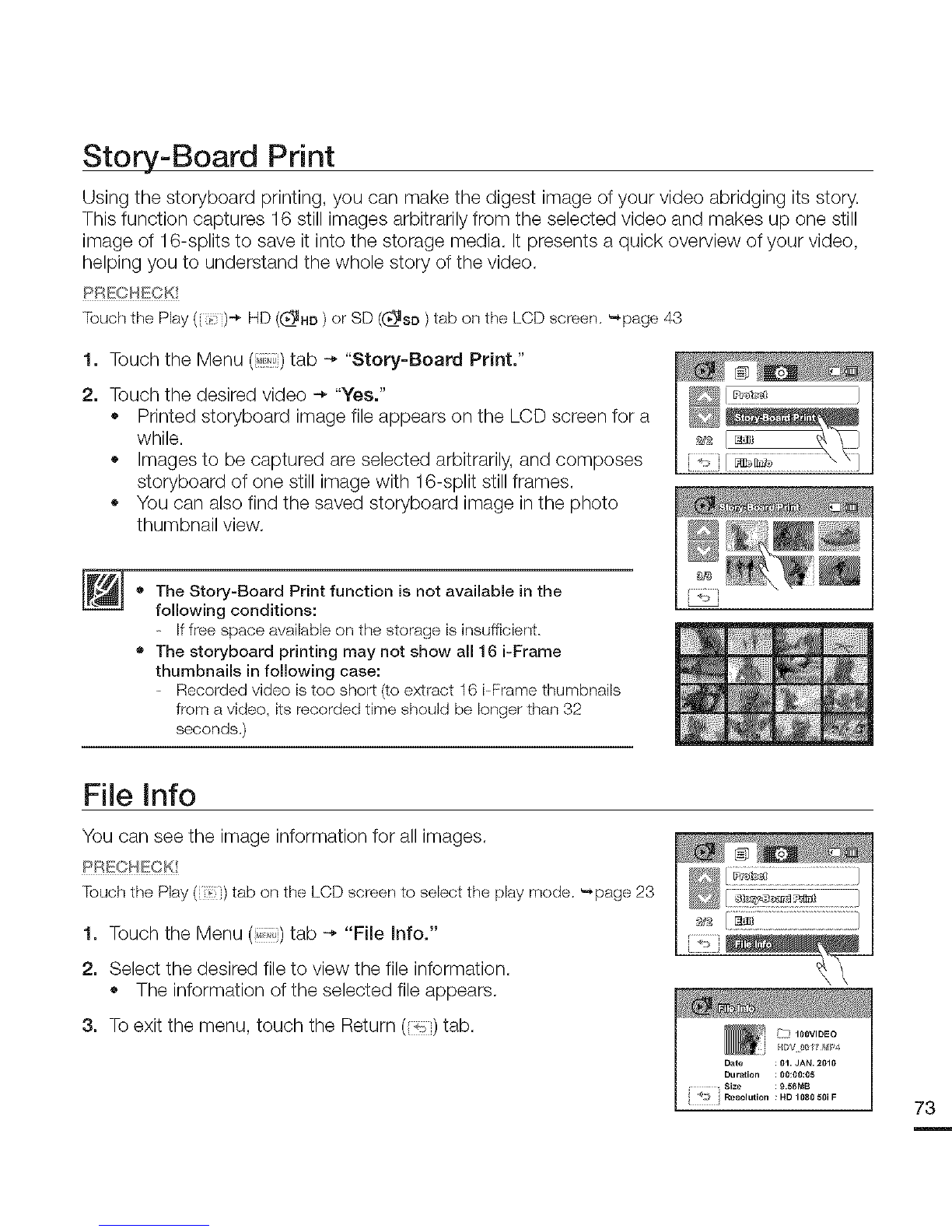

Story-Board Print

Using the storyboard printing, you can make the digest image of your video abridging its story.

This function captures 16 still images arbitrarily from the selected video and makes up one still

image of 16-splits to save it into the storage media. It presents a quick overview of your video,

helping you to understand the whole story of the video.

PR_:CHECK

Touch the Play ( )-* HD (_HD) or SD (_SD) tab on the LCD screen. '=_page 43

1. Touch the Menu (i_,_)tab -* "Story-Board Print."

2. Touch the desired video -* "Yes."

* Printed storyboard image file appears on the LCD screen for a

while.

* Images to be captured are selected arbitrarily, and composes

storyboard of one still image with 16-split still frames.

o You can also find the saved storyboard image inthe photo

thumbnail view.

• The Story-Board Print function is not available in the

following conditions:

If free space available on the storage is insufficient.

• The storyboard printing may not show all 16 i-Frame

thumbnails in following case:

Recorded video is too short (to extract 16 i-Frame thumbnails

from a video, its recorded time should be longer than 32

seconds.)

File info

You can see the image information for all images.

PRECHECK!

Touchthe Play(:) tab onthe LCDscreento select theplay mode. _page 23

1. Touch the Menu (,,,) tab -* "FiLe Info."

2. Select the desired file to view the file information.

• The information of the selected file appears.

3. To exit the menu, touch the Return (_,) tab.

i _ I OOVlDE 0

Date : 01. JAN. 2010

Duration : 00:e0:lt5

Size : 9.56MB

e;# Resolution :14D108O 50i F 73

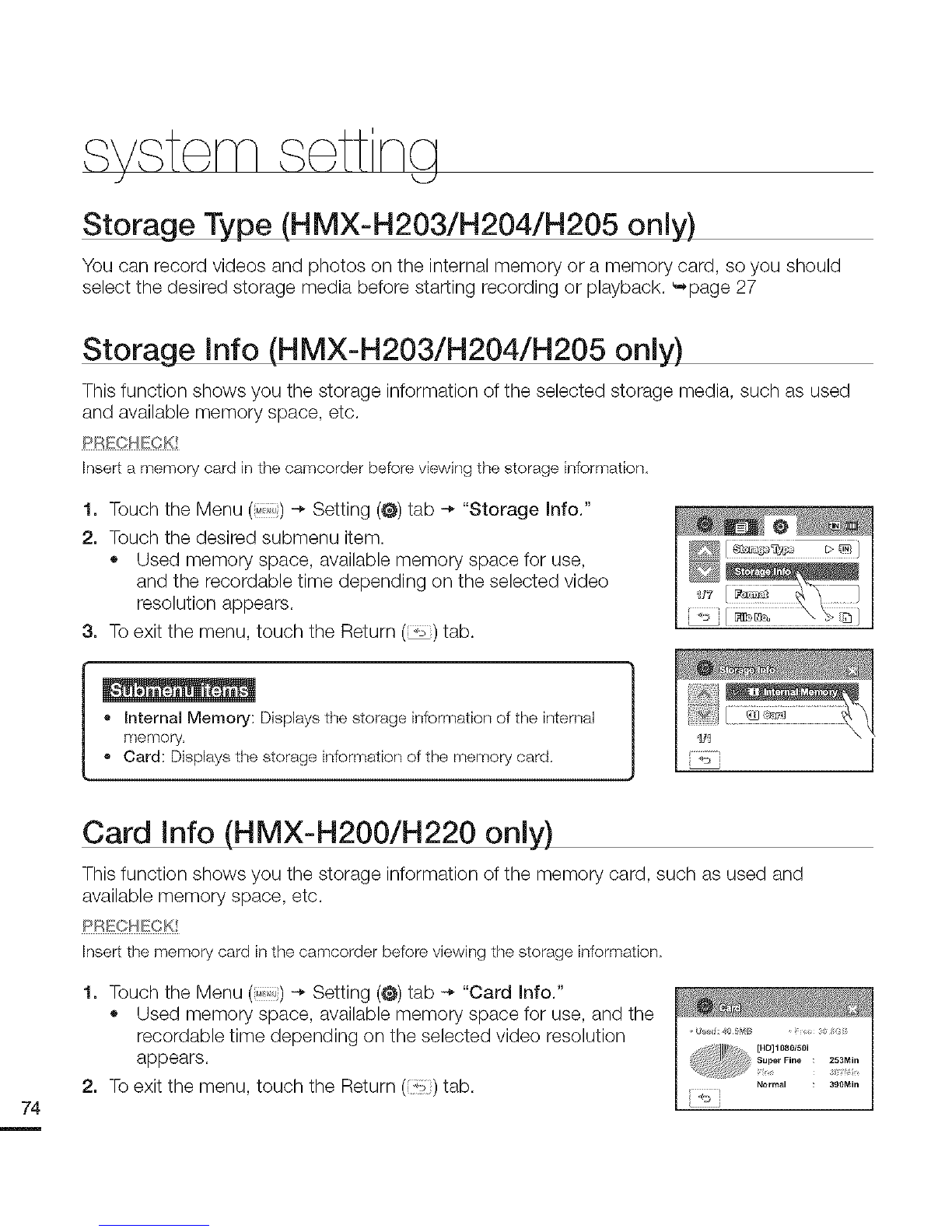

Storage Type (HMX-H203/H204/H205 only)

You can record videos and photos on the internal memory or a memory card, so you should

select the desired storage media before starting recording or playback. _page 27

Storage info (HMX-H203/H204/H205 only)

This function shows you the storage information of the selected storage media, such as used

and available memory space, etc.

PRECHECK!

Inserta memorycard in thecamcorder beforeviewingthestorage information.

1. Touch the Menu (,_,,_)-_ Setting (@)tab -_ "Storage Info."

2. Touch the desired submenu item.

• Used memory space, available memory space for use,

and the recordable time depending on the selected video

resolution appears.

3. To exit the menu, touch the Return ( 0,) tab.

• Internal Memory: Displaysthe storage informationof theinternal

memory.

,, Card: Displaysthe storage informationofthe memorycard.

Card info (HMX-H200/H220 only)

This function shows you the storage information of the memory card, such as used and

available memory space, etc.

PRECHECK!

Insertthe memorycard inthe camcorder beforeviewing thestorage information.

1. Touch the Menu (_,,,,_.)-_ Setting (@)tab -_ "Card Info."

• Used memory space, available memory space for use, and the

recordable time depending on the selected video resolution

appears.

2. To exit the menu, touch the Return (_,) tab.

_ ,_ super Fin_ • 2_3Min

Normal : 3_0Min

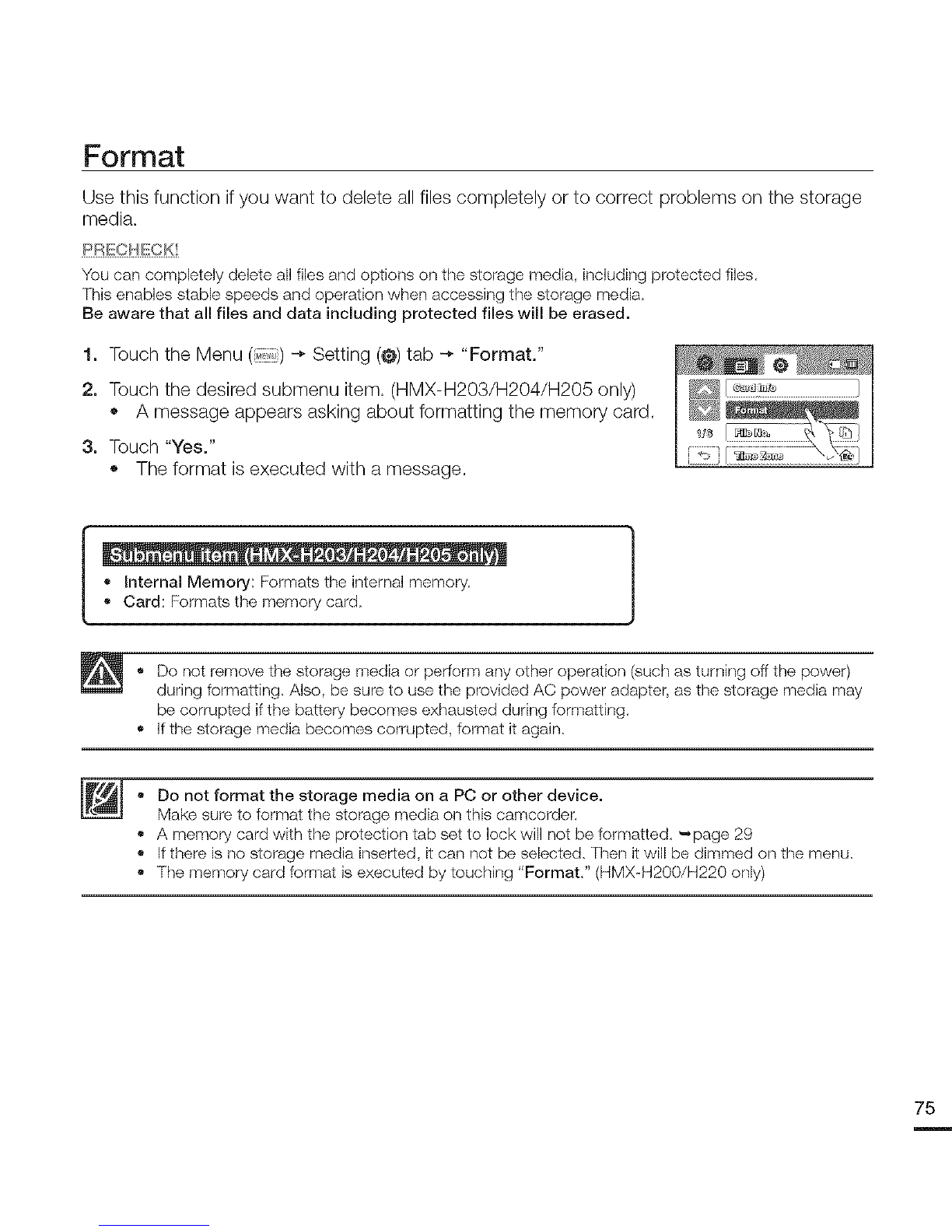

Format

Use this function if you want to delete all files completely or to correct problems on the storage

media.

PRFCHECK!

You can completely delete all files and options on the storage media, including protected flies.

Thisenablesstablespeedsand operationwhenaccessingthe storage media,

Be aware that all files and data including protected files will be erased.

1. Touch the Menu (i_,,_)-* Setting (@)tab -* "Format."

2. Touch the desired submenu item. (HMX-H203/H204/H205 only)

• A message appears asking about formatting the memory card.

3. Touch "Yes."

• The format is executed with a message,

I o mn_ I _ H m_,J_ _ _ _ € o ! ,

• Internal Memory: Formats the internal memory,

• Card: Formats the memory card, J

• De not remove the storage media or perform any other operation (such as turning off the power)

during formatting. Also, be sure to use the provided AC power adapter, as the storage media may

be corrupted if the battery becomes exhausted during lormatting.

• If the storage media becomes corrupted, format it again.

• Do not format the storage media on a PC or other device.

Make sure to format the storage media on this camcorder.

• A memory card with the protection tab set to lock wi, not be formatted. _page 29

• If there is no storage media inserted, it can net be selected. Then it will be dimmed on the menu.

• The memory card format is executed by touching "Format." (HMX H200/H220 only)

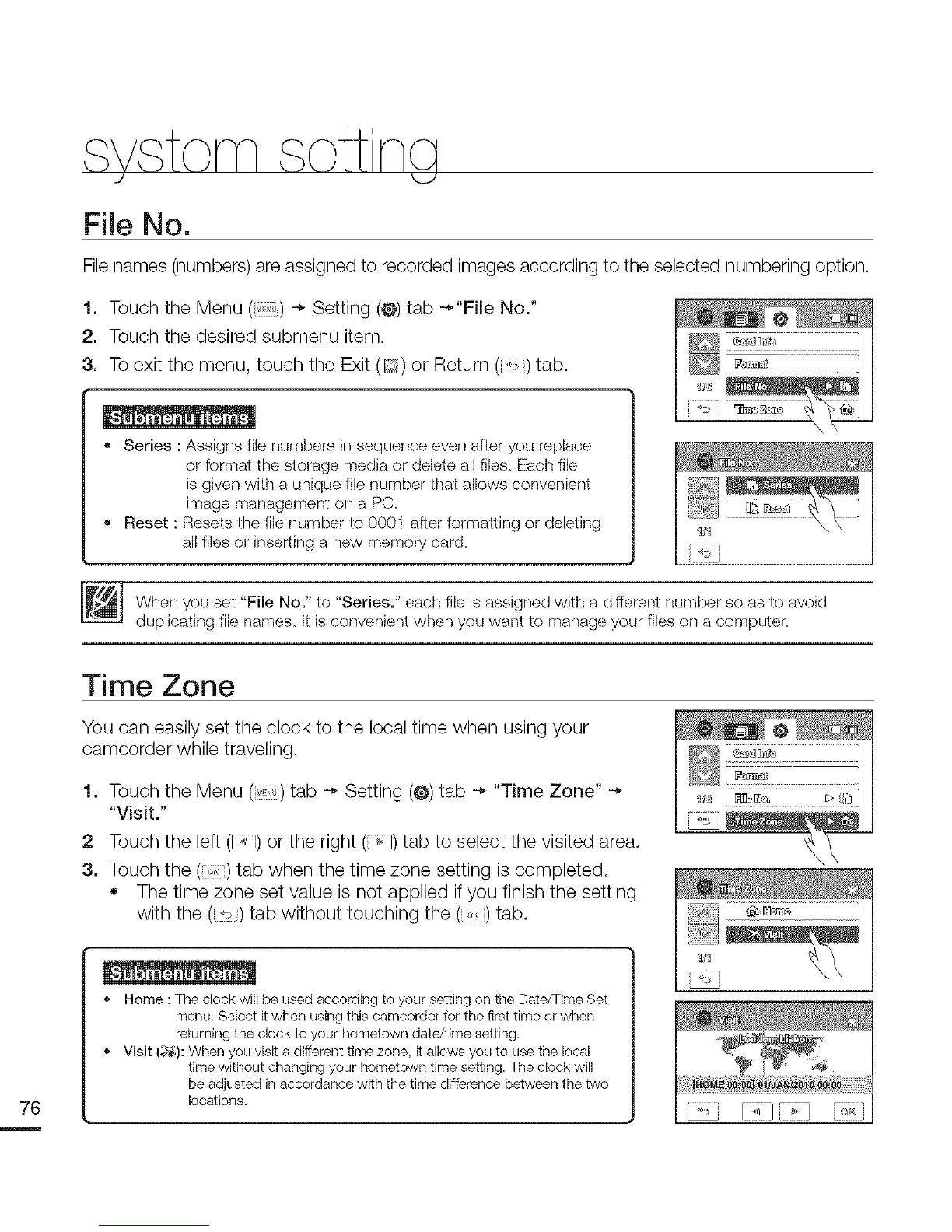

File No.

File names (numbers) are assigned to recorded images according to the selected numbering option.

1. Touch the Menu (,_,,_)-_ Setting (@)tab -_"File No."

2. Touch the desired submenu item.

3. To exit the menu, touch the Exit (P;£_)or Return ([,:,) tab.

• Series : Assignsfile numbersin sequenceevenafteryou replace

or formatthe storage mediaor deleteallfiles. Eachfile

is givenwith a uniquefilenumberthat allowsconvenient

image managementona PC.

• Reset : Resetsthefile numberto 0001 afterformatting or deleting

all filesor insertinga new memorycard.

When you set "File No." to "Series." each file is assigned with a different number se as to avoid

duplicating file names, It is convenient when you want to manage your files on a computer,

Time Zone

You can easily set the clock to the local time when using your

camcorder while traveling.

1. Touch the Menu (l,_,,,i)tab -_ Setting (@)tab -_ "Time Zone" -_

"Visit."

2 Touch the left (_) or the right (_) tab to select the visited area.

3. Touch the (_,,) tab when the time zone setting is completed.

• The time zone set value is not applied if you finish the setting

with the (o_) tab without touching the (_,_) tab.

Home : The clock will be used according to your setting on the Date/Time Set

menu. Select it when using this camcorder for the first time or when

returning the clock to your hometown date/time setting.

® Visit (._): When you visit a different time zone, it allows you to use the local

time without changing your hometown time setting. The clock wi,

be adjusted in accordance with the time difference between the two

locations.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung caméscope

Samsung

Samsung SC-X210L Manuel du propriétaire

Samsung

Samsung VP-D97I Manuel du propriétaire

Samsung

Samsung SCD23/D24 Manuel du propriétaire

Samsung

Samsung HMX-M20BN Manuel utilisateur

Samsung

Samsung SM-C200 Gear 360 Manuel utilisateur

Samsung

Samsung VP-L300 Manuel du propriétaire

Samsung

Samsung HMX-E10BN Manuel utilisateur

Samsung

Samsung HMX-H304BN Guide de l'utilisateur

Samsung

Samsung VP-D24i Guide de configuration

Samsung

Samsung SCD6550 - DuoCam MiniDV Camcorder Manuel du propriétaire

Samsung

Samsung VP-D530 Manuel du propriétaire

Samsung

Samsung VP-D353 Manuel utilisateur

Samsung

Samsung VP D 352 i Manuel du propriétaire

Samsung

Samsung VP-D381( i ) Manuel utilisateur

Samsung

Samsung VP-D905 Manuel du propriétaire

Samsung

Samsung VP-L600B Guide de configuration

Samsung

Samsung HMX-H205BP Manuel utilisateur

Samsung

Samsung SDC-435U Manuel utilisateur

Samsung

Samsung SMX-C10RN - Compact Sd Memory Camcorder Manuel utilisateur

Samsung

Samsung VP-D455 Manuel utilisateur

Samsung

Samsung SC-D363 Manuel du propriétaire

Samsung

Samsung VP-HMX20C Manuel utilisateur

Samsung

Samsung HMX-S10BN Manuel utilisateur

Samsung

Samsung VP-D903 Manuel du propriétaire

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Sony

Sony Handycam DCR-DVD7E Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

JVC

JVC GR-SXM68AC Guide de démarrage rapide

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

Sony

Sony video Hi8 Handycam CCD-TR555 Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

JVC

JVC AA-V15EG Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

Sony

Sony Handycam DCR-VX2000 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur
