SERVICE Manual

CONTENTSAIR CONDITIONER

1. Precautions

2.ProductSpecifications

3. OperatingInstructions and

Installation

4.Disassembly and Reassembly

5. Troubleshooting

6. Exploded Views andParts List

7. BlockDiagrams

8. PCBDiagrams

9. Wiring Diagrams

10. Schematic Diagrams

ROOM AIR CONDITIONER

INDOOR UNIT

AM14A1(B1)E07

AM20A1(B1)E06

AM20A1(B1)E08

OUTDOOR UNIT

UM14A1(B1)E2

UM20A1(B1)E3

1. Warning: Prior to repair, disconnect the

power cord from the circuit breaker.

2. Use proper parts: Use only exact

replacement parts. (Also, we recommend

replacing parts rather than repairing them.)

3. Use the proper tools: Use the proper tools

and test equipment, and know how to use

them. Using defective tools or test

equipment may cause problems later-

intermittent contact, for example.

4. Power Cord: Prior to repair, check the power

cord and replace it if necessary.

5. Avoid using an extension cord, and avoid

tapping into a power cord. This practice

may result in malfunction or fire.

6. After completing repairs and reassembly,

check the insulation resistance. Procedure:

Prior to applying power, measure the

resistance between the power cord and the

ground terminal. The resistance must be

greater than 30 megohms.

7. Make sure that the grounds are adequate.

8. Make sure that the installation conditions

are satisfactory. Relocate the unit if

necessary.

9. Keep children away from the unit while it is

being repaired.

10. Be sure to clean the unit and its surrounding

area.

Samsung Electronics 1-1

1. Precautions

Fig. 1-1 Avoid Dangerous Contact

Fig. 1-2 No Tapping and No Extension Cords

Fig. 1-3 No Kids Nearby!

Fig. 1-4 Clean the Unit

Samsung Electronics 9-1

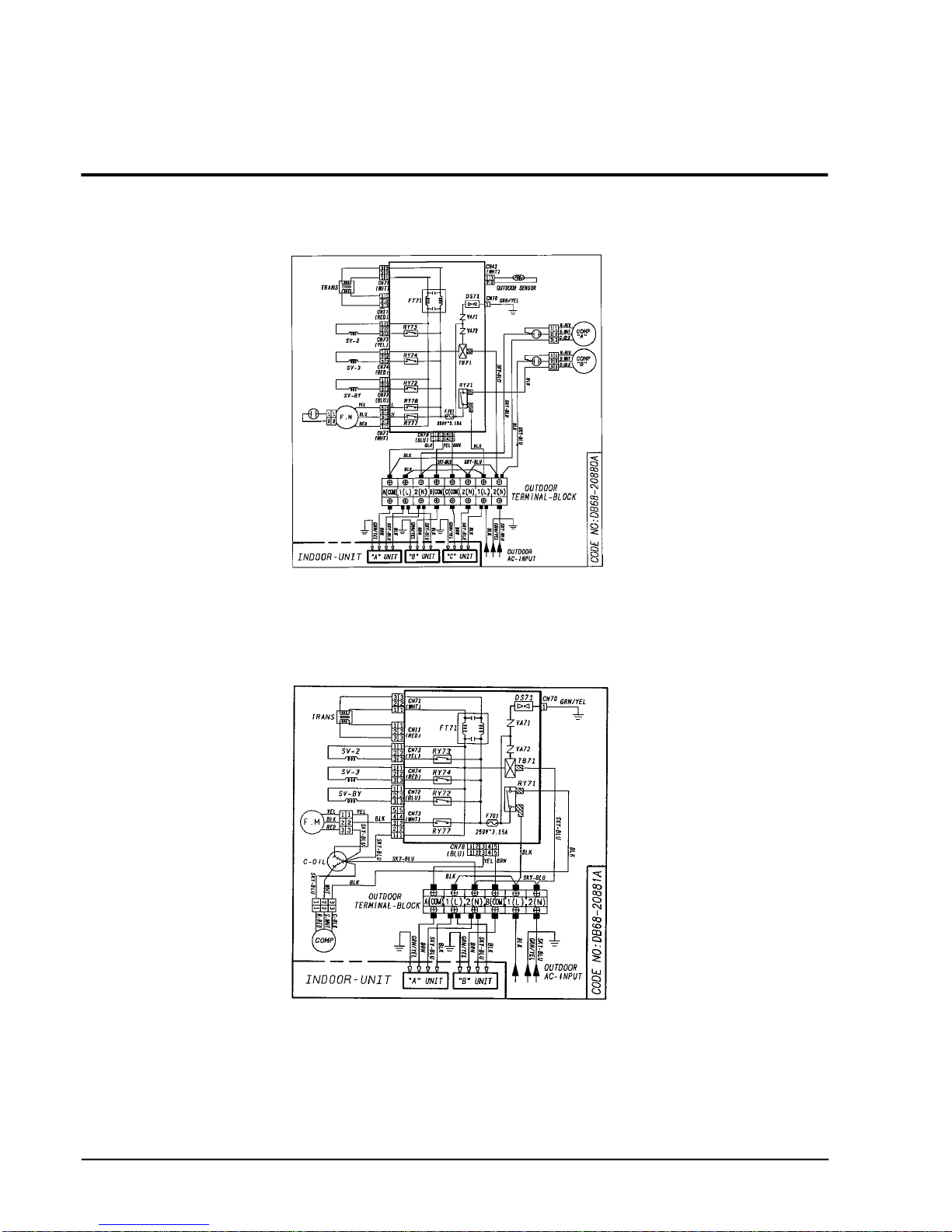

9. Wiring Diagrams

9-1 Indoor Unit

• AM20A1(B1)E08 • AM20A1(B1)E06

• AM14A1(B1)E07

Samsung Electronics

9-2

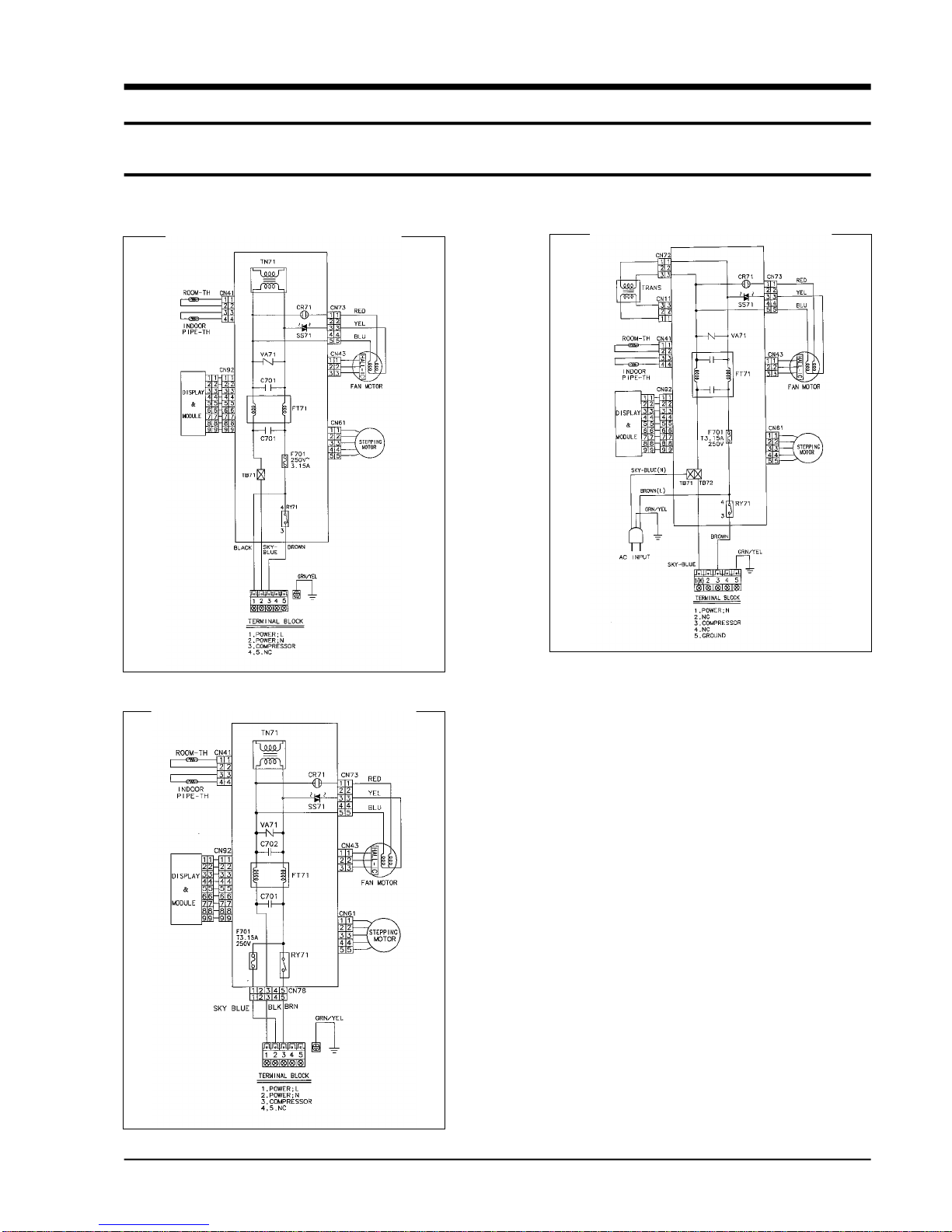

9-2 Outdoor Unit

• UM20A1(B1)E3

• UM14A1(B1)E2

UPDA TE LOG SHEET

Application date Page Part# Note(Cause & Solution) S/Bulletin#

Use this page to keep any special servicing information. (Service Bulletin, etc.)

If only parts number changes, Just change parts number directly on parts list.

And if you need more information, please see the service bulletin

®œ 1995 by Samsung Electronics Co., Ltd.

This manual may not, in whole or in part, be

copied, photocopied, reproduced, translated, or

converted to any electronic or machine readable

from without prior written permission of

Samsung Electronics Co., Ltd.

SyncMaster 17GLi/CMG7387L Service Manual

First edition June 1995.

Printed in Korea.

Trademarks

Samsung is a registered trademark and

SyncMaster 17GLi/CMG7387L and

MacMaster

Cable Adapter are trademark of Samsung

Electronics Co., Ltd.

Macintosh, Centris, Quadra, Duo Dock, and

Power Macintosh are trademark of Apple

computer, Inc.

All other trademarks are the property of their

respective owners.

Samsung Electronics

8-1

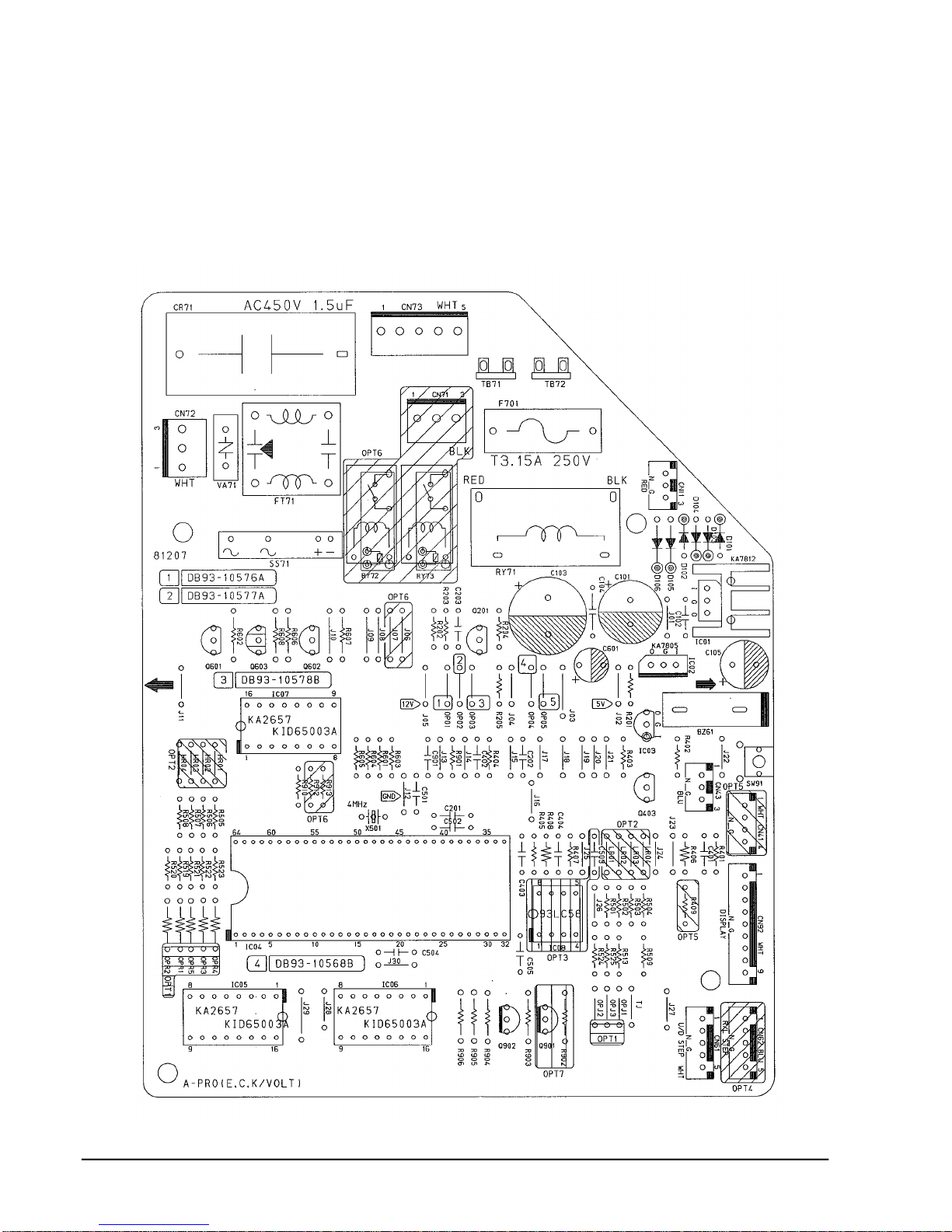

8. PCB Diagrams

8-1 Main PCB-INDOOR UNIT

8-1-1 AM14A1(B1)E07 (DB93-10603A)

PCB Diagrams

8-2

Samsung Electronics

■PARTLIST

DESIGN LOCATION

F701

IC01

IC02

CR71

FT71

R903,904,905,906

R203

R202,301,409,501~509,513,518~521,601,604,606,902

R522

R523

R405,407

R201,204,405,401,402,404,603,606

R607

R602

R403

R910,912,913

R406,408

D101~105

SS71

BZ61

TN71

C202,402

C301,401

C102,104,201,203,403,404,501,502,902

C103

C105

C101

C601

IC04

IC03

X501

IC05,IC06,IC07

Q201,401,601,602

Q603

Q902, Q901

SW91

CN73

CN43

CN41

CN61

CN62

CN71

CN92

TB71,72

RY71

RY72,RY72

J1~J35

HR01

HR02

HR03

HR04

LR01

LR02

LR03

LR04

SW02

SW01

OP01

OP02

OP03

OP04

CODE NO

DE32-10037A

DE47-40024A

DE13-20008A

DE62-30032A

DE60-10100A

DE13-10016A

2306-000294

DE29-90004A

2001-000776

2001-000588

2001-000065

2001-000036

2001-000042

2001-000855

2001-001088

2001-000890

A1000-0224

2004-001137

0402-000137

B4190-0016

DE30-20016A

DE26-20154A

DE60-60012A

2202-000783

2202-000796

2202-000780

2401-000710

2401-001397

2401-000180

2401-001573

DE09-10149A

DE13-20009A

2802-000103

DE13-20024A

A4050-0168

0501-000292

0504-000144

3404-001013

3711-000262

3711-000879

3711-002662

3711-000999

3711-000997

3711-001154

DE59-30001A

3501-001058

B3068-0092

DE39-60001A

Description

FUSE

HOLDER-FUSE

IC-VOLT REGU

HEAT-SINK

SCREW-PH

IC-VOLT REGU

C-FILM

FILTER NOISE

R-CARBON

R-METAL FILM

DIODE-RECT

THYRISTOR

BUZZER

TRANS L.V

PIN EYELET

C-CERAMIC

C-ELEC

IC-MCU

RSONATOR-CERAMIC

IC-DRIVE

TR-GENERAL

TRANSISTOR

SWITCH-TACT

CONNECTOR WAFER

CONNECTOR-TERMINAL

RELAY

WIRE SO COPER

Specification

FST 250V 3.15A

FH-51H 7.5A

KA7812A

AL H25

M3*6 FeFzY

KA7805A

CQS 450V 1.5

MD250V 1.6A 6mH

RD 1/2 T(S) 821-J

RD 1/4 TP 332-J

RD 1/4 TP 103-J

RD 1/4 TP 331-J

RD 1/4 TP 102-J

RD 1/4 TP 560-J

RD 1/2 TP 102-J

RD 1/4 TP 682-J

RD 1/8 TP 332-J

RD 1/4 TP 682-F

1N4007

G3MB-202PL

CBE 2220BA STICK

230V DC17V 300mA

OD2.5 L3.0

CA OA 50V 103Z

CA OA 50V 102Z

CA OA 50V 104Z

CE04 25V 222-M

CE 04 25V 471-M

CE 04 35V 102-M

47/50V

MB89635R-466

KA7533Z

10MHz

KID65003AP

KSC945Y

A708Y

R2002

KPT-1115V

YW396-05AV WHT

SMW250-03 BLU

JSW250-02WHT

SMW250-05 WHT

SMW250-05BLU

YW396-03AV BLK

SMW250-09 WHT

250TAP,1PIN

DI1U DB12V

JQ1a-12V

PI0.6 SN T 52MM

Q’TY

Samsung Electronics

8-3

8-1-2 AM20A1(B1) E08(DB93-00072A)

PCB Diagrams

8-4

Samsung Electronics

■PARTLIST

No DESIGN LOCATION

F701

IC01

IC02

CR71

FT71

R903

R203

R202,301,409,501~509,513,601,604,606,901

R405,407

R201,204,401,402,404,603,605

R607

R602

R403

R910,912

R406,408

D101~105

SS71

BZ61

TN71

C202,402

C301,401

C102,104,201,203,403,404,501,502,901

C103

C105

C101

C601

IC04

IC03

X501

IC05,IC06,IC07

Q201,401,601,602

Q603

Q902, Q901

SW91

CN73

CN43

CN41

CN61

CN92

TB71

RY71

J1~J29,HR01,03,LR01

C701

C702

R904~906

CM71

RY72

CODE NO

DE32-10037A

DE47-40024A

DE13-20008A

DE62-30032A

DE60-10100A

DE13-10016A

2306-000294

2001-000776

2001-000588

2001-000065

2001-000036

2001-000042

2001-000855

2001-001088

2001-000890

A1000-0244

2004-001137

0402-000137

B4190-0016

DE30-20016A

DE26-20154A

DE60-60012A

2202-000783

2202-000796

2202-000780

2401-000710

2401-001397

2401-000180

2401-001573

DE09-10149A

DE13-20009A

2802-000103

DE13-20024A

A4050-0168

0501-000292

0504-000144

3404-001013

3711-000262

3711-000879

3711-000940

3711-000999

3711-001154

DE59-30001A

3501-001058

DE39-60001A

3501-000399

Description

FUSE

HOLDER-FUSE

IC-VOLT REGU

HEAT-SINK

SCREW-PH

IC-VOLT REGU

C-FILM

FILTER NOISE

R-CARBON

R-METAL FILM

DIODE-RECT

THYRISTOR

BUZZER

TRANS L.V

PIN EYELET

C-CERAMIC

C-ELEC

IC-MCU

RSONATOR-CERAMIC

IC-DRIVE

TR-GENERAL

TRANSISTOR

SWITCH-TACT

CONNECTOR WAFER

CONNECTOR-TERMINAL

RELAY

WIRE SO COPER

C-MYLAR

R-CARBON

CONNECTOR WAFER

RELAY

Specification

FST 250V 3.15A

FH-51H 7.5A

KA7812A

AL H25

M3*6 FeFzY

KA7805A

CQS 450V 1.5

LSA05230P

RD 1/2 T(S) 471-J

RD 1/4 TP 332-J

RD 1/4 TP 103-J

RD 1/4 TP 331-J

RD 1/4 TP 102-J

RD 1/4 TP 560-J

RD 1/2 T(S) 102-J

RD 1/4 TP 682-J

RD 1/8 TP 332-J

RD 1/4 TP 682-F

1N4007

G3MB-202PL

CBE 2220BA STICK

230V DC17V 300mA

OD2.5 L3.0

CA OA 50V 103Z

CA OA 50V 102Z

CA OA 50V 104Z

CE04 25V 222-M

CE 04 25V 471-M

CE 04 35V 102-M

47UF/50V

MB89635R-466

KA7533Z

10MHz

KID65003AP(KA2657)

KSC945Y

A708Y

R2002

KPT-1115V

YW396-05AV WHT

SMW250-03 BLU

SMW250-04(WHT)

SMW250-05 WHT

SMW250-09 WHT

250TAP,1PIN

DI1U DC12V

PI0.6 SN T 52MM

224K

104K

RD 1/2T(S) 621-J

YW396-03AV(BLK)

JQ1a-12V

Q’TY

Samsung Electronics

8-5

8-1-3 AM20A1(B1)E06 (DB93-10628A)

PCB Diagrams

Autres manuels pour AM14A1E07

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AM27B1C07 Manuel utilisateur

Samsung

Samsung AWT18F1MBB/BC Manuel utilisateur

Samsung

Samsung AR09KSWSPWKNCV Manuel utilisateur

Samsung

Samsung AC NN4DEH Series Manuel utilisateur

Samsung

Samsung SC09AWHX Manuel utilisateur

Samsung

Samsung AQ09A Series Manuel utilisateur

Samsung

Samsung DH094EAMC Manuel utilisateur

Samsung

Samsung AC RN DKG Series Manuel utilisateur

Samsung

Samsung AR KPFH Series Mode d’emploi

Samsung

Samsung SH24TAB5 Manuel utilisateur

Samsung

Samsung AM007FN1DCH Series Manuel utilisateur

Samsung

Samsung FH052EAMT Manuel utilisateur

Samsung

Samsung AM NN1PEH Series Manuel utilisateur

Samsung

Samsung AS30C2BC Manuel utilisateur

Samsung

Samsung AR09HSFSHWKNCV Manuel utilisateur

Samsung

Samsung AQB09JJWC Manuel utilisateur

Samsung

Samsung ASK09G6VE Manuel utilisateur

Samsung

Samsung AVXWVH071EE Manuel utilisateur

Samsung

Samsung AS18A9RCF Manuel utilisateur

Samsung

Samsung AQV18UGAX Manuel utilisateur

Samsung

Samsung AR TSFY WKNCV Series Manuel utilisateur

Samsung

Samsung AM***FNFDEH series Manuel utilisateur

Samsung

Samsung AWT19PHHEB Manuel utilisateur

Samsung

Samsung AQV09A Series Manuel utilisateur
