Samsung ACH1800E Manuel utilisateur

AIR CONDITIONER CONTENTS

1. Precautions

2. Product Specifications

3. Operating Instructions

4. Installation

5. Disassembly and Reassembly

6. Troubleshooting

7. Exploded Views and Parts List

8. Block Diagrams

9. PCB Diagrams

10. Schematic Diagrams

11. Wiring Diagrams

SERVICE Manual

CASSETTE TYPE AIR CONDITIONER

(Cool and Heat)

ACH1800E(1)

ACH2400E(1)

ACH3600G(1)

ACH4400G(1)

CH18ZA

CH24ZA

CH36ZA

CH44ZA

CH18CA

CH24CA

CH36CA

CH44CA

Type ICH1800E

ICH2400E

ICH3600G

ICH4400G

CH18ZA

CH24ZA

CH36ZA

CH44ZA

CH18CA

CH24CA

CH36CA

CH44CA

Indoor Unit UBH1800E

UBH2400E

UCH3600G

UCH4400G

CH18ZAX

CH24ZAX

CH36ZAX

CH44ZAX

CH18CAX

CH24CAX

CH36CAX

CH44CAX

Outdoor Unit IFS095G00/01

IFS095G00/01

CH01(02)ZAP

Panel

00152–COVER-1 2/1/01 1:52 PM Page 2

1. Precautions

Samsung Electronics 1-1

1. Warning: Prior to repair, disconnect the

power cord from the circuit breaker.

2. Use proper parts: Use only exact replacement

parts. (Also, we recommend replacing parts

rather than repairing them.)

3. Use the proper tools: Use the proper tools

and test equipment, and know how to use

them. Using defective tools or test equip-

ment may cause problems later-intermittent

contact, for example.

4. Power Cord: Prior to repair, check the power

cord and replace it if necessary.

5. Avoid using an extension cord, and avoid

tapping into a power cord. This practice

may result in malfunction or fire.

6. After completing repairs and reassembly,

check the insulation resistance. Procedure:

Prior to applying power, measure the resis-

tance between the power cord and the

ground terminal. The resistance must be

greater than 30 megohms.

7. Make sure that the grounds are adequate.

8. Make sure that the installation conditions

are satisfactory. Relocate the unit if necessary.

9. Keep children away from the unit while it is

being repaired.

10. Be sure to clean the unit and its surrounding

area.

11. Be sure that the installed conditions are

satisfactory and correct according to the

specifications.

dangerous

Fig. 1-1 Avoid Dangerous Contact

Fig. 1-2 No Tapping and No Extension Cords

Fig. 1-3 No Kids Nearby!

Fig. 1-4 Clean the Unit

00152-PRECA-2 2/1/01 2:59 PM Page 1-1

1-2 Samsung Electronics

MEMO

00152-PRECA-2 2/1/01 2:59 PM Page 1-2

INDOOR UNIT

OUTDOOR UNIT

Cooling

Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

Fan speed

Air

circulation

Noise Level

(Sound

pressure)

Heat

exchanger

Fan

Dimensions

Weight

Dimensions

Weight

Fan speed

H.H

Med

Low

H.H

Med

Low

Med

Low

type

row x stages x fin pitch

type

motor output

Low

2. Product Specifications

2-1 Table of Specifications

Samsung Electronics 2-1

ICH1800E/CH18ZA

UBH1800E/CH18ZAX

17,400

5,100

18,400

5,400

1.75

1.80

8.0

8.2

2.8

2.9

(410)

370

330

290

slit fin coil

2x8x1.4(890/980)

Turbo

230

840

29/34

950

5/10

950

500

ICH2400E/CH24ZA

UBH2400E/CH24ZAX

23,000

6,700

24,500

7,200

2.30

2.65

10.5

12.3

2.7

2.8

(480)

440

400

360

slit fin coil

2x8x1.4(890/980)

Turbo

230

840

29/34

950

5/10

750

400

ICH3600G/CH36ZA

UCH3600G/CH36ZAX

34,500

10,100

38,600

11,300

3.40

3.90

6.0

6.7

2.8

2.9

(710)

630

550

470

slit fin coil

3x10x1.5(890/980)

Turbo

288

840

34/40

950

5/10

750

400

ICH4400G/CH44ZA

UCH4400G/CH44ZAX

43,000

12,600

46,000

13,500

4.30

4.90

7.7

8.8

2.7

2.8

(740)

660

580

500

slit fin coil

3x10x1.5(890/980)

Turbo

288

840

34/40

950

5/10

900

450

CH18CA

CH18CAX

17,400

5,100

19,400

5,700

1.85

1.90

8.6

8.7

2.7

3.0

(410)

370

340

290

slit fin coil

2x8x1.4(890/980)

Turbo

230

840

29/34

950

5/10

930

480

CH24CA

CH24CAX

22,100

6,500

25,500

7,500

2.45

2.6

11.5

12.5

2.5

2.8

(480)

440

400

360

slit fin coil

2x8x1.4(890/980)

Turbo

230

840

29/34

950

5/10

750

400

CH36CA

CH36CAX

32,400

9,500

42,000

12,300

3.4

4.0

5.9

6.7

2.6

3.0

710

630

550

470

slit fin coil

3x10x1.5(890/980)

Turbo

288

840

34/40

950

5/10

750

450

CH44CA

CH44CAX

38,500

11,300

47,500

14,000

4.45

5.4

8.2

9.5

2.5

2.6

740

660

580

500

slit fin coil

3x10x1.5(890/980)

Turbo

288

840

34/40

950

5/10

900

450

MODEL

Capacity

Power supply

Power input

Running

current

EER

Indoor

unit

Panel

Outdoor

unit

Btu/h

W/W

r.p.m.

m3/min

dB(A)

Net/Gross

r.p.m.

220-240~ 50Hz 380-415V 3~ 50Hz 220-240~ 50Hz 380-415V 3 ~ 50Hz

00152-PSPEC-4 2/1/01 1:54 PM Page 2-1

INDOOR UNIT

OUTDOOR UNIT

Air circulation (Hi)

Sound pressure level

Fan

Compressor

Heat

exchanger

Refrigerant

Dimensions

Weight

Indoor unit

Outdoor unit

Pipe O.D.

size

Connection method

Between

type

motor output

type

model

motor output

protection

type

row x stages x fin pitch

face area

control

(R22)charge

(HXWXD)

Cool(DB/WB)

Heat(DB/WB)

Cool(DB/WB)

Heat(DB/WB)

Liquid

Gas

Height

Pipe length

2-2 Samsung Electronics

ICH1800E/CH18ZA

UBH1800E/CH18ZAX

propeller

scroll

ZR22K3-PFJ

1.37

Internal

wave fin coil

2x24x1.7(824)

0.494

Capillary

2,000

620x787x320

63/68

27/19

20/15

35/24

7/6

9.52(3/8")

15.88(5/8")

Flare

Max. 15

Max. 30

ICH2400E/CH18ZA

UBH2400E/CH24ZAX

propeller

scroll

ZR28K3-PFJ

1.74

Internal

D fin coil

2x24x1.7(896)

0.538

Capillary

2,400

638x880x310

67/72

27/19

20/15

35/24

7/6

9.52(3/8")

15.88(5/8")

Flare

Max. 15

Max. 30

ICH3600G/CH36ZA

UCH3600G/CH36ZAX

propeller

scroll

ZR47KC-TFD

2.92

Internal

wave fin coil

2x48x1.7(935/915)

1.122

Capillary

2,700

1240x930x385

120/130

27/19

20/15

35/24

7/6

9.52(3/8")

19.05(3/4")

Flare

Max. 25

Max. 50

ICH4400G/CH44ZA

UCH4400G/CH44ZAX

propeller

114

scroll

ZR61KC-TFD

3.79

Internal

wave fin coil

2x48x1.7(935/915)

1.122

Capillary

3,300

1240x930x385

123/133

27/19

20/15

35/24

7/6

9.52(3/8")

19.05(3/4")

Flare

Max. 25

Max. 50

CH18CA

CH18CAX

propeller

scroll

ZR22K3E-PFJ

1.37

Internal

wave fin coil

2x24x1.7(824)

0.494

Capillary

1,800(R407C)

620x787x320

63/68

27/19

20/15

35/24

7/6

9.52(3/8")

15.88(5/8")

Flare

Max. 15

Max. 30

CH24CA

CH24CAX

propeller

scroll

ZR28K3E-PFJ

1.74

Internal

D fin coil

2x24x1.7(896)

0.538

Capillary

2,000(R407C)

638x880x310

67/72

27/19

20/15

35/24

7/6

9.52(3/8")

15.88(5/8")

Flare

Max. 15

Max. 30

CH36CA

CH36CAX

propeller

scroll

ZR47KCE-TFD

2.92

Internal

wave fin coil

2x48x1.7(935/915)

1.122

Capillary

2,250(R407C)

1,240x930x305

120/130

27/19

20/15

35/24

7/6

9.52(3/8")

19.05(3/4")

Flare

Max. 25

Max. 50

CH44CA

CH44CAX

propeller

114

scroll

ZR61KCE-TFD

3.79

Internal

wave fin coil

2x48x1.7(935/915)

1.122

Capillary

2,800(R407C)

1,240x930x385

123/133

27/19

20/15

35/24

7/6

9.52(3/8")

19.05(3/4")

Flare

Max. 25

Max. 50

MODEL

Outdoor

unit

Condition

Piping

m3/min

dB(A)

Net/Gross

˚C

mm(inch)

Product Specifications

* Wind flow : It is data of heating standard opertion.

00152-PSPEC-4 2/1/01 1:54 PM Page 2-2

2-2 Dimensions

2-2-1 Indoor unit

Samsung Electronics 2-3

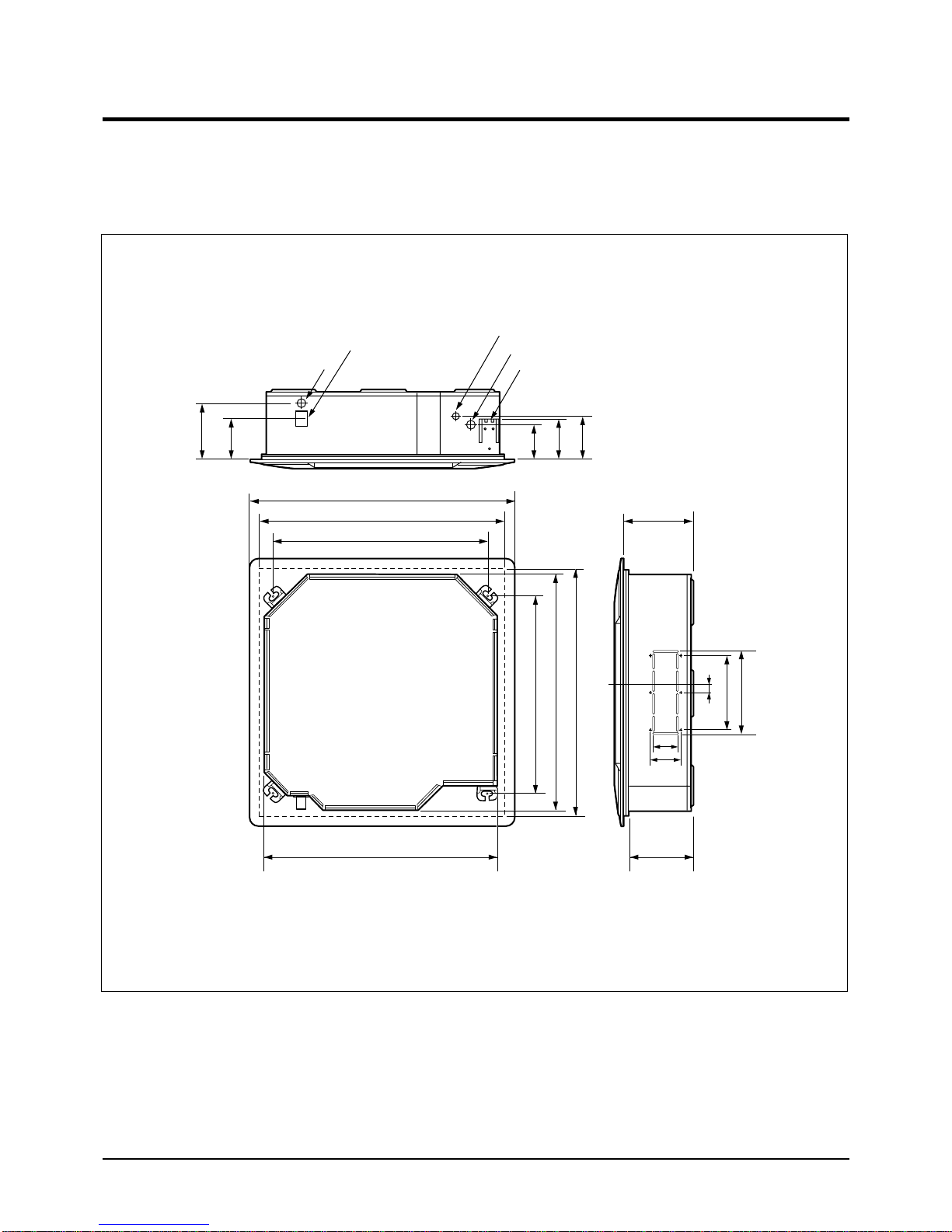

• Indoor Unit Dimensions (ICH1800E/ICH2400E/CH18ZA/CH24ZA/CH18CA/CH24CA)

Drain tube outlet

200

145

126

699 (Space of Suspension Bolts)

290

260

840 (Outer Dimensions)

880 (Cutting Dimension of Ceiling) 146

156

Water Supply Intake

950 (Dimensions of Front Panel)

246

230

110

880 (Cutting Dimensions of Ceiling)

840 (Outer Dimensions)

766 (Space of Suspension Bolts)

Unit : mm

Liquid refrigerant port

Gas refrigerant port

Fixing bracket

00152-PSPEC-4 2/1/01 1:54 PM Page 2-3

2-4 Samsung Electronics

• Indoor Unit Dimensions (ICH3600G/ICH4400G/CH36ZA/CH44ZA/CH36CA/CH44CA)

Drain tube outlet

258

145

126

699 (Space of Suspension Bolts)

290

260

840 (Outer Dimensions)

880 (Cutting Dimension of Ceiling) 146

156

Water Supply Intake

950 (Dimensions of Front Panel)

262

288

168

148

880 (Cutting Dimensions of Ceiling)

840 (Outer Dimensions)

766 (Space of Suspension Bolts)

Unit : mm

Liquid refrigerant port

Gas refrigerant port

Fixing bracket

00152-PSPEC-4 2/1/01 1:54 PM Page 2-4

2-2-2 Outdoor Unit

Samsung Electronics 2-5

• Outdoor Unit Dimensions (UBH2400E/CH24ZAX/CH24CAX)

(Front view) (Rear view)

310

638

660

880

• Outdoor Unit Dimensions (UBH1800E/CH18ZAX/CH18CAX)

(Front view) (Rear view)

320

638

582

787

00152-PSPEC-4 2/1/01 1:54 PM Page 2-5

2-6 Samsung Electronics

;;;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;

;

;;;;;;;

1420

930 385

840mm B

415mm

Input bolt fixing dimension

Product Specifications

• Outdoor Unit Dimensions

(UCH3600G/CH36ZAX/UCH4400G/CH44ZAX/CH36CAX/CH44CAX)

00152-PSPEC-4 2/1/01 1:54 PM Page 2-6

2-7

2-2-3 Remote control

Samsung Electronics

• Wired Remote Controller-Buttons and Display

• Wireless Remote Controller-Buttons and Display

00152-PSPEC-4 2/1/01 1:54 PM Page 2-7

Autres manuels pour ACH1800E

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AR TVFY Series Manuel utilisateur

Samsung

Samsung AD SERIES Guide de configuration

Samsung

Samsung AQ18F Series Manuel utilisateur

Samsung

Samsung AW07A0NEB Manuel utilisateur

Samsung

Samsung AQ09A5(6)MAF Manuel utilisateur

Samsung

Samsung AQV09VBA Series Manuel utilisateur

Samsung

Samsung AC***MN4PKH Series Manuel utilisateur

Samsung

Samsung AR12MSPDPWKNEE Manuel utilisateur

Samsung

Samsung AR07CSDAFWKNCV Manuel utilisateur

Samsung

Samsung MWR-TH00 Manuel utilisateur

Samsung

Samsung AD26B1C13 Manuel utilisateur

Samsung

Samsung Slim 1 Way Manuel utilisateur

Samsung

Samsung AM JNHF Series Manuel utilisateur

Samsung

Samsung AR10FVSED Series Mode d’emploi

Samsung

Samsung AC BNJDCH Series Manuel utilisateur

Samsung

Samsung AQ18FA Series Manuel utilisateur

Samsung

Samsung AJ009JNNDCH FJM series Manuel utilisateur

Samsung

Samsung MH050FXCA2A Manuel utilisateur

Samsung

Samsung AW05M0YBA Manuel utilisateur

Samsung

Samsung JH052EAV Series Manuel utilisateur

Samsung

Samsung AW0500 Guide de configuration

Samsung

Samsung AQ30W Series Manuel utilisateur

Samsung

Samsung AR18NSPXBWKNEU Manuel utilisateur

Samsung

Samsung AC TN4L Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
