Sami WEARABLE WS-2344 Manuel utilisateur

WEARABLE

User Manual

WS-2344

Thank you for purchasing the Sami Wearable WS-2344. Read the

instructions carefully to obtain optimum results and preserve it

for future reference. Sami has developed wearable devices

since 2015 and we use the best components possible for the

product.

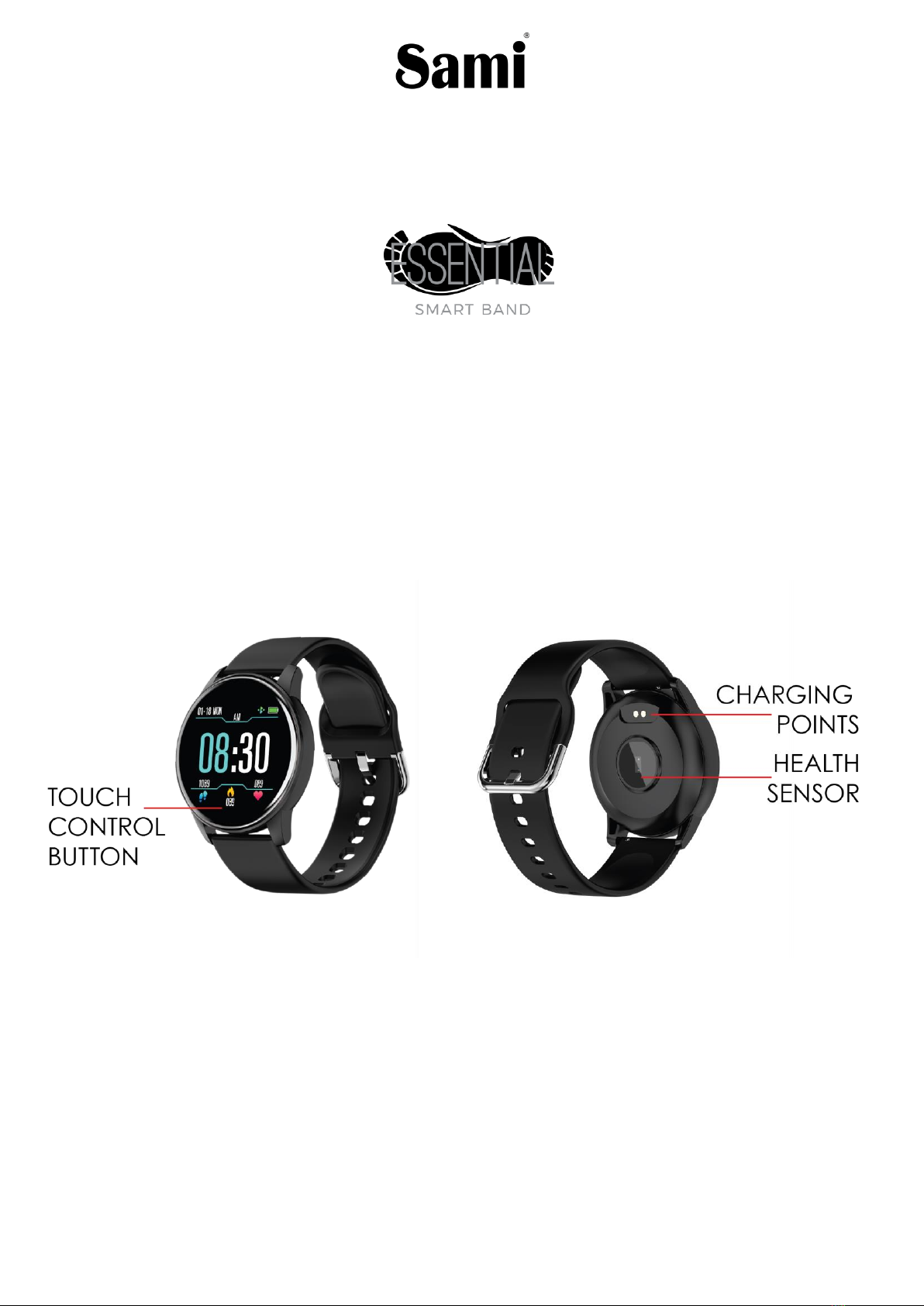

DESCRIPTION OF THE WEARABLE

CONTENTS

Wearable, USB Magnetic cable, instruction manual.

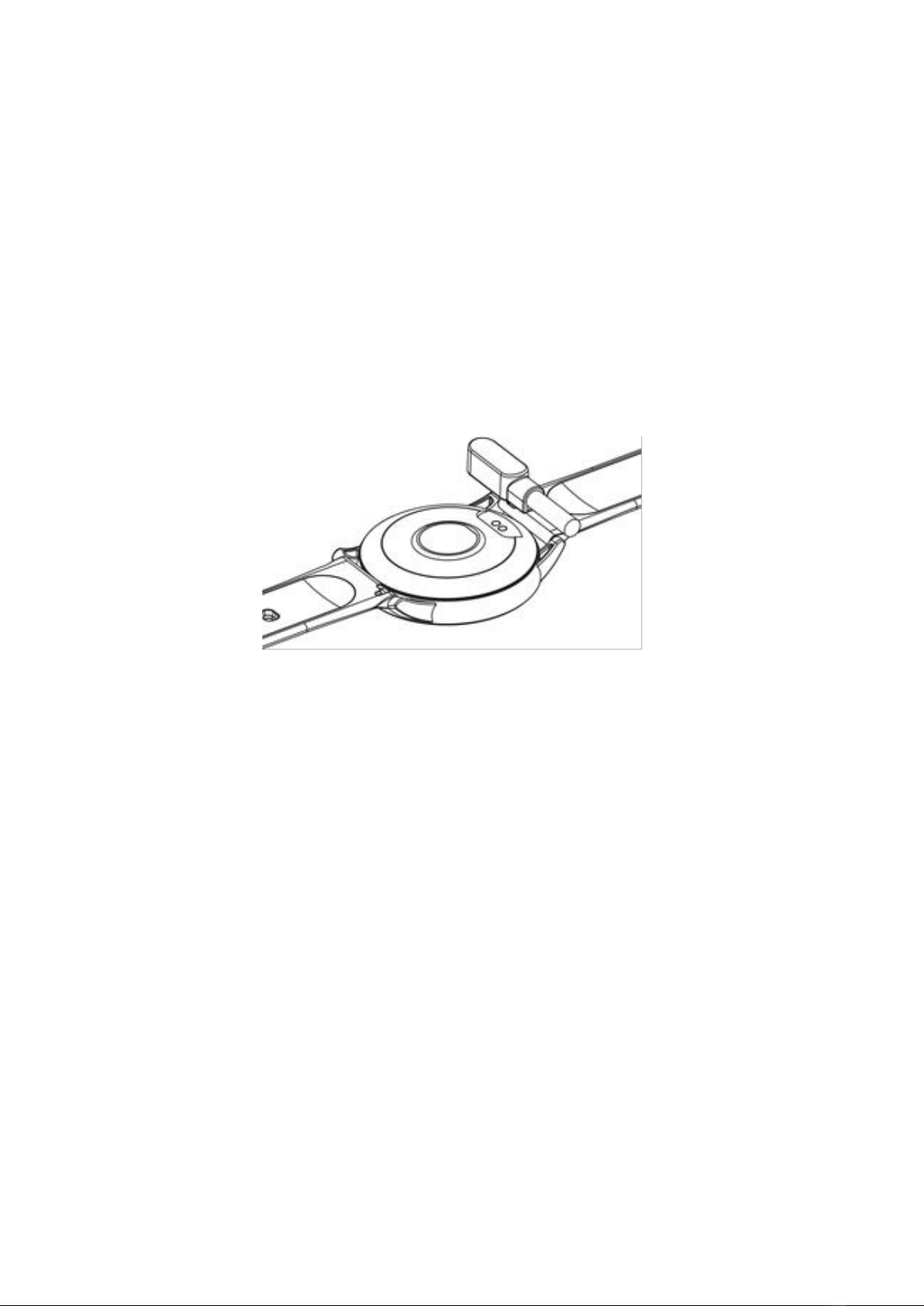

CHARGING

Connect the device to a computer or laptop with the USB

Magnetic cable for charging. Put in contact the magnetic

end of the usb cable with the charging points positioned in the

back of your device. Kindly use only the USB cable included

with the wearable. If you use a power adapter for charging,

the output of the power adapter should be 5V, 1A. Charging

time: 2 hours. Please charge the device fully before using it.

Take care with the magnet side of the cable, if you connect

to the AC and you have contact with a metal surface, you

may damage the charging cable.

NOTE: Do not have the charger connected to AC and the

magnets touching any metallic surface, this will create a high

heating of the cable and will damage it.

HOW TO POWER ON / POWER OFF?

1)To turn ON the smart band, on the screen, long press the

touch button (fixed-point touch control) for a few seconds.

The touch button is situated on the bottom of the screen.

2)To turn OFF the smart band, in the home screen menu long

press the touch control area for a few seconds until the

device info displays on the screen, then long press the

touch control button again until the power off menu

displays. Short tap the touch control button to select

power off, then long press the touch button to make it

power off. There is another way to power off your smart

band: in the home screen menu short press the touch

button until the OTHER(Settings) menu displays, the long

press the touch button to enter in the OTHER menu, short

press the touch button to select the power off option, and

long press again the touch button to make it power off.

HOW TO CONTROL?

On the display screen , short press the touch button to change

between the different menus. Long press the touch button to

achieve the different functions.

GETTING STARTED:

- For Android

1) How to obtain the BT Connection APK (DA FIT)

Search for the DA FIT APP in the Play Store; download it and

install it in your Android smartphone, or go to our website

www.sami.es and download the application.

2) Installation of the DA FIT APK.

When installing the DA FIT application on your Android, you

must allow all the Application Permissions, allow this DA FIT app

auto run.

The first time you run this DA FIT, it will ask you to Enable

Notifications, please tap OK and tap the DA FIT and confirm

OK. You must tap OK/Allow/Pair/Yes/Confirm for any pop-up

request. On your Android permission management, allow all

application permissions.

3) How to make the wearable pair with your Android smart

phone?

*First, turn on the Bluetooth of your Phone.

*Second, run the DA FIT app on your Phone, on the home page

of DA FIT, select “TO ADD”, the APP will search for new

Bluetooth device(s), when the available Bluetooth device

displays, please select ZL01 or WS-2344 (the BT name of this

device) to make it pair. The pairing will be finished in a few

seconds. When you pair for the first time, the app DA FIT will ask

you to fill some personal information such as gender/ age/

height/ weight. When you finish select OK/Confirm/Allow for

any pop-up request.

* Now you can start using your desired functions of the smart

band.

Important: To enable all notifications of different softwares

such as WhatsApp, Facebook, Skype, Twitter, you may need

to turn on the notifications on the APP manually. On the DA

FIT homepage, select the Settings icon (middle icon situated

at the bottom of the interface) then select notifications, 

and turn on all the APP notifications you want to active.

For Android smart phone, in order to achieve all of the

functions which are supported by the DA FIT app, you must

allow the DA FIT app runs in background, you must tap

OK/Confirm/Allow/Yes for any of the pop-up request at the 1st

time of running of the DA FIT APK/APP. And it may ask you to

turn on the DA FIT app in the Android smart phone’s

Accessibility: go to the settings of the

smartphoneAccessibilityfind the DA FIT app and turn it

on.

- For iPhone

1) How to obtain the BT Connection APP? (DA FIT)

On iPhone, please go to APP Store and search DA FIT and

install the app.

2) How to make the wearable pair with your iPhone?

*First, turn on the Bluetooth of iPhone

* Run the DA FIT app on the iPhone, on the home page of DA

FIT, tap “ADD A DEVICE” the APP will search for new Bluetooth

device(s), when the available Bluetooth device displays,

please tap ZL01 or WS-2344 (the BT name of this device) to

make it pair. The pairing will be finished in few seconds. When

you pair for the first time, the app DA FIT will ask you to fill some

personal information such as gender/age/height/weight.

When you finish select OK/Confirm/Allow for any pop-up

request.

* Now you can start using your desired functions of the smart

band.

Important: To enable all notifications of different softwares

such as WhatsApp, Facebook, Skype, Twitter, you may need

to turn on the notifications on the APP manually. On the DA FIT

homepage, select the Settings icon (middle icon situated at

the bottom of the interface) then select notifications, and

turn on all the APP notifications you want to active.

ATENTION: In IOS and in Android your wearable should be

connected through the app and not with the Bluetooth menu

of your phone. If you have paired it on the Bluetooth menu,

unpair it and forget the device to start the correct binding

through the app.

PRODUCT FEATURES

BLUETOOTH (V 4.0)

TOUCH BUTTON (Fixed-point touch control). This model is not

FULL touch control.

TOUCH SCREEN. touch screen 1.3"

BUILT IN VIBRATING MOTOR

BUILD IN HEART RATE SENSOR

BUILD IN GRAVITY SENSOR

GESTURE CONTROL TO LIGHT UP THE DISPLAY SCREEN

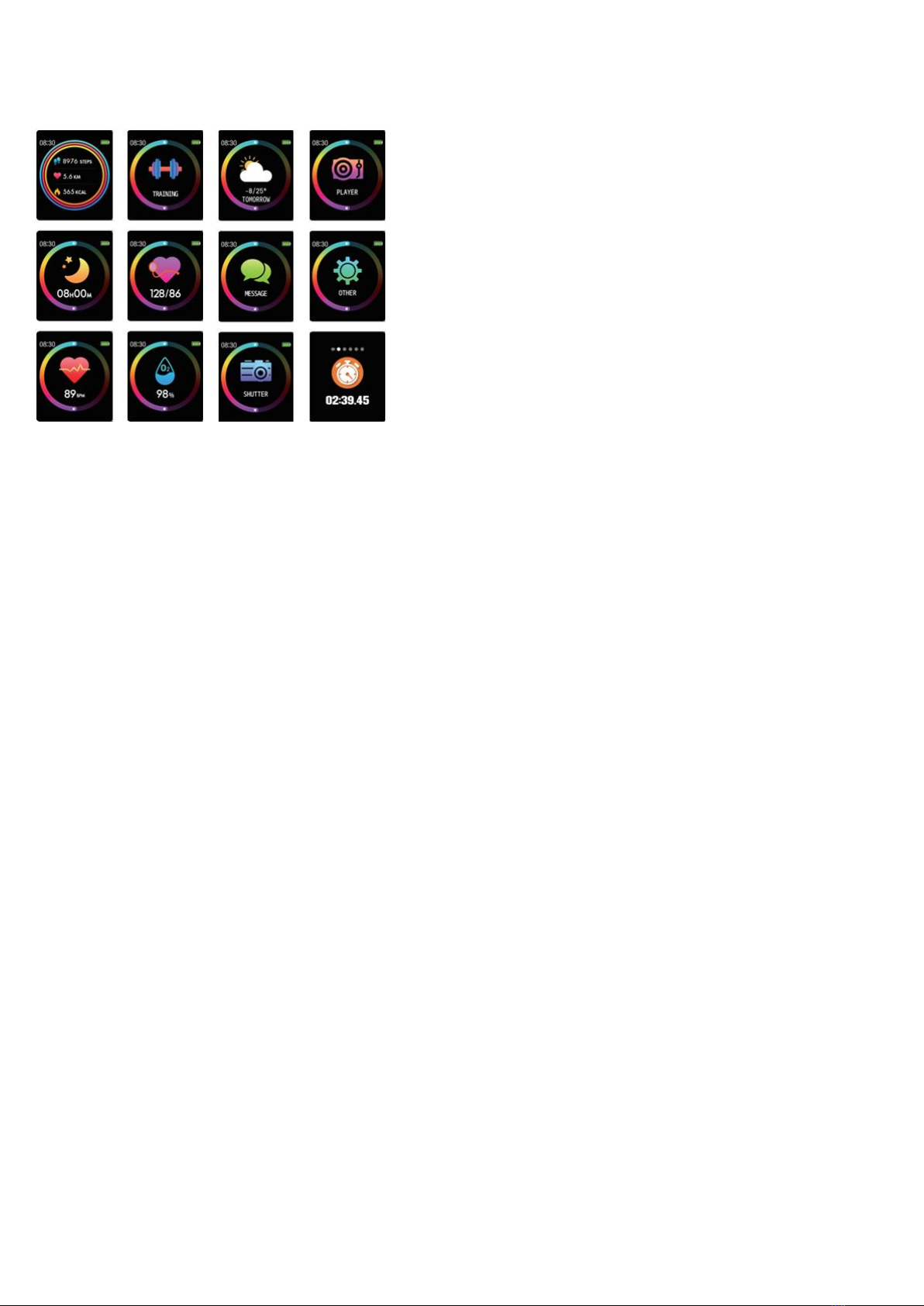

DISPLAY SCREEN INTERFACE

1) Time/Date/Steps/Calories/Battery displaying

2) Steps/Distance/Calories (Pedometer)

3) Sleep monitor

4) Heart rate monitor

5) Training (sports mode) - Walking/ Running/ Cycling/

Skipping/ Badminton/ Basketball/ Football

6) Blood pressure test

7) Blood Oxygen (SPO2) test

8) Weather - It will be displayed only after your smart band is

successfully paired with your mobile phone.

NOTE: The weather icon may not appear if your smart phone’s

network (WIFI/Data Connection) is not in good connection.

9) Messages

10) Remote camera

11) Player (music control)

12) Other -Stopwatch/Mute/Reset/Power Off/Brightness

adjustment

13) Different clock screens –Change them at the DA FIT

APK/APP.

14) Alarm Clock –Set it at the DA FIT APK/APP.

15) Find device –Support at the DA FIT APK/APP.

16) Sedentary reminder - Support at the DA FIT APK/APP.

Data can be sync from the wearable to the smart phone on

the DA FIT APK/APP.

Your smart phone will synchronize when the Bluetooth is paired

with this device.

FUNCTIONS

PHONE CALL NOTIFICATION - vibrating reminder for incoming

phone calls

MESSAGE NOTIFICATION - vibrating reminder for incoming

messages, including SMS, WhatsApp, Facebook, Twitter, Skype

messages, etc.

CLOCK SCREENS (Different home digital clocks) - supported on

the DA FIT APK/APP

ALARM CLOCK - supported on the DA FIT APK/APP

SEDENTARY REMIDER( INACTIVITY REMINDER/ REMIND TO MOVE)

- supported on the DA FIT APK/APP

FIND THE DEVICE (Looking for the SMART BAND) - supported on

the DA FIT APK/APP

GESTURE CONTROL (Raise your hand to light up the screen.

Before using this function, you need to make the adjustment on

the smart phone APP)

GPS MAP TRACE (view it on the BT APP/APK DA Fit). On the home

page of the Da Fit, scroll down and select Outdoor running, tap

Start, select the Map icon (this icon is on the right bottom of the

screen), to view the map. On the home page of the Da Fit, scroll

down and select Outdoor running, tap the history record

icon(this icon is situated on the right top of the screen) to view

the GPS trace history.

MULTIPLE LANGUAGES - supported on the DA FIT APK/APP

GOAL TRACKING- supported on the DA FIT APK/APP

**** THIS IS NOT A MEDICAL INSTRUMENT, SO THE VALUES ARE

APPROXIMATE

CLEANING:

In order to avoid any damage on the plating or printing of your

wearable please do not use any chemical product for

cleaning such as alcohol 96º. We recommend you to use a

slightly wet cloth.

TECHNICAL SPECIFICATIONS:

Display screen: Fixed-point capacitive touch screen 1.3".

Screen resolution: 240x240 pixels.

Internal Memory: RAM 128KB, ROM 1024KB

System: Nucleus

CPU: HS6620

Charge I/O port : USB magnetic charging cable

Battery: Built in Li-Polymer 200 mAh

Stand by time: 10~15 DAYS

Working time: 5 DAYS

Bluetooth: 4.0.

Water-resist Rating: IP67 (this device resists raindrops, it’s not

water proof)

Weight: 36 g

Declaration of Conformity

Hereby we,

Name of manufacturer:

SANTOSHI SL

Address:

CALLE FELIPE ASENJO N.56

Zip code & City:

28947 - FUENLABRADA ( MADRID )

Country:

SPAIN

declare that this DoC is issued under our sole responsibility and that this product:

Product description:

Smart Band

Type designation(s):

WS-2344

Trademark:

SAMI WEARABLE

is in conformity with the relevant Union harmonization legislation:

DIRECTIVE EMC 2014/30/EU

DIRECTIVE LVD 2014/35/EU

Standard CE (RED): DIRECTIVE 2014/53/EU

Standard RoHS: 2011/65/EU: (RoHS) Restriction of Hazardous Substance.

with reference to the following standards applied:

EN 60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013

EN 62479:2010

EN 301 489-1 V2.1.1 (2017-02)

EN 301 489-17 V3.1.1 (2017-02)

EN 300 328 V2.1.1 (2016-11)

Signature

Full name: VISHAL MIRPURI

Position: ADMINISTRATOR

Date: 08/ 07 / 2020

Table des matières

Autres manuels Sami Montre

Sami

Sami Wearable Six-Teen Manuel utilisateur

Sami

Sami WS-2376 Manuel utilisateur

Sami

Sami WEARABLE WS-2319 Manuel utilisateur

Sami

Sami WEARABLE SPLASH Manuel utilisateur

Sami

Sami WS-2335 Manuel utilisateur

Sami

Sami WEARABLE WS-2311 Manuel utilisateur

Sami

Sami Wearable NOIR Manuel utilisateur

Sami

Sami Wearable WS-2346 Manuel utilisateur

Sami

Sami Dynamic Wearable WS-2331 Manuel utilisateur

Sami

Sami wearable junior tech WS-2372 Manuel utilisateur

Sami

Sami Elegant WS-2349 Manuel utilisateur

Sami

Sami WEARABLE WS-2359 Manuel utilisateur

Sami

Sami WS-2305 Manuel utilisateur

Sami

Sami Fitness XL WS-2322 Manuel utilisateur

Sami

Sami WS-2358 Manuel utilisateur

Sami

Sami WS-2314 Manuel utilisateur

Sami

Sami wearable WS-2302 Manuel utilisateur

Sami

Sami WS-2303 Manuel utilisateur

Sami

Sami WS-2317 Manuel utilisateur

Sami

Sami ACE wearable WS-2366 Manuel utilisateur

Sami

Sami wearable space kids WS-2371 Manuel utilisateur

Sami

Sami WS-2365 Manuel utilisateur

Sami

Sami X.TECH wearable WS-2367 Manuel utilisateur

Sami

Sami WS-2313 Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

Seiko

Seiko N830 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur
