Salto RF Node Manuel utilisateur

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

221136 -ED0 - 10/09/ 2012

RF Node

Installation guide RF Node

Guía de instalación RF Node

Electrical characteristic

Características Eléctricas

Description

The RF Node is part of SALTO´s RF2 system. It works as a bridge, with the Gatewayx2,

between SALTO´s access control software and RF locks.

Descripción

El RF Node forma parte del sistema RF2 de SALTO Systems. Actúa como puente, junto

con el Gatewayx2, entre el software de control de acceso de SALTO y las cerraduras RF.

Mechanical Installation

Instalación Mecánica

Operaon condions

Min Typ Max Unit

Temperature -20 25 70 ºC

Humidity 35 85 %

Note 1: 1x2x24AWG or UTP CAT5e recommended

Note 2: Power supply must be calculated taking into account Gatewayx2 and

Nodes current consumpon

2405-2480 Mhz

IEEE 802.15.4

RF Characteriscs

Frequency Range

Standard

10/15mIndoor Radio Range

7 12 28 V

mA45

Power Supply

Imput Voltage

Current consumpon

Min Typ Max Unit

Note 2

Cable requirements

RS485 Connecon (AB)

Generic twisted pair wire

Power Connecon (Vdd)

24 AWG

Note 1

SALTO´s Software

*RS485 Bus

*Power Supply

UTP CAT5e

*RS485 Bus

*Power Supply

UTP CAT5e

Up to 6 External RF Node

per Gatewayx2

RF Node RF Node

Up to 112 SALTO RF Lock per

Gatewayx2 (16 per RF Node)

Power

RS485 bus to Nodes

Up to 10/15m

to Node

RF Link

20 Gatewayx2

[25/32”]

[3-1/4”]

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

221136 -ED0 - 10/09/ 2012

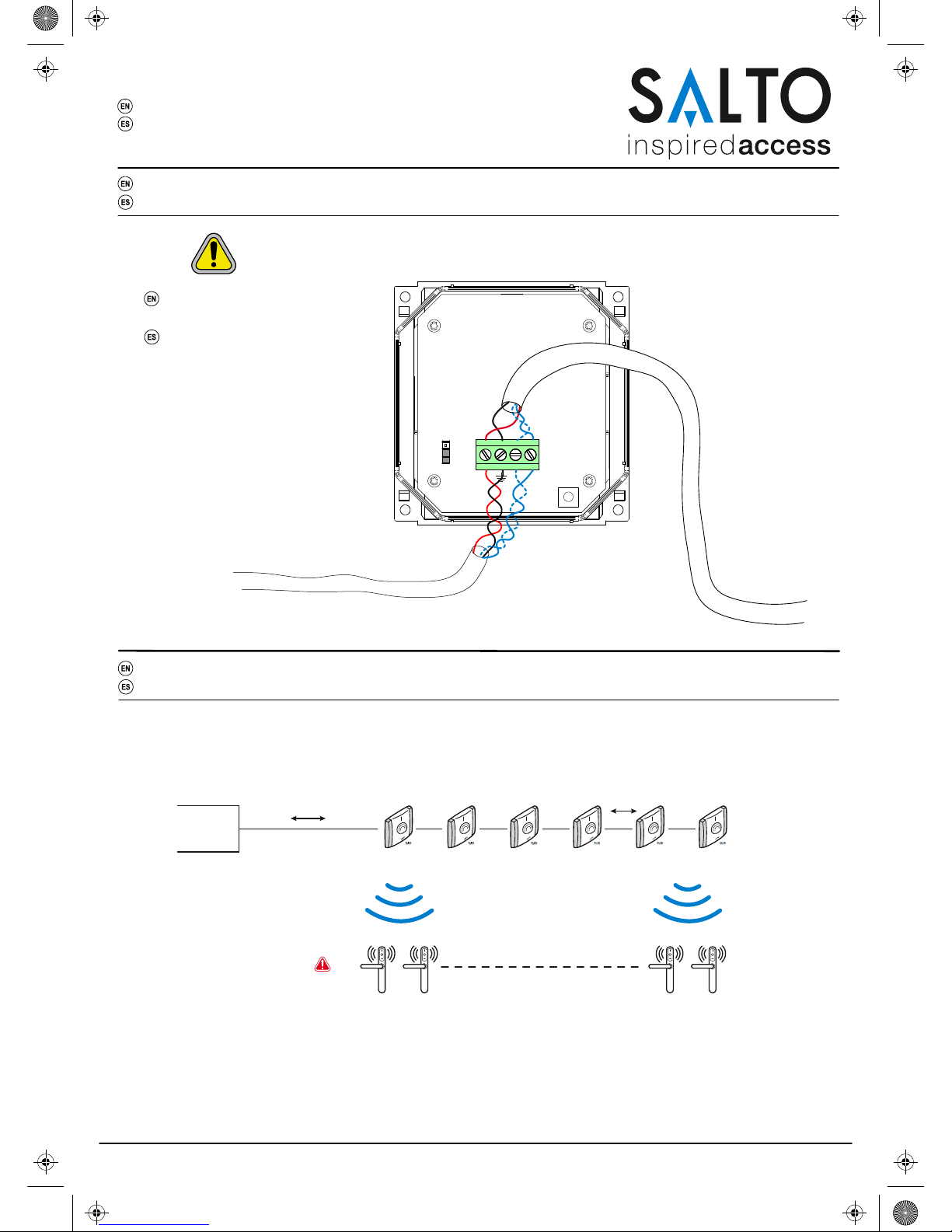

Electrical Installation

Instalación Eléctrica

Installation guide RF Node

Guía de instalación RF Node

Installation Example

Ejemplo de Instalación

RS485 bus termination resistor is

needed (ON position) when the

node is located at the end of the bus.

La resistencia de terminación de l bus

RS485 es necesaria (posición ON)

cuando el equipo esté situado en uno

de los extremos del bus.

Gatewayx2

Up to 10/15m

to Node

RF Link

RF Node RF Node RF Node RF Node RF Node RF Node

UTP CAT5e

1pair RS485

1pair 12v Power

50m

UTP CAT5e

1pair RS485

1pair 12v Power 25m

CLR

V+

OFF

V+ A B

RS485 Bus

Termination

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

221136 -ED0 - 10/09/ 2012

Señalización

Installation guide RF Node

Guía de instalación RF Node

The Green LED of the Node indicates that the Node is properly powered.

El LED en verde indica que el Nodo está alimentado correctamente.

Operational test

Test Operacional

Once the product is installed, follow these steps to check the correct operation:

- When Gatewayx2 and locks are installed, check that the RF Node is active in SALTO´s

software.

Una vez instalada la unidad de control, para comprobar el correcto funcionamiento de

la instalación, siga los siguientes pasos:

- Comprobar que al instalar el Gatewayx2 y las cerraduras el nodo está activo en el

software de SALTO.

This unit should be tested at least once a year as described in “Operational

Test”.

Es recomendable realizar un testeo operacional una vez al año siguiendo

el “Test Operacional”.

Declaration of Conformity

Declaración de conformidad

Maintenance

Mantenimiento

Salto Systems S.L. (Arkotz Kalea (Pol. Lanbarren), 9 – 20180 Oiartzun– Spain) declares herewith under its sole responsibility that the product: RF Node

complies with the requirements of the directive 89/336/EEC (Electromagnetic Compatibility) and the modifications gathered under the directive 93/68/EEC. You

will be able to find a copy of the original declaration of conformity at the following Internet address: http://www.saltosystems.com

Salto Systems S.L. (Arkotz Kalea (Pol. Lanbarren), 9 – 20180 Oiartzun– Spain) declara bajo su responsabilidad que el producto: RF Node cumple con los

requerimientos de la directiva 89/336/EEC (Compatibilidad Electromagnética) y sus modificaciones recogidas en la directiva 93/68/EEC. Podrá encontrar una
