Sailwin SW-D650 Manuel utilisateur

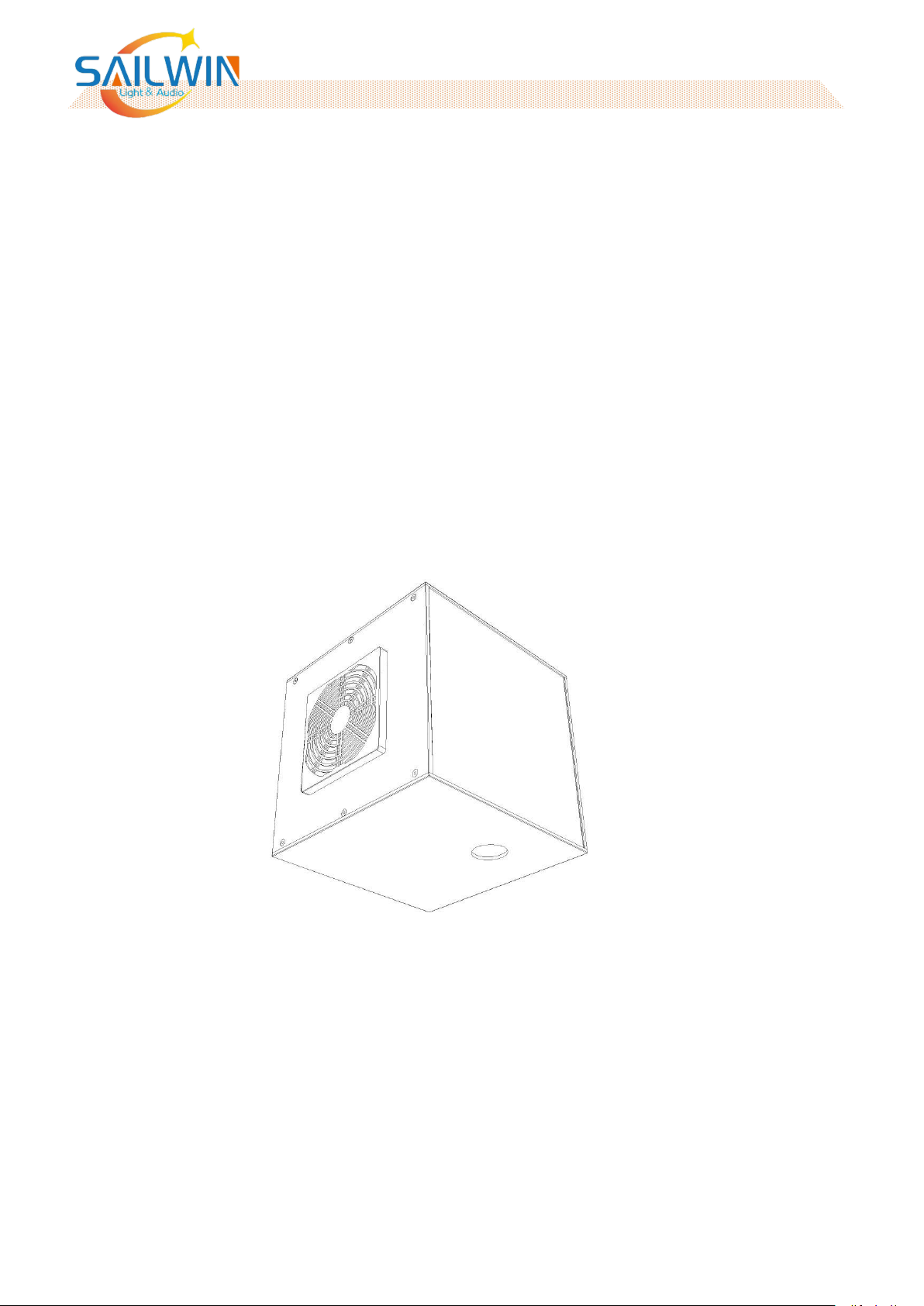

SW-D650

SPARK FOUNTAIN MACHINE

USER MANUAL

Please read this manual carefully before operating this product.

www.sailwinlight.com

[email protected]

Safety

Warnings and precautions

This sign is to alert the user to the hazard and to provide important information for the user to

operate the cold spark machine safely and effectively.

A security statement is as following:

Warning:This warning alerts you to hazardous or potentially hazardous operations and has given a

description of the hazard and neglected the consequences.

Eye Protection

Eye protection warning sign is to remind you of protecting the eyes during the machine operation.

Injury Voltages

Warning：if the device and controller has dangerous voltage when it working,there is a risk of

electric shock.

Do not open or remove(adjust)any parts of the device and controller , only professional engineer

can do this.

Moisture proof warning

Warning：The operator should keep the cold spark machine and controller in dry environment,do

not use it in rain and snow.

Cleaning

After the performance,you’d better to check whether there is any nodulation in the spray port,if

yes,it’s need to be cleaned up,the nodulation will affect the spray effect and even damage the cold

spark machine.

keeps the workings of the units clean and tidy and must always be done prior to them being

transported.The remaining material in the hopper of the device should be poured out and stored in

a dry and sealed environment.

www.sailwinlight.com

[email protected]

1：Product parameters

Working Height

1-5M

Working Temperature

-10℃-50℃

Heating Power

650w 6A (110V Version)

650w 3A (220V Version)

Fuse

110V/10A, 220V/6A

Interface

Double DMX input, Double AC power

N.W.

6.3kg

Size

205*205*190mm

Max. connections

Max. 6PCS

Warranty

1 year

2：DMX Operation

1) International standard control signal: DMX 512

2) The device uses two channels (channel 1: control preheat and emergency stop channel2:

control spray height)

3) Spray height adjustable

4) Overheating can be intelligently protected

5) The digital display of the cold spark machine shows that F1-F5 corresponds to the

1-5-position spray height gear position respectively

6) When the green light of ready is always on,the spray effect is best

www.sailwinlight.com

[email protected]

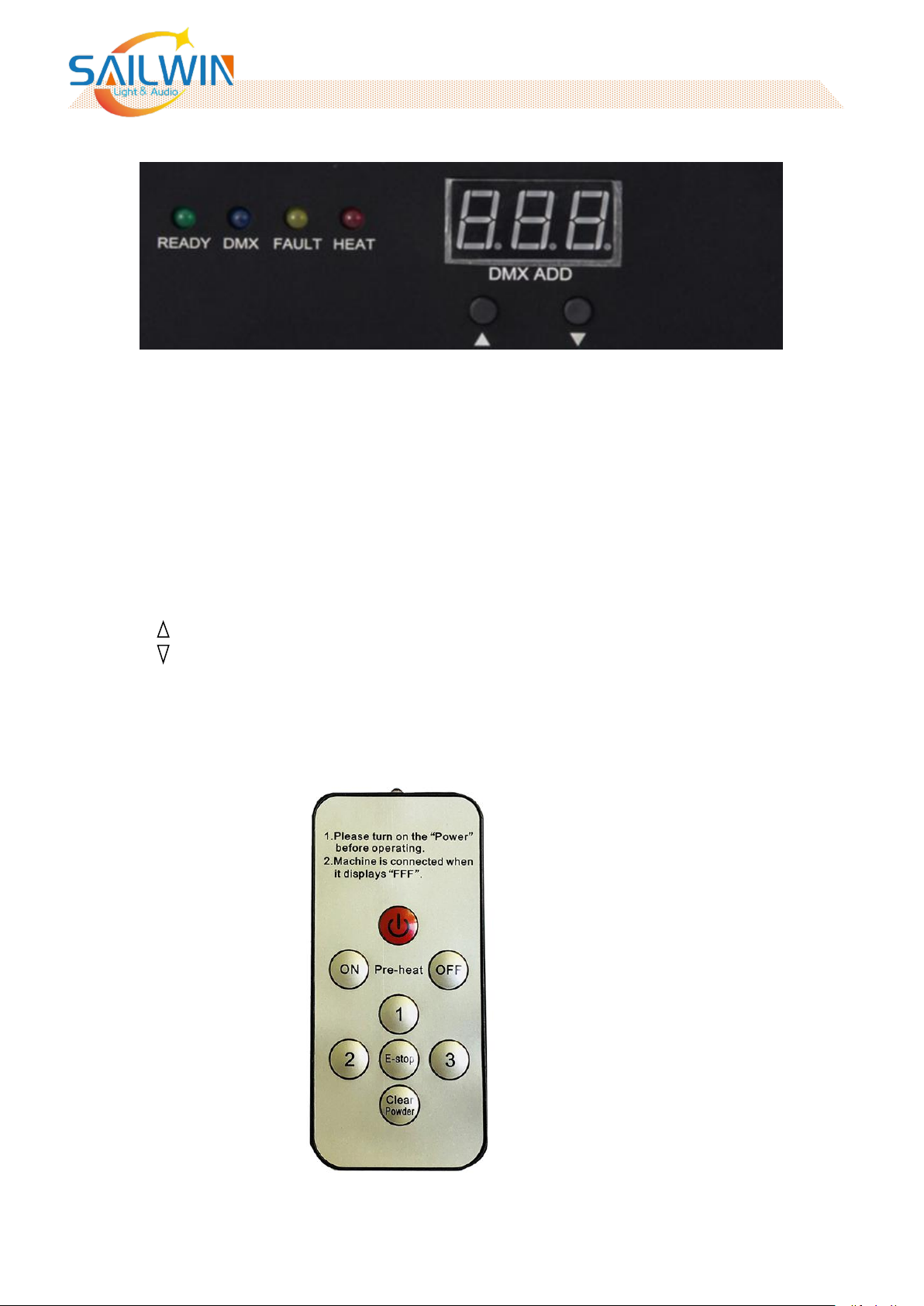

Operation panel

READY：Green light Flash indicates that the system is ready for work, and the steady light

indicates that the system could work now

DMX：Blue light Flash indicates DMX signal, while no display is signal disconnected

FAULT：Yellow light It is on when there is an error

HEAT：Red light Steady light when it’s heated

：Means increasing DMX address code, long press makes it increased fast

：Means decreasing DMX address code, long press makes it decreased fast

Remote control function:

www.sailwinlight.com

[email protected]

1：Short press the red button，when the display shows”FFF”,it means the machine has connected to

remote control，long press the red button，when the display shows“OFF”,it means the machine

has disconnected from the remote control.

2：”ON”button : turn on pre-heat，”OFF”button: turn off pre-heat

3：”1/2/3”button: working height, ”1”=F1; “2”=F2; ”3”=F3

4：”E-stop”button: emergency stop

5：”Clear Powder”button: Please press it to clear the remains in the pipe in case of remains being

stuck. Press “OFF” to stop this process.

6: Turning off: please press the red button for 3seconds.

Note：if you need to control machines in groups by remote control，you need to power on all the

machines in group A,all other machines are turned off,then press the red button on the A remote

control until the first group of machines displays “FFF”; the next, the machines in Group B are all

power on, press the red button on the B remote control until the B group machine displays “FFF”,

and so on. This is the A remote control group A, B remote control group B.

3：DMX512 signal control:

When using the DMX512 signal control mode, the signals between devices are connected in

parallel, so it is best to use twisted-pair shielded cables when connecting multiple devices. Each

device is connected via the DMX signal socket (cassette) INPUT and OUTPUT on the device. The

3-pin XLRXL connector terminals of the connected device must correspond to each other. When

connecting device signals, it is recommended to use the DMX signal terminator to avoid signal

reflection and damage signal control.

When the DMX console is successfully connected to the machine, the DMX signal light (blue) on

the machine flashes; the first channel (240-255) pre-heat function can be turned on, the HEAT

light (red) lights up, and the temperature Rise will be displayed on the machine screen; when the

heating is completed, the screen will display the DMX channel, and the READY lamp (green) will

change from blinking to steady state, indicating that the spray is ready, and the spray height can be

controlled through the second channel.

www.sailwinlight.com

[email protected]

4：DMX Channel mode

The system occupies 2 channels

The First Chanel

Function

Digital Tube Display

0-10

Pre-heat turn off

11-239

Emergency stop

E57

221-239

Pre-heat turn on

CLE

240-255

Pre-heat ON

Temperature DMX address

The Second Chanel

Function

0-15

Turn off

OFF

16-95

Spark Height 1

96-175

Spark Height 2

176-255

Spark Height 3

5：Fault light (yellow) display and processing method

Display

content

Fault causes

Solution

E01

Heating failure

1:Check if the heat dissipation of the heating

plate is normal. 2: Replace the heating plate.

E02

Heating is not controlled

1：Replace the heating plate

E03

The internal temperature of

the machine is extremely

high

1：Check the cooling fan, 2: stop heating and

spray, restart after 10 minutes.

E04

The fan does not work

1：Check if there is any foreign matter falling

in the spray port, 2: Replace the fan motor

E05

The sensor is broken

1：Check sensor socket, 2: replace sensor

Note：when the fault light is on，you need to restart the machine until the fault light turns

off the machine to work properly.

www.sailwinlight.com

[email protected]

6：Consumables considerations

1) If the consumables are accidentally ignited, they can only be covered with sand, and the air is

isolated until it is extinguished. Do not use water.

2) Consumables should be kept in a dry and sealed environment to prevent moisture。

3) The consumables are classified as:

Small consumables: the spray height is 1.0-3.0 m (error 0.5 m), and the spattering point is not

lost.

Medium Consumables: The spray height is 2-4 meters (0.5 m error), and the spot is rarely

dropped.

Large consumables: The spray height is 2-5 meters (0.5 m error), and the sprayed spot has

dropped ground.

4) If you find that the spray is less, it may be due to insufficient supplies, please add consumables.

7：Clear material

1) After use, please turn the cold spark machine to pour off the remaining material and store it in

a dry sealed container.

2) After draining the remaining material, heat it again and spray it until no spark is ejected, so as

to clear the remaining material of the machine. In case it will affect the next spray effect, or even

damage the fuselage. (Note: problems caused by improper cleaning will not be covered by the free

warranty)

www.sailwinlight.com

[email protected]

8：Warning and safety matters

1) Do not spray more than 30 seconds each time. If the continuous spraying time is too long, the

internal temperature will rise sharply and cause permanent damage. After a single long-time

spray, you should pay attention to the next spray after a short pause.

2) When the machine continues to spray for more than 30 seconds, it will automatically close. If

it needs to continue, the spray function can be triggered again.

3) The power of a single standard cold spark machine (the sprayer is connected to the power

cord) can only be connected to a maximum of 6 machines. If the connection is too much, it

will cause damage or fire.

4) If there is no spark discharge in the spray port, if the powder inside the cartridge is enough,

the gear may be stuck. The preheating should be turned off, the gear should be turned loose

manually until the gear rotates smoothly, and then the cartridge is dumped. The powder

inside heats the spray, sprays the residual powder inside the pipe, and then adds the powder

to heat and spray again. If the problem is not solved, contact the after-sales.

5) When the spray is finished, do not immediately turn off the power. The heating should be

turned off, and the heat-dissipating fan should take out the hot air inside the machine when

the power is turned on. Otherwise, the internal heat is quickly transmitted to the surface of

the casing.

6) The operator should be 3-5 meters away from the cold spark machine.

7) Make sure the device is off before feeding.

8) If the consumables are accidentally ignited, please use the sand to extinguish, do not use

water.

9) Store consumables in a cool, dry, sealed environment.

10) Damage caused by improper use or human factors is not covered by the warranty.

11) The final interpretation right belongs to our company.

www.sailwinlight.com

[email protected]

Company: Guangzhou Sailwin Light&Audio Technology CO.,LTD

Add:NO3 Seiko Creative Park,Wangang Road Huadu District,Guangzhou,China

Email: [email protected]

Tel: 0086-20-61839740

Phone: 0086-15013209611
