Outdoor PRO Intercom
User Manual
SE7130
.

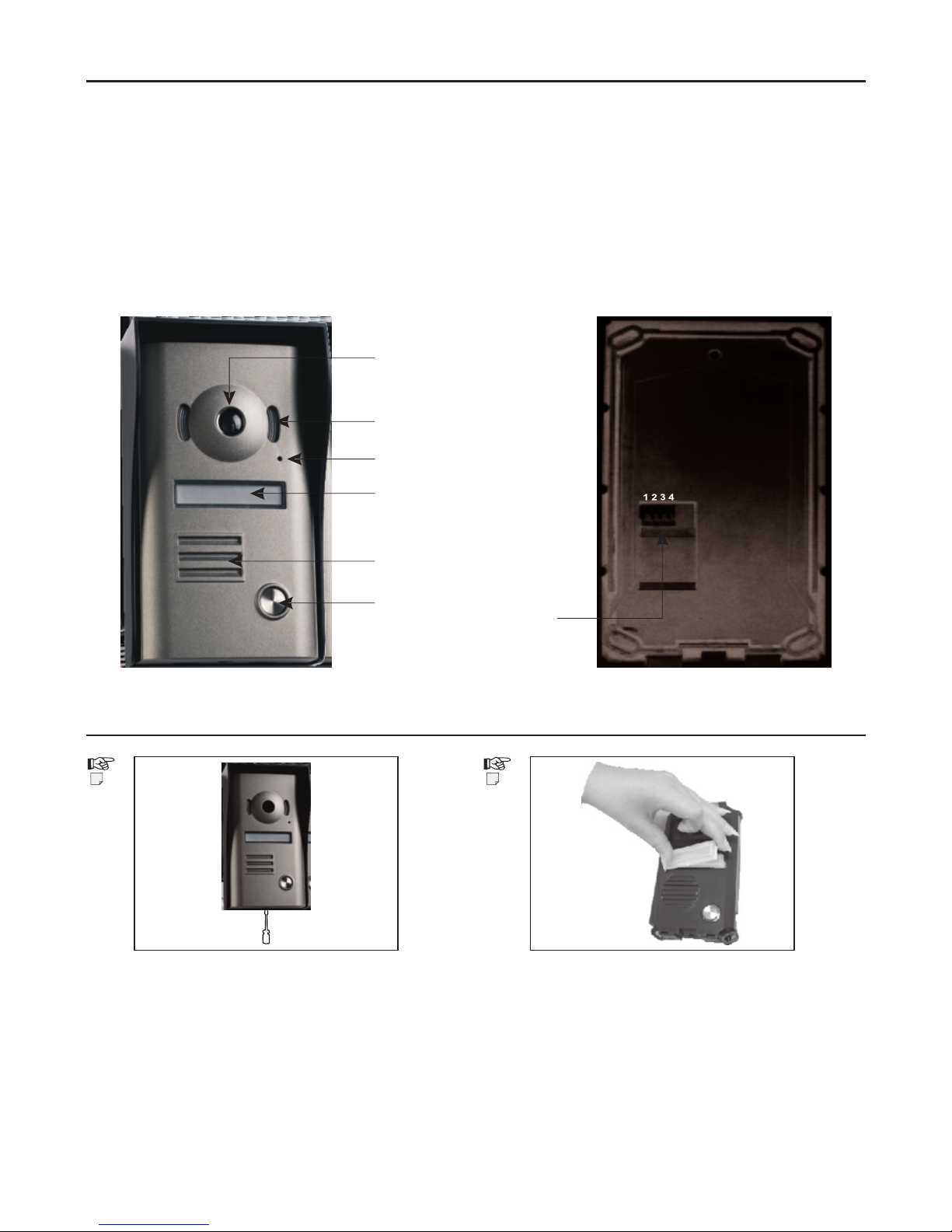

1. Loosen off the screws located at the bottom of the outdoor camera
(Picture 1).
21
2. Loosen off the four screws in the back cover, and then take apart the
front cover (Picture 1).
.
1. IR distance: more than 4M
2
2. Automatic gain control
3. Working temperature: -20°C~50°C
4. Resolution: CMOS more than 380 TV line
5. Outdoor camera dimension: 107【W】X 183【H】X 55【D】mm
123456
Connection
Call
Speaker
Name Plate
Microphone
Infrared Light
Camera
Terminals
30.0CM
140~170CM
call within 30cm
3. Take off the name plate for marking family name or room name, and then
fix the screws of the back cover (Picture 2).
4. Install the outdoor camera at a height of 1.4m-1.7m, and make sure it
avoids the direct sunshine or rain (Picture 3).
5. Fix the bracket of the outdoor camera on the wall by tightening screws,
and then fix the screws at the bottom of the outdoor camera (Picture 4
and 5).
Outdoor Camera
Indoor Monitor
Lock
1.Audio Wire 2.Ground Wire
3.Ground Wire 4.Power Wire
connection terminals of the outdoor camera accordingly.1,2,3,4
2. The 5,6 connection terminals connect to the electric-control lock.
1. The 1,2,3,4 connection terminals of the indoor monitor connect to the
1 2 3 4 5 6
DC 15V
- +
678 910
2345
1 11
