SA SA-15T-PW Manuel utilisateur

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 1

OPERATING MANUAL

SA-15T-PW POWERED SPEAKERS

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 2

Caution: To reduce the risk of

electrical shock, do not remove the

cover (or back). No user serviceable

parts inside; refer to servicing to

qualified personnel.

Warning: To reduce the risk of fire or

electrical shock, do not expose this

equipment to rain or moisture.

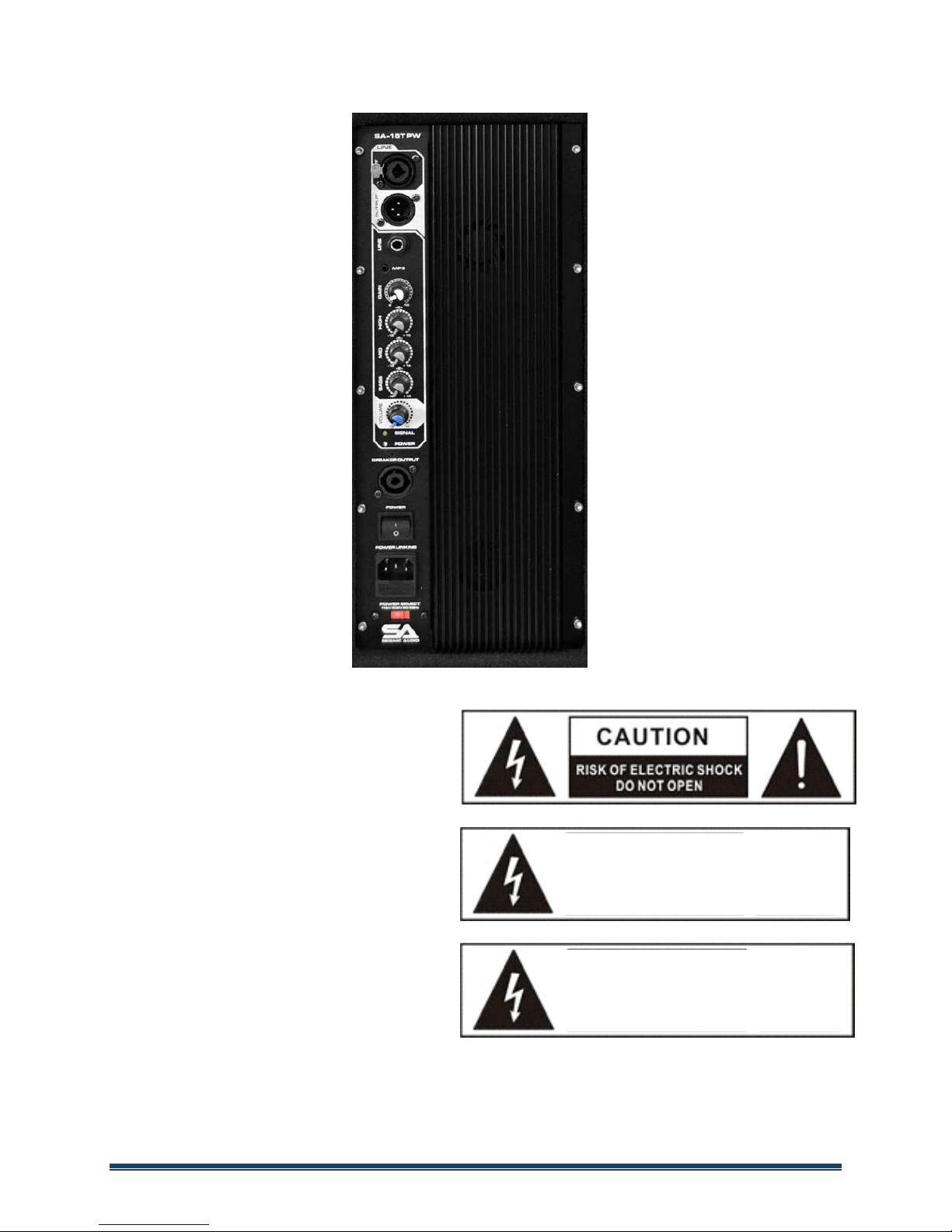

SAFETY INSTRUCTIONS

This symbol, wherever it appears, alerts you

to the presence of uninsulated dangerous

voltage inside the enclosure voltage that may

be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you

to important operating and maintenance

instructions in the accompanying literature.

Read the manual.

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 3

SA-15T-PW Specs:

Powered 15 Inch PA Speaker Cabinets

MODEL

SA-15T PW (Set of 2)

CONTENTS

Pair of Powered 2-Way 15" PA Speaker Cabinets Mains

CONDITION

New

APPLICATION

PA Speakers / Mains / PA Loudspeakers

ACTIVE/PASSIVE

Active / Powered

WOOFER

15" Loudspeakers

WOOFER SPECS

50 oz Magnet and 2.5" Kapton Voice Coil

TWEETER/HORN

1.5" Titanium Tweeter Driver with

10 oz Magnet and 1" Throat

POWER

350 Watts RMS; 700 Watts Peak each

FREQUENCY RESPONSE

35 Hz - 20 kHz

SENSITIVITY

99 dB

MAXIMUM SPL

120 dB

CONNECTORS

Two Line Input/Output - XLR Combo / Male XLR

3.5 mm Input for MP3, iPod, iPhone

NOMINAL IMPEDANCE

8 Ohms

PORTS

Dual Ports

GRILL

Full Metal Grill

HANDLES

Recessed Metal

COVERING

Black Carpet with Black Metal Corners

ENCLOSURE

MDF (Medium Density Fiberboard) , Plywood Front Panel

POLE MOUNT

Yes

HEIGHT

31.5"

WIDTH

21.25"

DEPTH

15"

WEIGHT

55.5 lbs per Cabinet

WARRANTY

One Year Warranty

SPECIAL FEATURES

Can be Daisy Chained

SPECIAL FEATURES

-Class AB Amplifier

-Power Select 110V-120V or 22V-240V Power Supply

SPECIAL FEATURES

3 Band EQ - Treble, Mid, Bass

SPECIAL FEATURES

Gain Control

Volume Control

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 4

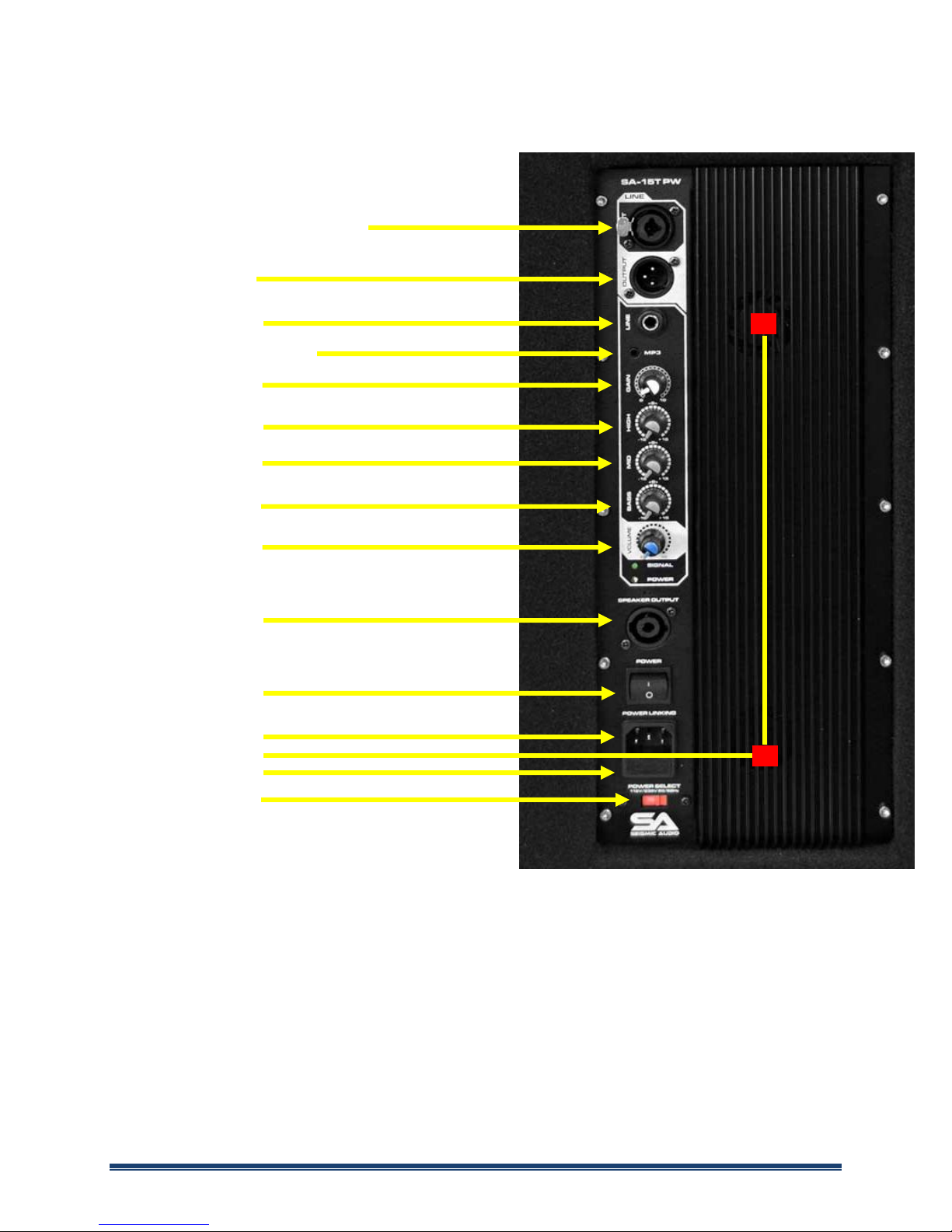

SA-15T-PW Amplifier Controls:

XLR 3-Pin Female / ¼”Combo Jack Input

XLR 3-Pin Male Output

1 / 4 “ Female Line Input

1 / 8 “ Female Line Input for MP3

Gain Control Knob

Treble Control Knob

Mids Control Knob

Bass Control Knob

Volume Control Knob

Speakon Power Output

On/Off Switch

AC Adapter Plug

Fuse Compartment

Voltage Selector Switch

(2) Internal Fans

Use this Output jack to power a Non Powered Passive speaker similar to specs of SA-

15T-PW. If you connect an 8 ohm speaker to this jack, the built in amp on the SA-

15T-PW will change to 4 ohm and double the power output.

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 5

Replacement Parts and Accessories

Titatium Horn / Model: T-Driver

The T Driver will give you the crisp clean highs you desire with a frequency response of 1.5K -

20K and 100 watts RMS. These will fit all horns with a 1 3/8" thread.

Crossover / Model: SACN-153

Replacement Crossover for SA-15T-PW

SA-15T-PW Amplifier

Replacement Amplifier for SA-15T-PW

Non Powered Speaker –Model: SA-15T

Non Powered Version of Identical Speaker for use with the SA-15T-PW

CBulb –Model: CBulb

Replacement Fuse for PWS-15 and PWS-12 Crossover

AmpBulb –Model: AmpBulb

Replacement Fuse for PWS-15 and PWS-12 Amplifier

Replacement Speaker –Model: Quake15

Replacement Speaker for SA-15T-PW

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 6

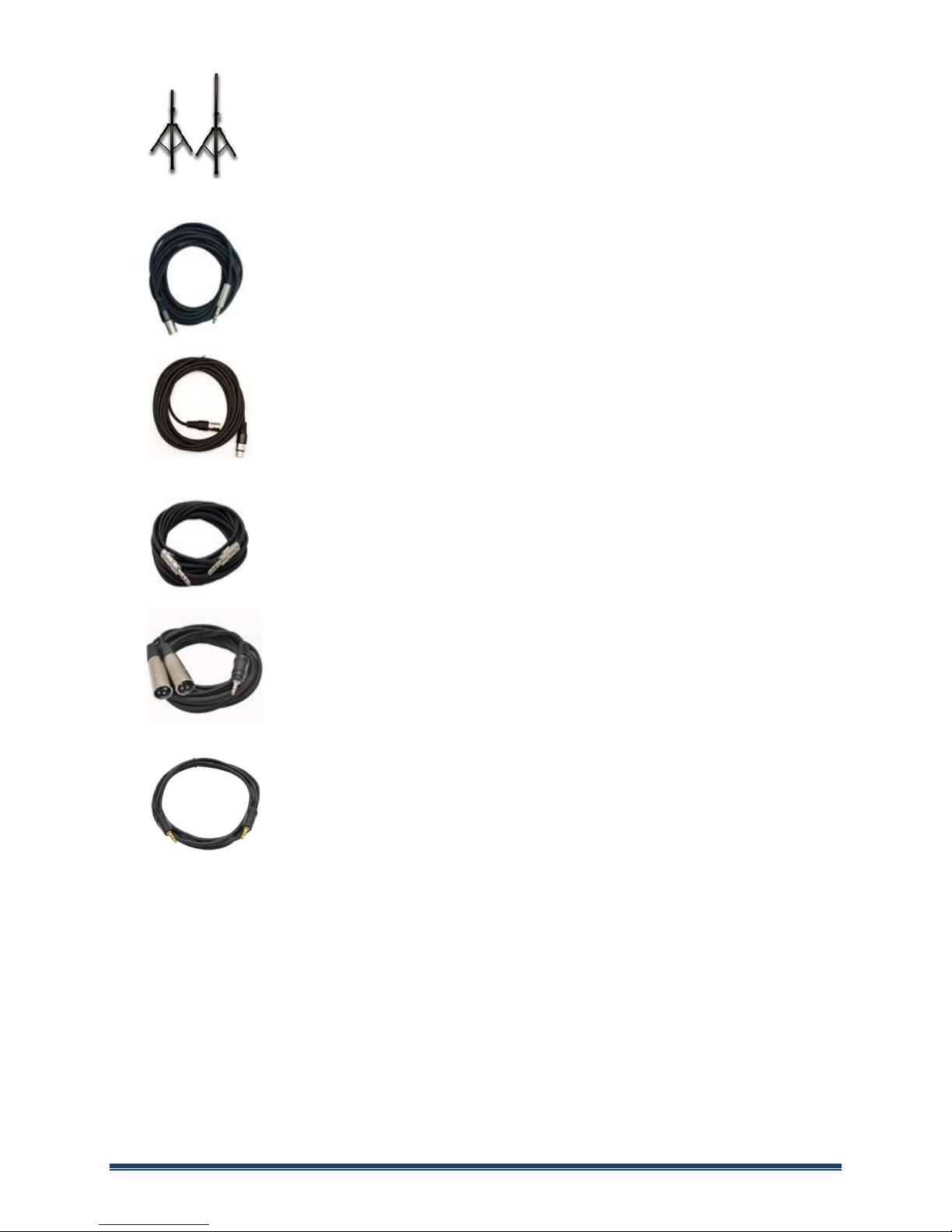

Speaker Stands –Model: SpeakerStands

Speaker Stands for SA-15T-PW

Speaker Cable –Model: SATRXL-M25

XLR 3-pin Male to TRS ¼” Male Balanced cable, 25 ft long.

Speaker Cable –Model: SAXLX-25

XLR 3-pin Male to XLR 3-pin Female Balanced cable, 25 ft long.

Speaker Cable –Model: SATRX-25

¼” TRS Male to ¼” TRS Male Balanced cable, 25 ft long.

Splitter Cable –Model: SAiXLRY10

10 ft long XLR Splitter to single 1/8” headphone cable for use with ipods, laptops and mp3

players.

MP3 / Ipod Cable –Model: SA-iE10

10 ft 1/8” to 1/8” cable for use with ipods, laptops and mp3 players.

NOTE: Speaker Cabinets, Speaker Control Knobs and other internal component or parts are available by

phone order only…

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 7

Connection Example 1

Standard 3-Pin XLR

Microphone Cables (Male

to Female)

This example shows how to connect two SA-15T-PW speakers to a standard Mixer. This application requires (2)

XLR 3 pin male to female cables. Seismic Audio offers these cables. The model number is: SAXLX-25.

To start, take the female end of the first cable and insert it into the output jack labeled MAIN OUT LEFT on your

mixing board. Then insert the male end of the cable into the XLR input of the first or left SA-15T-PW speaker.

Repeat these steps using the other cable and insert the female end into the MAIN OUT RIGHT on the mixing board,

followed by inserting the male end of the cable to the second or right SA-15T-PW speaker.

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 8

Connection Example 2

Standard 3-Pin XLR Microphone Cables (Male to Female)

Daisy Chaining Signal from one SA-15T-PW Amp to another SA-15T-PW Amp

This example shows how to connect two SA-15T-PW speakers to a standard Mixer using one MAIN OUT jack on

your mixer. By choosing this method, it will free up one main out jack on the mixing board and allow the SA-15T-

PW speakers to be Daisy Chained. This application requires (2) XLR 3 pin male to female cables. Seismic Audio

offers these cables. The model number is: SAXLX-25.

To start, take the female end of the first cable and insert it into the output jack labeled MAIN OUT LEFT on your

mixing board. Then insert the male end of the cable into the XLR input of the first or left SA-15T-PW speaker.

Second, insert the female end of the second XLR cable into the XLR output jack of the first SA-15T-PW. Lastly,

insert male end of the XLR cable into the XLR input jack on the second SA-15T-PW speaker.

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 9

Connection Example 3

Example cable:

Insert a 1/8” cable into the

MP3 line input on the SA-15T-

PW speaker and plug the other

end into any device that

accepts the 1/8” headphone

connection. See Seismic Audio

Part # SA-iE25 for 1/8” cable.

Connecting a SA-15T-PW speaker

to any headphone jack device

using a 1/8” to 1/8” cable

SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 10

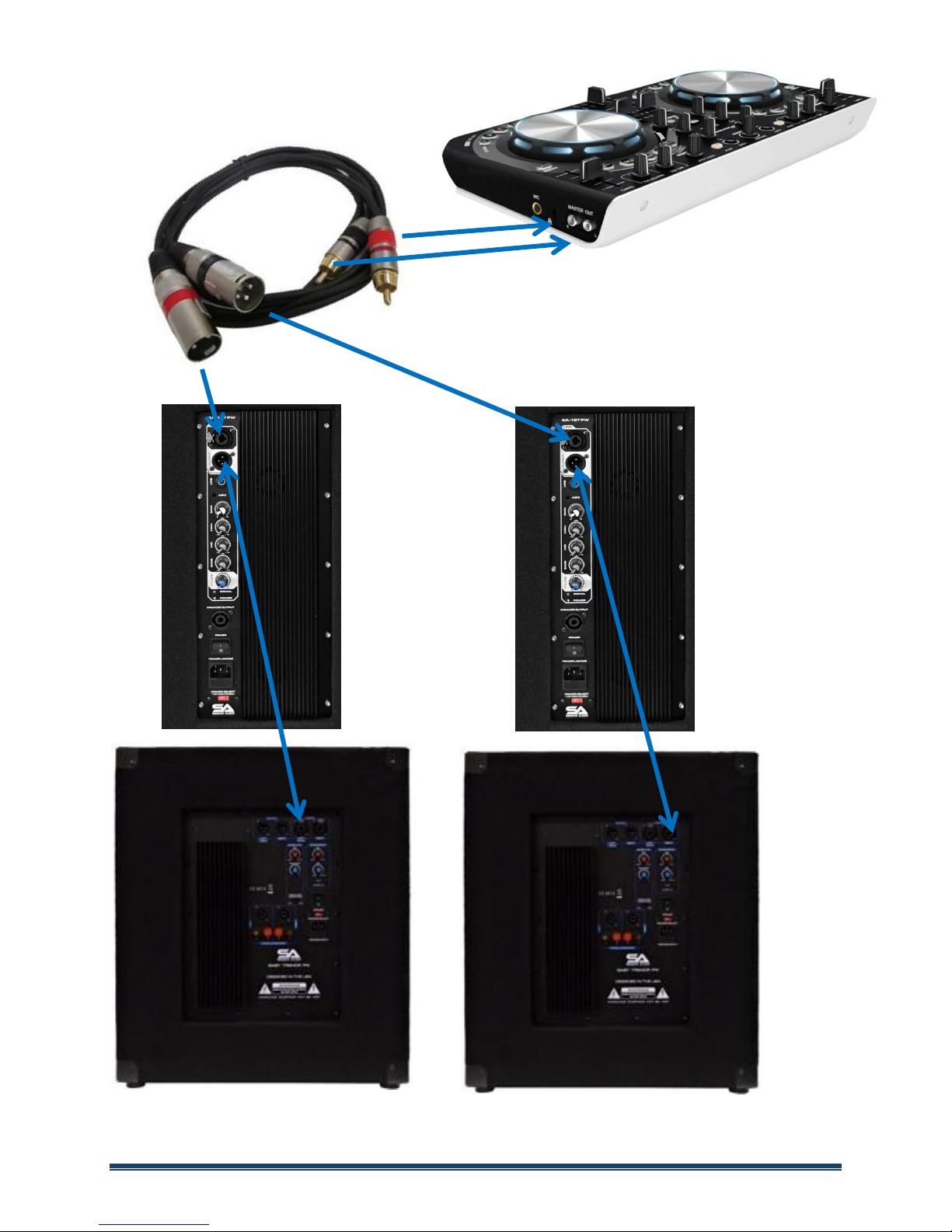

Connection Example 4

Adding Powered Sub

Woofers to a SA-15T-

PW speaker can be

done easily by

inserting a standard

XLR 3 pin male to

female cable

between the SA-15T-

PW speaker output

into the Subwoofers

XLR input.

(See Diagram)

Use the Seismic Audio cable: SAXFRM-2x5 to plug your DJ Controller or any

other RCA output device into the XLR inputs of the SA-15T-PW speakers.
