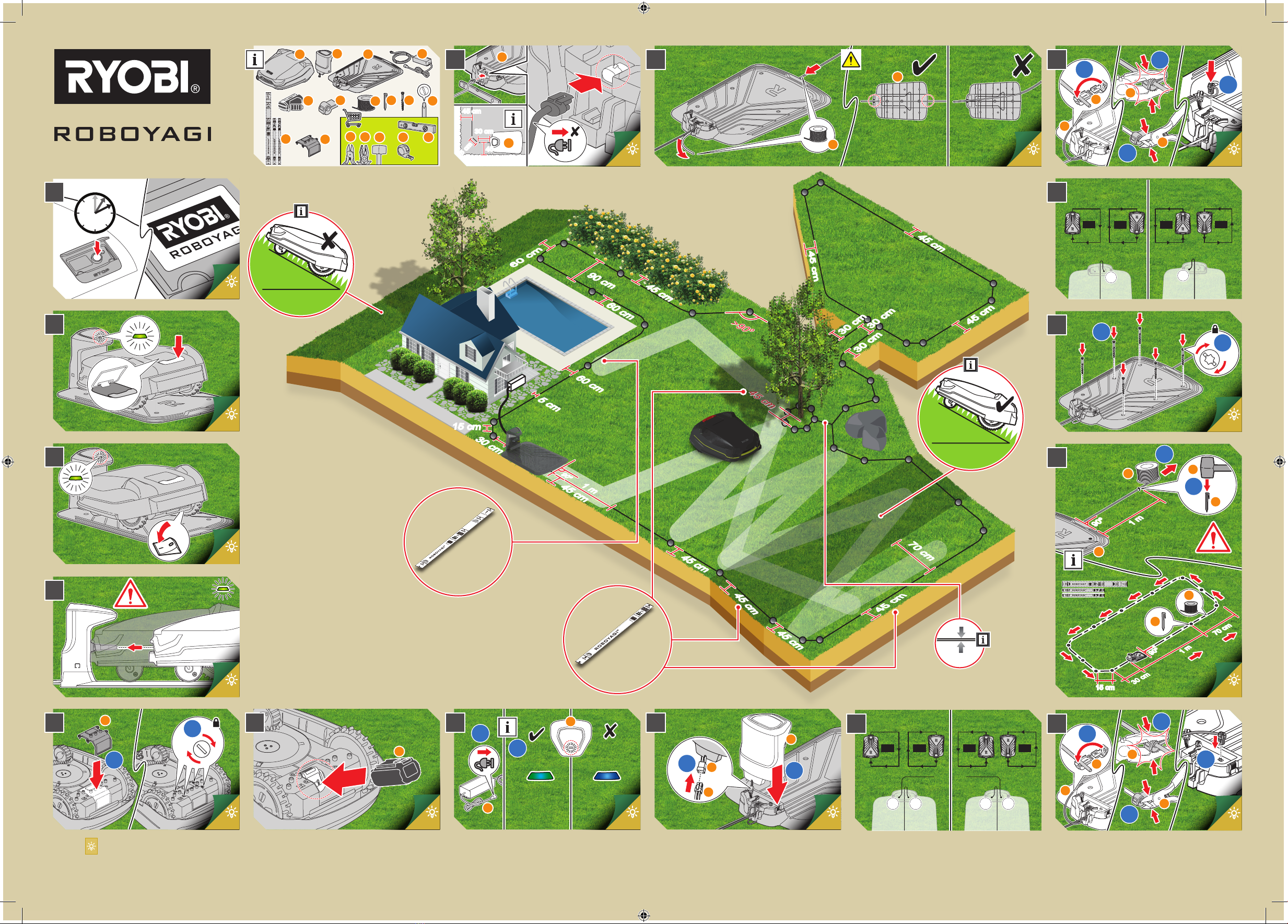

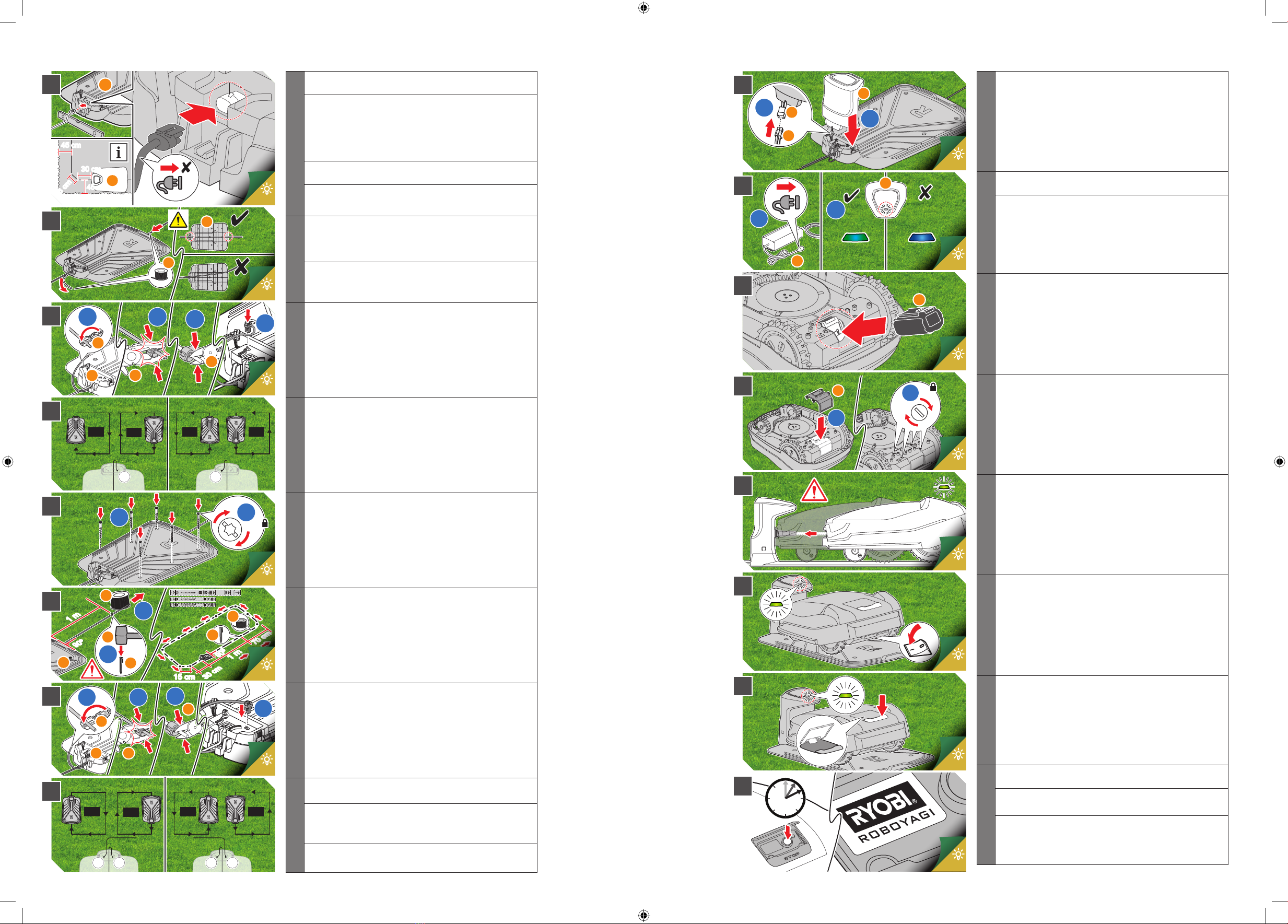

Plan the charging pad placement and perimeter wire placement

carefully.

Note: The charging pad may be positioned to have a docking

direction of either clockwise (CW) or counterclockwise (CCW).

ROBOYAGI drives in this direction along the perimeter wire

when returning to the charging station. Use the supplied ruler

to allow a space of 30 cm plus 15 cm at 45° cutting the corner

behind the charging station.

Place the charging pad (c) in a at area convenient to the power

source.

Plug in the power supply (d) from the transformer into the

charging pad. Do not plug into the mains electricity yet.

Run the perimeter cable under the base of the charging pad.

Note: Make sure that the perimeter cable is straight and within

the channel.

At the end of the perimeter cable running under the charging pad

– secure the wire connector (f) with pliers to ensure a very tight

t, breaking the insulating sleeve of the perimeter wires.

Note: Depending on your charging pad placement, you need

to connect the perimeter wire in either CW or CCW direction. If

CW, the perimeter wire going under the charging pad connects

into terminal 2 (T2). If CCW, the perimeter wire going under the

charging pad connects into terminal 1 (T1).

Secure the charging pad with the screws (i) provided.

Continue following the process of laying the perimeter cable

using the guidance rulers provided in the packaging lid, ensuring

that the rst metre of perimeter cable at the front of the charging

pad continues straight at a 90° angle for at least 1m. Apply

pegs (h) as detailed. Avoid laying the perimeter cable on slopes

greater than 36% or 24°. When laying the perimeter wire at a

corner, ensure that the angle of the wire is greater than 90°,

smoothing out the corners where possible.

On the perimeter cable leading to the charging pad – secure the

wire connector (f) with pliers to ensure a very tight t, breaking

the insulating sleeve of the perimeter wires.

Fix the connector onto the available terminal (T1 or T2).

Note: Failure to plug the perimeter wire connectors into the

correct terminal will result in a failure alert “Outside of the

boundary’’. If this happens, switch the terminals around.

Now you have completed the perimeter setup!

Connect the charging station to the charging pad, and ensure

that the clips are secure and the tower is rmly attached.

Plug the transformer into the mains electricity. The charging

station initialises and lights up CYAN for 10 seconds.

Conrm that the perimeter wire is a closed loop by observing a

solid green light on the top to the charging station.

Install the battery (e), and make sure that you hear a positive

CLICK.

Attach the battery cover (o) securely.

Place the ROBOYAGI onto the charging pad, ensuring that the

charging port is positively engaged.

Turn on the ROBOYAGI on the master on/o󰀨 switch, located

underneath the unit.

Press the stop button to open the cover.

Press the round selector knob for 3 seconds to activate the

display.

Follow the on-screen instructions on how to customise the set up

your ROBOYAGI.

Note: Your ROBOGYAGI may need to be charged before it starts

cutting.
