INSTRUCTIONS AND WARRANTY

MODEL NO: 23972ZA

RUSSELL HOBBS PEARL GLIDE IRON

Congratulations on purchasing our Russell Hobbs Pearl Glide Iron. Each unit is

manufactured to ensure safety and reliability. Before using this appliance for the first time,

please read the instruction manual carefully and keep it for future reference.

FEATURES

1. Dry, steam and spray iron

2. 24000-2600W

3. *Pearl infused ceramic soleplate for a 50-percent smoother glide

4. *Two times more durable soleplate - designed to be hardwearing and long-lasting

5. 150g steam shot for the toughest wrinkles and 40g continuous steam for tackling

creases

6. Anti-drip feature means water won’t drip onto your clothes as you iron

7. Self-clean feature helps to prevent the build-up of limescale which can help lengthen

the lifespan of your appliance

8. A generous 315ml water tank means you don’t have to fill up so often

9. Self-clean anti-calc feature

10. 2m Power cord

11. Variable temperature control

12. Variable and vertical steam

13. Textured handle for comfort and grip

14. Power indicator light

15. For domestic use only

16. 2 year warranty (1 year retail • 1 year extended upon online registration of product •

visit www.russellhobbs.co.za)

*Vs Russell Hobbs Standard Ceramic

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains voltage

in your home.

3. Incorrect operation and improper use can damage the appliance and cause injury to

the user.

4. The appliance is intended for household use only. Commercial use invalidates the

warranty and the supplier cannot be held responsible for injury or damage caused

when using the appliance for any other purpose than that intended.

5. This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning the use of the appliance

by a person responsible for their safety.

6. Children should be supervised to ensure that they do not play with the appliance.

7. Check the power cord and plug regularly for any damage. If the cord or the plug is

damaged, it must be replaced by the manufacturer or a qualified person in order to

avoid an electrical hazard.

8. Do not use the appliance if it leaks, has been dropped or damaged in any way. In

case of damage, take the unit in for examination and/or repair by an authorised

service agent

9. To reduce the risk of electric shock, do not immerse or expose the motor/ electrical

assembly, plug or the power cord to water or any other liquid.

10. Never immerse the unit in water or any other liquid for cleaning purposes.

11. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in use,

before cleaning or when adding or removing parts.

12. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

13. A short cord is provided to reduce the hazards resulting from becoming entangled in

or tripping over a longer cord.

14. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is

not in a position where it can be pulled on inadvertently.

15. Do not allow the cord to touch hot surfaces and do not place on or near flammable

goods, near an open flame, hot gas or electric burner or a heated oven.

16. Use of an extension cord with this appliance is not recommended. However, if it is

necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord, appliance

or plug point. Do not place the extension cord in a position where it can be pulled on

by children or animals or tripped over.

17. This appliance is not suitable for outdoor use. Do not use this appliance for anything

other than its intended use.

18. Do not carry the appliance by the power cord.

19. Always operate the appliance on a smooth, even, stable surface. Do not place the

unit on a hot surface.

20. Ensure that the switch is in the “0” or “OFF” position after each use.

21. Don’t iron clothing while it’s being worn – you’ll burn or scald the wearer.

22. Don’t touch the soleplate and keep away from the steam emitting from it.

23. Take care when emptying the iron – it may contain hot water.

24. Don’t use the iron in the vicinity of children.

25. Use the iron on a stable, level, heat-resistant surface, preferably an ironing board.

26. Don’t leave the iron unattended while plugged in, or while it’s standing on the ironing

board. It could be knocked over by you, by a child or by a pet.

27. Don’t fill the iron directly from the tap, use the water beaker provided.

28. Don’t fill past the MAX level mark shown on the water tank or water will leak from the

iron during use.

29. Deposits or minerals in the water supply will generate scale and block the steam

holes in the soleplate. It is advisable to use distilled water when filling your iron. Do

not use chemically distilled water.

30. Leave the iron upright to cool down fully before cleaning and storing away.

31. Don’t use the iron for any purpose other than those described in these instructions.

32. Take care not to scratch the soleplate – avoid buttons, zips, etc.

33. When placing the iron on its heel rest, ensure that the surface on which is has been

placed is clean and stable.

34. The iron has a protective thermal fuse, which will blow if it overheats. If this happens,

the iron will stop working and must be returned for repair.

35. Always unwind and straighten the power cord before use.

36. Unplug the iron from the mains electrical supply before:

a. Cleaning

b. Filling with water or emptying the water tank

c. Immediately after use

d. When not in use

e. When moving

37. The appliance generates high temperature steam. Always handle with care and warn

other users of potential danger.

38. Don’t let the power cord touch the soleplate as it may result in damage as well as a

potential fire hazard.

39. Empty the water tank after each use.

40. Do not add perfume, vinegar or other chemical liquids into the water tank as they

may result in damage to the appliance.

41. Do not operate this appliance by means of an external timer.

42. The manufacturer does not accept responsibility for any damage or injury caused by

improper or incorrect use, or for repairs carried out by unauthorised personnel.

43. In case of technical problems, switch off the appliance and do not attempt to repair it

yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above-mentioned precautions and instructions, could affect the safe

operation of this appliance.

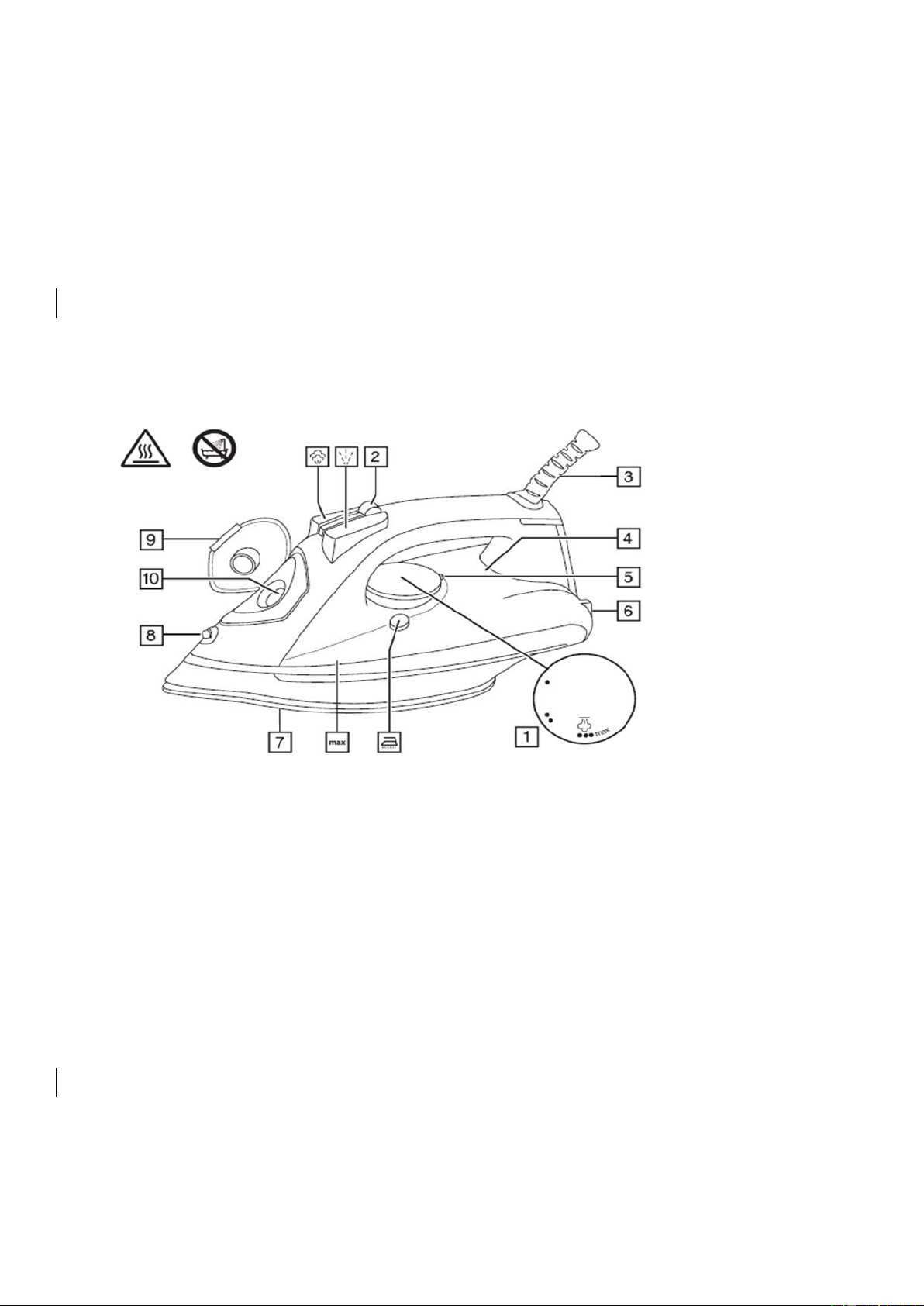

PARTS DIAGRAM

1. Temperature control

2. Steam control

3. Swivel cord

4. Light

5. Marker

6. Heel

7. Soleplate

8. Spray nozzle

9. Water inlet cover

10. Water inlet

OPERATING INSTRUCTIONS

BEFORE FIRST USE

•Remove any protective films or stickers from the soleplate and the iron’s body.

•Wipe the soleplate with a dry soft cloth.

•Unwind and straighten the power cord.

•Fill the iron as described in the section “How to Fill the Water Tank”.

•Connect the appliance to a suitable mains power supply outlet.

•Turn the Temperature Dial to the MAX position.

•Wait until the pilot light cycles a few times or wait for at least 3 minutes for the

temperature to stabilize before ironing. Once the pilot light goes off after the cycle,

then the required temperature is reached.

•Move the steam knob to the ON position - steam will start to come out from the vents

on the soleplate.

•Begin first time ironing with an old towel.

•When the water tank is empty and there is no more steam that can be produced; the

preparation work is completed.

•The iron is now ready for normal use.

Note: It is normal for small amount of smoke to be produced the first time you use the iron,

this will quickly disappear. When using the steam function for the first time, do not direct the

steam towards the laundry, as there could be debris from the steam vents.

HINTS AND TIPS FOR IRONING

1. Sort the articles to be ironed according to the type of fabric. This will minimize the

frequency of temperature adjustment for different garments.

2. Start ironing the fabrics requiring the lowest temperature and progress to the higher

ones because the iron heats up quicker than it cools down.

3. “Test iron” a small area on the backside or inside of the garment if you are unsure

about the type of fabric. Start with a low temperature and increase gradually.

4. Wait for about three (3) minutes before ironing when changing the temperature. The

iron needs time to cycle to the temperature selected.

5. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to

prevent shine marks.

6. You may need to press the steam button a few times to activate the burst of steam

function.

7. Always keep the soleplate smooth – avoid contact with sharp, hard, metal objects.

TEMPERATURE SETTING GUIDE

1 Check for textile care symbols

If the instructions on the fabric label differ from this guide, follow the instructions on the label.

HOW TO FILL THE WATER TANK

1. Disconnect the appliance from main power supply outlet.

2. Ensure that the temperature dial and steam knob are in the “MIN” and “OFF”

positions.

3. Open the water inlet cover.

4. Place the iron on its heel rest and tilt forward approximately at a 45-degree angle.

5. Fill water through the water-filling inlet hole up to the MAX level mark indicated on the

side of the iron/ water tank. Never fill above this mark. Pour the water slowly to

prevent an airlock and over filling.

6. Close the water inlet cover and wipe off any spillages on Iron.

Note: For the best result, it is advisable to use de-mineralized water or distilled water.

Do not use chemically de-scaled water or any other liquids

SWITCHING ON THE IRON

1. Set the temperature control to • and set the steam control to

2. Stand the iron on its heel.

3. Put the plug into the power socket (switch the socket on, if it's switchable).

4. Turn the temperature control to align the setting you want next to the marker. The

light will come on.

5. When the iron reaches the temperature you set, the light will go of. It'll then cycle on

and off as the thermostat operates to maintain the temperature.

WATER SPRAY FUNCTION

This function can be used at any time and it does not affect other functions.

1. Water spotting affects some fabrics. Test this out on a hidden part of the fabric.

2. Lift the iron off the fabric.

3. Aim the spray nozzle at the fabric.

4. Press the button - you may have to press it 2 or 3 times to pump water through

the system.

NOTE: When using the water spray function, ensure that there is enough water in the water

tank.

BURST OF STEAM

This function works well for tough wrinkles and heavy fabrics. By pressing the burst of steam

button ( ) an intense burst of steam is emitted from the soleplate. This can be very useful

when removing stubborn creases. This function can be used once the iron has reached

maximum temperature. For optimal results, there should be a five (5) second interval

between presses of the burst of steam button.

To further prevent leaking water from the soleplate, do not press the burst of steam button

continuously for more than three (3) seconds. Allow at least a one (1) minute interval before

pressing the burst of steam button again. Stubborn creases should be removed within three

(3) burst of steam button presses.

VERTICAL STEAMING

Burst of steam can also be applied when holding the iron in a

vertical position. This function is useful for removing wrinkles on

garments in hanging position, hanging curtains, or other hanging

fabrics.

•Check that there's adequate ventilation behind the fabric, otherwise moisture may

build up, causing mildew.

•Check that there's nothing behind the fabric that may be damaged by the steam.

Check that pockets, turn-ups, and cuffs are empty.

•Check that there's water in the reservoir.

•Set the temperature control to max and set the steam control

•Hold the iron close to (but not touching) the fabric.

•Press the steam burst button.

•Leave 4 seconds between shots, to let the temperature build up.

Note: It may be necessary to press the burst of steam button few times to start this function.

During the use of ‘Burst of Steam’, stop ironing when the pilot light turns on and then start

ironing again only after the pilot light has turned off.

Warning: Do not apply steam on any clothes or fabrics that are being worn by human or

pets. The temperature of the steam is very high and will burn or scald.

DRY IRONING

This function irons without the use of steam.

If you're going to be dry ironing for 20 minutes or more, empty the reservoir first to avoid

spontaneous bursts of steam.

1. Connect the iron with a suitable mains power supply outlet.

2. Set the steam knob to position “0”/ “no steam”/ “OFF”.

3. Turn the temperature dial to the correct ironing temperature according to the

recommendation of the garment label.

4. Wait until the pilot light cycles a few times or wait for at least 3 minutes for the

temperature to stabilize before ironing.

5. Once the pilot light goes off after the cycle, then the required temperature is reached.

6. After use, turn the temperature dial to the “0”/ “OFF”/ “MIN” position to switch it off.

7. Disconnect the iron from mains power supply outlet.

8. Follow cleaning and maintenance instructions.

STEAM IRONING

This function can only be used at a higher ironing temperature – moderate or max position.

1. Connect the iron to a suitable mains power supply outlet.

2. Set the steam knob to position “0”/ “no steam”.

3. Turn the temperature dial to the correct ironing temperature according to the

recommendation of the garment label.

4. Wait until the pilot light cycles a few times or wait for at least 3 minutes for the

temperature to stabilize before ironing. The pilot light will glow to indicate that the iron

is heating up.

5. When the required temperature is reached, the pilot light will go off. The iron is ready

to use.

6. After use, turn the temperature dial to the MIN position to switch off the iron.

7. Disconnect the iron from mains power supply outlet.

8. Follow cleaning and maintenance instructions.

Note: This iron has an anti-drip feature: if you are ironing garments for a long period of time,

the soleplate temperature may decrease. The anti-drip function will ensure that water does

not leak from the soleplate during this time.

SELF-CLEANING

This function removes the scale and minerals built up in the steam chamber. The iron will

remain in the best condition if this function is performed once every two weeks. You may

choose to use the function more frequently depending on the hardness of the water used or

water available in your local area.

•Make sure that the appliance is unplugged from the mains supply outlet.

Table des matières

Autres manuels Russell Hobbs Fer

Russell Hobbs

Russell Hobbs steamXpress RHC901 Mode d’emploi

Russell Hobbs

Russell Hobbs 20630-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Easy 20330-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24430-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs STEAMPOWER RHC450GRY Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs 24440-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs RHC455 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs RHI100 Manuel utilisateur

Russell Hobbs

Russell Hobbs 22520-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 23971-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs steam glide Manuel utilisateur

Russell Hobbs

Russell Hobbs RHC909 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs 20562-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Turbo Steam RHC925 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs EASYGLIDE RHI500 Mode d’emploi

Russell Hobbs

Russell Hobbs RHI002 Guide d'installation

Russell Hobbs

Russell Hobbs Colour Control Pro 2400W Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs 14584 Guide d'installation

Russell Hobbs

Russell Hobbs 14993 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24420-56 Manuel utilisateur

Manuels Fer populaires d'autres marques

Clatronic

Clatronic DB 3703 Manuel utilisateur

TEFAL

TEFAL FV4093Z0 Manuel utilisateur

Gorenje

Gorenje SIH 2200 BS Manuel utilisateur

Philips

Philips GC6012 Manuel utilisateur

Bosch

Bosch 2 Series Manuel utilisateur

Riffel

Riffel Catena KB-819 Manuel utilisateur

Texi

Texi Hestia Manuel utilisateur

Maxwell

Maxwell MW-3010 Manuel utilisateur

TREVIDEA

TREVIDEA Girmi ST60 Manuel utilisateur

Philips

Philips HI5914/30 Manuel utilisateur

Primula

Primula Vapormat Manuel utilisateur

Magio

Magio MG-541 Manuel utilisateur

Scarlett

Scarlett SC-1334S Manuel utilisateur

Bosch

Bosch Sensixx B22L Manuel utilisateur

Philips

Philips GC651 Manuel utilisateur

Vitek

Vitek VT-1247 VT Manuel utilisateur

Cleanmaxx

Cleanmaxx 3397 Manuel utilisateur

Philips

Philips GC800 Manuel utilisateur
