Russell Hobbs RH77IH511B Manuel utilisateur

Model number(s):

RH77IH511B

Electric Induction Hob

Instruction Manual

IMPORTANT:

RETAIN FOR FUTURE REFERENCE

For Customer Services & Spare Parts please call 0345 208 8750

or visit us at mda.russellhobbs.com

Contents

Safety Instructions ………………………………………. 3-5

Product Overview ………………………………………. 6

Positioning ………………………………………. 7-8

Installation ………………………………………. 9-10

Induction Introduction ………………………………………. 11

Pans & Energy Saving ………………………………………. 12-13

Usage ………………………………………. 14-31

Cleaning & Maintenance ………………………………………. 32-34

Trouble shooting ………………………………………. 35

Fault codes ………………………………………. 36

Guarantee ………………………………………. 37

Technical specification ………………………………………. 38

Notes ………………………………………. 39

Safety Instructions

Important note:

Please read this booklet before installing and switching on this appliance.

The manufacturer assumes no responsibility for incorrect installation and

usage as described in this booklet.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance.

Electric ovens and hobs must be hard-wired to a suitably rated electrical

cooker power point –it is recommended that you consult a qualified

electrician. Failure to do so will invalidate your guarantee, liability claims

and could lead to criminal prosecution

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply lead is damaged it must be replaced by a qualified person

using the correct lead, available from 0345 208 8750.

•Packaging material is dangerous to children. Never allow children to play

with packaging material.

•Check the appliance for damage after unpacking it. Do not connect the

appliance if it has been damaged in transport.

•The appliance can only be used safely if it is correctly installed according

to the safety instructions. The installer is responsible for ensuring that

the appliance works correctly after installation.

•All operations relating to installation and regulation must be carried out

by an authorised installation engineer, respecting applicable regulations,

standards and the specifications of the local electricity providers.

Safety Instructions

•This appliance can only be installed in a well-ventilated place.

•This appliance is intended for domestic use and the household environment

only. The appliance is not intended for use outside.

•Do not tamper with the appliance's interior. If necessary, call our customer

helpline.

•Do not switch on the appliance if it is damaged in any way. Contact our

customer helpline.

•This appliance is only intended for cooking purposes, not as a heating system.

•Do not leave the appliance unattended during operation. The manufacturer is

not liable for damage which is caused by improper use or incorrect operation.

•Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended.

Never use water to put out burning oil or fat, switch off the appliance.

Extinguish flames carefully using a lid, fire blanket or something similar.

•Operating several cooking zones at the same time gives rise to a great deal of

heat.

•The accessible parts become very hot when in operation. Never touch hot parts.

Keep children at a safe distance.

•Do not use covers. These can cause accidents, due to overheating, catching fire

or materials shattering, for example.

•Do not use inappropriate child safety shields or hob guards. These can cause

accidents.

•The hob will become very hot. Never place combustible items on the hob.

Never place objects other than cookware on the hob.

•The appliance gets hot. Do not keep combustible objects or aerosol cans in

drawers directly underneath the hob.

•A defective appliance may cause electric shock. Never switch on a defective

appliance. Switch off the circuit breaker in the fuse box and contact customer

services.

Safety Instructions

•Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the

circuit breaker in the fuse box. Contact customer services.

•Parts and components on the appliance may have sharp edges. Wear protective

gloves.

•Saucepans may suddenly move due to liquid between the pan base and the

hotplate. Always keep the hotplate and saucepan bases dry.

•Incorrect repairs are dangerous. Repairs may only be carried out by a qualified

electrician.

•Do not use any high-pressure cleaners or steam cleaners, which can result in an

electric shock.

•Never use strong and abrasive cleaning agents as they will cause surface

damage.

•In the event of a malfunction, turn off the appliance’s electricity supply. For

repairs, call customer services.

•This appliance complies with electromagnetic safety standards. However,

persons with cardiac pacemakers or other electrical implants (such as insulin

pumps) must consult with their doctor or implant manufacturer before using

this appliance to make sure that their implants will not be affected by the

electromagnetic field. Failure to follow this advice may result in death.

•Do not place or leave any magnetisable objects (e.g. credit cards, memory

cards, etc.) or electronic devices (e.g. computers, MP3 players, etc.) near the

appliance, as they may be affected by its electromagnetic field.

Product overview

1. 1800W/2300W (max)

2. 1800W/2300W (max)

3. 2200W/2600W (max)

4. 1200W/1500W (max)

5. Timer indicator & control

6. Zone indicator controls &

power level indicator

7. Power level controls

8. Boost function control,

child lock control &

ON/OFF button

9. 2 x Brackets

10. 2 x Screws

Unit & Spare Parts

If any of the above parts are missing please contact the customer service team on

0345 208 8750 or visit mda.russellhobbs.com

Positioning

•This appliance is to be installed in a counter top.

•Ensure no occurs to the appliance during installation.

•The appliance can only be used safely if it is correctly installed according to the

safety instructions. The installer is responsible for ensuring that the appliance

works correct when installed.

•Electric ovens and hobs must be hard-wired to a suitably rated electrical

cooker power point –it is recommended that you consult a qualified

electrician. Failure to do so will invalidate your guarantee, liability claims and

could lead to criminal prosecution.

•The edges of the hob must be a minimum of 50mm from a side or rear wall.

•The highest point of the hob must be a minimum of 760mm from the underside

of any surface directly above it.

•The highest point of the hob must be a minimum of 400mm from the underside

of any surface either side of the hob. If any surface either side of the hob is

lower than 400mm, then it must be at least 50mm from the outer edges of the

hob.

•There must be a minimum of 50mm of clearance around the hob and any

combustible materials.

600 - 900mm

400mm

760mm

200mm

Positioning

•Be sure the thickness of the work surface is at least 30mm

•You must have a gap of a minimum gap of 25mm between the underside of the

appliance and any surface below it.

Note:

•Select heat-resistant work surface material to avoid larger deformation

caused by the heat radiation from the appliance.

•To install a hob above an oven, the oven must have forced ventilation.

•Check the dimensions of the oven when being installed with the hob

Installation

Preparation & installation

Ensure that there are no electric wires, gas or water pipes in the area where holes

are to be made.

Components of the appliance may have sharp edges. Wear protective gloves.

1. Ensure that there is an electrical connection within adequate distance of the

hob after it has been installed.

2. Cut out the aperture that measure 744mm by 494mm deep, in accordance

with the positioning instructions detailed on the previous page.

3. Carefully and gently lower the hob into the aperture hole that you have cut

out.

4. Fix the hob on the work surface by screwing the 2 brackets on to the underside

of hob after installation:

5. The brackets position can be adjusted to suit different thickness of work

surfaces:

Installation

Electrical connection

•WARNING- THIS APPLIANCE MUST BE EARTHED

•This appliance is designed to be connected to a 220-240V~50Hz AC electricity

supply.

•Before proceeding with the electrical connection, verify that the current

carrying capacity of the system and the isolator / main switch is adequate for

the maximum power rating of the hob.

•Electrical installation of the residence and of the appliance’s isolator must be

earthed and conform with the required safety regulations.

•If there is no suitable circuit and a fused switch, they must be installed

by a qualified electrician before the hob is connected.

•An isolator switch must be easily accessible once the hob has been installed.

•Do not use adaptors, multiple sockets and/or extension leads.

•A circuit breaker with a contact opening of at least 3 mm, rated 32A and

delayed functioning type must be installed inside the supply circuit.

•During installation, please ensure that insulated cables are used. An incorrect

connection might damage your appliance and will void the manufacturer’s

guarantee.

•All repairs must be carried out by an authorised service personal or a

qualified electrician.

•Switch off/isolate your appliance before each maintenance.

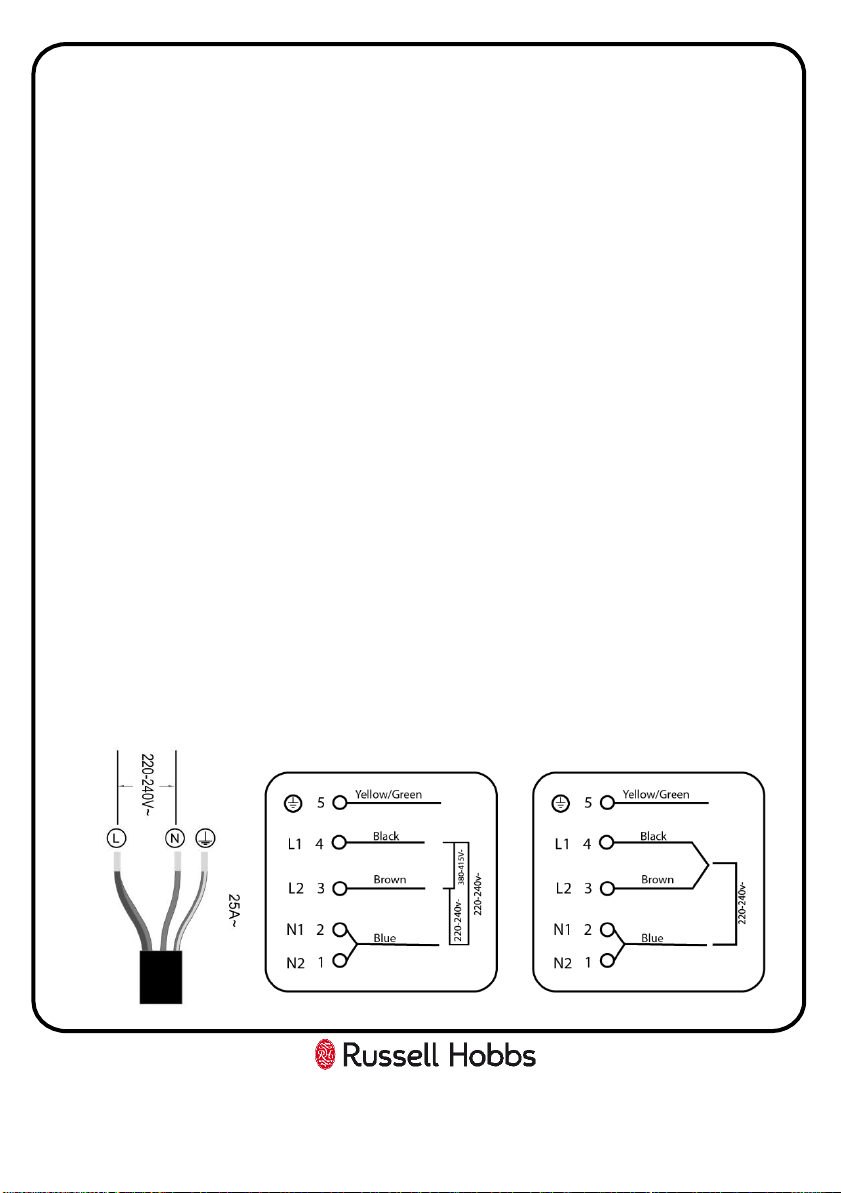

•Wiring diagram is below:
