Russell Hobbs RHCF200 Manuel utilisateur

Model number:

RHCF200

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

IMPORTANT:

RETAIN FOR FUTURE REFERENCE

Chest Freezer

Instruction Manual

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Contents

Safety Instructions ………………………………………. 3-4

Electrical Safety ………………………………………. 4

Before switching on ………………………………………. 5

Unit & Spare Parts ………………………………………. 5

Transportation & Handling ………………………………………. 6

Positioning ………………………………………. 6

Installation ………………………………………. 7

How to use ………………………………………. 8

Temperature selection ………………………………………. 8

Power Failure ………………………………………. 9

Storage Advice ………………………………………. 9

Defrosting ………………………………………. 10

Internal Cleaning ………………………………………. 11

External Cleaning ………………………………………. 11

When not in Use ………………………………………. 11

Trouble shooting ………………………………………. 12-13

Important notes ………………………………………. 14

Connection to the mains ………………………………………. 15

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Safety Instructions

Important note:

Please read this booklet before installing and switching on this appliance.

The manufacturer assumes no responsibility for incorrect installation and

usage as described in this booklet.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance.

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply lead is damaged it must be replaced by a qualified person using

the correct lead, available from 0845 208 8750.

•Do not store chemicals or liquids such as methanol or petrol etc., which are

easy to evaporate, burn or explode.

•Do not store heavy objects on top of the appliance and do not allow the

refrigerator to become wet.

•The circuitry for the appliance should be isolated. The unit should always be

plugged into its own plug socket and never into an extension lead.

•The voltage of this products should be 220-240V,50Hz

•Only ever remove the plug from the socket by gripping the plug firmly – do

not pull the wire to remove the plug.

•Do not use electrical appliances in the freezer appliance.

Do not use mechanical devices or other artificial means to accelerate the

defrosting process.

Caution: Risk of fire – do not store flammable liquid or other flammable

material in this appliance.

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Safety Instructions

•If this appliance is to replace an old refrigerator with a lock; break or

remove the lock as a safety measure before storing it, to protect children

from locking themselves inside.

•Old refrigerators and freezers contain insulation gases and refrigerant,

which must be disposed of properly. Entrust the disposal of a scrap unit

categorically to the competence of your local waste disposal service and

contact your local authority or your dealer if you have any questions.

•Please ensure that the gas pipe at the rear of your appliance does not get

damaged prior to being picked-up by the relevant waste disposal service.

•This model contains R600a refrigerant (the coolant isobutane), a natural gas

that is very environmentally friendly but also combustible. When

transporting and installing the unit care must be taken to ensure that none

of the refrigeration circuit components become damaged. In the event of

damage avoid any naked flames or any sources of ignition and ventilate the

room in which the unit is placed for a few minutes.

Warning: Keep the ventilation openings in the appliance enclosure, clear of

obstruction.

Electrical Safety

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

Before switching on, make sure that the voltage of your electricity supply is the same

as that indicated on the rating plate. This product is designed to operate on 220 –

240V AC; 50Hz, 120 W, 1A. Connection to any other power source may damage the

unit.

This product may be fitted with a non re-wireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or becomes

damaged in any way, it should be cut off and an appropriate plug fitted following the

wiring instructions below. This should be carried out by a qualified electrician. The plug

removed must be disposed of safely, as insertion into a 13 Amp socket is likely to

cause an electrical hazard.

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Before Switching On

•Wait 3 hours before plugging in the appliance in to the mains supply

to ensure optimum performance, this allows the refrigerant to

settle.

•There may be an odour when you first switch on the appliance, it

will disappear when the appliance starts to cool.

•To save energy, you should minimize the frequency and duration of

door opening.

Unit Parts

Before installation, check that all parts listed below are present. If any

parts are missing, please contact the product care service team on

0845 2088750.

Important Information

Unit & Spare Parts

For the following spares please contact the customer

service team on

0845 208 8750 or visit productcareuk.com

Item Quantity

Basket/shelf 1

Ice Scraper 1

Instruction Booklet 1

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Transportation and Handing

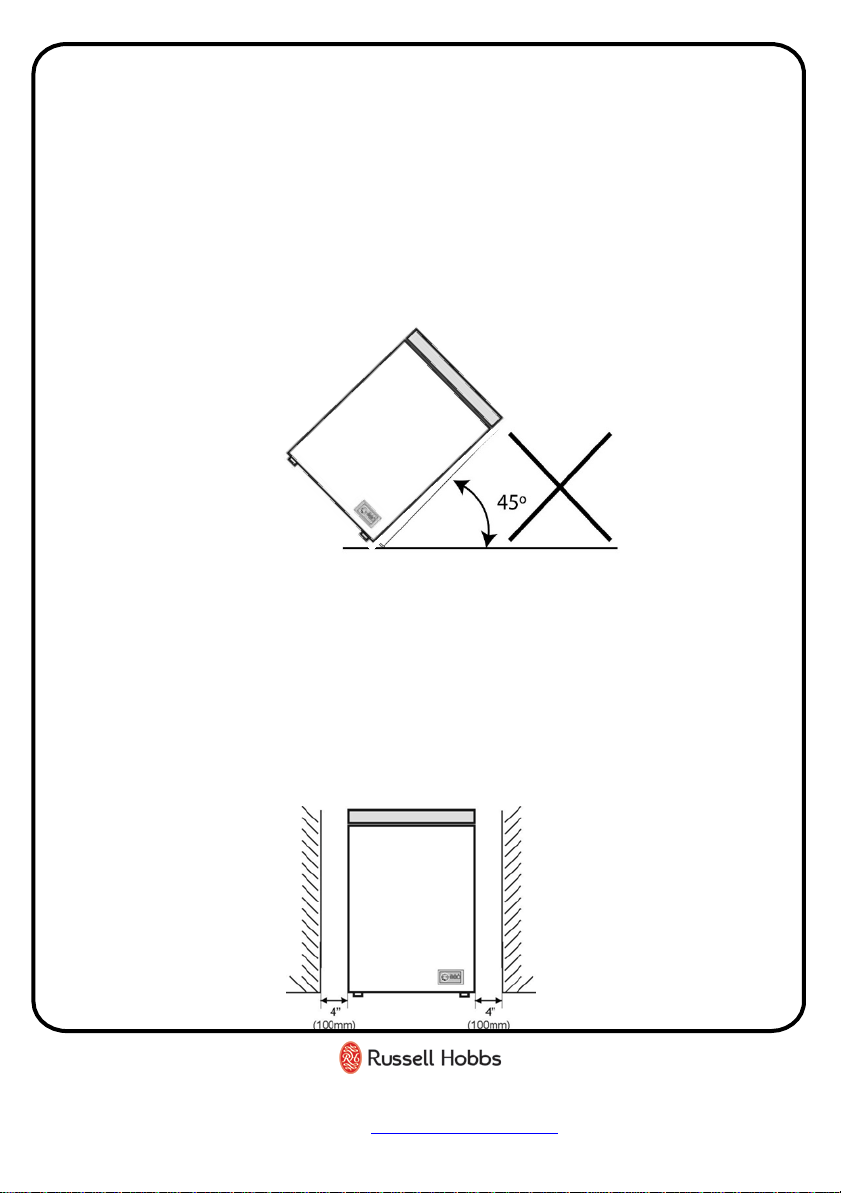

For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold

the base and rear corners of cabinet. Lift the freezer carefully. Never use the

door handles for lifting. To move the appliance on a flat level surface, tilt it

slightly backwards onto the two rear rollers and push backwards.

This unit is heavy and could cause injury – ensure there is sufficient person

power to move the appliance.

Positioning

This appliance should only be placed on a flat, firm surface.

Choose a dry and well-ventilated space. No less than 10cm must be left around the

sides and at the back, to allow efficient cooling.

Choose a location away from a heat source, such as direct sunlight, a radiator or

oven.

The appliance should be positioned so that the plug is easily accessible.

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Installation

After installation, do not switch the power to the freezer on for at least 3

hours – the unit needs to stand. The unit should be kept away from direct

sunlight. If the appliance is located on carpet, damage may be caused to the

carpet due to heat being emitted from the unit.

Remove all transport tapes and foam protection pieces . Clean the interior

of the freezer with a cloth dampened in lukewarm soap and water. Wipe

with clear water and wipe dry.

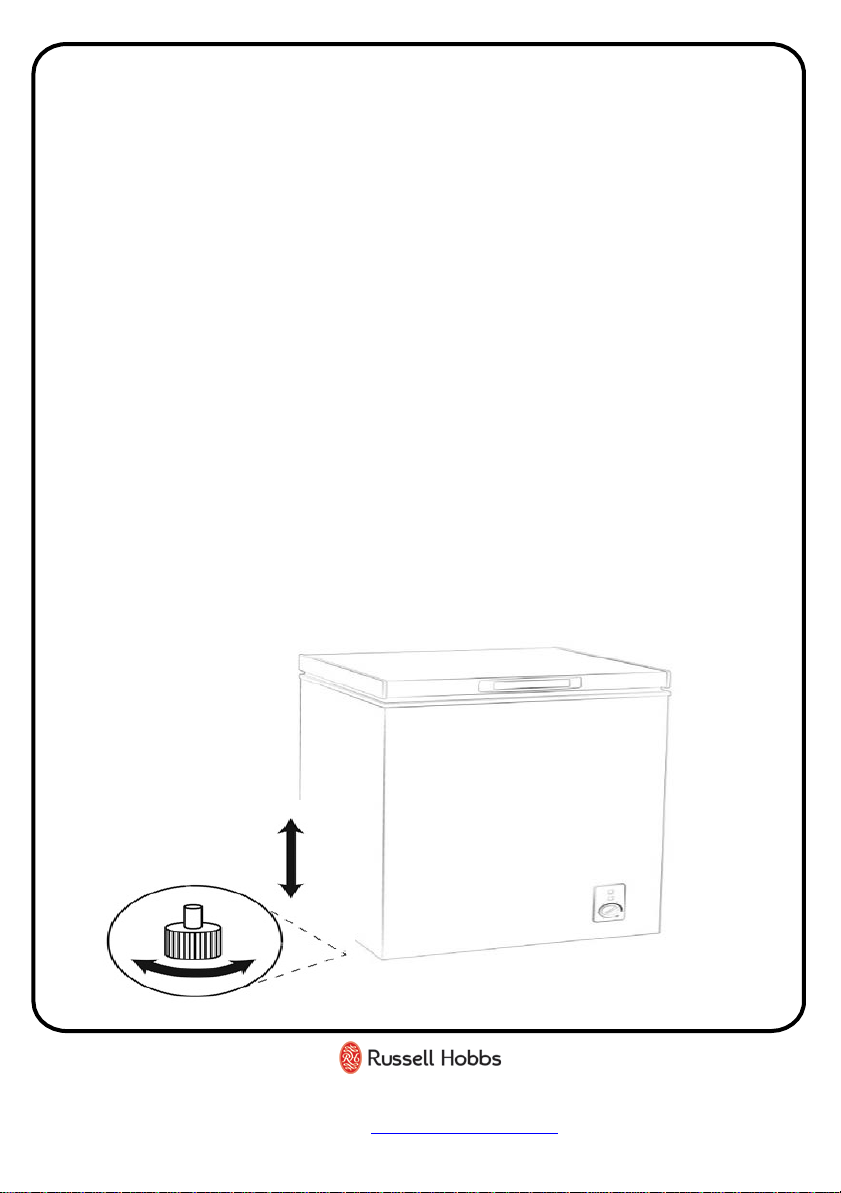

When the appliance has been positioned, adjust the two front feet to

ensure the unit is stable. This is essential to ensure quiet running and

proper door opening /closing. See below.

Once the appliance has been standing for 3 hours, plug in the freezer, locate

the thermostat knob inside the compartment and set to "3" position and

switch on the power. The compressor will begin to work. Close the door.

This Appliance is suitable to be placed in garages.

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Allow to stand for a minimum of 3 hours before plugging in to the mains

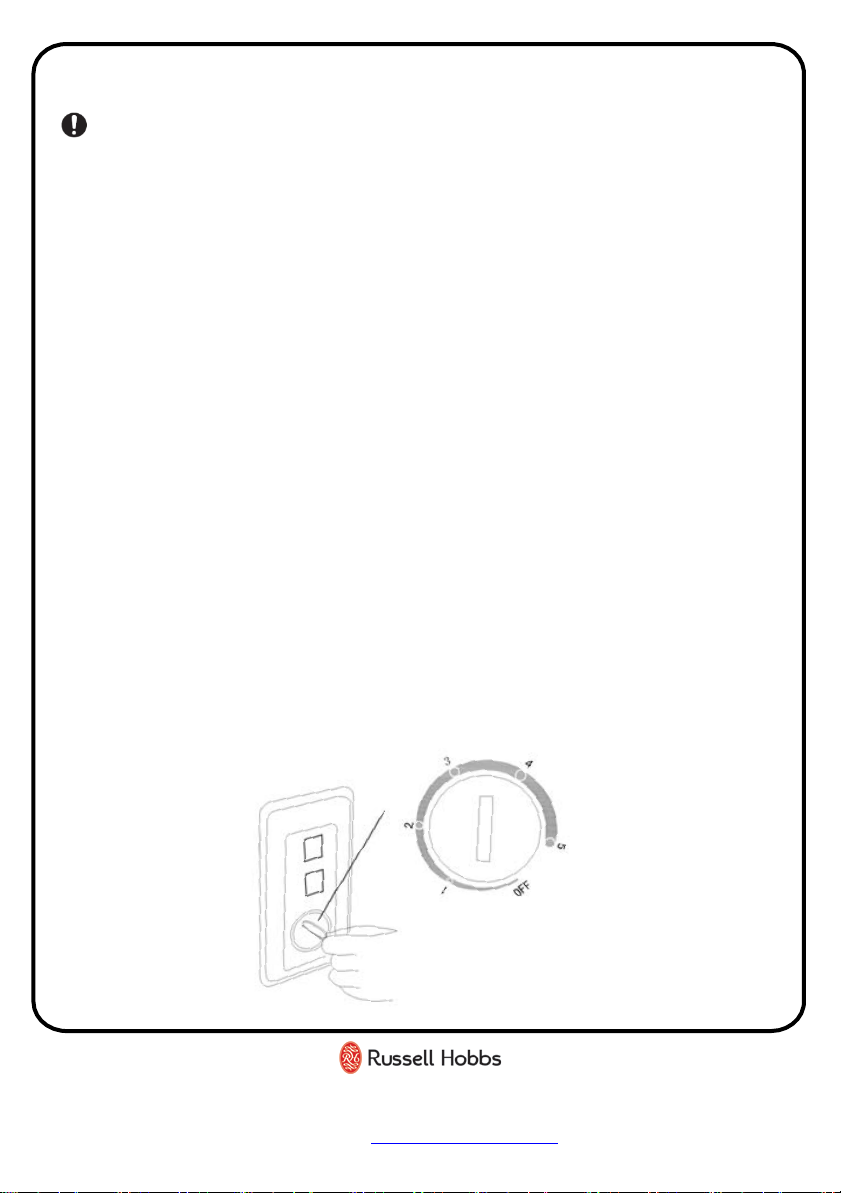

The temperature in the appliance is controlled by the temperature

control knob located on the front face, at the bottom right hand side.

Rotate the control knob left or right to regulate the temperature inside

the freezer.

On the temperature control, 1 is the warmest setting and 5 is the

coldest setting. Under normal conditions the temperature control

should be set between 2 and 3. Once the temperature control has been

set, close the door and plug in the appliance. We recommend that the

door is not opened for a minimum of 4 hours to allow the appliance to

reach the standard operating temperature. The ‘OFF’ position is an

automatic shutdown, and it will defrost.

Note: The standard operating temperature for the freezer

compartment should be between -12°C and -30°C.

Indicator lights

Red Indicates the freezer is switched on.

Green Indicates the compressor is working. (The green

indicator light will switch on and off as required, this is normal)

How To Use and Temperature Selection

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Power Failure

If there is a power failure during the storage of frozen foods, keep the

door closed. If the temperature within your freezer should rise, do not

refreeze the food without checking it's condition.

•Ice Cream: Once thawed should be discarded.

•Fruit and Vegetables: If soft should be cooked and used up.

•Bread and Cakes: Can be refrozen without danger.

•Shellfish: Should be refrigerated and used up quickly.

•Cooked Dishes: i.e. casseroles should be refrigerated and used up.

•Large Pieces of Meat: Can be re-frozen providing there are ice crystals

remaining within them.

•Small Joints: Should be cooked and then re-frozen as cooked dishes.

•Chicken: Should be cooked and re-frozen as a fresh dish

Storage Advice

•Store fresh food in airtight boxes or wrap in bags or foil which is

suitable for freezing.

•Do not allow frozen food into direct contact with food to be

frozen.

•Pre frozen food must be place in the freezer as quickly as

possible after purchasing.

•To prevent frost damage to fresh vegetables or fruits they must

be processed appropriately before being placed into the freezer

compartment.

For Customer Services & Spare Parts please call 0845 208 8750

Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm

or visit us at www.productcareuk.com

Never use sharp metal tools as it may damage the appliance.

Never use an electrical heater, this may cause an electric shock.

Note: Care must be taken when performing the following procedure.

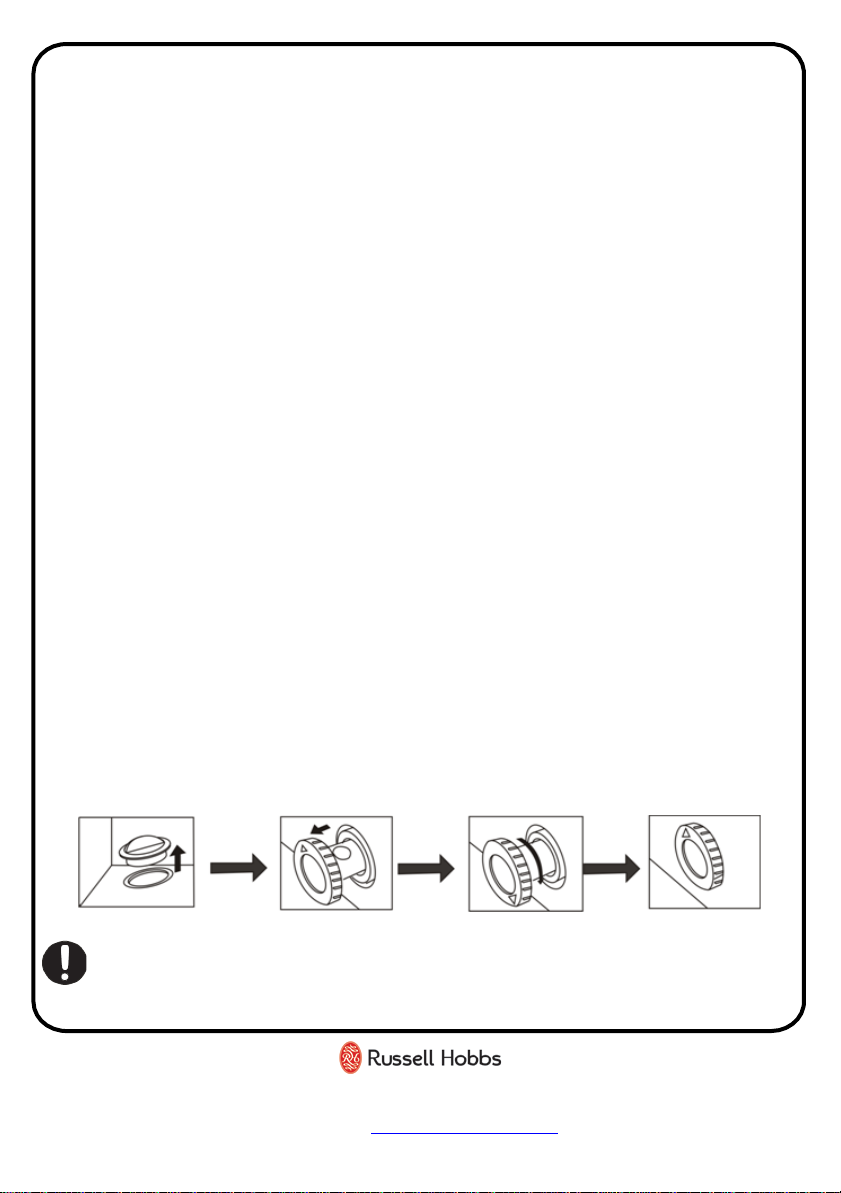

Defrost twice a year or when a frost layer of approximately 7 mm (1/4”) has

formed.

•6 hours before the defrosting process, set the thermostat knob at “MAX”

position to make sure the food is at the lowest temperature before removing

the frozen foods. All food should be wrapped in several layers of newspaper

and stored in a cool place (e.g. fridge or larder).

•Switch off the appliance at the socket outlet and pull out the mains plug.

•Remove the freezer basket. Leave the lid open. Containers of warm water (not

hot) may be placed carefully in the freezer to speed up the defrosting process.

•Never use hairdryers, electrical heaters or other such electrical appliances for

defrosting.

•When the ice has melted, drain the water in the bottom of the freezer by

removing the rubber cap located inside the appliance in the back, left hand side

as illustrated below.Fig.1 (NOTES: PLEASE KEEP THE RUBBER COVER SAFE

DURING THE DEFROSTING PROCESS AND PUT IT BACK AFTER THE DEFROSTING

PROCESS IS COMPLETE)

•Situated at the rear bottom corner of the appliance, is a small plastic drain tap.

Place a container under the drain tap to catch the defrosted water. Pull out the

tap just enough to where you can see the hole in the pipe, rotate the hole so

that it is at the bottom, water will flow into the container. This may take several

attempts to drain all the water. After the draining has been completed, replace

the rubber cap in the appliance and rotate the drainage tap so that the hole is

facing upwards and push it flush to the appliance. Fig.2,3,4.

•Wipe up any spillages that may have occurred.

Defrosting

Fig.1 Fig.2 Fig.3 Fig.4

Table des matières

Autres manuels Russell Hobbs Congélateur

Russell Hobbs

Russell Hobbs RHCF103-MD Manuel utilisateur

Russell Hobbs

Russell Hobbs RH54FF180 Manuel utilisateur

Russell Hobbs

Russell Hobbs RH54FR3FZ144 Manuel utilisateur

Russell Hobbs

Russell Hobbs RH55TMFF143W-MD Manuel utilisateur

Russell Hobbs

Russell Hobbs RHTTFZ1-EU Manuel utilisateur

Russell Hobbs

Russell Hobbs RHUCFZ3W Manuel utilisateur

Russell Hobbs

Russell Hobbs RH8CLR8001B Manuel utilisateur

Russell Hobbs

Russell Hobbs RHUCFF48(B) Manuel utilisateur

Russell Hobbs

Russell Hobbs RHCF300 Manuel utilisateur

Russell Hobbs

Russell Hobbs RH54FR3FZ146B Manuel utilisateur

Russell Hobbs

Russell Hobbs RH55LF142 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHBI55FZ122 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHUCFZ3 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHCF103 Manuel utilisateur

Russell Hobbs

Russell Hobbs RH55FZ142 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHUCFZ55-H Manuel utilisateur

Russell Hobbs

Russell Hobbs RHCF60 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHTTFZ1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RH115 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHCF198B Manuel utilisateur

Russell Hobbs

Russell Hobbs RHCF99 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHCF418 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHBI55177FZ3 Manuel utilisateur

Russell Hobbs

Russell Hobbs RH47UCFF1 Manuel utilisateur

Manuels Congélateur populaires d'autres marques

Siemens

Siemens GU..D SERIES Manuel utilisateur

Omcan

Omcan FR-CN-0155 Manuel utilisateur

Beko

Beko FNE290E24W Manuel utilisateur

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuel utilisateur

Electrolux

Electrolux EUF2042AOX Manuel utilisateur

Dometic

Dometic CoolFreeze CFX95DZ Manuel utilisateur

Electrolux

Electrolux EUF7000W1 Manuel utilisateur

Polar Electro

Polar Electro CT330 Manuel utilisateur

MPM

MPM MPM-145-SK Series Manuel utilisateur

SAF

SAF PRESTOTIG 200AC/DC Guide rapide

Zanussi

Zanussi ZFT11407WA Manuel utilisateur

AEG

AEG A63190GT Manuel utilisateur

AEG

AEG A81000TNW0 Manuel utilisateur

Matsui

Matsui MUC50S15E Manuel utilisateur

NEFF

NEFF G4344X8 Manuel utilisateur

Frigidaire

Frigidaire FV 1246 H Manuel utilisateur

Frigidaire

Frigidaire FFC13K1AW Manuel utilisateur

Electrolux

Electrolux EU 2400C Manuel utilisateur
