Copyright © 2013 Omix-Ada®, Inc.

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | [email protected]

1

3

2

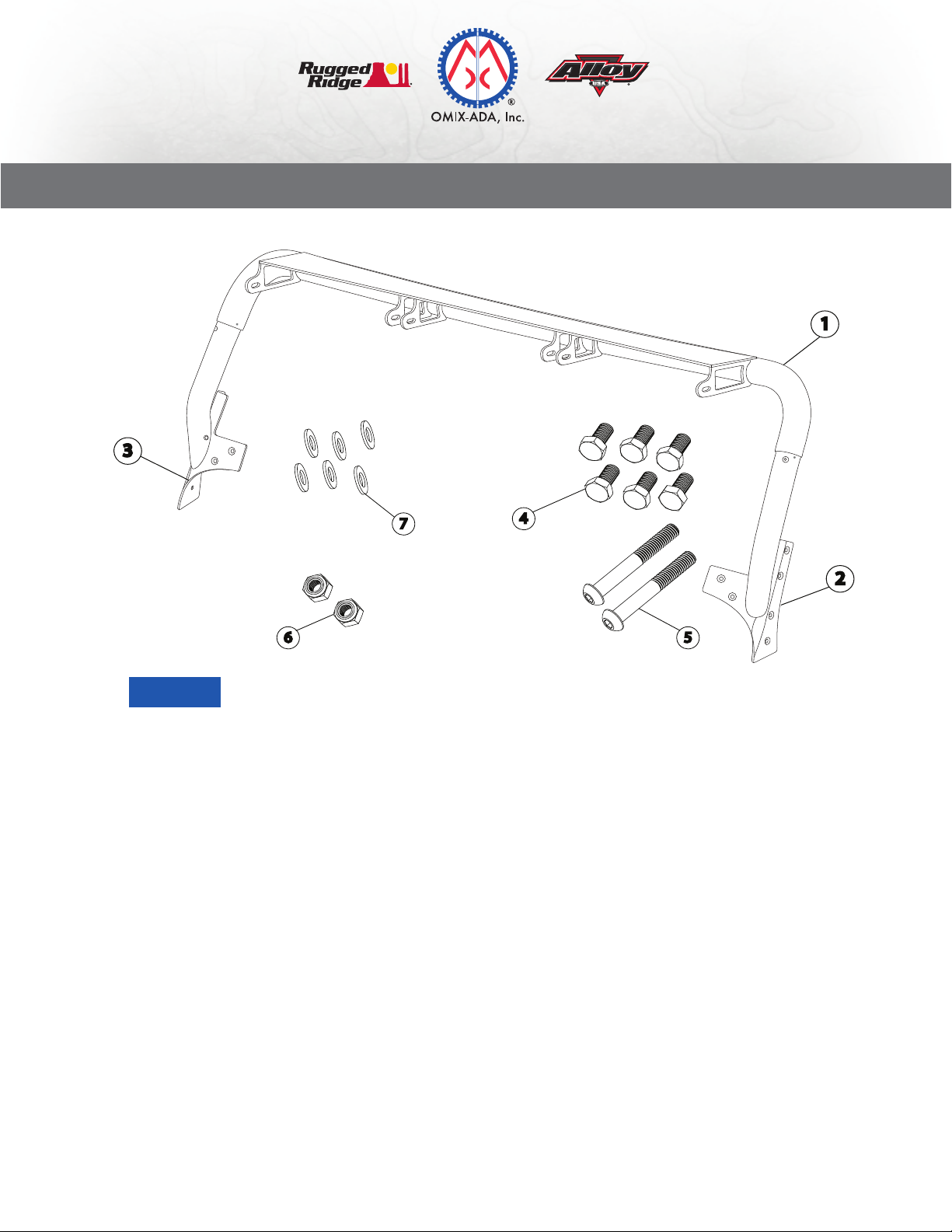

Hardware (Qty)

4. M8 Hex Head Bolt

5. M8 Button Head Bolt

6. M8 Lock Nut

7. M8 Washer

(6)

(2)

(2)

(6)

Page 1/3

11232.25

6

4

7

5

JK Windshield LED Light Bar

LED lights not included.

This JK lightbar is compatible with many 13.5 inch LED designs, however,

we recommend using Rugged Ridge® LED SKU: 15209.11 for best results

NOTICE

Components

1. Crossbar

2. LH Bracket

3. RH Bracket

(Qty)

(1)

(1)

(1)

Copyright © 2013 Omix-Ada®, Inc.

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | [email protected]

11232.25

Page 2/3

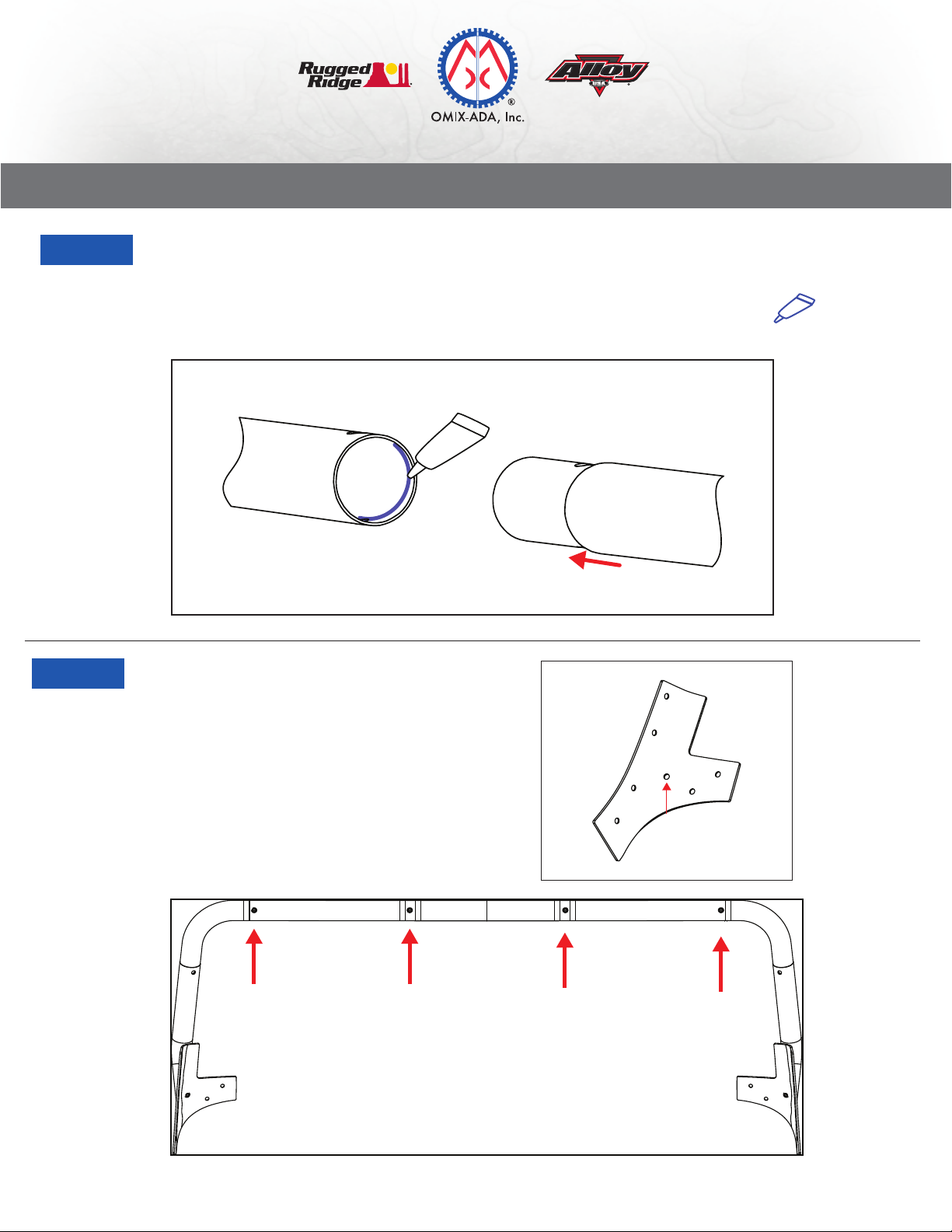

Installer is responsible for ensuring adequate silicone is used and applied correctly to all tub-

ing joints, bolt locations and wire grommets. Apply an even bead of silicone on the inside of

the female end. Insert the male end into tube. Silicone may also be used under bolt heads

and nuts for additional weatherproong. The following symbol is a reminder:

When running wire leads during steps 1-3,

use pre-drilled holes in the LH bracket and

crossbar, shown in red below. Use the three

holes that work best with your LEDs.

NOTICE

NOTICE

JK Windshield LED Light Bar

Copyright © 2013 Omix-Ada®, Inc.

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | [email protected]

Page 3/3

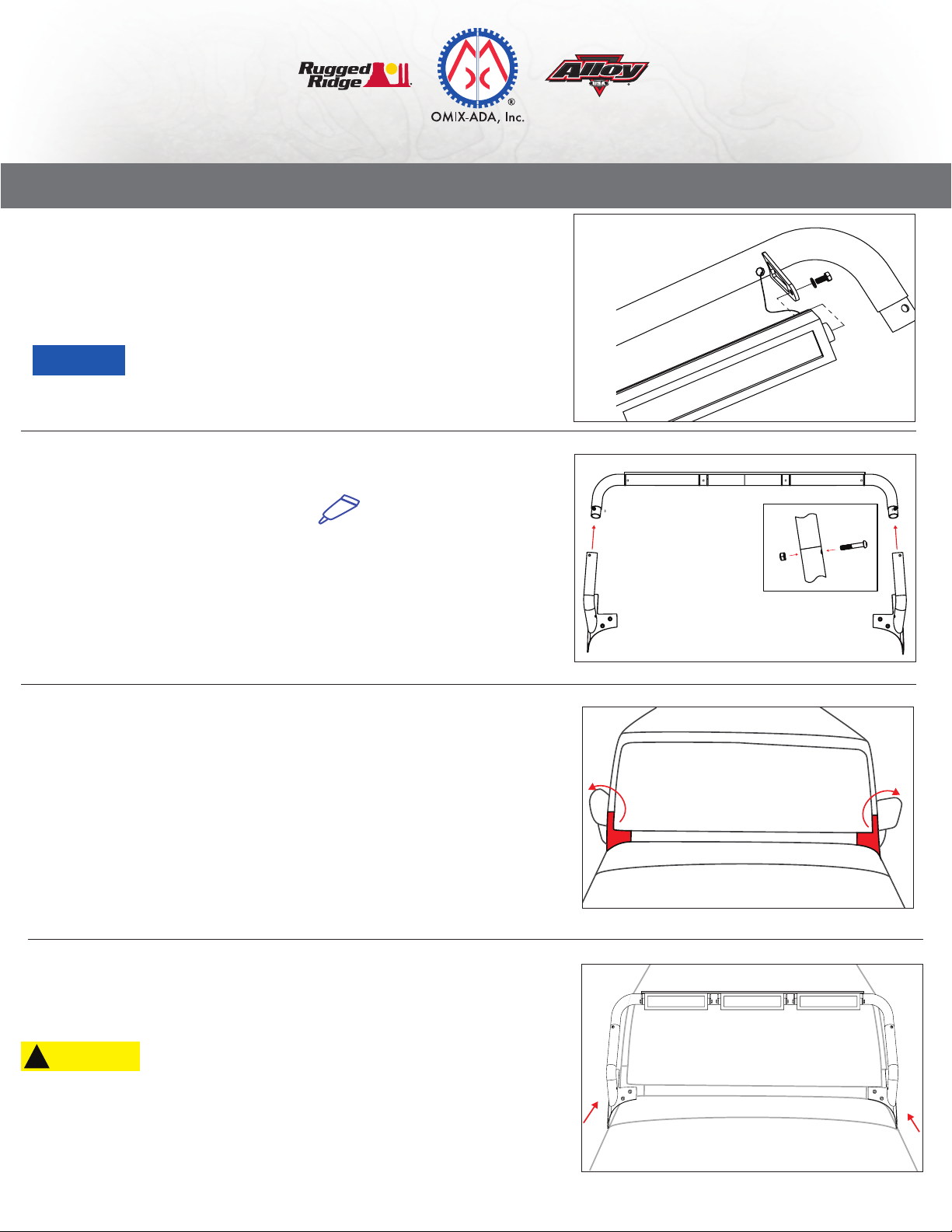

2. Attach LH and RH brackets to crossbar with supplied

M8 button head bolt and M8 lock nut. Do not tighten

completely to allow for adjustment.

4. Install assembly to vehicle using factory hardware

retained from Step 1. Adjust tment if necessary and

securely tighten all bolts.

CAUTION

!

Use of tape on the a-piillar, cowl, and fender

is recommended to prevent damage to

vehicle’s nish.

Two people are also recommended for this

step: One on each side.

11232.25

1. Attach 13.5 inch LED bars to the crossbar. M8x16mm

hex bolts with washer are supplied for mounting Rugged

Ridge® LEDs. Use holes in front of crossbar and underside of

LH bracket for routing wires.

JK Windshield LED Light Bar

If other manufacturers’ lights are used,

additional hardware may be required.

NOTICE

3. Remove the factory LH and RH brackets. Retain factory

hardware for later use.
