Rubine RCF-Mercury-5BL Manuel utilisateur

52"

CEILING FANS

Instruction Manual

RCF-Mercury-5BL

SAFETY GUIDELINES AND INSTALLATION PROCEDURES

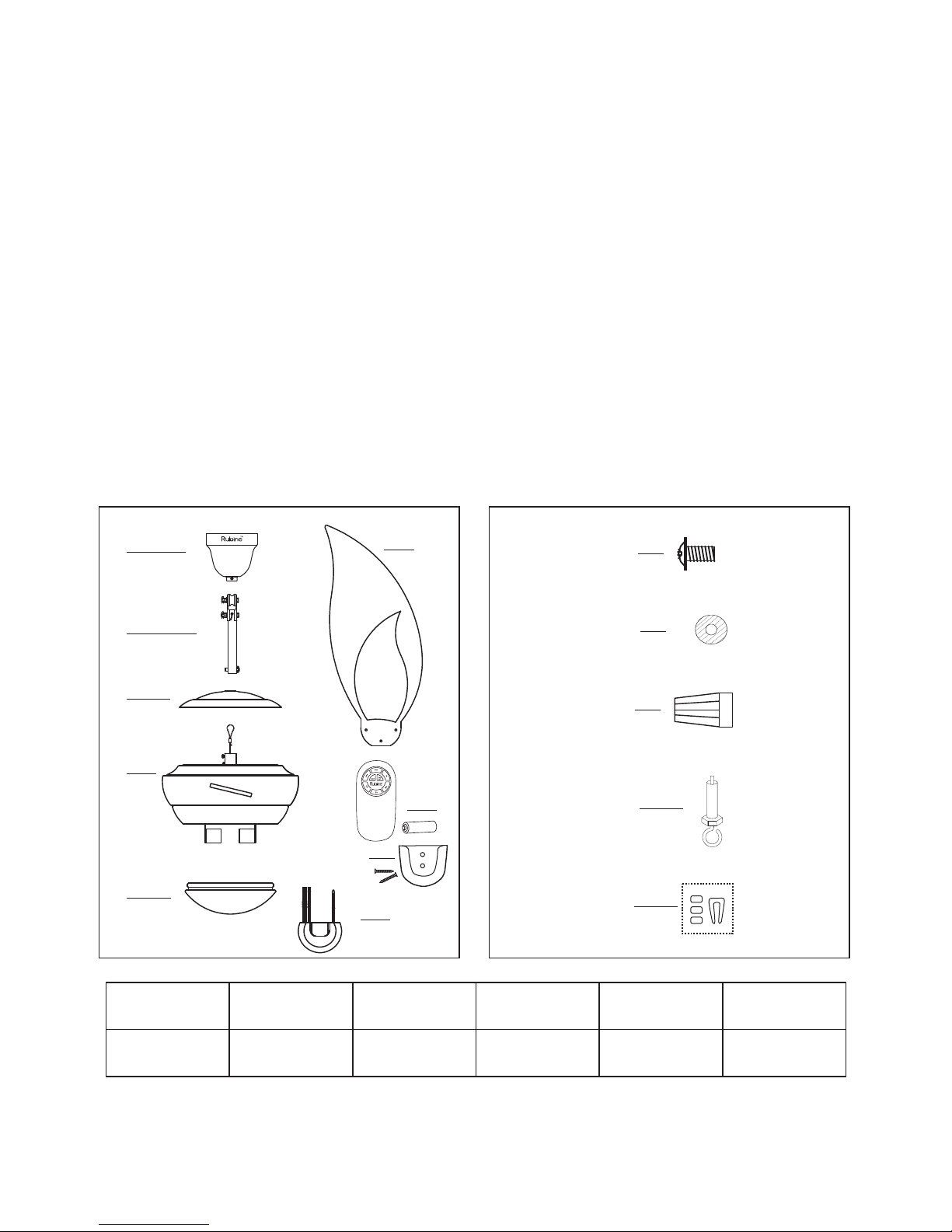

WHAT YOU HAVE

After opening the box, you should find the following parts:

PARTS QUANTITY SCREW PACKAGE

SCREW PACKAGE

10. PAPER WASHERS 16

11. WIRE NUTS 6

COMPONENTS

Page 1

9. BLADE ATTACHMENT SCREWS 16

QUANTITY

12. EXPANSION J HOOK 1

13. BALANCING KIT 1

1. TOP CANOPY

2. DOWN ROD(6”) WITH

HANGING RUBBER WHEEL

3. COUPLING COVER

4. FAN HOUSING & MOTOR

5. GLASS SHADE

6. BLADES

7. REMOTE CONTROL WITH

12 VOLT BATTERY

(RF TRANSMITTER)

7A. REMOTE CONTROL

HOLDER WITH 2

MOUNTING SCREWS

8. RECEIVER

These measures do not include WATTS used by the light kit

FAN SIZE RATING MAX.

POWER

SPEED

MAX. RPM N.W. G.W.

52"11.8kgs 13.0kgs

250+-10%

80W

240V/50Hz

Page 2

A). TO ENSURE YOUR PERSONAL SAFETY, PLEASE READ THROUGH

THE INSTRUCTION MANUAL BEFORE USE:

B). SAFETY GUIDELINES

8) This product is not provided with cord and plug or with other means for

disconnection from the supply. When connect or change the power cord or lead

wire, it must be replaced by the qualified personnel in order to avoid a hazard.

Double pole single throw switch(Breaker Switch)

Earth

Ceiling Fan

Wall Switch (OFF/ON)

240VAC/50Hz

Power Supply

1) Please do not install the ceiling fan at high humidity areas.

2) Distance between fan blades and ground must be at least 2.3 meter and above.

3) Do not touch the fan blades with any objects when the ceiling fan is spinning.

4) To minimize the chances of electrical shock, power switch must be OFF before

installing or dismantling the ceiling fan or any electrical wiring connection.

5) All electrical connections must conform to the national electrical safety codes.

To prevent electrical shock, earth wire must be installed correctly (suitable for

power supply of 240V AC/50Hz).

6) To ensure your personal safety and optimize functions of the ceiling fan,

assembly and installation by qualified technician is highly recommended.

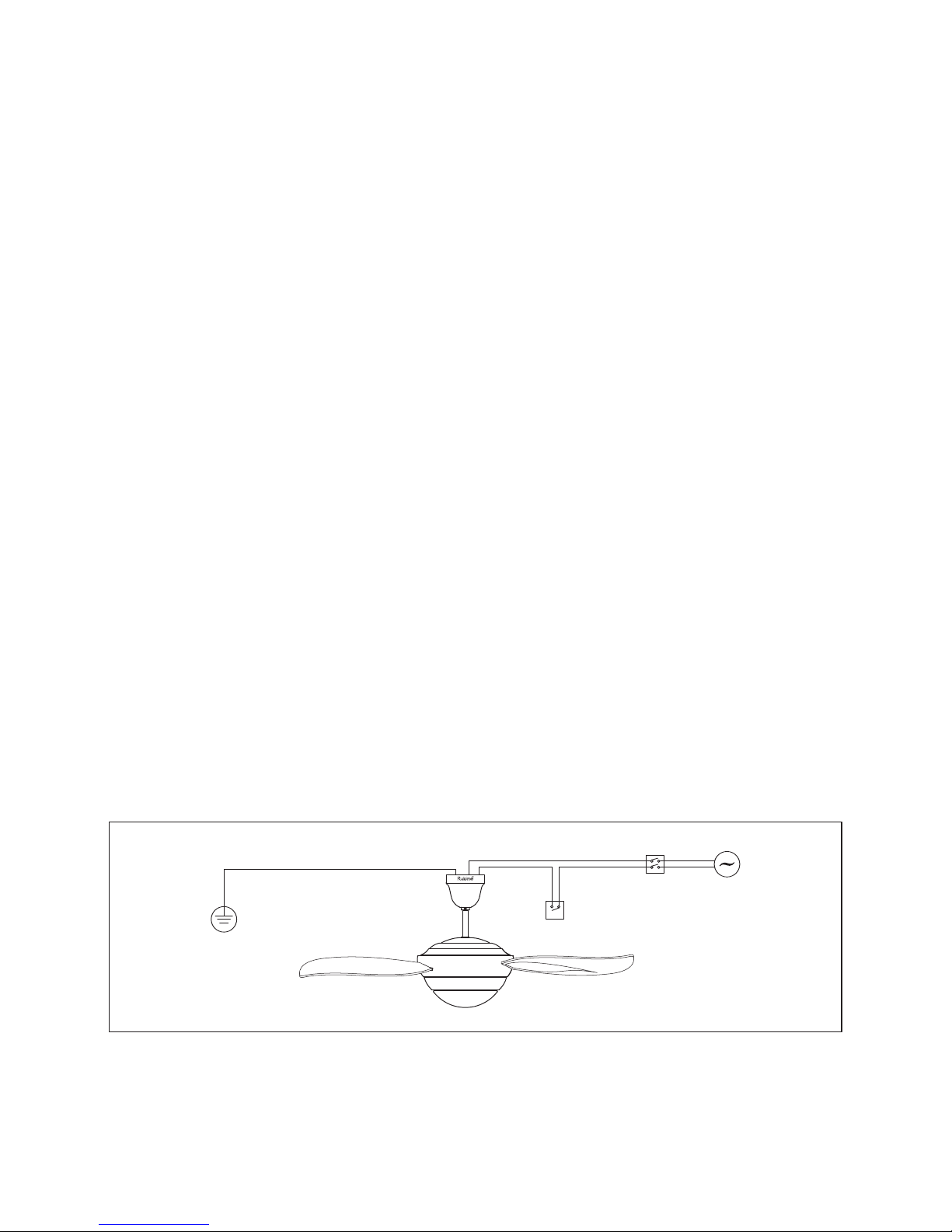

7) Only direct connection to wall switch is allowed. Please refer to figure below.

WARNING

1) Do not bend the blade brackets during the brackets installation, blades

balancing or fan cleaning.

2) To prevent accidents, power switch must be OFF before ceiling fan installation.

3) Ceiling fan installation and electrical wiring must be done by qualified technician

in accordance with all applicable codes and air conditioning engineers

(ASHRAE) or the local qualified authorities.

4) Be cautious when drilling the wall to avoid damaging electrical wiring and other

hidden parts.

5) Ceiling fan must be hooked on concrete ceiling. Do not install the ceiling fan on

plaster ceiling or any types of drywall ceilings. During ceiling fan installation, all

screws must be tightening at all allocated parts.

Page 3

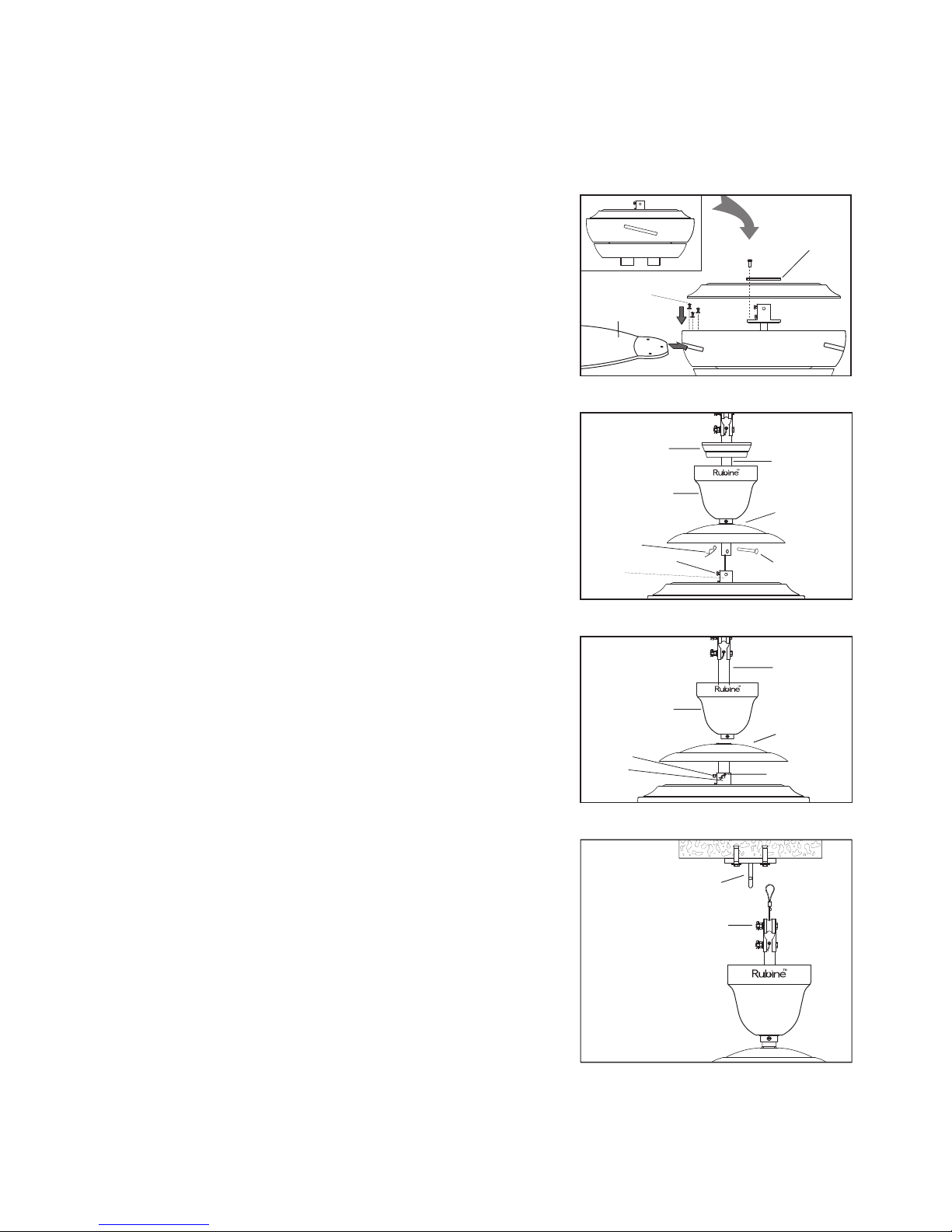

INSTALLATION PROCEDURES

Screw

Blade

Str engt heni ng

Plate

DIAGRAM 1

STEP 1 (See Diagram 1)

Remove the top housing cover by removing the 6

top screws and the strengthening plate. Then

attach the fan blade to the motor assembly by

using the blade attachment screws and paper

washers provided on the screw package, tighten

it securely. Repeat the same step on all the

remaining fan blades.

After all the 5 blades are installed, please re-

install the top housing cover and strengthening

plate using the 6 screws removed previously.

Note: In order to avoid installing the blade in

wrong direction, please pay more attention to

the words “this side up” on the blade.

STEP 2 (See Diagram 2)

Remove safety bolt and pin from down rod.

Loosen the 2 screws for the motor coupling.

Insert the down rod through top canopy and

coupling cover, and then thread the wires through

the down rod. Place the receiver in the top

canopy.

STEP 3 (See Diagram 3)

Slip the down rod into motor coupling, lock it into

place with the safety bolt and pin, and then

tighten the screws. Slide down the coupling cover

until it rests on top of the fan housing.

Before ceiling fan installation, please go through the procedures in

detail with the picture diagrams as reference.

Hangin g Rubber

Wheel

Expansio n J Hook

DIAGRAM 4

DIAGRAM 2

Safety Bolt

Motor

Coupling

Screw

Top Canopy

Down Rod

Receiver

Coupling

Cover

Screw

Safety Bolt

Down Rod

Coupling

Cover

Motor

Coupling

DIAGRAM 3

Top Canopy

STEP 4 (See Diagram 4)

Life the assembly and hook onto the mounted

Expansion J Hook. Make sure the hanging rubber

wheel seated properly on the Expansion J Hook.

Notice: Expansion J Hook must be installed on

concrete ceiling

WARNING:

Installation without proper procedures as above mentioned might result fan

loosening and falling.

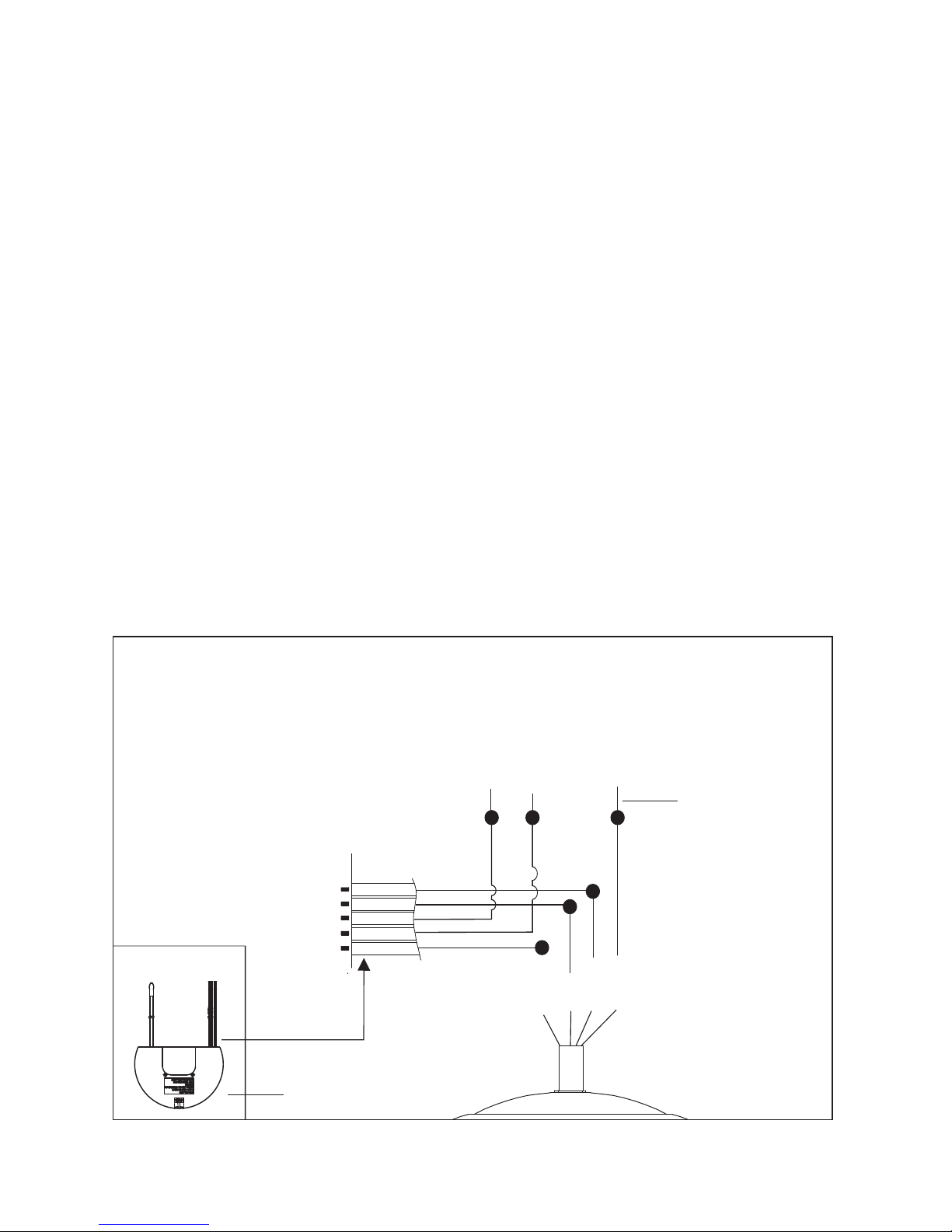

SUPPLY CIRCUIT

Ground

Conductor (Green)

BLUE

BROWN

ORANGE

GREEN

Receiver

(LIGHT)

TO MOTOR L

TO MOTOR N

AC IN N

AC IN L

FOR LI GHT

NEUTRAL wire

(Black / Blue)

LIVE wire

(Red / Brown)

EARTH wire

(Green)

BROWN

BLUE

BLACK

RED

ORANGE

Page 4

STEP 5 (See Diagram 5)

WIRING INSTRUCTIONS FOR FAN MOTOR

There are 4 wires in different colours on top of the motor.

Brown Colour -- Live wire

Blue Colour Neutral wire

Green Colour Earth wire

Orange Colour Light kit wire

a) Connect orange colour wire from fan motor to the receiver orange colour wire

( marked “FOR LIGHT”);

b) Connect brown colour wire from fan motor to the receiver brown colour wire

(marked “TO MOTOR L”);

c) Connect blue colour wire from fan motor to the receiver blue colour wire

( marked “TO MOTOR N”);

d) Connect the incoming LIVE wire (red / brown colour) to the receiver red colour wire

(marked “AC in L”);

e) Connect the incoming NEUTRAL wire (black / blue colour) to the receiver black

colour wire (marked “AC in N”);

f) Connect the green colour wire from fan motor to the incoming EARTH wire

(Green colour)

DIAGRAM 5

Page 5

Light kit

CFL

Glass Shade

Remark:

Compact Fluorescent Light

Bulbs use only

DIAGRAM 7

Top Canopy

Screw

(Tighten up) Down Rod

DIAGRAM 6

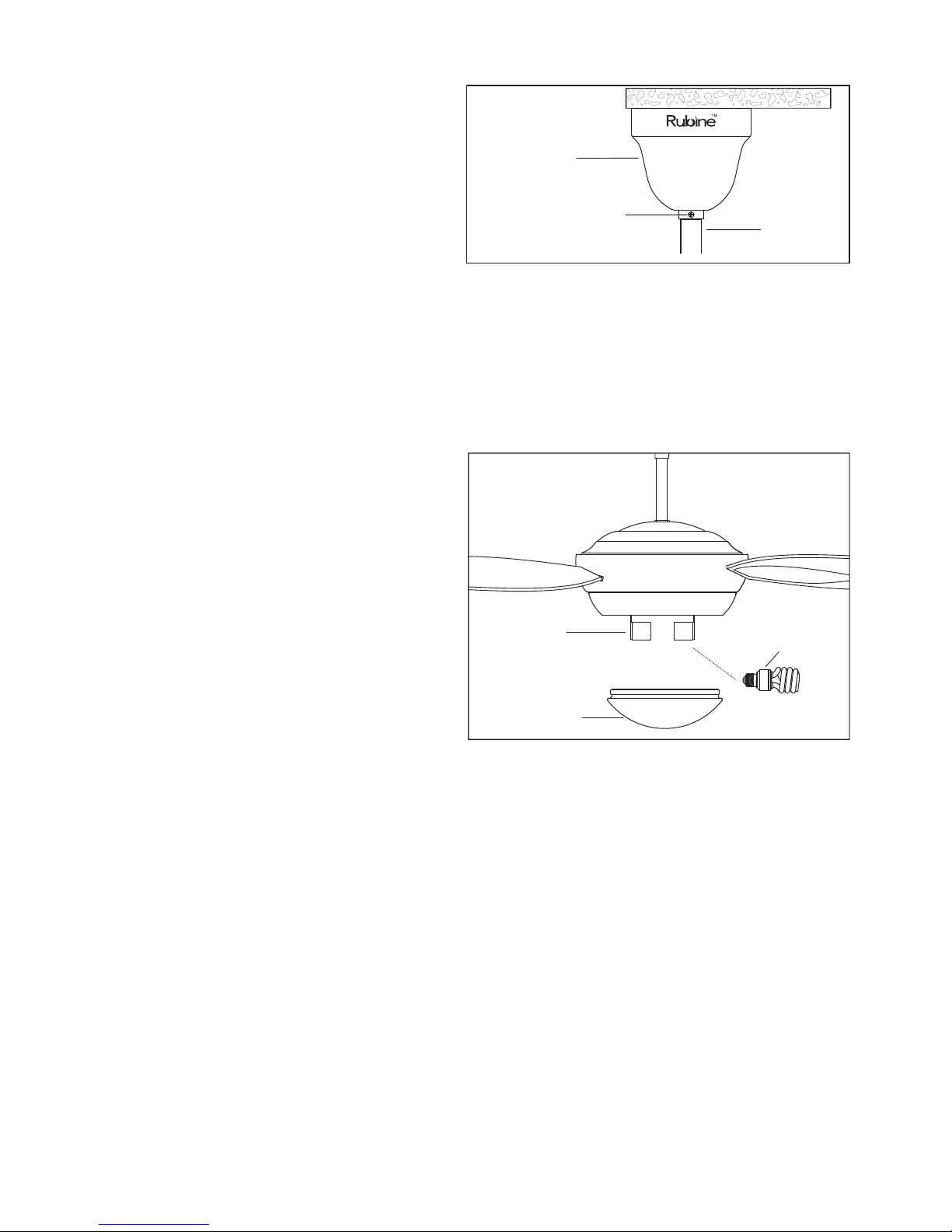

STEP 6 (See Diagram 6)

Tug the top canopy to ceiling and

tighten up the screw on down rod to

secure the top canopy.

STEP 7 (See Diagram 7)

Place 2 pcs of 13W E27 bulbs into

the light kit (Bulbs are not included).

Install the glass shade by twisting it

tightly.

Page 6

NOTICE: FOR YOUR PERSONAL SAFETY, PLEASE OBEY

TO THE INSTALLATION PROCEDURES AND

GUIDELINES GIVEN.

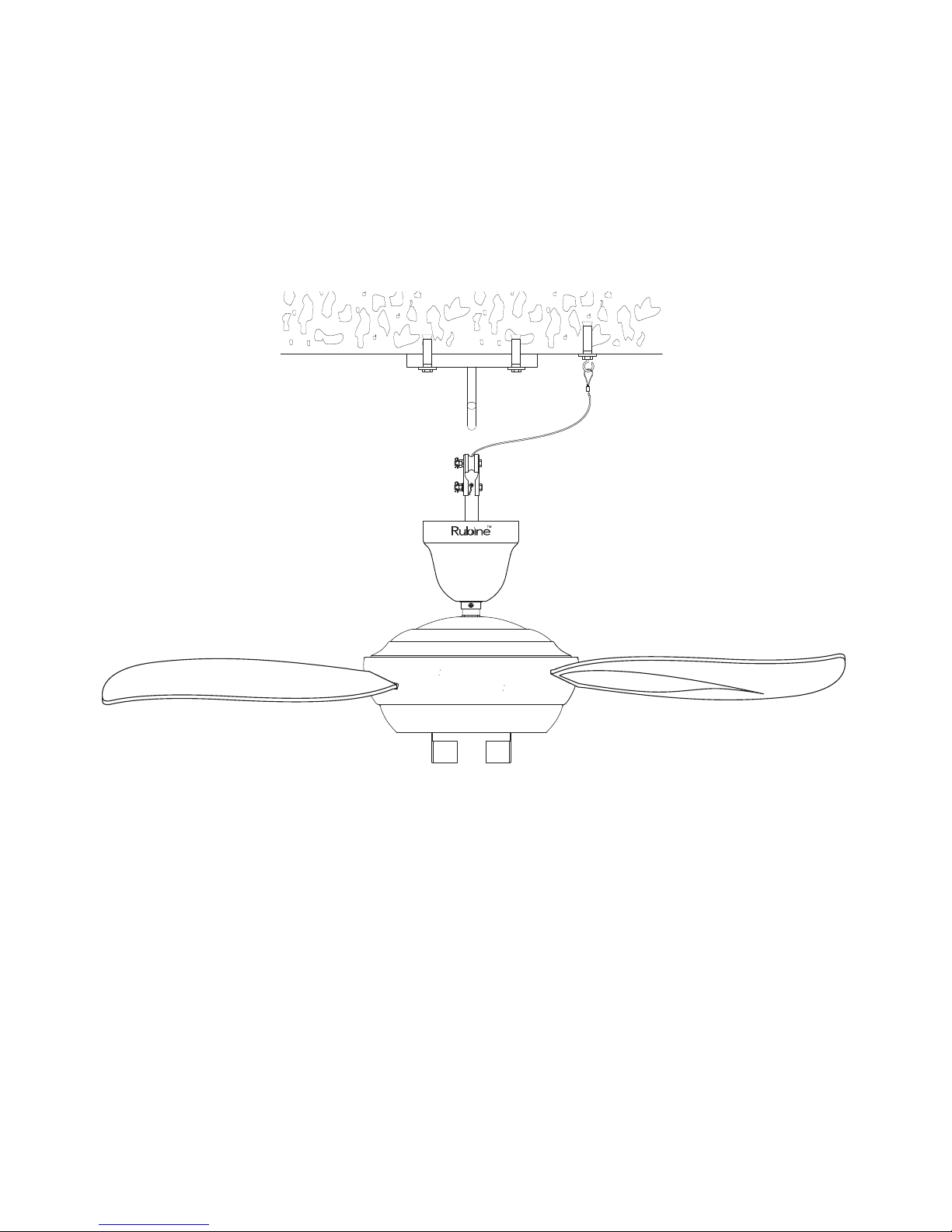

WARNING!

FA S T E N T H E S A F E T Y C A B L E TO T H E M O U N T ED

EXPANSION J HOOK FOR SAFETY PURPOSES.

MIN 2.3m

Page 7

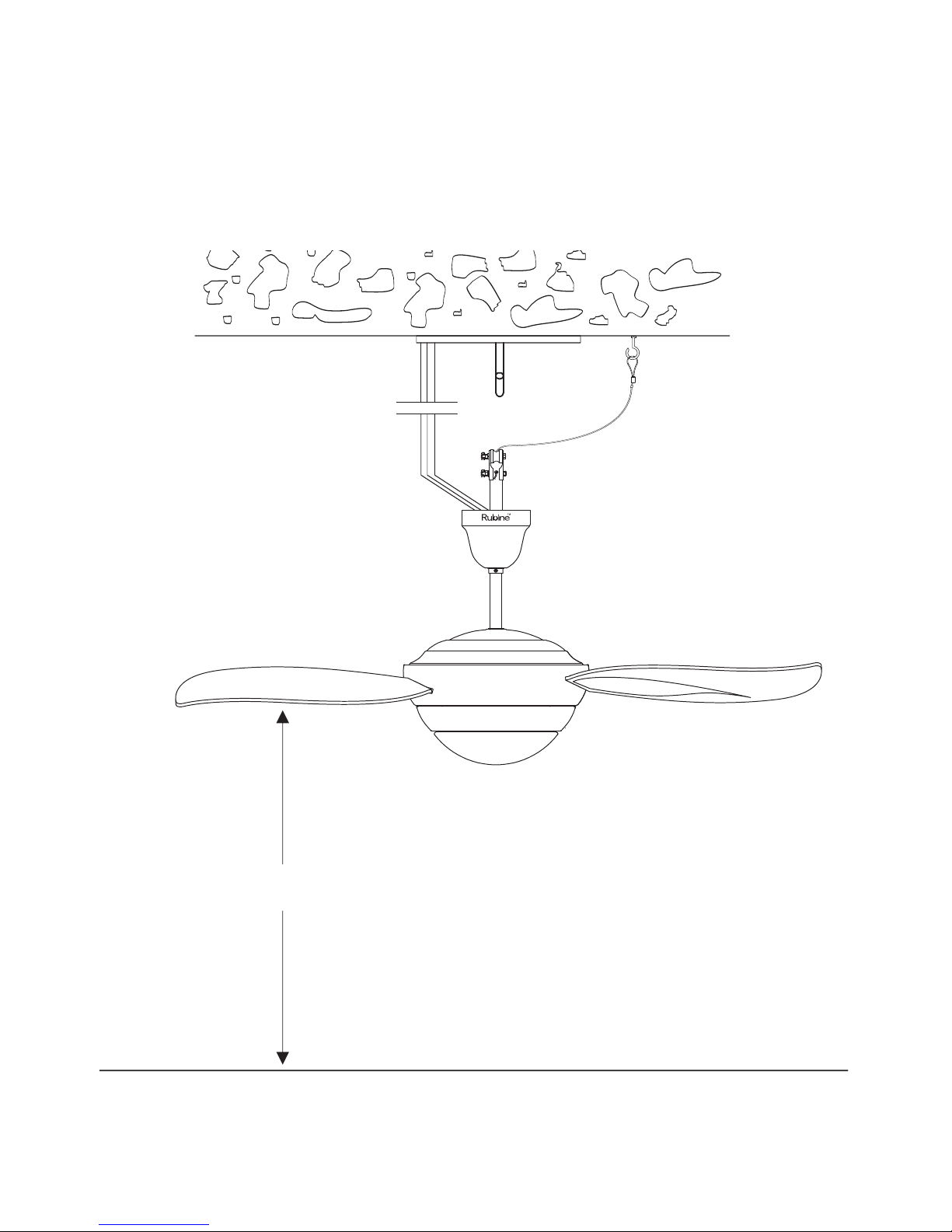

SAFETY TIPS:

Please ensure the distance between fan blades and ground

must be at least 2.3 meter and above.

GROUND

52"

吊扇

安装手册

安全注意事项和安装程序

RCF-Mercury-5BL

712

配件明细

拆箱后,请逐一清点以下零件

零件数量配件包数量

1. 吊盅

2. 吊杆

3. 接头盖

4. 风扇主体

5. 玻璃灯罩

6. 叶片

7. 遥控器附1粒12伏电池

7A. 壁座附2个螺丝

8. 接收器

9. 叶片螺丝包

10. 纸垫片

11. 接线帽

12. 安全挂钩

13. 平衡包

元件配件包

这些测试数据不包括灯使用的功率

尺寸电压/频率最大功率最大转速净重毛重

52"11.8kgs 13.0kgs

250+-10%

80W

240V/50Hz
