RTS Altus Manuel utilisateur

YES - jiggle NO - jiggle

This means limits have already been set. Press and

hold simultaneously the Up and Down button.

The product should jiggle.

After the

jiggle

proceed to

step 10.

Press and hold simultaneously the Up and Down

button. The product should jiggle.

After the jiggle

continue to

step 6.

Altus RTS, Orea RTS & Sonesse RTS

Programming

1Select Channel

6Check the correct direction of rotation

Press and hold the

Down button.

Does the product

extend?

YES - The product extends while pressing the

down button - Go to step 8

NO - The product retracts while pressing the

down button - Continue to step 7

To reverse the

direction of the

motor, press and

hold the Stop

button until the

product jiggles.

Press and hold

the Down

button to test

that the motor

direction is

correct.

Reverse the direction of rotation

Press for

5 secs

Continue to step 8

All Telis RTS Transmitters, Centralis RTS, Chronis RTS, Smoove.

Dry Contact Transmitters and 5 Channel RTS Transmitter (cannot be used to program).

Soliris/Eolis RTS Sensor, Sunis/Eolis 3D RTS Sensor (cannot be used to program).

If you are using a multi channel remote, select the required channel.

The channel must be selected prior to programming. Continue to step 2...

Switch on the power

to the motor.

Only connect one motor at a time.

2Identify the correct motor mode

Did the product perform a jiggle?

In order to iden-

tify which mode the

motor is in, make

sure that you pay

attention to whether

the product performs

a jiggle when power

is applied.

3Motor Mode

YES - Go to step 4

NO - Go to step 5

Altus RTS, Orea RTS & Sonesse RTS

Programming

Centralis RTS Telis RTS

Use the Up button to operate

the product until it reaches the

desired Up limit position.

Press and hold the Stop and

Down buttons until the product

starts to extend/lower.

Stop the product at the desired

limit position (adjust with Up or

Down if required).

jiggle = control recorded

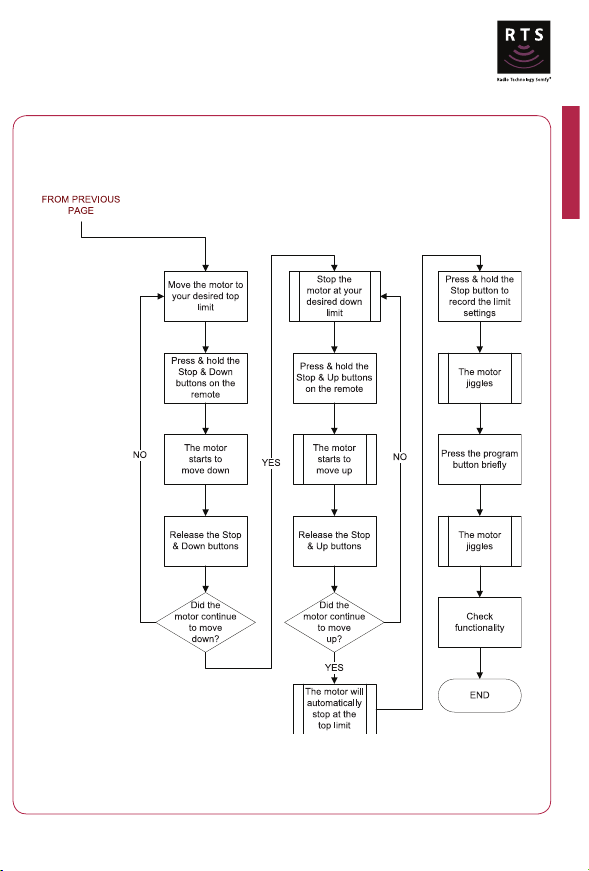

8Record the Up limit position

9Record the Down limit position

The limits have been recorded

10 Programming the RTS control to the motor

Press the program button on the RTS control until the product jiggles.

Press and hold the Stop and Up button

until the product starts to retract/raise.

The product will

automatically close

and stop.

Press and hold the Stop button until

the product jiggles to confirm the

limit settings.

Press for

3 secs

Check functionality

Complete

Altus RTS, Orea RTS & Sonesse RTS

Programming

Altus RTS, Orea RTS & Sonesse RTS

Programming

Altus RTS & Sonesse RTS

Adjusting motor limit positions

2Adjustment of the upper limit position - Not applicable for Orea

Adjust to the correct position using

either the Up or Down button.

Press and hold the Stop button until the

product jiggles.

Press for

3 secs

New limit position set

Press the Up button and send the product to

the existing upper limit position.

Press and hold the Up and Down buttons

until the product jiggles.

Press for

5 secs

Adjust to the correct position using

either the Up or Down button.

Press and hold the Stop button until

the product jiggles.

Press for

3 secs

New limit position set

Press the Down button and send the

product to the existing lower limit position.

Press and hold the Up and Down buttons until

the product jiggles.

Press for

5 secs

Adjustment of the lower limit position

Note: the following procedure will only work if the limit is accessible, otherwise please refer to 'erasing the

memory of the motor' section.

Altus RTS & Sonesse RTS

Adjusting motor limit positions

















































 















































RTS Motors

"My" position programming

The product must be stationary,

but can be at any position.

Press briefly the Stop button

to initiate the intermediate or

‘my’ position. The product will

automatically move to the IP or

‘my’ position and stop.

Using the Intermediate Position

Use the Up or Down button to

move the product towards the

desired intermediate position.

Stop the product at the

desired intermediate position.

Press and hold the Stop button

until the product jiggles.

Setting an Intermediate Position

Press

for 5

secs "MY" position set

Press

for 1

secs

If an Intermediate Position has been set and the awning is controlled by a Somfy RTS sun sensor,

then the awning will only extend to the IP. Remove the IP function if the end user wants the

awning to fully extend when the sun sensor is activated.

IP =

Send the product to the intermediate

position by pressing the Stop button

Deleting an Intermediate Position

When the product has reached the intermediate position and

stopped, press and hold the Stop button until there is a jiggle.

Press

for 5

secs

Press

for 1

secs

"MY" position deleted

Note: the following procedure will only work after programming has been completed.

RTS Motors

"My" position programming

START

Connect the RTS

Motor to a

240 Volt Power

Supply

MULTI

SINGLE

Select the

Required Channel

Is the Remote

Single or Multi

Channel ?

Use the Up and

Down Buttons to

send the motor to

the required

position

Stop the motor at

the desired “my”

position

Press & Hold the

“my” Button on the

Remote for 5

seconds

The Motor

Jiggles

END

Check

Functionality

RTS Motors

Pair new channels or remotes

1Set the motor in programming mode with an existing RTS control

jiggle = motor ready

to record new control

Centralis RTS Telis RTS

Press

for 3

secs

Press

for 3

secs

RTS control

already assigned

to the motor

2Program the RTS control

jiggle = new control

recorded

Centralis RTS Telis RTS

Press

for 1

secs

Press

for 1

secs

New RTS control

to assign to

the motor

When using a Multi-channel RTS control, remember to

select the desired channel prior to programming.

RTS Motors

Pair new channels or remotes

The Motor

Jiggles

END

START

Connect the Motor

to 240 Volts, if not

already connected

IMPORTANT NOTES:

oThis procedure will only work if

you have an existing remote

that has already been

programmed to the motor.

oThe pre-existing programmed

channel will not be deleted in

this procedure.

Is the

Remote Single

or Multi

Channel?

MULTI

Select the

Pre-programmed

Channel

Press & Hold the

Program Button

on the Remote for

3Second

SINGLE

Select the New

Channel or

Remote

Select the

Pre-programmed

Existing Remote

Press the Program

Button briefly

The Motor

Jiggles

Check

Functionality
