Workstation Integrator Cabling Guide

pro-xi® 100

pro-xi 100 · Cabling Guide

• Ross Part Number: PRO100DR-008-02

• Release Date: May 8, 2019.

The information contained in this manual is subject to change without notice or obligation.

publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying,

recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the preparation

of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting

from the use of the information contained herein.

Trademark Information

pro-xi® is a registered trademarks of Ross Video or its affiliates in the United States and other countries.

All other trademarks and service-marks are the property of their respective owners.

The various backgrounds, icons, logos, wallpaper and other associated trade dress displayed in the screen-shots are the property of

their respective owners.

Patents

Patent numbers US 7,034,886; US 7,353,458; US 7,496,846 B2; US 7,508,455; US 7,602,446; US 7,770,131; US 7,779,361; US

7,802,802 B2; US 7,834,886; US 7,914,332; US 8,307,284; US 8,407,374 B2; US 8,499,019 B2; US 8,519,949 B2; US 8,743,292

B2; GB 2,419,119 B; GB 2,447,380 B; JP 4891782; and other patents pending.

Limited Rights

The software described in this document is “commercial computer software” provided with restricted rights (except for the included

open/free source) as specified in the FAR 52.227-19 and/or the DFAR 227.7202, or successive sections. Use beyond license

provisions is a violation of worldwide intellectual property laws, treaties and conventions. This document is provided with limited

rights as defined in 52.227-14.

The electronic (software) version of this document was developed at private expense; if acquired under an agreement with the USA

government or any contractor thereto, it is acquired as “commercial computer software” subject to the provisions of its applicable

license agreement, as specified in (a) 48 CFR 12.212 of the FAR; or, if acquired for Department of Defense units, (b) 48 CFR

227-7202 of the DoD FAR Supplement; or sections succeeding thereto. Contractor/manufacturer is Ross Video 8 John Street,

Iroquois, Ontario, Canada, K0E 1K0.

Disclaimer

Information in this document is provided in connection with Ross Video products. No license, express or implied, by estoppel or

otherwise, to any intellectual property rights is granted by this document. Except as provided in Ross Video Terms and Conditions of

Sale for such products, Ross Video assumes no liability whatsoever, and Ross Video disclaims any express or implied warranty,

relating to sale and/or use of Ross Video products including liability or warranties relating to fitness for a particular purpose,

merchantability, or infringement of any patent, copyright or other intellectual property right.

Ross Video products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for

any other application in which the failure of the Ross Video product could create a situation where personal injury or death may occur.

Ross Video may make changes to specifications and product descriptions at any time, without notice.

Although every effort has been made to ensure that the information in this document is correct and complete, Ross Video or its

affiliates shall not be held liable for any errors, inaccuracies, or omissions found in this manual.

Notice

The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed

as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may

appear in this manual.

Safety Notices

Refer to the “Important Regulatory and Safety Notices” document that accompanied your product.

Statement of Compliance

This product has been determined to be compliant with the applicable standards, regulations, and directives for the countries where

the product is marketed.

Compliance documentation, such as certification or Declaration of Compliance for the product is available upon request by

contacting techsupport@rossvideo.com. Please include the product; model number identifiers and serial number and country that

compliance information is needed in request.

EMC Notices

United States of America - FCC Part 15

This equipment has been tested and found to comply with the limits for a class A Digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

Commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own

expense.

Canada

This Class A device complies with Canadian ICES-003 and part 15 of the FCC Rules.

Cet appariel numerique de la classe “A” est conforme a la norme NMB-003 du Canada.

European Union

This equipment is in compliance with the essential requirements and other relevant provisions established under regulation (EC) No

765/2008 and Decision No 768/2008/EC referred to as the “New Legislative Framework”.

International

This equipment has been tested under the requirements of CISPR 22:2008 or CISPR 32:2015 and found to comply with the limits for

a Class A Digital device.

Emissions Certifications

EN 55022:2010

FCC Part 15, Class A

ICES-003, Issue 5

AS/NZS CISPR 22:2009

Immunity Certifications

Notice — Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the

user’s authority to operate this equipment.

Warning — This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may

cause radio interference.

Notice — This is a Class A product. In domestic environments, this product may cause radio interference, in which

case the user may have to take adequate measures.

EN 55024:2010

EN 61000-3-2:2006 + A1:2009 + A2:2009

EN 61000-3-3:2008

Safety Certifications

IEC 60950-1:2005(Second Edition) +

AM 1:2009 + AM 2:2013

EN 60950-1:2006/A11:2009/A1:2010

CE Certifications

EMC Directive 2004/108/EEC

Low Voltage Directive 2006/95/EC

FCC Certifications

Part 15 of the FCC Rules

USA Notification

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own

expense.

Maintenance/User Serviceable Parts

Routine maintenance to this Ross product is not required. This product contains no user serviceable parts. If the module does not

appear to be working properly, please contact Technical Support using the numbers listed under the section “Contacting Technical

Support” on page 12. This product is covered by a generous 1-year warranty and will be repaired without charge for materials or

labor within this period. See the section “Warranty and Repair Policy” on page 123 for details.

Environmental Information

The equipment may contain hazardous substances that could impact health and the environment.

To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural

resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the

materials from your end-of-life equipment in an environmentally friendly and health conscious manner.

The crossed-out wheeled bin symbol invites you to use these systems.

If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste

administration. You can also contact Ross Video for more information on the environmental performances of our products.

pro-xi 100 Cabling Guide (v2.0) Cabling the pro-xi 100 • 5

Cabling the pro-xi 100

This guide provides interconnect diagrams and examples of how to cable single-head and dual-head setups.

Before You Begin

Keep the following in mind when cabling your system:

• If the connected computer systems output a VGA video signal, a VGA-to-DVI-I adapter is required.

• If the connected computer system outputs an HDMI video signal, an HDMI-to-DVI-D adapter is required.

• If the pro-xi 100 outputs are connected to HDMI monitors or KVM TX units that utilize HDMI, then the

appropriate cable or adapter is required.

Direct Keyboard and Mouse

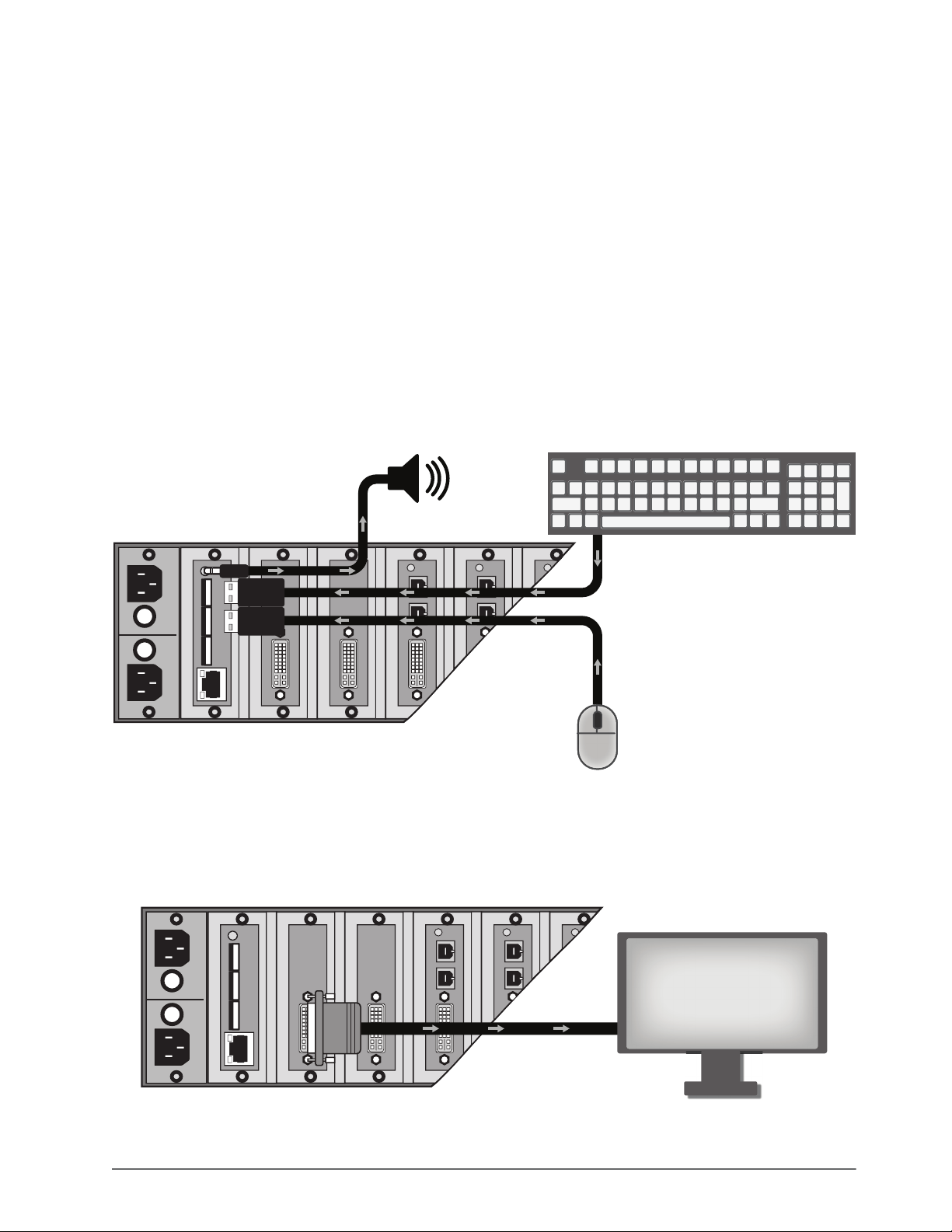

Figure 1 illustrates an operator station with a direct keyboard and mouse connection to the pro-xi 100 system.

Figure 1 Operator Station — Direct Keyboard and Mouse

Single-Head Direct Monitor

Figure 2 illustrates an operator station with a direct monitor connection to the pro-xi 100 system.

Figure 2 Operator Station — Single-Head Direct Monitor

CTC

USB1USB2USB3

pro-xi 100 Workstation Integrator

VOC 1

USB1USB2USB3

pro-xi 100 Workstation Integrator

6 • Cabling the pro-xi 100 pro-xi 100 Cabling Guide (v2.0)

Dual-Head Direct Monitor

Figure 3 illustrates an operator dual-head station with a direct connections to the pro-xi 100 system.

Figure 3 Operator Station — Dual-Head Monitors

Single Output (Single-Head) Direct Keyboard, Video, and Mouse

Figure 4 illustrates the cabling required to connect a computer system to the pro-xi 100 system.

Figure 4 Single Output, Single-Head Connections

VOC 1 VOC 2

USB1USB2USB3

Left Monitor

Right Monitor

pro-xi 100 Workstation Integrator

ISC 1

USB USB

USB B-to-A Cable (5m max.)

DVI-I or VGA Cable (5m max.)

3.5mm Stereo Audio Cable

Computer for Controlled System

AUDIO

OUT

VIDEO

OUT 1 VIDEO

OUT 2

pro-xi 100 Workstation Integrator

pro-xi 100 Cabling Guide (v2.0) Cabling the pro-xi 100 • 7

Dual Output (Dual-Head) Direct Keyboard, Video, and Mouse

Figure 5 illustrates the cabling required to connect a computer system to the pro-xi 100 system.

Figure 5 Dual Output, Dual-Head Connections

Interconnect, Single-Head Operator Station KVM Extender

Figure 6 illustrates a single-head operator station with the pro-xi 100 system and KVM Extenders.

Figure 6 Operator Station — Single-Head with KVM Extender

ISC 1 ISC 2

USB USB

USB B-to-A Cable (5m max.)

Right Monitor

DVI-I or VGA Cable (5m max.)

Left Monitor

DVI-I or VGA Cable (5m max.)

3.5mm Stereo Audio Cable

Computer for Controlled System

AUDIO

OUT

VIDEO

RIGHT VIDEO

LEFT

pro-xi 100 Workstation Integrator

VOC 1CTC

USB1USB2USB3

3.5mm Stereo Audio Cable

Single-Head KVM Extender (TX)

AUDIO USB

KVM Extender Pair

(USB A-to-B Cable)

Left DVI-D Input

KVM Extender Connection

Copper to 100m

Fiber to 40km

pro-xi 100 Workstation Integrator

Single-Head KVM Extender (RX)

AUDIO USB USB

8 • Cabling the pro-xi 100 pro-xi 100 Cabling Guide (v2.0)

Interconnect, Dual-Head Operator Station KVM Extender

Figure 7 illustrates a dual-head operator station with the pro-xi 100 system and two KVM Extenders.

Figure 7 Operator Station — Dual-Head with KVM Extender

VOC 1 VOC 2CTC

USB1USB2USB3

3.5mm Stereo Audio Cable

Dual-Head KVM Extender (TX)

AUDIO USB

Left DVI-D Input

Right DVI-D Input

KVM Extender Connection

Copper to 100m

Fiber to 40km

Dual-Head KVM Extender (RX)

AUDIO

Left Monitor

Right Monitor

pro-xi 100 Workstation Integrator

USB USB

KVM Extender Pair

(USB A-to-B Cable)

pro-xi 100 Cabling Guide (v2.0) Cabling the pro-xi 100 • 9

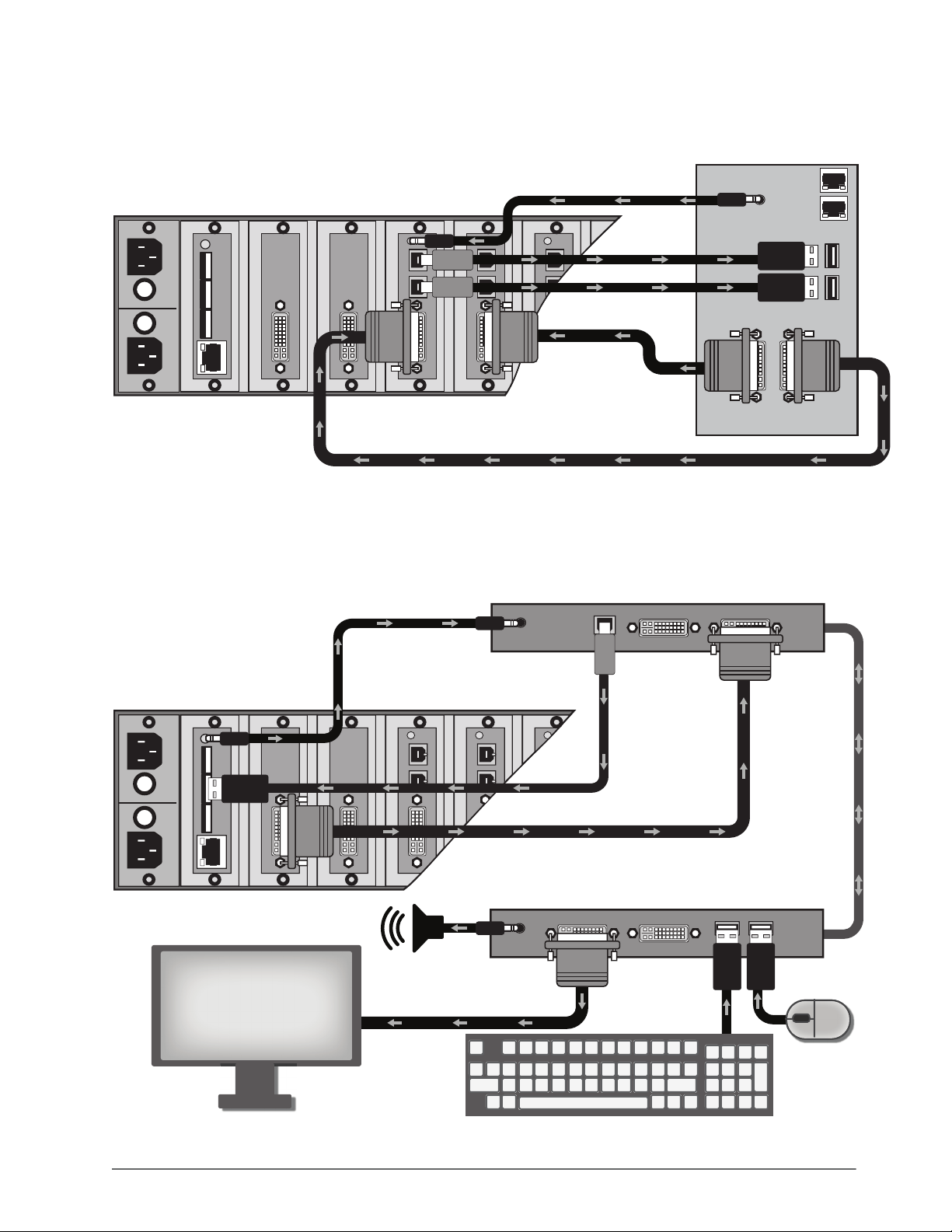

Single Video (Single-Head) KVM Extender

Figure 8 illustrates a single video operator station with the pro-xi 100 system and two KVM Extenders.

Figure 8 Operator Station — Single Output (Single-Head) with KVM Extenders

ISC 1

KVM Extender Connection

Copper to 100m

Fiber to 40km

DVI-I or VGA Cable (5m max.)

DVI-I or VGA Input

3.5mm Stereo Audio Cable

Single-Video KVM Extender (RX)

AUDIO USB USB

pro-xi 100 Workstation Integrator

Computer for Controlled System

USB USB

AUDIO

OUT

VIDEO

OUT 1 VIDEO

OUT 2

Single-Video KVM Extender (TX)

AUDIO USB

Keyboard

Input

Mouse Input

KVM Extender Pair

(USB A-to-B Cable)

10 • Cabling the pro-xi 100 pro-xi 100 Cabling Guide (v2.0)

Dual Output (Dual-Head) Using Single-Head KVM Extenders

Figure 9 illustrates a dual video output station with the pro-xi 100 system and two KVM Extenders.

Figure 9 ISC Interconnect — Dual Output (Dual-Head) with Single-Head KVM Extenders (2 Pairs)

ISC 1 ISC 2

Single-Head KVM Extender (RX)

AUDIO USB USB

DVI-I or VGA Cable

3.5mm Stereo Audio Cable

USB USB

Computer for Controlled System

AUDIO

OUT

VIDEO

RIGHT VIDEO

LEFT

pro-xi 100 Workstation Integrator

Single-Head KVM Extender (TX)

AUDIO USB

Single-Head KVM Extender (RX)

AUDIO

Keyboard Mouse

USB USB

Single-Head KVM Extender (TX)

AUDIO USB

KVM Extender Connection

Copper to 100m

Fiber to 40km

KVM Extender Connection

Copper to 100m

Fiber to 40km

KVM Extender Pair

(USB A-to-B Cable)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ross Ordinateur de bureau

Ross

Ross VOYAGER Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Ross pro-xi 100 Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques
