Rosewill R114A Manuel utilisateur

Rosewill R114A Case Installation Guide

1. Unscrew the Thrum Screws 2.Pull the Side Panel back then

from Side Panel. pull out.

3. Find the motherboard Stand-Offs from 4. Put the motherboard Stand-Offs on

enclosed Screw Box. the motherboard tray.

5. Sit the motherboard on the Motherboard Tray 6. Find Screws in the Screw Box

7. Screw in all the screws into the motherboard 8. Same as Step 7.

Stand-Offs

9. Pull out the Front Panel from the bottom. 10. Install Case Fan in the front panel (Optional)

You can put up to 2*80mm fans in the front.

11. InstallCase Fan in the rear.(1*80mm-12. Take out the metal plate and install

120mm fan, Optional) 5.25” drives.(DVD, CD-ROM, CD-RW)

13. Secure the 5.25” drives with screws. 14. Slide in 3.5” FDD Drive and secure

with screws

15. Install 3.5” hidden drives such as 16. Screw all 3.5” hidden drives with

Hard Disk Drive, Zip Drive. Screws.

17. Snap in the Front Panel. 18. Audio Cable: Take out the I/O slot

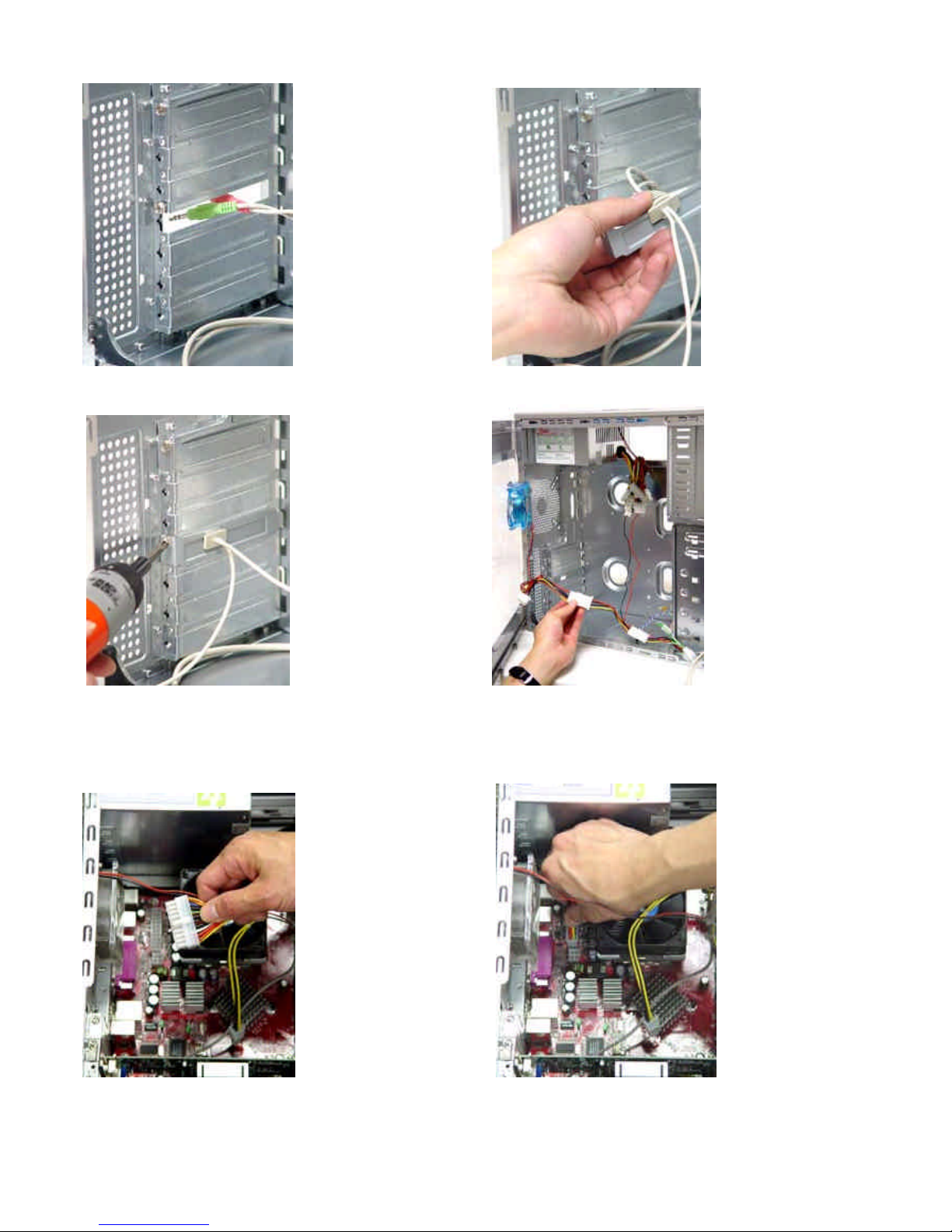

with a hole front the back of the case.

19. Find the Audio Cables and bring them 20. Put the I/O slot back.

through the I/O slot to outside of the back panel.

21. Screw the I/O slot back. 22. Connect Case Fans by linking together all

4-pin Female and Male connectors of all the case

fans. There will be 1*4-pin Female connector and

1*4-pin Male connector left out at each end.

Connect the 4-pin Male to power supply 4-pin Female.

23. Find the 20-pin connector from 24. Plug into your motherboard. Different

Power Supply. Motherboard has different layout.

Please refer to your motherboard manual.

25. Find the 4-pin P4 connector from 26. Plug into your motherboard.

Power Supply.(For Intel P4 M/B only) (For P4 Intel motherboard only)

27. Find 2*USB Cables.(USB1 & USB2) 28. Plug USB Cables to your motherboard.

Please refer to your motherboard User’s Manual.

29. Find “HDD LED” and “RESET SW” 30. Plug them onto your motherboard.

Cables. Please refer to your motherboard User’s Manual.

31. Find “Power SW” and “+P LED” “-P LED” 32. Plug Audio Cables to your Sound Card

Cables and plug onto your motherboard. or Motherboard.

Please refer to motherboard User’s Manual.

33. Find “Case Speaker” from Screw Box 34. Install Case Speaker to your motherboard

Following your motherboard user’s manual

35. Find “Case Feet” in Screw Box.

Lay your case down and put “Case Feet” on.
