GASOLINE GENERATOR 7500W
RH-4784
USER MANUAL 1
SPECIFICATIONS
Model RH-4784
Generator
Type Gasoline Generator
AC Voltage 220V
Rated Amperage 32A
Frequency 50Hz
Max.Output 7.5KW
Rated Output 7KW
Power Factor 1
DC Output DC12V,8.3A
Engine
Model FC192F
Type Single Cylinder
4-stroke, forced air cooled
Bore×Stroke 92mm×69mm
Displacement 460cc
Max.Output 10KW / 3600RPM
Fuel Gasoline
Fuel tank Capacity 25 Lit
Rated Continuous Operation 6.5hr
Lubricating Oil SAE 10W-30
Lubricating Oil Capacity 1.1 liter
Starting System Recoil & E-start
Lgnition System T.C.I
Spark Plug Type F7TC/F7RTC
Maximum Fuel Consumption
Rate 3.85Lit/hr
GASOLINE GENERATOR
2
Dimension
Net Dimension L×W×H 686mm×516mm×560mm
Overall Dimension L×W×H 740mm×575mm×625mm
Net Weight 86Kg
Gross Weight 88Kg
Supplied in Carton
Include 2 Plug, 1 Spark Plug Sleeve,
1 Rod,12V DC Output Clip, 2 Key,1 Set Wheels and Handles
PARTS LIST
2
3
4
5
6
7
810 11
9
1213
1
1- Fuel tank
2- Voltmeter
3- Engine switch
4- DC socket
5- Circuit breaker
6- Internal combustion engine
7- handle
USER MANUAL 3
8- AC socket
9- Battery
10- Generator
11- Wheel
12- Frame
13- Control panel
SAFETY INFORMATION
Generators are designed to give safe and dependable service if operated
according to instructions. Read and understand this owner’s manual
before operating your generator. You can help prevent accidents by
being familiar with your generator’s controls, and by observing safe
operating procedures.
OPERATOR RESPONSIBILITY
- Know how to stop the generator quickly in case of emergency.
- Understand the use of all generator controls, output receptacles, and
connections.
- Be sure that anyone who operates the generator receives proper
instruction. Do not let children operate the generator without parental
supervision.
CARBON MONOXIDE HAZARDS
- Exhaust contains poisonous carbon monoxide, a colorless and odorless
gas. Breathing exhaust can cause loss of consciousness and may lead
to death.
- lf you run the generator in an areas that is conned, or even partially
enclosed, the air you breathe could contain a dangerous amount of
exhaust gas. To keep exhaust gas from accumulating, provide
adequate ventilation.
GASOLINE GENERATOR
4
ELECTRIC SHOCK HAZARDS
- The Generator produces enough electric power to cause a serious
shock or electrocution if misused.
- Using a generator or electrical appliance in wet conditions, such as
rain or snow, or near a pool or sprinkler system, or when your hands are
wet, could result in electrocution. Keep the generator dry.
- If the generator is stored outdoors, unprotected from the weather,
check all electrical components on the control panel, before each use.
Moisture or ice can cause a malfunction or short circuit in electrical
components which could result in electrocution.
- Do not connect to a building electrical system unless an isolation switch
has been installed by a qualied electrician.
- The mufer becomes very hot during operation and remains hot for a
while after stopping the engine. Be careful not to touch the mufer while
it is hot. Let the engine cool before storing the generator indoors.
- Gasoline is extremely ammable and is explosive under certain
conditions. Do not smoke or allow ames or sparks where the generator
is refueled or where gasoline is stored. Refuel in a well-ventilated area
with the engine stopped.
- Fuel vapors are extremely ammable and may ignite after the engine
has started. Make sure that any spilled fuel has been wiped up before
starting the generator.
OPERATING INSTRUCTION
.STAR AND STOP:
Engine Switch is used to start and stop the engine.
Switch position:
OFF: To Stop the engine.
ON: To run the engine.
START: To start the engine (only for electric start)
USER MANUAL 5
Electric Start
RECOIL STARTER
To start the engine, pull the starter grip lightly resistance is felt, then pull
briskly.
NOTICE:
Do not allow the starter grip to snap back against the engine.
Return it gently to prevent damage to the starter.
FUEL VALVE LEVER
The fuel valve is located between the fuel tank and carburetor. When
the valve lever is in the ON position, fuel is allowed to ow from the fuel
tank to the carburetor. Be sure to return the fuel valve lever to the OFF
position after stopping the engine.
GASOLINE GENERATOR
6
Choke Lever
Open
Closed
CHOKE ROD
The choke is used to provide an enriched fuel mixture when starting a
cold engine. It can be opened and closed by operating the choke lever
manually. Pull the rod out toward CLOSED to enrich the mixture for cold
starting.
GROUND TERMINAL
The generator ground terminal is connected to the frame of the generator,
the metal non-current-carrying parts of the generator, and the ground
terminals of each receptacle.
Before using the ground terminal, consult a qualied electrician, electrical
inspector or local agency having jurisdiction for local codes or ordinances
that apply to the intended use of the generator.

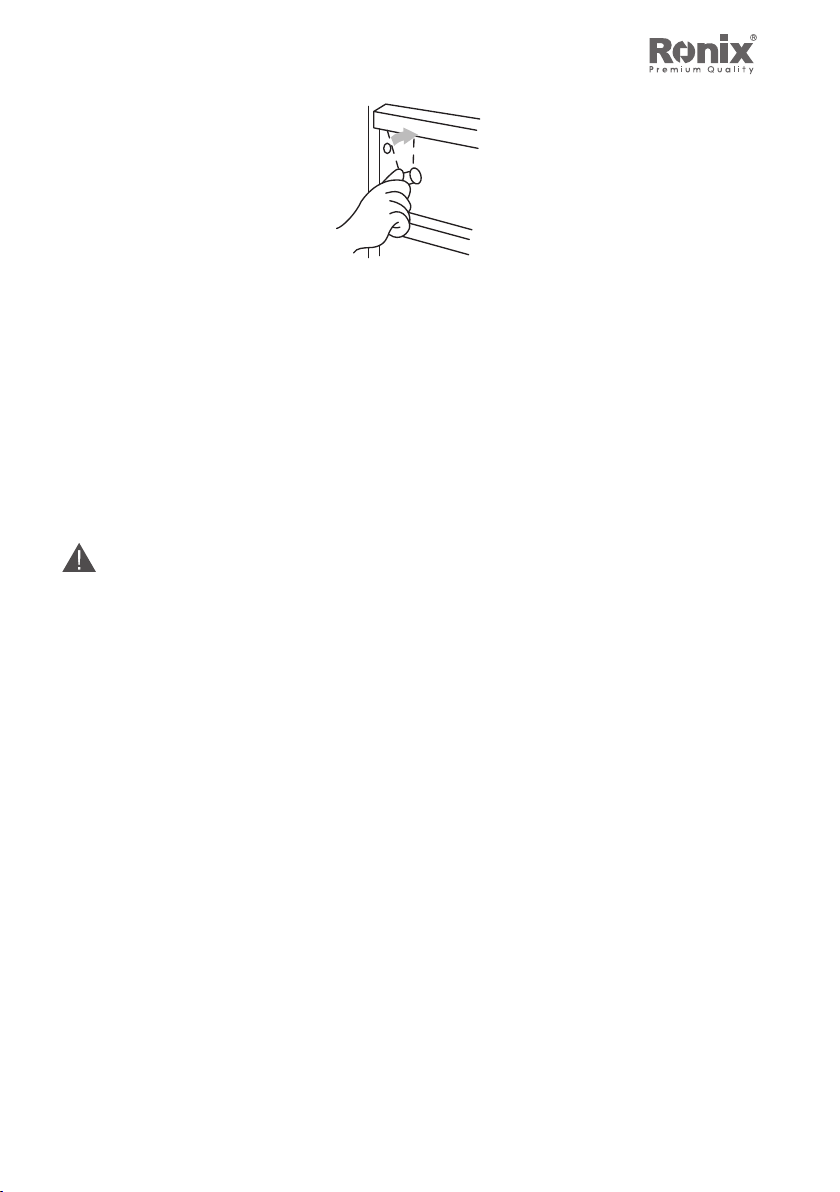

AC CIRCUIT BREAKER
The AC circuit breaker will automatically switch OFF if there is a short
circuit or a signicant overload of the generator at the receptacle.
If the AC circuit breaker is switched OFF automatically, check that the
appliance is working properly and does not exceed the rated load
capacity of the AC circuit before switching the circuit breaker ON again.
The circuit breaker may be used to switch the generator AC power ON
or OFF.
USER MANUAL 7
Electric Start
CONNECTIONS TO BUILDING ELECTRICAL SYSTEM
Connections for standby power to a building electrical system must be
made by a qualied electrician. The connection must isolate the gener-
ator power from utility power, and must comply with all applicable laws
and electrical codes. A transfer switch, which isolates generator power
from utility power, is available through authorized generator dealer.
WARNING!
Improper connections to a building electrical system can allow electrical
current from the generator to back feed into the utility lines. Such back
feed may electrocute utility company workers or others who contact the
lines during a power outage, and the generator may explode, burn, or
cause res when utility power is restored. Consult the utility company or
a qualied electrician.
AC APPLICATIONS
Before connecting an appliance or power cord to the generator:
-Make sure that it is in good working order. Faulty appliances or power
cords can create a potential for electrical shock.
- If an appliance begins to operate abnormally, becomes sluggish or
stops suddenly, turn it off immediately. Disconnect the appliance, and
determine whether the problem is the appliance, or if the rated load
capacity of the generator has been exceeded.
- Make sure that the electrical rating of the tool or appliance does not exceed
GASOLINE GENERATOR
8
that of the generator. Never exceed the maximum power rating of the
generator. Power levels between rated and maximum may be used for
no more than 30 minutes.
NOTICE:
Substantial overloading will open the circuit breaker. Exceeding the time
limit for maximum power operation or slightly overloading the generator
may not switch the circuit breaker OFF, but will shorten the service life
of the generator.

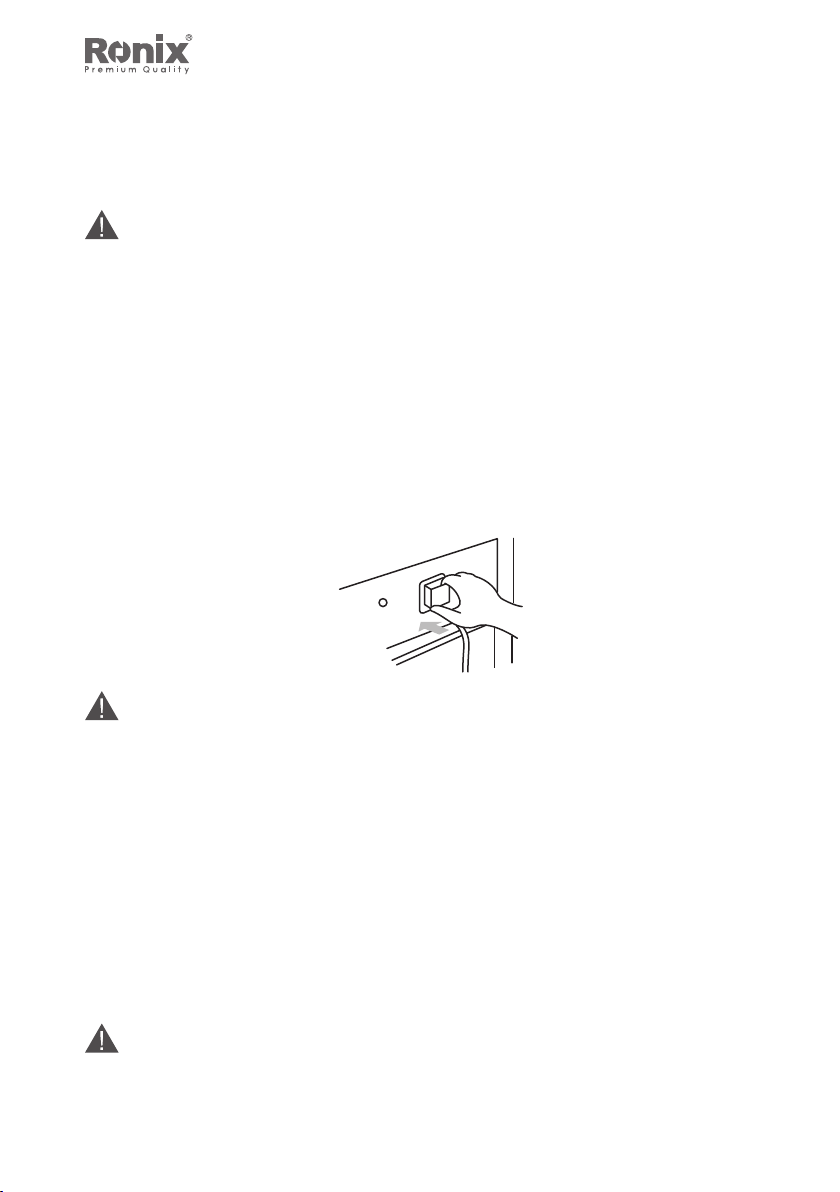

AC OPERATION
1- Start the engine
2- Switch ON the AC circuit breaker.
3- Plug in the appliance.
NOTICE:
-Most motorized appliances require more that rated wattage for startup.
Do not exceed the current limit specied for any one receptacle. If an
overloaded circuit causes the AC circuit breaker to switch OFF, reduce
the electrical load on the circuit, wait a few minutes and then reset the
circuit breaker.
PRE-OPERATION CHECK
.ENGINE OIL
NOTICE:
Engine oil is a major factor affecting engine performance and service
USER MANUAL 9
life. Non-detergent and 2-stroke engine oils will damage the engine and
are not recommended.
-20 0 20 40 60 80 100�
-20 -10 0 10 20 30 40�
F
C
30
10W - 30
5W - 30
SAE Viscosity Grades
Ambient Temperature
Check the oil level BEFORE EACH USE with the generator on a level
surface and the engine stopped.
Use 4-stroke motor oil that meets or exceeds the requirements for API
service classication SJ. Always check the API SERVICE label on the
oil container to be sure it includes the letters SJ.
SAE 10W-30 is recommended for general, all-temperature use.
Other viscosities shown in the chart may be used when the average
temperature in your area is within the indicated range.
PRE-OPERATION CHECK
1- Remove the oil ller cap and wipe the dipstick clean.
2- Check the oil level by inserting the dipstick into the ller neck without
screwing it in.
3- If the level is low, fill to the top of the oil filler neck with the
recommended oil.
Upper Level
