Rolls MP322 Manuel utilisateur
www.rolls.com
1.1
Hi-Fi Card Reade
r
User’s Guide &
Manual
Hi-FiCardReaderUser’sGuide&Manual
2
Index
Introduction..........................................................3
Main Features......................................................3
Precautions & Maintenance ........................4
Getting Started...................................................5
1. Power adapter................................................5
2. Hi-Fi connection............................................5
3. Speaker connection.................................... 6
4. Power On...........................................................7
5. Inserting Memory Cards...........................7
6. Location of Controls...................................9
6.1 Remote Control......................................... 10
7. Listening to MP3 music........................... 11
8. Audio Input.....................................................13
9. PC link and System requirements.....13
10. Bluetooth Functionality (Optional). 14
FCC Caution:.......................................................19
Hi-FiCardReaderUser’sGuide&Manual
3
Introduction
Congratulations on your purchase of this Hi-Fi Card reader.
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
This Hi-Fi Card reader allows you to listen to MP3 music
with your home Hi-Fi or PC speakers directly from your
USB Flash drives or SD/MMC memory cards. This Hi-Fi
Card reader is compatible with USB 1.1/2.0 Flash drive, SD
memory cards and Multimedia Card with MP3 music.
Main Features
zPlay MP3 music with your Hi-Fi Stereo system or PC
speakers
zSimply insert a compatible USB Flash drive or memory
card into the card reader to play MP3 music
zCompatible Memory cards include USB 1.1 / 2.0 Flash
drive, Secure digital (SD) and Multimedia (MMC)cards
zDownload MP3 music from PC to SD/MMC card via
the USB port
Hi-FiCardReaderUser’sGuide&Manual
4
Precautions & Maintenance
zThe Card Reader is for indoor use only.
zPlease do not listen to music at extremely loud level,
Exposure to loud noise for a prolong period of time
may be hazardous to your health.
zTo reduce the risk of fire or electric shock, do not
expose this unit to rain or moisture.
zDo not block the ventilation holes on the back of the
Card Reader at any time.
zKeep your Card Reader out of sunlight.
zDo not open the case of the Card Reader. This is a risk
of electric shock.
zOpening the case will void your warranty.
zFor safety issue , please be careful for the Lithium
Battery on the remote control
RISK OF EXPLOSION IF BATTERY IS REPLACED
WITH AN INCORRECT TYPE.
Hi-FiCardReaderUser’sGuide&Manual
5
Getting Started
1. Power adapter
Plug the power adapter into an electrical outlet. Only
use the adapter that comes with the unit.

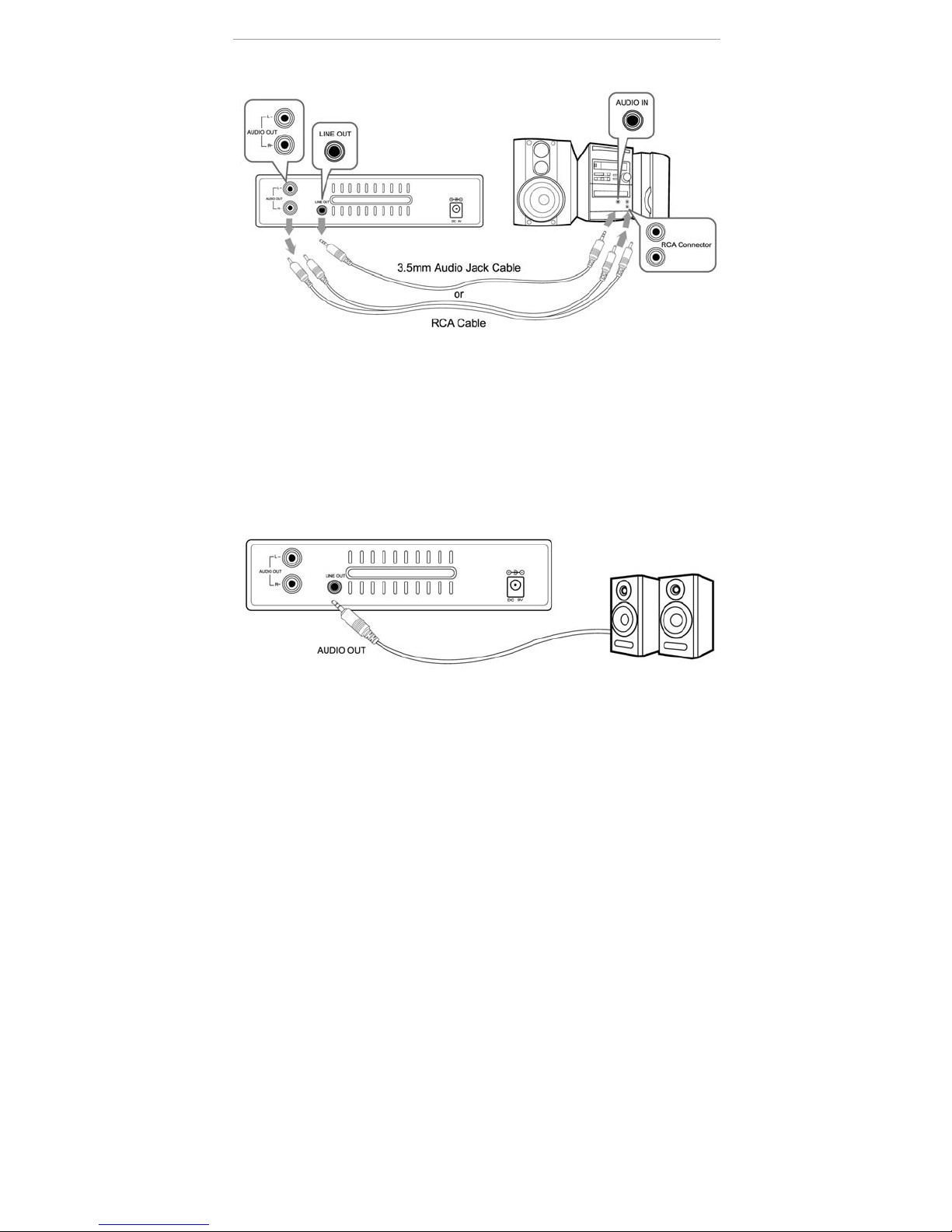

2. Hi-Fi connection
Use the supplied RCA cable to connect the card reader
to a Hi-Fi RCA jack. Alternatively you may also use the
3.5 mm audio jack cable to connect the card reader to
your Hi-Fi Audio-in jack
(Turn off both the card reader and the Hi-Fi before you
Hi-FiCardReaderUser’sGuide&Manual
6
proceed with the line connection).
3. Speaker connection
Connect speakers to the RCA jack or 3.5mm audio-out
jack on the back side of the Card Reader.
Hi-FiCardReaderUser’sGuide&Manual
7
4. Power On
Turn on the Card Reader by pressing the power button
on the upper right corner.
5. Inserting Memory Cards
The Card Reader is compatible with the following
Memory cards:
zUSB Flash drive 1.1 or 2.0 standard
zSecure digital TM (SD) Card
zMultimedia TM( MMC) Card
Insert the USB Flash drive and memory card with the
label facing top side.
Hi-FiCardReaderUser’sGuide&Manual
8
Note: The Card Reader will only recognize MP3 format
music files, digital music in other formats will be ignored
by the device.
Hi-FiCardReaderUser’sGuide&Manual
9
6. Location of Controls
Hi-FiCardReaderUser’sGuide&Manual
10
6.1 Remote Control
