SERVICE NOTES

Issued by RJA

of Roland Corporation.

CC-KWS17058699E0

Oct. 2010 CUBE-40XL

Table of Contents

Cautionary Notes ..............................................................2

Specifications .....................................................................3

Location of Controls .........................................................4

Location of Controls Parts List........................................4

Exploded View (Cabinet).................................................6

Exploded View (Cabinet) Parts List ...............................7

Exploded View (Chassis) .................................................8

Exploded View (Chassis) Parts List................................9

Wiring Diagram/Block Diagram..................................10

Parts List ...........................................................................12

Verifying the Version Number......................................15

Factory Reset....................................................................15

Test Mode .........................................................................15

Circuit Board (Main Board) ...........................................18

Circuit Diagram (Main Board: 1/3)..............................20

Circuit Diagram (Main Board: 2/3)..............................22

Circuit Diagram (Main Board: 3/3)..............................24

Circuit Board (Panel, Jack, Input, PS Board) ...............25

Circuit Diagram (Panel Board)......................................26

Circuit Diagram (Jack Board) ........................................28

Circuit Diagram (Input Board)......................................29

Circuit Diagram (PS Board) ...........................................29

Oct. 2010 CUBE-40XL

Cautionary Notes

Before beginning the procedure, please read

through this document. The matters described may

differ according to the model.

No User Data

This product cannot save user data. Backing up user data during servicing is

not required.

Part Replacement

When replacing components near the power-supply circuit or a heat-

generating circuit (such as a circuit provided with a heat sink or including a

cement resistor), carry out the procedure according to the instructions with

respect to the part number, direction, and attachment position (mounting so as

to leave an air gap between the component and the circuit board, etc.).

Parts List

A component whose part code is ******** will not be supplied as a service part

because one of the following reasons applies.

• Because it is supplied as an assembled part (under a different part code).

• Because a number of circuit boards are grouped together and supplied as

a single circuit board (under a different part code).

• Because supply is prohibited due to copyright restrictions.

• Because reissuance is restricted.

• Because the part is made to order (at current market price).

• Because it is carried in electronic data on the Roland web site.

• Because it is a package or an accessory irrelevant to the function

maintenance of the main body.

• Because it can be replaced with an article on the market. (battery or etc.)

Circuit Diagram

In the circuit diagram, “NIU” is an abbreviation for “Not in Use,” and

“UnPop” is an abbreviation for “Unpopulated.” They both mean non-mounted

components. The circuit board and circuit board diagram show silk-screened

indications, but no components are mounted.

Oct. 2010 CUBE-40XL

Specifications

CUBE-40XL:Guitar Amplifier

Rated Power Output

40 W

Nominal Input Level

INPUT: -10 dBu/1 MΩ

AUX IN: -10 dBu

Speaker

25 cm (10 inches)

Controls

POWER Switch

SELECT Switch

TUNER Switch

POWER SQUEEZER Switch

VOLUME Knob

TYPE Switch (ACOUSTIC SIM, BLACK PANEL, BRIT COMBO,

TWEED, CLASSIC STACK, METAL STACK, R-FIER STACK,

EXTREME, DYNA AMP)

GAIN Knob

VOLUME Knob

<SOLO>

ON/OFF, MEMORY Switch

VOLUME Knob

BASS Knob

MIDDLE Knob

TREBLE Knob

<EFX>

EFX Knob (CHORUS, FLANGER, PHASER, TREMOLO,

HEAVY OCTAVE)

REC/PLAY/DUB Switch

TAP/STOP Switch

DELAY/LOOPER Knob (DELAY, LOOPER)

REVERB Knob (SPRING, PLATE)

Indicators

JC CLEAN Channel, LEAD Channel, TUNER, SOLO, EFX, DELAY/LOOPER,

REC/PLAY/DUB, REVERB, POWER SQUEEZER

Connectors

INPUT Jack (1/4” phone type)

AUX IN Jack (Stereo miniature phone type)

RECORDING OUT/PHONES Jack (Stereo 1/4” phone type)

FOOT SW Jack (TIP:SELECT, RING:SOLO) (1/4” TRS phone type)

FOOT SW Jack (TIP:EFX, RING:REVERB) (1/4” TRS phone type)

FOOT SW Jack (TIP:DELAY/REC/PLAY/DUB, RING:TAP/STOP) (1/4” TRS

phone type)

Power Consumption

43 W

Dimensions

385 (W) x 265 (D) x 385 (H) mm

15-3/16 (W) x 10-7/16 (D) x 15-3/16 (H) inches

Weight

10 kg / 22 lbs 1 oz

Accessory

Owner’s Manual Multilanguage (#5100016039), Chinese (#5100016323)

Options

Foot Switch (BOSS FS-5L, FS-5U, FS-6)

* 0 dBu = 0.775 Vrms

* Printed matters will not be supplied after the end of the production. Then,

download the electronic file from the Roland web site.

* In the interest of product improvement, the specifications and/or appearance of

this unit are subject to change without prior notice.

Oct. 2010 CUBE-40XL

Location of Controls

fig.panel-40XL.eps

Location of Controls Parts List

9 116 8 5 8

11 12

No. Part Code Part Name Description Q’ty

1 5100004182 POTENTIOMETER RD901F-40E1-15F-0B10K-00DN6 10

* This unit includes the following parts.

17048630 VR ACCESSORY NUT M9 10

40452178 VR WASHER M9 10

1 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 10

2 03349978 LED (RED) L-34HDSL-FPB 6

3 5100004353 KEYTOP 40285-501(SD000906) 1

05011067 LED L-3WEGW (153-L-3WEGW) 1

01780101 TACT SWITCH SKQKABD010 1

4 5100004353 KEYTOP 40285-501(SD000906) 1

01780101 TACT SWITCH SKQKABD010 1

5 5100004353 KEYTOP 40285-501(SD000906) 2

5100003359 LED BL L-34ID (153-L-34IDSLLF) 2

01780101 TACT SWITCH SKQKABD010 2

6 22150756 JACK NUT 2 PLASTIC/BLK 1

13449146 6.5MM JACK YKB21-5012 (W/SW) 1

7 03349989 LED (GREEN) L-34GDSL-FPB 1

8 5100015020 S-KEYTOP SX BLK 2

01780101 TACT SWITCH SKQKABD010 2

9 5100016162 ROTARY POTENTIOMETER RD901F-40-15F-B10K-09DW6 1

* This unit includes the following parts. 1

H5039521R0 NUT M7 1

17048651 VR ACCESSORY WASHER M7 M7X12X0.5 NO.476 1

9 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 1

10 02897801 SEESAW SWITCH SDDJE13200 94V-0 1

11 22150756 JACK NUT 2 PLASTIC/BLK 4

13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 4

12 05019512 3.5MM JACK 203-HTJ03509ABT 1

Oct. 2010 CUBE-40XL

Exploded View (Cabinet)

fig.bunkaizu.eps

* Remove screws h and j first, then Chassis Assy can be removed.

Oct. 2010 CUBE-40XL

Exploded View (Cabinet) Parts List

No. Parts Code Parts Name Description Q’ty

1 5100015008 GRILLE 1

2 SD000017 BADGE 1

3 SD000035 HANDLE WITH ESCUTHEON 1

* This unit includes the following parts.

5100011381 HANDLE 1

5100011382 HANDLE PLATE 1

5100011383 HANDLE HOLDER 2

5100015546 CABINET ASSY 1

* This unit includes the following parts.

4 5100015011 CORNER PROTECTOR 4

5 5100015013 TRIM SASH 1

6 12359104 RUBBER FOOT G-5R 4

8 ******** CABINET 1

7 5100015948 SPEAKER W1008-432A 1

9 ******** CHASSIS ASSY Refer to Exploded View (Chassis) (p. 8). 1

a SD000975 SCREW M4X35 ORIGINAL TRUSS BZC 4

b SD000430 PLANE WASHER D11 D4.1 T1 BLACK/323-BG-405LF 4

c 40230789 SCREW 3X10 OVAL MACHINE BZC 2

d 40011689 SPEED NUT M3 F-TYPE 2

e 40010667 SCREW 4X16 TRUSS TAPPING A FE BZC 24

f 40010367 SCREW M4X25 BINDING MACHINE BZC 4

g SD000370 PLATE WASHER 4.2X10X0.5T FEBC 4

h 40564601 SCREW M5X35 OVALHEAD MACHINE BZC 2

i 5100005098 SCREW 3X16 TRUSS TAPPING A BZC 4

j 40010689 SCREW 4X25 TRUSS TAPPING A FE BZC 8

Oct. 2010 CUBE-40XL

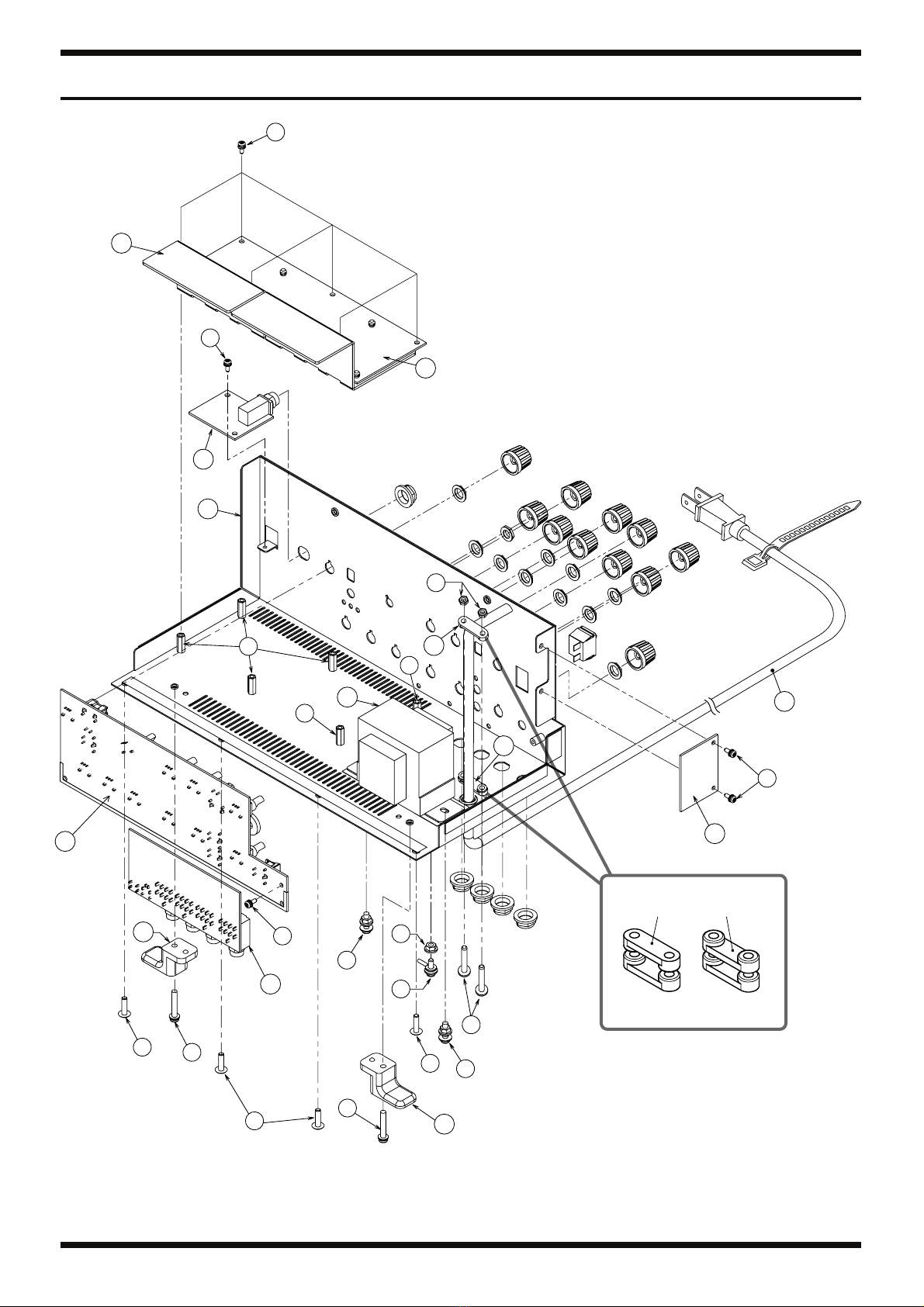

Exploded View (Chassis)

fig.chassis-e.eps

100V, 117VU,

117VU/CS

This part faces different side

according to the voltage.

others

Oct. 2010 CUBE-40XL

Exploded View (Chassis) Parts List

* Sandwich an Insulating Sheet (#5100015947) between the Heatsink (#5100015021) and Power IC.

* Apply bond to the Heatsink. (#40231345 KONISHI BOND CYEREX100)

No. Parts Code Parts Name Description Q’ty

2 5100014936 MAIN BOARD ASSY 1

* This unit includes the following parts.

1 5100015021 HEATSINK 2

3 5100015016 CHASSIS 1

5100016067 PANEL SHEET ASSY 100/117V 1

* This unit includes the following parts.

4 ******** Input Board 1

5 ******** Panel Board 1

6 ******** Jack Board 1

10 ******** PS Board 1

7 5100004359 CORD HOOK 2

8 5100016080 POWER TRANSFORMER PT-AP018 100/117V 1

5100016081 POWER TRANSFORMER PT-AP018 230/240V 1

9 12369410 CORD BAND 1702B (except for 220VCN) 2

5100010992 CORD COVER 40285-021 (for 220VCN) 1

11 SD000177 AC CORD PSE SP-18A WITH TERMINAL 100V 1

SD000912 AC CORD ASSY SP-20 117V(2P) 1

5100012741 AC CORD 181-BG429-BL 117VBL 2.5M

SD000913 AC CORD ASSY SP-026A 230V(2P) 1

SD000914 AC CORD ASSY SP-61 230VE(2P) 1

SD000915 AC CORD ASSY SP-501 240V(2P) 1

SD001068 AC CORD ASSY SP-18B 115V(2P) 1

5100005807 AC CORD ASSY 181-BG429-CNLF-220VCN 2.5M 1

a 40013067 SCREW M3X8 PAN MACHINE W/SW+SMALL PW ZC 10

b 40565489 SCREW M4X25(302-P8402551LF) PAN MACHINE W/SW BZC 2

c 40010689 SCREW 4X25 TRUSS TAPPING A FE BZC 4

d 40011767 FLANGE HEX NUT M4 FE ZC 1

e 40011889 EXTERNAL TOOTH WASHER M4 FECM 1

40230245 SCREW M4X12 PAN MACHINE W/SW+PW BZC 1

f 40011767 FLANGE HEX NUT M4 FE ZC 2

5100017646 SPRING WASHER 4.1X7.6X1.0 ZC 2

40230245 SCREW M4X12 PAN MACHINE W/SW+PW BZC 2

g 40010301 SCREW M3X20 BINDING MACHINE BZC 2

h 40011756 FLANGE HEX NUT M3 ZC (except for 220VCN) 2

i 22150518 STANDOFF HEX.BOSS 5.5X15 M3 6

Oct. 2010 CUBE-40XL

Wiring Diagram/Block Diagram

fig.wiring-block-40XL.eps@L

AD/DA

CPU/DSP

POW

+V1, -V1, +V2, -V

LED

PANEL BOARD

INPUT BOARD

IC11B

IC9A

IC7 IC10A

IC5

CN3

CN201CN200 CN500

CN6

JK500

YKB21-5012

MAIN BOARD

CN2

TUBE LOGIC

CIRCUIT

IC9B

IC10B

SDRAM

IC3

EEPROM

IC2

EEPROM

IC6

IC200

BU2090

IC201

TC74HC

4051AP(F)

◊11

◊6

◊7

◊4

(PROGRAM)

(USER)

No. Part Code Part Name Description Q’ty

W1 5100015676 WIRING 192-AP018-W1 1

W2 5100015938 WIRING 195-BG431-W3 1

W3 5100017216 WIRING 192-AP018-W3 1

W4 5100017217 WIRING 192-AP018-W4 1

W5 5100015939 WIRING 195-BG431-W5 2

W6 5100015937 WIRING 196-BG432-W6 1

W7 5100015934 WIRING 196-BG432-W7 1

W8 5100015935 WIRING 196-BG431-W8 1

W9 5100015936 WIRING 195-BG431-W4 1

Autres manuels pour CUBE-40XL

Table des matières

Autres manuels Roland Synthétiseur

Roland

Roland Lucina AX-09 Manuel utilisateur

Roland

Roland D-50 Manuel utilisateur

Roland

Roland SH-2 Manuel d'utilisation et d'entretien

Roland

Roland JV-1010 Manuel d'utilisation et d'entretien

Roland

Roland E-36 Manuel utilisateur

Roland

Roland D-20 Manuel utilisateur

Roland

Roland RODGERS Manuel utilisateur

Roland

Roland AX-EDGE Manuel

Roland

Roland RS-50 Manuel technique

Roland

Roland Jupiter-6 Manuel utilisateur

Roland

Roland Jupiter-50 Instructions et recettes

Roland

Roland GR-30 Manuel utilisateur

Roland

Roland SH-1 Manuel utilisateur

Roland

Roland HS-80 Manuel utilisateur

Roland

Roland JX-305 Manuel utilisateur

Roland

Roland SH-101 Manuel utilisateur

Roland

Roland JX-3P Manuel utilisateur

Roland

Roland MKS-30 Manuel d'utilisation et d'entretien

Roland

Roland MC-303 Groovebox Manuel utilisateur

Roland

Roland GR-20 Manuel utilisateur

Roland

Roland JUNO-G Manuel utilisateur

Roland

Roland JD-XA Manuel utilisateur

Roland

Roland JD-800 Manuel utilisateur

Roland

Roland SH-7 Manuel utilisateur

Manuels Synthétiseur populaires d'autres marques

Kawai

Kawai MP7 Manuel technique

Joranalogue

Joranalogue Contour 1 Manuel utilisateur

Full Bucket Music

Full Bucket Music Mono/Fury Manuel utilisateur

Kawai

Kawai PH50 Manuel utilisateur

IK Multimedia

IK Multimedia UNO Synth PRO X Manuel utilisateur

Behringer

Behringer DEEPMIND 12 Manuel utilisateur

Gotharman

Gotharman Gotharman's anAmoNo-box Manuel utilisateur

Yamaha

Yamaha DX21 Manuel utilisateur

QuStream

QuStream HDFS-550 Manuel utilisateur

Modal Electronics

Modal Electronics ARGON8 Manuel utilisateur

Octave

Octave Cat SRM Manuel utilisateur

Dreadbox

Dreadbox Murmux Initiate Manuel utilisateur

neutral labs

neutral labs ELMYRA 2 Manuel utilisateur

Waldorf

Waldorf KYRA Manuel utilisateur

Tubbutec

Tubbutec Juno-66 Manuel utilisateur

EFM

EFM VCADSR - 3510 Manuel utilisateur

Yamaha

Yamaha MOTIF XF Manuel utilisateur

Korg

Korg Poly-800 Manuel utilisateur
