Roland GS-10 Feuille d'instructions

Read This First

Thank you and congratulations for selecting the BOSS GS-10 Guitar Effects System with USB Audio Interface.

This package contains accessories allowing you to connect the GS-10 to your computer using USB to get even more out of the

GS-10’s great features.

In order to achieve a full understanding of the GS-10’s superior functions and capabilities, be sure to read this material before

using the GS-10.

Package Contents

■

GS-10

■

AC Adaptor

To avoid damaging your equipment, use only a BOSS

BRC Series adaptor.

■

USB Cable

Use this to connect the GS-10 with your computer.

To transfer data between the GS-10 and your computer

using software such as GS-10 Editor, you must first

install the USB drivers.

■

GS-10 Owner’s Manual

This volume describes the GS-10’s functions and

explains how to operate the unit. Keep this manual at

hand so that you can refer to it whenever needed.

■

GS-10 Software CD-ROM

This contains special software for use when the GS-10 is

connected to a computer. The CD-ROM includes

software for Windows and Macintosh operating systems.

Before you install and setup the software, please read the

section “About the GS-10 Software” in this leaflet.

GS-10 Drivers

These ASIO/WDM-compatible GS-10 drivers are for use

when the GS-10 is connected to a computer via USB.

In addition to handling 24-bit digital audio signals, these

also allow simultaneous reception and transmission of

MIDI messages.

They are also used for communication by GS-10 Editor

and Librarian.

GS-10 Editor

This software allows you to edit the GS-10’s settings

from a computer. You can save the tone settings

(patches) you create as files on the computer.

GS-10 Librarian

This software lets you manage all of the GS-10’s patches

from your computer.

■

Service Information Sheet

■

Cakewalk Music Creator Manual

This provides instructions on installing, setting, and

operating Music Creator.

Cakewalk Software License Agreement

The Cakewalk Software License Agreement is found at

the end of the “Getting Started.”

The Cakewalk Software License Agreement is a contract

licensing the use of Music Creator.

This agreement licenses the user to use software

copyrighted by Twelve Tone Systems, Inc. of the United

States.

Be sure to read this agreement before opening the CD-

ROM package.

■

Cakewalk Music Creator CD-ROM

Cakewalk Music Creator is an authentic yet easy-to-use

music creation software application (for Windows only).

You can use it to record, edit, and play back both audio

and MIDI data, allowing you to create music using the

GS-10’s functions.

Read This First

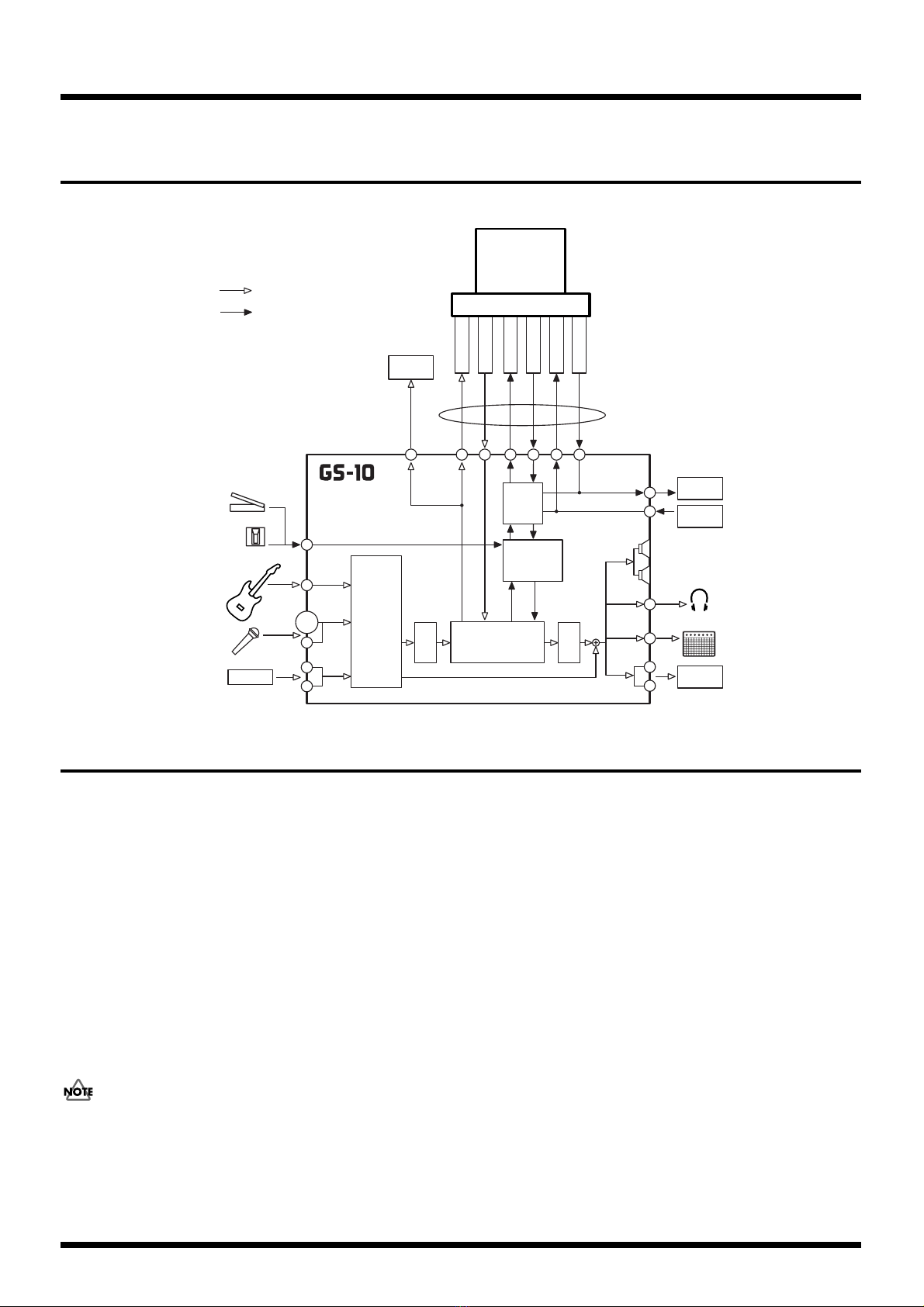

Signal Flow

The following shows an example with devices connected to the GS-10 and the signal flow among the devices.

Precautions concerning use of the GS-10

The following are points to which you should pay particular attention when using the GS-10. Also make sure to read the related

items in the Owner’s Manual.

■

Switching Input Signals (INPUT SELECT)

With the GS-10, you can switch input for each patch allowing you to use guitar, as well as using bass, microphone, USB, and

AUX inputs.

When the device you are actually connecting to the GS-10 differs with the settings made here, the sound may not be output,

or the effect you intended may not be produced. Make sure that the devices used are configured correctly.

■

Switching Output Signals (DIRECT MONITOR)

When playing sounds through the speakers or headphones while recording using USB, you can select whether to have the

GS-10’s effect signals output directly, or to output the monitor signals from the application being used for recording (Owner’s

Manual; p. 79).

You can also work with these settings from an ASIO-compatible application (Owner’s Manual; p. 79, p. 128).

Note that turning off this setting will stop the sounds from being output when the application is not recording or if its settings

are not correctly made.

■

When Using Mic Input or AUX Input

Setting the mic input gain, the AUX input level, or parameters related to effect volume settings excessively high may result in

unwanted oscillation. In such instances, lower the mic gain or volume level settings to suitable values.

MIDI OUT

MIDI IN

CONTROL OUT

CONTROL IN

GS-10 OUT

GS-10 IN

CONTROL

MULTI EFFECTS

A/D D/A

USB

INPUT

SELECT

MIDI

SELECT

Computer

EXP/CTL 1, 2

GUITAR/

BASS

MIC

INPUT

AUX

INPUT

Foot Switch

Expression Pedal

Guitar/Bass

Mic

CD/MD

Sound

Module

Sequencer

Mixer etc.

Speaker

MIDI OUT

MIDI IN

PHONES

OUTPUT

GUITAR

AMP OUT

Headphones

Guitar Amp

Recorder

etc.

DIGITAL

OUT

Audio signal

Control or MIDI signal

Read This First

About the GS-10 Software

■

Installing and Setting up the GS-10 Software

Follow the steps below to install and set up the software.

Install the GS-10 drivers.

Be sure to read “Installing & Setup the USB Driver” in the GS-10 Owner’s Manual (p. 91).

When Using Mac OS 8/9

Either OMS or FreeMIDI must be installed prior to installation of the drivers.

Install and set up GS-10 Editor and Librarian.

Please read the Readme file in the Editor folder on the GS-10 Software CD-ROM.

Follow the steps below to start the Installer (setup program).

After starting the Installer, follow the instructions in the dialog boxes to install and set up the software.

Windows users

3-1.

Insert the CD-ROM into the CD-ROM drive of your computer.

3-2.

Click the Windows start button. From the menu that appears, select “Run...”.

Open the “Run...” dialog box.

3-3.

In the dialog box that appears, input the following into the “Open” field, and click [OK].

D:\EDITOR\SETUP.EXE

The Installer starts.

* The drive name may be different for your system. Specify the drive name of your CD-ROM drive.

Mac OS users

3-1.

Insert the CD-ROM into the CD-ROM drive of your computer.

3-2.

Double-click the “GS-10 Editor Installer” icon (found in the GS-10 Editor Installer E of the CD-ROM) to start up the

installer.

The Installer starts.

■

Upgrading

Upgraded versions of the GS-10 drivers or of GS-10 Editor or Librarian may be released to add features or to enhance

functioning when changes are made to the operating system. For the latest information and downloads, check the following

web page.

http://www.roland.co.jp/

About Cakewalk Music Creator

Please note the following points in regard to the Music Creator software included with the GS-10.

●

With digital audio, only 16-bit is supported. The GS-10’s 24-bit data is converted to 16-bit.

●

MIDI Clock is not transmitted. In addition, you cannot synchronize the GS-10 to the performance tempo.

●

The remote control settings (GS-10 Owner’s Manual; p. 75) cannot be used.

Read This First

GS-10 Software System Requirements

* Although BOSS has tested numerous configurations, and has determined that on average, a computer system similar to that described

above will permit normal operation of the GS-10, BOSS cannot guarantee that a given computer can be used satisfactorily with the GS-10

based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the

processing environment, including differences in motherboard design and the particular combination of other devices involved.

■

Windows

Operating System:

Microsoft® Windows® XP Professional / XP Home /

2000 Professional / Me / 98SE / 98

Computer:

Windows® -compatible personal computer equipped

with a USB port

CPU/Clock:

Pentium®, Celeron®, Intel-compatible Processor /

600 MHz or Higher

* Not compatible with the Crusoe CPU from Transmeta.

USB Chipset:

Intel’s USB chipset is recommended

* VIA USB chipsets - The CPU must be 1 GHz or higher.

Memory (RAM):

128 MB or more

Hard disk:

400 MB or more of free space

Display resolution/Colors:

800 x 600 pixels or higher/65,535 colors (High Color 16

bit) or more

■

Macintosh

Operating System:

MacOS 8.6 and 9.x

MacOS X

* MacOS 9.0.4 or later is required when using

SoundManager compatible applications.

Computer:

Apple USB Ready Macintosh

CPU/Clock:

PowerPC G3 / 400 MHz or higher

Memory (RAM):

256 MB or more

Hard disk:

200 MB or more of free space

Display resolution/Colors:

800 x 600 pixels or higher/65,535 colors (High Color 16

bit) or more

* Requires OMS 2.3.5 or later, Or requires FreeMIDI 1.35 or

later.

204

* Microsoft and Windows are registered trademarks of Microsoft Corporation.

206j

* Windows® is known officially as: “Microsoft® Windows® operating system.”

207

* Apple and Macintosh are registered trademark of Apple Computer, Inc.

209

* MacOS is a trademark of Apple Computer, Inc.

220

* All product names mentioned in this document are trademarks or registered trademarks of their respective owners.

231

* OMS is a registered trademark of Opcode Systems, Inc.

232

* FreeMIDI is a trademark of Mark of the Unicorn, Inc.

03456512 ’04-2-3N
