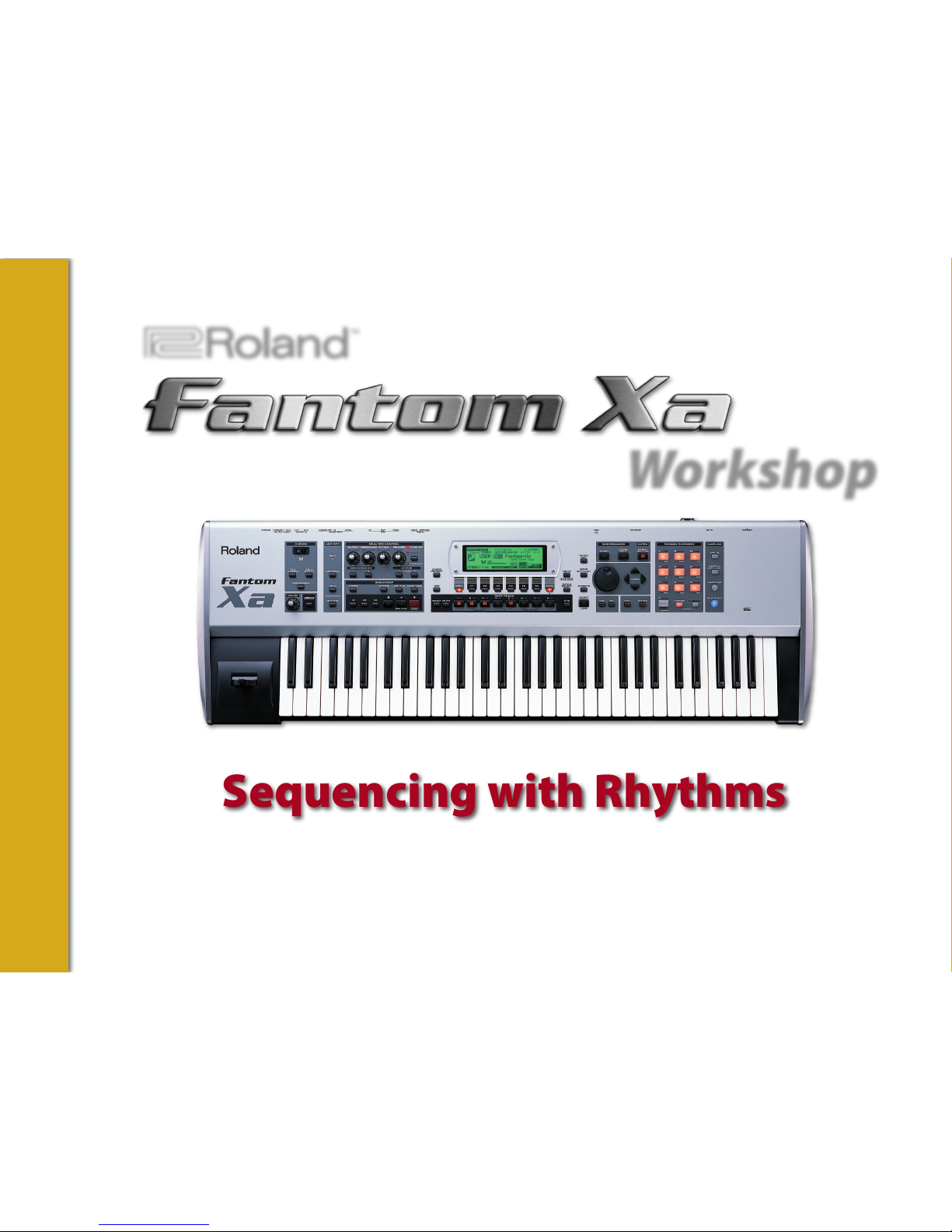

Roland Fantom-Xa Manuel du propriétaire

Sequencing with Rhythms

®ÂØÒÅˆÎ™

Workshop

any form without the written permission of Roland Corporation U.S.

About the Fantom-Xa Workshop Series

Roland’s Fantom-Xa workstation keyboard provides lots of

creative power at an affordable price. It shares many of the

features of its more expensive siblings—the Fantom X6, X7,

and X8—including killer sounds, 128-note polyphony, a full-

featured 16-track sequencer, sampling capabilities, and so

much more.

The Fantom-Xa Workshop Series booklets discuss some of

the things you can do with your Fantom-Xa. Each booklet

focuses on one topic, and is intended as a companion to your

Fantom-Xa Owner’s Manual.

About This Booklet

The Fantom-Xa’s full-featured drum machine contains rhythms

that are designed for songwriting—it’s only natural that you’ll

want to use them in your Fantom-Xa sequences.

This booklet discusses playing rhythms and explains how to

lock your rhythms to the Fantom-Xa sequencer’s beat.

Understanding the Symbols in This Booklet

Throughout this booklet, you’ll come across information that

deserves special attention—that’s the reason it’s labeled with

one of the following symbols.

A note is something that adds information about the topic at hand.

A tip offers suggestions for using the feature being discussed.

Warnings contain important information that can help you avoid possible

damage to your equipment, your data, or yourself.

Rhythm Patterns

The Fantom-Xa’s built-in drum beats are called “rhythm

patterns,” or “rhythms” for short. The Fantom-Xa has 256 preset

rhythms covering a large variety of musical styles, and 256

user locations for storing your own rhythms.

To learn how to create your own rhythm patterns, see the Fantom-Xa

Owner’s Manual.

The TRIGGER/CATEGORY Pads

Each TRIGGER/CATEGORY pad acts as a

button that starts and stops the playback of

a rhythm.

The behavior of the pads depends on the

state of the TRIGGER button, and of the

RHYTHM button, over in ARP/RHY section of

the Fantom-Xa’s front panel.

When RHYTHM and TRIGGER are

lit, the pads are unlit and they play

rhythms.

When RHYTHM’s not lit, but

TRIGGER is, the pads light and they

play percussion notes.

You can also use the pads for the selection of patches, but we’re not

concerned about that in this booklet.

Playing a Rhythm

1. Press RHYTHM so it lights if it isn’t already lit.

2. Press TRIGGER so it lights if it isn’t already

lit.

3. Strike the desired pad—its rhythm begins

playing and its pad flashes.

The rhythm plays at the Fantom-Xa’s current Tempo setting. To learn about

changing the rhythm/song tempo, see the Fantom-Xa Owner’s Manual.

4. To stop a rhythm, strike its pad again. The rhythm stops

and its light goes out.

Mix ‘n Match Rhythms

You don’t have to wait until the end of one rhythm to start

playing of another one. This lets you throw together—and

record—bits and pieces of different rhythm patterns to

create your own rhythm arrangement on the fly.

When a rhythm is playing and you strike a new rhythm’s pad,

the Fantom-Xa immediately switches to the new rhythm

without missing a beat. You can do this as often as you like.

When you want the beat to stop, strike the last rhythm’s pad.

Telling the Pads What Rhythms to Play

A set of nine rhythm patterns is called a “rhythm group.” You

can set the pads to play the desired rhythms by selecting the

rhythm group to which they belong.

There are 32 preset rhythm groups and 32 user locations for

storing your own rhythm groups.

To learn how to create your own rhythm groups, see the Fantom-Xa Owner’s

Manual.

Each rhythm group is programmed to use a particular rhythm set, so when

you select a different rhythm group, you may also be selecting a new

rhythm set. You can edit a rhythm group to use the kit you want to use, as

described in the Fantom-Xa Owner’s Manual.

You can select a different rhythm group even when a rhythm is currently

playing.

Selecting a Rhythm Group

1. Hold down SHIFT and press RHYTHM to display the

RHYTHM GROUP screen.

2. Turn the VALUE dial to select the desired rhythm group.

3. Press the EXIT button.

In Patch mode, the Fantom-Xa remembers your most recent rhythm

group selection until you power off. In Performance mode, you can press

the WRITE button to store your rhythm group selection in the current

performance.

Sync or Swim

When you use a rhythm in a sequence, you’ll want to make sure

that the rhythm’s beat and the sequencer’s beat are absolutely

in sync with each other and that the rhythm’s measures line up

with the sequencer’s measures. This way, when you:

• start playback of the sequence—the rhythm starts, too.

• edit the sequence—the sequencer’s beats and measures

also apply to the rhythm as you edit.

Use the following procedure to perfectly line everything up.

Recording a Rhythm Into a Sequence

PlayStop RecordReset

If your Fantom-Xa is set to load the demo song at startup, you’ll have to

clear the song before recording one of your own—to do this, press SONG

EDIT↔LIST once or twice until “UTILITY” appears onscreen above F3. Then

press F3 (UTILITY), F2 (SONG CLEAR), and finally, F6 (EXEC).

You can record a rhythm—or mix ‘n match series of rhythms—

into a sequence as the sequence’s first track, or after you’ve

already recorded other tracks. The procedure is precisely the

same in either case.

We’ll record onto the sequence’s first track for our tutorial.

1. Press RHYTHM so it lights, and locate the rhythm you wish

to record by striking its pad to listen to the rhythm.

2. Press the rhythm’s pad again to turn off the rhythm.

3. Press the Reset button to move to the start of the song.

4. Press the SEQUENCER Record button to display the

Realtime Rec Standby screen.

If you’d like to record on a track other than Track 1, set the Rec Track

parameter to the desired track.

5. The key is the Count In parameter—set it to WAIT NOTE.

With this setting, the sequencer won’t begin recording

until the rhythm starts, and will place the rhythm’s first

note exactly on Beat 1.

Be careful not to play the keyboard before starting your first rhythm, since

any note the sequencer receives will cause it to start recording.

6. Play the pad that triggers the first rhythm you want to

use—recording starts.

7. If you’d like to record a series of rhythms, strike their pads

as desired.

8. When you’re done, press RHYTHM to turn off the drum

machine, and then press the SEQUENCER Stop button.

9. Press Reset and then Play to listen to your recording.

Do-Over

If you’re not satisfied with your recording, you can re-record it

in either of two ways. You can:

• press ERASE/UNDO—and when the Fantom-Xa asks if

you’re sure you want to undo your recording, press F6

(EXEC). You can then repeat the recording procedure.

• record it again—simply by using the same procedure with

one minor change: set the Realtime Rec Standby screen’s

Rec Mode parameter to REPLACE so each new attempt

replaces the previous one.

The End

We hope you’ve enjoyed this explanation of how to record

rhythms in the Fantom-Xa’s sequencer. The Fantom-Xa’s

rhythms can provide the perfect groove for most any type of

song, and, as you can see, they’re simple to record. Keep an eye

out for other Fantom-Xa Workshop booklets, all available for

downloading at www.RolandUS.com.

For the latest Fantom-Xa updates and support tools, visit the Roland U.S.

Web site at www.RolandUS.com. If you need personal assistance, call our

amazing Product Support team at 323-890-3745.
