5. From above the deck feed the knurled end of the hose #31 end through handset base
gently and connect hose to base of diverter block #14, ensure washer #13 is in place.
6. Connect handset to hose ensuring washer #35 is in place.
7. Install the counter weight #24 to hose #31 and secure with clips on weight. Check travel
and movement and reposition counter weight if necessary.
After Installation:
1. Test each side valve for leaks at each connection.
2. Test the faucet operation for leaks with the water running.
3. Access below the deck is required for handset hose.
Note: An access panel is recommended.
Recommended diverter operation:
The diverter is spring loaded and depends on pressure to stay engaged.
With the water running, pull the diverter up to fully engage the hand spray.
To use the tub filler again, turn the unit off and let the diverter re-set with no pressure.
Do not force the diverter back into position when the water is running. This action may
damage the diverter.
Care and Maintenance: After use, wipe down with a soft, dry cloth.
For all chrome plated surfaces clean this product with warm soapy water and then dry with a
dry soft cloth.
Nickel plated, satin and Inca brass finishes should be cleaned with a soft cloth and warm
water and then dried with a dry soft cloth.
Do not use cream cleaners or cleaning agents containing a corrosive acid or scouring agent
including: Softscrub, Comet, Ajax and Bonami, as these may damage the surface of the faucet.
Do not use any spray cleaners with ammonia or alcohol like Windex, 409 or Fantastik.
Any use of unsuitable cleaning agents causing damage to the surface will not be covered by
the warranty.
WARRANTY: Warranty is limited lifetime. See ROHL website for details
(www.rohlhome.com)
A basic in-line filter system is required for the house to protect any debris from entering the
water supply line to the house (i.e. due to construction or service work on the street
water main).
ROHL LLC 3 Parker, Irvine, CA 92618
714-557-1933 www.rohlhome.com
ROHL WELLSFORD 4 HOLE TUB FAUCET
WITH HANDSET
WE2311LMAPC, WE2311MPN, WE2311LMSTN
INSTALLATION INSTRUCTIONS
Please leave instructions with the home owner once installed.
SYSTEM REQUIREMENTS
To ensure the optimum performance and customer satisfaction, please adhere to the
following:
Flush out all pipe work prior to installation.
Maximum operating pressure 75psi
NOTE: Pressures over 75psi will require that the house have a pressure regulator installed
to limit the pressure below 75psi.
Maximum hot water temperature 145°F
If the water temperature exceeds 145°F an approved tempering valve must be fitted.
Maximum flow rate: 12 US gallons/minute at 60psi flow pressure.
Flow rate for tub filler is 12gpm at 60psi.
Hand shower flow rate is 2gpm.
Please follow local code guidelines for Asse 1016.
#41909 12/13
Installation note:
For servicing after installation,
install a service door near
the valves.
Installation Instructions
Flush out all pipework to remove any foreign material.
The hot supply should be fitted on the left when viewed from the front.
Installing Hot & Cold Side Valves and Trim: (2 x 1 5/16” cut-outs)

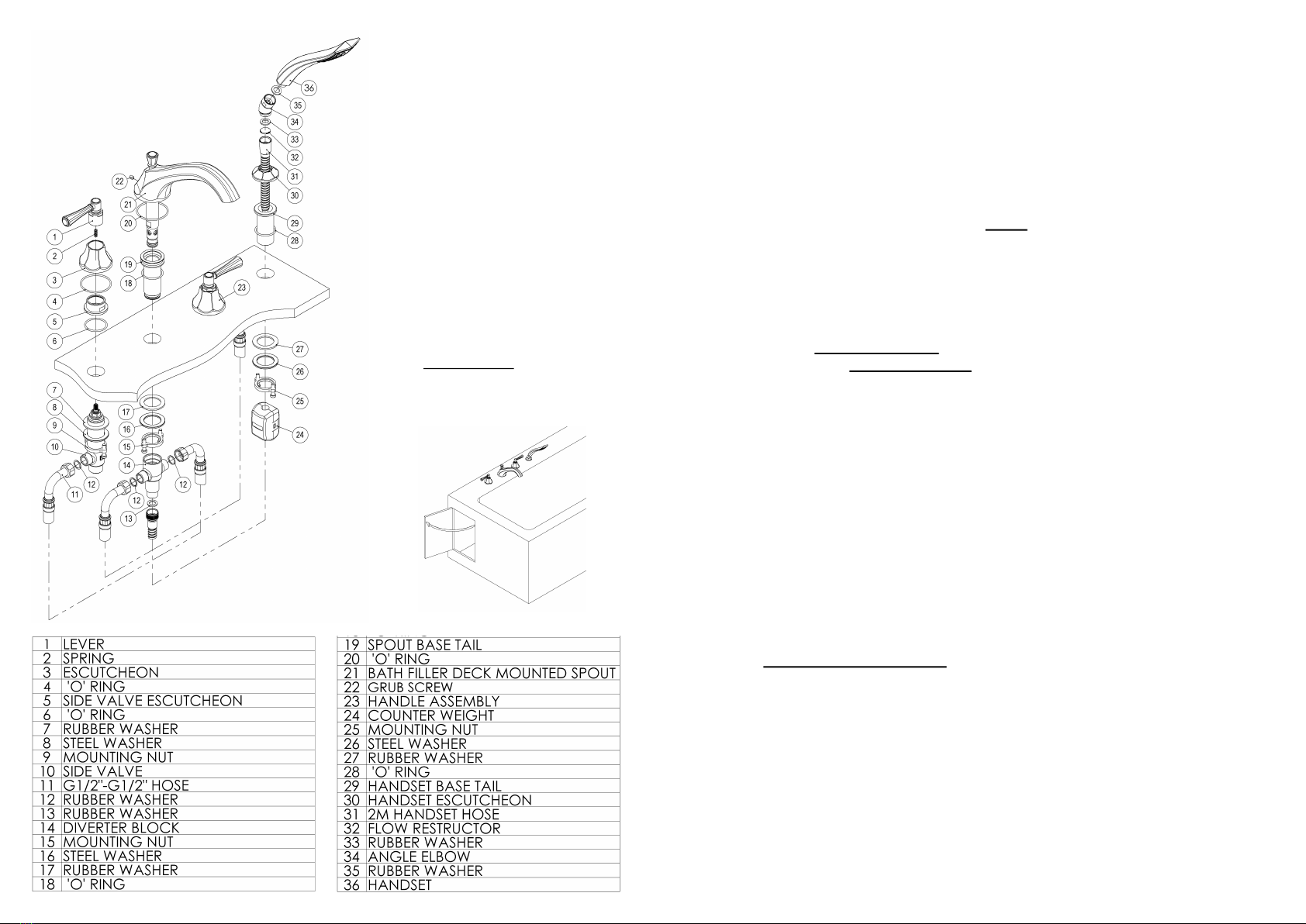

1. Remove trim parts #1 through #3.
a. Remove side valve escutcheon #5.
2. Install the side valve #10 from below the deck with the outlets facing outwards.
a. From the top of the deck install and tighten the side valve escutcheon #5 onto
side valve and ensure base o-ring seal #6 is in place.
b. Install the escutcheon #3.
i. Note: Escutcheon #3 has a pre-set height for fitting. Set the
escutcheon to the pre-set height.
ii. Set escutcheon square before installing the lever assembly.
c. Install lever #1, as shown.
i. Check the spring #2 is inside the lever.
ii. With downward pressure on the lever tighten the locking nut under
the lever.
d. Position the lever and escutcheon and tighten the jack screws #9.
Installing the Spout: (1 5/16” cut-out)
1. Remove diverter parts #14 through #17.
2. Install the spout complete with spout base tail #19 fitted into the bench top and ensure
base o-ring seals #18 is in place.
3. From below the deck.
a. Install mounting nut #15, steel washer #16 and rubber washer #17 and tighten
jack screws.
b. Hand tighten diverter block #14 to spout base tail #18.
4. Connect the hot (red) and cold (blue) flexi hoses #11 to side valves #10, ensure the
sealing washers #12 are in place.

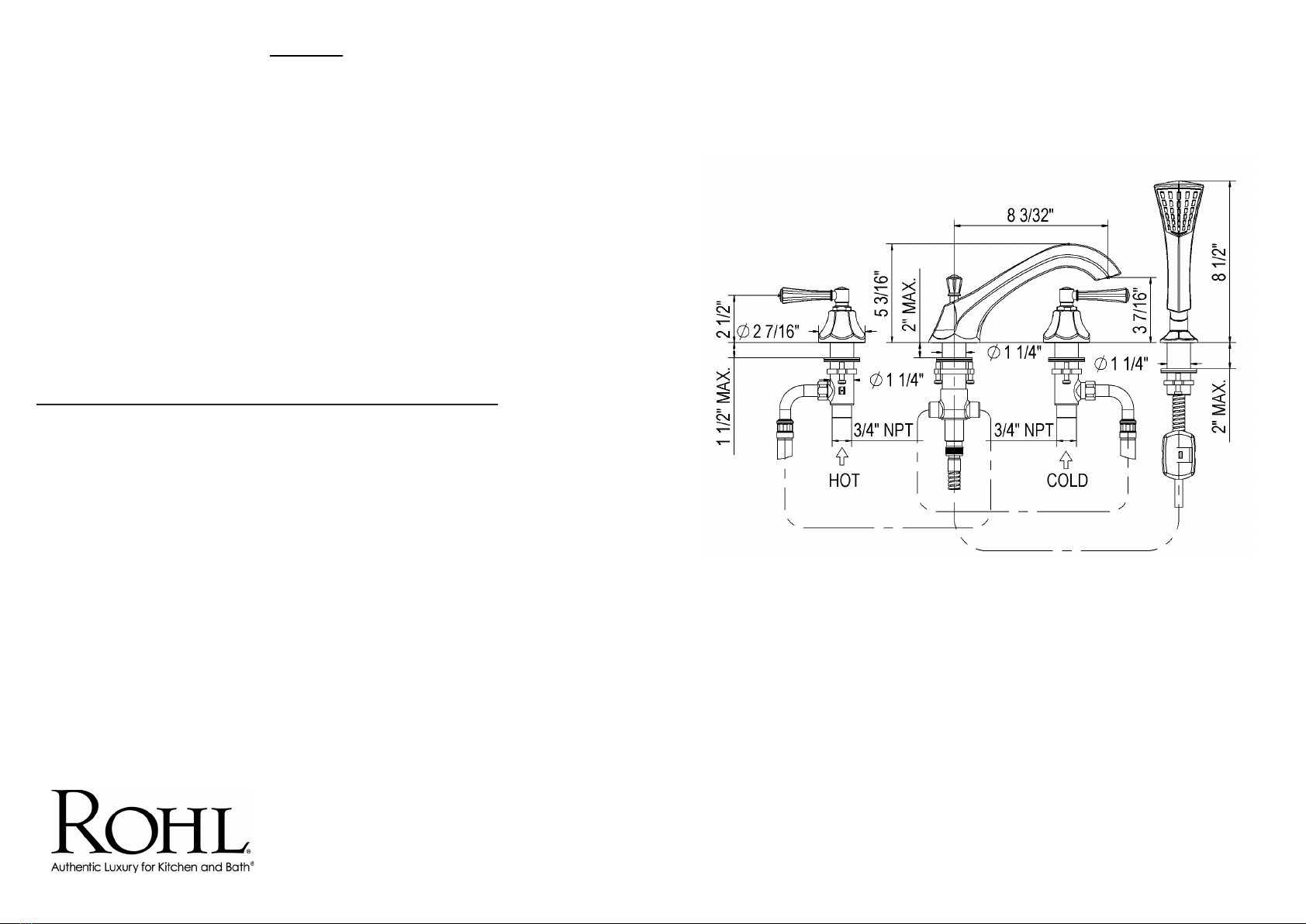

a. Note: The hoses can only be fitted one way to avoid kinks. (Refer to drawing.)
b. Turn the nut and not the hose. Twisting the hose may cause damage or
low flow.
Installing the Pull Out Handset: (1 x 1 5/16” cut-out)
1. Remove escutcheon #30 and parts #25 through #27.
2. Install the hand set base tail #29 from top of the deck and ensure base o-ring seal #28
is in place.
3. Install mounting nut #25, steel washer #26 and rubber washer #27 and tighten jack
screws.
4. Install the escutcheon #30.
